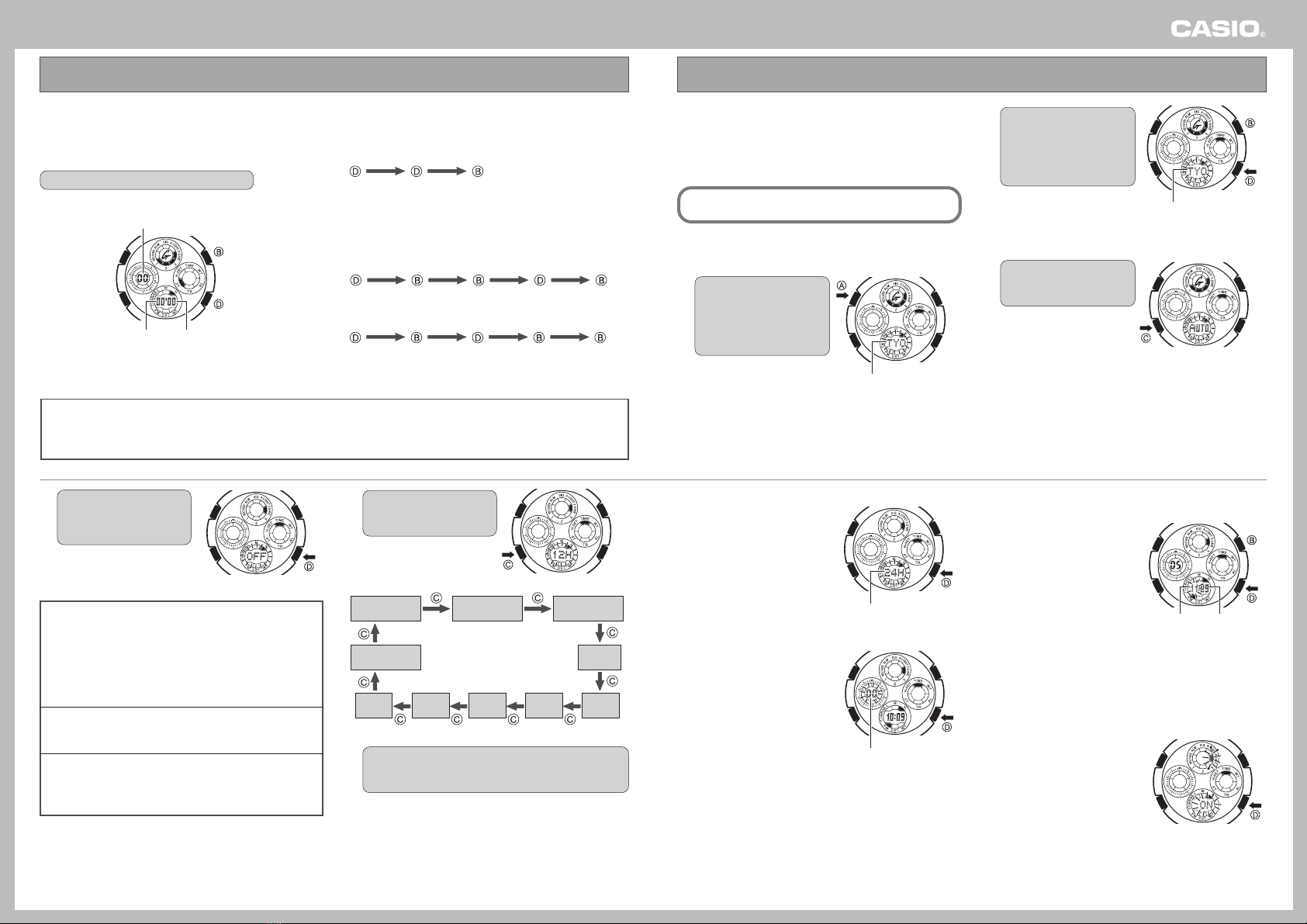

Operation Guide 3334
1
MA0404-EA
Power saving causes the watch to automatically enter a sleep state to save power whenever the watch is left in the dark. The Power
Saving feature of the watch is turned on at the factory.
•Note that the watch may also enter the sleep state if its face is blocked from light by your sleeve.
❚ How the sleep state works
There are actually two sleep state levels, a “display sleep state”
and a “function sleep state”.
•Display sleep state
The display sleep state is triggered whenever the watch is left in
the dark for about one hour between the hours of 10 p.m. and 6
a.m. The display sleep state causes the display to go blank.
•Alarms and the Hourly Time Signal continue to operate
normally while the watch is in the display sleep state.
Even when the watch is in the display sleep state, analog time
timekeeping and auto signal receive are both performed.
•The watch does not enter the display sleep state if it is in the
Timer Mode or Stopwatch Mode.
•Function sleep state
The function sleep state is triggered whenever the watch is left in
the dark for six or seven days.
•Alarms and the Hourly Time Signal are also disabled while the
watch is in the function sleep state.
Analog time timekeeping and auto signal receive are not
performed while the watch is in the function sleep state.
•Timekeeping functions continue to operate normally in the
function sleep state.
❚ To recover from the sleep mode
Place the watch in an area that is well-lit, press any button, or
angle the watch towards your face to illuminate the display using
the auto light.
•It can take up to two seconds before the display re-appears after
you place the watch in a well-lit area.
❚ To turn power saving on and off
See the procedure under “Manually Setting the Time and Date”.
Leaving the watch in a drawer or anywhere else it is dark can
cause the power saving mode to trigger in order to conserve
battery power.
Power Saving
Each press of the CC
CC
Cbutton sounds a confirmation tone and cycles through available modes in the sequence shown below.
•The watch will automatically revert to the Timekeeping Mode if you leave it in the Alarm Mode or Hand Setting Mode without performing any
operation for about two or three minutes.
Timekeeping Mode
• The segments around the seconds value in the left
dial turn on and off to indicate the seconds count.
• For information about the battery indicator, see
“Battery Indicator”. For information about the
receive icon and receive indicator, see “Receive
Icon and Indicator”.
Hand Setting Mode
PM Indicator (no indicator for AM) Month and Day
DaySeconds Day of the WeekDay of the Week
Hour and Minute SecondsSeconds
Graph Screen Mode Indicator
Receive Icon Receive Indicator
Battery Level Indicator
(Switches display screen.)
(Changes mode)
(Illuminates display)
Mode Indicator
Mode Name
Seconds
Days of the Week
SUN : Sunday MON : Monday TUE : Tuesday
WED : Wednesday THU : Thursday FRI : Friday
SAT : Saturday
Switching Between Screens
Each press of the button cycles the middle dials in the
sequence shown below.
button button
button button
button
Modes and Display Screens
This watch is available with either of two different LCD types: light
background with dark figures (black-on-white) or dark background
with light figures (white-on-black).
Note that all of the samples in this manual show the
black-on-white type LCD.
Black indicates “ON”.
Black-On-White Display
White indicates “ON”.
White-On-Black Display
LCD Types
World Time Mode Alarm Mode
Stopwatch Mode Timer Mode
World Time
Measured Value
Mode Indicator
Alarm Number
City Code
•When alarm is off
Alarm Number Graph
Alarm Time
Timer Time
Mode Indicator
Number of
Repeats
Mode Indicator
Mode Indicator
Mode Indicator
• Auto Repeat
Power Saving
Indicator

Operation Guide 3334
2
❚ Positioning Your Arm Correctly
•You should be wearing the watch on the outside of your wrist
when using the auto light switch.
•Make sure that the left (9 o’clock)
and right (3 o’clock) sides of the
watch are within ±15 degrees of
being parallel with the ground.
The auto light switch may not
operate properly if the angle is
greater.
Important!
•The light may be difficult to see if you turn it on under bright
sunlight.
•If you press the Lbutton or if an alarm operation starts while the
display is illuminated, illumination will turn off.
❚ Charging Precautions
Avoid charging the watch in the following locations, and anywhere
else the watch may become very hot.
•On the dashboard of an automobile parked in the sun
•Very close to an incandescent light source or other sources of
heat
•In a location exposed to direct sunlight for long periods
Note that the display panel may become black under very high
temperatures. This is temporary, and the display will appear
normal again at lower temperatures.
Depending on the light source you are using, the
case of the watch may become quite hot during
charging. Take care to guard against burn injury
after charging.
❚ Charging the Battery
Point the solar panel (face) of the watch at a light source.
•Remember that even a partial blockage of the solar cell reduces
charging efficiency.
Example: Positioning the watch
Solar Cell
•The illustration shows the resin band model.
❚ Charging Guide
Starting from a full charge, the watch
should be able to continue operating
for about seven months without
further charging under the conditions
described below.
Daily Use (All time values are
approximate.)
•Illumination: 1.5 seconds
•Alarms: 10 seconds
•Signal reception: 5 times
•Digital display: 18 hours
Making sure the watch is regularly
exposed to light ensure stable
operation.
•Charge Times Required to Advance to a Higher Level
Charging Time
Level 4 \Level 3 \Level 2 \Level 1
– – – – – –
2 hr. 5hr.19hr.
7 hr.
11 hr.
113hr.
22hr.97hr.
36hr.157hr.
Environment
(Luminosity)
Outdoor sunlight
(50,000 lux)
Indoor sunlight
(10,000 lux)
Outdoor overcast
(5,000 lux)
Fluorescent indoor
lighting (500 lux)
•Note that the above charging times are for reference only. Actual
charging time depends on a variety of environmental factors.
The power supply of this watch uses a solar cell to generate
electrical power, which is stored by a rechargeable battery. Using
or storing the watch where it is not regularly exposed to light, or
allowing it to be blocked from light by your sleeve as you are
wearing it can cause the power of the rechargeable battery to run
down. To ensure stable operation, be sure to allow the watch to be
exposed to light as much as possible when you are wearing or
storing it.
Note that all data in memory and all settings are cleared
whenever you allow the level of the rechargeable battery
to drop to Level 4.
❚ Flashing RECOVER Indicator
If you use the light or alarms a number of times during a short
period, a RECOVER indicator flashes in the top dial, and the
following operations become disabled as battery power recovers.
•Illumination
•Alarm and Hourly Time Signal
•Time calibration signal reception
Normal operation will return after the
battery recovers.
Power Supply
Auto Light Precautions
•Frequent use of the auto light can run down the battery.
•The auto light switch may cause the display to illuminate when
your sleeve covers the display of the watch.
•The display may not illuminate immediately when you angle the
watch towards your face. This does not indicate malfunction.
•The display remains lit for the currently set illumination duration
(1.5 or 2.5 seconds) only, even if you leave the watch angled
towards your face.
•The auto light switch is automatically disabled whenever battery
power is at Level 3 or lower.
•The display may illuminate unintentionally when you wear the
watch on the inside of your wrist, when you shake your arm, or
when you raise your arm. Be sure to turn off the auto light
switch whenever you do not need illumination.
•Keep the auto light switch turned off whenever you are wearing
the watch on the inside of your wrist.
•Electro-static charge and magnetism can interfere with auto light
operation and even make operation impossible. If this happens
lower your arm to the starting position and then raise it again. If
you still have trouble with illumination, try lowering your arm down
to your side and then raise it to your face for reading.
Illumination
RECOVER
Indicator
Required Daily Charging Time
• The following is the daily
amount of charging required
each day to support the
operations under “Daily Use”.
Environment
(Luminosity)
Outdoor sunlight
(50,000 lux)
Indoor sunlight
(10,000 lux)
Outdoor overcast
(5,000 lux)
Fluorescent indoor
lighting (500 lux)
6min.
30min.
48min.
8hr.
Charging
Time
Rotate your arm so the watch
is angled at about 40 degrees,
so you can read its face.
With the watch on
your wrist, position it
level with the ground.
11
11
122
22
2
More
than 40
degrees
❚ Battery Indicator
All functions enabled.
All functions enabled.
Level
1
Level
2
Level
3
Level
4
Display, illumination, alarms, Hourly
Time Signal, signal reception, and
analog timekeeping disabled.
All functions, including digital
timekeeping, disabled.
Black-On-
White
Display
White-On-
Black
Display
•Exposing the watch to direct sunlight or other strong light may cause
the battery level indicator to momentarily indicate a level that is higher
than the actual battery level. Because of this, you should wait for a
short while after charging to check the battery level indicator.
•Even if the battery level drops all the way to Level 4, you will still
be able to recharge the battery and use the watch again.
•When recharging from Level 4, set the current time and date after
the battery level recharges to Level 3. At this time you should
continue to expose the watch to light so it can charge up to Level
2 or Level 1.
❚ Start charging at Level 3!
Battery Level 3 indicates that remaining battery power is very low.
Be sure to expose the watch to light for recharging as soon as
possible after the battery level indicator shows Level 3.
Illuminating the Display with the
Auto Light Switch
The auto light switch automatically illuminates the display
whenever you angle the watch towards your face for reading,
but only when it is dark.
You can use the procedure under “Specifying the Illumination
Duration” to configure the illumination duration as
approximately 1.5 seconds or 2.5 seconds.
•The auto light switch does not illuminate the display when
surrounding light is bright.
The auto light switch illuminates the display in all modes.
Turning the Auto Light Switch On and Off
In any mode, hold down the Lbutton for about two seconds to
toggle the auto light switch on (auto light switch on indicator
displayed in the upper dial) and off (no indicator displayed).
Auto light switch
on indicator
An LED is used to illuminate the display for easy reading in the
dark. An auto light switch automatically turns on illumination when
you angle the watch towards your face for reading.
Illuminating the Display Manually
Press the LL
LL
Lbutton in any
mode to illuminate the display.
•You can use the procedure under
“Specifying the Illumination
Duration” to configure the
illumination duration as
approximately 1.5 seconds or 2.5
seconds.
•Pressing the Lbutton
illuminates the display regardless
of whether the auto light switch is
on or off.
You may hear a faint rattling sound when you move the watch
around. This sound is caused by the movement of a metal
bulb that controls operation of the auto light switch, and does
not indicate malfunction.

Operation Guide 3334
3
Specifying the Illumination Duration
1. In the Timekeeping Mode,
hold down AA
AA
Afor about
one second until the city
code starts to flash in the
bottom dial. This is the
setting screen.
2. Press the CC
CC
Cbutton three
times to move the flashing
to the seconds count in
the left dial.
Reception Range
This watch is designed to receive the standard time calibration signal of Japan (JJY) or of the United States (WWVB). The signal that is
received depends on the current Home City setting.
•For information about selecting a Home City, see “Manually Setting the Time and Date”. For information about city codes, see the
“City Code List”.
Home City
TYO
LAX, DEN, CHI, NYC
Transmitter
Either the Mt. Otakadoya signal (40kHz) or the Mt. Hagane signal (60kHz)
Fort Collins, Colorado signal
1000km
Mt. Hagane
(60kHz)
Mt. Otakadoya
(40kHz)
500km
1000km
500km
Transmitter Location
•Under optimum conditions, the calibration signal should be
receivable up to 1,000 kilometers from the transmitter. Note
that the wave is relatively weak at distances greater than
500km, so reception may be poor at long distances.
Transmitter Location
3000km
1000km
Fort Collins
•Under optimum conditions, the calibration signal should be
receivable up to 3,000 kilometers from the transmitter. Note
that the wave is relatively weak at distances greater than
1,000km, so reception may be poor at long distances.
•Geographic contours, nearby buildings, the season, the time of day, can even make reception impossible even when you are within range of
the transmitter.
•Best reception is possible late at night.
What is a radio-controlled watch?
Your radio-controlled watch is designed to receive a time
calibration signal that contains standard time data and adjust its
current time setting accordingly.
Signal is received using
built-in antenna.
Signal Data
Cesium
Atomic Clock
Transmitter Long-wave
Calibration Signal
Internally
Decode
Watch
Time Data
Watch decodes
received data and
converts it to time
data.
Time is adjusted
according to time
data.
After the watch receives the time calibration signal, it performs
internal calculations to determine the current time. Because of
this, there may be an error of up to one second in the
displayed time.
Calibration Signal
•The Japanese calibration signal (Call Sign: JJY) is maintained by
the independent Japan Ministry of Posts and Telecommunications
Communication Research Laboratory (CRL). It is a long wave
signal transmitted 24 hours a day from the Mt. Otakadoya
transmitter (40kHz) located in Tamura-gun, Fukushima Prefecture,
and from the Mt. Hagane transmitter (60kHz) located on the
border between Saga Prefecture and Fukuoka Prefecture.
•The U.S. calibration signal (Call Sign: WWVB) is transmitted by
the National Institute of Standards and technology from Fort
Collins, Colorado.
Though the calibration signal is normally transmitted 24 hours
a day, transmission may be interrupted occasionally due to
maintenance, lightening, etc.
How a Radio-controlled Watch Works
City Code
Seconds
(3 times)
3. Press the BB
BB
Bbutton to
toggle the illumination
duration between about
1.5 seconds ( in the
bottom dial) and 2.5
seconds ( in the bottom
dial).
4. After the setting is the way you want, press the AA
AA
A
button to exit the setting screen.
•The watch will also exit the setting screen automatically if you
do not perform any operation for about two or three minutes.

Operation Guide 3334
4
❚ Receive Icon and Indicator
While reception is in progress, the
receive ( ) icon and the receive
indicator cycle from “Unstable”
through “Stable” as shown below.
How far they cycle depends on the
signal strength. Keep the watch in a
location where reception is stable
while it is in progress.
Unstable
Black-On-
White
Display
White-On-
Black
Display
Stable
•Even under optimum reception conditions, it can take about 10
seconds for reception to stabilize.
•Use the receive icon and receive indicator to check
reception status and to determine the best location for
signal reception.
•Note that weather, the time of day, surroundings, and other
factors can all affect reception.
Configuring Signal Reception
Settings
Use the procedure below to turn auto calibration signal reception
on and off. When Tokyo (TYO) is selected as the Home City, you
can select either of two different Japanese transmitters for
reception.
•For information about selecting a Home City, see “Manually
Setting the Time and Date”.
•The initial factory default settings of the watch are TYO (Tokyo) for
the Home City, and AUTO (auto select) for the transmitter
selection mode.
•You can use the following procedure to turn auto signal reception
on or off, and to specify transmitter selection while any one of the
following is selected as your Home City: TYO (Tokyo), NYC (New
York), CHI (Chicago), DEN (Denver), or LAX (Los Angeles).
1. In the Timekeeping Mode,
press the DD
DD
Dbutton to
display the last reception
date and time in the
bottom dial.
•The display will return to the
normal timekeeping screen
automatically if you do not
perform any operation for
about one or two minutes.
2. Hold down the AA
AA
Abutton
for about one second until
the current transmitter
mode starts to flash in the
bottom dial.
•This is the transmitter mode
setting screen.
❚ Viewing the Last Reception Date and Time
In the Timekeeping Mode, press the DD
DD
Dbutton. This
displays the date and time of the last successful signal
reception in the bottom dial.
•To return the bottom dial to the day of the week, press the D
button again.
•The bottom dial also returns to the day of the week automatically
if you do not perform any operation for about one or two minutes.
Reception Date
Reception Time
When the Home City is TYO
•AUTO
Selecting this setting turns on auto receive and auto
transmitter selection. The watch automatically selects either
the Mt. Otakadoya signal (40kHz) or the Mt. Hagane signal
(60kHz), whichever is strongest.
•40
Selecting this setting turns on auto receive. The watch always
receives the Mt. Otakadoya signal (40kHz).
•60
Selecting this setting turns on auto receive. The watch always
receives the Mt. Hagane Mountain (60kHz).
•OFF
Selecting this setting turns off auto receive and auto
transmitter selection.
When the Home City is NYC, CHI, DEN, or LAX
•ON
Selecting this setting turns on auto receive. The watch always
receives the Fort Collins, Colorado signal.
•OFF
Selecting this setting turns off auto receive and auto
transmitter selection.
Receiving the Calibration Signal
There are two methods you can use to receive the time calibration
signal.
•Auto receive (Reception is performed automatically at
midnight, 1:00, 2:00, 3:00, and 4:00 each morning.)
•Manual receive (You initiate reception using a button
operation.)
•If reception is not successful for any of the normal auto receive times
shown above, auto receive is performed one more time at 5:00 a.m.
•The watch is set up for auto reception at the factory, so all you
need to do is to place it in a location that allows good reception
each night.

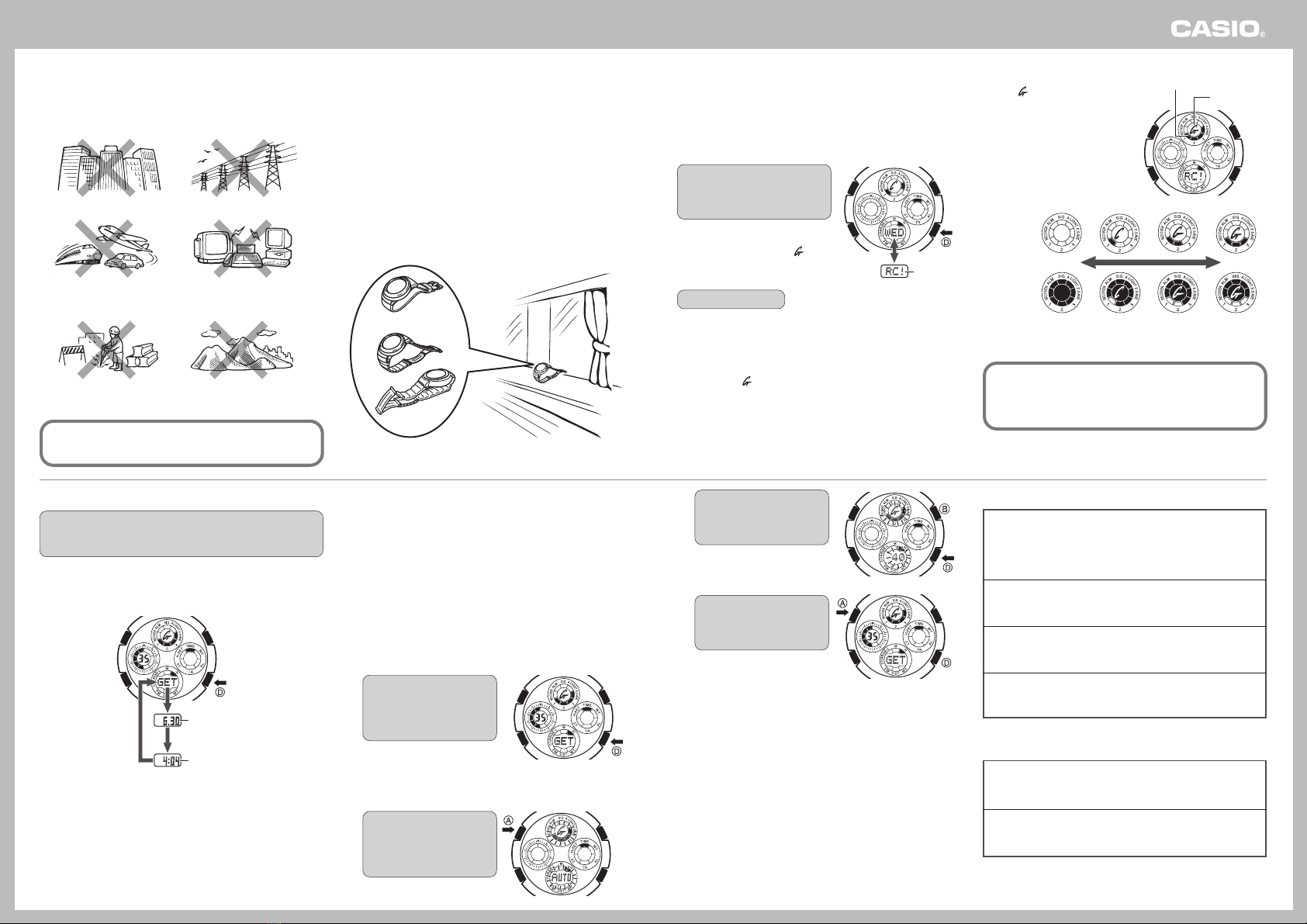

❚ Setting Up to Make Reception Easier
Remove it from your wrist and place the watch somewhere so its
top (12 o’clock side, where the antenna is located) is facing
approximately in the direction of the signal transmitter. Keep it
away from metal objects.
Resin Band
Metal Band
•Orienting the watch so it is sideways to the transmitter makes it
more difficult to receive the signal.
•Do not move the watch while it is receiving the calibration signal.
Receive Indicator
Receive Icon
❚ Time Required for Reception
Signal reception takes anywhere from about two to six minutes.
•Note that when “AUTO” is specified as the frequency selection
mode, signal reception can take up to 12 minutes.
•See “Configuring Signal Reception Settings” for more
information.
❚ Triggering Reception Manually
In the Timekeeping Mode, hold
down the DD
DD
Dbutton for about
one second until the watch
beeps.
• This indicates that manual receive
has started. Ongoing reception is
indicated by the receive ( ) icon
and the receive indicator.
Stopping Signal Reception
Press the DD
DD
Dbutton.
•All other buttons besides Dare disabled during signal reception.
When reception is successful
The watch terminates reception and adjusts the current time. Next
it beeps, and then the date and time the adjustment was
performed appears in the bottom dial.
•The receive ( ) icon and the receive indicator remain in the top
dial to indicate that reception was successful.
When reception fails
The watch does not adjust its current time setting, and displays
“ERR” instead.
•The display also return to the normal timekeeping screen
automatically if you do not perform any operation for about one or
two minutes.
Displayed
during
reception.
3. Use the DD
DD
Dand BB
BB
Bbuttons
to cycle through the
available transmitter mode
settings.
4. After the setting is the way
you want, press the AA
AA
A
button to exit the setting
screen.
•Press the Dbutton to return
to the Timekeeping Mode.
•The watch will return to the
Timekeeping Mode if you do
not perform any operation for
about two or three minutes.
Location
Reception is difficult and may even be impossible in the locations
described below. Avoid such locations when performing signal
reception.
•You should think of your watch operating like a radio or TV when it
is receiving the calibration signal.
If you are experiencing problems with reception, move away
from the types of locations described above to a location with
better reception, and try again.
Near high-voltage linesAmong or near buildings
Near mountains
Inside a vehicle (automobile,
train, plane, etc.)
In a location where there is
radio interference (construction
site, airport, etc.)
Next to a household appliance or
office equipment (TV, speaker,
fax, PC, mobile phone, etc.)

Operation Guide 3334
5

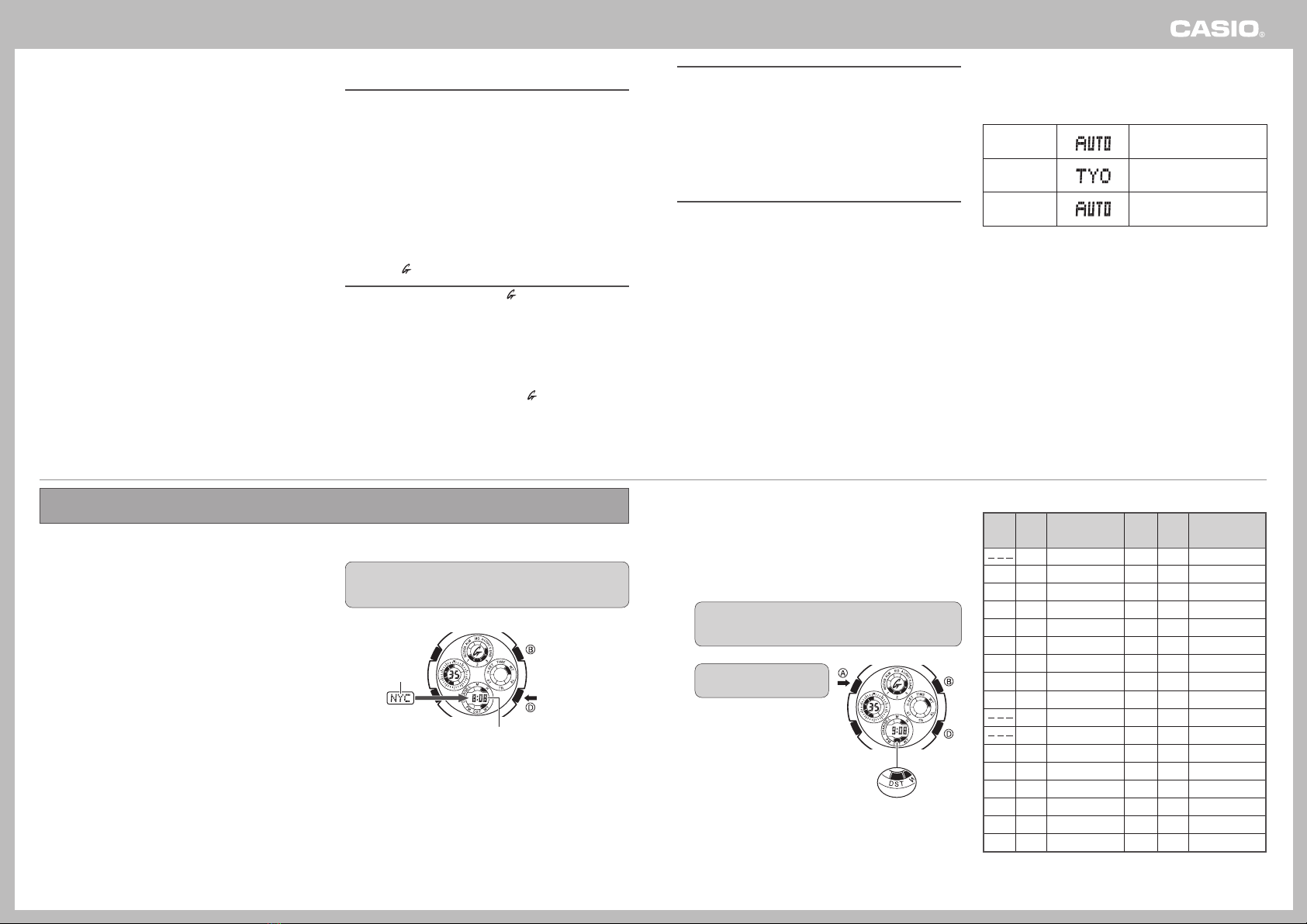

World time lets you display the current time in any one of 30 cities
(29 time zones) around the world.
•When you enter the World Time Mode, the screen for the city that
was displayed when you last exited the mode appears first.
•The seconds count in the World Time Mode is linked with the
Timekeeping Mode seconds count.
•The same 12-hour/24-hour format you select for your home time
zone in the Timekeeping Mode is also applied in the World Time
Mode.
Important!
•If the World Time Mode time is incorrect, adjust the setting of the
current time in the Timekeeping Mode.
•See “Manually Setting the Time and Date” for more
information.
City Search
In the World Time Mode, use the DD
DD
D(forward) and BB
BB
B(back)
buttons to scroll through city codes. After a short time, the
city code will be replaced by the current time in that city.
•Holding down either button scrolls city codes at high speed.
City Code
(Forward)
(Back)
World Time
•Pressing the Abutton in the World Time Mode displays the city
code of the currently selected city in the bottom dial for about one
second.
•If the currently selected time zone does not have a city code, the
GMT time differential appears instead of the city code.
Using World Time Using Summer Time (DST)
Summer time, or Daylight Saving Time (DST) as is it is called in
some countries, calls for setting clocks ahead one hour during the
summer season. Note that the use of summer time depends on
the country and even the local area.
Turning Summer Time On and Off
1. In the World Time Mode, use the DD
DD
Dand BB
BB
Bbuttons to
select the city whose summer time setting you want to
change.
2. Hold down the AA
AA
Abutton
for one second.
•This toggles summer time on
and off.
•The “DST” indicator appears
on the bottom dial, and
timekeeping is advanced by
one hour when summer time
is turned on.
•You can turn summer time on
or off independently for each
World Time Mode city. Note,
however, that you cannot turn
on summer time for the “GMT”
city code.
City Code List
City
Code City Code
City Name
HNL
ANC
LAX
DEN
CHI
NYC
CCS
RIO
GMT
LON
PAR
BER
ATH
CAI
JRS
JED
THR
DXB
KBL
KHI
DEL
DAC
RGN
BKK
HKG
SEL
TYO
ADL
SYD
NOU
WLG
Honolulu
Anchorage
Los Angeles
Denver
Chicago
New York
Caracas
Rio De Janeiro
Greenwich Mean Time
London
Paris
Berlin
Athens
Cairo
–11
–10
–9
–8
–7
–6
–5
–4
–3
–2
–1
+0
+0
+1
+1
+2
+2
City Name
Jerusalem
Jeddah
Teheran
Dubai
Kabul
Karachi
Delhi
Dakar
Yangon
Bangkok
Hong Kong
Seoul
Tokyo
Adelaide
Sydney
Noumea
Wellington
+2
+3
+3.5
+4
+4.5
+5
+5.5
+6
+6.5
+7
+8
+9
+9
+9.5
+10
+11
+12
GMT
Differ-
ential
GMT
Differ-
ential
•The contents of the above table are current as of December 2003.
•Time differentials in the above table are in accordance with
Universal Time Coordinated (UTC).
Troubleshooting
Cannot perform manual reception.
Cause: •Manual receive can be performed in the
Timekeeping Mode only.
•Manual receive cannot be performed
while a timer operation is in progress.
•The Home City is set to a city other than
TYO (Tokyo), NYC (New York), CHI
(Chicago), DEN (Denver), or LAX (Los
Angeles).
Corrective Measures: •Perform manual receive in the
Timekeeping Mode.
•Change the Home City to TYO (Tokyo),
NYC (New York), CHI (Chicago), DEN
(Denver), or LAX (Los Angeles).
Correctly set the Home City as detailed
under “Manually Setting the Time and
Date”.
The receive ( ) icon is not on the display even though auto
signal reception is turned on.
Cause: •The receive ( ) icon appears after the
watch successfully receives the
calibration signal and adjusts the current
time setting.
•A single receive operation was not
successful.
•The watch is not in the Timekeeping
Mode or World Time Mode when an auto
reception time is reached.
• You performed manual reception, which
clears the receive ( ) icon from the display.
Corrective Measures: •Check to make sure the watch is in a
location where it can receive the signal.
•Place the watch in a location where
reception conditions are good.
•Make sure that the watch is in the
Timekeeping Mode or World Time Mode
during the auto reception times.
Calibration Signal Reception
Precautions
•Auto reception can be performed while the watch is in the
Timekeeping Mode or World Time Mode only.
•Signal reception cannot be performed while a timer operation is in
progress.
•Receipt of a calibration signal causes the digital time to be
adjusted first, followed by adjustment of the analog time. In order
to ensure correct adjustment of the analog time, be sure to match
the analog time with the digital time before performing a signal
receive operation.
•Operating any button while auto reception is in progress will
cause the watch to beep and then exit the receive operation.
•Make sure you are within the range of the calibration signal
transmitter before performing the reception operation. Remember
that geographic contours, nearby buildings, the season, the time
of day can make reception impossible even when you are within
range of the transmitter.
•Proper reception may be impossible if there is something blocking
the signal. If reception is unsuccessful, try again.
•This watch is designed to adjust its current time setting in
accordance with the calibration signal transmitted in Japan and
the United States only. Note that you will need to make your own
adjustments when using this watch outside of Japan or the United
States, or in any area that is outside the range of one of the
receivable time calibration signal transmitters.
•When the watch is unable to adjust its time signal using the
calibration signal for some reason, timekeeping accuracy is within
±15 seconds per month.
•Strong electrostatic charge can cause timekeeping error.
•Signal reception is cancelled if an alarm starts to sound while it is
being performed.
•The watch’s calendar shows dates up to the year 2099.
Attempting a receive operation after that causes an error.
DST Indicator
•If you cannot receive the calibration signal or if the current time
setting is incorrect after signal reception, check the current setup
of the watch.
•The following are the watch’s factory default settings, which are
configured automatically whenever you have the battery of the
watch replaced.
Transmitter
Mode
Home City
Summer Time
Tokyo
Auto Japan transmitter select
(40kHz/ 60kHz)
Auto switching (according to
signal data)
Time setting is incorrect following signal reception.
Cause: •If the current time is advanced by one
hour, it probably means that summer time
is turned on (indicated by the DST
indicator).
•If there is a large error in the setting, it
probably means that the wrong Home
City is selected.
Corrective Measures: •Correctly configure the summer time and
Home City settings as detailed under
“Turning Summer Time On and Off” and
“Manually Setting the Time and Date”.
Cannot configure signal reception settings.
Cause: •The Home City is set to a city other than
TYO (Tokyo), NYC (New York), CHI
(Chicago), DEN (Denver), or LAX (Los
Angeles).
Corrective Measures: •Select one of the above as the Home City
as detailed under “Manually Setting the
Time and Date”.

Operation Guide 3334
6
2. Hold down AA
AA
Afor about
one second until the hour
digits of the alarm time
start to flash.
•This is the setting screen.
•This also causes the alarm
indicator to appear in the top
dial, and automatically turns
on the alarm.
3. Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the
hour setting.
•Holding down either button
scrolls the hour setting at high
speed.
•When setting the hour, make
sure you specify AM (no
indicator) or PM (P) correctly
when using 12-hour
timekeeping, or that you
specify the correct 24-hour
time.
•The same 12-hour/24-hour
format you select for the
Timekeeping Mode time is
also applied in the Alarm
Mode.
4. Press the CC
CC
Cbutton.
•This moves the flashing to
the minute digits. As with
the hour setting, use the D
(+) and B(–) buttons to
change the minute setting.
5. After all of the setting is the way you want, press the AA
AA
A
button.
•This exits the setting screen.
•The watch will also exit the setting screen automatically if you
do not perform any operation for about two or three minutes.
Turning an Alarm or the Hourly
Time Signal On and Off
1. In the Alarm Mode, use the DD
DD
Dbutton to select the alarm
(A1 to A5) or the Hourly Time Signal.
2. Press the BB
BB
Bbutton to toggle the currently displayed
alarm or the Hourly Time Signal on and off.
•Turning on an alarm or the Hourly Time Signal causes its
indicator to appear in the top dial.
•Turning on an alarm also causes its alarm time setting to
appear in the bottom dial.
Alarm Indicator Hourly Time Signal Indicator
Alarm 2 Screen Timekeepin
g
Screen
Stopping the Alarm Beeper
Pressing any button while an alarm is sounding stops it.
Testing the Alarm
In the Alarm Mode, hold down the Bbutton to sound the alarm
tone.
You can set the start time of the time in the range of 1 to 60
minutes, in units of one minute. The watch beeps for 10 seconds
when the end of the countdown is reached. Turning on the auto
repeat feature causes the countdown to restart from the start time
whenever the end of the countdown is reached.
Timer Types
There are two different settings that you can use to configure the
timer as describe below.
•Repeat
With Repeat, the countdown stops, the original start time
appears, and the watch beeps for 10 seconds when the end of
the countdown is reached.
•Auto Repeat
Auto Repeat causes timing to restart from the start time when
the end of the countdown is reached.
•The countdown repeats up to 10 times, or until you stop it
manually.
Configuring Timer Settings
1. In the Timer Mode, hold
down AA
AA
Afor about one
second until the minute
digits of the timer start
time start to flash in the
bottom dial. This is the
setting screen.
2. Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the
start time minutes.
•Holding down either button
scrolls the start time setting at
high speed.
3. Press the CC
CC
Cbutton to
change to the timer type
setting.
Using the Timer 4. Use the DD
DD
Dand BB
BB
Bbuttons to select the type of timer
you want to use.
•To select Repeat, display “ ”.
•To select Auto Repeat, display “ ”. Selecting Auto Repeat
also displays a value in the left dial indicating the current
number of repeats.
or
Number of Repeats
Auto RepeatRepeat
5. After the settings are configured the way you want,
press the AA
AA
Abutton.
•This exits the setting screen.
•The watch will also exit the setting screen automatically if you
do not perform any operation for about two or three minutes.
Using the Timer
In the Timer Mode, press the DD
DD
Dbutton.
•Each press of the Dbutton starts or stops the countdown.
•Repeat counts down in 1/10-second units, while Auto Repeat
counts down in 1-second units.
Repeat
(Start/Stop)
(Reset)
Minutes
1/10
second
Seconds Minutes Seconds
Auto Repeat
Number of
Repeats
•Pressing the Bbutton while the countdown is stopped
resets the display time to the start time.
•Pressing the Dbutton again while the timer countdown is
stopped restarts the countdown.
End of Countdown
The watch beeps for 10 seconds when the end of the countdown
is reached.
•Pressing any button while the beeper is sounding stops it.
You can set up to five independent daily alarms. An alarm sounds
for 10 seconds when an alarm time is reached.
The Hourly Time Signal causes the watch to beep every hour on
the hour.
Setting an Alarm Time
1. In the Alarm Mode, use the
DD
DD
Dbutton to scroll
through the alarm
numbers in the left dial
(A1 to A5) until the one
you want is displayed.
•The current alarm time setting
for the selected alarm will
appear in the bottom dial.
– –:– – will appear instead of
the alarm time if that alarm is
turned off.
Alarm3
(AL3)
Alarm1
(AL1) Alarm2 (AL2)
Alarm4
(AL4)
Alarm5
(AL5)
Hourly Time
Signal(SIG)
Using Alarms and the Hourly Time Signal
Minutes
(Forward)
(Back)
Minutes
(Forward)
(Back)
Alarm Time
Alarm Number Graph
Alarm
Number
(Forward)
Alarm Indicator
Hour
(Forward)
(Back)

Operation Guide 3334
7
To change the hour, minutes, year, month, or day
setting
Press the Dbutton to increase the
selected setting or the Bbutton to
decrease it.
•Holding down either button scrolls
the setting at high speed.
•When setting the hour, make sure
you specify AM (no indicator) or
PM (P) correctly when using
12-hour timekeeping, or that you
specify the correct 24-hour time.
•You can set a year in the range of
00 (2000) to 99 (2099). The day
of the week is set automatically in
accordance with the date you set.
•The watch automatically makes
adjustments for leap years and
month lengths.
To turn power saving on and off
While the power saving setting is
selected, press the Dbutton to
toggle it ON and OFF.
•Turning on power saving causes
the power saving indicator to
appear in the top dial.
2. Use the DD
DD
D(+) and BB
BB
B(–)
buttons to scroll through
the city codes until the
one you want to use as
your Home City is
displayed.
•See “City Code List” for a
complete list of city codes.
•Holding down either button
scrolls the city codes at high
speed.
3. Press the CC
CC
Cbutton to
display the summer time
setting in the bottom dial.
Setting the Time and Date Manually
5. Use the CC
CC
Cbutton to cycle
through the time and date
settings shown below.
•Each press of Ccauses the
applicable setting to flash.
Summer TimeHome City
Power Saving
12/24-hour
Format
Hour
MinutesMonth YearDay
Seconds
6. While the setting you want to change is selected
(flashing), use the DD
DD
Dand BB
BB
Bbuttons to change it as
described below.
To select 12/24-hour timekeeping
While the 12/24-hour setting is
flashing in the bottom dial, press the
Dbutton to toggle the timekeeping
format between 12-hour (“12H”
indicator) and 24-hour (“24H”
indicator).
To reset the seconds to 00
While the seconds are selected in
the left dial, press the Dbutton to
reset them to 00 in accordance with
the time signal on the radio, TV, etc.
•Pressing Dwhile the seconds
count is in the range of 30 to 59
resets it to 00 and also adds 1 to
the minutes. Pressing Din the
range of 00 to 29 resets the
seconds count without changing
the minutes.
•Pressing Bwhile timing is being performed freezes the current elapsed time in the bottom dial, but timing of the next split continues
internally.
•Changing to another mode while a split time is displayed cancels the split time operation.
•Pressing the Bbutton while timing is stopped resets the stopwatch to all zeros.
Using the Stopwatch
(Forward)
(Back)
TYO =Tokyo
12/24-hour format
Resets to 00 seconds
(Forward)
(Back)
Hour Minutes
The stopwatch measures elapsed time in units of 1/100 second up to 99 minutes, 59.99 seconds (100 minutes). When the maximum limit
is reached, the elapsed time automatically returns to zero and timing continues from there.
Performing Stopwatch Operations
In the Stopwatch Mode, press the DD
DD
Dbutton.
•Each press of the Dbutton starts or stops the stopwatch.
(Start/Stop)
(Split/Reset)
Minutes Seconds
1/100 second
❚ Elapse Time Measurement
Start Stop Reset
Cumulative Time Measurement
Pressing the Bbutton to restart the stopwatch without
resetting it to all zeros resumes elapsed time measurement
from where it was last stopped.
❚ Split Time Measurement
Record split Release split ResetStopStart
❚ 1st and 2nd Place Finishers
Start 1st finisher
(Displays time
of 1st finisher.)
2nd finisher Displays time
of 2nd finisher. Reset
You can use the following procedure to set the current time and
date of the Home City that you have selected in the Timekeeping
Mode.
•Use the Timekeeping Mode to adjust the time and date settings.
•You can also use the procedure below to turn power saving on
and off.
If you are planning manually change both the digital and
analog settings, be sure to adjust the digital setting first.
Manually Setting the Time and Date
1. In the Timekeeping Mode,
hold down AA
AA
Afor about
one second until the city
code starts to flash in the
bottom dial. This is the
setting screen.
4. Press the DD
DD
Dbutton to
cycle through the summer
time settings until the one
you want is displayed.
•AUTO
This setting enables auto summer time setting, which turns
summer time on or off in accordance with the received time
calibration signal.
•This setting uses Japan summer time data when TYO is
selected as the Home City code, and U.S. summer time
data when NYC, CHI, DEN, or LAX is selected as the
Home City code.
•OFF
This setting turns off summer time, and displays the current
time normally.
•ON
This setting turns on summer time.
•Selecting this setting displays the DST indicator, and
advances the current time setting by one hour.
City Code

Operation Guide 3334
8
High-speed Lock
•While holding down the Dbutton (which advances the analog
time at high speed), press the Bbutton to lock high-speed
advance of the analog time.
•High-speed analog time advance will continue until it completes a
12-hour cycle, or until you press any button to stop it.
4. After the setting is the way you want, press the AA
AA
A
button.
•This exits the setting screen and automatically synchronizes
the minute hand with the current seconds count.
•The watch will also exit the setting screen automatically if you
do not perform any operation for about two or three minutes.
7. After all of the settings are configured the way you
want, press the AA
AA
Abutton.
•This exits the setting screen.
•The watch also will exit the setting screen automatically if you
do not perform any operation for about two or three minutes.
Digital-Analog Synchronization
The watch automatically adjusts its analog setting to match the
current digital time setting.
•When adjusting the analog time, the watch always moves the
hands forward (clockwise direction).
•Depending on how different the digital and analog time settings
are, it may take some time for the analog hand setting procedure
to be finished.
Manually Setting the Analog Time
You can use the Hand Setting Mode to manually adjust the analog
time when it does not match the digital time.
1. Use the CC
CC
Cbutton to enter the Hand Setting Mode.
2. Hold down AA
AA
Afor about
one second until the time
digits start to flash in the
bottom dial. This is the
setting screen.
3. Use the DD
DD
Dbutton to
adjust the analog time.
•Each press of the Dbutton
advances the analog time by
20 seconds.
•Holding down the Dbutton
advances the analog time at
high speed. (Forward)
