Operation Guide 5184
MO1208-EB
E-1
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to read this manual carefully.
Keep the watch exposed to bright light
The electricity generated by the solar cell of the watch is
stored by a built-in battery. Leaving or using the watch
where it is not exposed to light causes the battery to run
down. Make sure the watch is exposed to light as much as
possible.
•When you are not wearing the watch on your wrist,
position the face so it is pointed at a source of bright
light.
•You should try to keep the watch outside of your sleeve
as much as possible. Charging is reduced significantly if
the face is even only partially covered.
l
l
l
l
l
l
l
l
l
l
l
Bright Light
Solar cell
E-2
•The watch continues to operate, even when it is not exposed to light. Leaving the
watch in the dark can cause the battery to run down, which will result in some watch
functions to be disabled. If the battery goes dead, you will have to re-configure watch
settings after recharging. To ensure normal watch operation, be sure to keep it
exposed to light as much as possible.
All
functions
enabled
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Charge
Rechargeable battery
Bright Light
Electrical
energy
Solar cell
(Converts light to
electrical power.)
Some or all
functions
disabled
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Dis-
charge
Battery charges in the light. Battery discharges in the dark.
E-3
•The actual level at which some functions are disabled depends on the watch model.
•Frequent display illumination can run down the battery quickly and require charging.
The following guidelines give an idea of the charging time required to recover from a
single illumination operation.
Approximately 5 minutes exposure to bright sunlight coming in through a window
Approximately about 8 hours exposure to indoor fluorescent lighting
•Be sure to read “Power Supply” (page E-38) for important information you
need to know when exposing the watch to bright light.
If the display of the watch is blank...
If the display of the watch is blank, it means that the watch’s Power Saving function
has turned off the display to conserve power.
•See “Power Saving Function” (page E-48) for more information.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss suffered by you or any third party arising through the use of this
product or its malfunction.
E-4
About This Manual
•Depending on the model of your watch, display text
appears either as dark figures on a light background or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.
•Button operations are indicated using the letters shown
in the illustration.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
E-5
Contents
General Guide ......................................................................................................... E-8
Timekeeping .......................................................................................................... E-10
World Time ............................................................................................................. E-18
Stopwatch .............................................................................................................. E-23
Countdown Timer .................................................................................................. E-25
Alarms .................................................................................................................... E-29
Illumination ............................................................................................................ E-34
Power Supply ........................................................................................................ E-38
Hand Home Position Correction .......................................................................... E-46
Reference .............................................................................................................. E-48
Specifications ....................................................................................................... E-55
E-6
Procedure Lookup
The following is a handy reference list of all the operational procedures contained in
this manual.
To set the time and date ....................................................................................... E-11
To change the Daylight Saving Time (summer time) setting ............................ E-15
To specify the Dual Time City .............................................................................. E-17
To view the current time in another time zone ................................................... E-20
To toggle a city code time between Standard Time and
Daylight Saving Time ...................................................................................... E-21
To swap your Home City and World Time City ................................................... E-22
To measure times with the stopwatch ................................................................ E-24
To use the countdown timer ................................................................................ E-26
E-7
To configure countdown start time and auto-repeat settings .......................... E-27
To set an alarm time ............................................................................................. E-30
To turn an alarm on and off .................................................................................. E-32
To turn the Hourly Time Signal on and off .......................................................... E-33
To illuminate the display manually ...................................................................... E-34
To turn the auto light switch on and off .............................................................. E-37
To adjust the home positions .............................................................................. E-46
To recover from the sleep state ........................................................................... E-49
To turn Power Saving on and off ......................................................................... E-50
E-8
General Guide
•Press Cto change from mode to mode.
•In any mode (except a setting mode), press Bto illuminate the display for about
one second.
Timekeeping Mode
Press C.
▲
E-9
Alarm Mode (page E-29) Countdown Timer Mode (page E-25)
World Time Mode (page E-18) Stopwatch Mode (page E-23)
▲
▲ ▲
▲

Operation Guide 5184
E-10
Timekeeping
You can adjust the Home Time city data and time in the Timekeeping Mode.You also
can simultaneously display the current time in one other time zone, by specifying a
Dual Time City.
•For information about selecting a Dual Time City, see “To specify the Dual Time City”
(page E-17).
•Pressing Din the Timekeeping Mode will cycle the lower display between the
screens shown below.
D
▲
▲
D
Home City Date Home City Time Dual Time
▲
D
Month – Day
Day of week
Seconds
Right dial hand
(World Time)
PM indicator
Hour : Minutes
Dual Time
City code
Dual Time
(Hour :
Minutes)
E-11
Read This Before You Set the Time and Date!
This watch is preset with a number of city codes, each of which represents the time
zone where that city is located. When setting the time, it is important that you first
select the correct city code for your Home City (the city where you normally use the
watch). If your location is not included in the preset city codes, select the preset city
code that is in the same time zone as your location.
•Note that all of the times for the World Time City codes (page E-18) and Dual Time
City are displayed in accordance with the time and date settings you configure for
the Timekeeping Mode.
To set the time and date
1. In the Timekeeping Mode, hold down Afor about five
seconds until the left dial hand points to T1 and the city
code flashes on the upper display. This is the setting
mode.
2. Use Dand Bto select the city code you want.
•Make sure you select your Home City code before
changing any other setting.
•For full information on city codes, see the “City Code
Table” at the back of this manual.
City code
E-12
3. Press Cto change the flashing screen content in the sequence shown below to
select the other setting.
Seconds
12/24-Hour
Format Hour
Minutes
DST
Month Year
City Code
DayPower Saving
4. When the timekeeping setting you want to change is flashing, use Dor Bto
change it as described below.
Change the city code
Toggle between Daylight Saving Time
() and Standard Time ( ).
Use D(east) and B
(west).
Press D.
Screen: To do this: Do this:
E-13
5. Press Atwice to exit the setting mode.
•For details about the Daylight Saving Time setting, see “To change the Daylight
Saving Time (summer time) setting” (page E-15). For information about Power
Saving, see “To turn Power Saving on and off” (page E-50).
•The day of the week is displayed automatically in accordance with the date (year,
month, and day) settings.
Screen: To do this: Do this:
Toggle between 12-hour ( ) and
24-hour ( ) timekeeping
Reset the seconds to
Change the hour and minutes
Change the year, month, or day
Toggle between Power Saving on
( ) and off ( )
Press D.
Press D.
Use D(+) and B(–).
Press D.
E-14
12-hour and 24-hour timekeeping
•With the 12-hour format, the P(PM) indicator appears to the left of the hour digits for
times in the range of noon to 11:59 p.m. and no indicator appears for times in the
range of midnight to 11:59 a.m.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
•The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is
applied in all other modes.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
E-15
To change the Daylight Saving Time (summer time) setting
1. In the Timekeeping Mode, hold down Afor about five
seconds until the left dial hand points to T1 and the city
code flashes on the upper display. This is the setting
mode.
2. Press C. This will display the DST setting screen.
3. Press Dto toggle between Daylight Saving Time (ON
displayed) and Standard Time (OFF displayed).
4. When the setting you want is selected, press Atwice
to exit the setting mode.
•The DST indicator appears to indicate that Daylight
Saving Time is turned on.
DST indicator
E-16
Dual Time
Dual Time lets you display the current time in another time zone called your “Dual
Time City”, in addition your Home City’s current time. This feature is very handy for
business professionals and others who need to keep track of the current time in two
different time zones.
•For information about how to display the current time in the Dual Time City in the
lower display, see page E-10.
•You can change the Dual Time DST (summer time) setting in the World Time Mode.
E-17
To specify the Dual Time City
1. In the Timekeeping Mode, hold down Afor about five
seconds until the left dial hand points to T1 and the city
code flashes on the upper display. This is the setting
mode.
2. Press Aagain. The left dial hand will move to T2 and
the current Dual Time City code will start to flash on the
upper display. This is the Dual Time City selection
screen.
3. Use D(eastward) and B(westward) to scroll through
the available city codes.
•See the “City Code Table” at the back of this manual
for information about city codes.
4. Press Ato exit the setting mode.
Left dial hand
E-18
World Time
World Time digitally displays the current time in one of
48 cities (29 time zones) around the world. A simple
operation swaps your Home City with the currently
selected World Time City.
•The times kept in the World Time Mode are
synchronized with the time being kept in the
Timekeeping Mode. If you feel that there is an error in
any World Time Mode time, check to make sure you
have the correct city selected as your Home City. Also
check to make sure that the current time as shown in
the Timekeeping Mode is correct.
•Times in the World Time Mode are based on UTC
offsets. See the “City Code Table” at the back of this
manual for information about the UTC offsets that are
supported.
•All of the operations in this section are performed in the World Time Mode, which
you enter by pressing C(page E-9).
Currently selected
World Time City
Current time in
World Time City
Right dial hand
(World Time hour)
E-19
Right Dial Hand
The right dial hand shows the current hour in the World Time City in all modes.
•The right dial hand moves just like the normal hour hand, completing one revolution
every 12 hours.

Operation Guide 5184

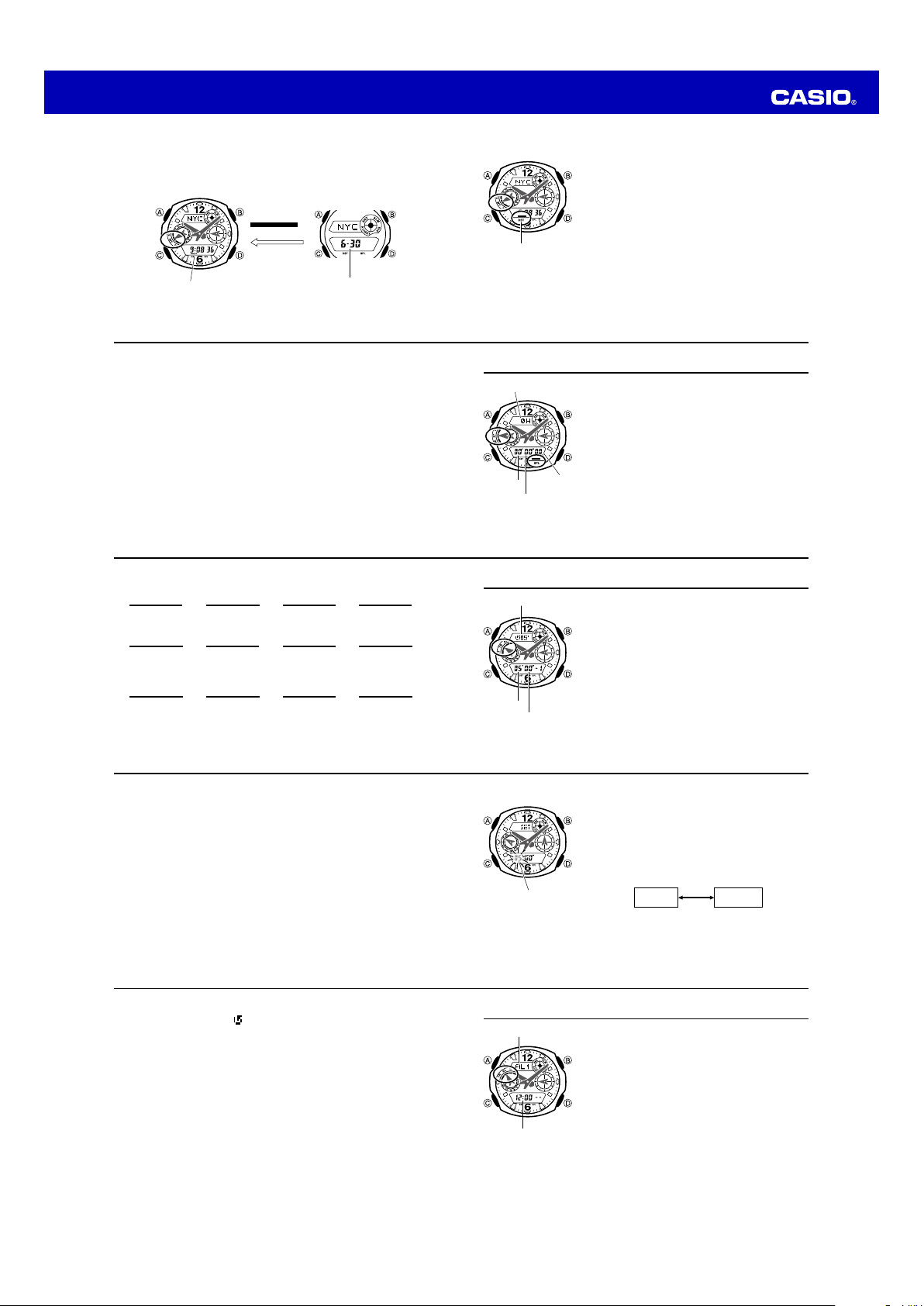

E-20
▲
Press A.
One second
Date
Hour : Minutes Seconds
To view the current time in another time zone
In the World Time Mode, use Dto scroll through available city codes (time zones).
Holding down the button scrolls at high speed.
•When the city code (time zone) you want is selected, you can press Ato display
the date. After about one second, the watch will resume regular timekeeping.
E-21
To toggle a city code time between Standard Time and Daylight Saving Time
1. In the World Time Mode, press Dto display the city
code (time zone) whose Standard Time/Daylight Saving
Time setting you want to change.
2. Hold down Afor about three seconds to toggle
between Daylight Saving Time (DST indicator
displayed) and Standard Time (DST indicator not
displayed).
•The DST indicator is shown in the bottom (World Time)
display while Daylight Saving Time is turned on.
DST indicator
E-22
Swapping your Home City and World Time City
You can use the procedure below to swap your Home City and World Time City. This
changes your Home City to your World Time City, and your World Time City to your
Home City. This capability can come in handy when you frequently travel between two
cities in different time zones.
To swap your Home City and World Time City
1. In the World Time Mode, use Dto select the World Time City you want.
2. Hold down Aand Buntil the watch beeps.
•This will make the World Time City you selected in step 1 your Home City, and cause
the hour and minute hands to move to the current time in that city. At the same time,
it will change the Home City you had selected prior to step 2 your World Time City,
and cause the content upper and lower displays to change accordingly.
•After swapping the Home City and World Time City, the watch stays in the World
Time Mode with the city that was selected as the Home City prior to step 2 now
displayed as the World Time City.
E-23
Stopwatch
The stopwatch lets you measure elapsed time, split times,
and two finishes.
•The digital display range of the stopwatch is 23 hours,
59 minutes, 59.99 seconds.
•The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C(page
E-9).
1/100 second
Hours
Minutes
Seconds
E-24
Clear
D
Start Stop Re-start Stop
DD
D
➤➤➤A ➤
D
Start Split
(SPL displayed)
Split release Stop
AD
A
➤➤➤
Clear
A
➤
D
Start Split
First runner
finishes.
Display time of
first runner.
Stop
Second runner
finishes.
Split release
Display time of
second runner.
DA
A
➤➤➤
Clear
A
➤
To measure times with the stopwatch
Elapsed Time
Split Time
Two Finishes
E-25
Countdown Timer
You can set the countdown timer start time within a range
of one minute to 60 minutes. An alarm sounds when the
countdown reaches zero.
•You also can select auto-repeat, which automatically
restarts the countdown from the original value you set
whenever zero is reached.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C(page E-9).
Seconds
Minutes
Start time (minutes)
E-26
To use the countdown timer
Press Dwhile in the Countdown Timer Mode to start the countdown timer.
•When the end of the countdown is reached and auto-repeat is turned off, the alarm
will sound for 10 seconds or until you stop it by pressing any button.The countdown
time is reset to its starting value automatically after the alarm stops.
•When auto-repeat is turned on, the countdown will restart automatically without
pausing when it reaches zero. The alarm sounds to signal when the countdown
reaches zero.The countdown is repeated up to eight times, and then stops.
•The number of the current repeat (1 to 8) is shown in the lower display.
•The countdown timer measurement operation continues even if you exit the
Countdown Timer Mode.
•To stop a countdown timer operation completely, first pause it (by pressing D), and
then press A. This returns the countdown time to its starting value.
E-27
To configure countdown start time and auto-repeat settings
1. While the countdown start time is on the display in the
Countdown Timer Mode, hold down Afor about three
seconds until the minute setting of the countdown start
time starts to flash. This is the setting mode.
•If the countdown start time is not displayed, use the
procedure under “To use the countdown timer” (page
E-26) to display it.
2. Press Cto move the flashing in the sequence shown
below, and select the setting you want to change.
Start Time
(Minutes)
Auto-Repeat
On/Off
C
3. Perform the following operations, depending on which setting currently is selected
on the display.
•While the start time setting is flashing, use D(+) and B(–) to change it.
•While the auto-repeat on/off setting (on or OFF) is flashing on the display, press
Dto toggle auto-repeat on (on) and off (OFF).
Start time (minutes)
E-28
4. Press Ato exit the setting mode.
•The auto-repeat on indicator ( ) is displayed on the Countdown Timer Mode screen
while this function is turned on.
•Frequent use of auto-repeat and the alarm can run down battery power.
E-29

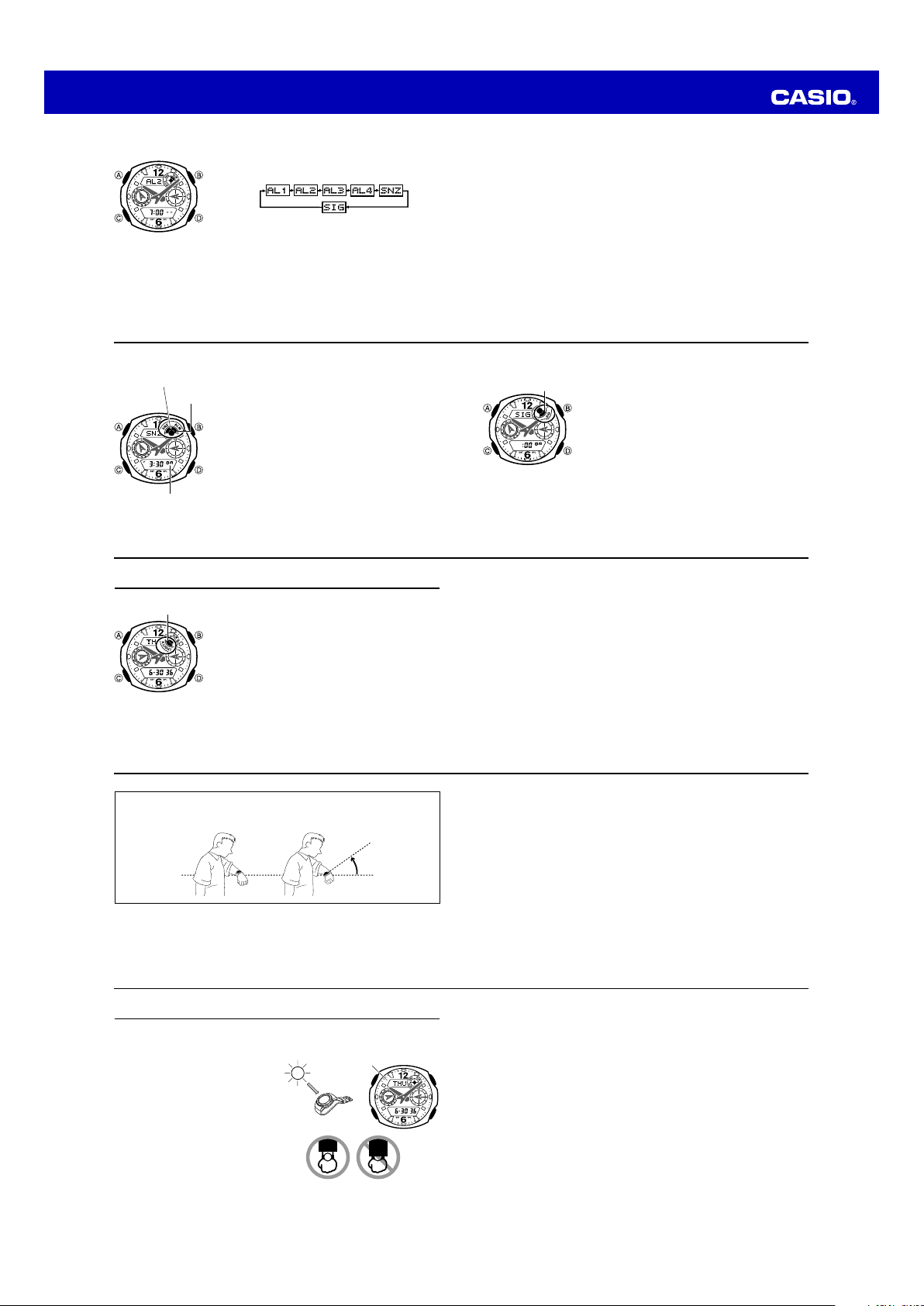

Alarms
When an alarm is turned on, the alarm tone will sound
when its alarm time is reached. One of the alarms is a
snooze alarm, while the other four are one-time alarms.
You also can turn on an Hourly Time Signal that causes
the watch to beep twice every hour on the hour.
•There are five alarm screens numbered AL1,AL2,
AL3 and AL4 for the one-time alarm, and a snooze
alarm screen indicated by SNZ. The Hourly Time
Signal screen is indicated by SIG.
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C(page
E-9).
Alarm number
Alarm time
(Hour : Minutes)

Operation Guide 5184
E-30
To set an alarm time
1. In the Alarm Mode, use Dto scroll through the alarm
screens until the one whose time you want to set is
displayed.
•To set a one-time alarm, display alarm screen AL1,
AL2,AL3 or AL4. To set the snooze alarm,
display the SNZ screen.
•SIG is the hourly time signal setting (page E-33).
•The snooze alarm repeats every five minutes.
2. After you select an alarm, hold down Afor about three seconds until the hour
setting of the alarm time starts to flash. This is the setting mode.
•This operation turns on the alarm automatically.
3. Press Cto move the flashing between the hour and minute settings.
4. While a setting is flashing, use D(+) and B(–) to change it.
5. Press Ato exit the setting mode.
E-31
Alarm Operation
The alarm tone sounds at the preset time for 10 seconds, regardless of the mode the
watch is in. In the case of the snooze alarm, the alarm operation is performed a total
of seven times, every five minutes, or until you turn the alarm off (page E-32).
•Alarm and Hourly Time Signal operations are performed in accordance with the
current time in your Home City, as kept in the Timekeeping Mode.
•To stop the alarm tone after it starts to sound, press any button.
•Performing any one of the following operations during a 5-minute interval between
snooze alarms cancels the current snooze alarm operation.
Displaying the Timekeeping Mode setting screen (page E-11)
Displaying the
SNZ setting screen (page E-30)
E-32
To turn an alarm on and off
1. In the Alarm Mode, use Dto select an alarm.
2. Press Ato toggle it on and off.
•Turning on a alarm (AL1,AL2,AL3,AL4 or
SNZ) displays the alarm on indicator on its Alarm
Mode screen.
•In all modes, the alarm on indicator is shown for any
alarm that currently is turned on.
•The alarm on indicator flashes while the alarm is
sounding.
•The snooze alarm indicator flashes while the snooze
alarm is sounding and during the 5-minute intervals
between alarms.
Alarm on
indicator
Snooze alarm indicator
ON
E-33
To turn the Hourly Time Signal on and off
1. In the Alarm Mode, use Dto select the Hourly Time
Signal (SIG) (page E-30).
2. Press Ato toggle it on and off.
•The Hourly Time Signal on indicator is shown on the
display in all modes while this function is turned on.
Hourly time signal
on indicator
E-34
Illumination
An LED (light-emitting diode) illuminates the face of the
watch for easy reading in the dark. The watch’s auto light
switch turns on illumination automatically when you angle
the watch towards your face.
•The auto light switch must be turned on (indicated by
the auto light switch on indicator) for it to operate.
•See “Illumination Precautions” (page E-52) for other
important information about using illumination.
To illuminate the display manually
In any mode (except a setting mode), press Bto turn on
the illumination for about one second.
•The above operation turns on illumination regardless of
the current auto light switch setting.
Auto light switch
on indicator
E-35
About the Auto Light Switch
Turning on the auto light switch causes illumination to turn on, whenever you position
your wrist as described below in any mode.
Note that this watch features a “Full Auto LED Light”, so the auto light switch operates
only when available light is below a certain level. It does not illuminate the display
under bright light.
•The auto light switch is always disabled, regardless of its on/off setting, while an
alarm is sounding.
E-36
Moving the watch to a position that is parallel to the ground and then tilting it towards
you more than 40 degrees causes illumination to turn on.
•Wear the watch on the outside of your wrist.
Parallel to
ground
More than
40°
E-37
Warning!
•Always make sure you are in a safe place whenever you are reading the
display of the watch using the auto light switch. Be especially careful when
running or engaged in any other activity that can result in accident or injury.
Also take care that sudden illumination by the auto light switch does not
startle or distract others around you.
•When you are wearing the watch, make sure that its auto light switch is turned
off before riding a bicycle or operating a motorcycle or any other motor
vehicle. Sudden and unintended operation of the auto light switch can create a
distraction, which can result in a traffic accident and serious personal injury.
To turn the auto light switch on and off
In the Timekeeping Mode, hold down Bfor about three seconds to toggle the auto
light switch on (auto light switch on indicator displayed) and off (auto light switch on
indicator not displayed).
•The auto light switch on indicator is on the display in all modes while the auto light
switch is turned on.
E-38
Power Supply
This watch is equipped with a solar cell and a special rechargeable battery (secondary
battery) that is charged by the electrical power produced by the solar cell. The
illustration shown below shows how you should position the watch for charging.
Example: Orient the watch so its face is
pointing at a light source.
•The illustration shows how to position
a watch with a resin band.
•Note that charging efficiency drops
when any part of the solar cell is
blocked by clothing, etc.
•You should try to keep the watch
outside of your sleeve as much as
possible. Charging is reduced
significantly if the face is even only
partially covered.
Solar cell
E-39
Important!
•Storing the watch for long periods in an area where there is no light or wearing it in
such a way that it is blocked from exposure to light can cause rechargeable battery
power to run down. Be sure that the watch is exposed to bright light whenever
possible.
•This watch uses a special rechargeable battery to store power produced by the solar
cell, so regular battery replacement is not required. However, after very long use, the
rechargeable battery may lose its ability to achieve a full charge. If you experience
problems getting the special rechargeable battery to charge fully, contact your dealer
or CASIO distributor about having it replaced.
•Never try to remove or replace the watch’s special battery yourself. Use of the wrong
type of battery can damage the watch.
•All data stored in memory is deleted, and the current time and all other settings
return to their initial factory defaults whenever battery power drops to Level 5 (CHG)
(page E-40) and when you have the battery replaced.
•Turn on the watch’s Power Saving function (page E-48) and keep it in an area
normally exposed to bright light when storing it for long periods. This helps to keep
the rechargeable battery from going dead.

Operation Guide 5184
E-40

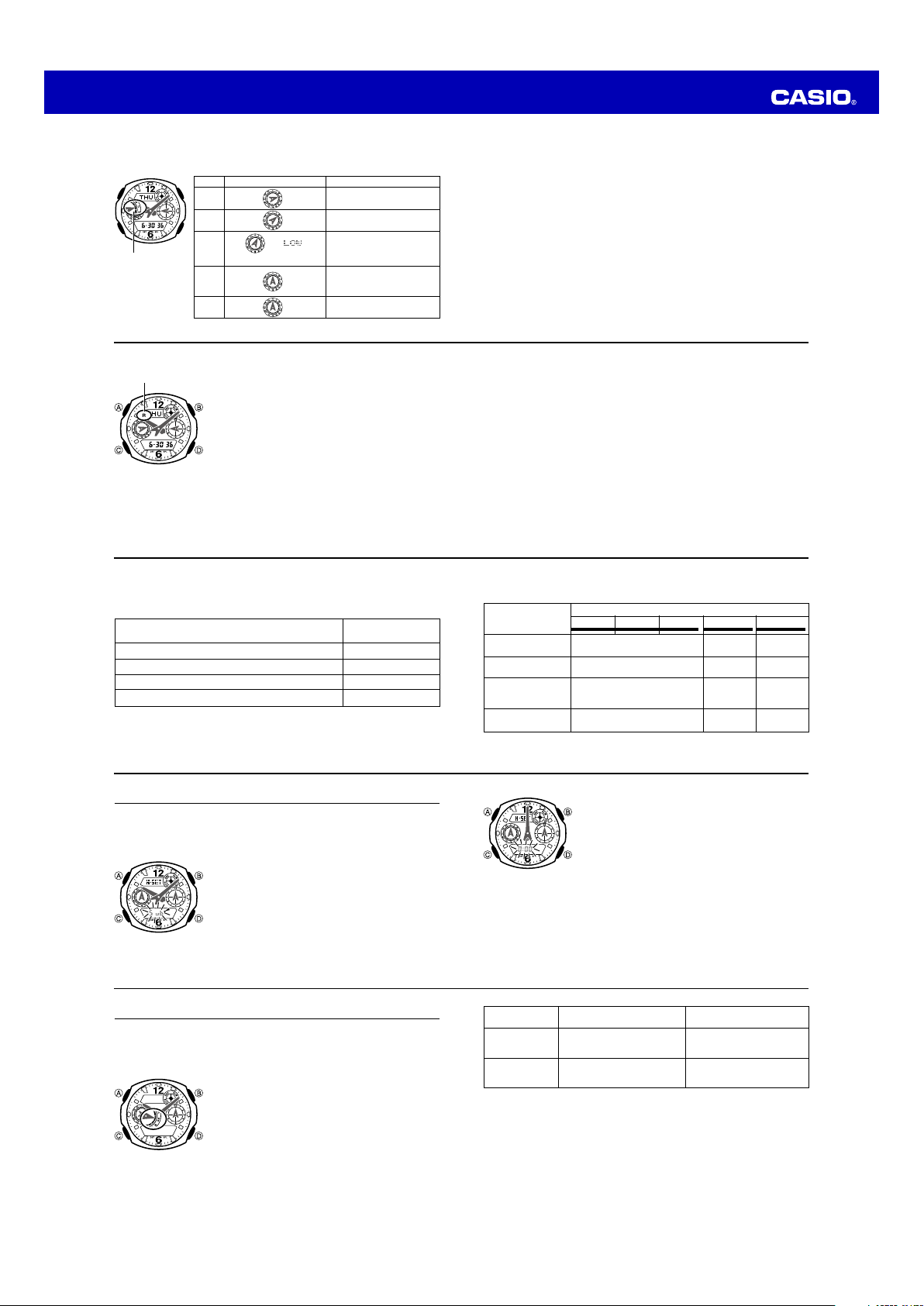

Battery Power Indicator and Power Recovery Mode indicator
The battery power indicator indicates you the current status of the rechargeable
battery’s power.
Battery Power Indicator
(Charge Soon Alert)
Level
1
(H)
2
(M)
3
(L)
4
(CHG)
5
(CHG)
Function Status
All functions enabled.
All functions enabled.
Illumination and beeper
disabled.
Except for timekeeping, all
functions and display
indicators disabled.
All functions disabled.
l
l
l
l
l
l
l
l
l
l
l
l
l
Battery Power
indicator
E-41
•The flashing LOW indicator at Level 3 (L) tells you that battery power is very low,
and that exposure to bright light for charging is required as soon as possible.
•At Level 5 (CHG), all functions are disabled and settings return to their initial factory
defaults. Once the battery reaches Level 2 (M) after falling to Level 5 (CHG),
reconfigure the current time, date, and other settings.
•Display indicators reappear as soon as the battery is charged from Level 5 (CHG) to
Level 2 (M).
•The watch’s Home City code setting will change automatically to TYO (Tokyo)
whenever the battery drops to Level 5 (CHG). If this happens, change the Home City
to the setting you want (page E-11).
•Leaving the watch exposed to direct sunlight or some other very strong light source
can cause the battery power indicator to show a reading temporarily that is higher
than the actual battery level. The correct battery level should be indicated after a few
minutes.
E-42
•Overuse of display illumination or the beeper can cause
the R(Recover) indicator to appear in the upper display,
which indicates that the watch is in the battery power
recovery mode. Face illumination, the alarm, the
countdown timer alarm, and all hand operations are
disabled in the power recovery mode. The watch
continues to keep time internally, so normal timekeeping
and function will resume as soon as battery power
recovers to normal levels, which is indicated when the R
indicator disappears.
•If Rappears frequently, it probably means that
remaining battery power is low. Leave the watch in bright
light for some time to allow it to charge.
Power recovery
mode indicator
E-43
Charging Precautions
Certain charging conditions can cause the watch to become very hot. Avoid leaving
the watch in the areas described below whenever charging its rechargeable battery.
Also note that allowing the watch to become very hot can cause its liquid crystal
display to black out. The appearance of the LCD should become normal again when
the watch returns to a lower temperature.
Warning!
Leaving the watch in bright light to charge its rechargeable battery can cause it
to become quite hot. Take care when handling the watch to avoid burn injury.
The watch can become particularly hot when exposed to the following
conditions for long periods.
•On the dashboard of a car parked in direct sunlight
•Too close to an incandescent lamp
•Under direct sunlight
E-44
Charging Guide
After a full charge, timekeeping remains enabled for up to about eight months.
•The following table shows the amount of time the watch needs to be exposed to light
each day in order to generate enough power for normal daily operations.
•For details about the battery operating time and daily operating conditions, see the
“Power Supply” section of the Specifications (page E-56).
•Stable operation is promoted by frequent exposure to light.
Exposure Level (Brightness)
Outdoor Sunlight (50,000 lux)
Sunlight Through a Window (10,000 lux)
Daylight Through a Window on a Cloudy Day (5,000 lux)
Indoor Fluorescent Lighting (500 lux)
Approximate
Exposure Time
8 minutes
30 minutes
48 minutes
8 hours
E-45
Recovery Times
The table below shows the amount exposure that is required to take the battery from
one level to the next.
Approximate Exposure Time
Level 5 Level 4 Level 3 Level 2 Level 1
3 hours 26 hours 7 hours
8 hours 98 hours 26 hours
12 hours 158 hours 43 hours
141 hours - - - - - - - - - - - - - - - -
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Sunlight Through a
Window (10,000 lux)
Daylight Through a
Window on a Cloudy
Day (5,000 lux)
Indoor Fluorescent
Lighting (500 lux)
▲ ▲
▲
•The above exposure time values are all for reference only. Actual required exposure
times depend on lighting conditions.
E-46
Hand Home Position Correction
The hands of the watch can be thrown off by exposure to strong magnetism or impact.
If that happens, check if the home positions of the hands are correct and adjust the
home positions as required.
To adjust the home positions
1. In the Timekeeping Mode, hold down Dfor about three
seconds, until H-SET appears on the upper display.
•The dial hands are in their correct home positions
when the left dial hand moves to C(CHG) and the
right dial hand moves to 12. If they don’t, use Bto
adjust the left dial hand position and Dto adjust the
right dial hand position.
2. After confirming that both dial hands are in their correct
home positions, press C.
•This will change to hour hand and minute hand home
position manual correction.
Correct dial hand
positions
E-47
•The hour and minute hands are in their correct home
positions if they are at 12 o’clock. If they are not, use
D(+) and B(–) to adjust their positions as required.
•Pressing Chere will return to the setting at the
beginning of step 2.
3. After everything is the way you want, press Ato return
to the Timekeeping Mode.
Correct hour and
minute hand
positions
E-48
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Power Saving Function
When turned on, the Power Saving function enters a sleep
state automatically whenever the watch is left in an area
for a certain period where it is dark. The table below
shows how watch functions are affected by the Power
Saving function.
E-49
•Wearing the watch inside the sleeve of clothing can cause it to enter the sleep state.
•The watch will not enter the sleep state between 6:00 AM and 9:59 PM. If the watch
is already in the sleep state when 6:00 AM arrives, however, it will remain in the
sleep state.
To recover from the sleep state
Perform any one of the following operations.
•Move the watch to a well-lit area.
•Press any button.
•Angle the watch towards your face for reading (page E-36).
Elapsed Time
in Dark
60 to 70 minutes
6 or 7 days
Hands and Display
Left dial hand: PS; Right dial
hand: “12”; Other hands:
Normal; Display: Blank
Left dial hand: PS; Other hands:
Stopped at 12 o’clock;
Display: Blank
Operation
All functions enabled, except
for displays
Beeper tone, illumination, and
display disabled.
