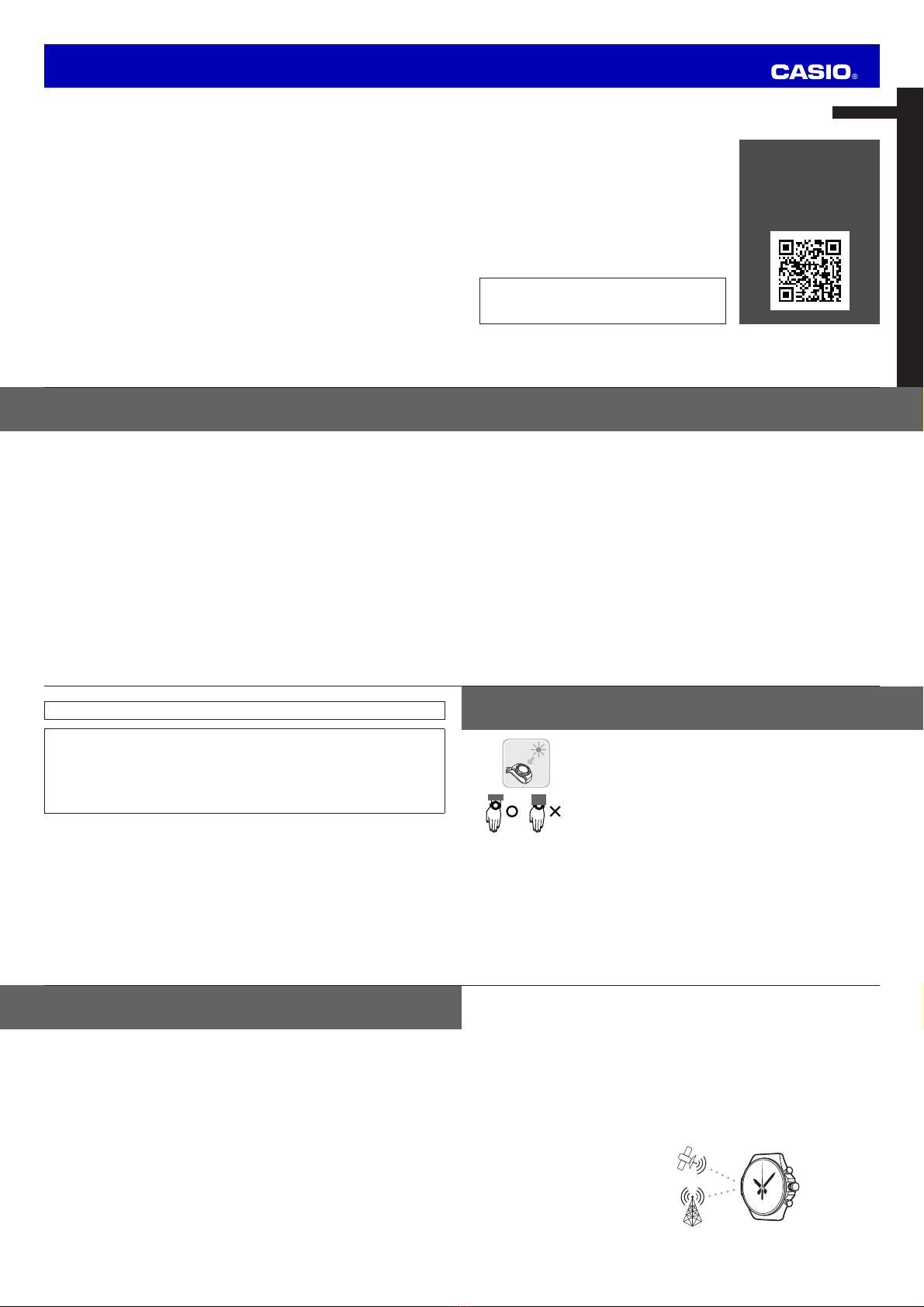

User’s Guide 5501 (OC)
E-7C
xEven if you are unable to perform a GPS signal and/or time calibration signal receive operation for
some reason, the watch will keep time with average monthly accuracy of ±15 seconds.
Important!
xIf the current time and day setting is wrong after you perform one of the procedures under “Time
Calibration Signal Auto Receive”, “GPS Signal Auto Receive”, or “Receiving GPS Time Information”, try
acquiring position information (GPS) and then perform the time/day setting procedure again.
xIf you feel that the current time and/or day indicator are not in the correct positions, you can adjust
their alignment. For details, see the Operation Guide available at the CASIO website.
xTime calibration signal reception is normally possible in the areas below.
Japan, China, North America, Europe
For details, see the Operation Guide available at the CASIO website.
xFor details about the following operations, see the Operation Guide available at the CASIO website:
Configuring Home City (time zone), summer time, current time, and current day settings manually.
https://world.casio.com/manual/wat/
GPS signal
Time calibration signal
E-6 C
Timekeeping (Current Time and Day Adjustment)
● For information about how to adjust time using a phone, refer to the Operation Guide available
at the website below.
https://world.casio.com/manual/wat/
● After purchasing the watch, perform the procedure under “Acquiring GPS Position Information”
(page E-12).
● To set the current time and day, normally use the procedure under “Time Calibration Signal Auto
Receive” (page E-16). In areas where a time calibration signal cannot be received for some reason,
set the current time and day using the procedure under “GPS Signal Auto Receive” (page E-14).
xLate night (between midnight and 5:00 a.m.): The receive operation starts at regular intervals until
receive is successful (Time Calibration signal).
xDaytime (between 6:00 a.m. and 10:00 p.m.): The receive operation will start automatically when
the watch is continually expose to light (GPS).
xOnce a time calibration or GPS signal receive operation is successful, no more Auto Receive
operations are performed that day.
●● If the current time setting is not correct, perform the procedure under “Receiving GPS Time
Information” (page E-13).
● If you move into another time zone, perform the procedure under “Acquiring GPS Position
Information”. Next, perform one of the procedures under “Time Calibration Signal Auto
Receive”, “GPS Signal Auto Receive”, or “Receiving GPS Time Information” to set the current
time and day.
E-5
Charging the Watch
xWhen you are not wearing the watch, leave it where its face (solar panel) is
exposed to bright light for charging.
xTo help ensure stable operation, expose the face of the watch to about a half
day of direct sunlight each month to charge it.
xWhile wearing the watch, take care so your sleeve does not block its face
(solar panel) from light. Charging efficiency may be reduced if the face (solar
panel) is blocked from light, even partially.
Caution
xThe case of the watch may become extremely hot when charging. Guard against burn injury.
Power Saving
xLeaving the watch in a dark location for about one hour between 10:00 p.m. and 5:50 a.m. will cause
the second hand to stop.
xLeaving the watch in a dark location for about one week will cause all hands to stop.
Battery Alerts
xLow Battery
Second hand jumps every two seconds (Low Battery Alert).
xDead Battery
All hands stopped.
E-4 C
Bluetooth®is a registered trademark or trademark of Bluetooth SIG, Inc. of the United States.
Your watch has a Mobile Link function that allows it to communicate with a Bluetooth®mobile phone
and adjust its time settings to match those of the mobile phone.
xThis product complies with or has received approval under radio laws in various countries and
geographic areas. Use of this product in an area where it does not conform to or where it has not
been approved under applicable radio laws may be punishable under local laws. For details, visit
https://world.casio.com/ce/BLE/.
xUse of this product inside of an aircraft is restricted by the aviation laws of each country. Be sure to
obey instructions provided by flight personnel concerning use of devices such as this product.
E-3
Contents
Features .............................................................................................................................................. E-2
Charging the Watch............................................................................................................................ E-5
Timekeeping (Current Time and Day Adjustment) ............................................................................. E-6
Mode Reference Guide....................................................................................................................... E-8
Using the Watch in an Aircraft (Airplane Mode)............................................................................ E-10
Timekeeping (Based on GPS Signals).............................................................................................. E-11
Appropriate Signal Reception Location (GPS Signal) ................................................................... E-11
Performing a GPS Signal Receive Operation Manually................................................................. E-12
GPS Signal Auto Receive ........................................................................................................... E-14
Timekeeping (Based on a Time Calibration Signal) ......................................................................... E-15
Appropriate Signal Reception Location (Time Calibration Signal).................................................. E-15
Time Calibration Signal Auto Receive.......................................................................................... E-16
Using the Crown ............................................................................................................................... E-17
Specifications ................................................................................................................................... E-18
Operating Precautions...................................................................................................................... E-20
User Maintenance............................................................................................................................. E-26
E-2
Features
Your watch provides you with the features and functions described below.
◆Solar powered operation........................................................................................Page E-5
The watch generates electrical power from sunlight and other types of light, and uses it to charge a
battery that powers operation.
◆Accurate timekeeping.............................................................................................Page E-6
Timekeeping is kept accurate using GPS signals and time calibration signals.
The watch communicates with a phone to acquire internet time info.
◆Current time in cities around the globe.................................................................Page E-8
View the current time in 39 time zones* around the globe.
Simple swapping of World Time with current location time.
* Time zone data may be changed when the watch communicates with a phone.
◆Stopwatch................................................................................................................Page E-9
The stopwatch measures elapsed time up to 24 hours in one-second increments.
E-1C
ENGLISH
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the years of
service for which it is designed, carefully read and follow the
instructions in this manual, especially the information under
“Operating Precautions” and “User Maintenance”.
Be sure to keep all user documentation handy for future
reference.
xKeep the watch’s face exposed to light as much as possible
(page E-5).
Important!
xFor details about how to adjust the current time zone, time,
and day settings, see “Timekeeping (Current Time and Day
Adjustment)” (page E-6).
For details about how to
use this watch and for
troubleshooting information, go
to the website below.
https://world.casio.com/
manual/wat/
Note that CASIO COMPUTER CO., LTD. assumes no
responsibility for any damage or loss suffered by you or
any third party arising through the use of your watch or its
malfunction.
MA1807-EC © 2017 CASIO COMPUTER CO., LTD.

User’s Guide 5501 (OC)
E-15
Timekeeping (Based on a Time Calibration Signal)
Appropriate Signal Reception Location (Time Calibration Signal)
xKeep the watch away from metal and position it so its 6 o’clock side is
facing a window. Avoid moving the watch as much as possible and do
not perform any watch operations while a signal receive operation is in
progress.
● You may experience time calibration signal reception problems in
the areas described below.
-Among or near buildings
-While riding in a vehicle
-Near household appliances, office machines, mobile phones, etc.
-On a construction site, in an airport, or any other location where radio
wave interference occurs
-Near high-voltage lines
-In mountainous areas or behind a mountain
xAlways check the time setting on the day there should be a switch
between standard time and summer time (DST). If the setting is not
correct (due to signal reception failure), turn DST on or off manually as
required.
6 o’clock
E-14
GPS Signal Auto Receive
Important!
xPerform the signal receive operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode
Reference Guide” (page E-8).
● GPS signal time information is received automatically whenever all of the conditions described
below are satisfied.
-The current time is between 6:00 a.m. and 10:00 p.m.
-The face of the watch has been exposed continuously for about one or two minutes to light
equivalent to the brightness near a window on a clear day.
-All time calibration signal receive operations performed during the previous night were unsuccessful.
E-13
◆Receiving GPS Time Information
Perform this operation when you suspect that the time normally indicated by the watch is not correct.
xIf the GPS signal time information receive operation is successful, the watch will automatically adjust
the current time and day settings of the Home City (time zone).
Important!
xPerform this operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode Reference
Guide” (page E-8).
1. Move to a location appropriate for signal reception and orient the
watch so its display is pointed straight up at the sky. See “Appropriate
Signal Reception Location (GPS Signal)” (page E-11).
2. Hold down Buntil the second hand moves to T (TIME). Release
Bafter the second hand reaches T (TIME). This will start time info
reception.
xReception normally takes anywhere from six seconds to 60seconds.
It can take as long as 13 minutes.
xWhen the receive operation is successful, the watch will adjust its
current time and day settings automatically.
xThis operation requires large amounts of power. Perform it only
when necessary.
30
Second hand
E-12
Performing a GPS Signal Receive Operation Manually
◆Acquiring GPS Position Information
When position information is acquired successfully, the watch is able to determine its current location
and adjust its time and day setting accordingly.
Important!
xPerform this operation in the Timekeeping Mode (not in the Airplane Mode). See “Mode Reference
Guide” (page E-8).
1. Move to a location appropriate for signal reception and orient the watch so its face is pointing straight
upwards.
xSee “Appropriate Signal Reception Location (GPS Signal)” (page E-11).
2. Hold down Buntil the second hand moves to T (TIME). Release
Bafter the second hand reaches T (TIME). Pressing Bagain will
cause the second hand to move to T+P and start location information
acquisition.
xPosition information reception takes anywhere from about
30seconds to 80 seconds. It can take as long as 13 minutes.
xSuccessful acquisition of position information will automatically
display the time and day for the resulting location.
xPosition information acquisition requires large amounts of power.
Perform the acquisition operation only when it is required.
30
Second hand
E-11
Timekeeping (Based on GPS Signals)
Appropriate Signal Reception Location (GPS Signal)
When performing GPS signal reception, move the watch outside where there is a clear view of the sky
above, with no obstructing buildings, trees, or other objects.
Note
xIf you experience signal reception problems, keep the
watch still and point its display straight up at the sky.
xWhile a receive operation is being performed, take care
to avoid covering the watch face with your sleeve.
xYou may experience GPS signal reception problems in
the areas described below.
-Where the view of the sky above is narrow
-Near trees or buildings
-Near a train station, airport, or other congested areas
xGPS signal reception is not possible in the areas described below.
-Where the sky is not visible
-Underground or in a tunnel
-Indoors (Reception may be possible near a window.)
-Near wireless communication equipment or other devices that generate magnetism
E-10
Using the Watch in an Aircraft (Airplane Mode)
xSwitch to the Airplane Mode whenever you are inside an aircraft or in any other area where radio wave
reception is prohibited or restricted.
xEntering the Airplane Mode disables GPS signal and time calibration signal reception.
xWhile in the Timekeeping Mode, press Bonce and then pull out the crown to the first click. The
second hand will move to Y (receive enabled) or N (receive disabled). To enter the Airplane Mode
(receive disabled), rotate the crown to align the second hand with N. To exit the Airplane Mode (receive
enabled), align the second hand with Y. After the setting is the way you want, push the crown back in
to its normal position.
30
E-9
Bbutton
xPress once to check the last
receive result and the battery level.
After about one or two seconds,
the time zone and city name will be
indicated.
xHold down for about 1.5 seconds
to start time information acquisition
from the GPS. Press again while
reception is in progress to acquire
location information from the GPS.
xUse Cto navigate between modes.
xHolding down Cfor one second in any mode returns to the Timekeeping Mode.
xHold down Cfor about 2.5 seconds to establish a Bluetooth connection with a phone. For details,
refer to the Operation Guide available at the CASIO website.
C
Stopwatch Mode
xStart
xStop
xReset
30
Hours
Hours (0 to 24) Minutes
Seconds
xEnters the
Timekeeping
Mode
Crown
Mode
E-8
Mode Reference Guide
xOperation details: Operation Guide available at the CASIO website.
Timekeeping Mode
30
Minute hand
World Time hour hand
Second hand
Day Indicator
Crown
World Time hour (24-hour dial)
CB
A
Hour hand
Day of the
week hand
World Time City
24-hour hand
World Time minute hand
xIn the Timekeeping Mode (not in the
Airplane Mode), the day of the week hand
will point to the current day of the week.
xIn the Airplane Mode, the day of the week
hand points to the airplane ( ) mark
instead of the day of the week.
Abutton
xHold down for about three seconds to
swap your World Time with your current
location time.

User’s Guide 5501 (OC)
E-19
Data Communication Specifications
Bluetooth®
Communication range: 2 meters max. (depends on environment)
Stopwatch: Measuring capacity: 23:59'59"
Measuring unit: 1 second
Measuring modes: Elapsed time
Other: Power Saving; Low battery alert; Auto Correction of Hand Home Positions;
Airplane Mode (disables data communication)
Power Supply: Solar panel and one rechargeable battery
Approximately 7 months
Not exposed to light under the conditions below.
GPS time information receive: 1 operation (approximately 10 seconds) every 2 days
GPS time position information receive: 1 operation (approximately 45 seconds)/month
Specifications are subject to change without notice.
For open source information, visit the CASIO website.
https://world.casio.com/manual/wat/
CE-18
Specifications
Accuracy at normal temperature: ±15 seconds a month (When receive of a calibration signal or
communication with a phone for time adjustment is not possible.)
Timekeeping : Hour, minutes, seconds, 24-hour, day, day of the week
Calendar system: Full Auto-calendar pre-programmed from the year 2000 to 2099
Other: Home City (Time Zone) and World Time City (Time Zone) can be assigned one of 39 time
zones* and Coordinated Universal Time; Daylight Saving Time (summer time)/Standard Time
auto switching
* Time zone data may be changed when the watch communicates with a phone.
Signal receive function: GPS signal auto receive, manual receive
Time calibration signal auto receive
Auto transmitter selection (for JJY, MSF/DCF77)
Receivable call signs: JJY (40 kHz/60 kHz), BPC (68.5 kHz), WWVB (60 kHz), MSF (60 kHz),
DCF77 (77.5 kHz)
Last reception result display
Manual and auto standard time/summer time switching
Mobile Link Functions:
Auto Time Correction
Time setting automatically adjusted during a fixed time period.
Auto summer time switching
Automatic switching between standard time and summer time.
Hand position correction
E-17C
Using the Crown
xYou can change the following settings by operating the watch’s crown: World Time City (time zone),
Home City (time zone), summer time (DST), and current time.
xFor details about crown operations, see the Operation Guide available at the CASIO website.
https://world.casio.com/support/
Important!
xIn order to prevent loss of water resistance and damage due to impact, make sure that the crown is
fully pushed in to its normal position when using the watch.
E-16
Time Calibration Signal Auto Receive
Important!
xTo perform time calibration signal auto receive, the watch must be in the Timekeeping Mode (not in the
Airplane Mode). See “Mode Reference Guide” (page E-8).
● Leave the watch in a location that is appropriate for time calibration signal reception between
the hours of midnight and 5:00 a.m. See “Appropriate Signal Reception Location (Time
Calibration Signal)” (page E-15).
xThe second hand will point to RC while time calibration signal reception is in progress.
xReception normally takes anywhere from about two to ten minutes, but it can take as long as
20minutes.
xWhen the receive operation is successful, the time and day settings will be adjusted automatically.
