Cassese CS1 CART User manual

FOOT OPERATED UNDERPINNER
Inventor and World No.1 Manufacturer of
Picture Framing Machines & Consumables Since 1976
CS1 CART
USER & PARTS MANUAL
Version 1 06/ 2013
Cassese®/ Communication
Z26059
READ THIS MANUAL CAREFULLY
BEFORE USING THE MACHINE

Non contractual document - Cassese France®- Document non contractuel

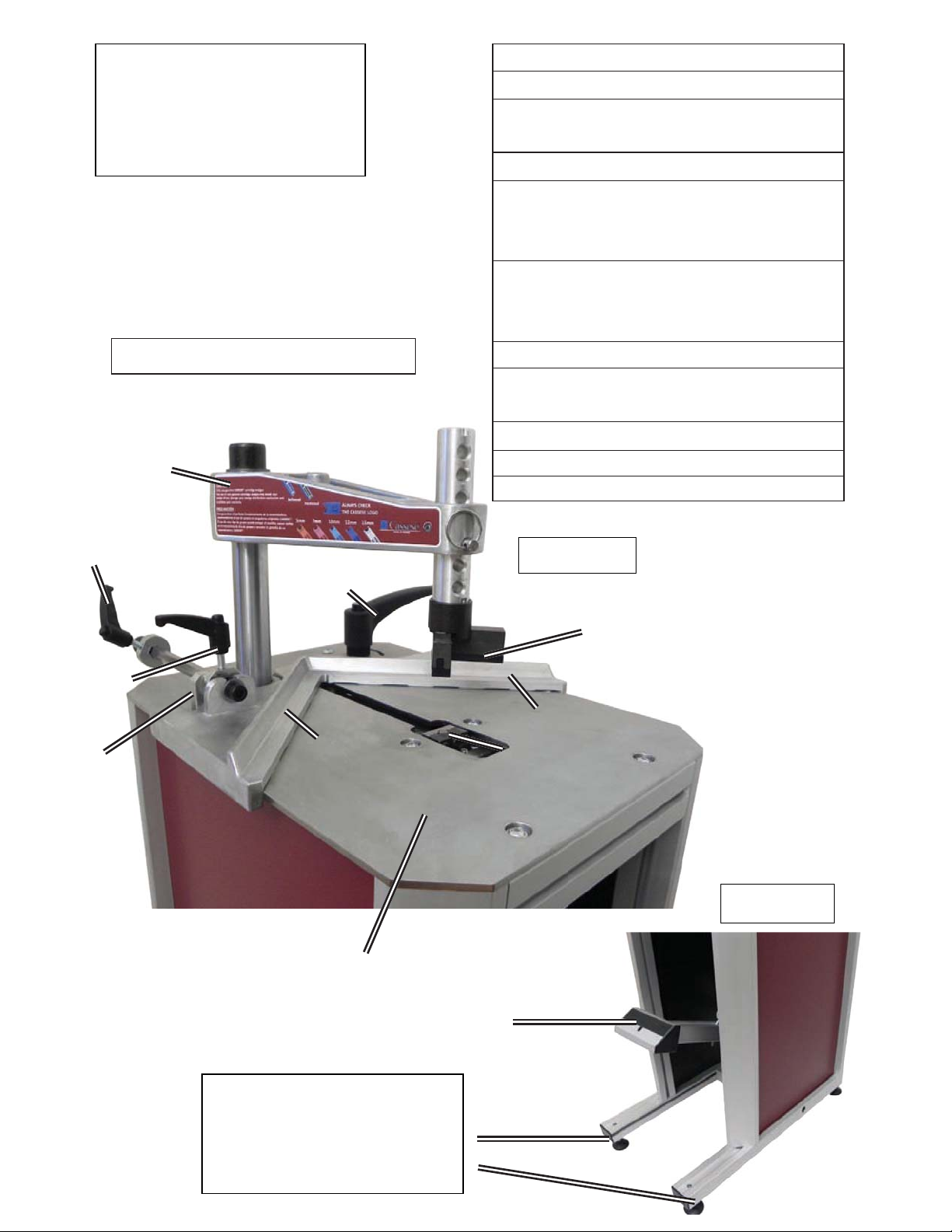

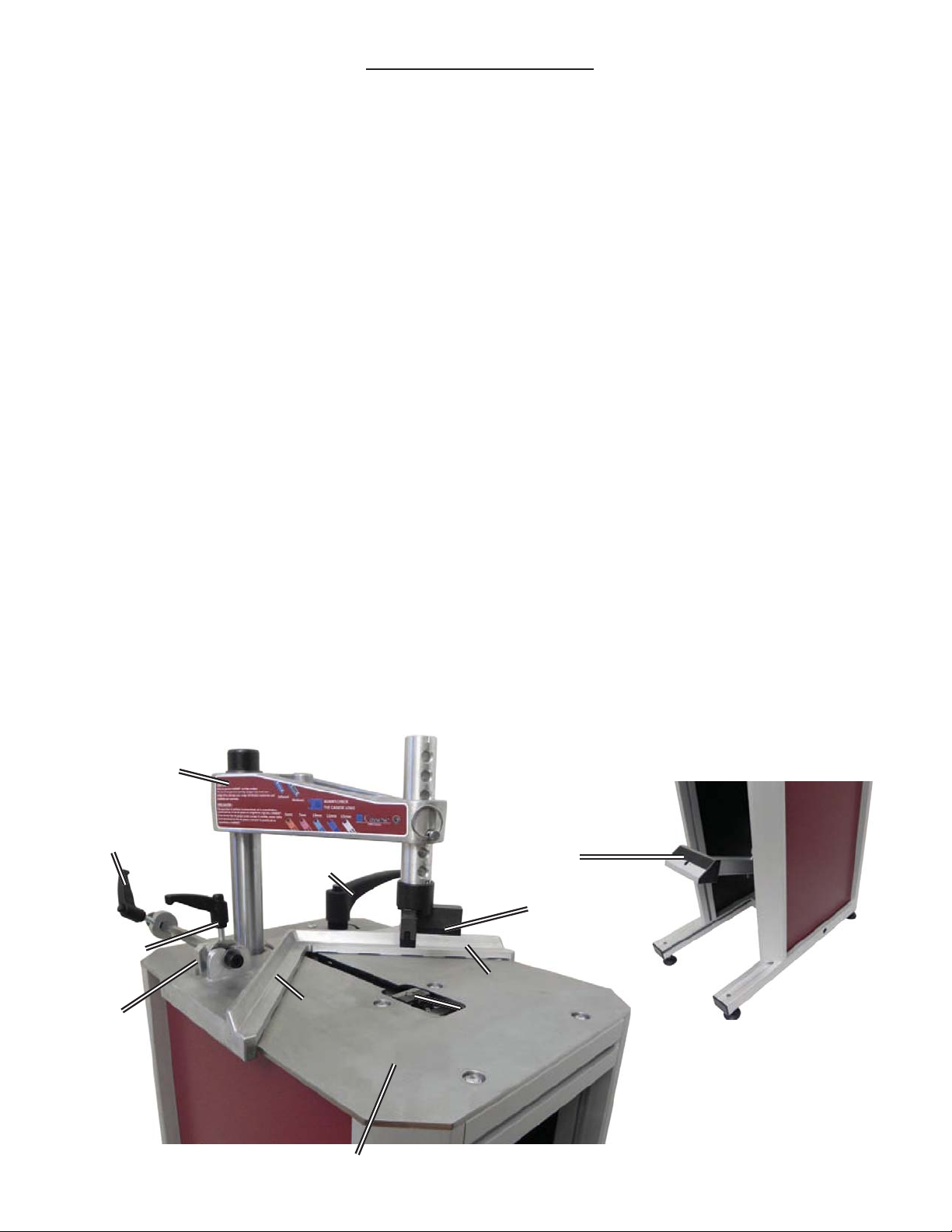

CS1 CART
FOOT OPERATED
UNDERPINNER
1st BACK FENCE 1
2nd BACK FENCE 2
HANDLE FOR LOADING
WEDGES 3
WEDGE DISTRIBUTOR BLOCK 4
WEDGE POSITION
STOP HANDLE
(inside of frame) 5
WEDGE POSITION
STOP HANDLE
(outside of frame) 6
PEDAL 7
MAGNETIC ADJUSTABLE
ROD CLAMP ASSEMBLY 8
CROSSBAR 9
STAPLING STOP 10
TABLE 11
WORK POSITION REFERENCE
9
6
5
10 2
1
8
3
4
11
7
Fig N°1
Fig N°2
AFTER UNPACKING THE
MACHINE, SET THE 4 FEET
TO LEVEL THE MACHINE

Non contractual document - Cassese France®- Document non contractuel
INTRODUCTION 2
ACCESSORIES SUPPLIED WITH THE MACHINE
TECHNICAL SPECIFICATIONS OF CS1 CART
OPTIONS
GUARANTEE
ADJUSTMENTS
SELECTION OF WEDGE POSITIONS 3
SETTING AND STORING THE WEDGE POSITIONS 3, 4
PROPER ADJUSTMENT OF MAGNETIC ADJUSTABLE 5
ROD CLAMP ASSEMBLY
USE

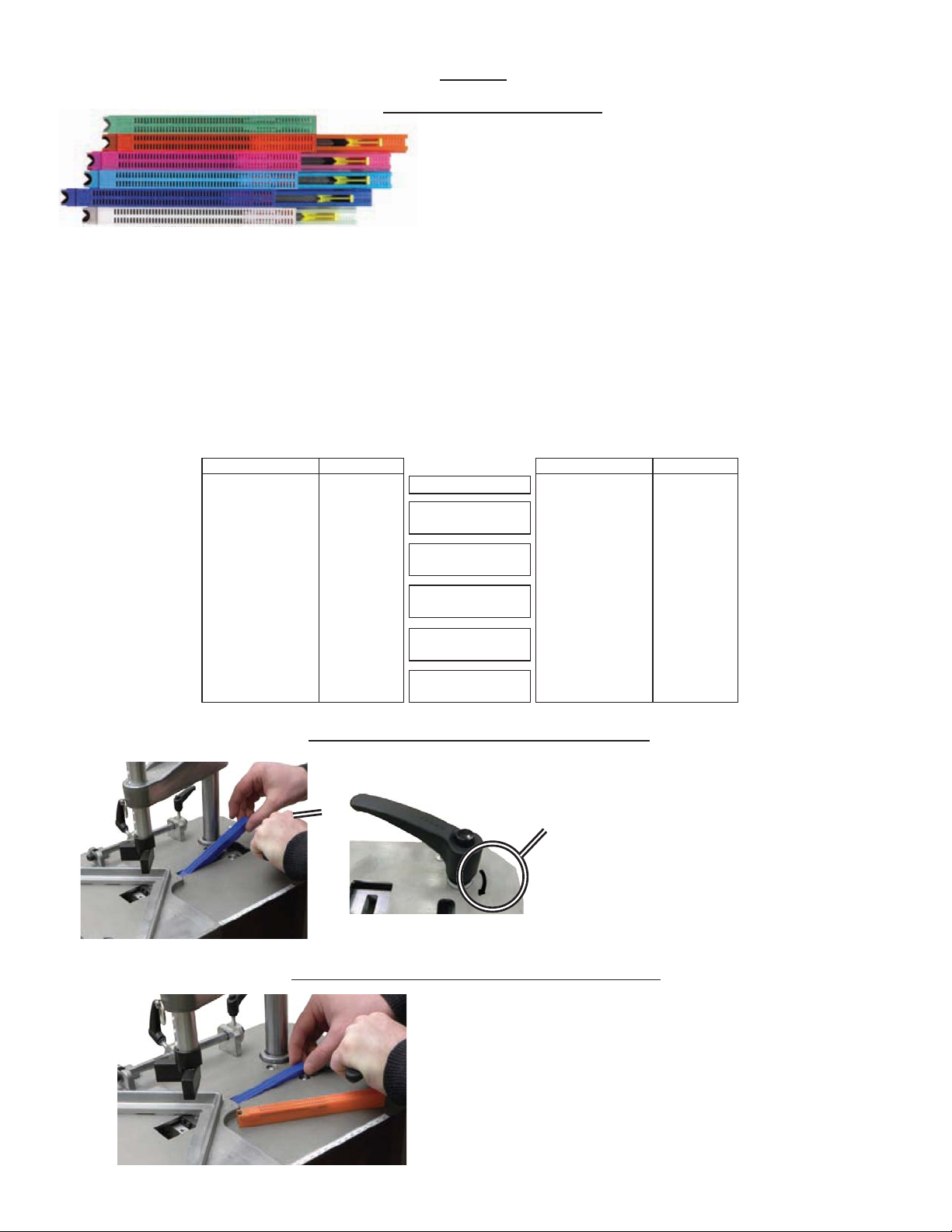

MEANS OF JOINING 6
LOADING CARTRIDGE WEDGES 6
CHANGING WEDGES SIZE 6
JOINING THE FRAME 7

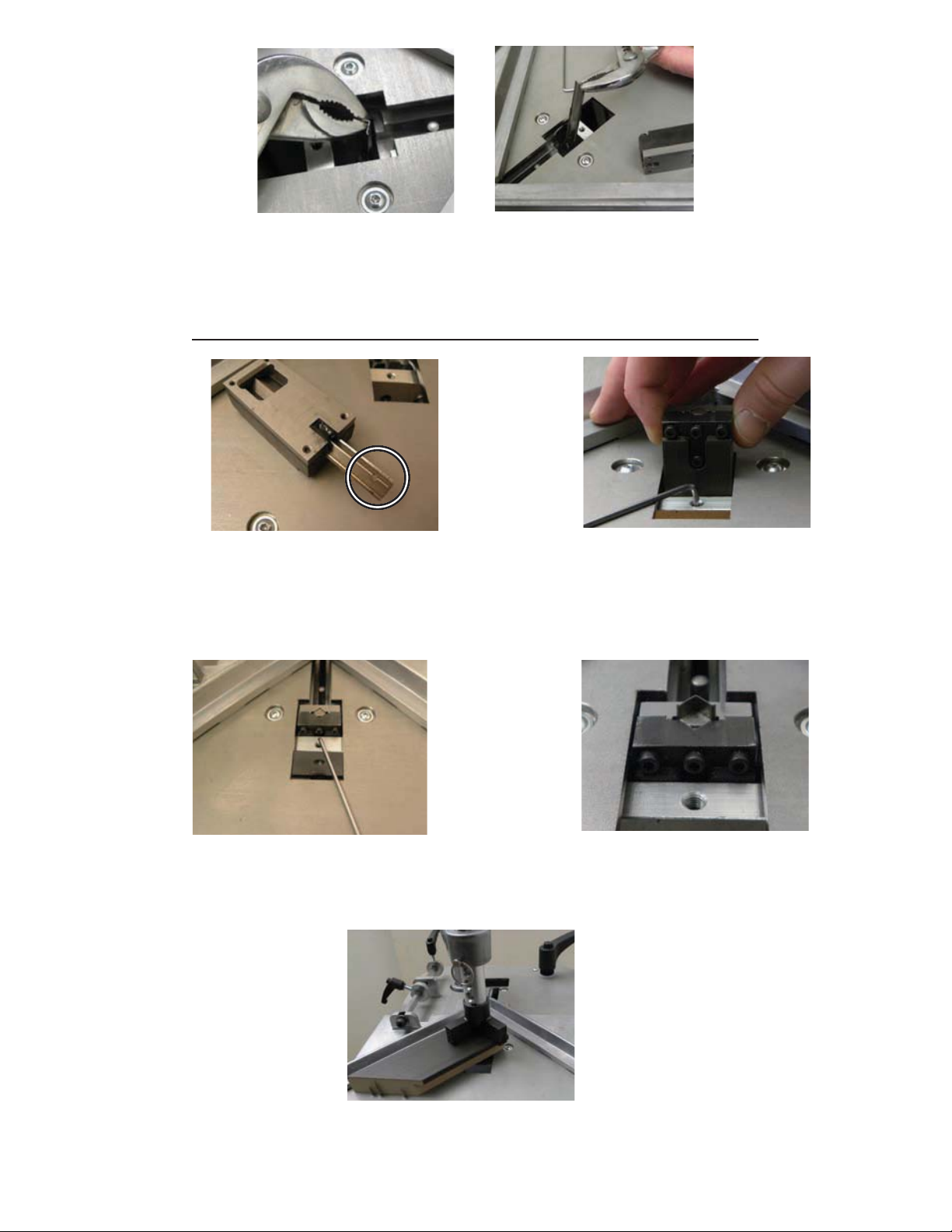

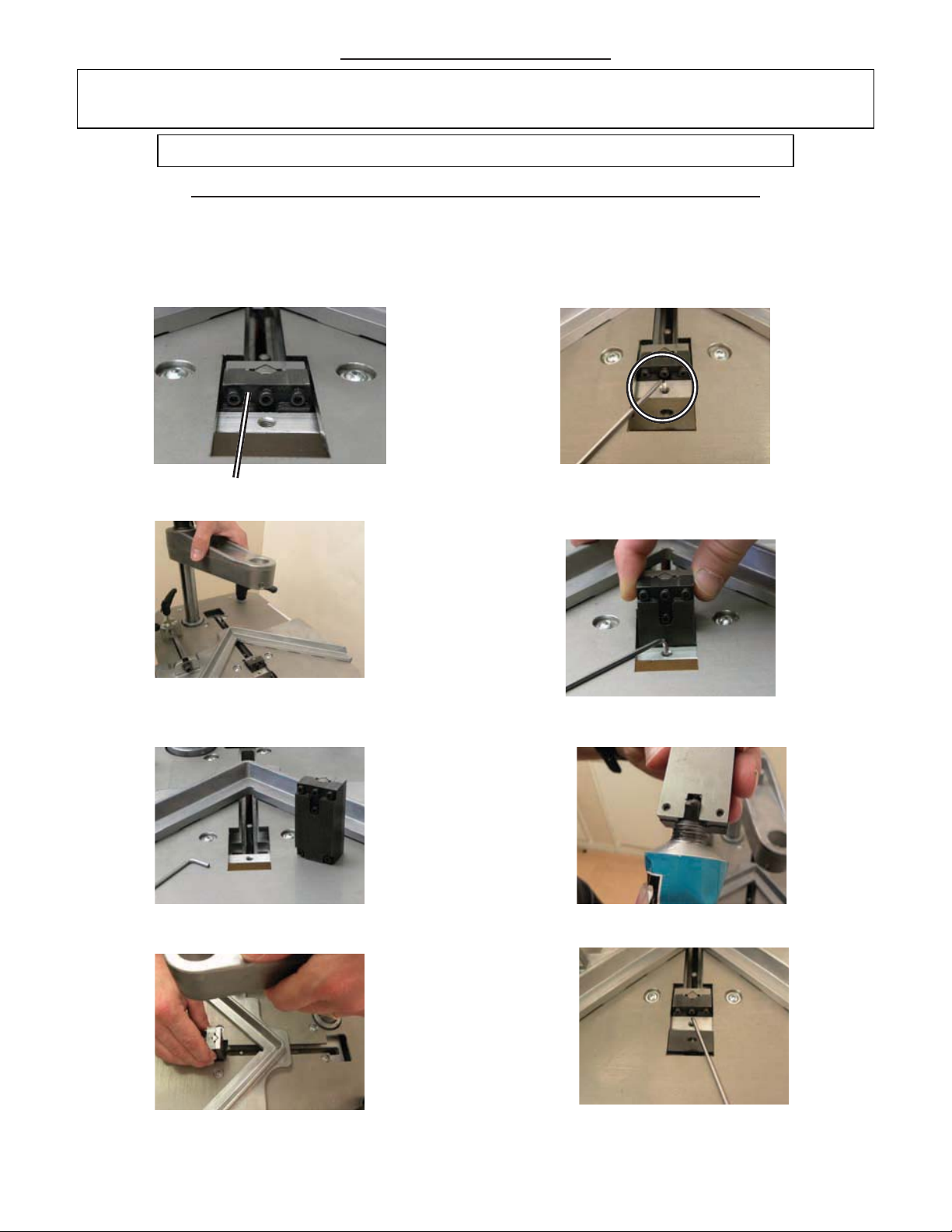

MAINTENANCE
A) DISMANTLING THE WEDGE DISTRIBUTOR BLOCK 9
B) CLEANING AND LUBRICATION OF THE WEDGE DISTRIBUTOR BLOCK 10
C) REMOVAL OF THE WEDGE DRIVER BLADE 11
D) INSTALLATION OF NEW WEDGE DRIVER BLADE 12
E) UNJAMMING OF THE WEDGE DISTRIBUTOR BLOCK 13
F) REMOVING THE SIDE PANEL 14
G) REMOVING THE WORKING TABLE WITH THE PEDAL 14
H) REPLACEMENT OF THE WEDGE DISTRIBUTION CHANNEL
ELASTIC CORD 15
CS1 CART - USER & PARTS MANUAL
CONTENTS Page
1

Non contractual document - Cassese France®- Document non contractuel

Non contractual document - Cassese France®- Document non contractuel
CS1 CART - USER & PARTS MANUAL
INTRODUCTION
Thanks for having purchased the CS1 CART underpinner and for your trust in

in designing and manufacturing highest quality underpinners, for which we are
world-famous. The CS1 CART will allow you to join wooden, plastic and MDF

Cassese®Cartridge Wedges, specially designed to perform perfect and tight
frame corners.

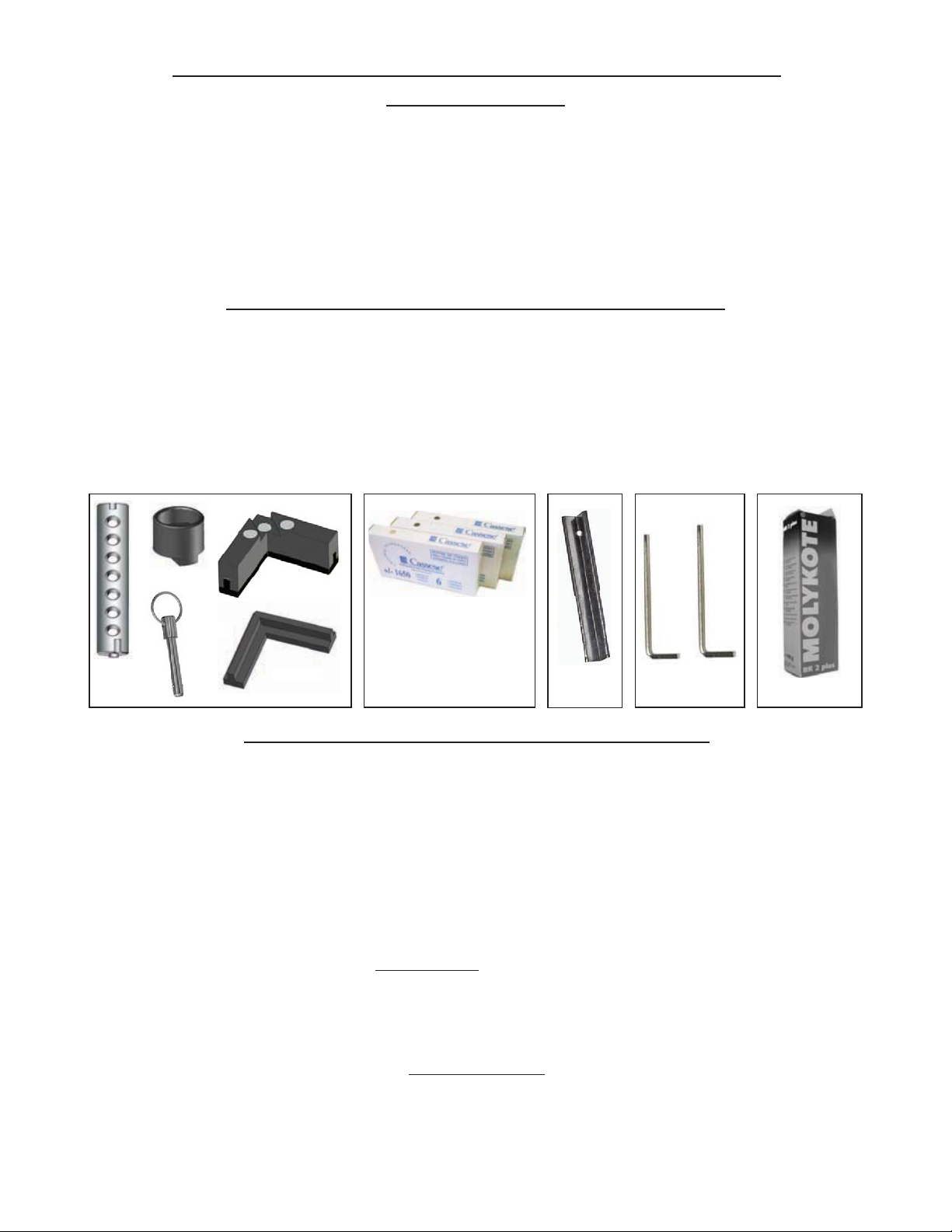

ACCESSORIES SUPPLIED WITH THE MACHINE
A) 1 Magnetic adjustable rod clamp + 1 Locking ring pin + 1 Chevron holder +
1 Magnetic chevron clamp + 1 Chevron rubber.

C) 1 Wedge driver blade for using CASSESE®Genuine Cartridge Wedges.
D) 1 Allen Key 2.5 mm + 1 Allen Key 3 mm.
E) 1 Grease Tube.
TECHNICAL SPECIFICATIONS OF CS1 CART



CASSESE®Genuine Cartridge Wedges sizes: 5, 7, 10, 12 and 15 mm.
3 wedge types : Softwood, Hardwood & MDF. Use only CASSESE®Genuine cartridge
wedges.

3/4
OPTIONS 
             


GUARANTEE
One year guarantee for parts and labour against manufacturing defects. Wear
parts and those damaged as a result of non compliance with the instructions of the

blade are considered as wear parts.
2
AB
CDE

Z506 
Z21525
Z21524

+

+

Z24703
Z25494
Z6532
