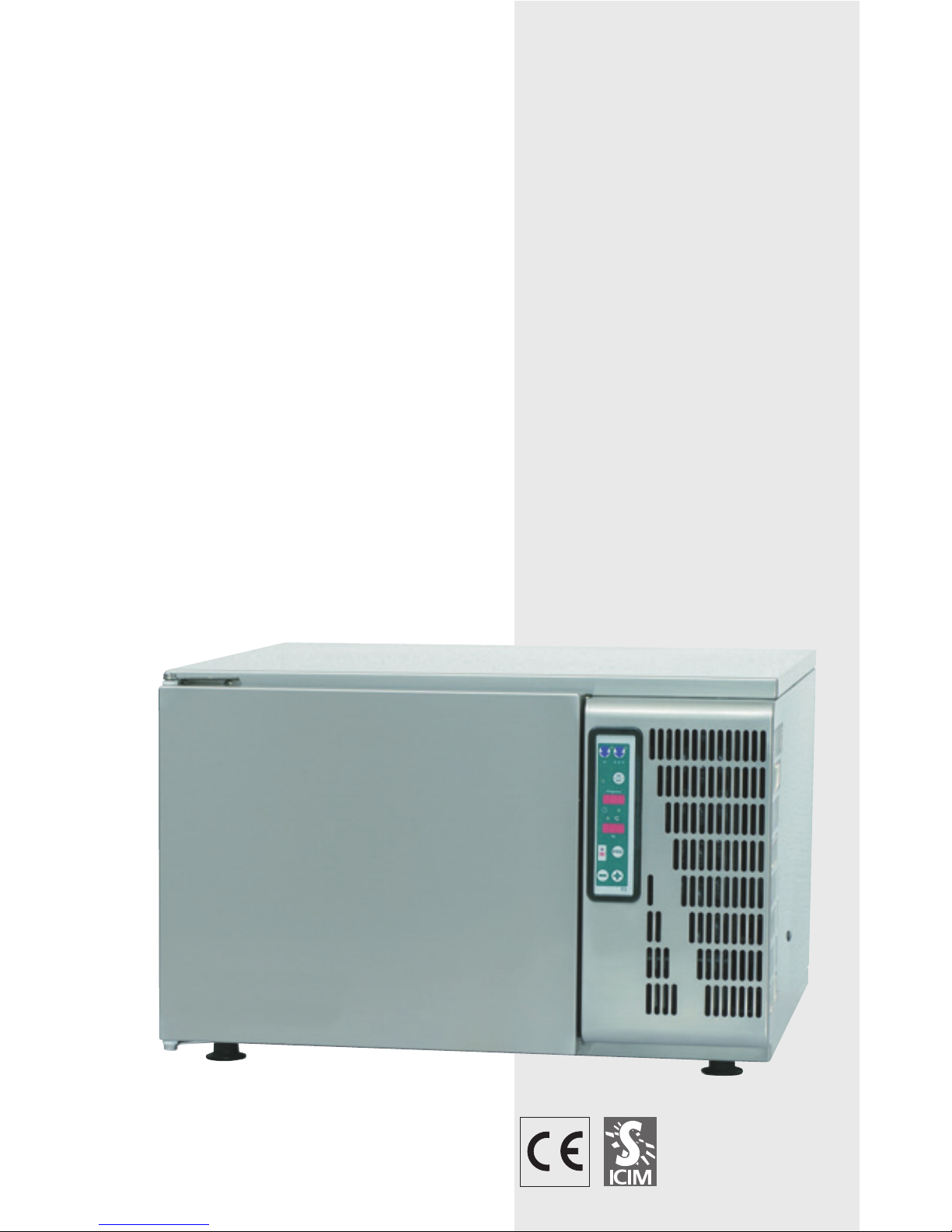

Castel MAC T3 User manual

TT3
ISTRUZIONI D’USO
HOW TO USE IT
NOTICE D’EMPLOI
GEBRAUCHSANWEISUNG
GEBRUIKSAANWIJZING
ISTRUCCIONES PARA EL USO
MANUAL DE USO
BRUKSANVISNING
BRUKSANVISNING
BRUGSANVISNING
KÄTTÖHJE
O∆HΓIE∑XPH∑EΩ∑
ISO 9001 - Cert. N° 0412/2

INDEX
INTRODUCTION 2
REGULAR MAINTENANCE 3
EXTRAORDINARY MAINTENANCE 4
INSTALLATION INSTRUCTIONS 6
INSTALLATION 7
RECOMMENDATIONS FOR CORRECT USE 8
CYCLES 9
ELECTRONIC CONTROL FOR BLAST CHILLER FREEZER 10
BLAST CHILLER FREEZER FUNCTIONS 12
DIAGRAM OF THE CIRCUIT BOARD 14
SPARE PARTS CATALOGUE 16
1
I

INTRODUCTION
Castel MAC S.p.A. would like to thank you for having chosen its products and we are sure that you will
be more than satisfied with their performance.
To help maintain efficiency and performance in time, Castel MAC S.p.A. have prepared this manual that
describes the correct use and maintenance of the Blast Chiller Freezer.
TYPE OF USE AND LIMITATIONS
This Blast Chiller Freezer has been designed for chilling and preserving food (it rapidly lowers the tem-
perature of cooked food in this way preserving quality and guaranteeing freshness for several days). Any
other use is considered improper and incorrect.
This Chiller cannot be installed outside and or in environments subject to weather conditions.
The manufacturer declines all responsibility for uses other than those given in this manual.
TESTING
The Chiller is dispatched only after it has been tested (visual inspection – electric test – functional test).
Final testing is certified, for the relevant documentation please refer to the enclosed appendixes.
GENERAL SAFETY STANDARDS
The Chiller in question is manufactured conforming with the European Directives relevant to low tension
73/23-93/68/EEC, and electromagnetic compatibility 89/336/EEC; EN60335- 1, EN60335-2-24,
EN55014, EN61000-3-2, EN61000-3-3, EN55104.
WHAT THE CUSTOMER MUST PROVIDE ON SITE LOCATION
It is necessary that there is an earthed power socket suitable for the electrical input indicated on the
metal plate, a thermomagnetic switch with at least a 3 mm break contact.
TECHNICAL ASSISTANCE
Thanks to the network of concessionaires and authorised service centres, Castel MAC S.p.A. guaran-
tees its customers an after-sales service.
CAUTION: The T3 Chiller must be powered by a single phase power supply (230 V – 50 Hz).
Make sure it is level and always use qualified personnel to install, repair and service your Chiller.
2

REGULAR MAINTENANCE
WARNINGS
Regular maintenance work can be carried out by non-specialised personnel who, however, must always
adhere to the instructions given in this manual. Before cleaning or servicing the chiller lock-off the power
supply. When carrying out regular maintenance work do not remove any of the safety guards.
CLEANING THE CHILLER AND ACCESSORIES
Before using this Chiller clean on the inside and all the accessories. Use warm water and neutral soap.
Rinse and dry well. Do not use solvent or powder based detergents and use a silicon wax to protect the
steel.
PERIODICALLY CLEANING THE CONDENSER
The condenser should be cleaned periodically. Cleaning intervals will depend on how frequently it is
used.
MEASURES TO TAKE WHEN OUT OF SERVICE FOR A PERIOD OF TIME
When the Chiller is out of service for a long period of time take the following measures:
• Remove the plug from the power socket;
• Remove all food and clean the inside of the Chiller and all accessories;
• Buff all the stainless steel surfaces with a cloth moistened with vaseline oil to give a protective
coating;
• Leave the door ajar for air circulation to prevent bad odours;
• Periodically air the room or kitchen where the Chiller is installed.
CAUTION: To access the condenser (please refer to page 16 in the spare parts catalogue) it is
necessary to remove the safety guards. Always use qualified and specialised personnel.
To guarantee efficiency and performance in time, it is necessary to clean the condenser periodical-
ly. It is highly recommended if located in dusty environments to clean the louvers on the refrigerat-
ing unit once a month and once every three months if located in closed and clean environments. To
remove dust and dirt from the louvers use a brush or vacuum cleaner. Do not use sharp objects or
tools that could damage the condenser. Do not clean using water jets.
3

EXTRAORDINARY MAINTENANCE
UNDERSTANDING SIMPLE MALFUNCTIONS
At times malfunctions are due to simple and trivial causes and nearly always there is no need to call in
a specialised technician, therefore before informing the company check for the following:
The Chiller is not powered:
a. Check that it is plugged in;
b. Check that there is power.
The Chiller does not reach the correct internal temperature:
a. Check the temperature settings;
b. Check the probe.
The Chiller is excessively noisy:
a. Check that the Chiller is level. If unbalanced this could cause vibrations creating excessive
noise.
b. Check that the Chiller is not positioned up against other machines or objects causing vibra-
tions.
After having proceeded with the foregoing checks and if the problem persists, contact the company giv-
ing:
- A description of the type of malfunction;
- Chiller code and serial number which are indicated on the metal plate.
WASTE DISPOSAL AND SCRAPPING
Storing waste:
It is possible to temporarily store special waste products that are to be scrapped. However, the user must
observe and adhere to the local governing laws regarding waste management.
Macro – dismantling the Chiller:
Each country has its own waste management laws, therefore the user must observe and adhere to the
local governing laws where the Chiller is to be scrapped.
As a general guideline the Chiller should be handed over to a special waste treatment plant. Dismantle
it and divide the various components into groups according to their chemical properties. Remember that
there is oil and refrigerating solutions in the condenser that can be recuperated and reused and the var-
ious components are considered special waste products and as such are treated as urban waste.
CAUTION: All dismantling operations must be carried out by specialised personnel!
CAUTION: Extraordinary maintenance and servicing work must be carried out be qualified personnel!
4

INSTALLATION INSTRUCTIONS
INTRODUCTION
This manual aims at providing the user with all the necessary information to correctly use and maintain
the Chiller.
Before use carefully read all the instructions given in this manual.
The manufacturer shall decline all responsibility for operations and use which disregard the instructions
herein.
MATERIALS AND CHILLING SOLUTIONS
All the surfaces that come in contact with food are in stainless steel.
This Chiller has an HFC chilling solution which is consented by current law. The type and quality of the
gas is indicated on the metal plate.
ELEMENTARY SAFETY STANDARDS – RISKS
The Chiller has no dangerous corners, sharp and cutting surfaces or protruding parts. All safety guards
on moving parts or electrics are screwed to the cabinet. These guards avoid any form of accidental con-
tact with parts that present a risk to the user. Always respect safety standards:
- Do not touch the Chiller with wet hands or feet;
- Not use the Chiller barefooted;
- Do not poke screwdrivers, cutlery or other objects between the safety guards mounted on
moving parts;
- Before cleaning or servicing the Chiller lock-off the power supply.
5

INSTALLATION
Carefully follow and adhere to the instructions given in this chapter to guarantee working efficiency and
safety when the Chiller is in use.
LOCATION
Locate the Chiller in a ventilated area distant from heat sources such as radiators, air conditioning units,
deep-fryers and ovens.
Make sure the Chiller is located at a distance not less than 10 cm from the back wall to permit a good
cooling effect for the various components.
To maintain the correct internal temperature, the ambient temperature must not exceed +32°C
Adjust height and levelling using the support feet and also check the door closes. If the Chiller is not per-
fectly level working efficiency and condensation flow may be affected.
Remove the PVC protective film on both sides of the Chiller.
CONNECTING TO THE POWER SUPPLY
The T3 Chiller works off single-phase tension 230V- 50Hz.
To connect to the power supply, simply plug the power cable in the power socket or connect the Chiller
to the electrical panel, however before connecting check that:
- The socket is earthed and frequency and tension correspond to the information given on the
metal plate. If in doubt about earthing, call in a qualified electrician to check wiring.
- A suitable thermomagnetic switch must be provided between the power cable and electricity
line with at least a 3 mm break contact.
- when the Chiller is connected to the mains check that the supply tension, with the Chiller work-
ing, does not exceed or go under the rated tension by +/- 10%.
CAUTION: the manufacturer shall not be held responsible for damage or accidents caused by
negligence due to the non-observance of the recommendations and regulations given or of the local
governing standards and laws regarding electrical safety.
CAUTION: When transporting or moving the Chiller to the installation site do not push or drag it, lift
it and position it on a trolley to avoid overturning.
6

RECOMMENDATIONS FOR CORRECT USE
Before using the Chiller remove all traces of glue using a detergent as there might be traces of conden-
sate due to final testing in the factory.
Chiller efficiency when chilling and freezing depends on the following factors:
Type of containers to use:
We recommend you use pans (or containers with sides no greater than 65 mm in height) to permit an
effective air circulation (the food product should be exposed to the air circulation as much as possible to
reduce chilling times ). To avoid the food being contaminated, we recommend you carefully clean all con-
tainers and trays. We also recommend you keep the food in the same cooking pan when chilling.
Using covers:
Do not cover the food when chilling or freezing. Only once the chilling and freezing cycles have been
completed or before storage can you cover or pack the food.
7

CYCLES
BLAST CHILLING
The blast chilling cycle rapidly lowers the temperature of the food to a minimum of +3 °C.
Blast chilling is for food that will be consumed within a few days.
BLAST FREEZING
Blast freezing is for storing food for longer periods of time. When blast freezing the water content in the
food is micro crystallized so when defrosting the food is not altered in any way maintaining both its
appearance and nutritional value. When freezing the food core temperature reaches –18°C.
STORAGE
The Chiller has a storage cycle, in other words it maintains a set temperature, which is automatically acti-
vated when the chilling or freezing cycles have been completed. This storage is continuous and to stop
the program simply press the (ON-OFF) button.
Due to Chiller consumption, we recommend that you do not use this Chiller for storing food for a long
period of time. We suggest you store the food in fridges or freezers.
8

ELECTRONIC CONTROL FOR BLAST CHILLER FREEZER
9
ON
OFF
PRG
Programs
Kg
°C
L5
P5
P4
D2
L3
D1
P3
P2
L6
P6
L4
L2
L1
P1

10
REF. FUNCTION STATE COLOUR
D1 Display quantity product/temperature
D2 Display type of product / function
L1 Alarm Flashing Red
L2 Fan ON/ set product q.ty On / flashing Green
L3 Set type of product Flashing Green
L4 Chiller “OFF” on if in OFF mode Green
L5 Freezing cycle in course Flashing Green
L6 Chilling cycle in course Flashing Green
P1 Increase - -
P2 Decrease - -
P3 Set (confirm) - -
P4 “ON/OFF” - -
P5 Start freezing cycle - -
P6 Start chilling cycle - -
PRG
ON
OFF

BLAST CHILLER FREEZER FUNCTIONS
ON / OFF
As soon as the Chiller is turned on all the led and keypad displays light up (fig.1) and a lamp-test is run
for a few seconds. Then the Chiller returns to its original state.
To turn it OFF, simply press pushbutton P4 for 3 seconds. On both displays, D1 and D2
, the wording “OFF” will come up and LED L4 will light up. To switch the Chiller to “ON” press pushbut-
ton P4 and LED L4 will go out.
SELECTING CYCLES
With the Chiller powered use pushbuttons P1 and P2 and select the type of product to be chilled.
A list will come up on display D2 (“product list”). The following food products are listed:
- tg (vegetables)
- FM (fruit)
- SF (fish)
- Mb (beef)
- MS (pork)
-MP (poultry)
- cbt (cooked vegetables)
- cbc (cooked meats)
- PSc (pastries)
- icE (ice-cream)
- Man (manual mode)
When selecting the required function, LED L3 will start flashing. To confirm the product selected press
P3 and then using pushbuttons P1 and P2 select the quantity (0,5 – 1,0 – 1,5 – 2,0 – 2,5 –
3,0 kg) which will come up on display D1 (“Q.ty kg”). When selecting LED L2 will flash. To con-
firm press P3 and escape from the program.
BLAST CHILLING OR FREEZING
To select the type of cycle press P5 for freezing and P6 for chilling. Both have an automatic
storage mode at the end of the cycles. When chilling or freezing L5 or L6 will flash. The internal tem-
perature will come up on display D1 which is indicated in degrees Celsius, and the remaining cycle
time (in minutes) is given on display D2 . Led L2 indicates when the fans are working. Two minutes
from the end of the cycle the time on display 2 will start flashing. The moment the cycle has been
completed an acoustic signal is activated for a few seconds and the wording “end” will come up on dis-
play D2 (to turn off the beeper press P4 ).
ON
OFF
PRG
PRG
ON
OFF
ON
OFF
11

STOPPING CHILLING OR FREEZING CYCLES
To interrupt a cycle at any time press P4 for 3 seconds. The Chiller will automatically switch to OFF
mode and the wording “OFF” will come up on both displays, D1 and D2 , and Led L4 will light
up. To switch to “ON” mode press P4 and Led L4 will go out.
MANUAL MODE
It is also possible to select manual mode. Scroll the list of products until “Man” and then press P3
to confirm. Using P1 and P2 select the time (1 to 250 minutes) which will come up on display D2
, display D1 is off. Led 3 will flash. Press P3 to confirm timing and escape from the pro-
gram. At this point it is possible to activate chilling or freezing.
ALARMS
The Chiller is provided with an alarm system for indicating malfunctions. This system consists of an inter-
mittent acoustic signal and a red flashing Led, L1. Depending on the type of malfunction the following
wording will come up on displays D1 and D2 :
• ALL por = door alarm. This alarm is activated if for some reason the Chiller door is acci-
dentally opened when the Chiller is working. After two seconds the fans stop and after ten
the compressor stops working. When the door is closed the Chiller returns to the cycle pre-
viously interrupted.
• All Son = ambient probe alarm. This is activated if there is a malfunction with the internal
probe.
• ALL cPr = compressor alarm. This alarm is activated if the “clicson” is activated more then
five times. The compressor automatically switches into OFF mode. To reset this alarm con-
dition press P4 .
ON
OFF
PRG
PRG
ON
OFF
ON
OFF
12

DIAGRAM OF THE CIRCUIT BOARD
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
TRASFORMATORE
CN6
CN3
CN2
CN7
CN5
CN4

14
CHANNEL FUNCTION pin Colour
CN2 Door 5 nc
6 Blue
7 Brown
CN3 Ambient probe 1 black
2 black
3 nc
4 nc
CN4 12 nc
13 nc
Compressor / condenser fan 14 Brown / black
15 Blue / black
line 16 blue
17 brown
CN5 Evaporator fans 8 Brown
9 Blue
10 Nc
11 Nc
CN6 Nc
CN7 keypad
