CastleNet BTC08R800BLE User manual


CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 1of 6

User Guide
Bluetooth4.0dualmodeEmbeddedModule


CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 2of 6

FederalCommunicationCommissionInterferenceStatement
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)
Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto
Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency
energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto
radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan
bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterference
byoneofthefollowingmeasures:

‐ Reorientorrelocatethereceivingantenna.
‐ Increasetheseparationbetweentheequipmentandreceiver.
‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver
isconnected.
‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance
couldvoidtheuser'sauthoritytooperatethisequipment.

Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

RadiationExposureStatement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This
equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&your
body.


CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 3of 6


ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:

Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantennaandusers,and
Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitterorantenna.

Aslongas2conditionsabovearemet,furthertransmittertestwillnotberequired.However,theOEM
integratorisstillresponsiblefortestingtheirend‐productforanyadditionalcompliancerequirements
requiredwiththismoduleinstalled

IMPORTANTNOTE:Intheeventthattheseconditionscannotbemet(forexamplecertainlaptop
configurationsorco‐locationwithanothertransmitter),thentheFCCauthorizationisnolongerconsidered
validandtheFCCIDcannotbeusedonthefinalproduct.Inthesecircumstances,theOEMintegratorwillbe
responsibleforre‐evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCC
authorization.

EndProductLabeling
Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybeinstalledsuchthat20
cmmaybemaintainedbetweentheantennaandusers.Thefinalendproductmustbelabeledinavisible
areawiththefollowing:“ContainsFCCID:RK9‐BTC08R800BLE”.Thegrantee'sFCCIDcanbeusedonlywhen
allFCCcompliancerequirementsaremet.

ManualInformationTotheEndUser
TheOEMintegratorhastobeawarenottoprovideinformationtotheenduserregardinghowtoinstallor
removethisRFmoduleintheuser’smanualoftheendproductwhichintegratesthismodule.
Theendusermanualshallincludeallrequiredregulatoryinformation/warningasshowinthismanual.



CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 4of 6

1. INTRODUCTION
The BTC08R800 series is the new generation of Bluetooth 4.0 module. It is composited of
the latest CSR 8510 PC-ROM chip. The external antenna connection is via IPEX
connector. It is compatible with all BT software in the market, and Microsoft Win7 BT utility.
The bundled software will enrich more Bluetooth application in the Notebook / Tablet PC
etc.
The cable connection and PIN define of “Host I/F connector” from BT module
(BTC08R800 series) to PC system is specially customized by OEM Laptop PC.
2. PIN Define (Host I/F connector)
PIN#DefineDescription
1GND
2USBD+
3USBD‐  
4BT_STATUSConnectedwhen3‐wiredBT‐WiFicoexistence.
5BT_ACTWLANandBTCo‐existence
6BT_ONActiveHightoenableBTRadio..LowtodisableBTRadio.
7WLAN_ACTWLANandBTCo‐existence
8+3.3VPowersupplyformodule
9LEDLEDindicatorforBTactivity./Reserved.
10GND


CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 5of 6


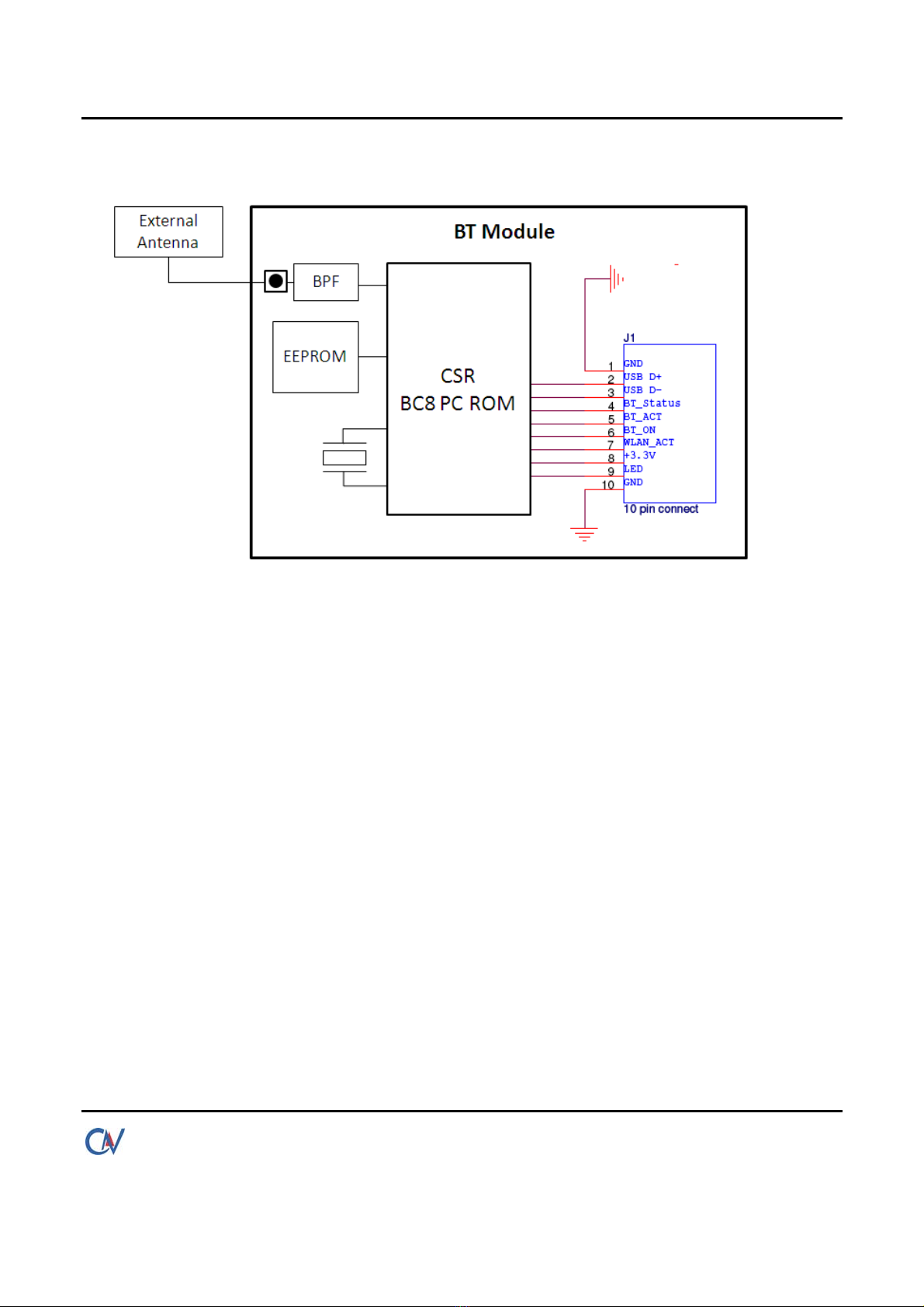

3. Block Diagram
4. INSTALLATION
4.1 Installed in Laptop PC
The Mainboard of the system should provide a Host connector and Cable connection for BT
module. Please follow the SOP to install & assemble it step by step.
4.2 Testing in Lab
The module is embedded inside Notebook. If for testing purpose, we provide the “USB Testing
Board” in order to let tester connect BTC08R800 via the special cable connection to PC externally.
The USB Testing Board provides +5V/3.3V conversion from PC Host. Please plug into any USB
port on your PC.


CastleNetBTC08R800UserGuide


CastleNetTechnologyInc.Copyright©2011 AllRightsReserved. 6of 6

After Hardware installation, when system find the new hardware, please install the driver /
software correctly.
