CATCHPOLE & RYE The Original Cloakroom Radiator User manual

INSTALLATION GUIDE
PHONE: [phone]
EMAIL:[e-mail]
ADDRESS:CATCHPOLE & RYE, SARACENS DIARY, ASHFORD, KENT, TN27 0SA WWW.CATCHPOLEANDRYE.COM
©COPYRIGHT 2021 CATCHPOLE & RYE.
ALL RIGHTS RESERVED.
e Original Cloakroom Heated Towel Radiator
STANDARD, DUAL FUEL & ELECTRIC MODELS
YOU WILL NEED
- Pair of Radiator valves for Dual Fuel or Standard Models (sold separately).
- Screwdriver
- Pipe Cutter
- Spanner
- 15mm Olive
- Suitable PTFE Tape
GENERAL INFORMATION
This product is manufactured entirely in the UK and has been rigorously tested to provide many years of good service when
installed by a suitably qualified professional.
All products must be thoroughly inspected once upon delivery and again prior to installation. Carefully remove the product packag-
ing for the initial inspection and repackage if being stored. It should be stored in a clean dry and safe environment at normal room
temperature.
Please read these instructions carefully before commencing any work and ensure that all parts are present and in perfect condition
before starting the installation.
If you require assistance or have any questions please call our Technical department: 01233 840 840
or email: [email protected].
COMPONENTS
1. Pre Assembled Towel Rail
2. Removable Base Section
3. Radiator Valve Body x2
4. 1 1/2” Fixing Screws
5. 15mm Olive
6. Telescopic Shroud

After the towel rail has been thoroughly inspected and
carefully unpackaged measure the fixing points on the wall
and floor, ensuring that the rail is level and aligned with the
incoming feeds or electric supply where applicable. Whilst
every effort is made to maintain the orientation of each foot,
we cannot guarantee this, therefore it is imperative that each
screw position is marked out before assembly.
Ensure that there are no wires or pipes behind the marked
locations for the fixings. Drill holes for fixings.
Insert plugs.
SECTION 1: Wall Fixings - Applies to all models
NEXT STEPS:
For electric and dual fuel models continue to SECTION 2.
For Standard models skip to SECTION 3.
INSTALLATION GUIDE
PHONE: [phone]
EMAIL:[e-mail]
ADDRESS:CATCHPOLE & RYE, SARACENS DIARY, ASHFORD, KENT, TN27 0SA WWW.CATCHPOLEANDRYE.COM
©COPYRIGHT 2021 CATCHPOLE & RYE.
ALL RIGHTS RESERVED.
e Original Cloakroom Heated Towel Radiator
STANDARD, DUAL FUEL & ELECTRIC MODELS

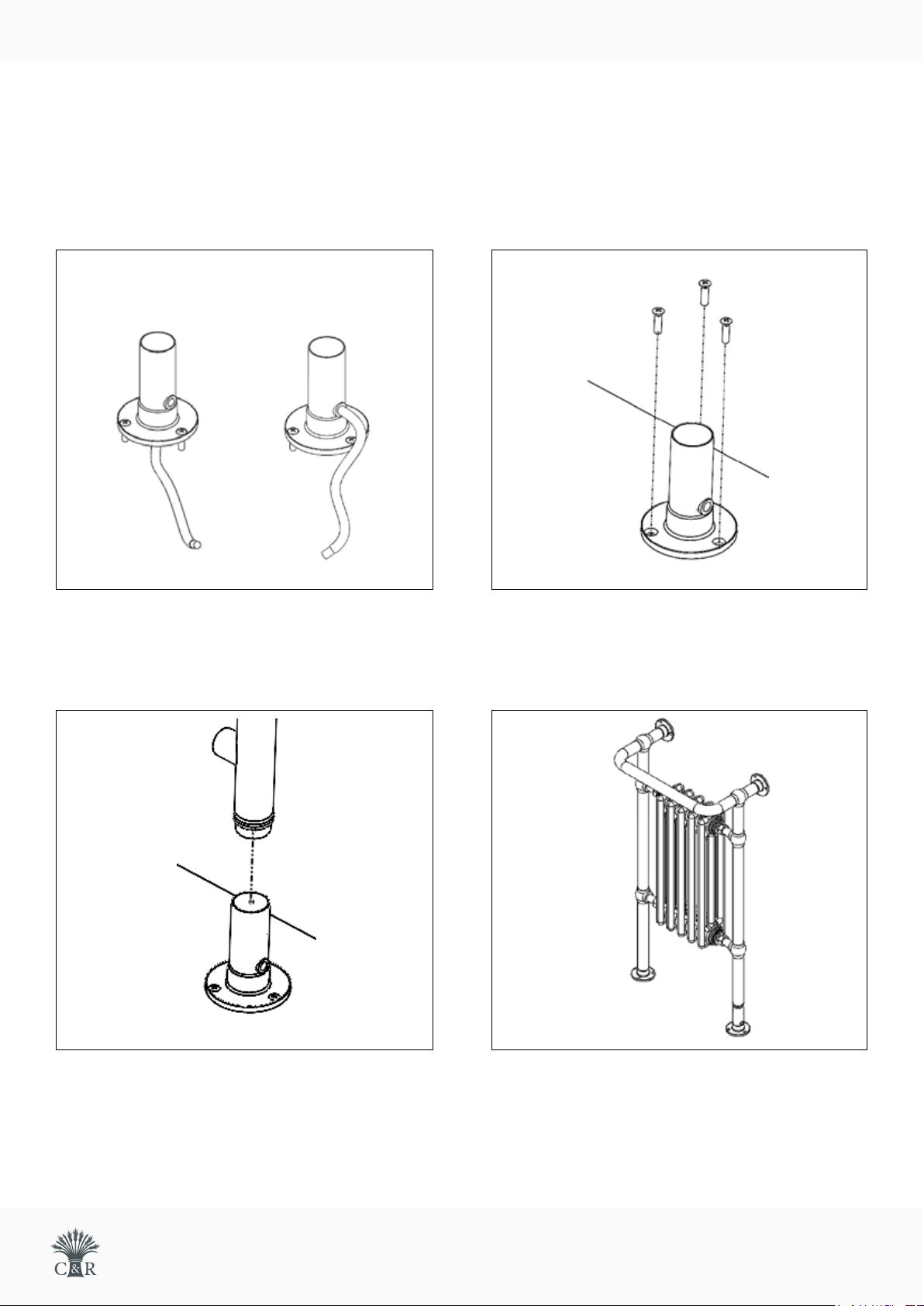

SECTION 2: Connecting to power supply - Applies to Electric and Dual Fuel Models.
2.
4.3.
1.
Thread electric supply cable through the Removable Base
section, either through the side or through the bottom.
Attach the Removable Base Section to the floor, ensure it is
in the correct location. For dual fuel models ensure that the
incoming water feeds are located correctly.
Connect the cable to the element in the towel rail. For electric
models, fit the towel rail to the plugs inserted in section 1. For
dual fuel models, continue to section 3.
For electric models, test the rail.
IMPORTANT: Electric elements should be fitted only by a
suitably qualified electrician and must be earthed and
connected to a cable outlet in the bathroom in accordance
with I.E.E wiring regulations. The electrical connection should
be made to a 5-amp fused fixed spur located outside the
bathroom.
INSTALLATION GUIDE
PHONE: [phone]
EMAIL:[e-mail]
ADDRESS:CATCHPOLE & RYE, SARACENS DIARY, ASHFORD, KENT, TN27 0SA WWW.CATCHPOLEANDRYE.COM
©COPYRIGHT 2021 CATCHPOLE & RYE.
ALL RIGHTS RESERVED.
e Original Cloakroom Heated Towel Radiator
STANDARD, DUAL FUEL & ELECTRIC MODELS

SECTION 3: Connecting to central heating systems - Applies to Standard and Dual Fuel Models.
Ensure that the 15mm feed pipes are aligned correctly for
fitting to the radiator valves.
Fit the radiator valve tail thread using an appropriate allen
key, use an appropriate PTFE tape on thread. DO NOT
OVERTIGHTEN. Then loosely attach the radiator valve.
Position the escutcheon and pipe cover over the feed pipes. Attach the rail to the wall using the wall plugs installed in
SECTION 1.
INSTALLATION GUIDE
PHONE: [phone]
EMAIL:[e-mail]
ADDRESS:CATCHPOLE & RYE, SARACENS DIARY, ASHFORD, KENT, TN27 0SA WWW.CATCHPOLEANDRYE.COM
©COPYRIGHT 2021 CATCHPOLE & RYE.
ALL RIGHTS RESERVED.
e Original Cloakroom Heated Towel Radiator
STANDARD, DUAL FUEL & ELECTRIC MODELS

SECTION 3: Connecting to central heating systems - Applies to Standard and Dual Fuel Models.
Attach the feed pipes to the radiator valves using the
compression olives and nut.
Position the escutcheon and pipe cover so that they are in
the desired location. These are push fit.
Fill the radiator and bleed using the bleed valve located under
the upper left joint when looking directly at the rail.
Test the towel rail.
