CBC Digimaster DR8HL User manual

1

2
Specification & Organization -------------------------------------------------- 12
Device Specifications --------------------------------------------------------- 12
Product Contents List --------------------------------------------------- 14
System Organization ---------------------------------------------------- 15
Product Description -------------------------------------------------------- 16
Front Panel Description ------------------------------------------ 16
Rear Panel Description ------------------------------------------ 17
Remote Controller Description --------------------------------------------- 18
Connect & Power On ------------------------------------------------------- 19
Live Display -------------------------------------------------------------------- 20
Menu Control -------------------------------------------------------------------- 20
Screen Division -------------------------------------------------------- 20
Sequence ------------------------------------------------------------ 20
PTZ ---------------------------------------------------- 21
Digital Zoom ---------------------------------------------------------- 21
Log Search ------------------------------------------------------- 22
Panic Recording -------------------------------------------------------------- 22
Quick Menu --------------------------------------------------------------------- 23
SYSTEM SETUP ----------------------------------------------------------- 24
C a m e r a -------------------------------------------------------------- 25
Camera Setup ------------------------------------------------------ 25
Color Setup ------------------------------------------------------ 25
PTZ Setup ------------------------------------------------------- 26
Motion Sensor ---------------------------------------------------- 28
Display -------------------------------------------------------------- 29
OSD ----------------------------------------------------------- 29
Monitor --------------------------------------------------------- 30
Sequence ------------------------------------------------------- 31
Spot Out -------------------------------------------------------- 33
Sound -------------------------------------------------------------- 34
Audio ----------------------------------------------------------- 34
Buzzer ---------------------------------------------------------- 34

3
System -------------------------------------------------------------- 35
Date / Time ------------------------------------------------------- 35
System Management ------------------------------------------------ 36
Control Device ----------------------------------------------------- 37
User -------------------------------------------------------------- 38
User Management ----------------------------------------------- 38
User Authority ------------------------------------------------ 39
Log Out ------------------------------------------------------------------ 39
Network ----------------------------------------------------------------- 40
IP Setup ------------------------------------------------------------------ 40
DDNS ------------------------------------------------------------------- 41
E-mail --------------------------------------------------------------------------- 41
Event / Sensor ------------------------------------------------------------- 42
HDD Event ------------------------------------------------------- 42
Alarm Input ------------------------------------------------------- 42
Alarm Out -------------------------------------------------------- 43
Buzzer Out ------------------------------------------------------- 44
E-mail Notification -------------------------------------------------- 45
Disk Management ---------------------------------------------------------- 46
RECORD SETUP ------------------------------------------------------------ 47
Recording Operations --------------------------------------------------- 47
Continuous / Motion Recording Setup -------------------------------------------- 48
Alarm Recording Setup ---------------------------------------------------------- 52
Panic Recording Setup ----------------------------------------------------------- 52
Network Streaming Setup ----------------------------------------------------------- 53
SEARCH ----------------------------------------------------------------- 54
Search By Time ----------------------------------------------------------- 54
Search By Event --------------------------------------------------------- 57
ARCHIVING ---------------------------------------------------------------- 59
Create a New Archive ------------------------------------------------------ 59
Reserved Data Management ------------------------------------------------------ 60
WEB CONNECTION SETUP -------------------------------------------------------- 61
Preliminary Before Connection ------------------------------------------------------ 61
How to Connect ----------------------------------------------------------------- 61
Live Mode -------------------------------------------------------------- 63
Search By Time ----------------------------------------------------------------------- 65
Search By Event ---------------------------------------------------------------- 66
Remote Setup ---------------------------------------------------------- 67
Camera --------------------------------------------------------------------- 67

4
Display --------------------------------------------------------------------- 68
Sound --------------------------------------------------------------------- 69
System --------------------------------------------------------------------- 69
Recording ------------------------------------------------------------------------- 69
User --------------------------------------------------------------------- 70
Network --------------------------------------------------------------------- 70
Sensor --------------------------------------------------------------------- 71
Information -------------------------------------------------------------- 71
WATERMARK PROCESS ------------------------------------------------------------------ 72
SMARTPHONE CONNECTION ---------------------------------------------------------- 74

5
Thank you for purchasing the GANZ DIGIMASTER Digital Video Recorder (DVR).
This DVR is produced using the most advanced GANZ digital recording technology and its quality is
guaranteed by strict reliability and compatibility testing.
This manual provides necessary information for the correct use of this product and also contains some
useful tips and step-by-step procedures for common DVR operations.
Please read this manual thoroughly before using your DVR in order to prevent possible malfunction
due to operator error.
This manual applies to the following DIGIMASTER Series DVR models: DR8HL / DR16HL.
This manual describes the external features of GANZ DIGIMASTER, part names, correct connection
methods for supported domes or pan/tilt receivers, control devices, peripheral devices and the system
setup instructions. It is important to note here that some features, figures, pictures and references can
only be applied to just one model.
• GANZ cannot be held responsible if the DVR is damaged due to the use of non-compatible devices
with this product. If you have any doubts, please check.
• GANZ cannot be held responsible if the DVR is damaged due to the product being disassembled or
modified by the user.
• This product is qualified for both domestic and industrial use.
• This product has acquired international certifications, including CE (Europe) and FCC (USA).

6
All copyrights of this manual are reserved by CBC (America) Corp., CBC Group, and CBC Co., Ltd.
Copyright ©2010
Any reproduction or republishing of this manual for commercial purposes is prohibited.
It is prohibited to transfer this manual via online media such as, but not limited to, the Internet.
It is also prohibited to post, distribute or translate this manual without permission from CBC.
CBC will not be held responsible if the DVR has been damaged as a result of improper handling by any user who is
unaware of how to operate this product and did not consult this manual before attempting to operate the product.
CBC reserves the right to change the contents of this manual without notice.
CBC reserves all copyrights of registered trademarks contained within this manual.
Please be aware of the following precautions before installing the DVR:
• Avoid positioning the DVR in any place where the unit may come into contact with moisture, dust, or soot.
•Avoid placing in direct sunlight, or near heating appliances.
•Keep the product away from electric shock or magnetic substances.
•Avoid temperature extremes (recommended operation temperature is between 0°C and ~40°C).
•Do not place any conductive material through the ventilation grills.
•Keep the system turned off before installation.
•Ensure that enough space is left for cable connections.
•Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.
•Placing the system near electronic devices such as radio or TV may cause the product to malfunction.
•Do not disassemble the product without seeking assistance from the supplier.
•Do not place any heavy object on the system.
•Please keep cleaning the fan filter of front panel.

7
The following are warnings and precautions to ensure user safety and prevention of property damage.
Please read the information below thoroughly.

8

9

10

11
Important Safety Instructions
1) Read all instructions contained in this manual.
2) Keep a copy of these instructions for future reference.
3) Read all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, space heaters, stoves, or other devices that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug.
- a polarized plug has two blades with one wider than the other.
- a grounding type plug has two blades and a third grounding prong.
- the wide blade and third prong are safety features provided for your safety.
[NOTE: If the provided plug does not fit into the outlet, consult an electrician for replacement of the obsolete outlet.]
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments or accessories that are specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus (if outlet is unprotected) during a lightning storm, or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) This equipment is intended for indoor use and all input/output wiring is limited to the inside of a building.
16) The power socket or outlet shall be installed near the equipment and should be easily accessible.
17) CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.
ONLY DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
NOTE: Maximum Operating Temperature: 40℃
USB Power Output: 5V DC (Maximum 500mA)

12
Specifications & Organization
1. Device Specifications
Video Standard NTSC/PAL
Audio Bi-Directional Audio
Monitor Display Real Time: 30ips (NTSC) or 25ips (PAL), per camera
Covert Camera Operation Programmable
Event/Log Search Up to 1,000,000 event log entries for user login/out, configuration changes,
remote access, connects/disconnects.
Record Scheduling Daily or Weekly; adjustable by specific hour of the day, per channel
Remote Access Live View, Search, Playback, Configuration; via web browser or client software
Playback Up to 16-channel simultaneous playback
Pre/Post Alarm Buffers Up to 5 seconds (Pre), 3 minutes (Post), programmable per camera
VGA 1280x1024 (60Hz) (monitors with Multi Sync function only)
Activity Detection 22x15 grid; Sensitivity Levels: 10 (1 lowest, 10 highest)
Multitasking Triplex
Video Inputs 8, 16 x 1Vp-p, CVBS, 75 ohms, BNC
Monitor Outputs 1 x CVBS, VGA
Spot Output 1 x 1Vp-p, CVBS, 75 ohms, BNC
Audio Inputs 4 x line-in, mono, line level, unbalanced, RCAjack
Audio Output 1 x line-out, mono, line level, unbalanced, RCAjack
Resolution 352x240, 704x240, 704x480 (NTSC), 352x288, 704x288, 704x576 (PAL)
Compression Standard H.264
Recording Speed DR16HL: 480/400fps@CIF, DR8HL: 240/200fps@CIF
Image Size 3-5 Kbyte (352x240, 352x288), 5-10 Kbyte (704x240, 704x288)
6-16 Kbyte (704x480, 704x576)
Hard Disk Drive Capacity 1 x HDD; no limit on HDD capacity
Secondary Storage USB default (USB memory stick, USB HDD)
Alarm Inputs 4 x TTL, programmable as NC/NO
Alarm Outputs 1-channel: relay output
Archive/Snapshot File Formats AVI, JPG, BMP
Network Speed Control 8 levels (adjustable from 56Kbyte/s ~ 8192Kbyte/s)

13
Specifications & Organization
1. Device Specifications (cont’d)
Pre-Alarm Recording Up to 5 seconds, programmable per camera
OSD Languages English, Spanish, Portuguese, French, Russian, Polish, German, Italian
Ethernet/LAN Network Interface 10/100-Base-TX, RJ-45
Remote Function Live View, Search, Playback, Configuration, Archiving
Support for CMS Software, Web R/Aand Smart Phone
Digital Watermark Watermarked Video & Audio (for verification of data integrity & continuity)
PTZ Control RS-485 Serial interface (full duplex) (two wires, +/-)
Supply Voltage 12VDC, 5A, 100VAC-240VAC, 60/50Hz
Operating Temperature Range 5℃to 40℃
Housing Materials Case Cover: Steel metal; Front Panel: Molded Plastic
Dimensions (HxWxD) 31.8cm x 25cm x 5.8cm
Weight 4kgs

14
Specifications & Organization
2. Product Contents List
Please check to make sure that all of the product contents are present after opening the product packaging.
Remote ControllerInstruction Manual Installation CD
AC Power Cable
②Optional Contents
Internal Hard Disk Drive
DR8/16HL Unit
12V DC Adapter
AAA Battery x 2
①Basic Contents

15
Specifications & Organization
3. System Organization
VGA Monitor

16
Product Description
1. Front Panel description.
POWER: Turn On/Off the system power.
DISPLAY: Selects various display modes in live display and playback.
SEARCH: Displays the search menu.
MENU: Displays the setup menus.
NAVIGATION KEYS: Use for navigating on menu or control PTZ.
RETURN: Cancel or go to previous menu.
◀◀: Increases reverse playback speed.
▶▶: Increases forward playback speed.
ΙΙ: Pauses / resumes playback.

17
Product Description
2. Rear Panel description.
A. CAMERA INPUT: Connect up to 8 /16 camera inputs.
B. VGA: VGA main monitor connection to a PC monitor or plasma screen. A
C. AUDIO INPUTS & OUTPUTS:
Up to 4 audio inputs and one audio output can be connected as necessary.
D. PAL / NTSC:
Change Camera input type.
E. ALARM INPUTS:
Up to 4 alarm inputs can be connected and configured as high or low inputs with common ground.
RELAY OUTPUT:
1 alarm outputs can be connected and configured as high or low outputs with common ground.
RS485: Connect PTZ camera.
F. LAN: LAN connection to a router or internal network.
G. MONITOR: Main BNC monitor.
SPOT OUT: BNC Spot monitor.
H. POWER: Connect 12V / 3.33A adaptor.
A
A
B
B
C
C
D
D
E
E
F
F
F
G
G
H
H

18
S
SY
YS
ST
TE
EM
M
C
CO
ON
NF
FI
IG
GU
UR
RE
E
–
–
R
Re
em
mo
ot
te
e
C
Co
on
nt
tr
ro
ol
ll
le
er
r
3. Remote Controller description.
※If there are many DVRs on stack, each DVR must be set with different ID, the remote controller sets
each ID per DVR, then all DVRs can be controlled with one remote controller by each ID.
How to set ID on the remote controller
: Press the ID button then displayed INPUT ID statement.
Press the set ID and Press the RETURN button (The default ID is 01).
For returning to the original situation, press the ID button again.
And Input the 255 and press the RETURN button of remote controller.

19
C
CO
ON
NN
NE
EC
CT
T
&
&
P
PO
OW
WE
ER
R
O
ON
N
• Connect up to 16 CAMERA INPUTS as necessary.
• Connect one or more monitors to the DVR using the COMPOSITE,VGA connections.
• Connect power to the DVR, using the provided AC power cord or DC 12V Power Adapter (depending on model).
The DVR will check for proper power connection and emits two beeps if system power test is OK.
• Press the POWER BUTTON on the front panel of the DVR to begin operation.
- The DVR startup screen detects and checks the status
of hard drive.
- After startup diagnostics are complete, the operator must
login to the system. The default user name is ‘ADMIN’.
- Using the CHANNEL SELECTION buttons, key in the digits of
the default password (‘1234’) and then press the ENTER button.
- After DVR startup, the system will show the default display of
all 16 channels in a standard 4x4 Screen Division mode.
- The status bar at the bottom of the screen shows the current
Date/Time and the percentage of Hard Drive capacity used.
- The title for each channel is shown.
- A red recording icon and the letter ‘C’ in the top right of each
channel display shows that the channel is recording in
Continuous / Schedule mode.

20
L
LI
IV
VE
E
D
DI
IS
SP
PL
LA
AY
Y
MENU CONTROL
All menus can be controlled from this ‘Status Bar’ with either the USB mouse or Front Panel buttons.
SCREEN DIVISION
Select the ‘DISPLAY’ button and the screen division menu will appear.
Select the screen type.
SEQUENCE MODE
(User can select a sequence as one of the options within the screen division menu.)
Press the ‘SEQ’button. Each channel is shown full screen for an adjustable duration, before switching to the next channel.
To stop the sequence on a particular channel, press the ‘SEQ’button again.
More complex sequences can be programmed through the ‘DISPLAY’ section of the setup menu.
.
This manual suits for next models
1
Table of contents
Other CBC DVR manuals
Popular DVR manuals by other brands

Super Circuits
Super Circuits micro-d Installation and user manual

Vacron
Vacron VVH-MDE58 user manual

FLIR
FLIR M3100 SERIES instruction manual

Mobile Video Systems

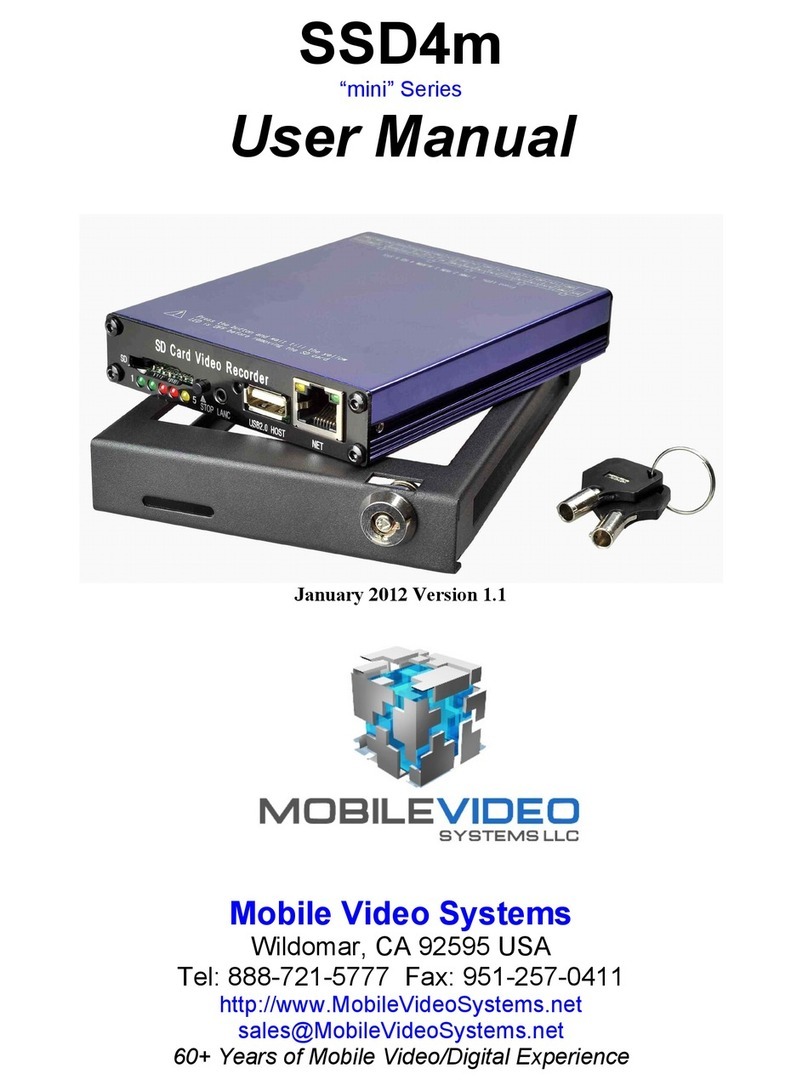

Mobile Video Systems SSD4m user manual

Watcher Total Protection
Watcher Total Protection XL Series user manual

Clinton Electronics

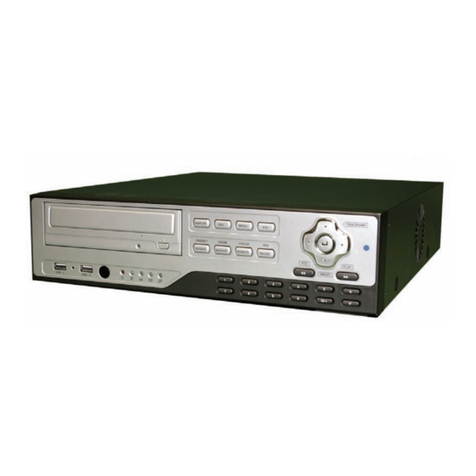

Clinton Electronics Contender CE-DVR4 user manual
