CCDCAM KV8252-IM User manual

IP Video Intercom
Waterproof Vandal-Resistant
Door Bell Station
User Manual
KV8252-IM

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User Manual
Welcome
Thank you for purchasing our Product!
This manual is designed to be a reference tool for the installation and operation of
your system.
Here you can find information about this series IP Video Intercom Vandal-Resistant
Door Station features and functions, as well detailed menu.
Before installation and operation please read the safety instruction!
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to
avoid danger or property loss.
The precaution measure is divided into Warnings and Cautions:
Warnings: Neglecting any of the warnings may cause serious injury or death.
Cautions: Neglecting any of the cautions may cause injury or equipment damage.
Warnings Follow
these safeguards to
prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User Manual
Warnings
●All the electronic operation should be strictly compliance with the electrical
safety regulations, fire prevention regulations and other related regulations in
your local region.
●Please use the power adapter, which is provided by normal company. The
power consumption cannot be less than the required value.
●Do not connect several devices to one power adapter as adapter overload may
cause over-heat or fire hazard.
●Please make sure that the power has been disconnected before you wire,
install or dismantle the device.
●When the product is installed on wall or ceiling, the device shall be firmly fixed.
●If smoke, odors or noise rise from the device, turn off the power at once and
unplug the power cable, and then please contact the service center.
●If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the device yourself. (We
shall not assume any responsibility for problems caused by unauthorized
repair or maintenance).
Cautions
●Do not drop the device or subject it to physical shock, and do not expose it to
high electromagnetism radiation. Avoid the equipment installation on
vibrations surface or places subject to shock (ignorance can cause equipment
damage).
●Do not place the device in extremely hot (refer to the specification of the
device for the detailed operating temperature), cold, dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●The device cover for indoor use shall be kept from rain and moisture.

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User Manual
●Exposing the equipment to direct sun light, low ventilation or heat source such
as heater or radiator is forbidden (ignorance can cause fire danger).
●Do not aim the device at the sun or extra bright places. A blooming or smear
may occur otherwise (which is not a malfunction however), and affecting the
endurance of sensor at the same time.
●Please use the provided glove when open up the device cover, avoid direct
contact with the device cover, because the acidic sweat of the fingers may
erode the surface coating of the device cover.
●Please use a soft and dry cloth when clean inside and outside surfaces of the
device cover, do not use alkaline detergents.
●Please keep all wrappers after unpack them for future use. In case of any
failure occurred, you need to return the device to the factory with the original
wrapper. Transportation without the original wrapper may result in damage on
the device and lead to additional costs.
●Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries
according to the instructions provided by the battery manufacturer.

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User Manual
Table of Contents
1 Overview ..................................................................................................... 1
1.1 Introduction ..................................................................................... 1
1.2 Main Features................................................................................... 1
1.3 Typical Application ............................................................................ 2
2 Appearance ................................................................................................ 3
3 Terminals and Wiring ................................................................................ 4
3.1 Terminals and Interfaces Description .................................................. 4
3.2 Wiring Description............................................................................. 5
3.2.1 Door Lock Wiring..................................................................... 5
4 Installation.................................................................................................. 6
4.1 Wall Mounting Plate .......................................................................... 6
4.2 Wall Mounting .................................................................................. 7
5 View Door Station.....................................................................................12
5.1 View via Web Browser......................................................................12
5.2 View via search Tool ........................................................................15
6 Remote Operation via Web Browser .....................................................17
6.1 Access to the Door Station................................................................17
6.2 Live View ........................................................................................18
6.3 System............................................................................................20
6.3.1 System Information ................................................................20
6.3.2 Time Settings .........................................................................20
6.3.3 Advanced Settings ..................................................................22
6.4 Network Settings .............................................................................25
6.4.1 IP Settings .............................................................................25
6.4.2 FTP Settings...........................................................................26
6.4.3 SMTP Settings ........................................................................26

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User Manual
6.4.4 QOS Settings..........................................................................27
6.4.5 IGMP Settings ........................................................................28
6.4.6 SIP Settings ...........................................................................29
6.4.7 PORT Settings ........................................................................31
6.4.8 DDNS Settings........................................................................32
6.4.9 Protocol Settings ....................................................................33
6.5 Camera Settings ..............................................................................33
6.5.1 Basic Settings.........................................................................34
6.5.2 Exposure Settings...................................................................34
6.5.3 Effect Settings........................................................................35
6.5.4 White Balance Settings............................................................38
6.5.5 Reset.....................................................................................38
6.6 Audio & Video Settings .....................................................................38
6.6.1 Video Settings ........................................................................39
6.6.2 Character display....................................................................41
6.6.3 Motion Detection ....................................................................42
6.6.4 Privacy Mask ..........................................................................43
6.6.5 Path ......................................................................................44
6.6.6 Audio Settings ........................................................................45
6.7 Alarm Settings...............................................................................46
6.8 Record Management ........................................................................49
6.8.1 Record Settings ......................................................................49
6.8.2 Playback Settings....................................................................50
6.9 User Management............................................................................51
6.10 System Log....................................................................................53
Appendix .........................................................................................................54

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
1
1 Overview
1.1 Introduction
The door station, featuring in the vandal-resistant design, convenient installation,
and easy operation, supports the video intercom function, access control function,
door magnetic alarm, motion detection, and so on. As an intelligent device,the
door station is mainly applied in the villa for improving the living security.
1.2 Main Features
●H.265, CGI,SIP and ONVIF supported
●supporting the video intercom communication with the indoor master station
●supporting multiple door opening modes (the master station, Mobile APP)
●Echo cancellation and noise suppression
●Sony STARVIS high performance CMOS,up to 1080P@30fps

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
2
●IR distance: max. 5-meter, 940nm IR leds
●DWDR, wide angle—HD pinhole lens
●Auto-uploads alarm messages to the master station or the client software
●Remote reboot, remote upgrade(IE or Client software), time synchronization via
NTP
●Supports motion detection
●Supports bit rate and frame rate configuration, P/N video standard configuration
●Email configuration, and auto day & night switch
●Auto-uploads captured pictures to the FTP or the client software while unlocking the
door
1.3 Typical Application

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
3
2 Appearance
Figure 2-1 Door Station Overview
Table 2-1 Components Description
No.
Description
1
Microphone
2
Built-in Camera
3
Low Illumination Supplement Light
4
Call Button
5
Loudspeaker
Note:
Default settings of call button: when you press the call button, it calls the Master
Station;

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
4
3 Terminals and Wiring
3.1 Terminals and Interfaces Description
Figure 3-1 Terminals and Interfaces
Table 3-1 Terminals and Interfaces Description
Name
No.
Interfaces
Description
LAN
1
LAN
Network Interface (PoE Supported)
ALARM
2
COM
Grounding Signal
3
NO
Door Lock Relay Output(Connect Electric Strike)
Power
Supply
4
GND
GND
5
12VDC
12 VDC Power Supply Input

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
5
3.2 Wiring Description
3.2.1 Door Lock Wiring
Terminal NC/COM is set as default for connecting magnetic lock/electric bolt;
terminal NO/ COM is set as default for connecting electric strike.
Figure 3-2 Door Lock Wiring

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
6
4 Installation
Before you start:
●Make sure the device in the package is in good condition and all the
assembly parts are included.
●The device supports two ways of power supply: 12 VDC, or PoE power supply.
Please make sure your power supply matches your door station.
●Make sure all the related equipment is power-off during the installation.
●Make sure the wall is strong enough to withstand 4 times the weight of the
door station.
●Check the specification of the product for the installation environment.
4.1 Wall Mounting Plate
To install the door station onto the wall, you are required to use a matched
mounting plate.
Figure 4-1 Wall Mounting Plate

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
7
4.2 Wall Mounting
Steps:
1. Fix the wall mounting plate to the wall with 4 expansion screws.
Figure 4-2 Install the Plate

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
8
2.Insert terminal blocks into the interfaces of the door station body, and connect
the network cable.
Figure 4-3 Insert Terminals and Network Cable

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
9

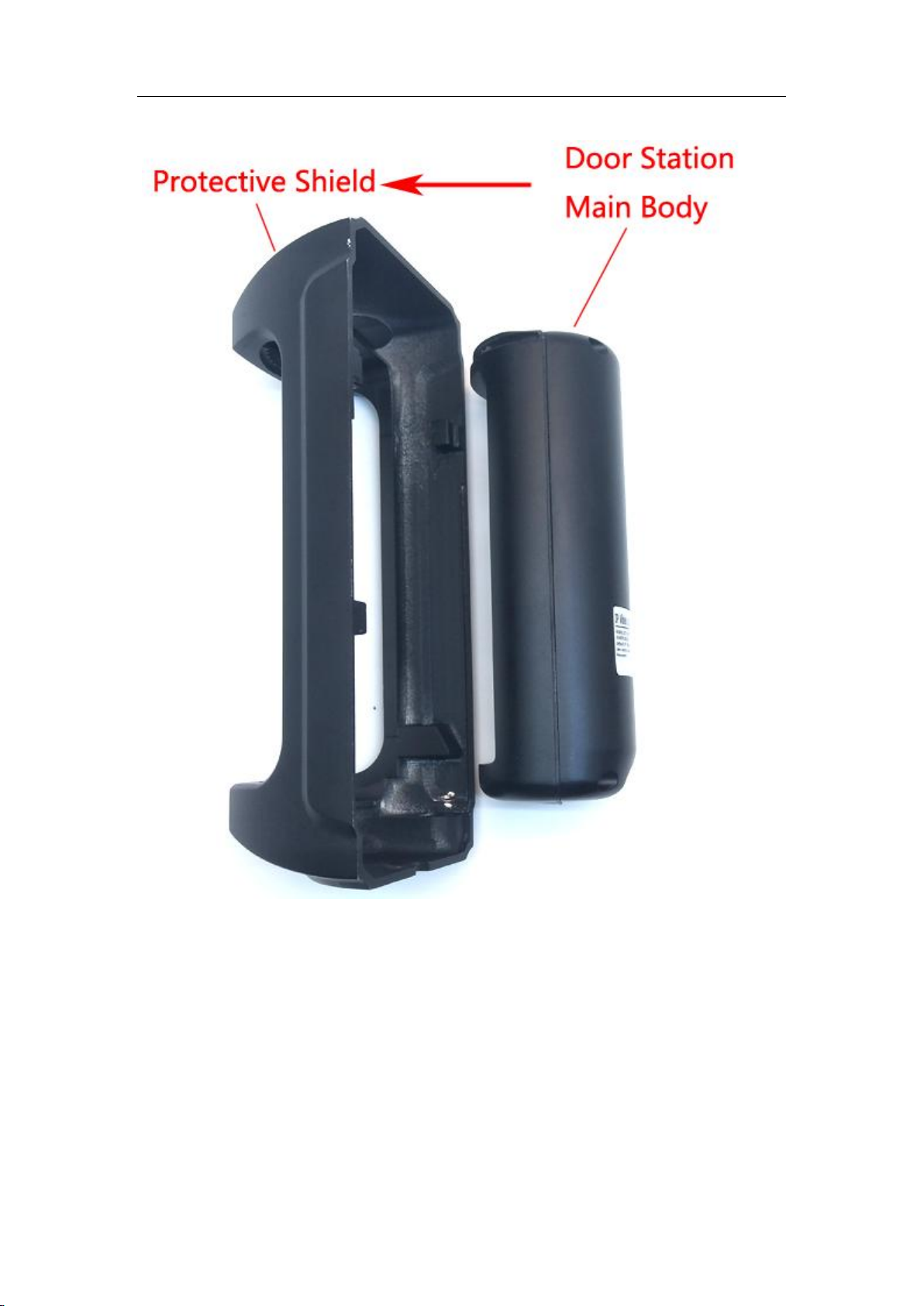

3.Fix the door station main body to the protective shield tightly.
Figure 4-4 Fix the Main Body to the Shield

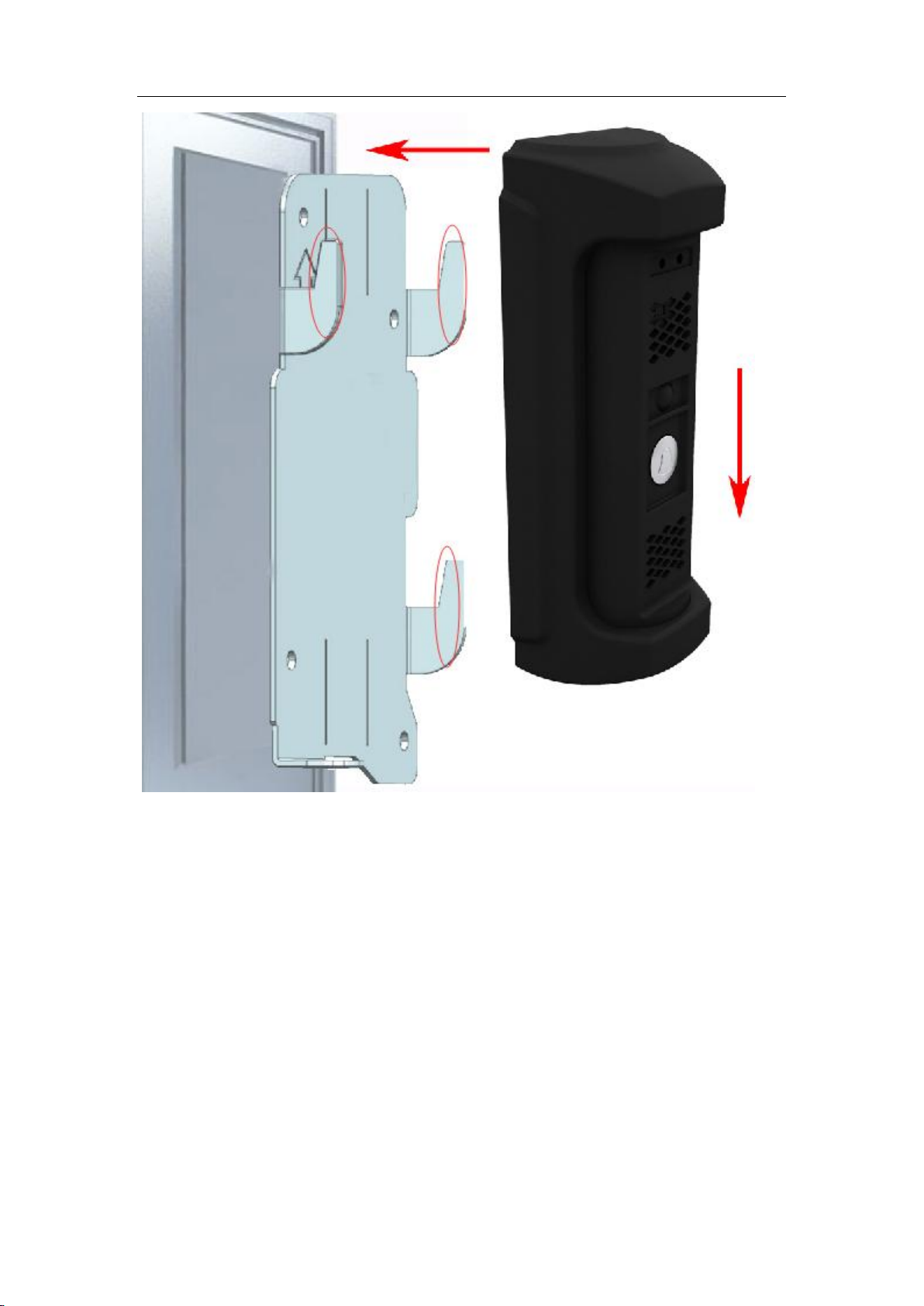

4. Hook the door station to the wall mounting plate tightly.

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
10
Figure 4-5 Hook the Door Station to the Plate

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
11
5. Use the rubber plug with the door station main body.
Figure 4-6 Secure the Door Station

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
12
5 View Door Station
5.1 View via Web Browser
Steps:
1. Power on the device, and connect the device to the network.
2. Input the default IP address to the address bar of the web browser, and click
Enter to the activation interface.
3. The device default IP address is 192.168.1.18.
Figure 5-1 User Login
Do log in the system with the default super user for the first time to run the
software. The system default Super User is admin (password: null). Input the
correct user ID and password and then press “OK” button to login the
system.After login is successful, the following interface will display:
4. Install and run Control
There are two ways to install control.
Method 1:The prompt message as below will come out in live view window after a
successful login. Click the link “download control” to run, or store the exe

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
13
file,then run it.
Figure 5-2 Download IPC_AX
Figure 5-3 Run IPC_AX
If the installation fails, check whether there is video viewed through other IE
window or page. You should close the video or the IE window directly.If it
successes, click refresh, you can view the live video.

IP Video Intercom Waterproof Vandal-Resistant Door Bell Station ·User
Manual
14
Method 2:
The prompt message as below will come out in the page after a successful login.
Right click “Allow”.
Figure 5-4 Security Warning
Then the prompt of security warning will pop up to remind the user to install
IPC_AX control. Click “Run”.After IPC_AX control is installed, you can view the
live video. If it pops up reboot prompt, please cancel reboot. Then close all the IE
window and install IPC_AX control once again. The live video will display as below:
Figure 5-5 Live video
Note:
If IPC_AX control installation falls, the live video won’t display. Then, you should
change the IE security level.
