cctv camera pros iDVR-PRO4A User manual

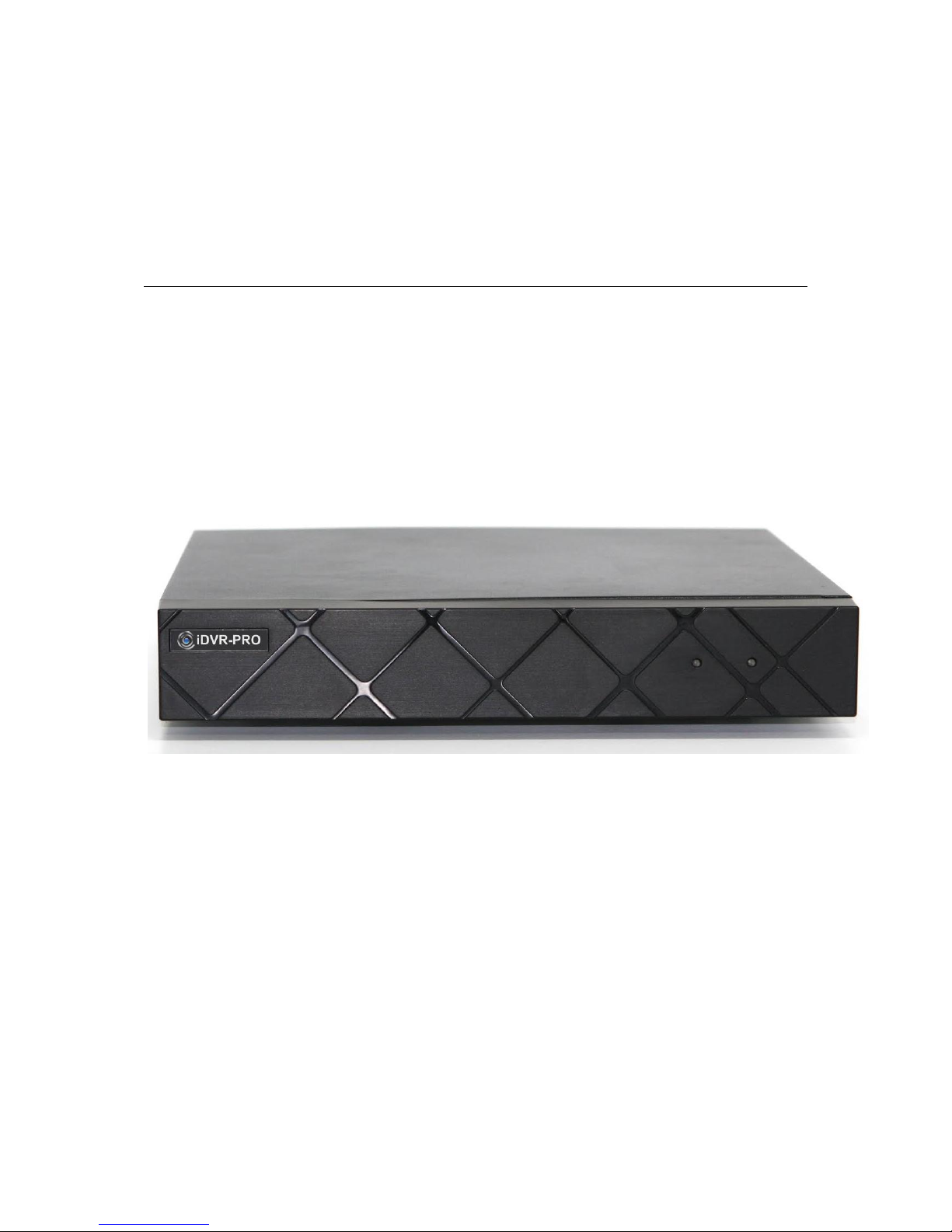

iDVR-PRO Hybrid CCTV / HD Security Camera DVR
USER MANUAL
This user manual is for the following surveillance DVR models:
iDVR-PRO4A, iDVR-PRO8A, iDVR-PRO16A

SYSTEM
SETTING
27
RECORD
SETTING
59
SEARCH
65
OVERVIEW
4
INSTALLATION
9
MONITORING
18
Copyright
This manual without the manufacturer's approved copy and reprinted partially or in full, or translated into another language is
prohibited.
Limitation of Liability
This product is designed to prevent fire and theft is not the main means. We shall not be liable for accidents or damage by
using this product can result in liability for accidents or damage
In order to improve the performance of the product without prior notice to the product may be a firmware upgrade.

SYSTEM
SETTING
27
27 To move to the System Setup
menu
28 Camera Setting
34 Display Setting
39 Audio Setup
40 User Setting
42 Network Setup
45 System Setting
51 Storage
53 Event Setup
RECORD
SETTING
59
59 To start the Record Setup
menu
60 Record Setup
SEARCH
65
65 To move to the Search menu
while in monitoring
65 To move to the Search menu
while in playback mode
66 Search Settings
PLAY
69
69 If you want to play
WEB VIEWER
75
75 What is the Web Viewer?
77 Live
81 Search
84 Setup
ARCHIVING
72
72 To start the Archive menu
MOBILE
VIEWER
99
99 nViewer
ARCHIVE
VIEWER
114
114 Getting started with the
Backup Player
116 Backup Player At a Glance
APPENDIX
119
119 Compatible HDD
Specifications
120 Troubleshooting (FAQ)
122 Open Source License Report
on the Product
Content
OVERVIEW
4
4 Safety Instruction
5 Key Features
6 What's included
7 Rear Panel
INSTALLATION
9
9 Replacing HDD
13 Basic Layout
14 Connecting to an external
device
MONITORING
18
20 Live Screen At a Glance

4 |Overview
Overview
Safety Instruction
This product was tested with a UPS to satisfy EN 61000-4-11 test conditions (voltage dips and short interruptions test) under
the EN 50130-4: 2011 standard.
The Company shall not have any responsibility for any accident or damage that may incur during the use of the product. For
your safety, we provide a few instructions about installation, manipulation, cleaning, assembly/disassembly of the product as
below. So please read carefully and comply with the instructions.
Before installation
Comply with the following instructions to prevent a fire, explosion, system failure or electric
shock.
~
Remove the power supply module before proceeding.
~
Check the input voltage (AC100V–AC240V) to the power supply module before connecting it.
~
Keep the product away from humidity.
~
Ensure that all devices connected to the product should be properly earth-grounded.
In operation mode
Comply with the following instructions to prevent a fire, explosion, system failure or electric
shock.
~
If you need to open the cover, consult with a service person who could help you do what you
want to do.
~
Do not connect multiple devices to a single power socket.
~
Keep the product away from dust or too much combustible substances (ex: propane gas).
~
Do not touch it with wet hand.
~
Do not insert a conductor in the vent of the ventilation system.
~
Do not apply excessive force to unplug the power cord.
Disassembly & Cleaning
~
When cleaning on the surface, use a dry cloth.
~
Do not wipe the product using water, paint thinner or organic solvents.
~
Do never dismantle, repair or modify the product by your own.
During installation
To prevent an accident or physical injury and to operate DVR properly, please comply with
the followings:
~
Secure at least 18 centimeter of distance between cooling fan and wall for a proper ventilation.
~
Install the product on a flat surface.
~
Keep it away from direct sunlight or excessive temperature.
While in use
~
Do not apply force to or shake it while using it.
~
Do not move, throw away or put excessive force to it.
~
Using any unrecommended HDD may cause a system failure. Check the compatibility list and
use only compatible HDDs.
{A system failure or data loss caused by an incompatible HDD will void your warranty.}

English |5
Overview
Key Features
This product is capable of receiving inputs from up to 16 channels of 1080P camera inputs of video and audio and recording
onto a hard disk drive in real-time, as well as providing monitoring, playback and backup footages in excellent quality of
1080P resolution.
It also provides transferring video and audio data to the networked external devices, which allows remote monitoring
environment for computers and mobile devices including cell phones.
~
Up to 16 channels of 1080P camera video can be displayed at 480 fps / 400 fps in real time
~
Up to 16 channels of 1080P camera videos can be saved at maximum 240(NTSC)/200FPS(PAL).
~
Simultaneous recording and playback of maximum 16 channels (at 480 fps @ D1)
~
Supports H.264 main profile CODEC
~
Supports dual streaming for remote access service
~
Various search methods (time, event, bookmark, thumbnail and text-in)
~
Mass storage backup via USB port or FTP server
~
Supports remote access and search using web browser
~
Dedicated smart phone applications that can be used with iPhone and iPad or on Android OS
~
1080p Full HD GUI

Overview
6 |Overview
What's included
Mouse x1 DC12v power adapter x1 HDD Screws
Terminal Blocks (2P)
(4CH, 8CH 1HDD)
Terminal Blocks (8p, 2p)
(8CH 2HDD)
Terminal Blocks (8p)
(16CH 2HDD)
HDD Data cable CUSHION PAD x4
(4CH, 8CH 1HDD Only) Quick Guide
User manual CD

English |7
Overview
Rear Panel
 4 channels (1HDD)
 8 channels (1HDD)
 8 channels (2HDD)
 16 channels (2HDD)
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
f g h id
a b c
e
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
f g h id
a b c
e
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN A-OUT
V-OUT
HDMI
VGA
RS485
DC 12V
AUDIO IN
A1
A2
A3
A4
AUDIO IN
A5
A6
A7
A8
ALARM I/O
g h i
ba c
d ff k e
j
v15
v16
v13
v14
v11
v12
v9
v10
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN
HDMI
DC 12V
VGA
AUDIO IN
A1
A2
A3
A4
AUDIO
OUT
A8 A1 A2 A3 A4 A5 A6 A7COM NC
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
N/AN/A
e h i
b ja c
f gd

Overview
8 |Overview
No. Name Description
a
VIDEO IN Video input terminal for cameras.
b
VGA VGA monitor video output port.
c
ETHERNET Network port for connection to the Internet, router or hub.
d
AUDIO OUT Port for speaker connection.
VIDEO OUT Port for BNC camera image output.
e
HDMI HD monitor video output port.
f
AUDIO IN Port for audio input.
g
USB Used for connecting USB storage or mouse.
h
RS485 Ports for communication with external devices such as PTZ camera and system keyboard.
RS-232C Signal connection port for POS and ATM.
i
DC 12V Power input port. Connect to a 12V adaptor.
j
Power Switch Plug the power cord and turn this switch on.
k
ALARM I/O Alarm in/out signal port.

Select one from VGA/HDMI before outputting the video.

English |9
Installation
Installation
Replacing HDD
When an HDD is full or problematic, you can replace it with a new one by yourself.

Below illustrations are based on the 4-channel model.

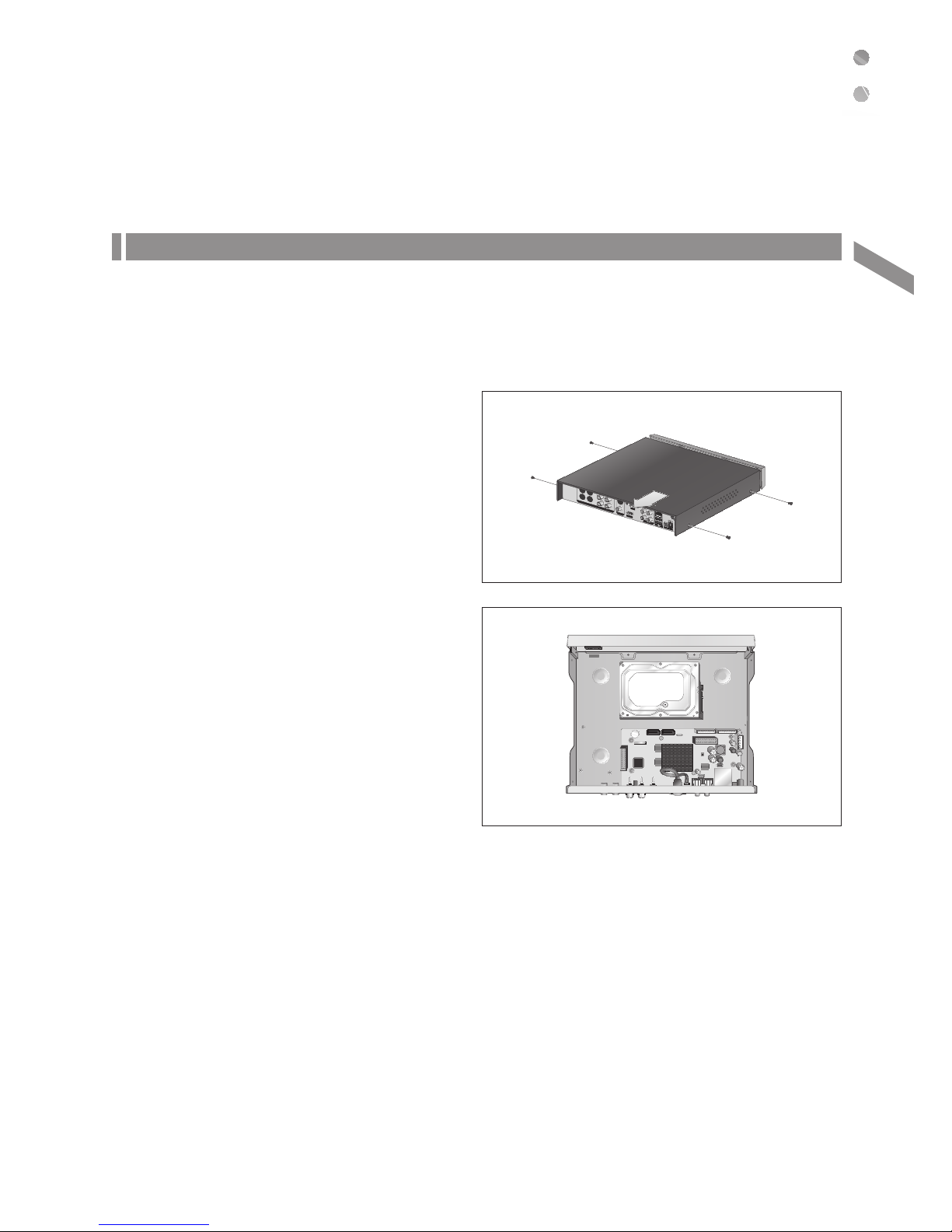

 4Ch Model (1HDD)
1.
Remove the 4 screws on the left/right sides of DVR.
2.
Pull the front panel forward to remove it from the
main body.
3.
Mount a new HDD on the bottom of your DVR.

Be careful of the HDD mounting direction.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V

Installation
10 |Installation

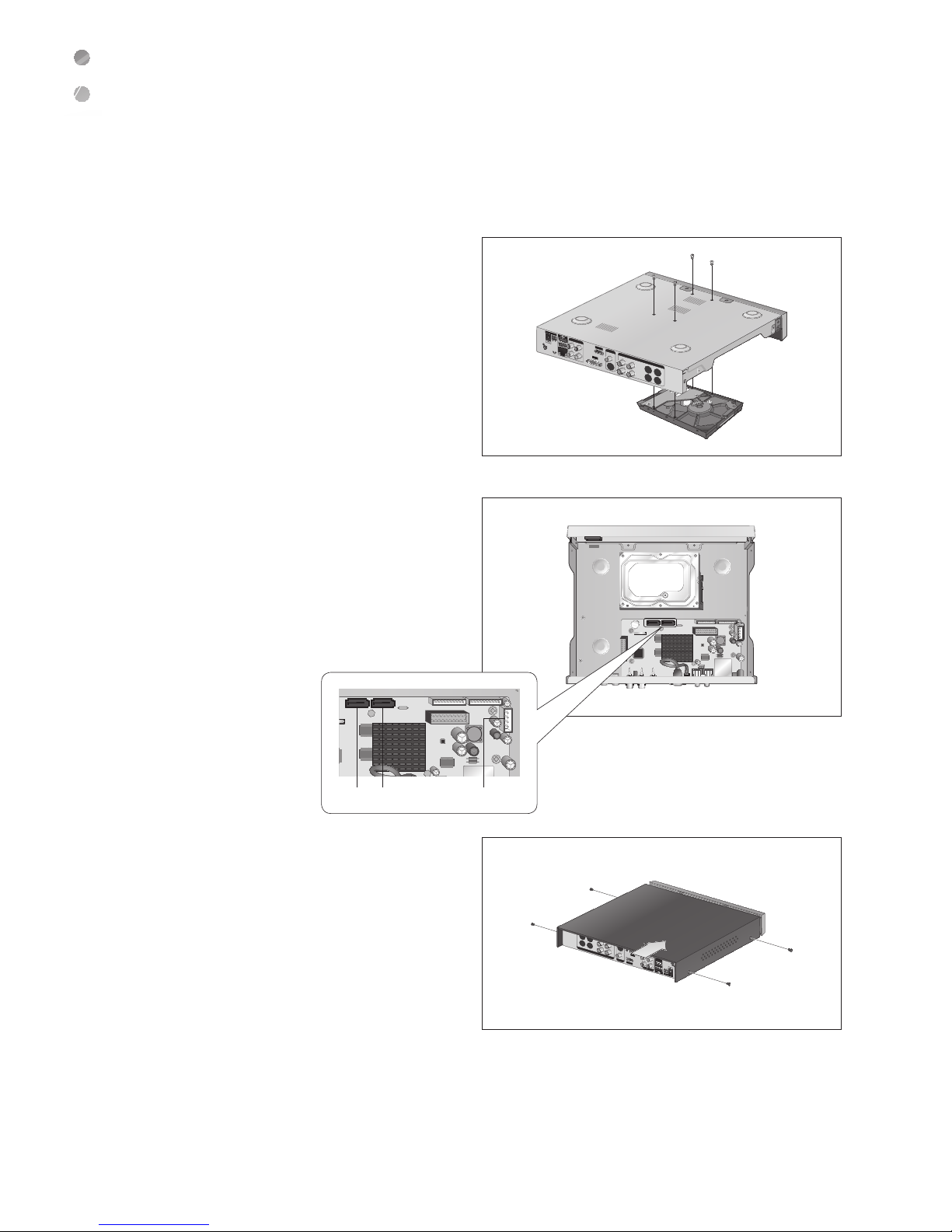

4.
Align the HDD mounted cage to the fixing holes of
main body, and then tighten the 4 screws to fix.
5.
Connect the data cable in main body to HDD.
6.
Put the cover on the main body and tighten the
screws on both sides and back.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
b ca

English |11
Installation

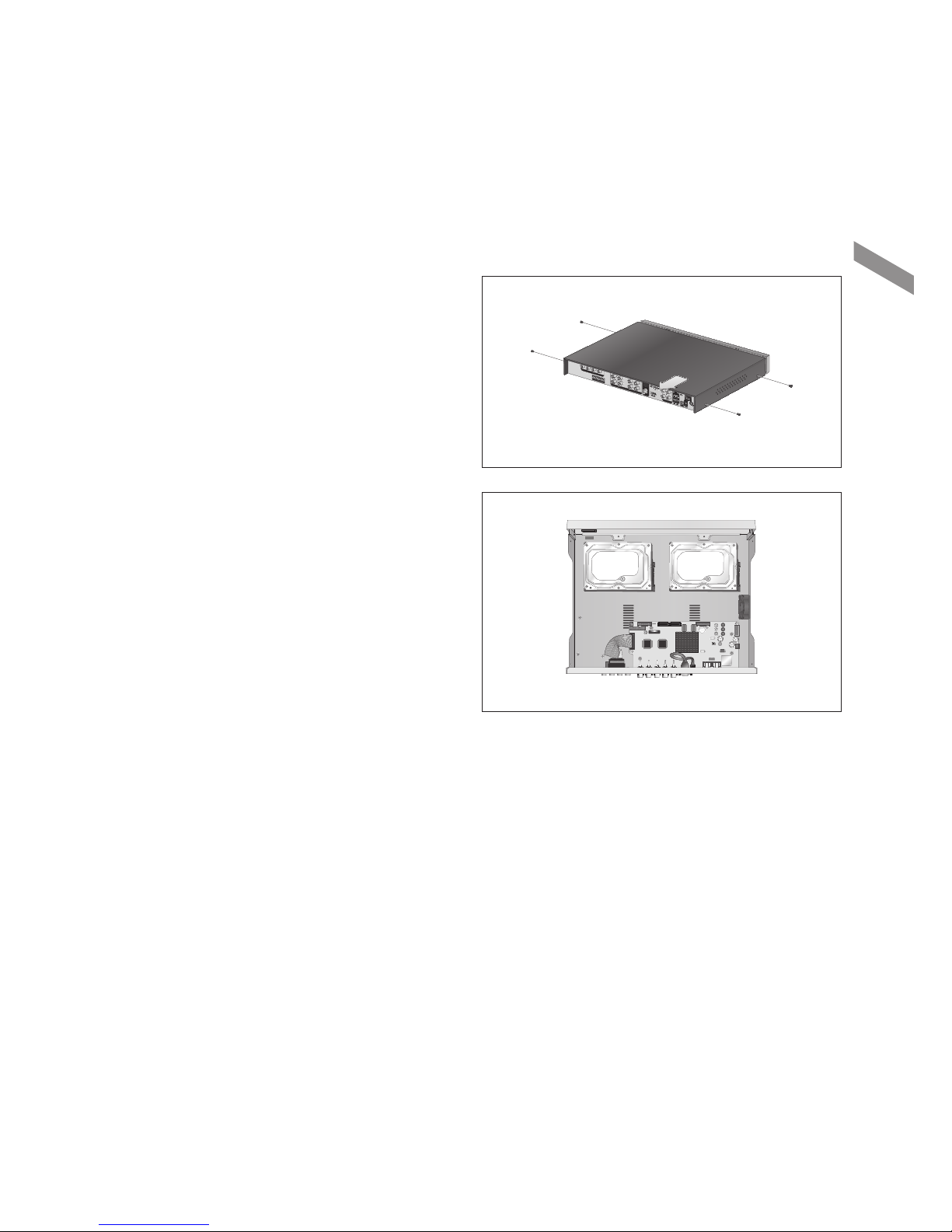

 8Ch Model (2HDD)
1.
Remove the 4 screws on the left/right sides of DVR.
2.
Pull the front panel forward to remove it from the
main body.
3.
Mount a new HDD on the bottom of your DVR.

Be careful of the HDD mounting direction.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN A-OUT
V-OUT
HDMI
VGA
RS485
DC 12V
AUDIO IN
A1
A2
A3
A4
AUDIO IN
A5
A6
A7
A8
ALARM I/O

Installation
12 |Installation

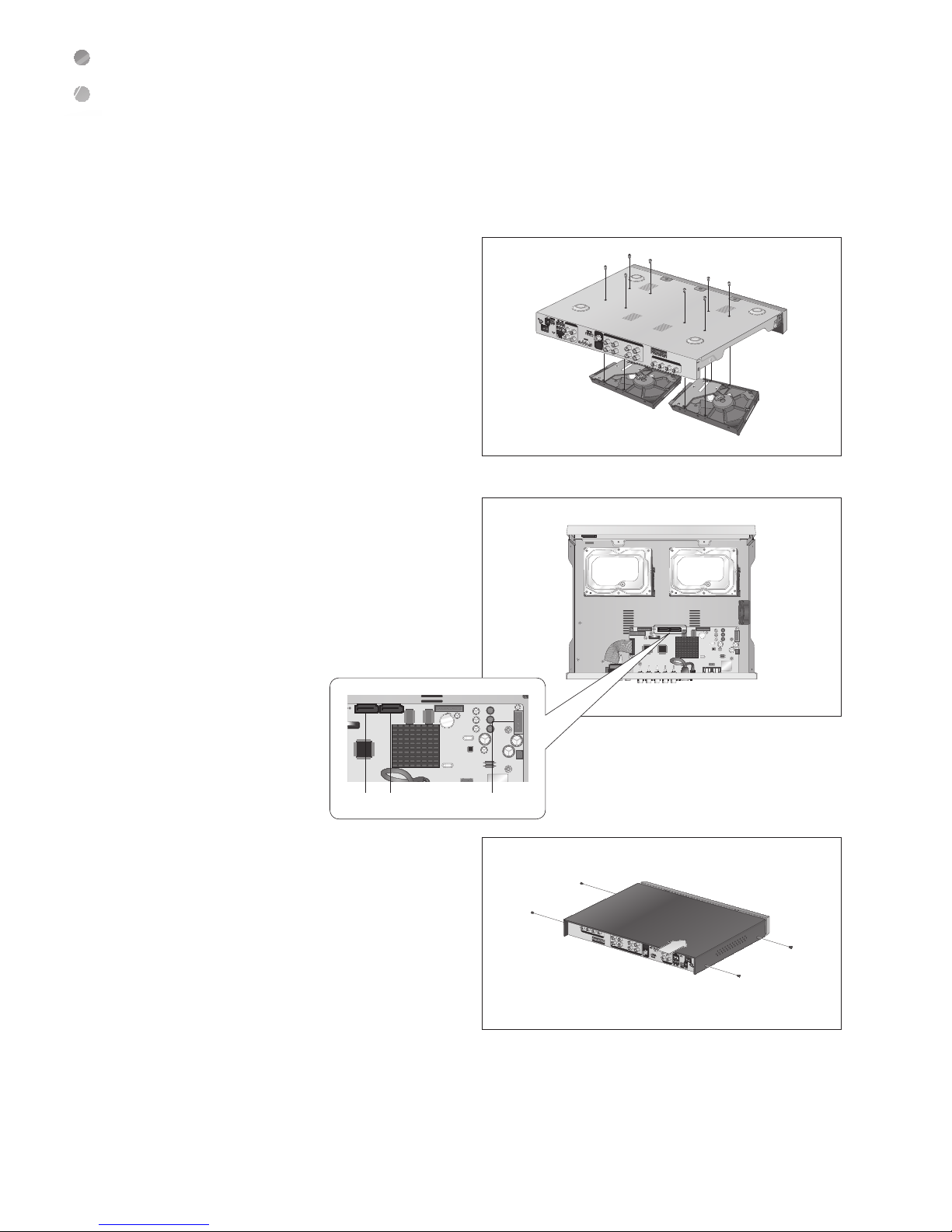

4.
Align the HDD mounted cage to the fixing holes of
main body, and then tighten the 8 screws to fix.
5.
Connect the data cable in main body to HDD.
6.
Put the cover on the main body and tighten the
screws on both sides and back.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN A-OUT
V-OUT
HDMI
VGA
RS485
DC 12V
AUDIO IN
A1
A2
A3
A4
AUDIO IN
A5
A6
A7
A8
ALARM I/O
v7
v8
v5
v6
v3
v4
VIDEO IN
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN A-OUT
V-OUT
HDMI
VGA
RS485
DC 12V
AUDIO IN
A1
A2
A3
A4
AUDIO IN
A5
A6
A7
A8
ALARM I/O
b ca

English |13
Installation

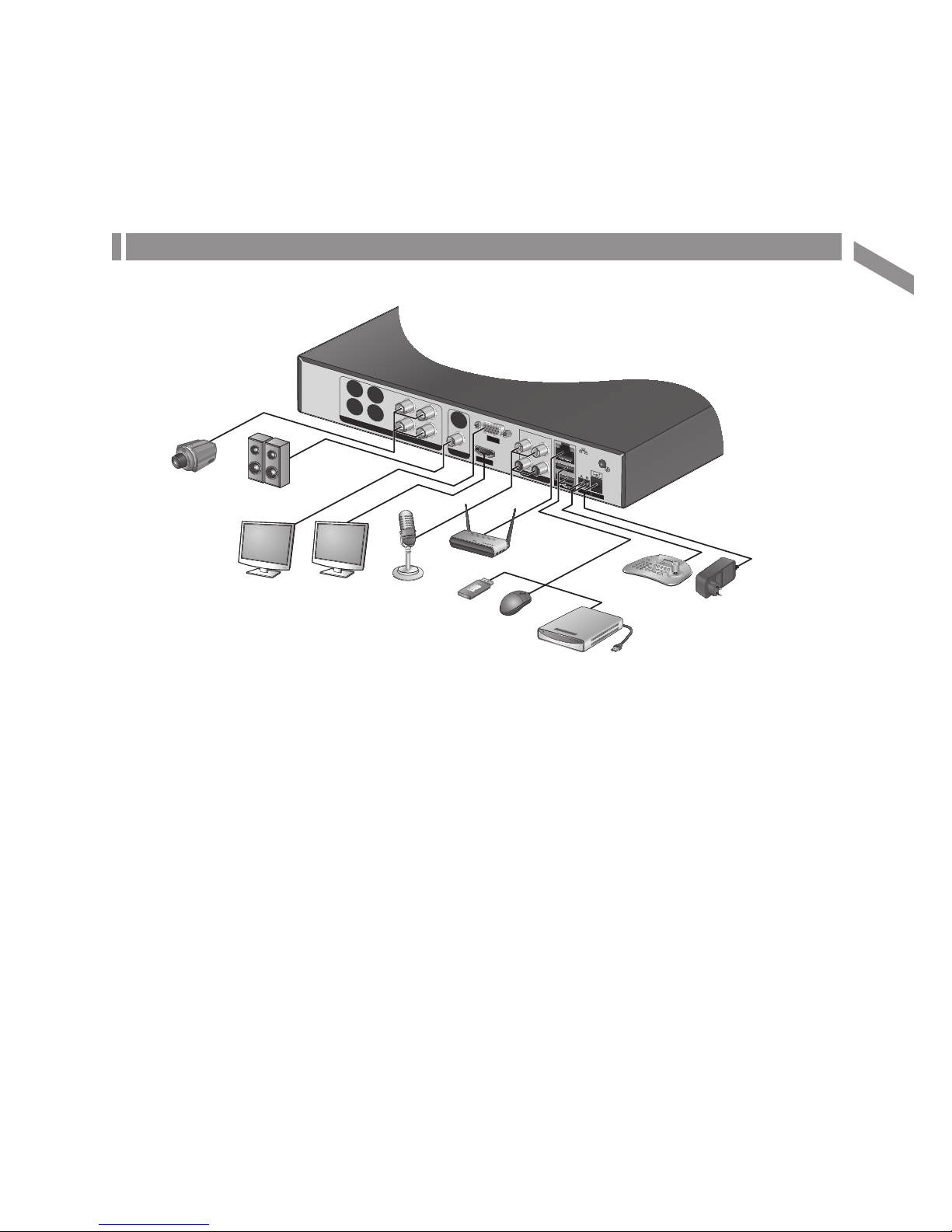

Basic Layout
J
Since the cable quality may affect directly to the video quality depending on the distance between the camera
and DVR, it is recommended to consult an authorized installer when installing the DVR.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
DC 12V
Power
Camera
Mouse
USB HDD
USB
IP Router
or HUB
Control
Devices
VGA
MONITOR
HD
MONITOR
Speaker
MIC

Installation
14 |Installation
Connecting to an external device
 Connecting to the monitor
This product supports 1080p 60 Hz HDMI monitors and regular monitors that support DVI and VGA inputs. Connect an
HDMI cable to the port on the product’s rear bottom, or connect an HDMI-DVI converter cable to connect a DVI monitor.
Or, use VGA cable to connect the product with a VGA monitor.
~
Once the product is set for NTSC or PAL output, connect cameras of the corresponding video standard for
proper operations.

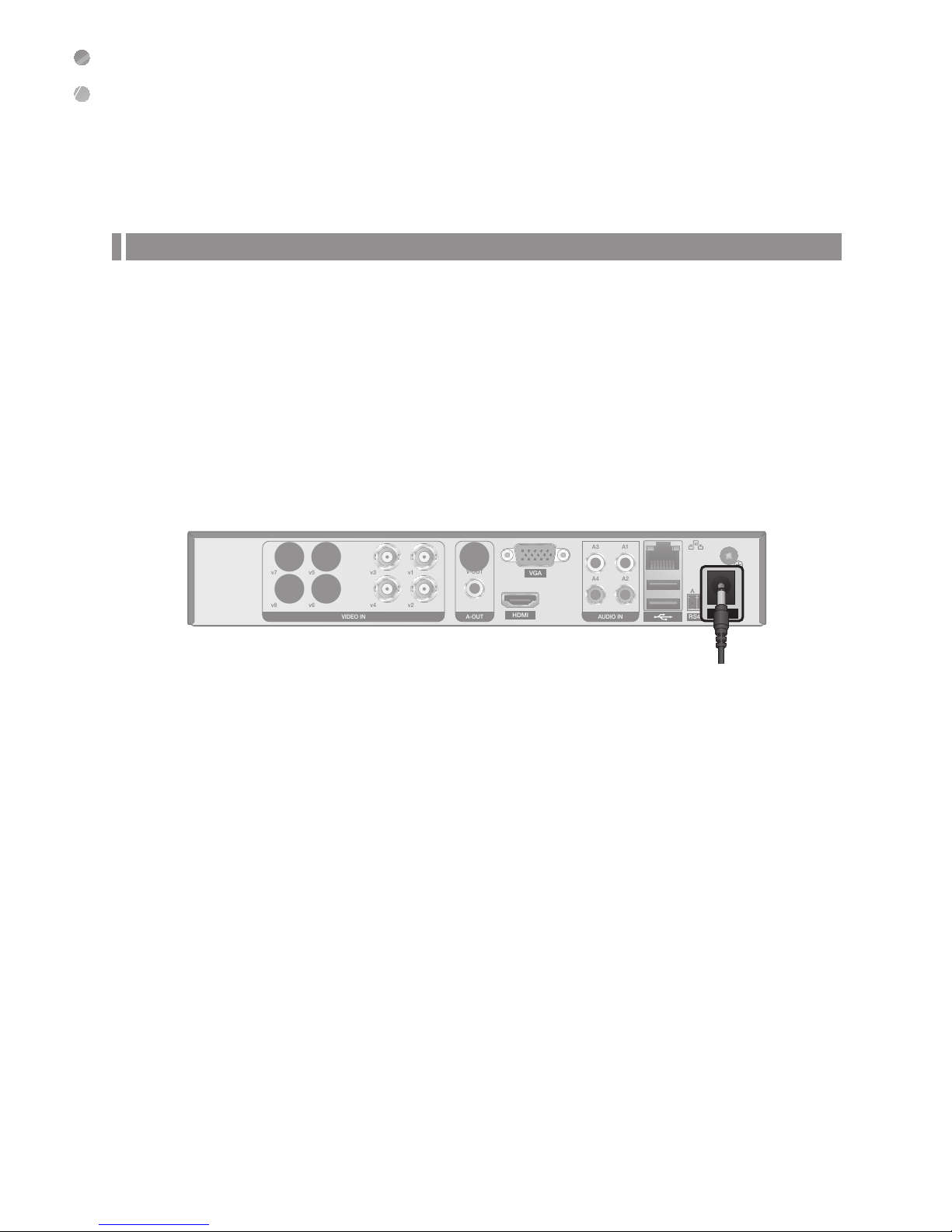

 Power Connection
Plug the provided DC 12V adaptor in the rear power port of the DVR.
J
For stable operation of the product, it is recommended to use the provided adapter.
J
Make connection when the power is not applied yet.
J
Arrange up the cables and be careful not to peel off the cable coating.
J
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded. However, even if
it's not earth-grounded, do never modify it on your own for earth-grounding.
J
Do not insert multiple devices in a single power socket. Otherwise, it may cause a power overload.
J
For stable power supply, this product provides two separate adaptors and two corresponding AC cords by factory
default. Make sure all cables are connected properly.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
DC 12V
Power adaptor

English |15
Installation
 Communication Port
RS-485 Connection
Connect a PTZ Camera or Keyboard Controller.
You can connect a text-in device such as POS or ATM.
After connecting the control device, be sure to match the connection settings between DVR and device.
Make communication settings in <Control Device>. (page 49)
1.
Connect the signal cable to the RS-485 communication port on the product’s rear side and the [D+] port of the PTZ
camera/keyboard controller.
2.
Connect the signal cable to the RS-485 communication port on the product’s rear side and the [D-] port of the PTZ
camera/keyboard controller.

For RS-485 communication configuration, refer to the user’s manual of the applicable PTZ camera or keyboard
controller.
 Audio Device Connection
You can connect an audio output device such as speaker amplifier.
Connect the audio input device such as microphone to the rear Audio In port, connect the audio output device such as
speaker amplifier to the Audio Out port.
 Storage and Mouse Connection
USB Device
You can connect and use USB storage devices for backup of recorded video, saving snapshots, firmware updating,
importing/exporting user configurations. Also, USB mouse can be connected for DVR manipulations.
J
If you need to connect a USB HDD with a high power consumption, it is recommended to use a separate power
source for that HDD.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
RS485
DC 12V

Installation
16 |Installation
 Network Connection
PC connection in the local network
You can connect DVR to a PC in the same network and control or manipulate it on the PC monitor.
1.
Connect the [
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
] port in the rear panel to the router or hub.
2.
Connect the local PC to the router or hub.
3.
Enter the address in the Web browser of your PC in the format of: “http://IP address:Web service port”
(Ex : http://192.168.0.23:8080) The web service port is set to 8080 by default. From the Network Setup screen, you
can change the port number.

If using the dedicated PC S/W, refer to the user manual of the program.
4.
Provide the ID and password before logging in. Then, you can view the monitoring screen.
Access ID (factory default) : ADMIN, P/W : 1234.
J
For security purpose, change the password before you use the product for the first time after purchasing it.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
Local PC
Local PC
Broadband router
or hub
Camera
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
RS485
4WANRESETPWR 3 2 1
Local PC Local PC
Broadband router
or hub

English |17
Installation
PC connection from a remote network
You can connect DVR to a PC or mobile device in the same remote network and control or manipulate it on the monitor
of the PC or mobile device.
1.
Connect the [
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
] port in the rear panel to the router.
2.
Connect the [WAN(UPLINK)] port of the router directly to the fixed IP LAN cable, or connect it to the ADSL modem.
3.
If using the router, set the port forwarding and enter the DDNS address in the address bar (web browser) of the
remote PC, or of the dedicated software program or mobile phone.
For the IP and DDNS address settings, refer to “Network Setup”. (page 42)
4.
If the MAC address of the DVR is 00-11-5F-12-34-56 and the web port number is 8080, enter "http://00115f123456.
dvrlink.net:8080" in the address bar of the web browser.
If you have renamed DDNS as “mydvr”, you can make network connection at http://mydvr.dvrlink.net:8080.
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
RS485
4WANRESETPWR 3 2 1
ADSL modem Local PC
Broadband router
v7
v8
v5
v6
v3
v4
v1
v2
VIDEO IN AUDIO IN
A-OUT
V-OUT
HDMI
A1
A2
A3
A4
VGA
RS485
DC 12V
Local PC
Local PC
Remote PC
Internet
ADSL modem
Broadband
router
Smart Phone
Direct
Connection
Internet

18 |Monitoring
Monitoring
 START
1.
Connect the adaptor to the 12V power input port in
the rear panel of DVR.
2.
Connect the power input port on the back of DVR to
its power adaptor.
The booting logo screen appears with a beep sound.
3.
When the booting process is completed, the live
screen then the login screen appears.
 Log In
To manipulate or access the menus of DVR, you should have logged in.
1.
When the system starts, the login screen appears.
2.
Select a user and provide the password.
The default password of the "ADMIN" account is
"1234".
3.
Click <OK>.
If the login information is correct and valid, you will
see the live screen.
J
For safe and secure use of the product, change the
password after purchasing.
 Log Out
To prevent unauthorized access, it is recommended to log out when you leave the screen.

Hover the cursor near the bottom of the screen to display the menu.
1.
In the monitoring screen, click <MENU> in the
bottom left corner of the screen to <LOG OUT>.
2.
While logged out, Search / Backup / System Settings
/ Record Settings / Exit menus are restricted to use.

English |19
Monitoring

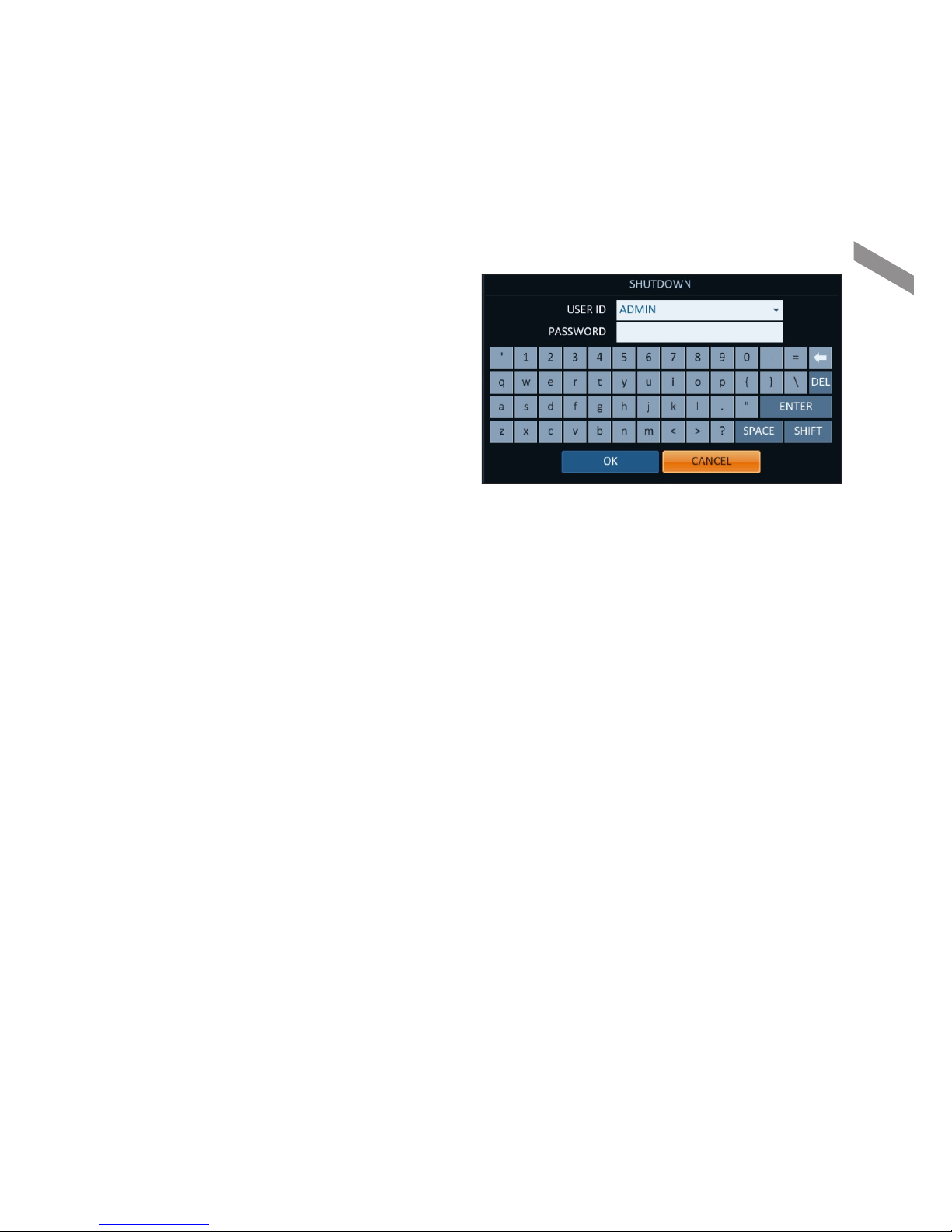

 System Shutdown
1.
In the monitoring screen, click <MENU> in the
bottom left corner of the screen to <SHUTDOWN>
the system.
2.
Use the virtual keyboard to enter the password.
J
If you turn off the system in an abnormal manner such as
removing the power cord while the system is in operation,
the disk will have or increase the bad sectors, causing
data loss and shortened life cycle of the disk.

Monitoring
20 |Monitoring
Live Screen At a Glance
The live screen largely consists of three components: video window, status bar and timeline zone.
 Video Window
Icons used in the video window.
Item Description
Camera ID Show the camera ID.
Record Mode
Icons
Displayed if an event recording is reserved.
Display the status of the continuous recording.
Display the recording status when an alarm occurs.
Display the recording status when a motion event occurs.
Display the status of the emergency recording.
Audio I/O Icons The audio signal of the connected camera is outputting.
Motion Detection
Icon A motion is detected by the connected camera.
Video Window Quick Menu
Status Bar
Timeline
