CCTV HCAM675B User manual

1 / 3” CCD S ONY S UP E R H I GH R ES O L UT I ON
CO L OR DAY & N I GHT CAM E RA
ART. HCAM675B-HCAM676B
Please read this manual thoroughly before use, and keep for
future reference.
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
htt ://www.comelitgrou .com e-mail:ex ort.de [e-mail]

WARNINGS AND CAUTIONS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON
THE EQUIPMENT.
CAUTION
CAUTION
R I SK OF ELECTR I C SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

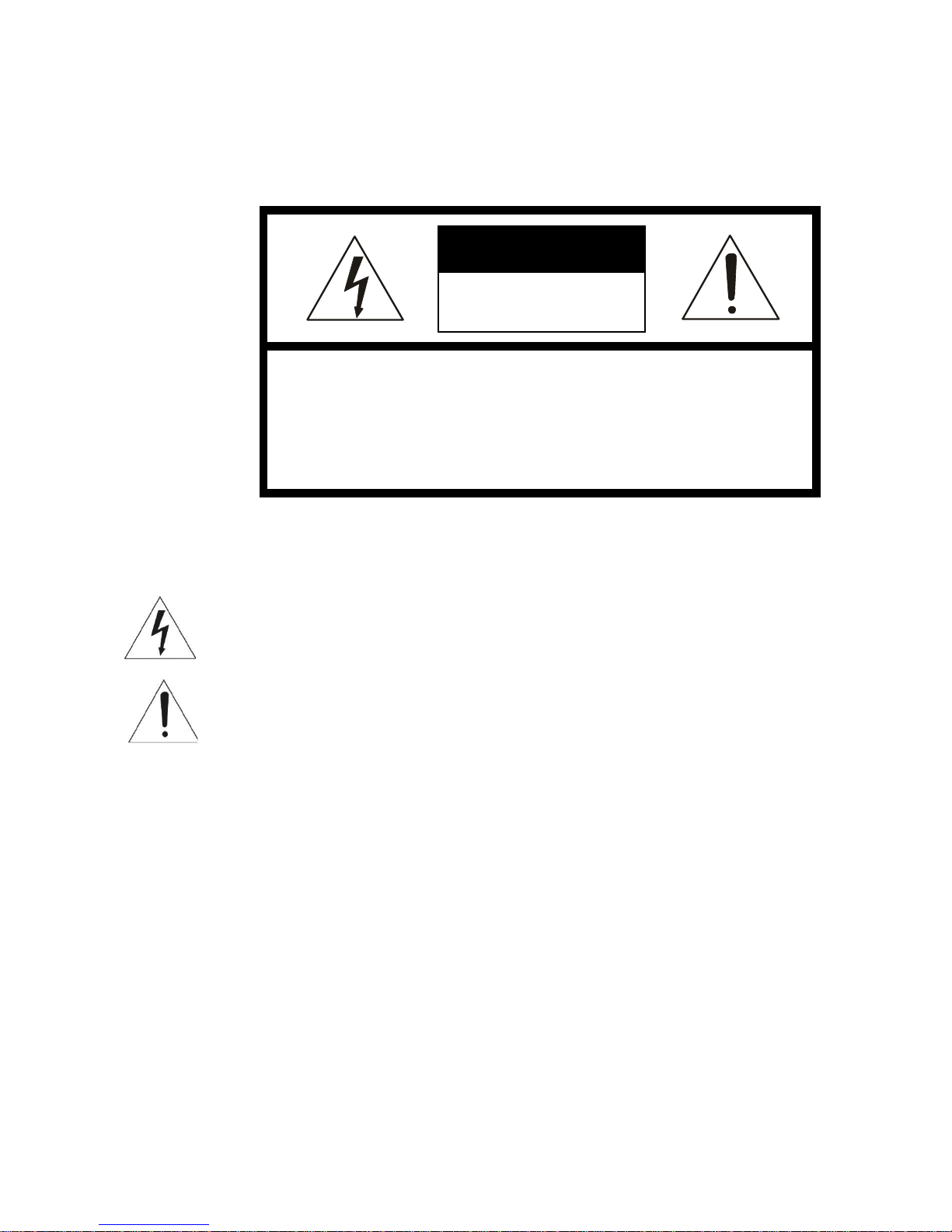

EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated ''dangerous
voltage'' within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
PRECAUTIONS
Safety
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by
qualified personnel before operating it any further.
Unplug the unit from the wall outlet if it is not going to
be used for several days or more.
To disconnect the cord, pull it out by the plug. Never
pull the cord itself.
Allow adequate air circulation to prevent internal heat
build-up.
Do not place the unit on soft surfaces (rugs,
carpets, sofas, etc.) or near materials
(curtains, draperies) that may block the ventilation
holes.
Installation
Do not install the unit in an extremely hot place or in a
place subject to excessive dust, mechanical
vibration.
Cleaning
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use
strong solvents such as thinner or benzine as
they might damage the finish of the unit.
Retain the original carton and packing materials for safe
transport of this unit in the future.
ii

IMPORTANT SAFETY INSTRUCTIONS
1 . Read t hese ins t ruc t ions .
2 . Keep t hese ins t ruc t ions .
3 . Heed all warnings .
4 . Follow all ins t ruc t ions .
5 . Clean only wi t h dry clo t h .
6 . Do no t block any ven t ila t ion openings . I ns t all in accordance
wi t h t he manu f ac t urer’s ins t ruc t ions .
7 . Do no t ins t all near any hea t sources such as radia t ors , hea t
regis t ers , s t oves , or o t her appara t us (including ampli f iers) t ha t produce
hea t.
8 . Do no t de f ea t t he sa f e t y purpose o f t he polarized or grounding- t ype plug .
A polarized plug has t wo blades wi t h one wider t han t he o t her . A
grounding t ype plug has t wo blades and a t hird grounding prong . The
wide blade or t he t hird prong are provided f or your sa f e t y . If t he
provided plug does no t f i t in t o your ou t le t, consul t an elec t rician f or
replacemen t o f t he obsole t e ou t le t.
9 . Pro t ec t t he power cord f rom being walked on or pinched
par t icularly a t plugs , convenience recep t acles , and t he poin t where t hey
exi t f rom t he appara t us .
10 . Only use a tt achmen t s / accessories speci f ied by t he manu f ac t urer .
11 . Use only wi t h t he car t, s t and , t ripod , bracke t or t able
speci f ied by t he manu f ac t urer or sold wi t h t he
appara t us . When a car t is used , use cau t ion when
moving t he car t/ appara t us combina t ion t o avoid injury
f rom t ip-over .
12 . Unplug t his appara t us during ligh t ning s t orms or when
unused f or long periods o f t ime .
13 . Re f er all servicing t o quali f ied service personnel .
Servicing is required when t he appara t us has been
damaged in any way , such as power-supply cord or plug
is damaged , liquid has been mois t ure , does no t opera t e normally , or has
been dropped .
14 . CAUT I ON – THESE SERV I C I NG I NSTRUCT I ONS ARE FOR USE BY
QUAL I F I ED SERV I CE PERSONNEL ONLY . TO REDUCE THE R I SK
OF ELECTR I C SHOCK DO NOT PERFORM ANY SERV I C I NG
OTHER THAN THAT CONTA I NED I N THE OPERAT I NG
I NSTRUCT I ONS UNLESS YOU QRE QUAL I F I ED TO DO SO .
15 . Use sat i sfy c l ause 2 . 5 of I EC60950-1 / UL60950-1 or Cert i f i ed / L i sted
C l ass 2 power source on l y .
iii

FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER:
THIS EQUIPMENT HAS BEEN TESTED
AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED
TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED
AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL,
MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS
LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE
USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN
EXPENSE.
CAUTION:
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME
NMB-003 DU CANADA.
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to take
adequate measures.
iv

CONTENTS OF PACKAGE
I ns t alla t ion o f t he camera mus t be per f ormed by quali f ied service personnel in
accordance wi t h all local and na t ional elec t rical and mechanical codes .
Care f ully remove t he color camera and i t s accessories f rom t he car t on
and veri f y t ha t t hey were no t damaged in shipmen t.
The con t en t s o f t he package include :
1 . Camera in Housing 1
2 . I ns t ruc t ion Manual (This Documen t ) 1
3 . Accessory Ki t f or ins t alling 1
4 . Drilling guide label 1
v

TABLE OF CONTENTS
INTRODUCTION ----------------------------------------------------------------------------------------- 1
CAMERA CONNECTION & CONTENSTS of PACKAGE ------------------------------------- 2
CONTENTS of PACKAGE & QUICK INSTALL -------------------------------------------------- 3
OSD MENU STRUCTURE ---------------------------------------------------------------------------- 5
AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 12
SPOT OUT / JOY STICK KEY --------------------------------------------------------------------- 13
EXTERNAL DIMENSIONS---------------------------------------------------------------------------- 14
SPECIFICATIONS ------------------------------------------------------------------------------------- 15
vi

1
INTRODUCTION
The camera provides high-quali t y images using SONY 1 / 3” CCD and digi t al
Signal process LS I s .
Features:
● 1 / 3" EXview HAD CCD Ⅱ f or an image o f high sensi t ivi t y
● 2 . 8~12 mm D / N Vari f ocal (DC A I ) / 5~50 mm D / N Vari f ocal (DC A I )
● Digi t al Wide Dynamic Range (Adap t ive Tone Reproduc t ion)
● Excellen t pic t ure quali t y
● 700 lines o f resolu t ion
● Minimum illumina t ion o f 0 . 15 Lux (Color) / 0 Lux (B / W & I R ON)
● Au t o elec t ronic shu tt er [ 1 / 60 (1 / 50) ~ 1 / 10000 ] and manual elec t ronic
shu tt er modes
● OSD (On Screen Display)
● Au t o and manual whi t e balance modes
● Au t o BLC and HLC , Day & Nigh t (Au t o)
● 2D-NR
● Smar t I R
● Privacy Zone 4 poin t, Mo t ion De t ec t ion 4 Poin t
● M I RROR , SHARPNESS , HUE , CONTRAST , GA I N
● AGC (Au t o Gain Con t rol)
● V I DEO OUT (BNC)
● I n t ernal sync .
● Opera t es in 12VDC or 24VAC
( If using 12VDC power adap t or , please use a power supply capable o f
supplying over 600mA)
● Use Cer t i f ied / Lis t ed Class 2 power source only .
● Au t o Whi t e De f ec t de t ec t ion
● IP67 protection
I MPORTANT: t he user o f t his camera is responsible f or
checking and complying wi t h local , s t a t e , and f ederal laws and
s t a t u t es concerning t he recording and moni t oring o f audio
signals .

2
CAMERA CONNECTION
1 . Bulle t Camera
2 . Power : power source f rom a DC 12V or AC 24V
3 . Video : BNC connec t or used t o connec t t he camera t o a moni t or ,
swi t cher , ec t.

3
CONTENTS of PACKAGE
QUICK INSTALL

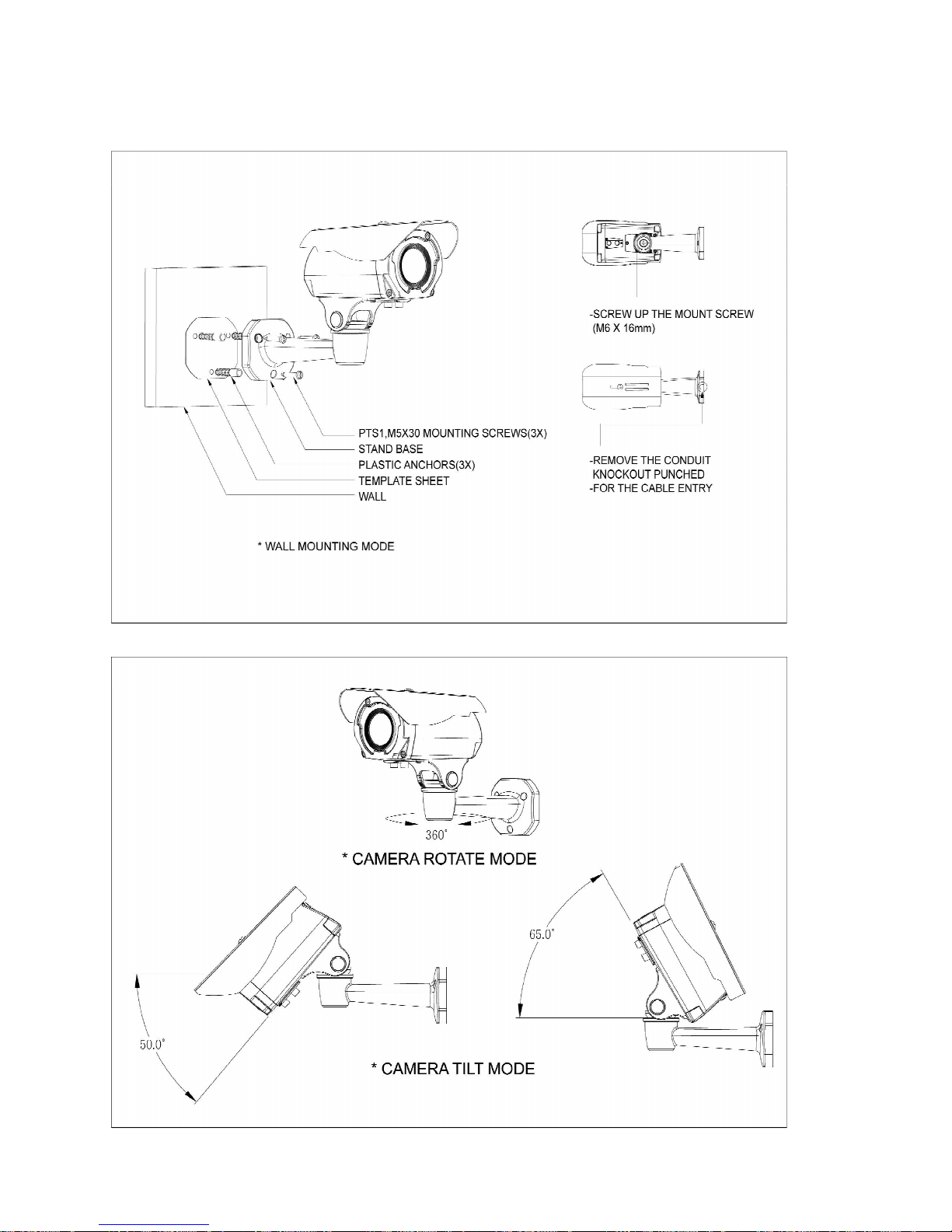

1 . Drill t he moun t ing loca t ion using t he supplied drill guide label .
2 . A tt ach t he bulle t housing t o t he ceiling using sui t able f as t eners , PTS M5 x
30MM screws are supplied only use i f t hey are sui t able .
3 . A ft er bulle t camera adjus t t he angle and ro t a t ing , f ixed t o s t and using t he M6
L-WRENCH .

4
(If something is disturbing Photo Sensor, operation problem
might be occurred)

5
OSD MENU STRUCTURE
SETUP MENU (page 1)
LENS
SHUTTER/AGC
WHITE BAL
BACKLIGHT
PICT ADJUST
ATR
MOTION DET
NEXT (page2)
EXIT SAVE ALL
LENS
AUTO ↵
MANUAL
SHUTTER/AGC
AUTO↵
MANUAL↵
WHITE BALANCE
ATW ↵
PUSH
USER 1↵
USER 2↵
ANTI CR
MANUAL
↵
PUSH LOCK
BACKLIGHT
OFF
BLC
HLC
PICTURE ADJUST
↵
MIRROR
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
GAIN
RETURN
ATR
OFF
ON
↵
MOTION DET
OFF
ON
↵

6
SETUP MENU (page 2)
PRIVACY
DAY/NIGHT
NR
CAMERA ID
LANGUAGE
CAMERA RESET
BACK (page 1)
EXIT SAVE ALL
PRIVACY
OFF
ON
↵
DAY/NIGHT
COLOR
B/W↵
NR↵
NR MODE
Y LEVEL
C LEVEL
RETURN
CAMERA ID
OFF
ON
↵
LANGUAGE
ENGLISH
࢔ʩ׳
DEUTSCH
FRANCAIS
PYCCKNN
PORTUGUES
ESPANOL
CAMERA RESET
(return the camera to
factory defaults)

7
LENS
AUTO
TYPE (DC / V I DEO)
Se t s t he t ype o f mechanical iris
(Video lens is no t suppor t ed)
MODE (AUTO / OPEN / CLOSE )
Se t s t he t ype o f con t rol t o be applied over t he mechanical iris .
SPEED (0 – 255)
Se t s t he convergence speed o f t he mechanical iris .
MANUAL
Manual lens only
( Note: since Manual mode AUTO mode is changed SHUTTER / AGC t o
SHUT+AUTO I R I S when MANUAL is changed t o AUTO , AUTO MODE
should be changed t o AUTO I R I S in SHUTTER / AGC)
SHUTTER/AGC
AUTO
H I GH LUM I NANCE
MODE (SHUT+AUTO I R I S / AUTO I R I S)
( Note : only SHUT can be selec t ed i f LENS is in MANUAL mode
SHUT+AUTO I R I S is AE ( Auto Exposure ) for SHUTTER is 1 / 500(1 / 480) and
I R I S)
BR I GHTNESS (0 ~ 255)
Adjus t s t he brigh t ness
LOW LUM I NANCE
MODE (AGC / OFF)
Au t o Gain Con t rol on or o ff
BR I GHTNESS (x0 . 25 / x0 . 50 / x0 . 75 / x1 . 00)
Amoun t o f AGC applied in low ligh t ing condi t ions
MANUAL
MODE (SHUT+ AGC)
Au t o gain con t rol
SHUTTER
Selec t t he shu tt er speed (1 / 60 , 1 / 120 , 1 / 250 , 1 / 500 , 1 / 1000 , 1 / 2000 , 1 / 4000 ,
1 / 10000)
AGC
Se t s t he AGC gain applied [ dB ] f or ME (manual exposure)
(6 , 12 , 18 , 24 , 30 , 36 , 42 , 44 . 8 dB)

8
WHITE BAL
ATW (Au t o Trace Whi t e balance)
SPEED (0~255)
Adjus t s t he pull-in speed o f ATW .
DELAY CNT (0~255)
Se t s t he t ime-based hys t eresis o f ATW .
ATW FRAME (x0 . 5 / x1 / x1 . 5 / x2)
Se t s t he pull-in f rame magni f ica t ion .
ENV I ROMENT ( I NDOOR / OUTDOOR)
Prese t f or ei t her indoor or ou t door applica t ions o f t he ATW
PUSH
Wide range Au t o Whi t e Balance mode (AWB)
USER1 & 2
Bo t h USER 1 & 2 can be individually se t up f or speci f ic applica t ions . The gain
values f or t he ou t door f ixed mode are used as t he adjus t men t i t ems o f USER1
on t he in t ernal OSD menu .
B-GA I N (0~255)
R-GA I N (0~255)
ANT I CR
Color rolling suppression
MANUAL
The B and R gain values f or manual WB are se t on t his screen .
LEVEL (NTSC : 13 ~ 56) , (PAL : 16 ~ 78)
PUSH LOCK
PUSHLOCK is selec t ed and t he En t er inpu t is ac t ive
BACKLIGHT
Sharpens subjec t s wi t h backligh t (OFF / BLC / HLC)
PICT ADJUST
M I RROR (OFF / ON) Horizon t ally inver t s image .
BR I GHTNESS (0~255) Se t s t he screen brigh t ness .
CONTRAST (0~255) Se t s t he screen con t ras t.
SHARPNESS (0~255) Se t s t he screen sharpness .
HUE (0~255) Adjus t s t he hue .
GA I N (0~255) Adjus t s t he gain .

9
AREA SEL
ATR
ATR (Adap t ive Tone Reproduc t ion) allows adjus t men t o f t he image t o assis t
wi t h widely con t ras t ing scenes o f view .
LUM I NANCE (LOW / M I D / H I GH)
Se t s t he ex t en t o f t he luminance compression
CONTRAST (LOW / M I DLOW / M I D / M I DH I GH / H I GH)
Se t s t he ex t en t o f t he con t ras t enhancemen t
MOTION DET
DETECT SENSE (0~127)
Se t s t he mo t ion de t ec t ion sensi t ivi t y (0=low sensi t ivi t y , 127=high sensi t ivi t y)
BLOCK D I SP (OFF / ON / ENABLE)
Applies a Mo t ion block t race in t he selec t ed area . To de f ine t he area , selec t
Enable and push cen t rally on t he joys t ick . Use t he Joys t ick t o naviga t e t o t he
blocks you wan t t o D i sab l e and no t include in mo t ion t race . To re t urn t o t he
menu , push and hold cen t ral joys t ick f or 2secs and release .
MOT I ON AREA (ON / OFF)
Enables / disables t he mo t ion de t ec t ion
AREA SEL (1~4)
Selec t s t he mo t ion de t ec t ion area
( Note : se t t he area sel i t would be be tt er
t o move f irs t ly BOTTOM and R I GHT)
TOP (NTSC : 0~244 , PAL : 0~288)
0 = t op
BOTTOM (NTSC : 0~244 , PAL : 0~288)
244(288) = bo tt om
LEFT (NTSC : 0~474 , PAL : 0~468)
0 = le ft
R I GHT (NTSC : 0~474 , PAL : 0~468)
474(468) = righ t
PRIVACY
AREA SEL (1~4)
Selec t s t he mo t ion de t ec t ion area
MOTION DET
DETECT SENSE IIIIIIIIIII 111
BLOCK DISP OFF
MONITOR AREA
ON AREA SEL 1/4
TOP IIIIIIIII 000
BOTTOM IIIIIIIII 076
LEFT IIIIIIIII 000
RIGHT IIIIIIIII 183
RETURN
( Note : se t t he area sel i t would be be tt er
AREA SEL 1/4
t o move f irs t ly BOTTOM and R I GHT)
TOP (NTSC : 0~244 , PAL : 0~288)
0 = t op
BOTTOM (NTSC : 0~244 , PAL : 0~288)
244(288) = bo tt om
TOP IIIIIIIIII000
BOTTOM IIIIIIIIII077
LEFT IIIIIIIIII000
RIGHT IIIIIIIIII187
COLOR 1
TRANSP 1.00
MOSAIC OFF
RETURN

10
LEFT (NTSC : 0~474 , PAL : 0~468)
0 = le ft
R I GHT (NTSC : 0~474 , PAL : 0~468)
474(468) = righ t
COLOR (1~8)
Se t s t he colors o f t he privacy zones .
TRANSP (0 . 00 / 0 . 50 / 0 . 75 / 1 . 00)
Se t s t he t ransparency o f t he privacy zone area i f color is selec t ed .
MOSA I C (OFF / ON)
Se t s t he mosaic f unc t ion as t he privacy t o ON or OFF .
(No t e : when ON , t ransparency needs t o be se t a t 0 . 00 and privacy zones
can only be 1 color OR mosaic and no t mixed)
DAY / NIGHT
COLOR (color only opera t ion)
B / W (monochrome only opera t ion)
BURST (OFF / ON)
Allows t he color burs t signal in monochrome t o be removed i f required .
I R OPT I M I ZER (OFF / ON)
Smar t I R mode OFF or ON
MODE (ONLY I R OPT I M I ZER ON , AUTO / CENTER)
Au t o : His t ogram in t egra t ion mode
Cen t er : Cen t er priori t y mode
LEVEL (ONLY I R OPT I M I ZER ON , 0~31)
NR (2D-DNR)
This is used t o remove noise f rom t he image in low ligh t condi t ions when
AGC is applied .
NR MODE (OFF , Y , C , Y / C)
Se t s t he 2D NR f il t er mode .
Y LEVEL (0-15)
Se t s t he Y f il t er (Luminance) s t reng t h .
C LEVEL (0-15)
Se t s t he C f il t er (Chrominance) s t reng t h .

11
CAMERA ID
Se t s t he camera I D t o ON or OFF . A t i t le o f 52 charac t ers per line can be
applied .
Use t he joys t ick t o naviga t e
t he cursor . Pushing cen t rally
on t he joys t ick will allow
selec t ion o f t ha t charac t er .
The arrows a t t he bo tt om
allow you t o move t he cursor
wi t hou t changing t he
charac t er .
CLR
I nser t s a space
POS
Allows you adjus t t he loca t ion o f t he camera I D t i t le display . (i f you move t oo
much righ t side or down , i t migh t lose I D on t he screen)
LANGUAGE
LANGUAGE selec t be t ween :
English , Japanese , German , French , Russian , Por t uguese & Spanish .
CAMERA RESET
CAMERA RESET - Re t urns t he camera t o t he f ac t ory de f aul t se tt ings .
SAVE ALL
SAVE ALL - Saves all t he changes made in t he menu .
EXIT
EX I T – Exi t s t he menu and does no t save changes made .

12
AUTO WHITE DEFECT
Push t he le ft bu tt on f or 5 seconds and en t er Au t o whi t e de f ec t menu .
Cover t he lens and En t er f or s t ar t ing .
If whi t e de f ec t s are over 65pcs , t he camera is f aul t y and au t o de f ec t is
useless .
Over 70 ' C Au t o whi t e de f ec t can 't be ac t iva t ed .

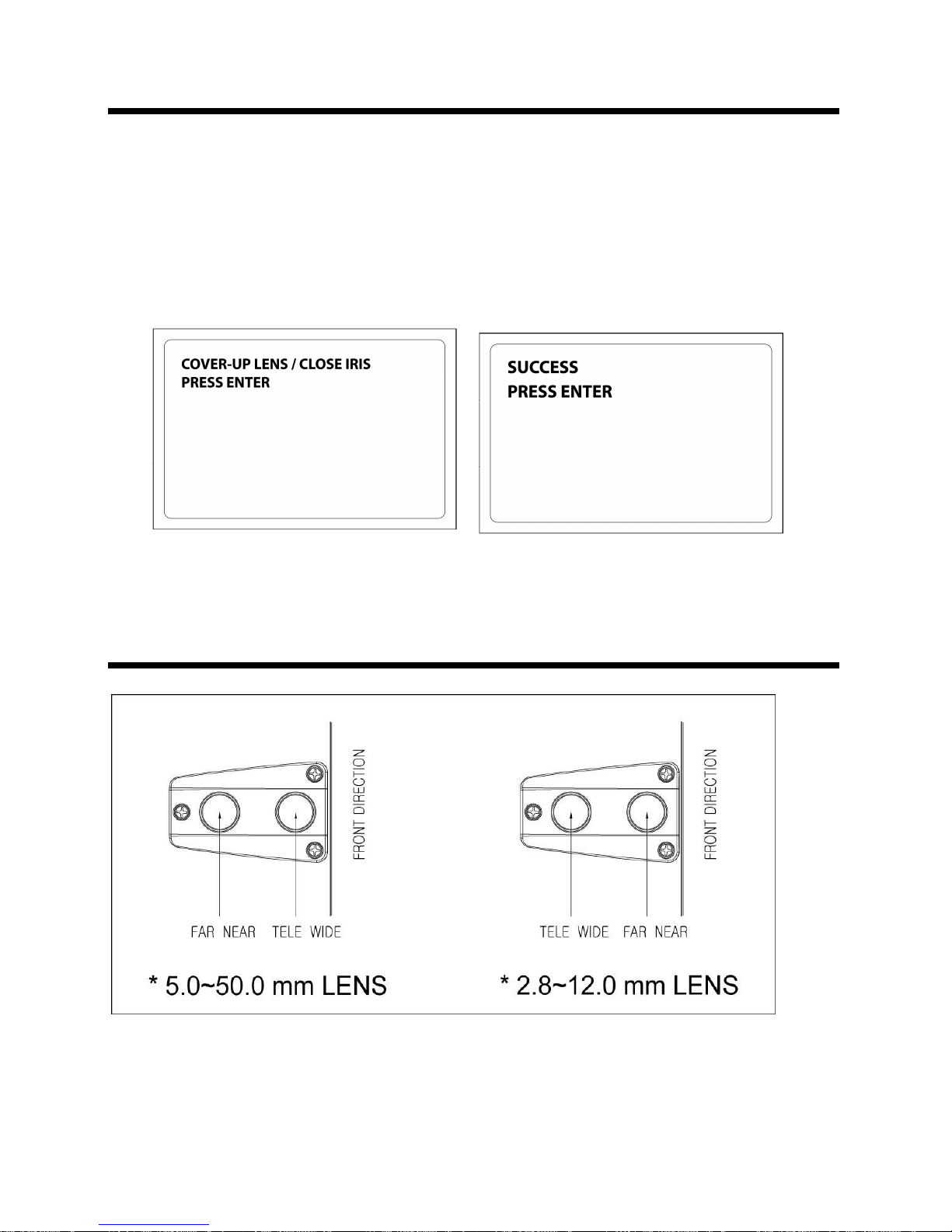

LENS ADJUSTMENT

13
Art. HCAM676B HCAM675B
Lens
5 ~ 50 mm
2.8 ~ 12 mm
Angular
Field of
View
HORIZONTAL
51.5° ~ 6.5° 100.8 ° ~ 23.7 °
SPOT OUT / JOY STICK KEY

14
EXTERNAL DIMENSIONS
