CCTV HD-SDI User manual

HD-SDI DNR DAY & NIGHT COLOR CAMERA
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
USER MANUAL
HD-SDI 공용 Manual.indd 1 2011-09-28 오후 4:33:50

- 2 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
This installation should be made by a qualified service person and
should conform to all local codes.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
☞Do NOT expose this appliance to rain or moisture.
HD-SDI 공용 Manual.indd 2 2011-09-28 오후 4:33:51

- 3 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
Contents
Contents 3
4
6
5
31
General Features
Sefety Instructions
Precautions
Trouble Shooting
Menu Set Up
▶OSD Control Button
▶Set Up Menu
▶Menu Set Up
▶Lens
▶Exposure
▶Back Light
▶White Bal.
▶Day & Night
▶NR
▶Special
▶Adjust
▶Reset
▶Exit
◈Camera Title
◈D - Effect
◈Motion
◈Privacy
◈Defect
7
7
29
8
30
10
30
11
12
14
17
18
20
21
21
24
26
27
28
HD-SDI 공용 Manual.indd 3 2011-09-28 오후 4:33:52

- 4 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
General Features
DNR(Digital Noise Reduction)
HDPRO DNR technology utilizes both an adaptive 2D filter reducing noise in the brightness of
the image and an adaptive 3D filter reducing noise caused by movement. The result is that
HD-SDI camera supports Motion Adaptive DNR function that removes noise and greatly reduce motion blur.
HD(High Definition) Surveillance
HD-SDI Camera provides the superb surveillance conditions than normal VGA camera.
ACCE(Adaptive Color & Contrast Enhanment)
HD-SDI Image Enhancer source of the software can be activated. HD-SDI Image Enhancer improves the
clarity of images taken in poor conditions such as fog, smoke, rain or snow. Applied to live or recorded color
video, it delivers real-time results and displays visual details that would otherwise have been difficult to see.

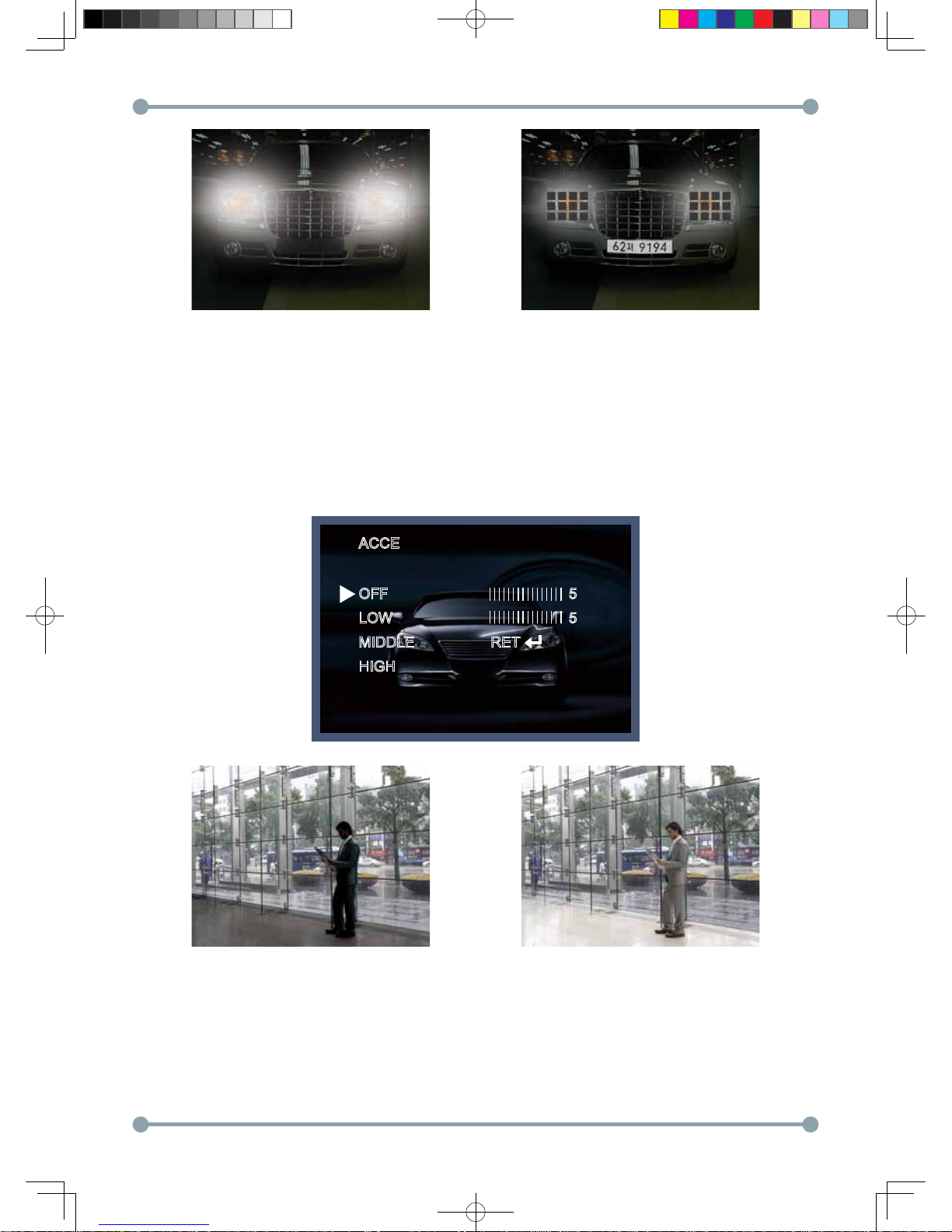

HLC(High Light Compensation)
High Light Compensation function is especially effective for reading car number plates at night time. Users
can select and define the required observation area for the target object and ignore strong highlight areas.
Illumination
With an Incredibly Minimum Illumination of Amazing 0.017Lux can Capture Good Images Even in Extremely Low
Light Conditions and Related Noises are Significantly Reduced by the Ultra Advanced DNR(Digital Noise
Reduction) Technology.
Privacy Zone
A "Privacy zone" can be set if you desire to block viewing of specific areas in the picture.
Additional Functions
OSD - On Screen Display menu
Privacy Masking - 8 zones, Sens-Up - x60 times, Digital Zoom - x64
☞
☞
☞
☞
☞
☞
☞
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
DNR
Digital
Reduction
Noise
0.017 Lux
Illumination
Minimum
High Definition
HD
Contrast Enhanment
Adaptive Color
ACCE
DSP
3D-DNR
OSD
Privacy Zone
HLC
3D-DNR
Digital
Reduction
Noise
0.00001 Lux
Illumination
Minimum
Resolution
Horizontal
600
Wide Dynamic Range
Digital
WDR
Backlight
Compensation
BLC
DSP
3D-DNR
OSD
Smart-IR
HD-SDI 공용 Manual.indd 4 2011-09-28 오후 4:33:53

- 5 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA

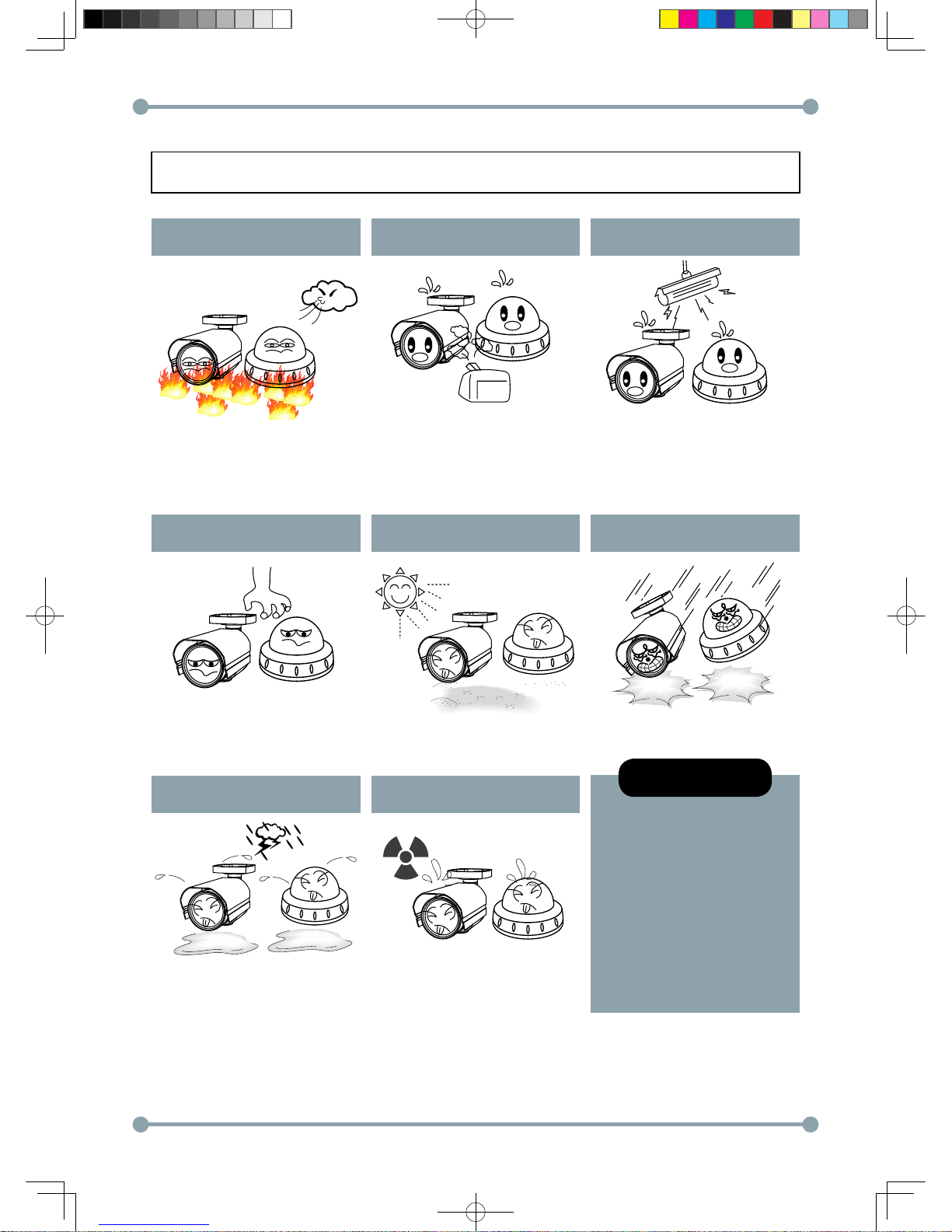

Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Do not expose the camera to rain
or spill liquids on it.
Do not install or use the camera in an
environment where the humidity is high.
Do not install or use the camera in an
environment where the humidity is high.
Never keep the camera pointed
directly at strong light.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.
This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.
If it gets wet, wipe dry immediately.
Liquids can contain minerals that
corrode the electronic components.
It can cause malfunctions to occur.
If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Severe lighting change or flicker can
cause the camera to work improperly.
NOTE
* If the camera is exposed to
spotlight or object reflecting
strong light, smear or blooming
may occur.
* please check that the power
satisfies the normal specification
before connecting the camera.
Precautions
HD-SDI 공용 Manual.indd 5 2011-09-28 오후 4:33:57

- 6 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
Sefety Instructions
Precautions for use
Please handle this camera carefully :
◑ This camera should be installed by qualied personnel only
◑ There are no user serviceable parts inside
◑Do not disassemble this camera other than to make initial adjustments
◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
◑ Do not use a strong or abrasive detergent when cleaning the camera
◑ Do not expose the camera to direct sun
◑ Do not install camera in places where humidity is high
◑ Do not install near cooling or heating device
◑
Do not expose camera to rain or moisture
HD-SDI 공용 Manual.indd 6 2011-09-28 오후 4:34:00

- 7 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
OSD Control Button
1. Type A, Type B, Type C of OSD button could be used when it needs to
OSD control.
2. Type D is extra Option (wired Remote controller)
HD-SDI 공용 Manual.indd 7 2011-09-28 오후 4:34:00

- 8 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
●

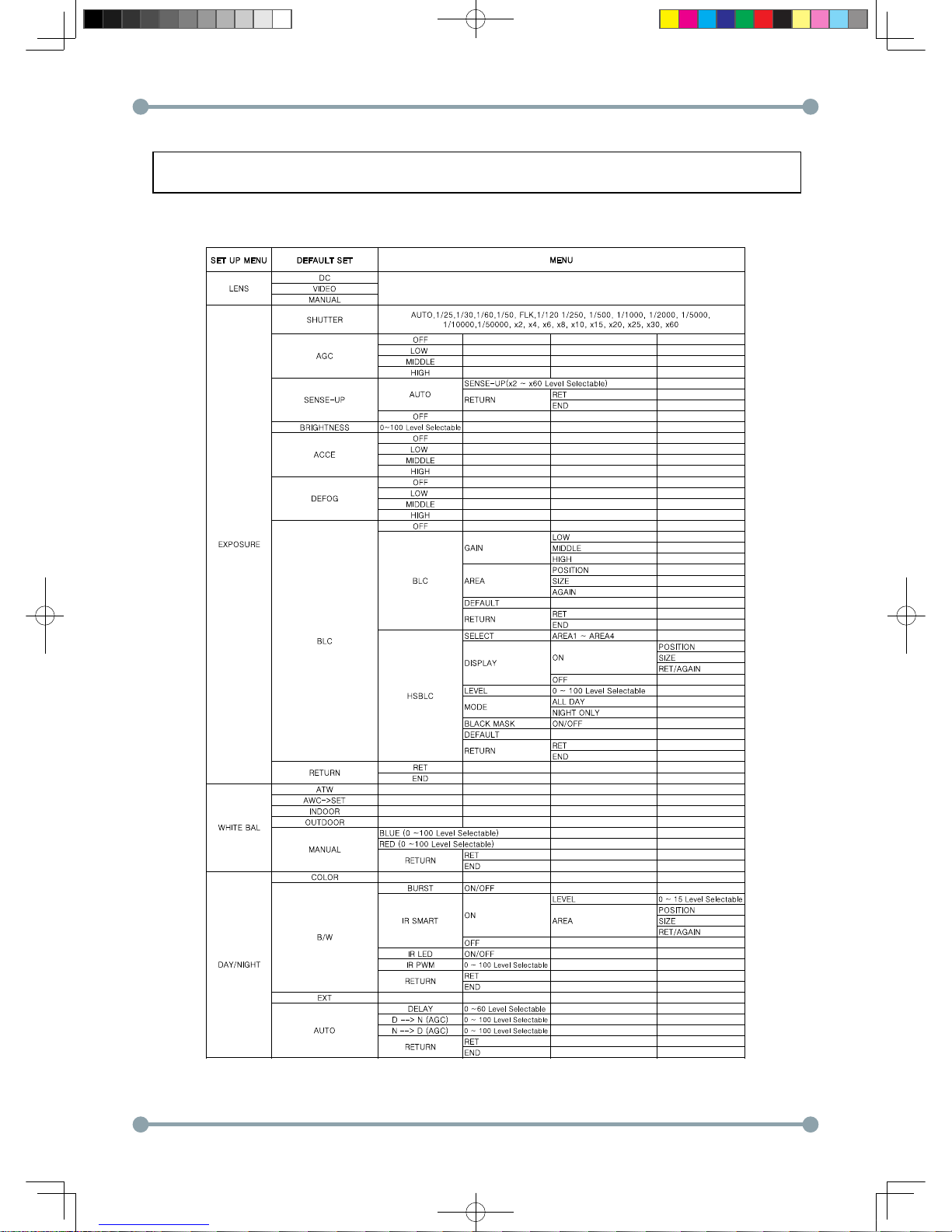

Setup Menu
How to Set Up the camera menu
HD-SDI 공용 Manual.indd 8 2011-09-28 오후 4:34:01

- 9 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
HD-SDI 공용 Manual.indd 9 2011-09-28 오후 4:34:01

- 10 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA

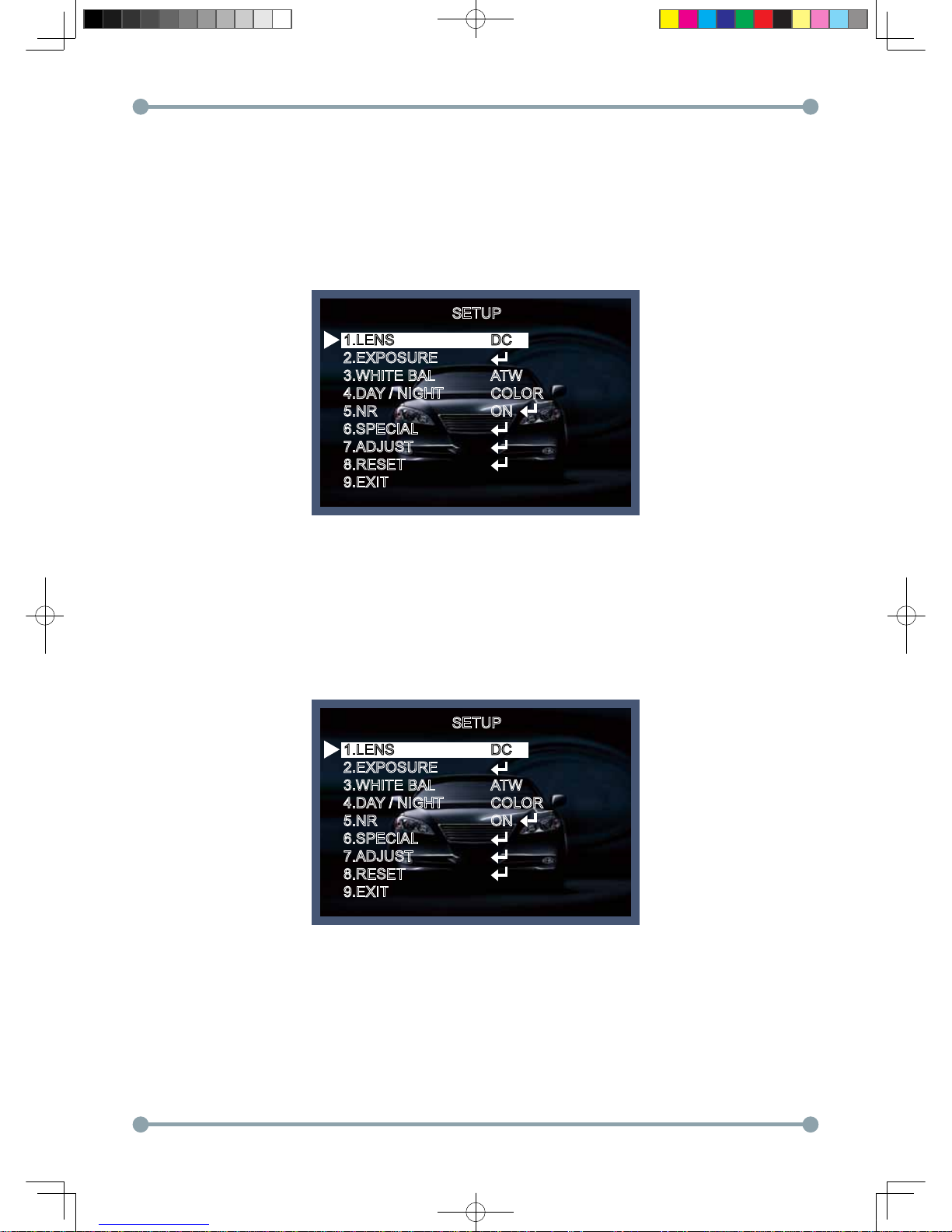

Menu items can be selected by using the OSD buttons of the camera
1. Press the Set Up button.
* The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down button.
* Move the arrow indicator Up or Down to select the desired feature by pressing
the Up or Down button.
Menu Set Up
SETUP
1.LENS
2.EXPOSURE

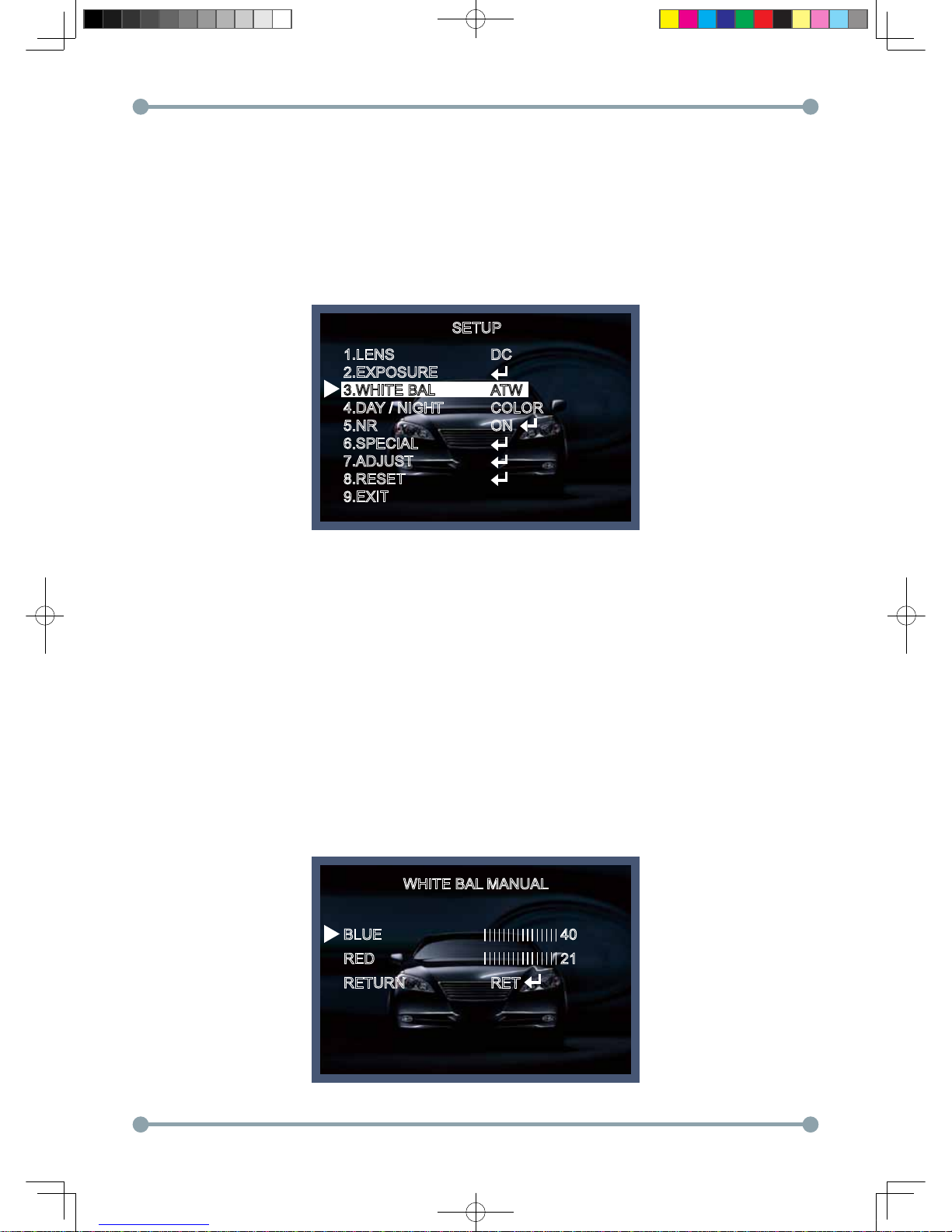

3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
HD-SDI 공용 Manual.indd 10 2011-09-28 오후 4:34:02

- 11 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
3. Change menu settings using the Left or Right button.
* Available values or Status are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After Changing the setting move the arrow indicator to EXIT and press the
SET button to EXIT.
1. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* Submenu is not available when this symbol is display "- - - -"
Lens
DC: DC Auto Iris Lens
Video: Video Lens
Manual: C-Mount Lens
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
3. Press the RETURN to return to the SETUP menu.
HD-SDI 공용 Manual.indd 11 2011-09-28 오후 4:34:02

- 12 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA

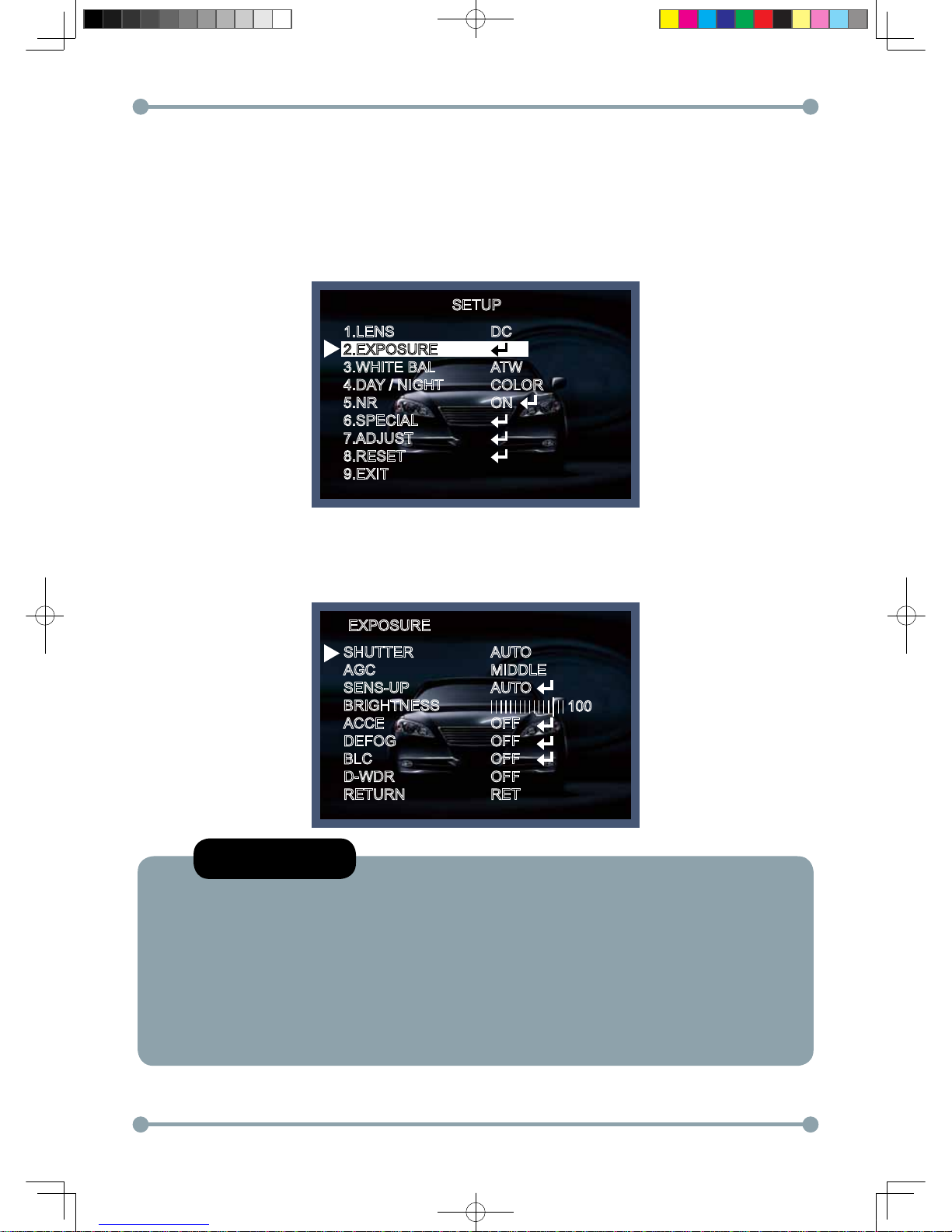

This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen select EXPOSURE by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
* FLK : Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
Exposure
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
EXPOSURE
SHUTTER
AGC
SENS-UP
BRIGHTNESS
ACCE
DEFOG
BLC
D-WDR
RETURN
AUTO
MIDDLE
AUTO
OFF
OFF
OFF
OFF
RET
NOTE
*Shutter: Select Shutter using the Up or Down button, you can adjust the shutter speed
from AUTO,1/25,1/30,1/60,1/50, FLK,1/120 1/250, 1/500, 1/1000, 1/2000, 1/5000,
1/10000,1/50000, x2, x4, x6, x8, x10, x15, x20, x25, x30, x60
→FLK: Select FLK mode if flickering occurs; caused by the unmatched frequency of electric
light. If select FLK mode, sense-up does not operate.
*Low Shutter Control: sensitivity boost up by frame accumulation for extremely low
illumination conditionspeed
100
HD-SDI 공용 Manual.indd 12 2011-09-28 오후 4:34:03

- 13 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
SENS-UP
SENS-UP
RETURN
x 4
* AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF : Deactivates the AGC function
LOW : Sets automatic gain control to LOW.
MIDDLE : Sets automatic gain control to MIDDLE.
HIGH : Sets automatic gain control to HIGH
* SENS - UP:
At night and/or in dark conditions, the Sens-Up mode can be selected to desired value from x2 ~ x256.
* When DC is selected, the brightness can be adjusted. The brightness control range is 1 ~ 100.
LENS
BRIGHTNESS 100
HD-SDI 공용 Manual.indd 13 2011-09-28 오후 4:34:03

- 14 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
* OFF: BLC function does not operate.
* BLC: Select LOW/MID/HIGH
User can select and define a specific area in scene and view the area clearly.
Press the "ENTER" button at the AREA menu, you can change the area like a picture 1.
Press the "ENTER" button again after area setting, you can change the area like a picture 2.
Default: Press the Default to return to factory defaults.
* RETURN:
Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu.
NOTE
* Pressing the SET button in AUTO mode allows adjustment of image brightness
by increasing or decreasing the shutter speed (x2 ~x60).
* The higher the level, the brighter the image becomes, but it is possible that an
after image (ghosting) could appear.
* When SENS-UP is activated the increased magnification can induce noise and
pixelation; this is quite normal.
Back Light(BLC)
This camera witch is using 3D-DNR DSP provides intelligent light level control to overcome
even strong backlight conditions.
BLC
GAIN
AREA
DEFAULT
RETURN
MIDDLE
RET
HD-SDI 공용 Manual.indd 14 2011-09-28 오후 4:34:03

- 15 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
* HSBLE: HSBLC function is especially effective for reading car number plates at the night time.
You can select and define the required observation area for the target object and ignore a strong light area.
Press the "ENTER" button at the AREA menu, you can change the position as shown in Picture 1.
Press the "ENTER" button again after area setting, you can change the position as shown in Picture 2.
Default: Press the Default to return to factory defaults.
PICTURE 1
PICTURE 1
PICTURE 2
PICTURE 2
POSITION
POSITION
SIZE
SIZE
HSBLC
LEVEL
MODE
AREA
DEFAULT
RETURN
5
ALL DAY
RET
HD-SDI 공용 Manual.indd 15 2011-09-28 오후 4:34:04

- 16 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
* ACCE: contrast enhancement by Digital Dynamic Range Compensation.
→OFF: ACCE function does not operate.
When there are simultaneous bright & dark image area WDR makes them both distinct and can be selected
as Low and Middle and Hight.
* RETURN: Select Return to save the changes in the EXPOSURE menu and return to the SETUP menu.
* DEFOG: adaptive visibility enhancement on the low contrast scene.
HSBLC OFF
ACCE OFF
HSBLC ON
ACCE ON
ACCE
OFF
LOW
MIDDLE
HIGH
5
5
RET
HD-SDI 공용 Manual.indd 16 2011-09-28 오후 4:34:05

- 17 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
White Balance
The White Balance function is used to control the “on-screen” colors.
1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the Left or Right button.
* There are three user selectable White Balance settings available.
* ATW : (Auto Tracking White Balance)
Normal setting; when the color temperature range is from 1,800˚K to 10,500˚K. (Ex: a fluorescent lamp or outdoors)
* AWC → SET : To obtain the best results press the SET button while the camera is focused onto white
paper. If the environment, and/or light source changes, the White Balance will require re-adjustment.
* MANUAL : Used for fine adjustment of White Balance. Set White Balance first using ATW or AWC then
change to MANUAL and press SETUP button. Increase or decrease the value of R-Gain(Red) and
B-Gain(Blue) while monitoring the color of the image.
WHITE BAL MANUAL
BLUE
RED
RETURN
40
21
RET
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
HD-SDI 공용 Manual.indd 17 2011-09-28 오후 4:34:05

- 18 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
Day / Night
Picture can be displayed in either colour of black and white.
1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen.
2. Select the desired mode using the Left and Right buttons.
* COLOR : The picture is always displayed in color.
* BW : This picture is always displayed in black and white.
Select BW using the button and press the menu to activate COLOR BURST option.
IR SMART : It controls the IR LED(bright portion base), satuation is not expected.
B/WDAY NIGHT
BURST
IR SMART
IR LED
IR PWM
RETURN
ON
ON
ON
ON
RET
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
AUTO
ON
NOTE
* "IR LED", "IR PWM" Is a function that does not use.
HD-SDI 공용 Manual.indd 18 2011-09-28 오후 4:34:06

- 19 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
AREA
SMART IR ONSMART IR OFF
SIZE
IR SMART
GAIN
AREA
RETURN
15
RET
→ AUTO: The mode will automatically switches to COLOR in normal condition and switches to BW mode
when ambient illumination is low.
Press the SET button to set the switching time or D→N(AGC), N→D(AGC) in AUTO mode.
DAY & NIGHT AUTO
DELAY
D→N(AGC)
N→D(AGC)
RETURN
60
100
100
RET
HD-SDI 공용 Manual.indd 19 2011-09-28 오후 4:34:07

- 20 -
Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
3DNR is used to reduce the level of background noise in a low luminance environment.
1. Move the arrow indicator to NR by using the Up and Down button.
2. Select whether or not to activate 2DNR by using the Left and Right buttons.
: based on noise variance from AGC value
: 2D-edge preserving & flat area noise reduction
3. Select whether or not to activate 3DNR by using the Left and Right buttons.
: motion adaptive temporal IIR filtering
: edge preserving & ghost elimination
: adaptive weight control by noise level
* Select RETURN by using the Up or Down button to return to Set Up menu.
NR
3DNR
2DNR
3DNR
LEVEL
SMART IR
RETURN
ON
ON
50
ON
RET
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
AUTO
ON
HD-SDI 공용 Manual.indd 20 2011-09-28 오후 4:34:07
