CDA CST61SS Quick start guide

www.cda.eu
CST61
Extractor
Installation, use and maintenance

2
Contents
3 Important information
4 Important notes
5 Using your extractor
6 Care and maintenance
7 Changing the charcoal filter
8 Changing the light bulb
9 Mains electricity connection
10 Electrical information
11 Troubleshooting
11 Installation
12 Mounting your extractor
13 Selecting operating mode
15 Energy eciency information

3
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance or
use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
Declarations of Conformity:
This appliance has been manufactured to comply with all EU & UK
statutory requirements and complies with all applicable legislation
and the following European Directives:
• The Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
The product has been marked with the UKCA and CE symbols.
This appliance is marked according to the European directive
2004/104/EC on Waste Electrical and Electronic equipment (WEEE).

4
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
•Under no circumstances should the extractor be connected to any
gas ventilation system, flue system or hot air ducting system.
• Do not vent the extractor into an attic or loft space.
•Only house the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and whatever air is
extracted needs to be replaced.
•Do not tile the extractor in. It should be removable for service or
maintenance.
•Do not use silicone sealant to secure the hood to the wall.
•You must be able to isolate the extractor from the mains electrical
supply after installation.
•This extractor has been designed to be used in a room with a
volume of less than 36m3.
•Steam cleaners must not be used when cleaning this appliance.
•The performance of your extractor will vary depending on a number
of factors. These include: type of extraction, length of ducting, room
volume, ventilation available and cleanliness of the filters.

5
Using your extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15 minutes
after the end of cooking.

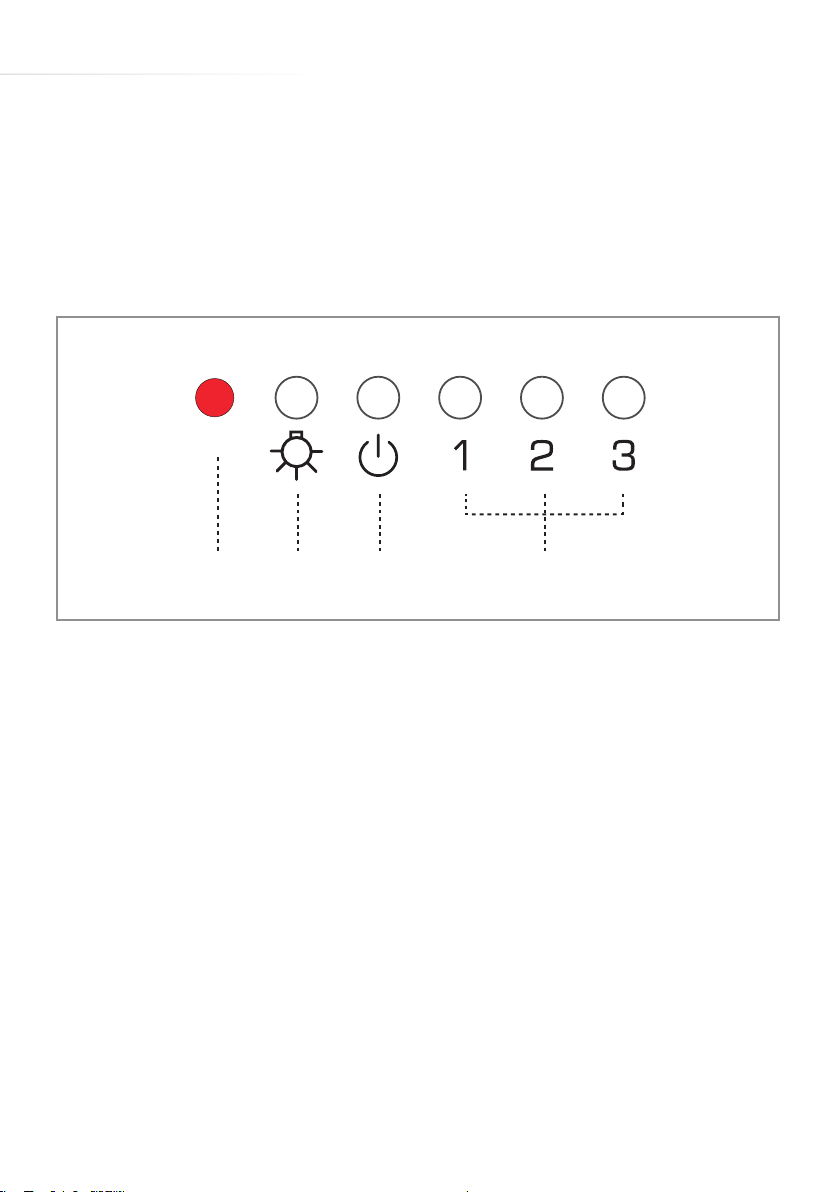

Control Panel
A - Neon Indicator
B - Light button
C - O button
D - Speed level buttons
To switch the extractor light on or o
• Press button “B”.
To switch on the extractor or to change the speed at any time
when the extractor is running
• Press the relevant “D” button for the first, second or third speed
level as required. The neon light “A” illuminates to show that the
extractor is running.
Fig. 1
A CB D
591 mm

6
To switch the extractor o
• Press button “C”.
Care and maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
You should use a nonabrasive cleaner. Any abrasive cleaner (including
Cif) will scratch the surface and could erase the control panel
markings.
You can clean your extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a
clean cloth, such as a clean microfibre cloth.
Cleaning the grease filter
The grease filter should be kept clean to minimise the risk of fire.
At least once a month you should remove and clean the grease
filter with hot soapy water. You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher.
See the next page for how to remove and replace the grease filter.

7

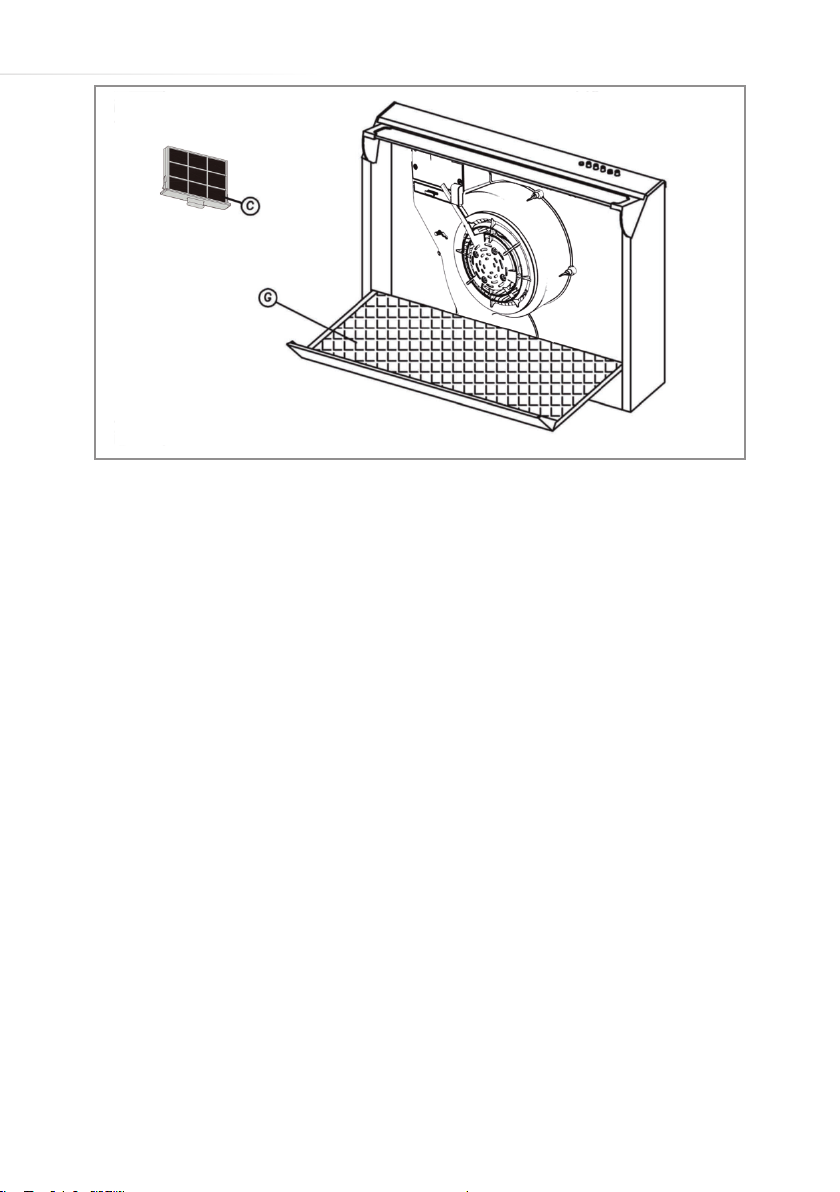

To remove the grease filter
• Open the grease filter cover by sliding the retaining clips across.
• Remove the wire filter clip then lift out the grease filter itself (shown
as “G” in figure 2).
To replace the grease filter
• Repeat the steps above in reverse.
Please note: Cleaning the filter in the dishwasher may lead to
discolouration. This is normal and does not constitute a fault with the
appliance.
Changing the charcoal filter (re-circulating only)
(Charcoal filter - CDA part number: CHA36)
To ensure best performance of your extractor, you should replace the
charcoal filter every four to six months, depending on use. See page
14 for information on how to fit a new filter.
Fig. 2

8
Changing the light bulb
DO NOT CHANGE THE LIGHT BULB IMMEDIATELY AFTER USE
AS THE BULB WILL BE HOT. ALLOW IT TO COOL BEFORE
REMOVING IT. ENSURE POWER TO THE EXTRACTOR IS OFF.
Open the base of the extractor as described on the previous page,
unscrew the light bulb and replace it with a new one (type SES
halogen screw fitting (E14), 240V max 5.5W LED). We recommend
wearing gloves for this process to prevent premature failure of the
light. Finally, replace the grease filter.
Do not touch the bulb or adjacent areas during or straight after
prolonged use of the light.
The light is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce the life span of the
bulb.
Bulb replacement is not covered by the guarantee.
Only use the bulb recommended for your extractor. Do not fit a
bulb of a higher power rating. Bulbs of a lower power rating may be
adequate for use, generally last longer and use less energy.
Spare bulbs are available from CDA Customer Care or from your local
DIY shop.

9
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
Mains Electricity
Connection
THIS APPLIANCE MUST BE
CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING
FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSE SPUR OUTLET AND
PROTECTED BY A 3A FUSE.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fuse spur, proceed as follows:
•The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured green.
•The wire which is coloured blue must be connected to the terminal
marked N (Neutral) or coloured black.
•The wire which is coloured brown must be connected to the termi-
nal marked L (Live), or coloured red.
Note: Use a 3A Fuse.

10
Assembly and electrical connection should be carried out by
specialised personnel.
When installing this product we recommend you seek the help of
another individual.
Electrical information
Mains electrical voltage: 230 – 240Vac.
Total rated power consumption: 70.5W.
Troubleshooting
Please note:
Your extractor is equipped with a motor protection device that will
switch o the motor to prevent damage from overheating. This may
happen during cooking when most or all of the zones/burners are
being used simultaneously, or if your extractor is installed lower than
the recommended height above the hob. This is normal, and the
extractor will work again once the motor has cooled suciently.
If your extractor is not working:
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.

11
Installation
When the extractor is to be installed above an electric hob, the
minimum distance between the hob and extractor must exceed
600mm (650mm is recommended).
When the extractor is to be installed above a gas hob, the minimum
distance between the hob and extractor must exceed 700mm
(750mm is recommended).
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than
700mm, then that is the distance that should be observed; this is a
legal requirement and may lead to your hob being disconnected from
the gas supply and the installation being reported under RIDDOR (the
height should be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST
760mm.
The width of any hob must not be
greater than the width of the extractor
installed above it.
Fig. 3
Gas: 750mm recommended
Electric: 650mm recommended

12
Fig. 4
Mounting your extractor
The extractor can be mounted in two ways:
To fasten the product to the underside of a bridging cabinet:
1. Remove the grease filter cover.
2. Screw the hood directly to the cabinet using appropriate wood screws
(these are not supplied).
3. Replace the grease filter cover.

13
Selecting operating mode
When setting up this extractor it is necessary to set an internal lever to
select either “extraction” (A) or “recirculation” (F) mode.
Fig. 5
To mount the hood on to a wall:
1. Remove the grease filter and cover.
2. Drill four holes as shown as “B” and “Z” in Fig. 4.
Please note: The size required for the holes is dependent on the wall
fixings to be used.
3. Insert wall fixings into all four holes.
4. Tighten the fixing screws “B”, leaving approximately 3mm proud of the
wall.
5. Hang the extractor on the fixing screws “B” and insert fixing screws
“Z” to secure into position.
6. Replace the grease filter cover.

14
Extraction mode

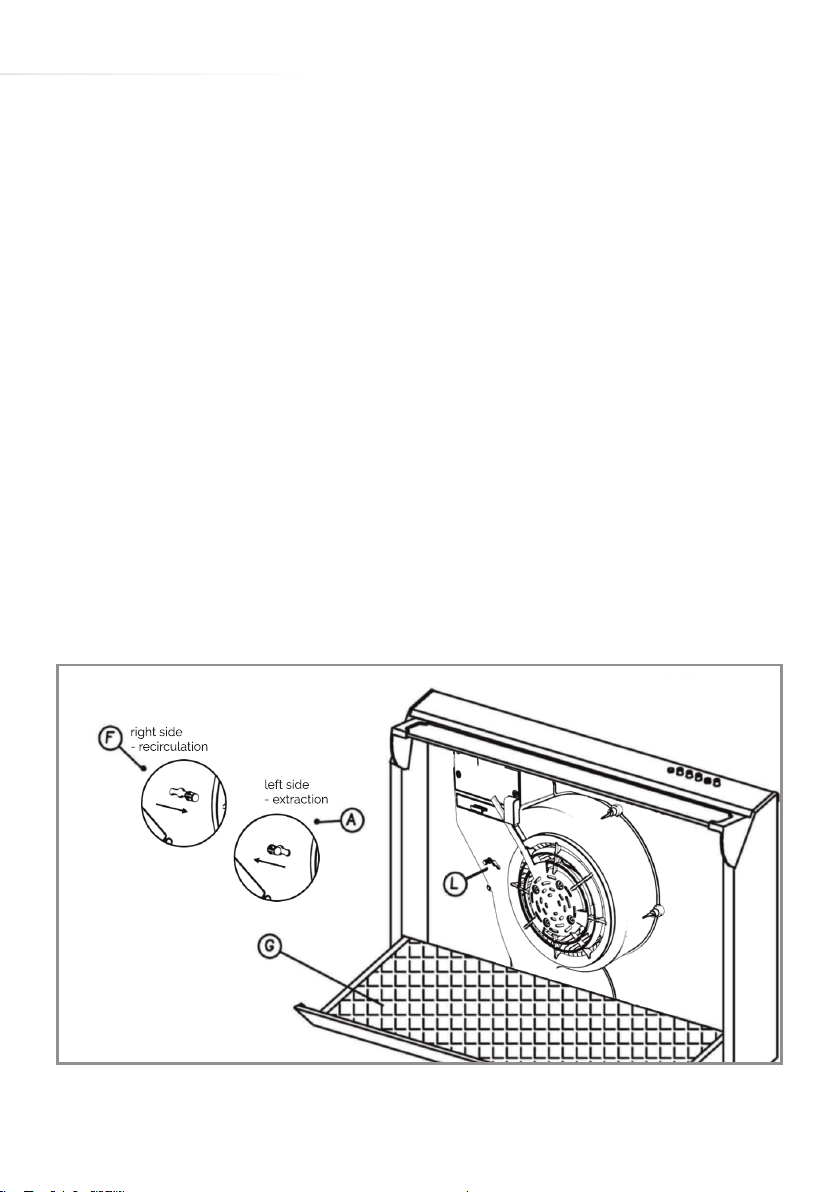

For extraction mode, set the lever “L” (Fig. 5) to position “A” (the left
hand side). The extracted air is then routed through the outlet “C” (Fig.
4).
Recirculation mode
For recirculation mode, set the lever “L” (Fig. 5) to position “F” (the
right hand side). Then, fit the outlet cover (pictured below) to the outlet
marked ‘C’ in fig. 4. Secure this cover in place with the two screws
provided.
Fitting the charcoal filter
For recirculation mode, fit a filter to the motor assembly. Remove any
old filter first and then insert a replacement until it clicks into place
(Fig. 6).
Fig. 6

15
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.
Energy Eciency Information
Attribute Symbol Value Units
Model Identification CST61
Annual Energy Consumption AECHood 44.7 kWh
Time Increase Factor f 1.8
Fluid Dynamic Eciency FDEHood 5.7 (E)
Energy Eciency Index EEIHood 91.3 (D)
Measured Airflow at Best Eciency Point QBEP 105.2 m3/h
Measured Pressure at Best Eciency Point PBEP 209 Pa
Maximum Airflow QMAX 201 m3/h
Measured electric power at Best Eciency
Point
WBEP 65.2 W
Nominal Lighting Power WL 28 W
Average illumination of the lighting
system on the cooking surface
EMiddle 60 Lux
Measured power consumption in
standby
PSNA W
Measured power consumption in o mode PO0.0 W
Sound Power Level LWA 68 dB
Grease Filter Eciency GFEHood 67.7 %
Lamp Eciency LEHood 2.1 (G) %

www.cda.eu
Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: customer[email protected]
For service or queries relating to your product please contact:
The Customer Care Department on 01949 862 012 or email customer[email protected]
For more information please contact:
The Sales Department on 01949 862 010 or email [email protected]
VER 2111
