CDA EVX90SS User guide

EVX90SS
Ceiling extractor
Use and maintenance

2| Instruction Manual
Contents
3Important information
5Using your extractor
6Care and maintenance
7Installation instructions for standard fitting
15 Installation instructions for mounting the motor externally
15 Ducting
16 Recirculation
17 Mains electrical connection
18 Guarantee
19 Troubleshooting
20 Energy eciency information

Instruction Manual | 3
Important information
The CDA Group Ltd cannot be held responsible for injuries
or losses caused by incorrect use or installation of this
product. Please note that CDA reserve the right to invalidate
the guarantee supplied with this product following incorrect
installation or misuse of the appliance or use in a commercial
environment. This appliance is not designed to be used by
people (including children) with reduced physical, sensorial or
mental capacity, or who lack experience or knowledge about it,
unless they have had supervision or instructions on how to use
the appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified
personnel.
Appliance Information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee
purposes.
Appliance model
Serial number
EU Declarations of Conformity:
This appliance has been manufactured to the highest standards
and complies with all applicable legislation, including Gas
safety, Electrical safety (LVD) and Electromagnetic interference
compatibility (EMC).

4| Instruction Manual
IMPORTANT INFORMATION FOR CORRECT DISPOSAL
OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE
2012/19/EU.
At the end of its working life, the product must be taken to a
special local authority waste collection centre or to a dealer
providing appliance recycling services. Disposing of a household
appliance separately avoids possible negative consequences
for the environment and health. It also enables the constituent
materials to be recovered, saving both energy and resources.
As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled
dustbin.
Please note:
• Under no circumstances should the extractor be connected to any
gas ventilation system, flue system or hot air ducting system
• Do not vent the extractor into an attic or loft space
• Only house the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and extracted air needs
to be replaced
• Do not use silicone sealant to secure the hood to the ceiling
• You must be able to isolate the extractor from the mains electrical
supply after installation
• Steam cleaners must not be used when cleaning this appliance
• The performance of your extractor will vary depending on a
number of factors. These include: type of extraction, length of
ducting, room volume, ventilation available and cleanliness of the
filters

Instruction Manual | 5
Using your extractor
Power button
Pressing once will start the extractor at the lowest speed
setting, pressing again will turn the extractor o
Light button
Turn the lights of the extractor on or o
High speed button
Press to activate the highest speed setting, the display
will show the number 3. Holding this button down for 3
seconds activates the booster function for 5 minutes and
the display will show the letter B
Middle speed button
Press to activate the middle speed setting, the display will
show the number 2
Low speed button
Press to activate the lowest speed setting, the display will
show the number 1
Timer button
Pressing this button will activate the timer function and cause
the display number to flash. The extractor will automatically
turn o after 15 minutes. Changing the speed setting will not
cancel this function. To cancel this function simply press the
timer button again

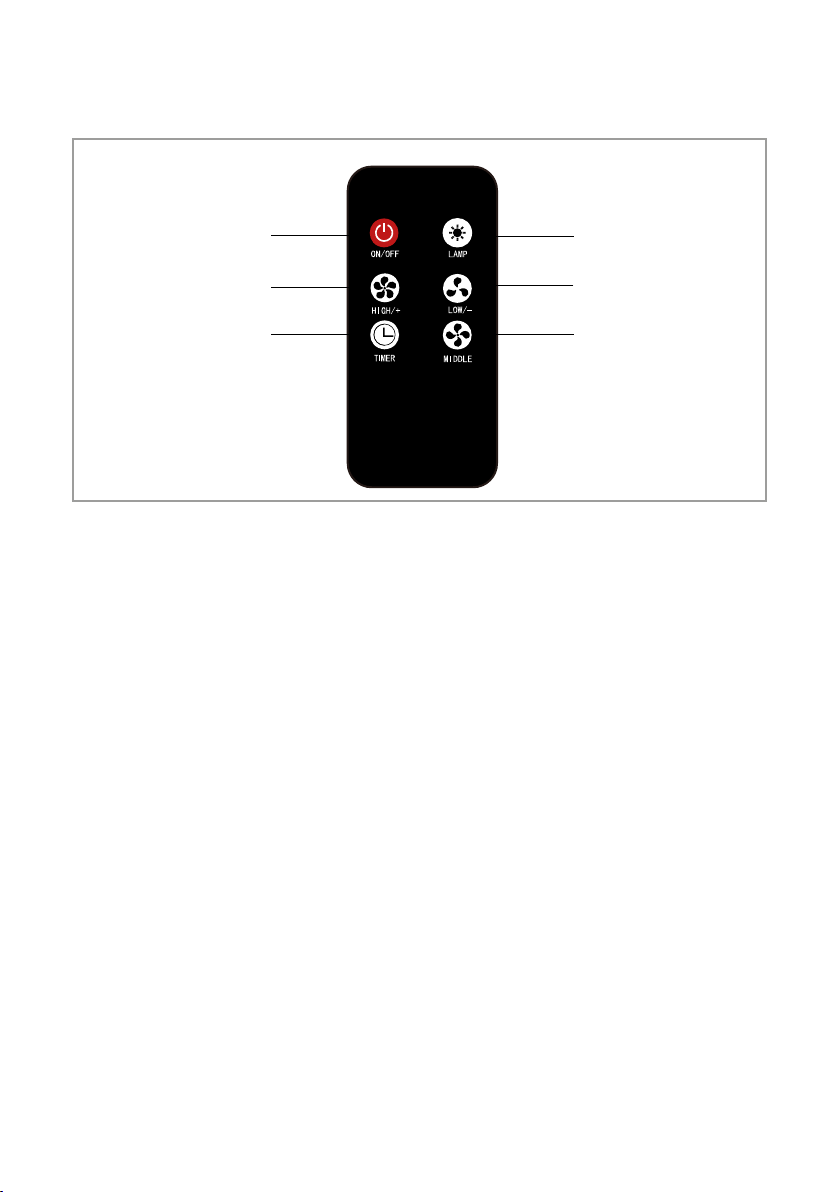

Controls
Fig. 1
Power button
High speed button
Timer button
Light button
Low speed button
Middle speed button

6| Instruction Manual
Care and Maintenance
Cleaning
You should use a non-abrasive cleaner. Any abrasive cleaner
(including Cif) will scratch the surface and leave marks on the
extractor. You can clean your extractor eectively by simply using
a dilute solution of water and mild detergent and drying to a shine
with a clean cloth.
Removing and cleaning the grease filters
To remove the grease filter push in on the button on the handle
and pull it down, when the catch is released at the front it can
be removed completely. The grease filters should be kept clean
to minimise the risk of fire, you should remove and clean the
grease filters with hot soapy water. You can also wash the grease
filters in a dishwasher, ensuring that you place them in an upright
position to prevent damage from other items in the dishwasher.
After rinsing and drying, replace the grease filter by reversing the
removal process. Please note: Cleaning the grease filters in the
dishwasher may lead to discolouration. This is normal and does not
constitute a fault with the appliance.
Changing the charcoal filters (if fitted)
To ensure best performance of your extractor, you should
replace the charcoal filter every four to six months, depending
on use. To attach a new charcoal filter, first remove the grease
filters as described above. Oer up the charcoal filter so that
the magnetic pins are facing upwards, one to the rear and one to
either side. The filter will be held in place by magnetic force. Finally,
replace the grease filters

Instruction Manual | 7
Installation instructions for standard fitting
Please note:
All installation measurements given are in millimeters

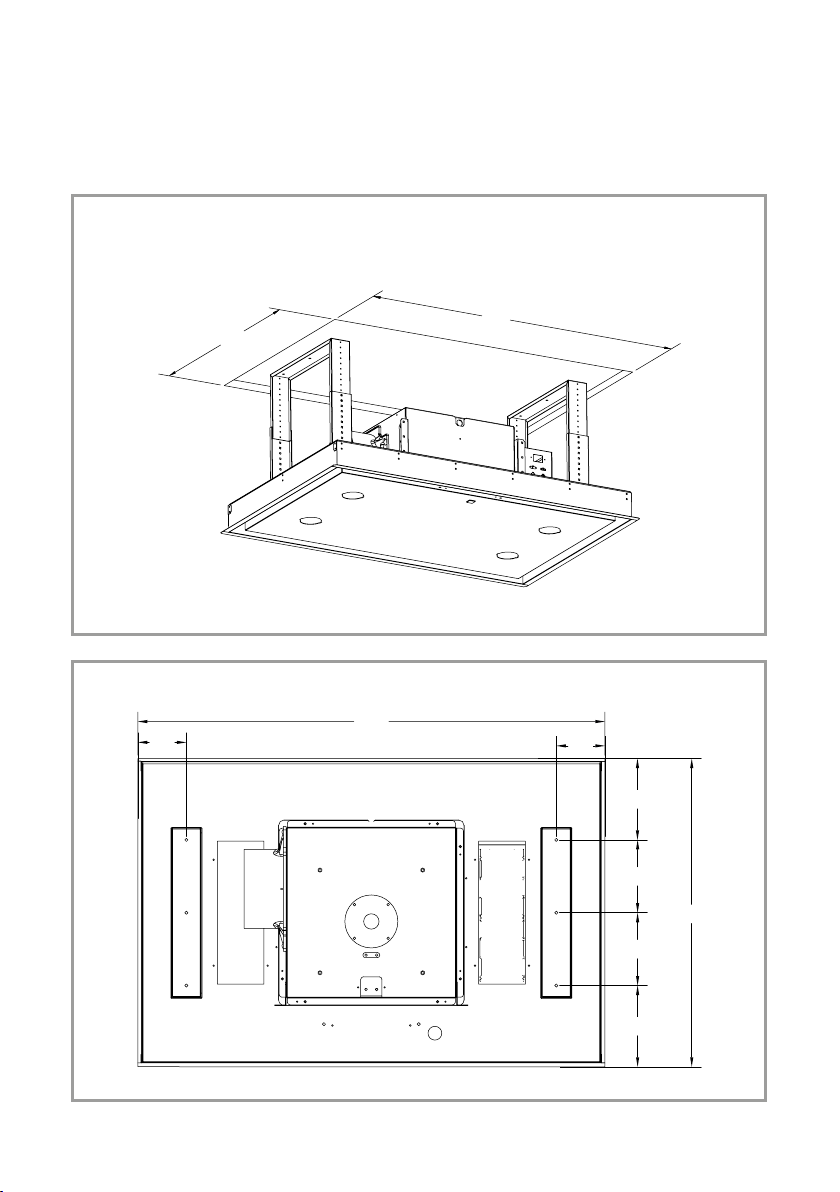

Fig. 2
582
882
Make a cutout in the ceiling with the measurements below
Fig. 3
Dimensions for installation reference
92 92
882
153.5
153.5
137.5
137.5
582

8| Instruction Manual

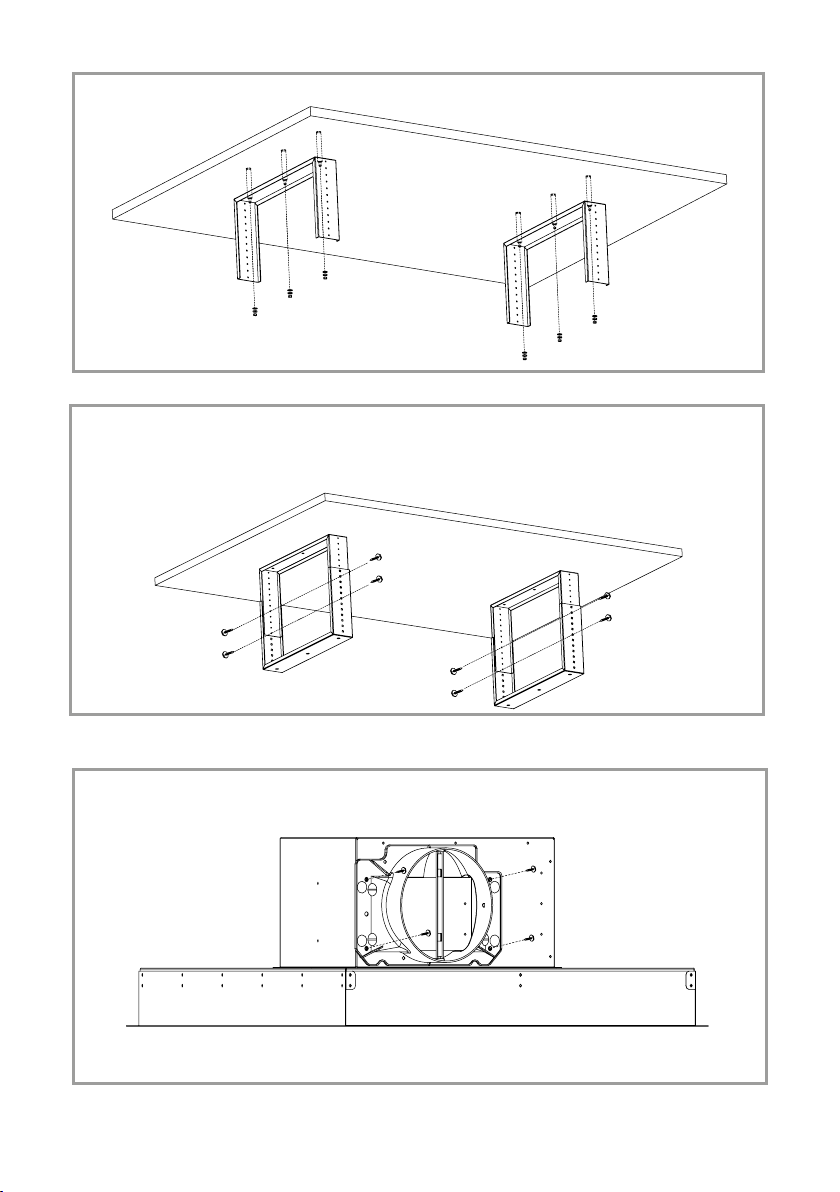

Fig. 4
Fig. 5
Fix the upper bracket to the support structure
Fig. 6
Fasten the lower bracket to the upper bracket with the 8 screws supplied. We
recommend having an 85 - 100mm gap between the opening in the ceiling
and the lowest point of the lower bracket
Fix the duct outlet to the extractor with the 4 screws supplied

Instruction Manual | 9

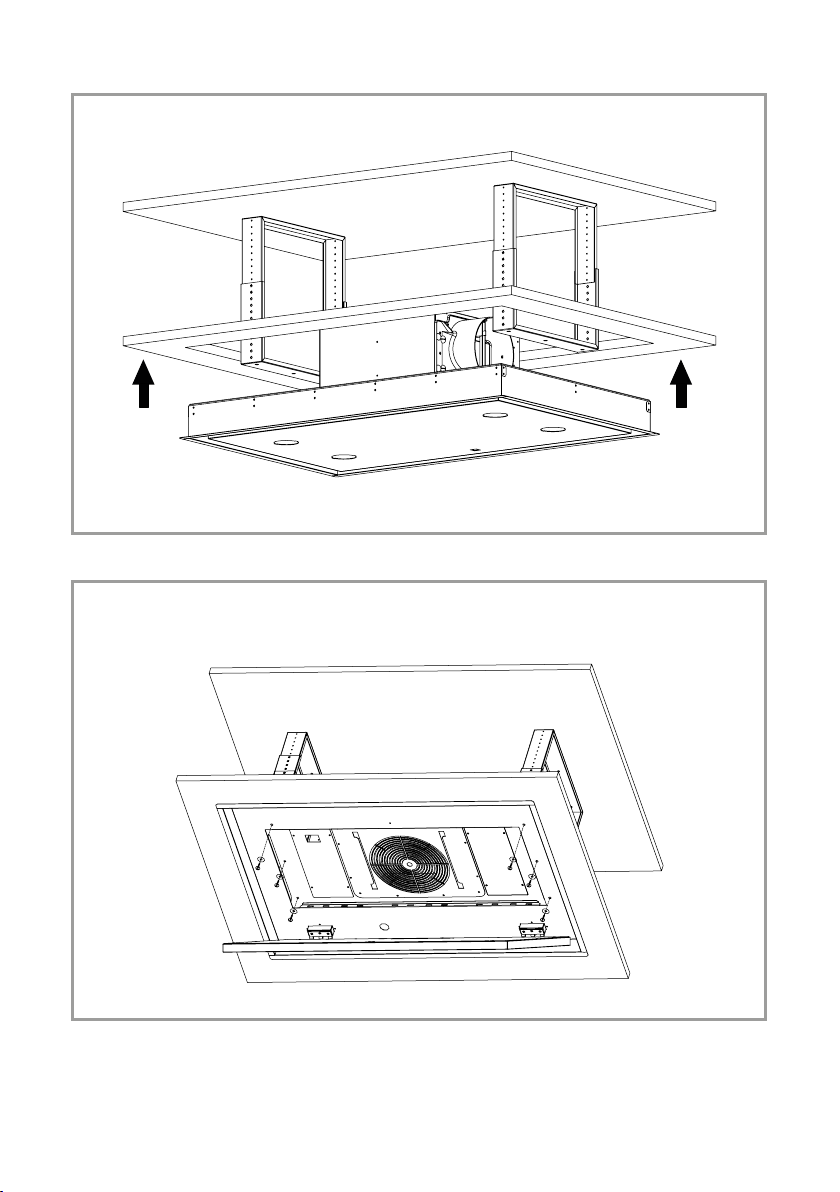

Fig. 7
Locate the extractor in the ceiling opening, make sure to connect your
ducting and mains electrical connection before proceeding to the next
step
Fig. 8
Fix the extractor to the bracket with the 6 screws and washers provided.
Tighten evenly on both sides until secure, be careful to not overtighten

10 | Instruction Manual

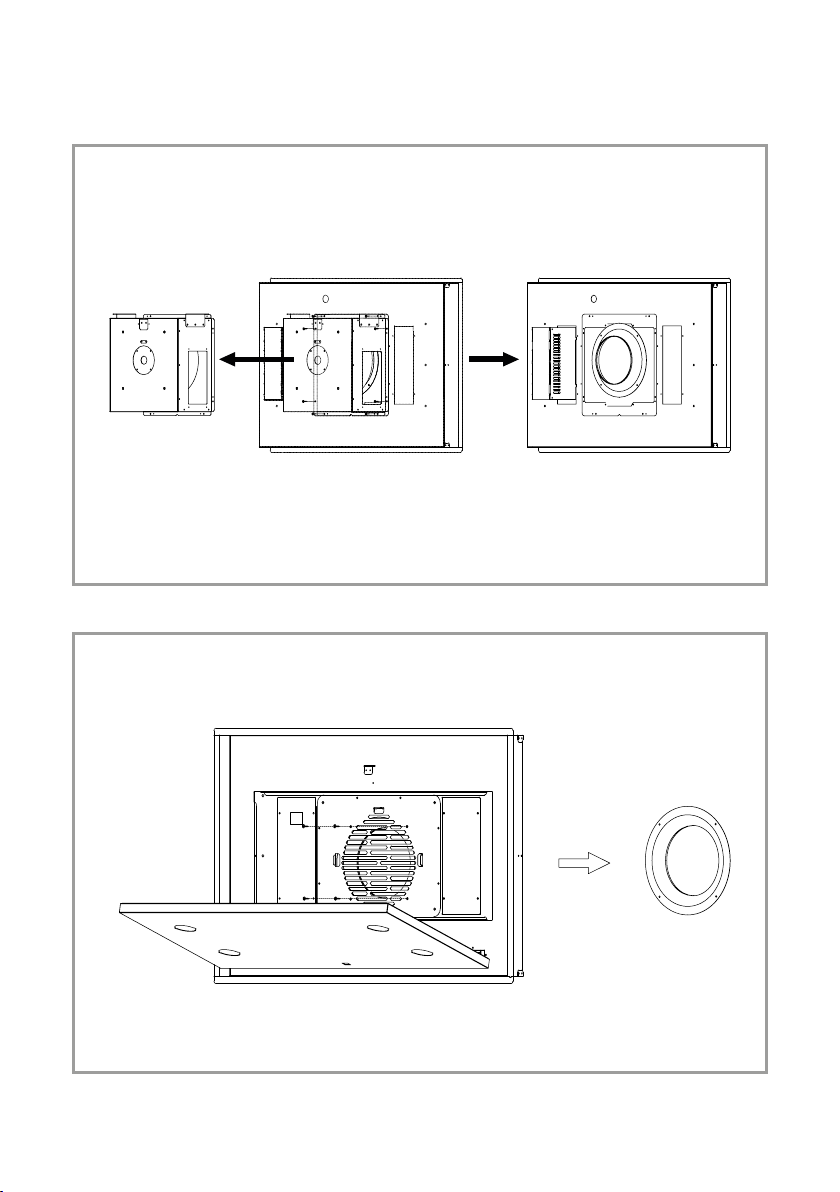

Remove the 8 screws fixing the motor housing on the extractor and detach
it from the casing
Remove the four screws that fix the airguide to the housing and remove it
Fig. 9
Fig. 10
Installation instructions for mounting the
motor externally

Instruction Manual | 11

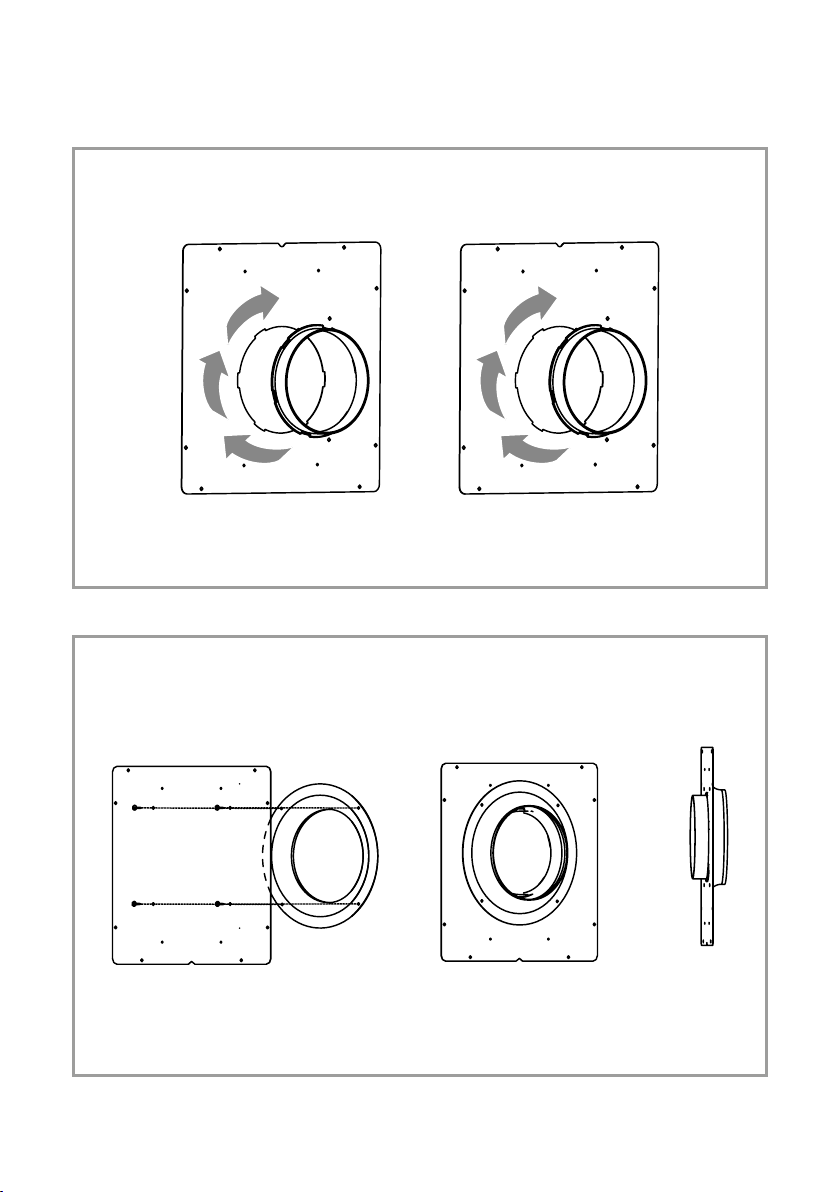

Fig. 11
Connect the two duct adaptors on both of the panels
Fig. 12
Fix the airguide to the panel using the four screws removed in Fig. 10; note
that the air guide is fixed to the opposite side of the duct adaptor

12 | Instruction Manual

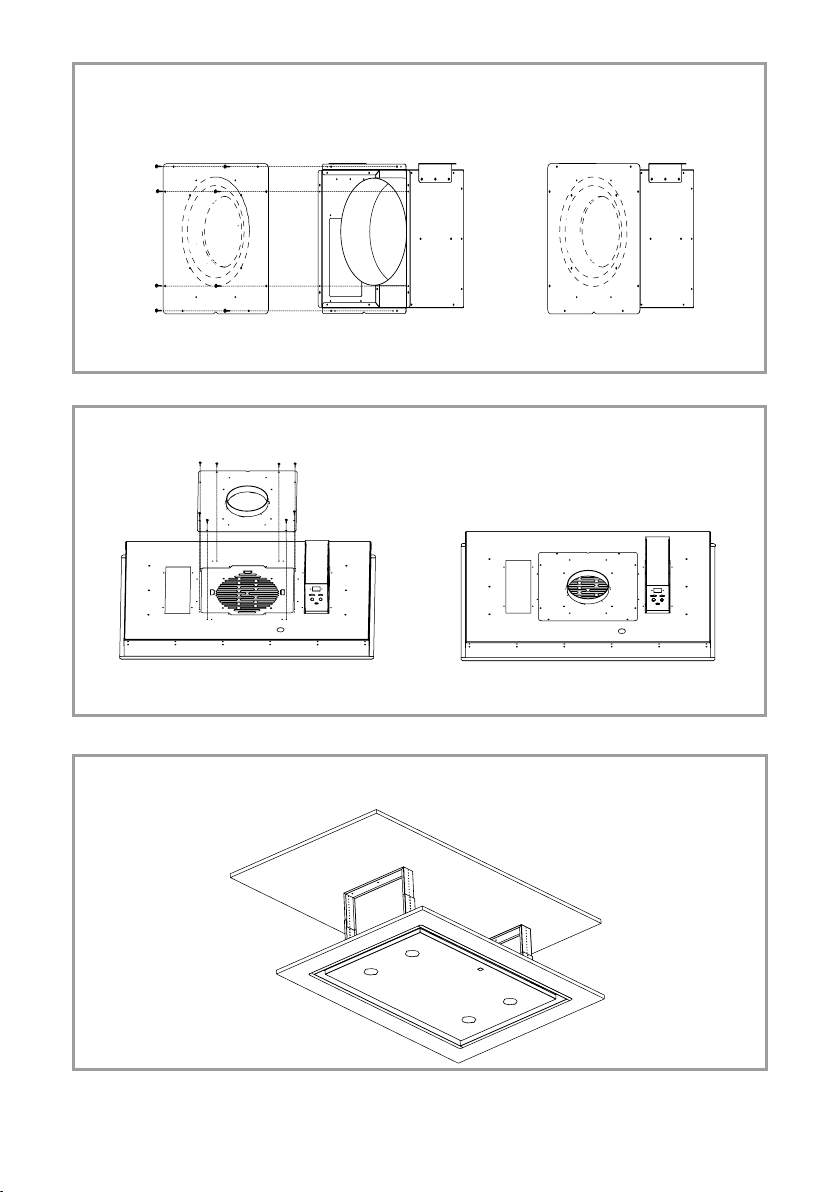

Fig. 13
Fig. 14
Fix the panel with the airguide to the motor housing with the 8 screws
supplied; note that the airguide is facing the motor
Fig. 15
Secure the second panel to the rear of the extractor with the 8 screws
supplied
Locate the extractor in the ceiling opening, making sure to connect your
ducting and mains electrical connection before proceeding to the next
step

Instruction Manual | 13

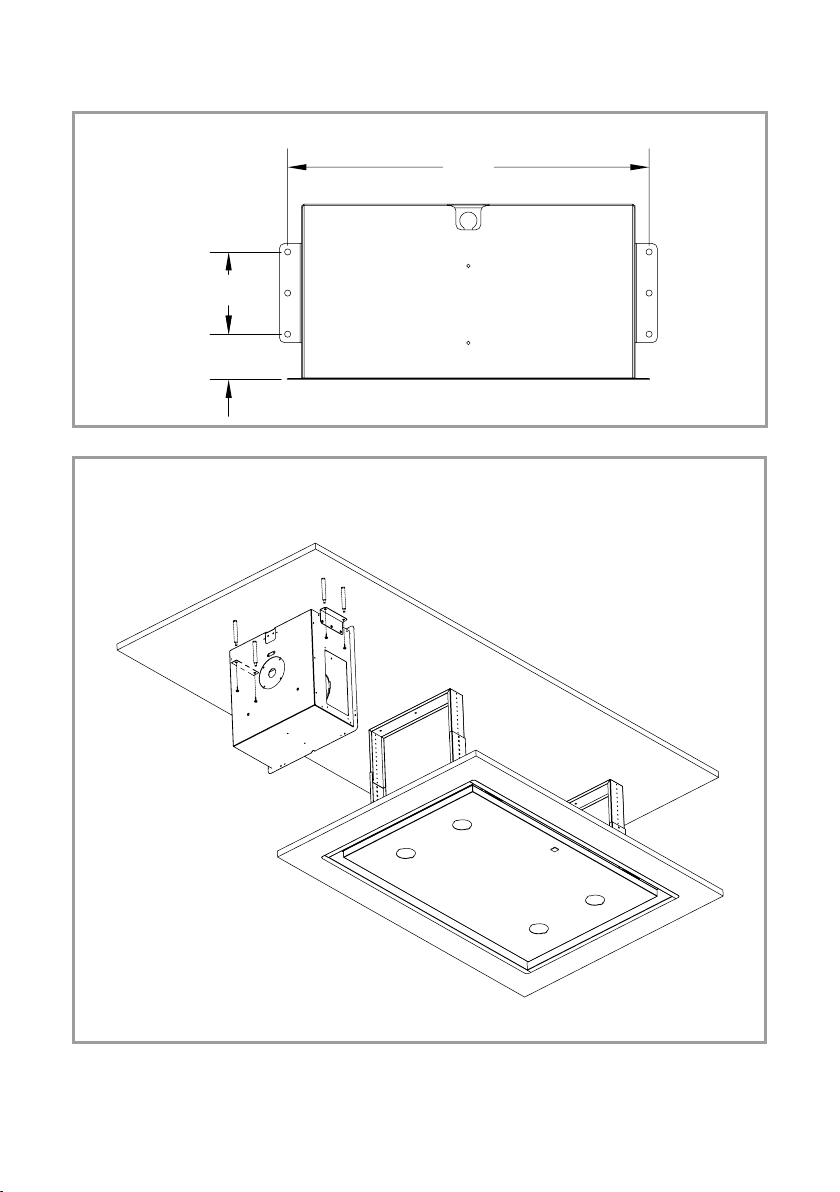

Fig. 16
44
80
349
Fig. 17
Secure the motor
housing to the
support structure
using appropriate
fixings
Suggested mounting example

14 | Instruction Manual

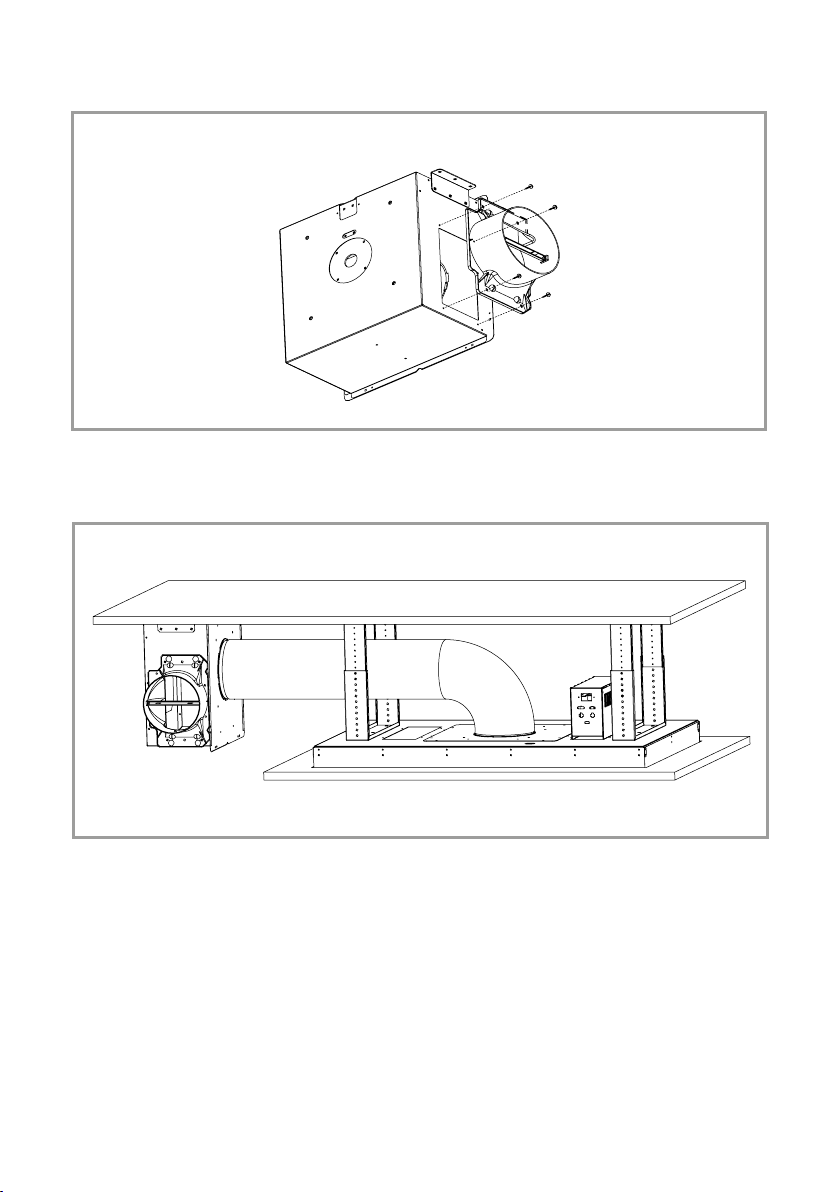

Fig. 18
Fig. 19
Fix the duct adaptor to the motor housing using the 4 screws
provided
Connect the motor and extractor body using a 150mm diameter ducting
hose

Instruction Manual | 15
Ducting
The extractor can be used as a recirculation device or as an
extraction device, depending on your installation.
The hood is more eective when used in extraction mode (ducted
to the outside). When the extractor is ducted to the outside, char-
coal filters are not required. The ducting used must be 150mm (6
inches), we recommend rigid circular pipe and must be
manufactured from fire retardant material, produced to BS476 or
DIN102-B1.
Wherever possible utilise rigid circular pipe which has a smooth
interior, rather than the expanding concertina type ducting. The
maximum length of ducting without performance being aected is
as follows:
• 4 metres with 1 x 90° bend
• 3 metres with 2 x 90° bends
• 2 metres with 3 x 90° bends
Longer ducting can be used but the perfomance of the extractor
will be reduced.
Please note:
Ducting components and ducting kits are optional accesories and
have to be ordered, they are not automatically supplied with the
extractor. Use of ducting less than 150mm in diameter will aect the
perfromance and increase the noise produced by the extractor

16 | Instruction Manual
Recirculation
An internal air vent is required, as shown below. This ensures
that the air is placed back in the kitchen after it has been
filtered. The internal air vent must be a minimum of 2 metres
away from the extractor
Extraction
The extractor is provided with a non-return butterfly valve which
should be fitted over the vent outlet before the ducting is fitted.
This prevents cold air being blown into the room from outside.
Securing the duct to the outlet
Note that the duct pipe should be secured and sealed to the
vent outlet pipe/valve using appropriate ducting tape or a
securing clamp.
Min. 2 metre

Instruction Manual | 17
Mains electrical connection
Warning! This appliance must be earthed.
This appliance must be connected by
a competent person, using fixed wiring
via a double pole switched fused spur
outlet, protected by a 3A fuse.
GREEN AND YELLOW = EARTH
BLUE = NEUTRAL
BROWN = LIVE
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the
terminals in your spur box, proceed as follows:
We recommend that the appliance
is connected by a qualified
electrician, who is a member of the
N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations.
The wires in the mains lead are
coloured in accordance with the
following code:
1. The wire which is coloured green and yellow must be
connected to the terminal marked E (Earth) or coloured green
2. The wire which is coloured blue must be connected to the
terminal marked N (Neutral) or coloured black
3. The wire which is coloured brown must be connected to the
terminal marked L (Live) or coloured red

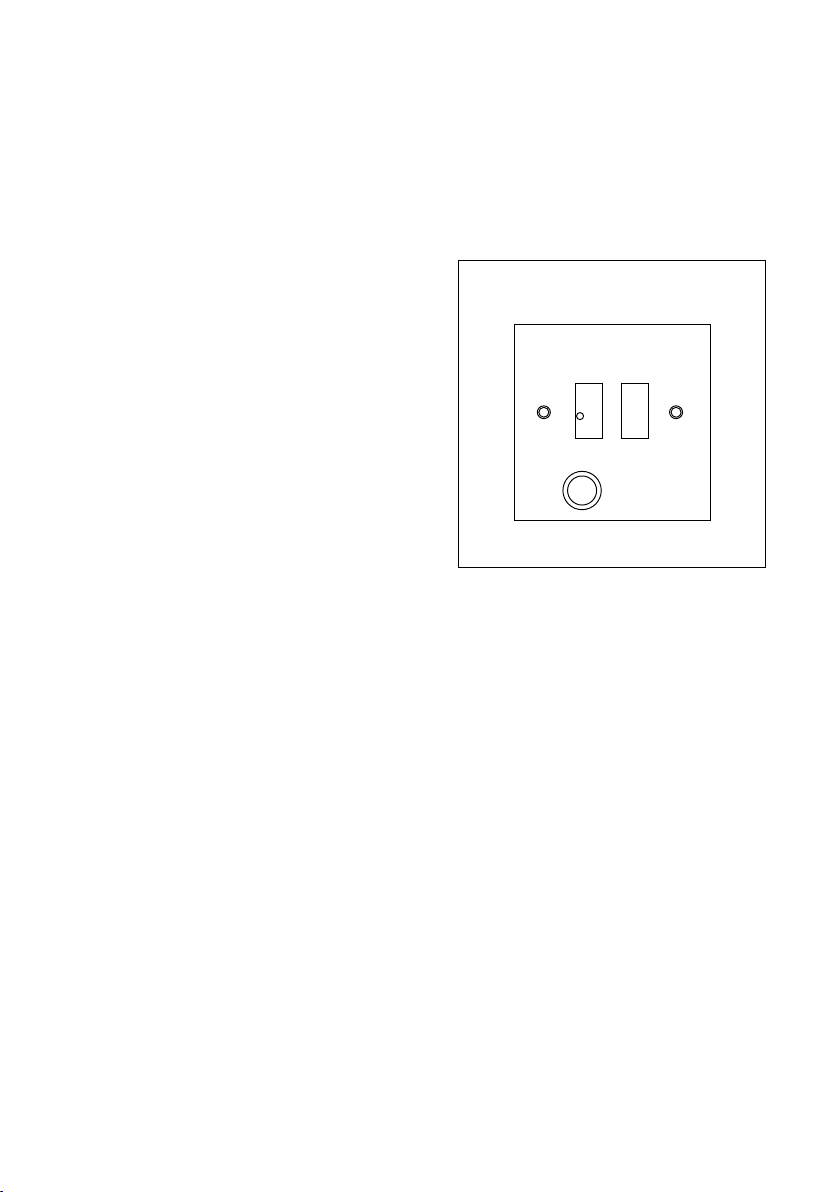

FUSE ON
USE A 3 AMP FUSE
DOUBLE POLE SWITCHED FUSED
SPUR OUTLET

18 | Instruction Manual
Guarantee
Your new product is guaranteed against defect in materials and/
or workmanship. Any parts found to be defective will be repaired
or replaced at our discretion. All repairs must be carried out by
an authorised repair agent. Your appliance comes with a 5 year
parts and 2 year labour guarantee if registered within 30 days of
purchase.
This guarantee does
not cover:
This guarantee is valid
providing that:
•The appliance has been
installed by a suitably
qualified person
•Installation has
been carried out
in accordance with
instructions and current
legislations
•Proof of purchase can
be produced
•The appliance has
been used for domestic
purposes only
•The appliance has not
been tampered with
or repair attempted
or modified by any
unauthorised person
•Damage by misuse,
neglect or transit
•Use of parts not used or
recommended by CDA
•Routine maintenance,
general wear, tear and
installation faults
•Rubber seals, removable
glass and/ or plastic
parts, fuses or light bulbs
which all need replacing
periodically
•Second hand or
reconditioned
appliances
•Appliances used
for commercial or
professional purposes

Instruction Manual | 19
Troubleshooting
In the event of your appliance requiring technical assistance and/or
spare parts, please contact CDA Customer Care.
In this case it is necessary to state all the appliance data on the
rating plate, such as model, serial number etc. This information can
be found behind the grease filters
CDA Customer Care
Phone: [phone]
Email: customer[email protected]
Problem Reason Solution
The appliance does not
work
No power/ power outage Check the fuse, replace if
blown
Wires have disconnected
Ensure the power supply is
securely connected
Output of appliance is
low
Setting is too low for
amount of fumes present
Try a higher speed setting
Inadequate ventilation in
the kitchen
Ensure the kitchen has
sucient air intake
Charcoal filter (if fitted) is
blocked
Replace the charcoal filter
Ducting is obstructed Remove any obstructions
from the ducting
Exit flaps on the motor
housing are restricted
Ensure any obstructions
are removed so the flaps
can move freely
Extractor stops mid
operation
There is a power outage Check the power supply
The circuit breaker or fuse
has tripped
Check the circuit breaker
or fuse

20 | Instruction Manual
Energy Eciency Information
Attribute Symbol Value Units
Model Identification EVX90SS
Annual Energy Consumption AECHood 68.8 kWh
Time increase factor f1.0
Fluid Dynamic Eciency FDEHood 27.1
Energy Eciency Index EEIHood 62.6
Measured airflow at Best Eciency Point QBEP 378.8 m³/h
Measured Pressure at Best Eciency Point PBEP 423 Pa
Maximum airflow QMax 675 m³/h
Measured electric power at Best Eciency
Point
WBEP 164.5 W
Nominal lighting power WL 7.3 W
Average illumination of the lighting system
on the cooking surface
EMiddle 677 Lux
Measured power consumption in standby PS/ W
Measured power consumption in o mode PO0.46 W
Sound power level LWA 69 dBA
Grease filter eciency GFEHood 46.6(F) %
Lamp eciency LEHood 92.7(A) %
