CEA EA5000-5120Wh-1BK Specification sheet

Portable Power Station
Model NO.: EA5000-5120Wh-1BK
Product Instruction Manual
Please read the instructions carefully before use and follow the instructions
CEA Electric Co., Ltd

CONTENT
I、Product Use and Function Introduction ..........................1
Ⅱ、Product Introduction .......................................... 3
1. Product Main Structure Composition .............. 错误！未定义书签。
2. Panel Function Description ............................... .3-5
3. Display Interface Description ............................ 5-10
Ⅲ、Technical Parameters ......................................... 11
Ⅳ、Operation and Usage .......................................... 12
1. Steps for the First Start of Portable Power Station ........ 12
2. Charging Steps ............................................. 13
3. AC Output Onload Usage ..................................... 14
4. DC/USB Output Onload Usage ................................. 14
5. Expandable Battery Usage ................................... 14
Ⅴ、Fault Code Comparison Table ...............................16-18
Ⅵ、Product Maintenance .......................................... 18
Ⅶ、Common Troubleshooting ....................................18-21
Ⅷ、Warnings and Precautions ..................................22-24
Ⅸ、Product Packing List .........................................25

1

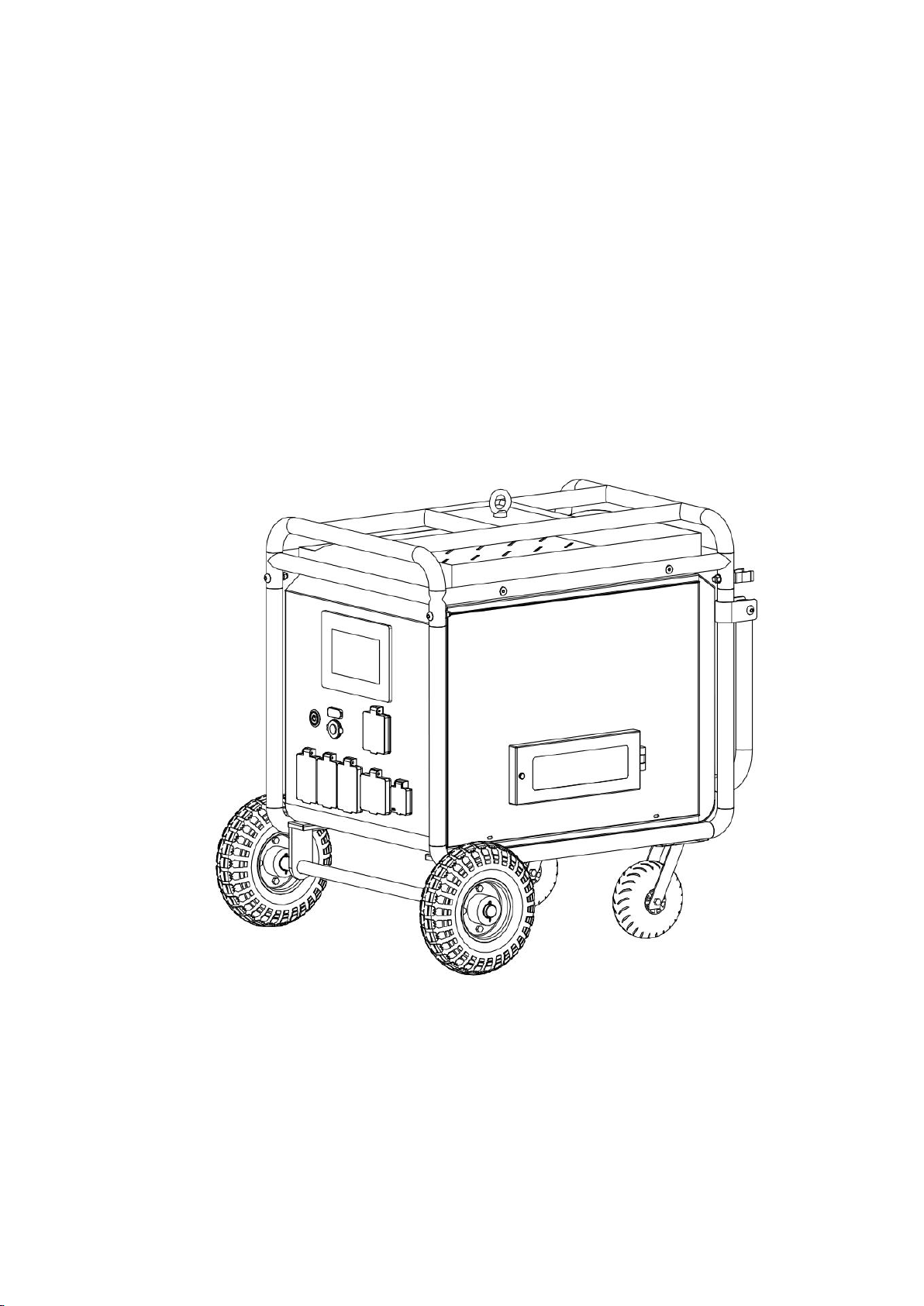

I、Product Use and Function Introduction
Product Name: Potable Power Station
Model/Specification: EA5000-5120Wh-1BK
Application and Function Introduction: Transform LiFePO4 DC to AC sine
wave by inverter. When the product is out of power, it can be charged
by mains and PV. Without Mains, this product can output AC to charge
devices with corresponding power such as fridges, electric hammers,
induction cookers, rice makers, fans, washing machines, TV, and
air-conditioner. This product supports PV charging while discharging.
Its structure meets UL2743 standards and can replace the gasoline
generator for outdoor emergency work on rainy days. The product
supports six expandable external batteries at maximum, reaching
35.84KWH with a more durable loaded application. This product is
equipped with two 10-inch foam wheels and two 7-inch universal wheels
with brakes, making it to be moved easier. On top of the product, we
designed a hook for safe lifting and handling. Besides, boxes on the
top and side allow users to put tools and accessories in outdoor works.
The main screen is a 7-inch high-resolution capacitance touch screen
with characteristics like anti-glare, high-definition, and high
sensitivity. All port covers are plastic. All output AC sockets are
independently installed with overload, short circuit protectors, and
the GFCI leakage protection socket to avoid safety risks during the

2
use. The product has functions like output overload, short circuits,
and high temperature.

3
II. Product Introduction
1. Product Main Structure Composition
The portable power station is mainly composed of a metal protection
frame, metal shell, PV reverse control machine, touch screen, USB/DC
panel, LiFePO4 battery, and other main accessories.
2. Panel Function Description
2.1 Front Panel
LCD Touch Screen
DC5521
Output Interface
Main Power Switch
Cigarette Lighter
Output
USB/TYPE
Output Interface
TT30 AC Output Socket
30A
L5-30
AC Output Socket 30A
GFCI AC output socket
20A

4

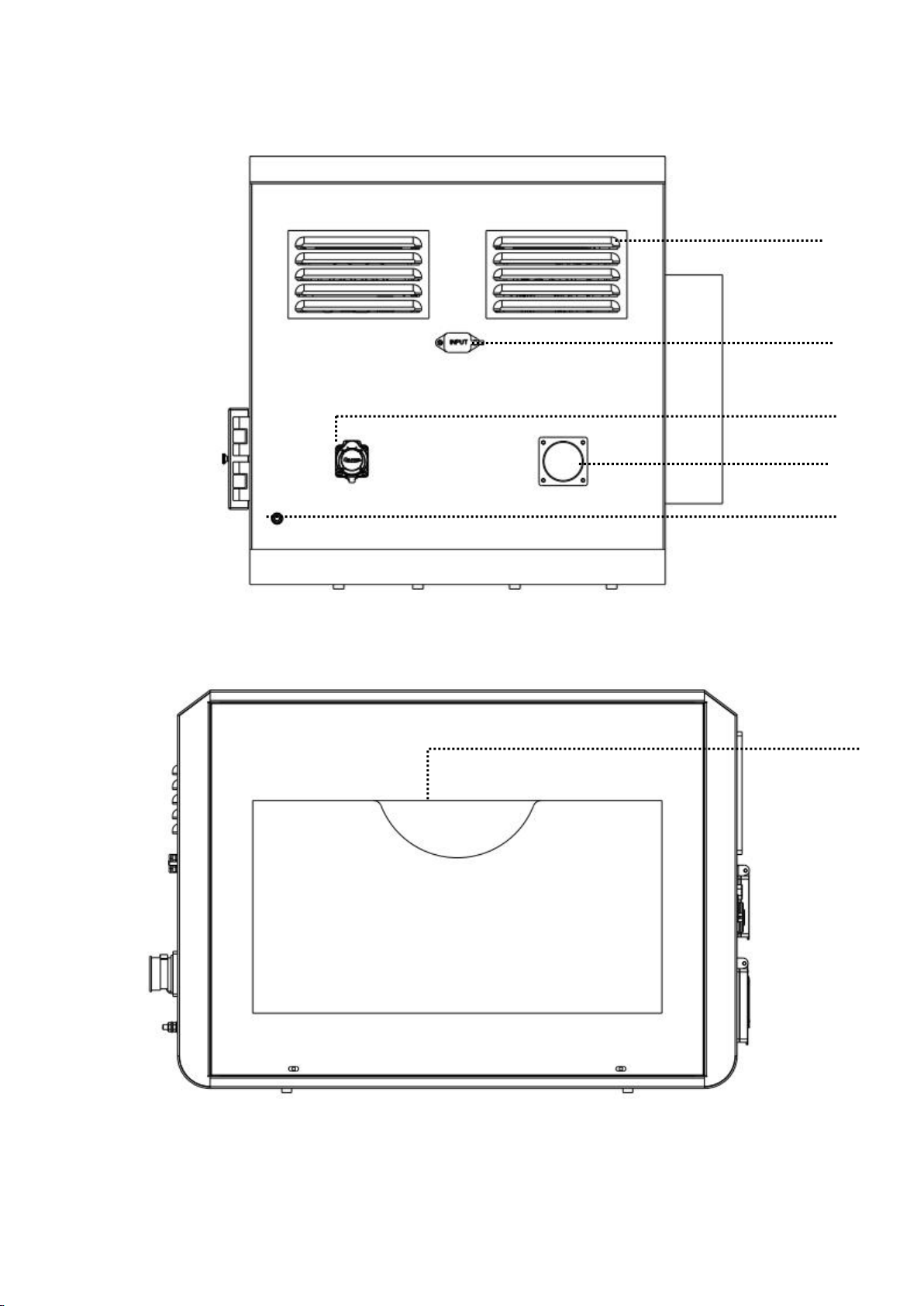

2.2 Rear Panel
2.3 Left Door
Cooling Window
AC Charging Input
Socket 20A
PV Charging Input
Socket
Expandable Battery
Interface
Ground Post
Storage Bag

5

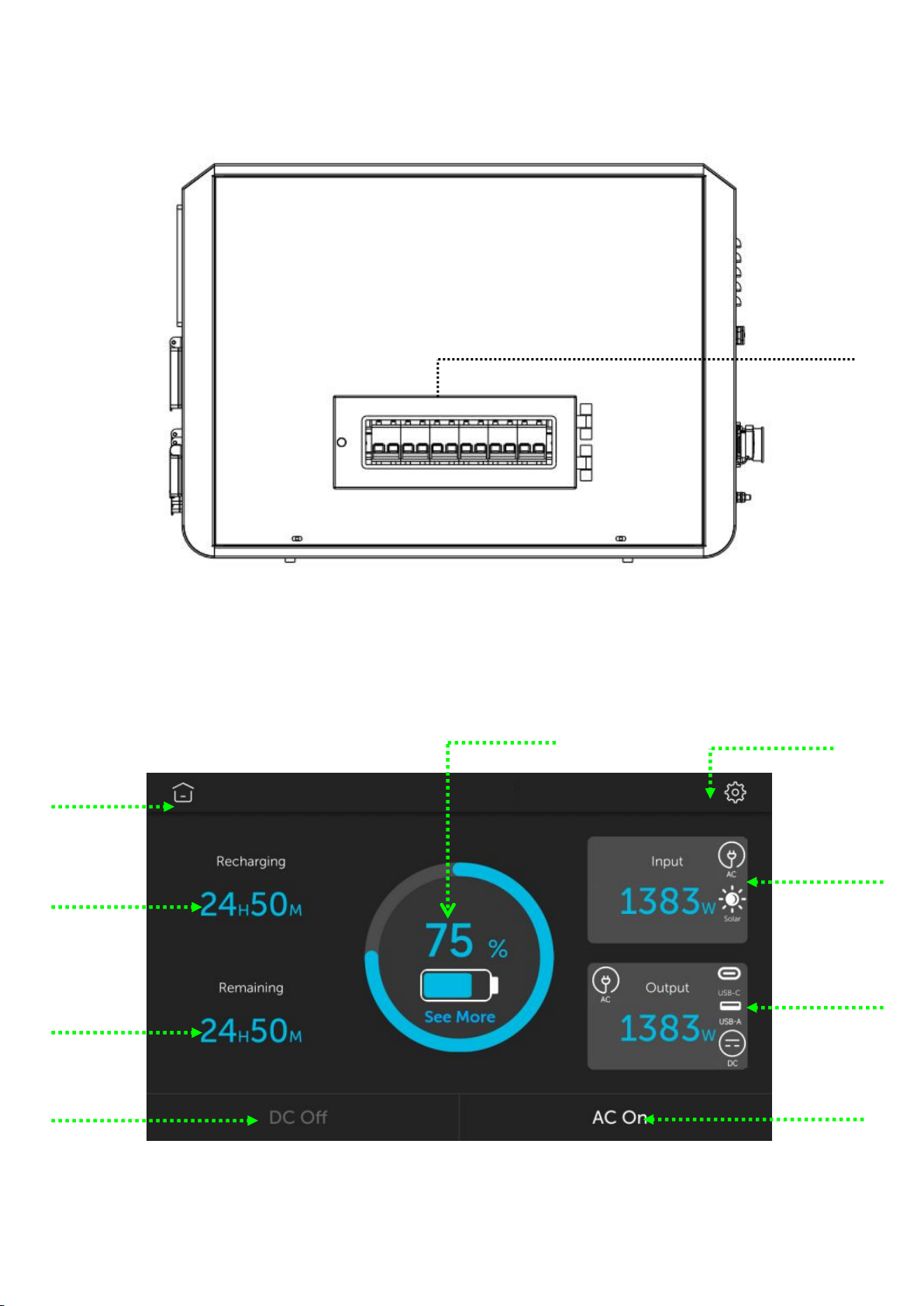

2.4 Right Door
3. Display Interface Description
3.1 Home Page
Ac Output,
PV Input
Circuit Breaker
Total Battery Level and Expandable
Battery Information Button
Remaining
Charging Time
Remaining
Time on Load
Charging Input
Status and
Parameters Page
Button
Load Output
and Parameters
Page Button
DC/USB
Output Switch
AC Output
Switch
Back Home
Button
Parameter
Setting Button

6
3.2 Battery Information Page
The battery includes five status：1. Disconnected，2. Standby: the battery
is connected and on standby，3. Charging: the battery is connected and
charging，4. Discharge: the battery is connected and discharged，5. Failure.
3.3 Charging Input Page
Main Battery
Status
Expandable
Battery
Capacity and
Status
Main Battery
Power Level
Mains Input
Parameter
Display
PV Input
Parameter
Display

7

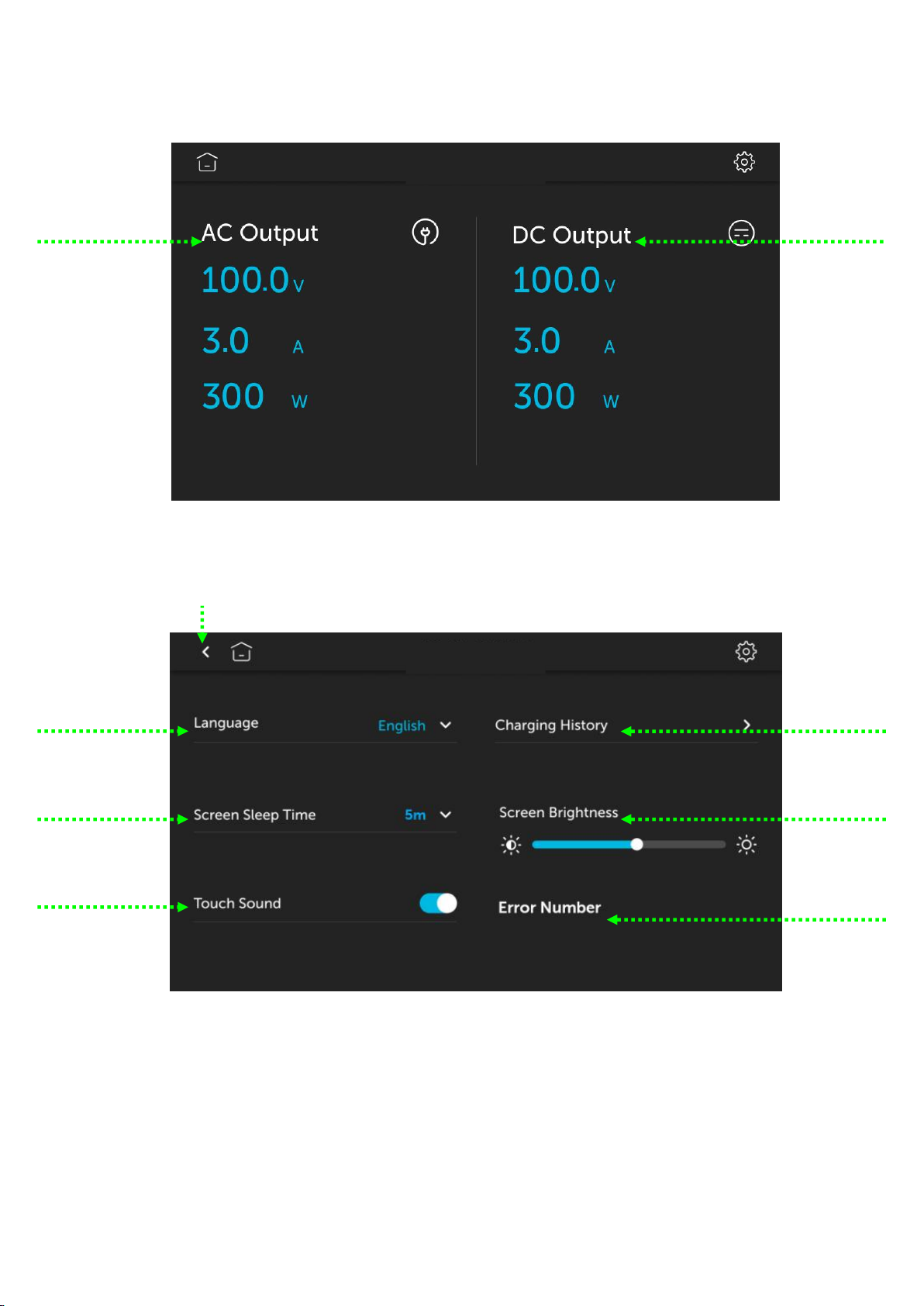

3.4 Load Output Page
3.5 Setup Page
AC Load Output
Parameters
Display
USB/DC Load
Output
Parameters
Display
Return to Previous Page Button
Language Setting
Set the Screen
Sleep time
Touch Sound
Switch
Charging
History
Screen
Brightness
Setting
Fault Code
Display

8
3.6 Language Settings Page
The product supports three language settings: English, French, Spanish
(the default setting is English)；
3.7 Screen Sleep Time Page
There are four Settings for the off time: 30 seconds, 1 minute, 5 minutes,
and never (the default setting is 5 minutes);

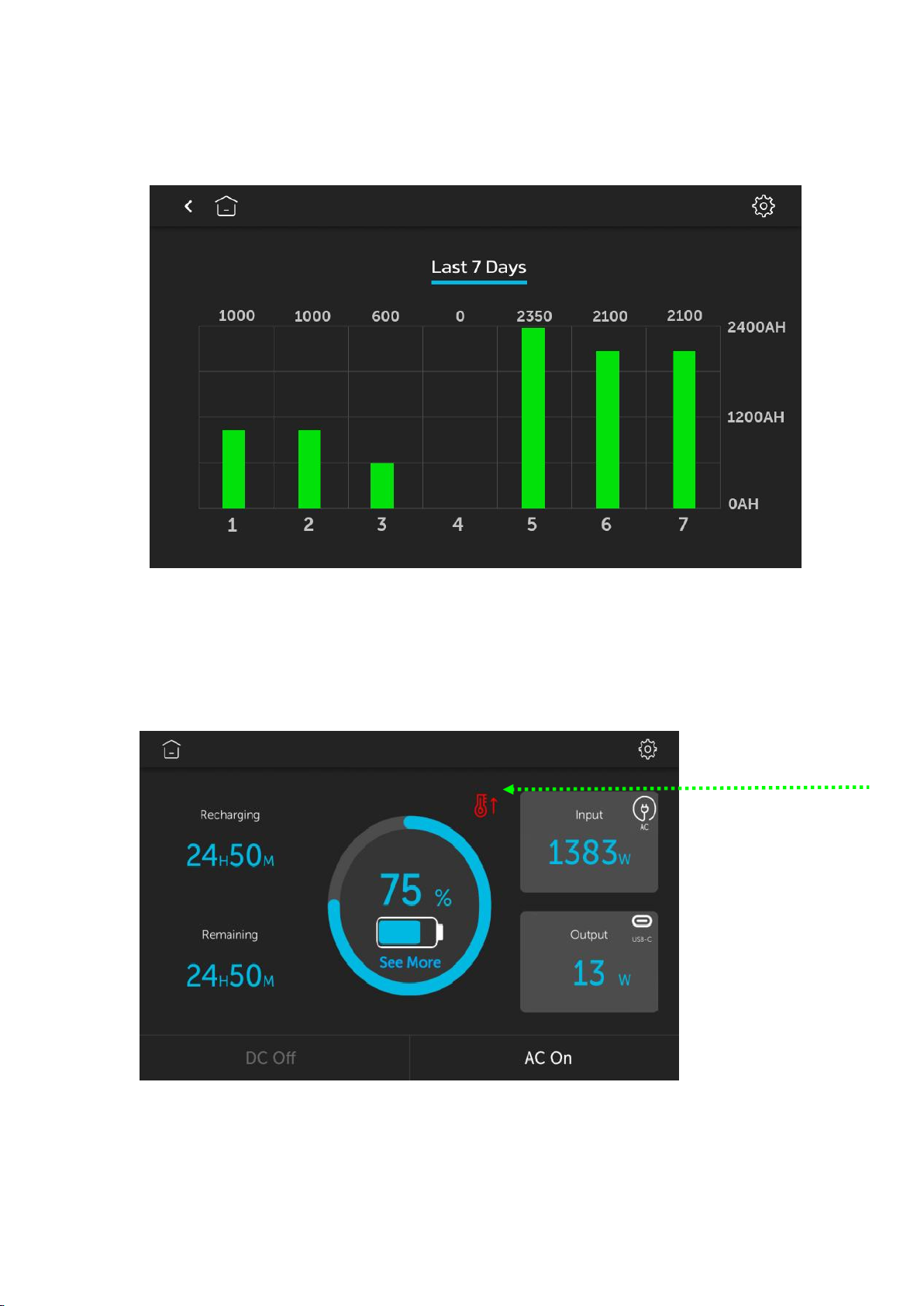

3.8 Charging History Page

9
The charging history record will save the charging capacity record of the previous
seven days, and display the record according to the total charging power (Ah) of
each day. In that case, only the data of seven days is displayed.
3.9 The Fault Icon Instructions
Fault icons are divided into high temperature, short circuit, and overload. If the product
is in an abnormal state, the corresponding fault icon will appear on the screen. If you
click the fault icon, there will be a troubleshooting prompt.
High-temperature
Fault Icon

10
3.10 Fault Code Display
The fault code can display four fault numbers at the same time, increasing from left to
right. See Chapter 5 (Failure Code description table) for details about the meaning of the
code.
Short Circuit
Fault Icon
Output Overload
Icon
Fault Code
Display

11
III. Technical parameters
Item
Parameter
Nominal Power
5KW
Peak Power
10KW
On-load Motor Capability
4HP
Battery Parameters
LiFePo4 51.2V 100AH
Battery Expansion
Supports the parallel expansion of up to 6
battery packs
Grid Connection
No
Product Size
840*750*872mm
Product Weight
138.5KG
Ambient Temperature Range
-10-40℃ Relative humidity：≤80% ；
Altitude≤2000m
Transport and Storage
Environment
Temperature：-15-55℃
Relative humidity：≤93%（no condensation）
Atmospheric pressure：70kPa～106kPa
Input
PV Charging
120-450V 18A Support MPPT Tracking LP-20
Triangle Connector
Mains Charging
110-120V 60HZ 2200W 20A Triangular Socket
USB-A*4 Output
Independent 18W Output*4：5V3A 9V2A 12V1.5A
Support QC3.0/QC2.0/AFC/FCP/BC1.2/APPLE
and other fast charging protocols

12
Output
USB-C*2 Output
Independent 100W Output*2： 5V3A 9V3A 12V3A
15V3A 20V5A Support PPS/PD/QC3.0/QC2.0/AFC
/FCP/BC1.2/APPLE and other fast charging
protocols
DC Output
5521 interface*2，cigarette lighter socket*1
12V10A
AC Output
American standard socket L5-30*1 30A 125V
60HZ
AC Output
American standard socket TT-30R*1 30A，125V，
60HZ
AC Output
American standard socket duplex GFCI 5-20R*3
20A，125V，60HZ
Charging
Time
PV Charging
About 1.6H（4500W）
Mains Charging
About 2.4H（2200W）
Support PV charging while discharging; do not support mains charging while
discharging
IV. Operation and Usage
1. Steps for the First Start of Portable Power Station：
1.1 Turn on all circuit breaker switches at the side door.
1.2 Check whether there is any visible damage to the appearance of the
station and whether the output interfaces are loose or damaged (If
abnormal conditions occur, stop using)

13
1.3 Fix the grounding post on the back of the station to the ground.
1.4 Press the “POWER” button on the front panel, and if the green light
comes on, it indicates that the startup has been successful. Observe
whether the battery on the screen is fully charged. When the battery level
is below 30%, it is recommended to fully charge it before use. When the
product is powered on, the AC output defaults to on, and the DC/USB output
defaults to off.
2. Charging Steps：
2.1 AC charging: First, confirm whether the mains grid voltage and
frequency are within the range of mains charging input parameters of this
product. Second, confirm that there is no load on the AC output socket,
and plug one end of the AC charging cable in the accessory into the charging
socket on the back of the power station. Then, check whether the charging
power and remaining charging time on the screen correspond to the product
parameters. During the charging process, the AC switch on the screen must
be in the “ON” state. Otherwise, it cannot be charged.
2.2 Solar photovoltaic charging： Please check the photovoltaic input
voltage range before charging. After confirming that the positive and
negative poles of the input interface correspond correctly to the positive
and negative poles on the product socket, insert the input interface into
the photovoltaic charging socket at the bottom left corner of the power
station. Then, turn on the POWER switch on the front panel and check if

14
the photovoltaic charging power and remaining charging time displayed on
the screen correspond to the product parameters. During the charging
process, the POWER switch must be turned on. Otherwise, the product cannot
be charged.
3. AC Output On-load Usage：
AC on load: Before use, please check that the power range and voltage range
of the on-load electrical equipment should match the output parameters
of the equipment, and press the RESET button on the GFCI5-20R socket to
open it; Check whether the short-circuiters at the side doors are all open.
Insert the power plug of the loaded product into the output socket at the
front of the power station, and turn on the AC switch on the front panel.
The load should work normally. Check the output on-load power parameters
on the display screen.
4. DC/USB Output On-load Usage：
Before using the power station, please check that the voltage and the
corresponding parameter range of the on-load electrical device are
consistent with the power station. Insert the interface plug of the
on-load electrical device into the corresponding interface in the front,
and turn on the DC switch on the screen. The load should work normally.
Check the output on-load power parameters on the screen.
5. Expandable Battery Usage：
Ensure that the specifications of the expandable battery are the same

15
as those of the main battery. When the main and the expandable battery
are off, insert one end of the expandable battery cable into the battery
expansion port on the rear panel of the station and the other end into
the socket in the expandable battery. Then turn on the portable power
station and expandable battery switch in turn. Check whether the battery
status in the main display is in normal status, and the capacity deviation
range between the two batteries should be within 10% before expansion
(otherwise, the battery life will be reduced and other battery failures
will occur during use). The expandable battery can be charged
independently by the charger equipped with the machine, or can be
simultaneously charged by the mains and photovoltaic with the main battery;

16
V、Fault Code Comparison Table
Fault
Codes
Meaning
Description
01
BatVoltLow
Battery under-voltage alarm
02
BatOverCurrSw
Battery discharge average current
overcurrent software protection
03
BatOpen
Battery not connected alarm
04
BatLowEod
Battery under-voltage stop discharge alarm
05
BatOverCurrHw
Battery overcurrent hardware protection
06
BatOverVolt
Charge overvoltage protection
07
BusOverVoltHw
Bus overvoltage hardware protection
08
BusOverVoltSw
Bus overvoltage software protection
09
PvVoltHigh
PV overvoltage protection
10
PvBoostOCSw
Boost overcurrent software protection
11
PvBoostOCHw
Boost overcurrent hardware protection
12
SpiCommErr
SPI communication failure between master
and slave chips
13
OverLoadBypass
Bypass overload protection
14
OverLoadInverter
Inverter overload protection
15
AcOverCurrHw
Inverter overcurrent hardware protection
16
SlaChiReqShu
Slave chip requests shutdown fault
17
InvShort
Inverter short-circuit protection

17
19
OverTemperMppt
PV radiator over temperature protection
20
OverTemperInv
Over-temperature protection of inverter
heat sink
21
FanFail
Fan failure
22
EEPROM
Memory failure
23
ModeNumErr
Model setting error
24
Busduff
Positive and negative bus voltage
imbalance
25
BusShort
Bus short circuit
26
RlyShort
Inverted AC output backflow to bypass AC
output
28
LinePhaseErr
Mains input phase error
29
BusVoltLow
Bus voltage low protection
30
BatCapacityLow1
Battery capacity rate below 15% Alarm
31
BatCapacityLow2
Battery capacity rate below 5% Alarm
32
BatCapacityLowSt
op
Battery low-capacity shutdown
58
BMSComErr
BMS communication failure
59
BMSErr
BMS error
60
BMSUnderTem
BMS low temperature alarm
61
BMSVoerTem
BMS over temperature alarm
62
BMSOverCur
BMS overcurrent alarm

18
Ⅵ、Product Maintenance
6.1 Newly purchased products should be fully charged before use;
6.2 Regularly remove dust and dirt from the cooling window；
6.3 In the case of long-term storage for more than three months, not less
than 50% of the power storage shall be maintained;
6.4 If stored for more than 6 months, to extend the service life of the
battery, please charge and discharge the product 1-2 times;
6.5 Regularly add wheel lubricant;
6.6 Scrub the surface of the chassis after each outdoor use；
6.7 Regularly check whether the external screws and lifting rings of the
chassis are fully tightened;
Ⅶ、Common Troubleshooting
7.1 Unable to Perform Mains Charging:
A、If the mains input voltage range and frequency exceed the parameter
range of the power station, it cannot be charged.
B、The AC switch in the screen should be in the open status. If the AC
switch is closed, it cannot be charged.
63
BMSUnderVolt
BMS under-voltage alarm
64
BMSOverVolt
BMS overvoltage alarm
