CEA EA1500-1440WH-1 Series User manual

Product use and
technical specification
Please read the manual carefully and follow the instructions before using
CEA ELECTRIC CO.,LTD
(XX, indicates different colors, such as BK, GN, YE)
Portable energy storage power supply
EA1500-1440WH-1XX
Version A0

Disclaimer
Copyright
Logo
Date and modification
Applicability
This manual is applicable to the following products:
Portable energy storage power supply EA1500-1440WH-1XX(XX, indicates different colors, such as BK, GN, YE)
.
has no warranty for accuracy, adequacy or applicability of the information in the manual, as we will
continue to improve products.
does not assume any responsibility or obligation to the direct, indirect, consequential or accidental
loss or damage that may arise from the information in the manual
has no liability for failure, damage or injury caused by attempt of repair or improper installation
and operation by unqualified personnel.
The illustrations in the manual are for demonstration purposes only. Depending on the product version and
market area, the details may vary slightly.
reserves the right to change the information in the manual without prior notice.
Portable Energy Storage Power Supply product use and technical specification copyright
reserved.
All information in the manual is protected by copyright and other intellectual property rights of and
its licensor. Without the prior written permission of and its licensor, all or part of the instructions
shall not be modified or reproduced.
The following are trademarks or registered trademarks in the United States and other countries
All other trademarks in the manual are the property of their respective owners and their use herein does
not imply sponsorship or approval of their products or services. It is strictly forbidden to use any
trademark displayed in the user manual or product without authorization.
April 2022, revised version A0

I. Product Application and Scope of Use
Product name: portable energy storage power supply
Model/Specification: EA1500-1440WH-1XX
Product features:
1. This product has long endurance;
2. Using lithium iron phosphate battery core, safe and reliable, with lots of cycle
times and long service life;
3. Flexible charging, small and light, portable;
4. MPPT technology, built-in SEC intelligent control technology, BMS
intelligent battery management system and HH-STREAM fast charging
technology, to ensure the safety of products and electrical equipment;
5. Intelligent electricity management, electricity consumption is clear;
6. Pure sine wave output, intelligent bidirectional inverter, intelligent output;
7. This product has charging over-voltage protection, discharge under-
voltage protection, short circuit protection, discharge over-current
protection, charging over-current protection, over-temperature protection.
Purpose and scope of application:
This product can be used in family emergency, emergency rescue, outdoor
live broadcast, open-air camping, street stall, night market and other scenes;
Suitable for TV, projectors, outdoor refrigerators, juicers, rice cookers,
ovens, printers, copiers, ventilators, beauty lights, outdoor audio, unmanned
aerial vehicles, industrial fans, cutting machines, electric drills, SLR,
washing machines, motors, high-pressure water guns, barbecue, etc.
(XX, indicates different colors, such as BK, GN, YE)

II. Product introduction
1. Composition
Portable energy storage power supply is mainly composed of housing, inverter,
display screen, main control panel and lithium iron phosphate battery
2. Function key description
Photovoltaic charging interface display screen main power button
AC output USB DC button
AC output socket
II. Product introduction
USB output
interface,
Type-C
DC output interface,
car charging
interface, 5521

II. Product introduction
Remarks:
1. Press and hold LED light button + main power button for 3 seconds, display
screen will reset and restart;
2. When the AC output is off, press and hold the main power button + AC button
for 3 seconds to switch the frequency between 50 and 60HZ;
3. Long press the AC button to turn on or off the buzzer;
4. After the main power button is turned on, if other functions are not operated for
three minutes, it will enter the sleep mode;
5. Press and hold the LED button for 10 seconds, and the display screen will not
go out automatically;
6. Press and hold the AC button + LED button for 3 seconds to view the system
version;

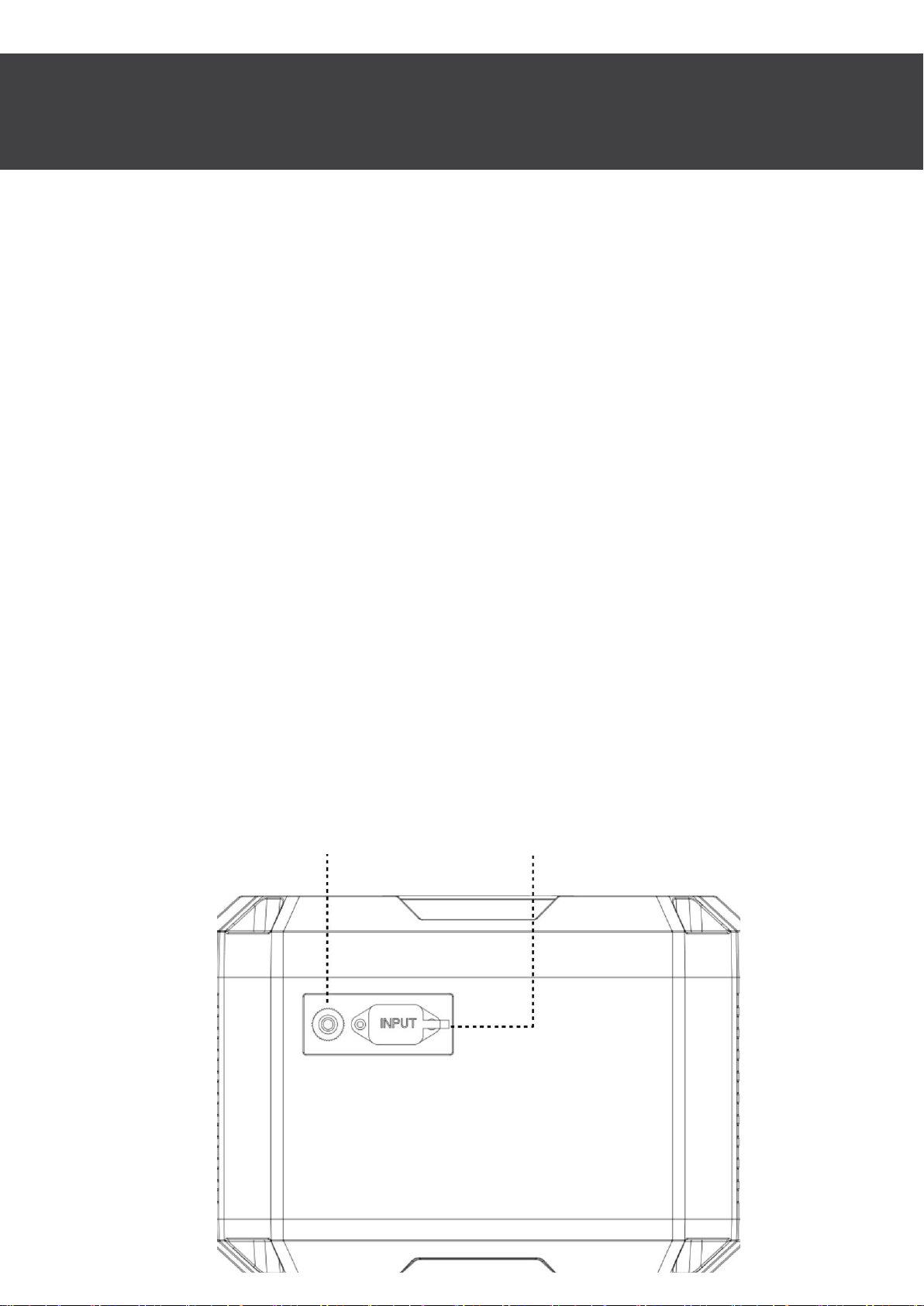

Input
over-
current
protecto
r
AC input
charging
socket

II. Product introduction

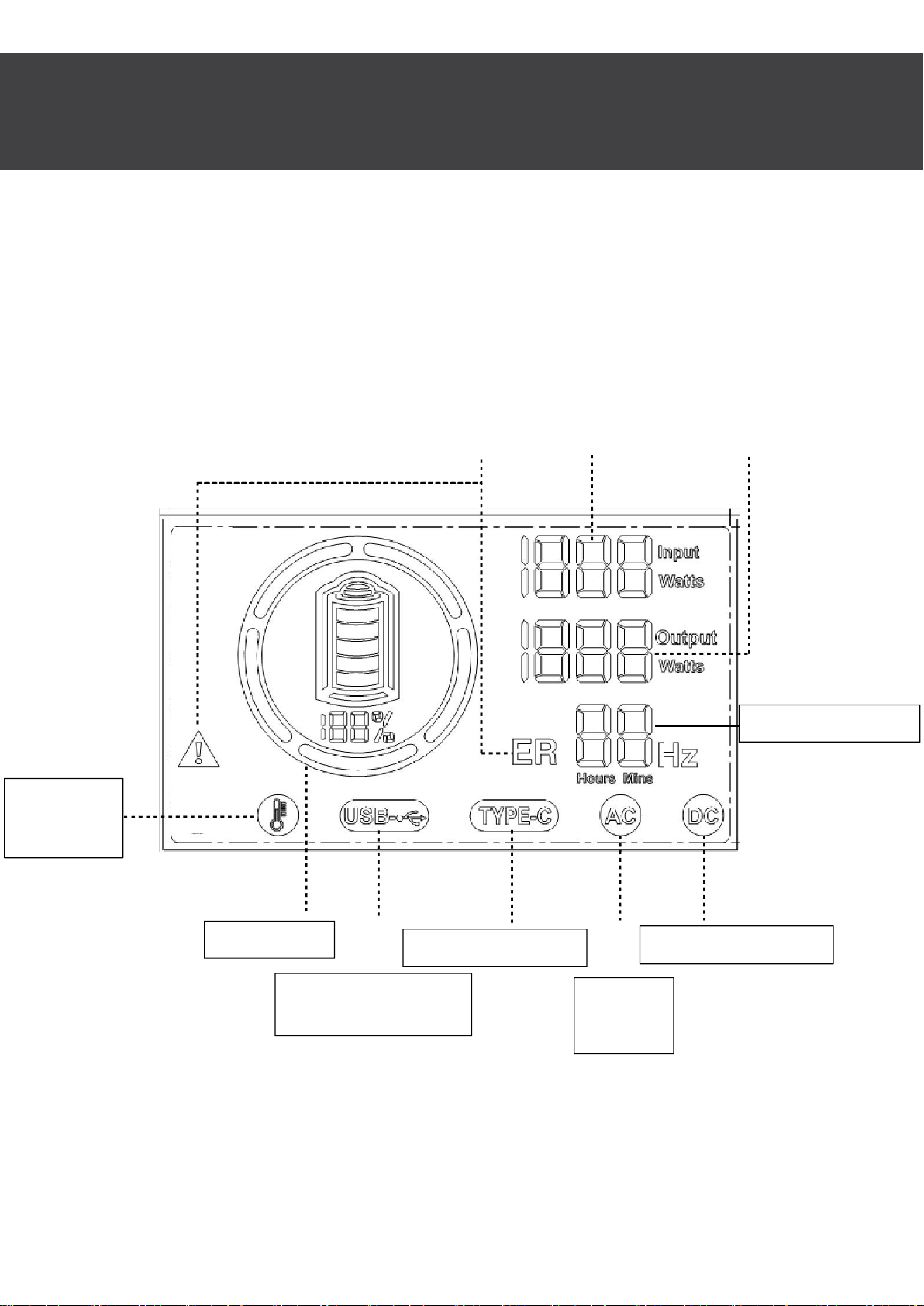

3. Display screen function description:
Fault alarm display Charging power display
Discharging power display
AC output frequency
Temperature
alarm
prompt
power display
port C output display
port A output wireless
charging display
DC12V output display
AC
output
display

III. Technical parameter
Project
Parameter
Battery capacity
Lithium iron phosphate soft
package 1440WH
Product size
378*265*239mm
Product weight
14 kg
Use ambient temperature range
-10 ~ 40 ℃
Storage temperature
-10 ~ 40 ℃
Input
Solar charging
400W (11-60V 10A) support MPPT
power tracking function
Mains
electricity
charging
1100W (110V10A 60HZ)
Output
Type-c1
output
Single discharge 100W 5V3A
9V3A 12V3A 15V3A 20V5A
Support
PPS/PD/QC3.0/QC2.0/AFC/FCP/S
CP/BC1.2/APPLE and some other
fast charging protocols

Type-c2
Output
Single discharge 100W 5V3A
9V3A 12V3A 15V3A 20V5A
Support
PPS/PD/QC3.0/QC2.0/AFC/FCP/S
CP/BC1.2/APPLE
and some other fast charging
protocols
USB A1
Output
18W fast charging: supports
QC3.0/QC2.0/AFC/FCP/BC1.2/AP
PLE and some other fast charging
protocols 5V3A 9V2A 12V1.5 A
USB A2
Output
18W fast charging: supports
QC3.0/QC2.0/AFC/FCP/BC1.2/AP
PLE and some other fast charging
protocols 5V3A 9V2A 12V1.5A
Car charging
output
5521*2 1*Cigarette lighter,
12V10A
AC Output
2X, 110V, 60Hz (with cover)
American socket
Charging time
Solar charging
About 3.6H
Mains
electricity
charging
About 1.3H
Illumination
Lamp power
2W
Flashlight power
2W supports S0S flash
Wireless charging
10W

IV. Operation and use methods
1. Charging steps and methods:
1.1 AC charging only needs one end of a power cord to be inserted into the
charging socket on the back of the equipment, and the other end connected to
mains electricity. The input voltage range: AC is 110V 60 Hz, and the power is
1100W;
1.2 DC charging products support input voltage range DC: 11-60V 400W 10A
Anderson PP30 interface. Check the input voltage range before charging and
insert the input interface into the PP30 interface in the upper left corner of the
front of the equipment to complete DC charging;
2. How to use the output with load:
2.1 AC load: check that the power range and voltage range of on-load electrical
equipment should match with this equipment before use, insert the power plug of
on-load products into the output socket of the equipment, turn on the main power
button and AC output button in turn, and the display screen shows the output on-
load power;
3. How to use DC/USB output:
Before use, check that the voltage and corresponding parameter range of the on-
load electrical equipment should match with this equipment, insert the interface
plug of the on-load product into the corresponding interface of the equipment, and
turn on the main power button and DC/USB button in turn;
4. How to use lighting:
The lighting switch button is located at the handle, and the lighting is divided into

ordinary lighting and flashlight lighting. The control sequence of the switch
button is: lighting 1 bright/lighting 1 flash/lighting 2 bright/off;
5. How to use wireless charging:
Place the mobile phone in a position marked with a wireless charging area on the
top of the device, and turn on the main power button and the USB button in turn;
V. Fault code display
project
abbreviation
description
Er 01
DC OCP
DC output module (DC12V & cigarette lighter) and output over-
current
Er 02
DC SCP
DC output module (DC12v & cigarette lighter) and output short
circuit or wrongly inserted into charger
Er 03
AC Error
AC module fault
Er 04
PD Error
One way type-C1 or type-C2 interface failure
Er 05
PCBA OTP
PCBA temperature too high
Er 06
BAT UTP
Battery temperature too low
Er 07
USBA Error
USBA1 or USBA2 output fault
Er 08
Reserve
Reserve
Er 09
BAT OTP
Battery over-temperature alarm
Er 10
BAT OCP
Battery over-current; System overload
Er 11
BAT UVP
Battery under-voltage warning
Er 12
BAT LOW
Battery low voltage warning
Er 13
WP Error
Wireless power charging failure

VI. Product maintenance
6.1 Newly purchased products shall be fully charged before use;
6.2 Regularly remove the dust and dirt at the cooling window;
6.3 Under the condition of long-term storage for more than 3 months, at least 50%
of the electricity power shall be stored;
6.4 If stored for more than 6 months, please charge and discharge the product for
1-2 times in order to prolong the service life of the battery;
VII. Warnings and notes
7.1 The voltage standards of different electrical appliances are different. Before
use, carefully check whether the rated voltage range of the product is consistent
with the voltage range of the portable power supply, otherwise it may lead to
dangerous situations;
7.2 After the battery is discharged to the termination voltage, more discharge is
called over discharge. Over discharge is easy to cause serious power loss of the
battery, which greatly shortens its service life. Therefore, deep discharge should
be avoided when the battery is used;
7.3 The product shall be kept away from fire source, high temperature

environment, wet and rainy environment during use and placement, otherwise it
may cause dangerous situations;
7.4 This product has a built-in high-voltage power supply, and non professionals
are not allowed to disassemble it by themselves;
7.5 Please do not discard this product at will after its service life. Please recycle it
according to local laws and regulations;
7.6 The product shall be protected from rain, water immersion and violent
vibration during transportation;
7.7 It cannot be used at an altitude of more than 2000m;
7.8 Product AC is AC output, please do not insert your hand or hand-held metal
conductor into AC socket;
7.9 Do not drop, squeeze or pierce the product, so as to avoid exposing the
product to external pressure, resulting in short circuit in the internal circuit of the
product and battery damage;
7.10 Please shut down in time after use (there is no-load power loss when the AC
output is turned on, which will continue to consume battery power);
7.11 please select the solar panel according to the electrical parameters specified
by the manufacturer. If the voltage is higher than the parameters, the product may
be damaged;
7.12 it is forbidden to short circuit the output port of the product;
7.13 This product and its accessories may contain some small parts. Please place
the product and its accessories out of the reach of children. Children may
inadvertently damage this product and its accessories, or swallow small parts to
cause suffocation or other hazards. Children or people with limited intelligence
should use this product with the accompaniment of their guardian;
7.14 Do not use this product in thunderstorm weather, which may cause product
failure or electric shock;
7.15 If the product falls into water accidentally during use, it shall be placed in a
safe open area and shall not be used again;

VIII. Product packing list
Portable energy
storage power supply
X 1
manual X 1
AC Power charging
line X 1
DC car charging line
X 1

CAUTION
A photovoltaic panel as an input for charging the internal battery shall be provided with an inverter and/or a
charge controller in accordance with UL 1741 or UL 62109-1;
The external power supply shall be a power source in accordance with the Standard UL 60950-1 and
CAN/CSA C22.2 No. 60950-1, or UL 1310 and No. 1, CAN/CSA C22.2 No. 223, or No.1, CAN/CSA C22.2
No. 223;
A vehicle adapter that complies with the enclosure and input contacts requirements in the Standard for
Vehicle Battery Adapters, UL 2089, and Power Supplies, CAN/CSA C22.2 No. 107.1. The connector plug
shall incorporate a fuse or other protective device having a current rating not greater than 15 A.
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using this product, basic precautions should always be followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the product is used near children.
c) Do not put fingers or hands into the product.
d) Use of an attachment not recommended or sold by power pack manufacturer may result in a risk of fire,
electric shock, or injury to persons.
e) To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when
disconnecting the power pack.
f) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
g) Do not operate the power pack with a damaged cord or plug, or a damaged output cable.
h) Do not disassemble the power pack, take it to a qualified service person when service or repair is required.
Incorrect reassembly may result in a risk of fire or electric shock.
i) To reduce the risk of electric shock, unplug the power pack form the outlet before attempting any instructed
servicing.
j) WARNING – RISK OF EXPLOSIVE GASES.
1) To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer
and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on
these products and on engine.
k) PERSONAL PRECAUTIONS
1) Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
2) Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery.
3) If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye,
immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
4) NEVER smoke or allow a spark or flame in vicinity of battery or engine.
5) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery
or other electrical part that may cause explosion.

l) When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way.
m) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
n) Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above
130°C may cause explosion. The temperature of 130°C can be replaced by the temperature of 265°F.
o) Have servicing performed by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the product is maintained.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and
operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
Production address: No.55 Dingda Road, Yingquan Economic Development Zone,
Fuyang Anhui, China
Phone：[phone] 2603767
Fax：[phone]
Post code：236000
Production date: see package
Manual edited on:
