CENTR 2 User manual
Record Serial Number Here
V06232023
MADE IN CHINA
USER MANUAL
CENTR 2
FUNCTIONAL TRAINER
Model: FTX.3
V06232023
Pg. 3V06232023
WELCOME
Welcome to Centr and thanks for your purchase. We're happy to have you. Please inspect your product and
contact us right away if anything is missing or damaged.
Your equipment also comes with access to Centr's digital membership, unlocking tools that will fuel your
active lifestyle and well-being. The Centr wellness system aligns your movement, meals and mind with
expert-led programs and advice made to work together to deliver you the best results and lifelong healthy
habits. Get moving with limitless ways to fuel your routine and reach your goals!
US CUSTOMERS
If you have questions or issues with your equipment, please contact our US Customer Service team.
Support is provided in English and Spanish.
GLOBAL CUSTOMERS (OUTSIDE OF US)
If you have any questions or issues with your equipment, please contact the store where your
purchase was made.
*Support is provided in English and Spanish*
EMAIL
hello@centr.com
PHONE
877-738-1729 (US Only)
+1 714-738-1729 (Global)
Mon-Fri 8am-5pm PT - UTC-7h/8
CHAT
www.inspirefitness.com
To view full warranty details, or to register your product for warranty, visit
AUSTRALIA
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law. For major failures with
the service, you are entitled:
• to cancel your service contract with us; and
• to a refund for the unused portion, or to compensation for its reduced value.
You are also entitled to choose a refund or replacement for major failures with goods. If a failure with the goods or a service does
not amount to a major failure, you are entitled to have the failure rectified in a reasonable time. If this is not done you are entitled to a
refund for the goods and to cancel the contract for the service and obtain a refund of any unused portion. You are also entitled to be
compensated for any other reasonably foreseeable loss or damage from a failure in the goods or service.
V06232023
Pg. 5V06232023
TABLE OF CONTENTS
PRODUCT WARRANTY......................................................................................4
IMPORTANT SAFETY NOTICE.........................................................................6
FUNCTIONAL TRAINER ASSEMBLY INSTRUCTIONS...............................8
DECAL PLACEMENT.........................................................................................12
LIVE AREA...........................................................................................................13
PRODUCT DIMENSIONS.................................................................................14
MAINTENANCE..................................................................................................15
MAINTENANCE SCHEDULE...........................................................................15
EXPLODED DIAGRAM......................................................................................16
PARTS LIST..........................................................................................................17
Pg. 6 V06232023
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply whenever you
operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate
your machine. Please note the following safety precautions:
1.
2. Always keep children and pets away from the machine. DO NOT leave children unattended in the same
room with the machine. The cabling and moving parts on this machine can cause serious injury or death if
used improperly.
3. Only one person at a time should use the machine.
4. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at
once.
5. Position the machine on a clear, leveled surface. DO NOT use the machine near water or outdoors.
6. Keep hands away from all moving parts.
7. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other loose clothing that
could become caught in the machine. Running or training shoes are also required when using the machine.
8. Use the machine only for its intended use as described in this manual. DO NOT use attachments not
recommended by the manufacturer.
9. Do not place any sharp objects around the machine.
10. Disabled persons should not use the machine without a qualied person or physician in attendance.
11. Before using the machine to exercise, always do stretching exercises to properly warm up.
12. Never operate the machine if the machine is not functioning properly.
13. The Centr 2 Functional Trainer is designed for home use only. Therefore, it does not have a weight stack cover.
This means the following for the user:
• Only one person may use the Centr 2 Functional Trainer at the same time.
• The person must also ensure that no other person is in the exercise area of the Centr 2. Persons
who are in the room at the same time as the trainee must maintain a distance of at least 1.5 meters
from the exercise equipment.
• After using the device, it must be secured in such a way that no unauthorized person has access to it.
CARE AND MAINTENANCE
• Inspect and tighten all parts before using the machine.
• The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild non-abrasive
detergent. DO NOT use solvents.
Pg. 7V06232023

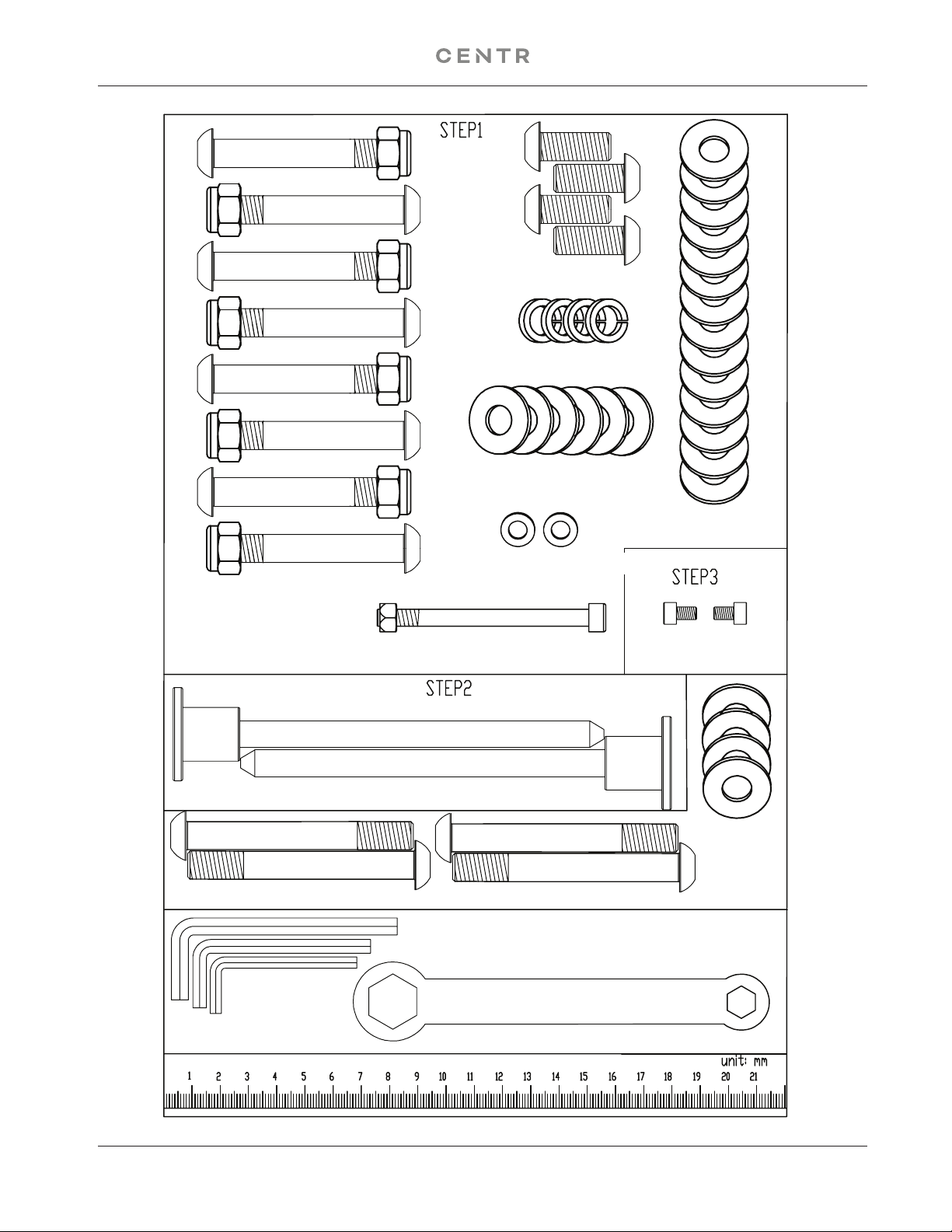

Part #20 (M10*25; 4pcs)Part #20 (M10*25; 4pcs)
Part #23 (Ø10; 4 pcs)Part #23 (Ø10; 4 pcs)
Part #25 (Ø10; 20 pcs)Part #25 (Ø10; 20 pcs)
Part #29 (Ø6; 2 pcs)Part #29 (Ø6; 2 pcs)
Part #19 (M10*70; 8 pcs)Part #19 (M10*70; 8 pcs)
Part #24 (M10; 8 pcs)Part #24 (M10; 8 pcs)
Part #37 (#6; 1 pcs)Part #37 (#6; 1 pcs)
Part #38 (#5; 1 pcs)Part #38 (#5; 1 pcs)
Part #39 (#4: 1 pcs)Part #39 (#4: 1 pcs)
Part #40 (#10 & #17; 1 pcs)Part #40 (#10 & #17; 1 pcs)
Part #28 (M6*75; 1 pcs)Part #28 (M6*75; 1 pcs)
Part #30 (M6; 1 pcs)Part #30 (M6; 1 pcs) Part #22 (M5*8; 2 pcs)Part #22 (M5*8; 2 pcs)
Part #9 (2 pcs)Part #9 (2 pcs)
Part #18 (M10*80: 4 pcs)Part #18 (M10*80: 4 pcs)
Part #25Part #25
(Ø10; 4 pcs)(Ø10; 4 pcs)
Pg. 8 V06232023
A. Do not tighten the Nuts and Bolts until instructed to do so.
B. Place the Lower Cross Brace (#4) between the Right & Left Stations (#1 & #2) in the mid-span.
C. Attach one end of the Lower Cross Brace to the Right Station. Secure it with two M10 x 70 Allen Bolts
(#19) four Ø 10 Washers (#25), and two M10 Aircraft Nuts (#24). Repeat the same procedure to install
the other side.
D. Repeat Procedure B & C to install the Upper Cross Brace (#5).
E. Place the Pull Up Bar Assembly (#3) on top of the Right and Left Stations.
F. Secure each end with two M10 x 25 Allen Bolts (#20), two Ø 10 ” Lock Washers (#23), and Ø 10
Washers (#25).
G. Place the Tablet Holder on to its mount and secure with a M6x75mm Allen Head Cap Screw (#28) and
M6 Locknut (#30), using M6 Washers (#29) on both sides. Tighten hardware until tablet holder holds
its position but can still be tilted up and down by hand.
H. Securely tighten all Nuts and Bolts installed.
12
3
4
5
19
25
19
25
19
25 19 25
19
25
19
25
19
25 19 25
25
24
24 25
20
23
25
20
23
25
20
23
25
20
23
25
25
24
24
25
27
28 29 29 30
Pg. 9V06232023
A. Install Guide Rods (#7) into holes on bottom Frame using M10 x 80 Allen Bolt (#18) and Ø 10 Spring
Washers (#25). Tighten.
B. Install Rubber Bumpers (#16) on each Guide Rod (#7). Slide fifteen 10lb Weight Plates (#10) from the
top of Guide Rods (#7) down to the Rubber Bumpers (#16). Make sure the weight sticker cut out is
facing the inside of the machine and the pads of the weight face down. See example below:
C. Remove the two M10 x 20 Allen Bolts (#21), Ø 10 Spring Washers (#23), and Ø 10 Washers (#25)
which were pre-assembled in the factory to hold the Guide Rod Bracket (#6). Slide the Selector Stem
Assembly (#8) onto the Guide Rods (#7). Install the weight stack Pulley (#33) with the cable wrapped
between the pulley and the U shaped bracket (#31). Then insert the Cam Bolt (#32) and secure with a
Ø 10 Washer (#25), and a M10 Aircraft Nut (#24).
D. Hold the Selector Stem Assembly (#8) above the weight stack to make it easier to install Guide Rod
Bracket (#6) on Guide Rods (#7).
E. Once the Guide Rod Bracket (#6) is installed onto the Guide Rods (#7), Push the Guide Rod Bracket
back into the upright.
F. Secure the Bracket back to the upright frame with the two M10 x 21 Allen Bolts (#21), Ø 10 lock Washers
(#23), Ø 10mm Washers (#25).
G. Lower the Selector Stem down onto the top of the weight stack.
H. Check all the cables to make sure they are on track on the pulleys.
I. Peel off the weight stack number label from the Resistance Label Set (#26) and attach to the plates,
starting with number one on the selector stem weight.
J. Insert the Weight Selector Pin (#9) into the weight stack.
K. Lubricate the Guide Rods with super lube or lube provided in Hardware Pack.
L. If Needed, Adjust the cable tension by loosening and rotating the Cam Bolt (#32) until the Selector Steam
Assembly (#8) starts lifting slightly from the weight stack. Tighten the nut of the cam bolt to lock it’s position.
M. above to install the other set of weight plates to the Left Station. (#2)
Pg. 10 V06232023
12
6
25
23
21
7
7
8
9
10
16
18
25
25
25
23
21
6
25
23
21
25
23
21
7
7
8
9
10
16
18
25
25
26
1
2
3
4
5
6
7
8 15
916
10 17
11 18
12 19
13 20
14 21
26
1
2
3
4
5
6
7
815
9 16
10 17
11 18
12 19
13 20
14 21
32
25
24 33
32 25
24
33
8
25
24
33
31
32
33
31
32
33
36
32 36
36
Pg. 11V06232023

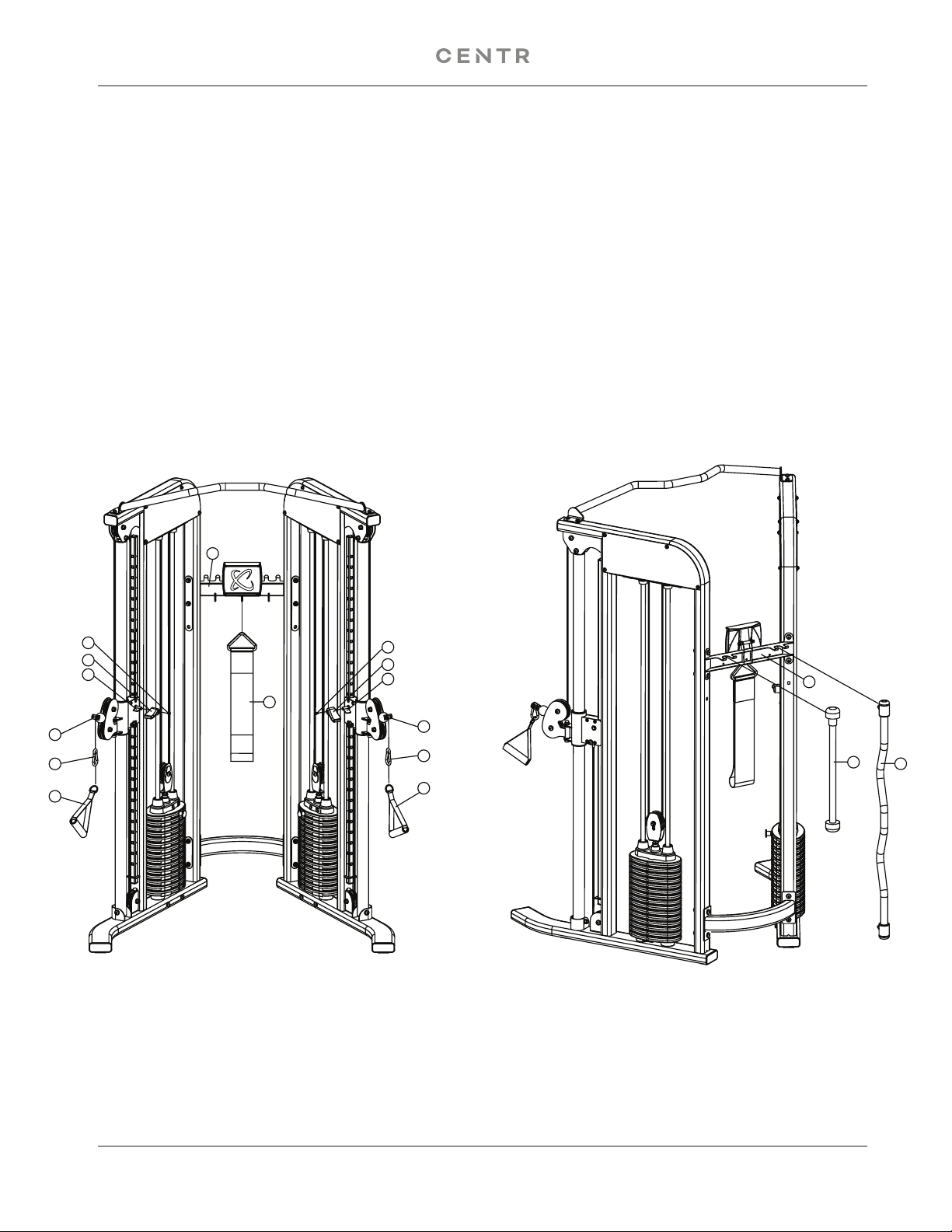

A. Attach the Height Adjustment Handle (#15) to the Left Lock Switch (#35) on the Pulley Carriage,
secure it with one M5 x 10 Allen Bolt (#22). Repeat the same procedure to install the other side.
B. Connect the Single Handle (#13) to the Cable (#1) on the Right Station (#1) with a Spring Clip (#17).
Repeat the same procedure to install the other side.
C. Lift up the Height Adjustment Handle (#15) and slide the Pulley Carriage along the Pulley Carriage
Support Frame to the selected level. Release the Handle to lock the Pulley Carriage in position.
D. Store Curl Bar (#12), and Rope (#11) onto the Hanger Bracket behind the Upper Cross Brace (#5).
Hang Chin Up Belt (#14) on Upper Cross Brace (#5).
14
5
1
17
13
2
17
13
22
15
34
22
15
35 5
11 12
Pg. 12 V06232023

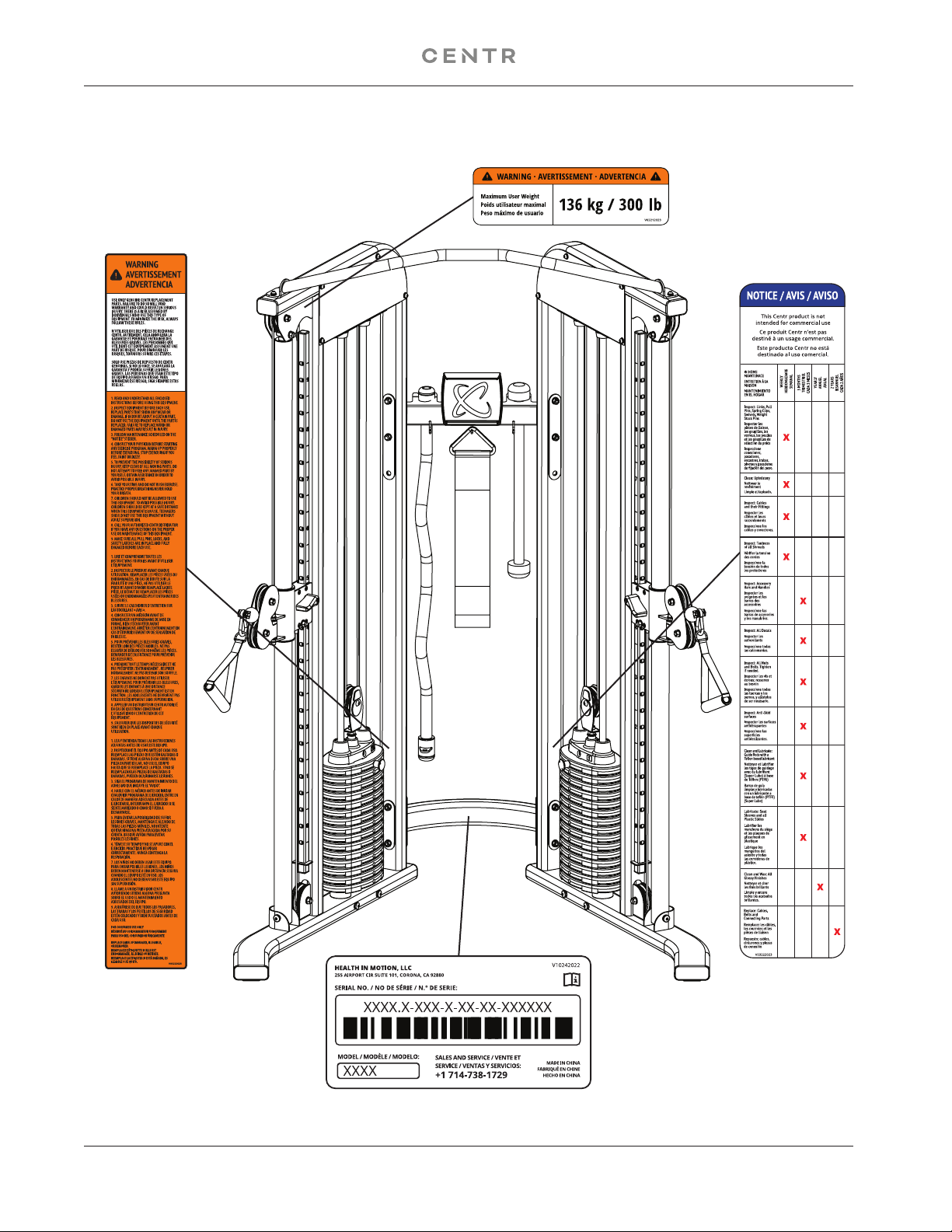

DECAL PLACEMENT
Pg. 13V06232023
LIVE AREA
2.7 m
9 ft
9 pi
2.4 m
8 ft
8 pi
2.4 m
8 ft
8 pi
Pg. 14 V06232023

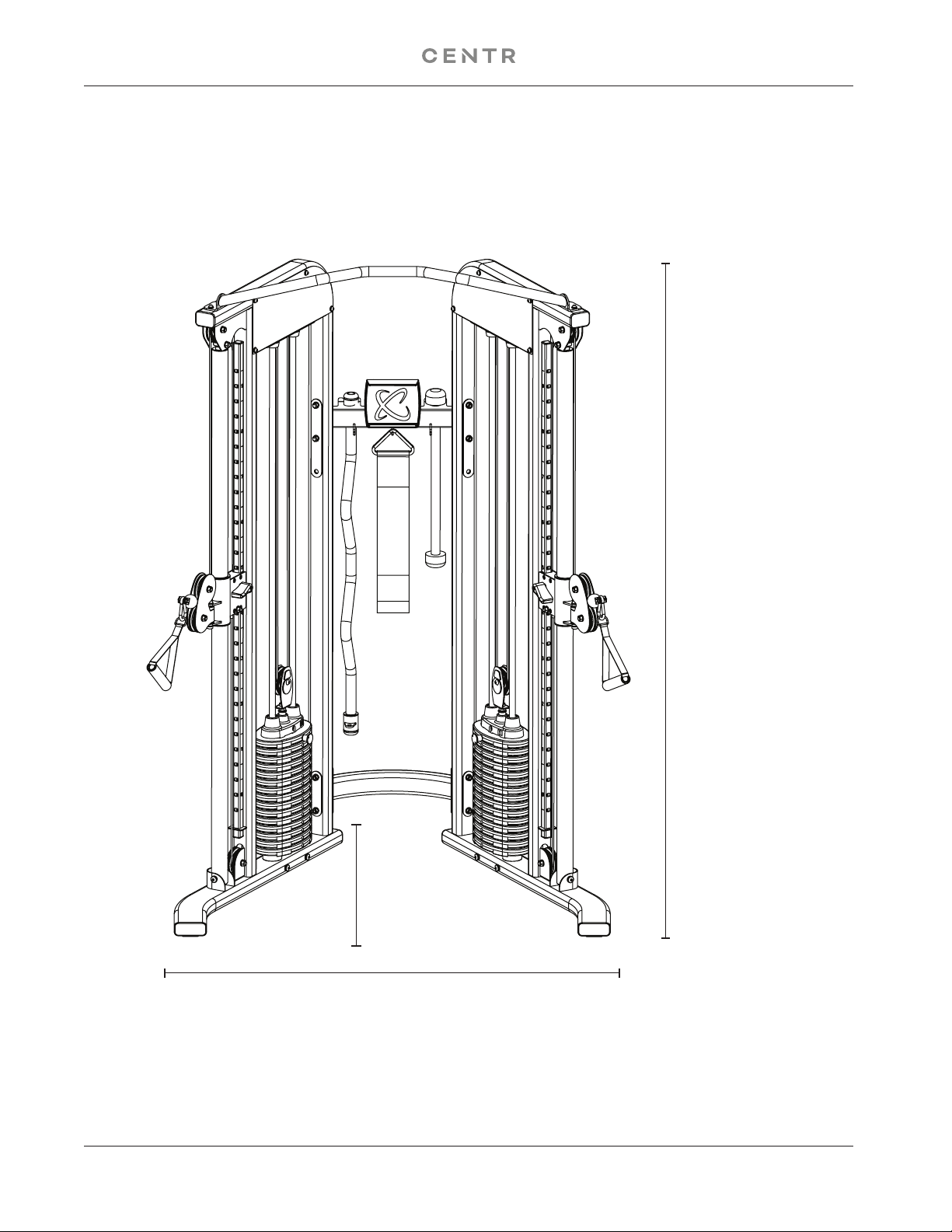

PRODUCT DIMENSIONS
5
5
55
55
82
82
Pg. 15V06232023
MAINTENANCE SCHEDULE
ROUTINE HOME
MAINTENANCE
Links, Pull Pins, Spring
Clips, Swivels, Weight Stack Pins WEEKLY
Upholstery WEEKLY
Cables and their Fittings WEEKLY
Tautness of all Shrouds WEEKLY
Accessory Bars and
Handles 3 MONTHS
All Decals 3 MONTHS
All Nuts and Bolts.
Tighten if Needed 3 MONTHS
Anti-Skid surfaces 3 MONTHS
Guide Rods
with a Teflon based lubricant 3 MONTHS
Seat Sleeves and
all Plastic Slides 3 MONTHS
All Glossy Finishes YEARLY
Cables, Belts and
Connecting Parts 2 YEARS
MAINTENANCE
WARNING
DO NOT place styrofoam or printed materials on the seat pads. Over time, these may stick to the pads and
mar the surface.
DO NOT leave items sitting on the seat pads, these pads have a special density that takes shape to
objects and small objectswill leave imprints in the surface that may take time to come out.
• Periodically inspect the cables for splitting, cracking or fraying. Also watch for bulging or at areas in the cable.
• Immediately replace cables at the rst signs of damage or wear. Never use equipment with damaged or worn cables.
• Cables naturally stretch over time, so check cable slack periodically and adjust cable tension as needed.
• Regularly inspect product for loose hardware.
• Do not use or store equipment outdoors.
• Inspect snap links, swivels, handles and weight stack pin for wear or damage. If wear or damage exists,
replace with Inspire Fitness parts only.
• Locate and familiarize yourself with all warning decals on the Smith Machine Functional Trainer.
• Replace damaged or worn upholstery immediately.
• Periodically wipe down guide rods with a dry cloth and re-apply a thin coat of a Teon™ based lubricant.
Pg. 16 V06232023
12
3
4
5
6
25
23
21
7
7
8
9
10
11
14
12
13
17
15 22
16 18
19
25
19
25
19
25 19 25
19
25
19
25
19
25 19 25
25
24
24 25
25
25
25
23
21
20
23
25
20
23
25
20
23
25
20
23
25
6
25
23
21
25
23
21
13
17
7
7
8
9
10
16
22 15
25
24
24
25
18
25
25
27
28 29 29 30
26
26
1
2
3
4
5
6
7
815
9 16
10 17
11 18
12 19
13 20
14 21
1
2
3
4
5
6
7
815
916
10 17
11 18
12 19
13 20
14 21
Pg. 17V06232023
PARTS LIST
1Right Station Assembly 100100 1
2Left Station Assembly 100101 1
3Upper Frame Assembly 100104 1
4Lower Cross Brace 100102 1
5Upper Cross Brace 100103 1
6Guide Rod Bracket 100185 2
7Guide rod 100122 4
8Selector Stem Assembly 100183 2
9Weight Selector Pin 100151 2
10 Weight Plate 100177 30
11 Rope 100172 1
12 Curl Bar 100184 1
13 Single Handle 100152 2
14 Chin Up Belt 100171 1
15 Height Adjustment Handle 100145 2
16 Rubber Bumper 100148 4
17 Hook 100174 2
18 M10×80 Allen Bolt 100187 4
19 M10×70 Allen Bolt 100188 8
20 M10×25 Allen Bolt 100189 4
21 M10×20 Allen Bolt 100190 4
22 M5×10 Allen Bolt 100191 2
23 #10 Lock Washer 100192 8
24 M10 Aircraft Nut 100193 8
25 #10 Washer 100194 24
26 Resistance Label Set 100178 2
27 Tablet Holder 100186 1
28 M6×75 Bolt 100195 1
29 #6 Washer 100196 2
30 M6 Nut 100197 1
31 Pulley Bracket 100110 2
32 Flat Washer Assembly 100115 2
33 Pulley 100173 2
34 Right Lock Switch 100108 1
35 Left Lock Switch 100109 1
36 M10×50 Allen Bolt 100201 2
37 #6 Allen Wrench 100224 1
38 #5 Allen Wrench 100225 1
39 #4 Allen Wrench 100226 1
40 #10Wrench 100227 1
centr.com
This manual suits for next models
1
Table of contents
Other CENTR Fitness Equipment manuals
