Central Machinery CENTRAL MACHINERY 95288 User manual

MOBILE BASE / 300 LBS CAPACITY
MODEL 95288
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd. Camarillo, CA 93011
Visit ourWeb site at http://www.harborfreight.com
Copyright© 2006 by Harbor Freight Tools®.All rights reserved.No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor FreightTools.
ForTechnical questions and replacement parts,please call 1-800-444-3353.
®
Due to continuing improvements, actual product may differ slightly from the product described herein.

SPECIFICATIONS
BRACKETS: Formedsteel
FINISH: Black enamel
SWIVEL CASTERS: Black PVC, (2")
PAD KNOBS: Black Polypropylene
WHEELS: Black PVC, (3")
NETWEIGHT: 11.65 LBS.
WEIGHTCAPACITY: 300 LBS.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating, inspection,
maintenance and cleaning procedures, parts and assembly diagram. Keep your invoice with this
manual.Writethe invoicenumberon the inside ofthe front cover.Write the productsserialnumberin
the back of the manual near the assembly diagram, or write the month and year of purchase if the
product has no serial number. Keep this manual and invoice in a safe and dry place for future
reference.
SAFETY WARNINGS AND PRECAUTIONS
Warning:When using this tool, basic safety precautions should always be followed to reduce the
risk of personal injury and/or damage to the equipment.
READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
1. Keep floor and work area clean;cluttered work areas invite injuries.
2. Keep children away. Children can be a distraction.Children should never be allowed to play
or loiter around work area. Do not let children ever play with, or ride on this Mobile Base.
3. Keep work area well lighted. Do not use in an area where you cannot see physical barriers
whenmoving thistool.
4. Dress properly.Whenworking aroundWheels andCasters,wearhardleather shoes.Always
wear ANSI-Approved Impact Safety Goggles.
SAFETY WARNINGS SPECIFIC TO THIS MOBILE BASE
1. Do not exceed the weight capacity of 300 LBS. for the Mobile Base.
2. Do not use the Mobile Base on any surface with a slope, or dip, such as a driveway.It is
to be used ONLY on a flat, level, smooth surface.Move the Mobile Base slowly when it is
loadedwith a tool.
3. The Mobile Base is not designed as a furniture mover.Do not modify this product or use it
for any purpose other than that for which it is meant.
4. Be sure to unplug any electrical attachment before attempting to move this Mobile Base.
5. Before using, lock or tie down any pivoting or moving parts on the tool (to be moved), such
as the arm on a band saw.
6. Do not leave the Wheels on the Mobile Base unlocked. (Pad Knob (4), rotated to “up”
position)
7. Properly secure the Mobile Base to the tool being used, before moving it.
SKU95288 For technical questions,pleasecall 1-800-444-3353. Page2

CAUTION: Be aware of dynamic loading.Movement of the Mobile Base under load, or a load
dropping onto the Mobile Base could create a momentary load exceeding the load capacity of
300 LBS., which could result in damage to the Mobile Base, and/or personal injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur.It must be understood by
the operator that common sense and caution are factors that cannot be built into this product
but must be supplied by the operator.
UNPACKING
When unpacking, check to make sure all parts listed on page 6 of this manual are included.If any
parts are missing or broken, please call Harbor FreightTools® as soon as possible.
ASSEMBLY INSTRUCTIONS

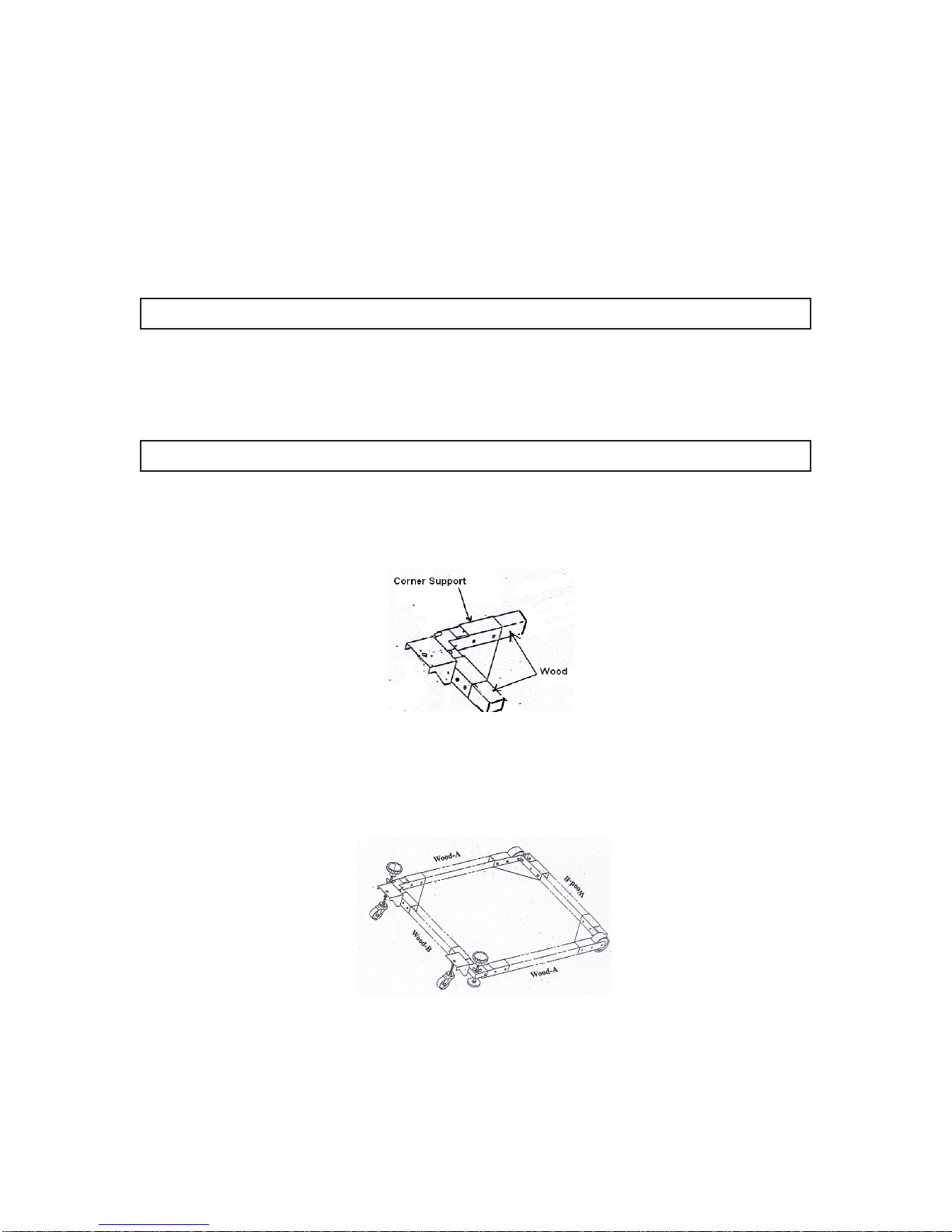

1. The Corner Supports (1) will fit wood pieces (not included) of varying lengths,
depending on the size of the tool to be moved.The sides of the wood should measure
1-1/4"W X 1-1/4"H in order to slide into the openings in the Corner Supports (1),
(Illustration1).
(Illustration1)
2. Mobile Base length would be the length of the tool to which it is to be attached, minus
1-3/4".This is known as,“Wood-A”, (not included), (Illustration 2).
3. Mobile Base width would be the width of the tool to which it is to be attached plus 5/8".
This is known as, “Wood-B”, (not included), (Illustration 2).
(Illustration2)
SKU95288 For technical questions,pleasecall 1-800-444-3353. Page3
REV 02/07

Warning:Be aware when adding wood pieces to corner supports.This Mobile Base,
like any tool has its limitations. Do not overbuild or overload. Always keep in mind
theWeight Capacity and the Base size of the tool you wish to load onto this Mobile
Base.
4. Use 3/8" drill bit (not included) to drill four holes, two one each side of the ends of
“Wood A”.Use the pre-drilled holes located in the sides of the Corner Supports as
guides for where to drill the holes for the Hex Screws. Push one Hex HD Screw (11),
through each hole with the head of the Screw on the inside of the Corner Support (1),
and the Lock Nut (16) on the outside, (Illustration 3).
5. Repeat for each of the four Corner Supports (1).
NOTE: Once assembled, check each of the Corner Supports (1), and all Hex Screws (11),
and Lock Nuts (16) to make sure all parts are assembled correctly and the Mobile Base is
stable.Always check for any damaged or worn parts.
NOTE:Many parts listed and shown are for location illustration only and are not available for
replacementparts.
SKU95288 For technical questions,pleasecall 1-800-444-3353. Page4
REV 02/07
“WoodA”

No# Description QTY
1 CornerSupport 4
2 Casters Bracket 2
3 Pad Bracket 2
4 PadKnob 2
5 PadCover 2
6 Plastic Pad 2
7 2" Swivel Caster 2
8 3"Wheel 2
9 Screw Bolt 2
10 Rivet 2
11 Hex Head Screw M8 x 50 16
12 Hex Head Bolt M8 x 55 4
13 Flash Washer M8 2
14 Wing Nut 1/2" 2
15 Hex Nut 3/8” -16NC 4
16 Nylon Lock Nut M8 20
DIAGRAM
PLEASE READ CAREFULLY
SKU95288 For technical questions,pleasecall 1-800-444-3353. Page5
PARTS LIST
The Manufacturer and/or Distributor have provided the Parts Breakdown and Assembly Diagram
in this Manual as a reference tool only.This Tool is not meant be disassembled by anyone other
than a QUALIFIED REPAIR FACILITY.Neither the Manufacturer and/or the Distributor make any
representation or warranty of any kind to the Buyer that He or She are qualified to make any
repairsto theproduct represented inthis Manual. In fact, theManufacturer and /or the Distributor
expresslystates that all repairsand parts replacementshouldbe undertakenbyCERTIFIEDAND
LICENSEDTECHNICIANS,and NOTbythe Buyer.The Buyerassumes all riskand liability arising
out of His or Her repairs to the original product or the replacement parts thereto, or arising out of
His or Her installation of replacement parts thereto.

SKU95288 For technical questions,pleasecall 1-800-444-3353. Page6
