Central pneumatic Earthquake 65159 Installation manual

AIR RATCHET WRENCH

1/4” 1/2” 3/8”

SET UP AND OPERATING INSTRUCTIONS

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

65159 65160 65161

Model

65161

Model

65160

Model

65159

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 2

SAVE THIS MANUAL

Keep this manual for the safety warn-

ings and precautions, assembly, operat-

ing, inspection, maintenance and cleaning

procedures. Write the product’s serial

number in the back of the manual near the

assembly diagram (or month and year of

purchase if product has no number). Keep

this manual and the receipt in a safe and

dry place for future reference.

Safety Alert Symbol and Signal

Words

In this manual, on the labeling,

and all other information provid-

ed with this product:

This is the safety alert

symbol. It is used to alert

you to potential personal

injury hazards. Obey all

safety messages that

follow this symbol to avoid

possible injury or death.

DANGER indicates

a hazardous

situation which, if not

avoided, will result in death or

serious injury.

WARNING

indicates a

hazardous situation which, if

not avoided, could result in

death or serious injury.

CAUTION, used

with the safety

alert symbol, indicates a

hazardous situation which, if

not avoided, could result in

minor or moderate injury.

NOTICE is used to

address practices

not related to personal injury.

CAUTION, without

the safety alert

symbol, is used to address

practices not related to

personal injury.

IMPORTANT SAFETY

INSTRUCTIONS

INSTRUCTIONS PERTAINING

TO A RISK OF FIRE,

ELECTRIC SHOCK, OR

INJURY TO PERSONS

WARNING – When using tools, basic pre-

cautions should always be followed,

including the following:

General

To reduce the risks of electrica.

shock, re, and injury to persons,

read all the instructions before us-

ing the tool.

Work area

Keep the work area clean and wella.

lighted. Cluttered benches and dark

areas increase the risks of electric

shock, re, and injury to persons.

Do not operate the tool in explo-b.

sive atmospheres, such as in the

presence of ammable liquids,

gases, or dust. The tool is able to

create sparks resulting in the ignition

of the dust or fumes.

Keep bystanders, children, andc.

visitors away while operating the

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 3

tool. Distractions are able to result in

the loss of control of the tool.

Personal safety

Stay alert. Watch what you are do-a.

ing and use common sense when

operating the tool. Do not use the

tool while tired or under the inu-

ence of drugs, alcohol, or medica-

tion. A moment of inattention while

operating the tool increases the risk

of injury to persons.

Dress properly. Do not wear looseb.

clothing or jewelry. Contain long

hair. Keep hair, clothing and gloves

away from moving parts. Loose

clothes, jewelry, or long hair increas-

es risk of injury to persons as a result

of being caught in moving parts.

Avoid unintentional starting. Bec.

sure the switch is off before con-

necting to the air supply. Do not

carry the tool with your nger on the

Trigger or connect the tool to the air

supply with the switch on.

Do not overreach. Keep properd.

footing and balance at all times.

Proper footing and balance enables

better control of the tool in unexpect-

ed situations.

e. Use safety equipment. A

dust mask, non-skid safety

shoes and a hard hat must

be used for the applicable

conditions. Wear heavy-duty work

gloves during use.

f. Always wear eye protec-

tion. Wear ANSI-ap-

proved safety goggles.

g. Always wear hearing

protection when using

the tool. Prolonged expo-

sure to high intensity noise

is able to cause hearing loss.

Tool use and care

Use clamps or another practicala.

way to secure and support the

workpiece to a stable platform.

Holding the work by hand or against

the body is unstable and is able to

lead to loss of control.

Do not force the tool.b. Use correct

tool for application. The correct tool

will do the job better and safer at the

rate for which the tool is designed.

Do not use the tool if the switchc.

does not turn the tool on or off.

Any tool that cannot be controlled

with the switch is dangerous and

must be repaired.

Disconnect the tool from the aird.

source before making any adjust-

ments, changing accessories, or

storing the tool. Such preventive

safety measures reduce the risk of

starting the tool unintentionally. Turn

off and detach the air supply, safely

discharge any residual air pressure,

and release the throttle and/or turn

the switch to its off position before

leaving the work area.

Store the tool when it is idle out ofe.

reach of children and other un-

trained persons. A tool is dangerous

in the hands of untrained users.

Maintain the tool with care.f. Keep

tool sharp and clean. A properly

maintained tool reduces the risk of

binding and is easier to control.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 4

Check for misalignment or bind-g.

ing of moving parts, breakage of

parts, and any other condition that

affects the tool’s operation. If dam-

aged, have the tool serviced before

using. Many accidents are caused

by poorly maintained tools. There is a

risk of bursting if the tool is damaged.

Use only accessories that areh.

identied by the manufacturer for

the specic tool model. Use of an

accessory not intended for use with

the specic tool model, increases the

risk of injury to persons.

Service

Tool service must be performeda.

only by qualied repair personnel.

When servicing a tool, use onlyb.

identical replacement parts. Use

only authorized parts.

Use only the lubricants suppliedc.

with the tool or specied by the

manufacturer.

Air source

a. Never connect to an air

source that is capable of

exceeding 90 psi. Over

pressurizing the tool may

cause bursting, abnormal operation,

breakage of the tool or serious injury

to persons. Use only clean, dry,

regulated compressed air at the rated

pressure or within the rated pressure

range as marked on the tool. Always

verify prior to using the tool that the

air source has been adjusted to the

rated air pressure or within the rated

air-pressure range.

Never use oxygen, carbon dioxide,b.

combustible gases or any bottled

gas as an air source for the tool.

Such gases are capable of explosion

and serious injury to persons.

SAVE THESE

INSTRUCTIONS.

SYMBOLS AND SPECIFIC

SAFETY INSTRUCTIONS

Symbol Denitions

Symbol Property or statement

noNo-load speed

.../min Revolutions or reciprocation per

minute

PSI Pounds per square inch of pressure

ft-lb Foot-pounds of torque

BPM Blows per minute

CFM Cubic Feet per Minute ow

SCFM Cubic Feet per Minute ow at

standard conditions

NPT National pipe thread, tapered

NPS National pipe thread, straight

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

eye protection.

WARNING marking concerning Risk

of Hearing Loss. Wear hearing

protection.

WARNING marking concerning Risk

of Respiratory Injury. Wear NIOSH-

approved dust mask/respirator.

WARNING marking concerning Risk

of Explosion.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 5

Specic Safety Instructions

The warnings and precautions dis-1.

cussed in this manual cannot cover

all possible conditions and situations

that may occur. It must be under-

stood by the operator that common

sense and caution are factors which

cannot be built into this product, but

must be supplied by the operator.

WARNING: The brass components2.

of this product contain lead, a chemi-

cal known to the State of California

to cause birth defects (or other repro-

ductive harm). (California Health &

Safety code § 25249.5, et seq.)

Only use with accessories rated to3.

handle forces exerted by tool during

operation. Other accessories not de-

signed for the forces generated may

break and forcefully launch pieces.

Attach all accessories properly to the4.

tool before connecting the air sup-

ply. A loose accessory may detach or

break during operation.

Obey the manual for the air compres-5.

sor used to power this tool.

Install an in-line shutoff valve to allow6.

immediate control over air supply in

emergency, even if hose is ruptured.

Use this tool with both hands only.7.

Using tools with only one hand can

result in loss of control.

Do not lay the tool down until it has8.

come to a complete stop. Moving

parts can grab the surface and pull

the tool out of your control.

Do not force the tool. Use a larger9.

one if needed.

Vibration Precautions

This tool vibrates during use. Re-

peated or long-term exposure to vibra-

tion may cause temporary or permanent

physical injury, particularly to the hands,

arms and shoulders. To reduce the risk of

vibration-related injury:

Anyone using vibrating tools regu-1.

larly or for an extended period should

rst be examined by a doctor and

then have regular medical check-

ups to ensure medical problems are

not being caused or worsened from

use. Pregnant women or people

who have impaired blood circulation

to the hand, past hand injuries, ner-

vous system disorders, diabetes, or

Raynaud’s Disease should not use

this tool. If you feel any medical or

physical symptoms related to vibra-

tion (such as tingling, numbness, and

white or blue ngers), seek medical

advice as soon as possible.

Do not smoke during use. Nico-2.

tine reduces the blood supply to the

hands and ngers, increasing the risk

of vibration-related injury.

Wear suitable gloves to reduce the3.

vibration effects on the user.

Use tools with the lowest vibration4.

when there is a choice between dif-

ferent processes.

Include vibration-free periods each5.

day of work.

Grip tool as lightly as possible (while6.

still keeping safe control of it). Let

the tool do the work.

To reduce vibration, maintain tool as7.

explained in this manual. If abnormal

vibration occurs, stop immediately.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 6

SAVE THESE

INSTRUCTIONS.

FUNCTIONAL DESCRIPTION

Specications

Maximum Air Pressure 90 PSI

Air Inlet 1/4” -18 NPT

Maximum Torque

65159 1/4” Air Ratchet

65160 1/2” Air Ratchet

65161 3/8” Air Ratchet

40 ft-lbs.

140 ft-lbs.

100 ft-lbs.

Average Air Consumption

65159 1/4” Air Ratchet

65160 1/2” Air Ratchet

65161 3/8” Air Ratchet

3 CFM @ 90 PSI

6 CFM @ 90 PSI

INITIAL TOOL SET UP/

ASSEMBLY

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Note: For additional information regarding

the parts listed in the following pages,

refer to the Assembly Diagram near

the end of this manual.

Unpacking

When unpacking, make sure that

the item is intact and undamaged. If any

parts are missing or broken, please call

Harbor Freight Tools at the number shown

throughout the manual as soon as pos-

sible.

This air tool may be shipped with a•

protective plug covering the air inlet.

Remove this plug before set up.

Air Supply

TO PREVENT

EXPLOSION:

Use only clean, dry, regulated,

compressed air to power this

tool. Do not use oxygen,

carbon dioxide, combustible

gases, or any other bottled

gas as a power source for this

tool.

1. Incorporate an in-line oiler, shut-off

valve, regulator with pressure gauge,

and lter for best service, as shown in

the diagram above. An in-line shut-

off valve is an important safety

device because it controls the air

supply even if the air hose is rup-

tured.

Note: If an automatic oiler system is not

used, add a few drops of Pneumatic

Tool Oil to the airline connection be-

fore operation. Add a few more drops

after each hour of continual use.

Attach an air hose to the compres-2.

sor’s air outlet. Connect the air hose

to the air inlet of the tool. Other com-

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 7

ponents, such as a connector and

quick coupler, will make operation

more efcient, but are not required.

WARNING! TO PREVENT SERIOUS

INJURY FROM ACCIDENTAL

OPERATION:

Do not install a female quick

coupler on the tool. Such a coupler

contains an air valve that will allow

the air tool to retain pressure and

operate accidentally after the air

supply is disconnected.

Note: Air ow, and therefore tool perfor-

mance, can be hindered by under-

sized air supply components.

The air hose must be long enough3.

to reach the work area with enough

extra length to allow free movement

while working.

Make sure the tool’s throttle or switch4.

is in the off position; refer to Opera-

tion section for description of con-

trols.

Close the in-line safety valve be-5.

tween the compressor and the tool.

Turn on the air compressor according6.

to the manufacturer’s directions and

allow it to build up pressure until it

cycles off.

Adjust the air compressor’s output 7.

regulator so that the air output is

enough to properly power the tool,

but the output will not exceed the

tool’s maximum air pressure at any

time. Adjust the pressure gradually,

while checking the air output gauge

to set the right pressure range.

Inspect the air connections for leaks.8.

Repair any leaks found.

If the tool will not be used at this9.

time, turn off and detach the air sup-

ply, safely discharge any residual air

pressure, and release the throttle

and/or turn the switch to its off posi-

tion to prevent accidental operation.

Note: Residual air pressure should not be

present after the tool is disconnected

from the air supply. However, it is a

good safety measure to attempt to

discharge the tool in a safe fashion

after disconnecting to ensure that the

tool is disconnected and unpowered.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 8

OPERATING INSTRUCTIONS

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Inspect tool before use, looking

for damaged, loose, and

missing parts. If any problems

are found, do not use tool until

repaired.

Tool Set Up

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION: Detach the air

supply, safely discharge any

residual air pressure in the

tool, and release the throttle

and/or turn the switch to its

off position before performing

any inspection, maintenance,

or cleaning procedures.

TO PREVENT SERIOUS

INJURY: Do not adjust or

tamper with any control or

component in a way not

specically explained within

this manual. Improper

adjustment can result in

tool failure or other serious

hazards.

For1. 65159 1/4” Air Ratchet, insert

1/4” drive socket (not included) onto

Anvil (38).

For 65160 1/2” Air Ratchet, insert

1/2” drive socket (not included) onto

Anvil (45).

For 65161 3/8” Air Ratchet, insert

3/8” drive socket (not included) onto

Anvil (45).

Designate a work area that is clean2.

and well-lit. The work area must not

allow access by children or pets to

prevent injury and distraction.

Route air hose along a safe route to3.

reach work area without creating a

tripping hazard or exposing the air

hose to possible damage. The air

hose must be long enough to reach

work area with enough extra length to

allow free movement while working.

Secure loose workpieces using a vise4.

or clamps (not included) to prevent

movement while working.

There must not be hazardous ob-5.

jects (such as utility lines or foreign

objects) nearby that will present a

hazard while working.

General Operating Instructions

If an automatic oiler is not used,1. add

a few drops of Pneumatic Tool Oil

to the airline connection before use.

Add a few drops more after each

hour of continual use.

Attach an air hose to the compres-2.

sor’s air outlet. Connect the air hose

to the air inlet of the tool.

For 65159 1/4” Air Ratchet, turn

Forward/Reverse Lever (35A) to the

desired orientation. Set to Forward by

turning counterclockwise; Reverse by

turning clockwise.

For 65160 1/2” Air Ratchet, turn

Forward/Reverse Lever (42) to the

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 9

desired orientation. Set to Forward by

turning counterclockwise; Reverse by

turning clockwise.

For 65161 3/8” Air Ratchet, turn

Forward/Reverse Lever (42) to the

desired orientation. Set to Forward by

turning counterclockwise; Reverse by

turning clockwise.

To adjust air pressure from Low to 3.

High, use a at-head screwdriver (not

included) and:

For 65159 1/4” Air Ratchet, turn the

Air Regulator (6) to the desired Low/

High Setting.

For 65160 1/2” Air Ratchet, turn the

Air Regulator (9) to the desired Low/

High Setting.

For 65161 3/8” Air Ratchet, turn the

Air Regulator (7) to the desired Low/

High Setting.

Place the drive socket over the nut to4.

be tightened or loosened.

For 65159 1/4” Air Ratchet, push the

Trigger (48) down to activate tool.

For 65160 1/2” Air Ratchet, push the

Trigger (14) down to activate tool.

For 65161 3/8” Air Ratchet, push the

Trigger (4) down to activate tool.

When job is done, release Trigger.5.

If the tool requires more force to6.

accomplish the task, verify that the

tool receives sufcient, unobstructed

airow (CFM) and increase the

pressure (PSI) output of the regulator

up to the maximum air pressure

rating of this tool.

CAUTION!7. TO PREVENT TOOL

AND ACCESSORY FAILURE,

RESULTING IN INJURY:

Do not exceed the tool’s maximum

air pressure rating. If tool still does

not have sufcient force at maximum

pressure and sufcient airow, then a

larger tool may be required.

To prevent accidents, detach air sup-8.

ply, safely discharge any residual air

pressure in tool, and release throttle

and/or turn switch to off position after

use. Clean external surfaces of tool

with clean, dry cloth, and apply a thin

coat of tool oil. Then store tool in-

doors out of children’s reach.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 10

USER-MAINTENANCE

INSTRUCTIONS

Procedures not specically

explained in this manual

must be performed only by a

qualied technician.

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION: Detach the air

supply, safely discharge any

residual air pressure in tool,

and release throttle and/or

turn switch to off position

before performing any

inspection, maintenance, or

cleaning procedures.

TO PREVENT SERIOUS

INJURY FROM TOOL

FAILURE: Do not use

damaged equipment. If

abnormal noise, vibration,

or leaking air occurs, have

problem corrected before

further use.

Cleaning, Maintenance, and

Lubrication

Note: These procedures are in addition to

the regular checks and maintenance

explained as part of the regular op-

eration of the air-operated tool.

Daily - Air Supply Maintenance:1.

Every day, perform maintenance on

the air supply according to the com-

ponent manufacturers’ instructions.

The lubricator’s oil level needs to be

maintained and the moisture lter

must be regularly drained. Perform-

ing routine maintenance on the air

supply will allow the tool to operate

more safely and will also reduce wear

on the tool.

Quarterly (every 3 months) - Tool2.

Disassembly, Cleaning, and In-

spection: Have the internal mecha-

nism cleaned, inspected, and lubri-

cated by a qualied technician. If the

vanes need replacement, all vanes

should be replaced as a set.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 11

Troubleshooting

Problem Possible Causes Likely Solutions

Decreased output. Not enough air pressure and/1.

or air ow.

Obstructed trigger.2.

Incorrect lubrication or not3.

enough lubrication.

Blocked air inlet screen (if4.

equipped).

Air leaking from loose housing.5.

Mechanism contaminated.6.

Vane wear or damage.7.

Check for loose connections and make sure1.

air supply is providing enough air ow (CFM)

at required pressure (PSI) to tool’s air inlet.

Do not exceed maximum air pressure.

Clean around trigger to ensure free2.

movement.

Lubricate using air tool oil and grease3.

according to directions.

Clean air inlet screen of buildup.4.

Make sure housing is properly assembled5.

and tight.

Have qualied technician clean and lubricate 6.

mechanism. Install in-line lter in air supply

as stated in Initial Set Up: Air Supply.

Replace all vanes.7.

Housing heats

during use.

Incorrect lubrication or not1.

enough lubrication.

Worn parts.2.

Lubricate using air tool oil and grease1.

according to directions.

Have qualied technician inspect internal 2.

mechanism and replace parts as needed.

Severe air

leakage.

(Slight air leakage

is normal,

especially on older

tools.)

Cross-threaded housing1.

components.

Loose housing.2.

Damaged valve or housing.3.

Dirty, worn or damaged valve.4.

Check for incorrect alignment and uneven1.

gaps. If cross-threaded, disassemble and

replace damaged parts before use.

Tighten housing assembly. If housing cannot2.

tighten properly, internal parts may be

misaligned.

Replace damaged components.3.

Clean or replace valve assembly.4.

Follow all safety precautions whenever diagnosing or servicing the

tool. Disconnect air supply before service.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 12

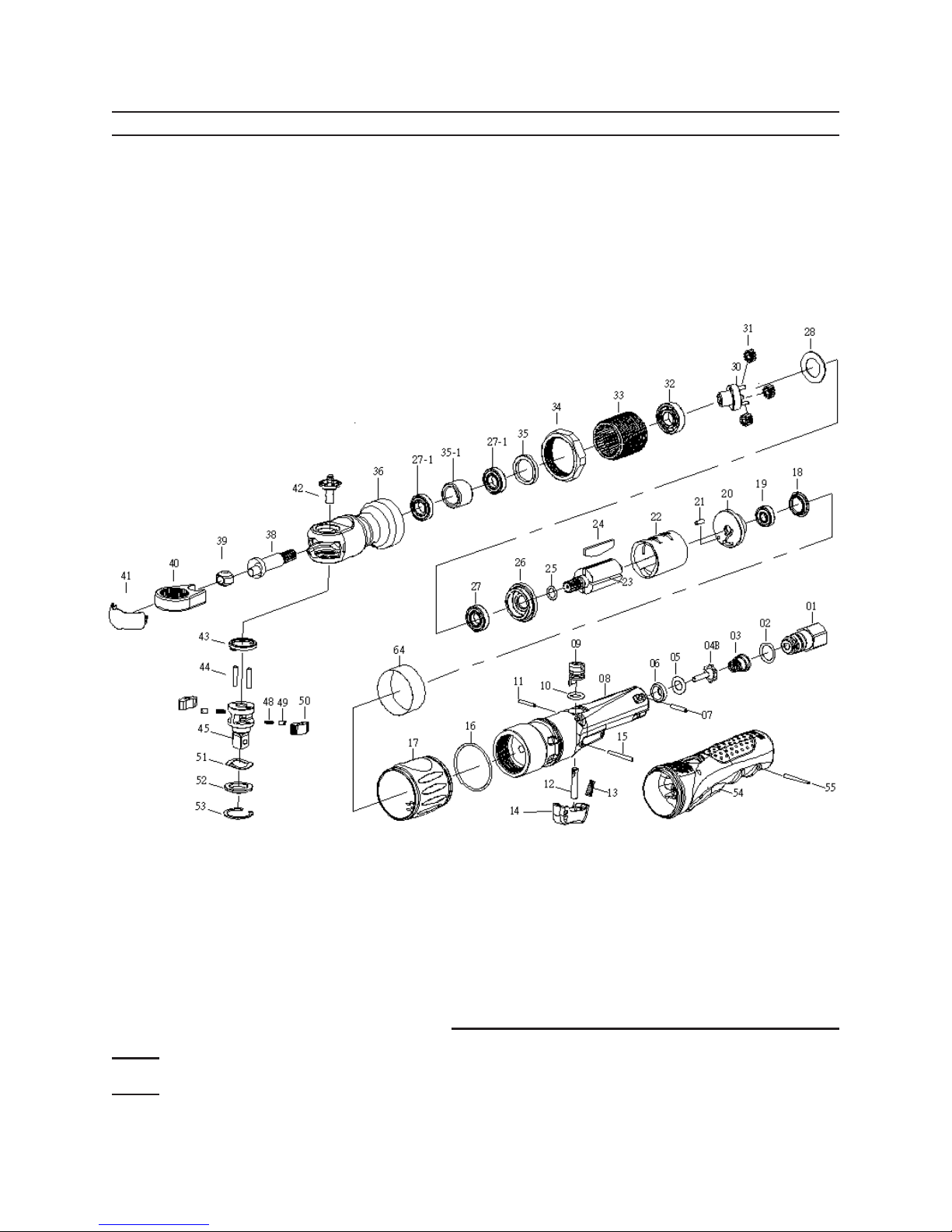

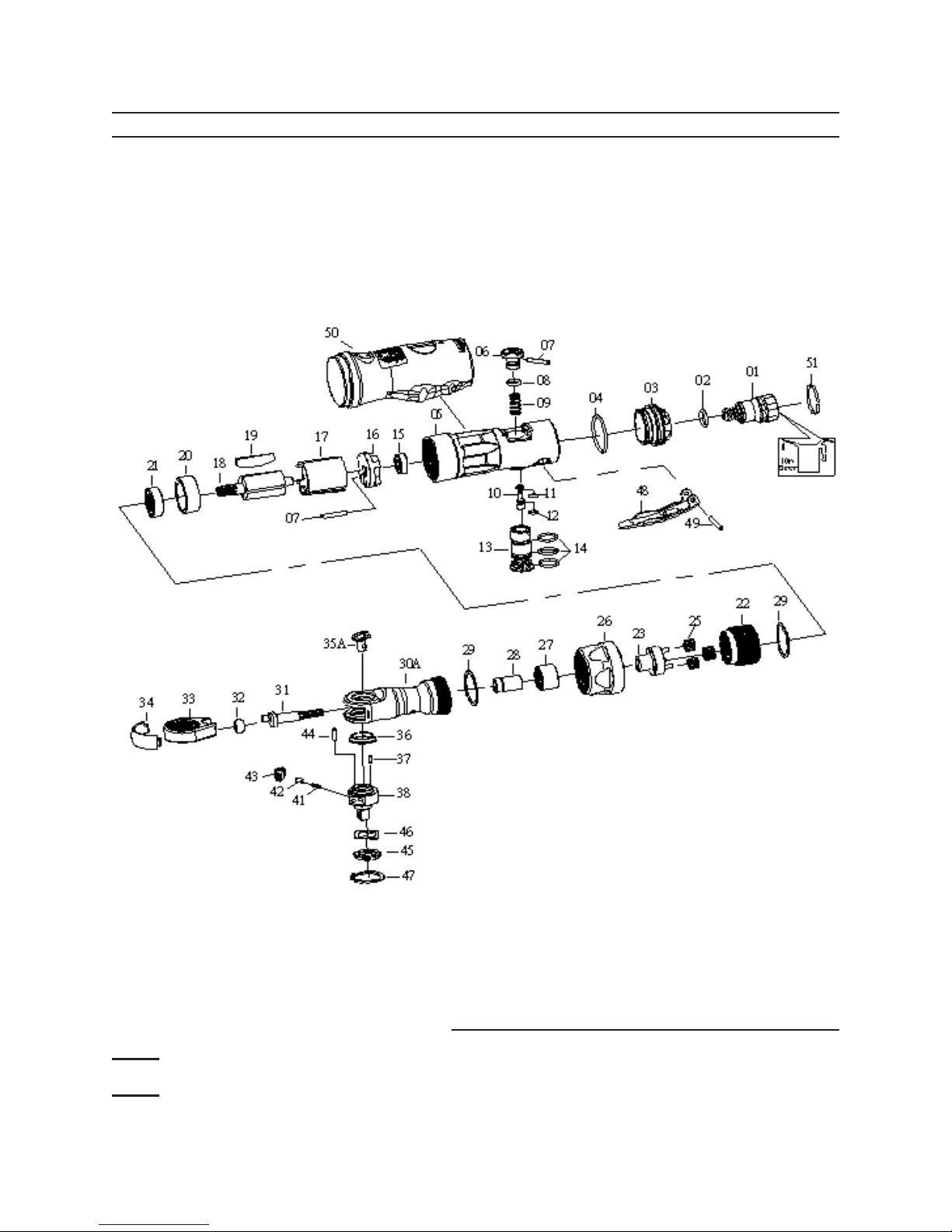

65159 PARTS LIST

Part Description Q’ty

1 Air Inlet 1

2 O-Ring 1

3 Exhaust Deector 1

4 O-Ring 1

5 Motor Housing 1

6 Air Regulator 1

7 Spring Pin 2

8 O-Ring 1

9 Throttle Valve Spring 1

10 Throttle Valve Stem 1

11 O-Ring 1

12 O-Ring 1

13 Power Regulator 1

14 O-Ring 3

15 Ball Bearing 1

16 Rear End Plate 1

17 Cylinder 1

18 Rotor 1

19 Rotor Blade 4

20 Front End Plate 1

21 Ball Bearing 1

22 Ring Gear 1

23 Work Spindle

(Including Work Spindle Pin)

25 Planet Gear 3

26 Coupling Nut 1

65159 PARTS LIST

Part Description Q’ty

27 Needle Bearing 1

28 Bushing 1

29 Spacer 2

30A Ratchet Housing

(Including Grease Fitting)

31 Crank Shaft 1

32 Drive Bushing 1

33 Ratchet Yoke 1

34 Ratchet Housing Cover 1

35A Forward/Reverse Lever

(Including Grease Fitting)

36 Lock Washer 1

37 Spring Pin 1

38 Anvil (Including Steel Ball Spring,

Steel Ball)

41 Lock Spring 1

42 Lock Pin 1

43 Ratchet Pawl 1

44 Ratchet Pawl Pin 1

45 Thrust Spacer 1

46 Thrust Washer 1

47 Retainer 1

48 Trigger 1

49 Trigger Pin 1

50 Housing Cover 1

51 Retainer 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY

DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT

HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/

OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD

BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE

BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE

ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER

INSTALLATION OF REPLACEMENT PARTS THERETO.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 13

65159 ASSEMBLY DIAGRAM

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not avail-

able individually as replacement parts.

SKU 65159 60 61 For technical questions, please call 1-800-444-3353. Page 14

65160 PARTS LIST

Part Description Q’ty

1 Air Inlet 1

2 O-Ring 1

3 Throttle Valve Spring 1

4B Throttle Valve Assembly

(Includes Throttle Valve Rubber

and Throttle Valve Pin)

5 O-Ring 1

6 Throttle Valve Seat 1

7 Spring Pin 1

8 Motor Housing 1

9 Air Regulator 1

10 O-Ring 1

11 Spring Pin 1

12 Throttle Valve Stem 1

13 Trigger Spring 1

14 Trigger 1

15 Spring Pin 1

16 O-Ring 1

17 Exhaust Deector 1

18 Bearing Cap 1

19 Ball Bearing 4

20 Rear End Plate 1

21 Spring Pin 1

22 Cylinder 1

23 Rotor 1

24 Rotor Blade 4

25 O-Ring 1

26 Front End Plate 1

27 Ball Bearing 1

65160 PARTS LIST

Part Description Q’ty

27-1 Ball Bearing 2

28 Spacer 1

30 Work Spindle 1

31 Planet Gear 3

32 Ball Bearing 1

33 Ring Gear 1

34 Coupling Nut 1

35 Bushing Spacer 1

35-1 Bushing 1

36 Ratchet Housing 1

38 Crank Shaft 1

39 Drive Bushing 1

40 Ratchet Yoke 1

41 Ratchet Housing Cover 1

42 Forward/Reverse Lever

(Including Grease Fitting)

43 Lock Washer 1

44 Pawl Retaining Pin 2

45 Anvil (Including Steel Ball, Steel

Ball Spring)

48 Lock Spring 2

49 Lock Pin 2

50 Ratchet Pawl 2

51 Thrust Spacer 1

52 Thrust Washer 1

53 Retaining Ring 1

54 Housing Cover 1

55 Spring Pin 1

64 Mufer Element 1
