Central Pneumatic 95801 Parts list manual

2-IN-1 AIR HAMMER
WITH 4 PC CHISELS & NEEDLE SCALER
Model 95801
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 95801 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
AIR HAMMER:
Overall dimensions: 7-1/4” L X 2’ W X 6-1/2” H
Activation method: Trigger squeeze design.
Net weight: 3.35 lb
Air inlet: 1/4” - 18 NPT
Air Consumption: 4 CFM
Maximum Operating Pressure: 90 PSI
CHISELS:
Types: 1 - Ripping Chisel
1 - Cold Chisel
1 - Punch Chisel
1 - Panel cutter Chisel
Dimensions:
Shanks: 0.395” ~ 397”
Bore: 0.401”
Lengths: 4-3/4” ~ 4-7/8” L
Net weights: 3.10 ~ 3.25 oz.
SCALER:
Overall dimensions: 9” L X 1-7/8” O.D.
Needle quantity: 19
Needle dimensions: 7-1/8”L X 1/8” O.D. X 3/16” Head O.D.
Net weight: 2.05 lb.
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly
diagram, or write month and year of purchase if product has no serial number. Keep this
manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
serious injury.
SAVE THESE INSTRUCTIONS
Use compressed air only: Clean, dry, regulated compressed air at no more than
90 PSI. Never use oxygen, carbon dioxide, combustible gases, or any other bottled
gas as a power source for this tool.
1.

Page 3SKU 95801 For technical questions, please call 1-800-444-3353.
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Use protection: Always wear ANSI-approved safety eye goggles, dust mask/
respirator, work gloves, hard toed shoes, long sleeve shirt and long pants
when using or servicing this Air Hammer.
Do not operate power tools in explosive atmospheres, such as in the pres-
ence of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
Stay alert. Watch what you are doing, and use common sense when operat-
ing a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in power
tools with the Power Switch on, invites accidents.
Be sure all tools and/or attachments used with this Air Hammer are secure
before plugging in or turning on the air supply.
Be careful when connecting/disconnecting air supply. It is recommended to use
quick disconnects (not included) rather than screw-on air connections.
Always disconnect the air supply when this Air Hammer is not being used.
Use ONLY the attachments that come with this Air Hammer. Using or altering
other parts/attachments could damage this tool or cause personal injury.
Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a moving part of the power tool may result
in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
Use clamps (not included) or other practical ways to secure and support the
workpiece to a stable platform. Holding the work by hand or against your body
is unstable and may lead to loss of control.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

Page 4SKU 95801 For technical questions, please call 1-800-444-3353.
Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed. Do not force
the tool and do not use the tool for a purpose for which it is not intended.
Do not use the Air Hammer if the Power Switch does not turn it on or off. Any
tool that cannot be controlled with the Power Switch is dangerous and must be
replaced.
Disconnect the air supply before making any adjustments, changing acces-
sories, or storing the tool. Such preventive safety measures reduce the risk of
starting the tool accidentally. Always unplug the tool from its air supply before
performing any inspection, maintenance, or cleaning procedures.
Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users. Never allow Children to come in
contact with this product.
Maintain tools with care. Keep cutting tools sharp and clean. Properly main-
tained tools with a sharp cutting edge are less likely to bind and are easier to control.
Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of injury.
SPECIFIC SAFETY RULES
Maintain labels and nameplates on the Air Hammer. These carry important infor-
mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Maintain a safe working environment. Make sure there is adequate surrounding
workspace. Do not use this product in a damp or wet location.
When using this Air Hammer, always maintain a firm grip on the tool with both
hands to resist starting torque.
Avoid unintentional starting. Make sure you are prepared to begin work before
turning on the air supply or the Air Hammer switch.
16.
17.
18.
19.
20.
21.
1.
2.
1.
2.
3.
4.

Page 5SKU 95801 For technical questions, please call 1-800-444-3353.
Never lay the tool down until it has come to a complete stop. Moving parts can
grab the surface and pull the tool out of your control.
Never leave this Air Hammer unattended when it is plugged into an air supply.
Turn off the tool, and unplug it from an air supply before leaving.
WARNING: Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities, contains chemicals known [to the State of
California] to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks and cement or other masonry products
Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area,
and work with approved safety equipment, such as those dust masks that are spe-
cially designed to filter out microscopic particles. (California Health & Safety Code
§ 25249.5, et seq.)
UNPACKING
When unpacking, check to make sure that the item is intact and undamaged. If any
parts are missing or broken, please call Harbor Freight Tools at the number shown on the
cover of this manual as soon as possible.
NOTE: READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
SETUP

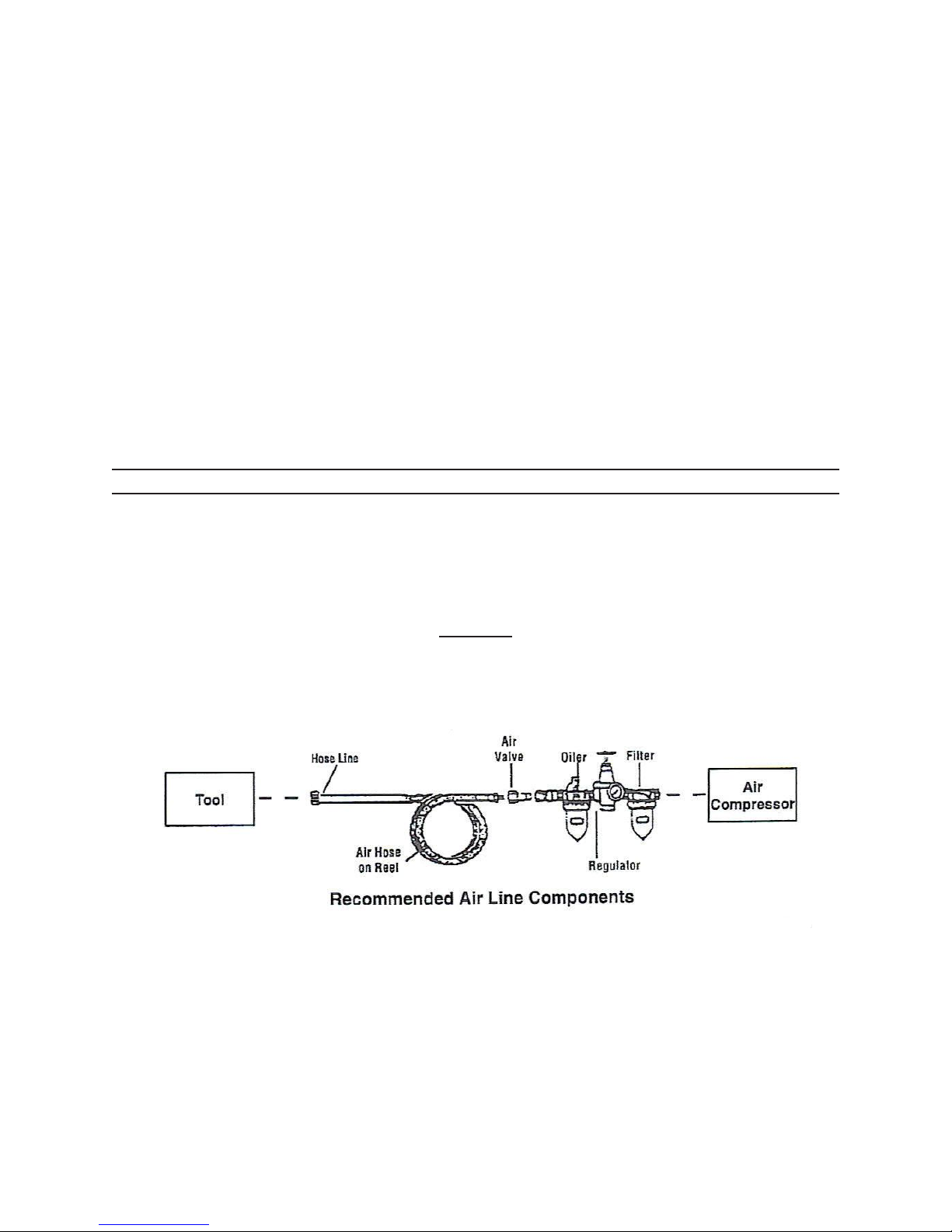

Figure 1
NOTE: For best service, you should incorporate an oiler, regulator, and in-line filter
as shown in Figure 1 above. Hoses, couplers, oilers, regulators and filters are all
available at Harbor Freight Tools.
If you are not using an automatic oiler system, before operation add a few drops of
Pneumatic Tool Oil (not included) to the airline connection. Add a few drops after
each hour of continual use.
5.
6.
7.

Page 6SKU 95801 For technical questions, please call 1-800-444-3353.
ASSEMBLY INSTRUCTIONS
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram on page 8 of this manual.
WARNING! Make sure the Power Switch of the tool is in its “OFF” position and
that the tool is unplugged from its air supply before making any adjustments to the
tool.

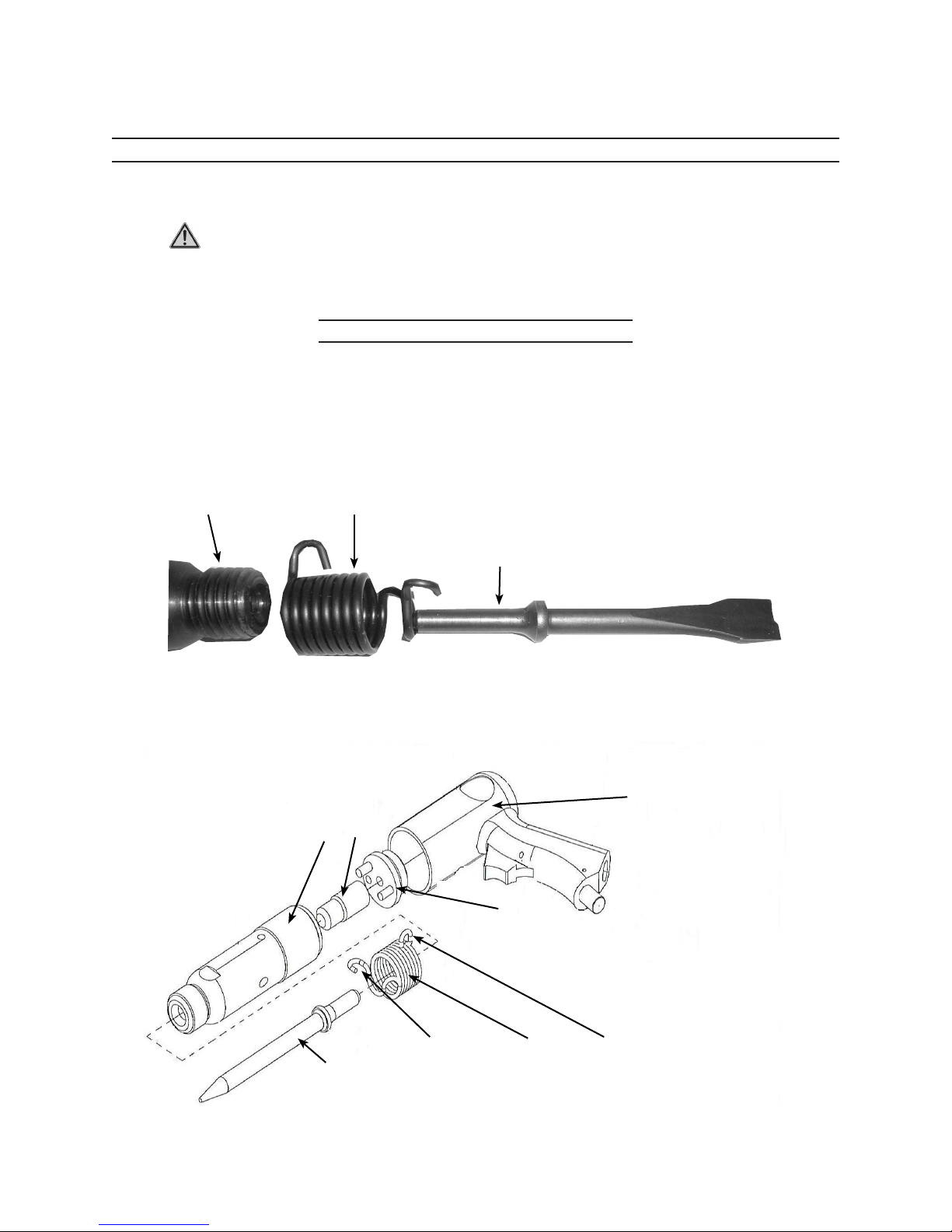

USE AS AIR HAMMER/CHISEL
Insert the Chisel (17) you wish to use through the Spring (16) and into the front of the
Cylinder (13). Twist the Spring (16) onto the threaded front of the Cylinder (13).
NOTE: When twisting on, exert pressure on the hook at the front of the Spring (16).
When twisting off, exert pressure on the hook at the back. Doing so allows for easy
on, easy off application. See Figures 2 & 3
13 16
17
Figure 2
Insert Cylinder (13) over the Plunger (14) and the Valve (15) and carefully twist the
Cylinder (13) into the Air Housing (1).
1.
2.
Figure 3
13 14
15
1
Front Hook 16 Rear Hook
17

Page 7SKU 95801 For technical questions, please call 1-800-444-3353.
NOTE: The threads inside the Cylinder (13) are plastic. Do not exert too much
twisting pressure or they can be damaged.The Cylinder should easily twist into the
Housing (1) until snug. See Figures 2 & 3
The Air Hammer is now ready to use as a chisel.
To remove, or change chisel heads, simply reverse steps 1 and 2.

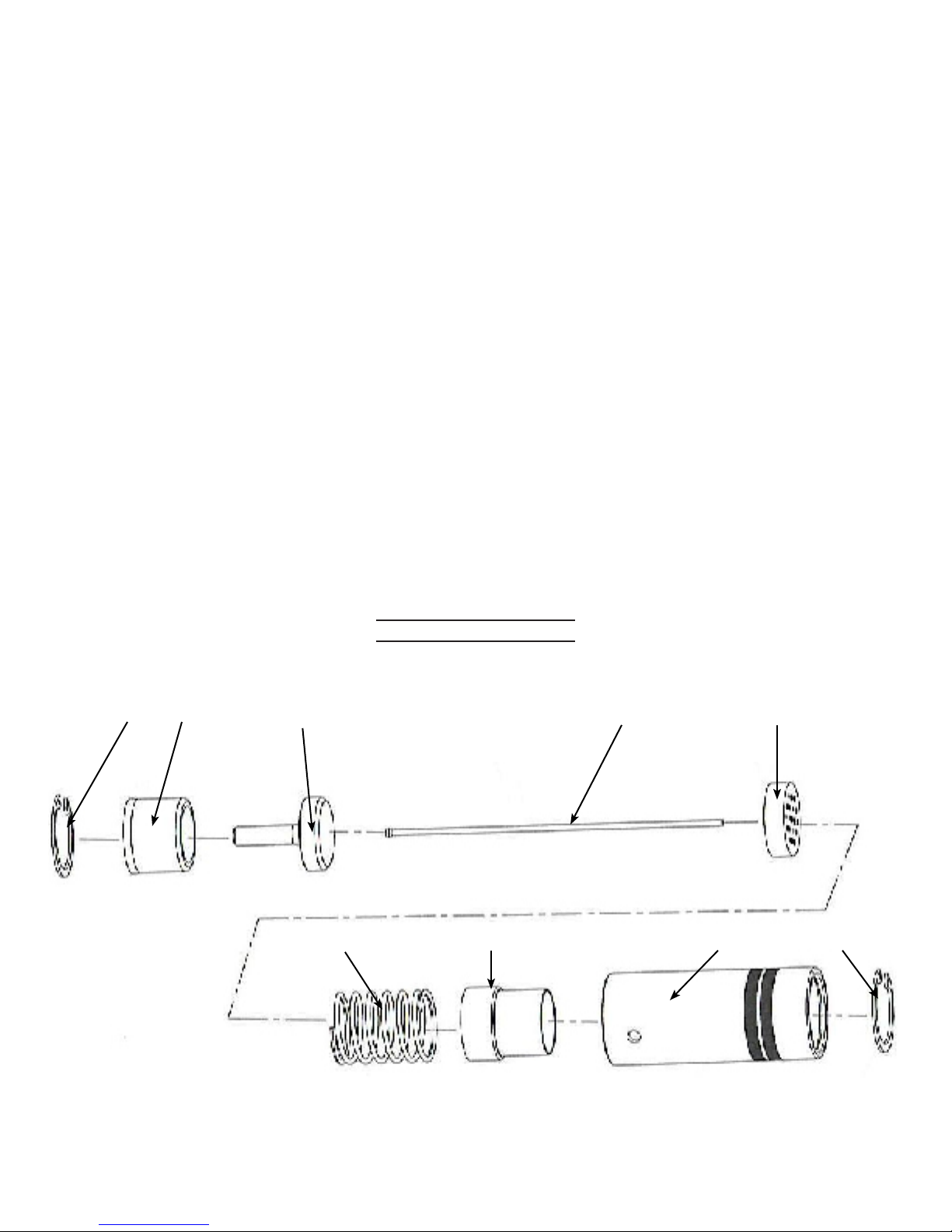

USE AS A SCALER
Figure 4
8A 7A 6A 5A 4A
3A 2A 1A 8A
3.
4.

Page 8SKU 95801 For technical questions, please call 1-800-444-3353.
Hex Wrench for Set Screw (included)
Figure 4A
Insert the Needles (5A) through the holes in the Needle Holder (4A). There are
nineteen Needles. Make sure all holes are filled before putting the Needle Holder
(4A) through the Spring (3A), the Retainer Clip (2A) and into the Barrel Assembly
(1A). Slide one Retainer Ring (8A) around the Needles (5A) and fasten it at the front
end of the Barrel Assembly (1A). See Figures 4 & 4A
Figure 5
8A 7A 6A 1A 2A 5A
Hole for Set Screw
Holding the Barrel Assembly (1A) in one hand with the Needles (5A) pointing down-
ward, insert the Needle Driver (6A), the Screw Cap (7A) and the last Retainer Ring
(8A). See Figures 4 & 5
The Screw Cap (7A) has a Set Screw that holds it in place. Be very careful NOT
to tighten the Set Screw too tightly, snug is good. Otherwise you may damage the
plastic threads inside the Screw Cap (7A) causing it to bind or strip some threads.
Insert the Barrel Assembly (1A) into the end of the Air Hammer Housing (1) and
thread the two parts together. As before do not over tighten, snug is good.
The Air Hammer is now ready to be used as a Scaler.
1.
2.
3.
4.
5.

Page 9SKU 95801 For technical questions, please call 1-800-444-3353.
OPERATION INSTRUCTIONS
With the proper tool attached to the Air Hammer, attach your air supply to the Air
Inlet (7) at the base on the Housing (1). Turn on the air supply. Carefully place the
tool against the surface of the project you are working with. Make sure the project
is in a vise or attached to something that holds it securely so it cannot be moved
out of position.
Set the Air Regulator (11) located at the base of the Housing (1). Air pressure
should not exceed 90 PSI. Test the action of the Air Hammer and adjust the
Air Regulator (11) as necessary.
Use a light touch on the Trigger (8). Never force the Air Hammer against the surface
you are working with. Easy, light pressure works best.
WARNING: If the Air Hammer is being used as a Scaler, use a ANSI-approved full
face shield and not just safety goggles to protect against Needles that may snap
off and could possibly cause personal injury.
INSPECTION, MAINTENANCE, AND CLEANING
WARNING! Make sure air compressor is unplugged and that the Air Hammer
is disconnected from its Air Supply before performing any inspection, maintenance,
or cleaning procedures.
BEFORE EACH USE, inspect the general condition of this tool. Check for loose
screws, misalignment or binding of moving parts, cracked or broken parts, damaged
air hoses, and any other condition that may affect its safe operation. If abnormal
noise or vibration occurs, have the problem corrected before further use. Do not
use damaged equipment.
MAINTENANCE CHART
Maintenance Type Before
Use
After
Use Weekly Monthly Every 6 Months Yearly
Inspect the Air Hammer for
damage
(see #2, above)
X X
Wipe off with clean, moist
cloth X X
TROUBLESHOOTING
Problem Possible Causes Probable Solutions
Air Hammer will not
start
Air supply not connected.
Air Regulator (11) not turned up.
1.
2.
Check air connection.
Turn up Air Regulator (11).
1.
2.
1.
2.
3.
1.
2.

Page 10SKU 95801 For technical questions, please call 1-800-444-3353.
Problem Possible Causes Probable Solutions
Air Hammer starts
but not enough air
pressure.
Possible leak in air supply system.1. Check all hoses, connections on air
compressor and all lines running
to the Air Hammer. Replace any
defective or broken parts.
1.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESEN-
TATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANU-
FACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PLEASE READ THE FOLLOWING CAREFULLY

Page 11SKU 95801 For technical questions, please call 1-800-444-3353.
ASSEMBLY DIAGRAMS
Air Hammer Diagram
Scaler Diagram
8A 7A 6A 5A 4A
3A 2A 1A 8A

Page 12SKU 95801 For technical questions, please call 1-800-444-3353.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.
Harbor Freight Tools Co.makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of one year from the date of purchase. This warranty does not apply to damage due directly or indirectly
to misuse, abuse, negligence or accidents; repairs or alterations outside our facilities; or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.
Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection
verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of
our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
LIMITED 1 YEAR
WARRANTY
WARRANTY
