Central Pneumatic 67473 Installation manual

AIR KNIFE WITH
3 BLADES
67473
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2 For technical questions, please call 1-800-444-3353. SKU 67473
SAVE THIS MANUAL
Keep this manual for the safety
warnings and precautions, assembly,
operating, inspection, maintenance and
cleaning procedures. Write the product’s
serial number in the back of the manual

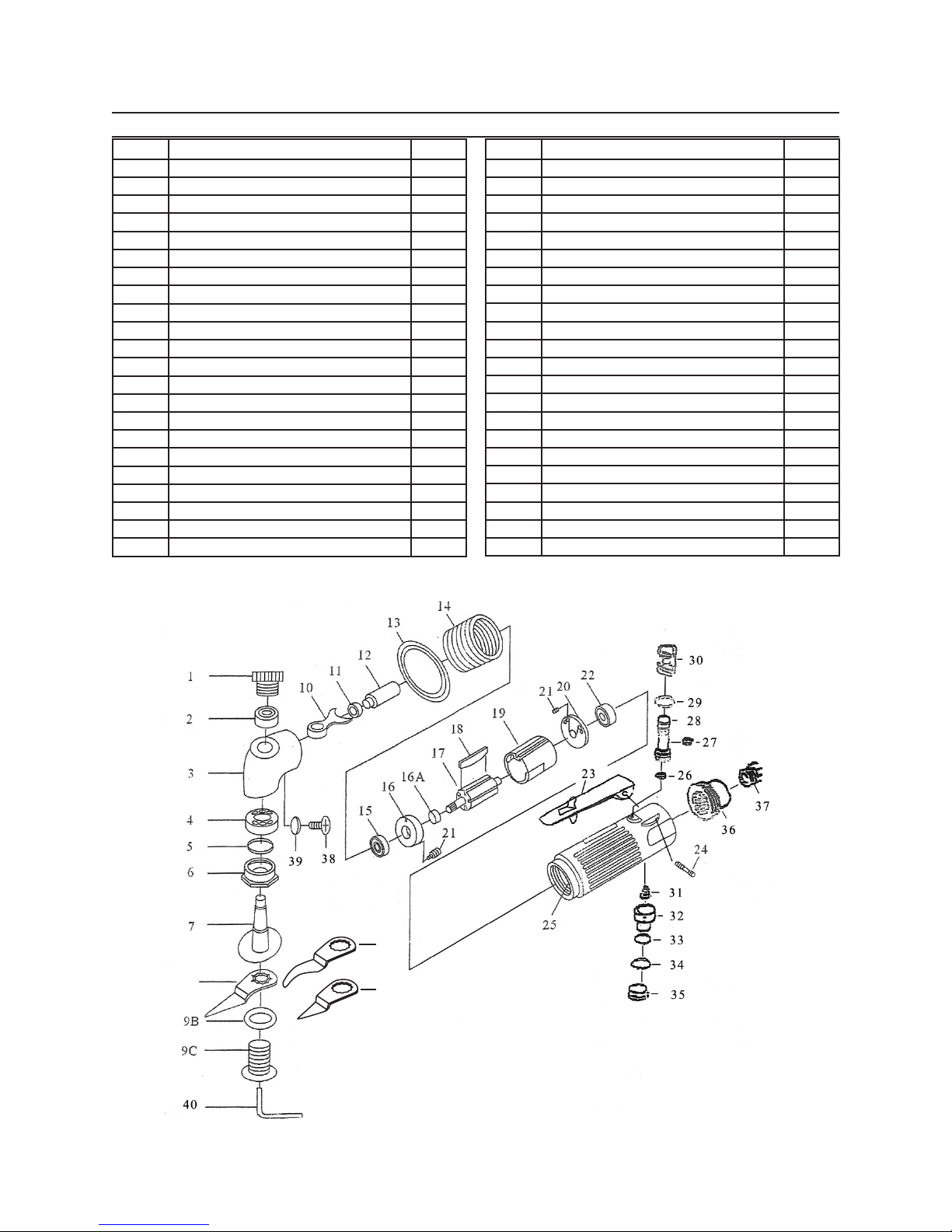

near the assembly diagram (or month
and year of purchase if product has no
number). Keep this manual and the
receipt in a safe and dry place for future
reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using tools, basic
precautions should always be
followed, including the following:
General
To reduce the risks of electrica.
shock, re, and injury to persons,
read all the instructions before
using the tool.
Work area
Keep the work area clean and wella.
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
Do not operate the tool inb.
explosive atmospheres, such as in
the presence of ammable liquids,
gases, or dust. The tool is able to
create sparks resulting in the ignition
of the dust or fumes.

Page 3For technical questions, please call 1-800-444-3353.SKU 67473
Keep bystanders, children, andc.
visitors away while operating the
tool. Distractions are able to result in
the loss of control of the tool.
Personal safety
Stay alert. Watch what you area.
doing and use common sense
when operating the tool. Do not
use the tool while tired or under
the inuence of drugs, alcohol, or
medication. A moment of inattention
while operating the tool increases the
risk of injury to persons.
Dress properly. Do not wear looseb.
clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases the risk of injury to persons
as a result of being caught in moving
parts.
Avoid unintentional starting.c.
Be sure the switch is off before
connecting to the air supply. Do not
carry the tool with your nger on the
switch or connect the tool to the air
supply with the switch on.
Remove adjusting keys andd.
wrenches before turning the tool
on. A wrench or a key that is left
attached to a rotating part of the tool
increases the risk of personal injury.
Do not overreach. Keep propere.
footing and balance at all times.
Proper footing and balance
enables better control of the tool in
unexpected situations.
f. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable conditions.
Wear heavy-duty work gloves during
use.
g. Always wear eye
protection. Wear ANSI-
approved safety goggles.
h. Always wear hearing
protection when using
the tool. Prolonged
exposure to high intensity
noise is able to cause hearing loss.
Risk of Electric Shock. This tooli.
is not provided with an insulated
gripping surface. Contact with a
″live″ wire will also make exposed
metal parts of the tool ″live″ and
shock the operator.
Avoid body contact with groundedj.
surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
Explore the workpiece to avoidk.
contact with hidden wiring.
Thoroughly investigate the workpiece
for possible hidden wiring before
performing work. Contact with live
wiring will shock the operator.
Tool use and care
Use clamps or another practicala.
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not force the tool.b. Use the
correct tool for the application. The
correct tool will do the job better and

Page 4 For technical questions, please call 1-800-444-3353. SKU 67473
safer at the rate for which the tool is
designed.
Do not use the tool if the switchc.
does not turn the tool on or off.
Any tool that cannot be controlled
with the switch is dangerous and
must be repaired.
Disconnect the tool from thed.
air source before making
any adjustments, changing
accessories, or storing the tool.
Such preventive safety measures
reduce the risk of starting the tool
unintentionally. Turn off and detach
the air supply, safely discharge any
residual air pressure, and release the
throttle and/or turn the switch to its off
position before leaving the work area.
Store the tool when it is idle,e.
out of reach of children and
other untrained persons. A tool is
dangerous in the hands of untrained
users.
Maintain the tool with care.f. Keep
a cutting tool sharp and clean. A
properly maintained tool, with sharp
cutting edges reduces the risk of
binding and is easier to control.
Check for misalignment or bindingg.
of moving parts, breakage of
parts, and any other condition
that affects the tool’s operation.
If damaged, have the tool serviced
before using. Many accidents are
caused by poorly maintained tools.
There is a risk of bursting if the tool is
damaged.
Use only accessories that areh.
identied by the manufacturer for
the specic tool model. Use of an
accessory not intended for use with
the specic tool model, increases the
risk of injury to persons.
Service
Tool service must be performed a.
only by qualied repair personnel.
When servicing a tool, use onlyb.
identical replacement parts. Use
only authorized parts.
Use only the lubricants suppliedc.
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 90 psi. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry,
regulated compressed air at the rated
pressure or within the rated pressure
range as marked on the tool. Always
verify prior to using the tool that the
air source has been adjusted to the
rated air pressure or within the rated
air-pressure range.
Never use oxygen, carbon dioxide,b.
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons
SAVE THESE
INSTRUCTIONS.

Page 5For technical questions, please call 1-800-444-3353.SKU 67473
SYMBOLS AND
SPECIFIC SAFETY
INSTRUCTIONS
Symbol Denitions
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
The warnings and precautions1.
discussed in this manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
WARNING: Some dust created by2.
power sanding, sawing, grinding,
drilling, and other construction
activities, contains chemicals
known [to the State of California] to
cause cancer, birth defects or other
reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures
varies, depending on how often you
do this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially
designed to lter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)
WARNING: The brass components
of this product contain lead, a
chemical known to the State of
California to cause birth defects (or
other reproductive harm). (California
Health & Safety code § 25249.5, et
seq.)
Only use with accessories rated to3.
handle the forces exerted by this tool
during operation. Other accessories

Page 6 For technical questions, please call 1-800-444-3353. SKU 67473
not designed for the forces generated
may break and forcefully launch
pieces.
Attach all accessories properly to the4.
tool before connecting the air supply.
A loose accessory may detach or
break during operation.
Obey the manual for the air5.
compressor used to power this tool.
Install an in-line shutoff valve to allow6.
immediate control over the air supply
in an emergency, even if a hose is
ruptured.
Replace bent or damaged blades.7.
Use this tool with both hands only.8.
Using tools with only one hand can
result in loss of control.
Do not lay the tool down until it has9.
come to a complete stop. Moving
parts can grab the surface and pull
the tool out of your control.
Vibration Precautions
This tool vibrates during use.
Repeated or long-term exposure to
vibration may cause temporary or
permanent physical injury, particularly to
the hands, arms and shoulders. To reduce
the risk of vibration-related injury:
Anyone using vibrating tools regularly1.
or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries,
nervous system disorders, diabetes,
or Raynaud’s Disease should not use
this tool. If you feel any symptoms
related to vibration (such as tingling,
numbness, and white or blue ngers),
seek medical advice as soon as
possible.
Do not smoke during use. Nicotine2.
reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
Wear suitable gloves to reduce the3.
vibration effects on the user.
Use tools with the lowest vibration4.
when there is a choice.
Include vibration-free periods each5.
day of work.
Grip tool as lightly as possible (while6.
still keeping safe control of it). Let
the tool do the work.
To reduce vibration, maintain tool as7.
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.

Page 7For technical questions, please call 1-800-444-3353.SKU 67473
FUNCTIONAL DESCRIPTION
Specications
Operating Air Pressure 90 PSI
Air Inlet 1/4” -18 NPT
Maximum Speed* 20,000 OPM
Average Air
Consumption 18 SCFM @ 90 PSI
Blade Attachment
3/4” Hex Flange
Mounts in 12 different
positions at 30°
increments
Accessories 3 Blades, Hex Wrench
* Maximum speed at stated maximum air pressure.
Excess air pressure is hazardous and may cause the
tool to exceed stated maximum speed.
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at 1-800-444-
3353 as soon as possible.
This air tool may be shipped with a•
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen,
carbon dioxide, combustible
gases, or any other bottled
gas as a power source for this
tool.
Quick
Coupler
Recommended Air Line Components
Regulator with
Pressure Gauge
Quick
Coupler Air Hose
on Reel
Valve FilterOiler
Coupler
Plug
Tool
Air
Compressor
Coupler
Plug
Incorporate a lter, regulator with 1.
pressure gauge, oiler, in-line shutoff
valve, and quick coupler for best
service, as shown in the diagram
above. An in-line shutoff ball
valve is an important safety device
because it controls the air supply
even if the air hose is ruptured.
The shutoff valve should be a ball
valve because it can be closed
quickly.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil to the airline connection
before operation. Add a few more

Page 8 For technical questions, please call 1-800-444-3353. SKU 67473
drops after each hour of continual
use.
Attach an air hose to the2.
compressor’s air outlet. Connect the
air hose to the air inlet of the tool.
Other components, such as a coupler
plug and quick coupler, will make
operation more efcient, but are not
required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that will allow
the air tool to retain pressure and
operate accidentally after the air
supply is disconnected.
Note: Air ow, and therefore tool
performance, can be hindered by
undersized air supply components.
The air hose must be long enough3.
to reach the work area with enough
extra length to allow free movement
while working.
Turn the tool’s throttle or switch to the4.
off position; refer to Operation section
for description of controls.
Close the in-line safety valve between5.
the compressor and the tool.
Turn on the air compressor according6.
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
Adjust the air compressor’s output 7.
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
Inspect the air connections for leaks.8.
Repair any leaks found.
If the tool will not be used at this9.
time, turn off and detach the air
supply, safely discharge any
residual air pressure, and release
the throttle and/or turn the switch to
its off position to prevent accidental
operation.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.
INSTRUCTIONS FOR
PUTTING INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose or missing
parts. If any problems are
found, do not use tool until
repaired.

Page 9For technical questions, please call 1-800-444-3353.SKU 67473
Components & Controls
Figure 1
Straight
Blade
(8A)
Hooked
Blade
(8B)
Short Blade (8C)
Retainer (9B)
Throttle Lever (23)
Safety Catch
Hex
Wrench
(40)
Air Inlet (37)
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the tool off, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
throttle and/or turn the switch
to its off position before
assembling or making any
adjustments to the tool.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Work Piece and Work Area Set Up
Designate a work area that is clean1.
and well-lit. The work area must not
allow access by children or pets to
prevent distraction and injury.
Route the air hose along a safe2.
route to reach the work area without
creating a tripping hazard or exposing
the power cord to possible damage.
The power cord must reach the work
area with enough extra length to
allow free movement while working.
There must not be hazardous3.
objects, such as utility lines or foreign
objects, nearby that will present a
hazard while working.
You must use personal safety4.
equipment including, but not limited
to, ANSI-approved eye and hearing
protection, as well as heavy work
gloves.
Before beginning work, provide for5.
sparks and debris that will y off the
work surface.
General Operating Instructions
If an automatic oiler is not used,1. add
a few drops of Pneumatic Tool Oil
to the airline connection before use.
Add a few drops more after each
hour of continual use.
While the air hose is disconnected2.
from the tool, unthread the Bolt (9C)
using the Hex Wrench (40), and
remove the Bolt and Retainer (9B).
Install the desired blade in any one of
12 orientations. Replace the Retainer
and Bolt while holding the blade.
Tighten securely.
Attach the air hose from the air3.
source. While holding the air knife
rmly in one hand and the other

Page 10 For technical questions, please call 1-800-444-3353. SKU 67473
safely out of the way of the blade,
turn the air source on.
To begin use, push the top of the4.
Safety Catch on the Throttle Lever
(23) forward. A stable two-handed
grip on this tool is best.
Fully depress the Throttle Lever (23)5.
to activate the air knife blade.
Address the material with a smooth6.
steady stroke of the tool.
If the tool requires more force to7.
accomplish the task, verify that the
tool receives sufcient, unobstructed
airow (CFM) and increase the
pressure (PSI) output of the regulator
up to the maximum air pressure
rating for this tool.
CAUTION! TO PREVENT TOOL
AND ACCESSORY FAILURE,
RESULTING IN INJURY:
Do not exceed the tool’s maximum
air pressure rating of 90 PSI.
If the tool still does not have sufcient
force at maximum pressure and
sufcient airow, then a larger tool
may be required.
To prevent accidents, turn off the8.
tool by releasing the Throttle Lever
(23), detach the air supply, safely
discharge any residual air pressure
in the tool after use. Clean external
surfaces of the tool with a clean, dry
cloth, and apply a thin coat of tool oil.
Store the tool indoors out of children’s
reach.
Do not remove the Safety Catch. It9.
has been included for your safety.
Without it, the tool could activate
when the tool is bumped against
something, set down on its lever, or
someone goes to pick up the tool,
accidently pressing on the Throttle
Lever (23) activating the blade.

Page 11For technical questions, please call 1-800-444-3353.SKU 67473
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
throttle and/or turn the Lever
to its off position before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
If a Blade becomes bent or
damaged, replace the blade.
TO PREVENT EXPLOSION:
Lubricate the tool only
with specied lubricants.
Lubricate the air inlet
using only pneumatic tool
oil. Lubricate the internal
mechanism using only
white lithium grease. Other
lubricants may damage the
mechanism and may be
highly ammable, causing an
explosion.
Cleaning, Maintenance, and
Lubrication
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular
operation of the air-operated tool.
Changing Blades:1.
Remove the Bolt (9C) and Retainer
(9B) using the Hex Wrench (40). The
blade can be mounted in 12 different
positions at 30° increments.
CAUTION: The Blades are sharp. Use
care when handling the Blades.
Daily - Air Supply Maintenance:2.
Every day, perform maintenance
on the air supply according to
the component manufacturers’
instructions. The lubricator’s oil
level needs to be maintained and
the moisture lter must be regularly
drained. Performing routine
maintenance on the air supply will
allow the tool to operate more safely
and will also reduce wear on the tool.
Before every use, add a few drops of
light tool oil to the Air Inlet (37).
Monthly - Grease Lubrication:3.
Lubricate the internal mechanism of
the tool, using white lithium grease
through the grease ttings. Access
for lubrication is through the opening
beneath the Oil Cover Screw (38).
Quarterly (every 3 months) - Tool4.
Disassembly, Cleaning, and
Inspection:
Have the internal mechanism
cleaned, inspected, and lubricated by
a qualied technician.
Check all screws to ensure they are5.
tight and secure.

Page 12 For technical questions, please call 1-800-444-3353. SKU 67473
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output. Not enough air pressure and/1.
or air ow.
Obstructed Lever.2.
Incorrect lubrication or not3.
enough lubrication.
Blocked Air Inlet (37) screen.4.
Air leaking from loose housing.5.
Mechanism contaminated.6.
Rotor Blade (18) may be7.
gummed up or damaged.
Check for loose connections and make sure1.
that air supply is providing enough air ow
(CFM) at required pressure (PSI) to the
tool’s air inlet. Do not exceed maximum air
pressure.
Clean around Lever to ensure free2.
movement.
Lubricate using air tool oil and grease3.
according to directions.
Clean air inlet screen of buildup.4.
Make sure housing is properly assembled5.
and tight.
Have qualied technician clean and lubricate 6.
mechanism. Install in-line lter in air supply
as stated in Initial Set Up: Air Supply.
Remove Rotor Blades and clean or replace if7.
necessary.
Housing heats
during use.
Incorrect lubrication or not1.
enough lubrication.
Worn parts.2.
Lubricate using air tool oil and grease1.
according to directions.
Have qualied technician inspect internal 2.
mechanism and replace parts as needed.
Severe air
leakage.
(Slight air leakage
is normal,
especially on older
tools.)
Cross-threaded housing1.
components.
Loose housing.2.
Damaged valve or housing.3.
Dirty, worn or damaged valve.4.
Check for incorrect alignment and uneven1.
gaps. If cross-threaded, disassemble and
replace damaged parts before use.
Tighten housing assembly. If housing cannot2.
tighten properly, internal parts may be
misaligned.
Replace damaged components.3.
Clean or replace valve assembly.4.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect air supply before service.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/
OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 13For technical questions, please call 1-800-444-3353.SKU 67473
Part Description Qty
1 Plug 1
2 Ball Bearing 1
3 Head 1
4 Ball Bearing 1
5 Oil Seal 1
6 Nut Clamp 1
7 Spindle Drive 1
8A Blade - Straight Tapered 1
8B Blade - Hooked 1
8C Blade - Short Tapered 1
9B Retainer 1
9C Bolt 1
10 Fork Drive 1
11 Ball Bearing 1
12 Crankshaft 1
13 Nut 1
14 Retainer 1
15 Ball Bearing 1
16 Front Plate 1
16A Washer 1
17 Rotor 1
18 Rotor Blade 4
Part Description Qty
19 Cylinder 1
20 End Plate 1
21 Pin 1
22 Ball Bearing 1
23 Throttle Lever 1
24 Lever Pin 1
25 Housing 1
26 O-Ring 1
27 O-Ring 1
28 Valve Stem 1
29 O-Ring 1
30 Valve Bushing 1
31 Spring 1
32 Valve Screw 1
33 O-Ring 1
34 O-Ring 1
35 Nut 1
36 Exhaust Deector 1
37 Air Inlet 1
38 Oil Cover Screw 1
39 O-Ring 1
40 Hex Wrench M5 1
PARTS LIST & ASSEMBLY DIAGRAM
8A
8B
8C

Page 14 For technical questions, please call 1-800-444-3353. SKU 67473
LIMITED 1 YEAR WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet
high quality and durability standards, and warrants to the original purchaser that
this product is free from defects in materials and workmanship for the period of one
year from the date of purchase (90 days if used by a professional contractor or if
used as rental equipment). This warranty does not apply to damage due directly or
indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside
our facilities, normal wear and tear, or to lack of maintenance. We shall in no event be
liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above
limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us
with transportation charges prepaid. Proof of purchase date and an explanation of the
complaint must accompany the merchandise. If our inspection veries the defect, we
will either repair or replace the product at our election or we may elect to refund the
purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that
the defect resulted from causes not within the scope of our warranty, then you must
bear the cost of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
