Centre Point TL1 User manual

TL1
TORPEDO LASER
INSTRUCTION MANUAL

2
SAFETY
Read the following safety instructions before
attempting to operate this product.
Keep these instructions in a safe place or store
in the carry case for future reference.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
WARNING: Read and understand all
instructions.
▪Use the laser only with the specically
designated batteries.
▪Store the laser out of reach of children and
other untrained persons. Lasers are dangerous
in the hands of untrained users.
▪Use only accessories that are recommended
for your model.
▪Tool service must be performed only by
qualied repair personnel. Repairs, service
or maintenance performed by unqualied
personnel will void the warranty. Only
approved and authorised service technicians
can carry out warranty repairs.
▪Do not use optical tools such as a telescope
or transit to view the laser beam. Serious eye
injury could result.
▪Do not place the laser in a position which
may cause anyone to intentionally or
unintentionally stare into the laser beam.
Serious eye injury could result.
▪ Do not position the laser near a reective
surface which may reect the laser beam
toward anyone’s eyes. Serious eye injury
could result.
▪Do not use optical tools to view the laser
beam.
!

3
▪Do not set up the tool at a position where
the laser beam can cross any person at head
height.
▪Do not let children come in contact with the
laser.
▪ Turn the laser o when it is not in use. Leaving
the laser on increases the risk of staring into
the laser beam.
▪Do not operate the laser around children or
allow children to operate the laser. Serious eye
injury may result.
▪Do not remove or deface warning labels.
▪Position the laser securely on a level surface.
Damage to the laser or serious injury could
result if the laser falls.
WARNING: DO NOT DISASSEMBLE
THE LASER. There are no user serviceable
parts inside. Disassembling the laser will
void all warranties on the product. Do not
modify the product in any way. Modifying
the tool may result in hazardous laser
radiation exposure.
CAUTION: Class 2 Laser Product
▪Never look into the laser beam directly and
intentionally.
▪Do not use optical tools to view the laser
beam.
▪Do not set up the tool at a position where
the laser beam can cross any person at
head height.
▪Do not let children come in contact with
the laser.
WARNING: This instrument is intended
for DIY use only. Using this instrument for
professional trade applications will void the
warranty.
!
!
!

4
AAA alkaline batteries
Wall and oor base
Centre Point TL1
ITEM CHECKLIST
Please ensure the following items are included with your laser level.
If anything is missing please contact your retailer.

5
LASER OVERVIEW
Laser port
Bubble vial
Power switch / dot mode / line mode

6

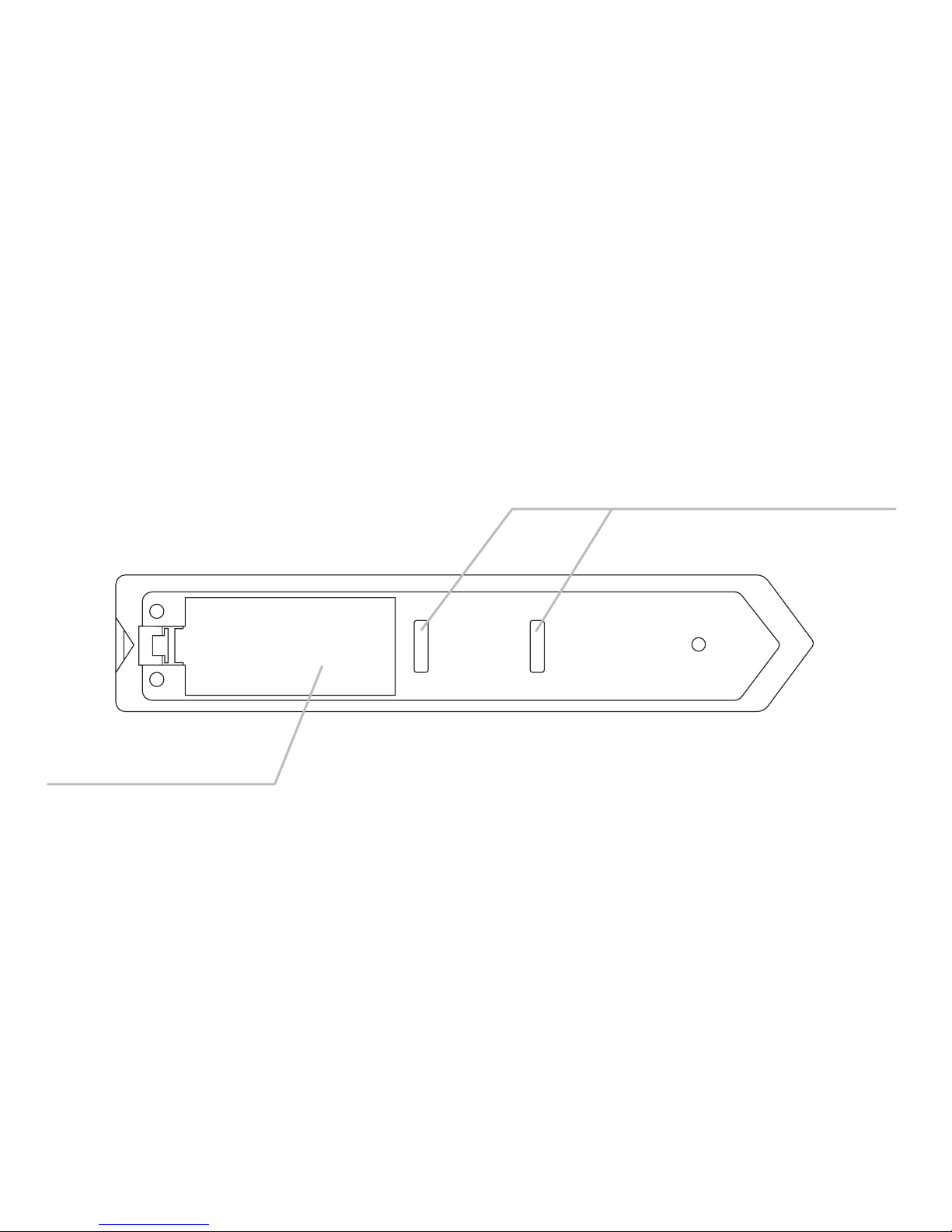

LASER OVERVIEW: BACK
Magnets
Battery cover door

7
WALL & FLOOR BASE OVERVIEW
Metal surface
Adjustment thumbscrew
1/4” camera tripod thread
Metal surface
Mounting holes
Hanging hook

8
OPERATION
▪ To turn the instrument on, slide the power
switch forward for line operation or back for
dot operation.
▪ To turn the instrument off, slide the power
switch to the centre position.
POWER SUPPLY
▪The instrument is powered by two AAA
alkaline batteries.
USING YOUR LASER
BATTERY REPLACEMENT
▪Remove the battery cover door and the
batteries.
▪Insert the batteries according to polarity
and replace the battery door.
This instrument is intended for DIY
use only. Using this instrument for
professional trade applications will void
the warranty.
i

9
Power off
Power on: dot mode
Power on: line mode

10

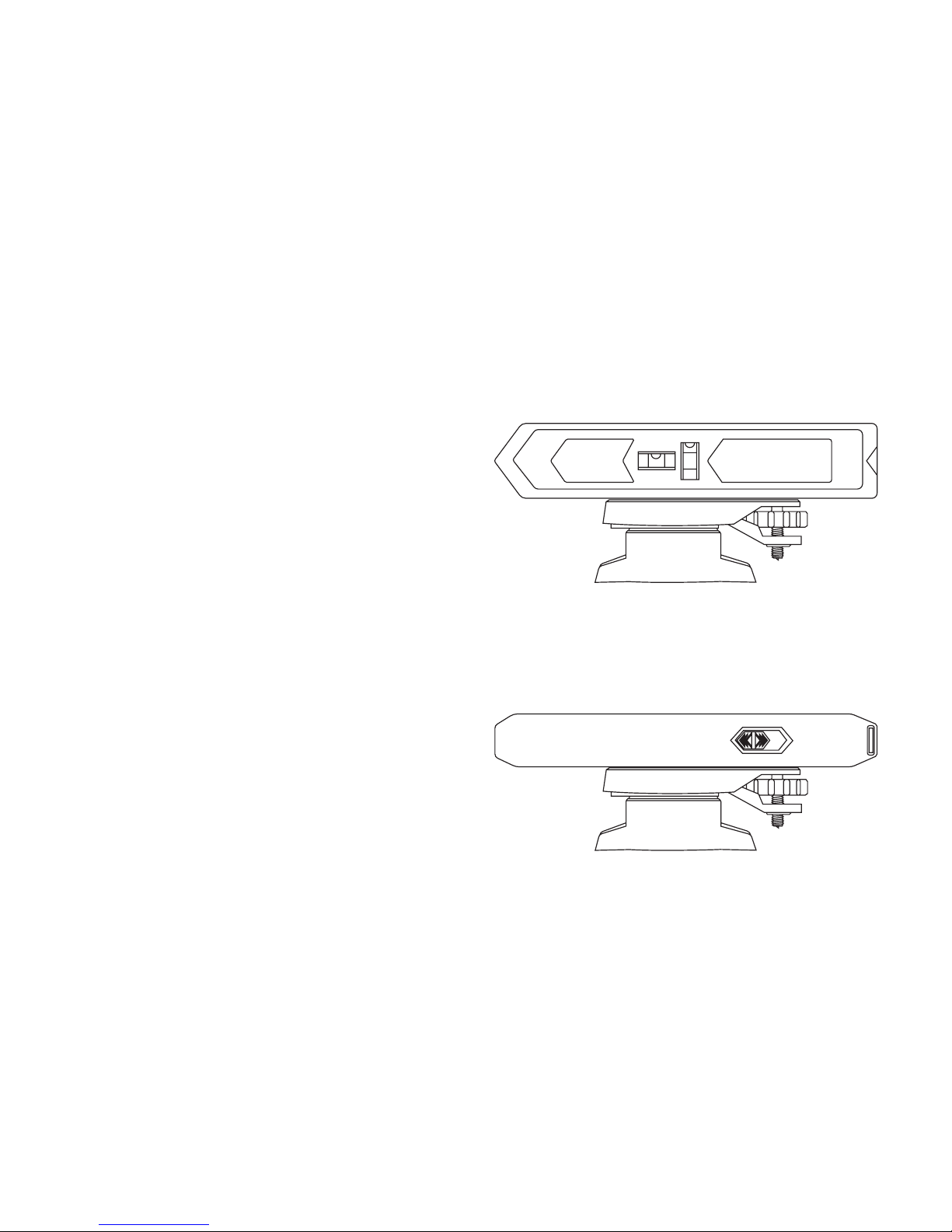

MOUNTING TO THE WALL &
FLOOR BASE
▪Place the instrument on the wall and
floor base. The instrument can be placed
either with the power switch facing up or
sideways. The magnets will secure the
instrument in place.
▪Rotate the base to the desired angle.
▪ If the bubble vial is not centred, rotate
the thumbscrew until the bubble vial is
centred.

11
Mounting to a wall
▪ Insert a screw or nail into a wall with the
head projecting.
▪ Hang the wall and floor base via the
hanging hook on the bottom of the wall
and floor base. Alternatively, the wall and
floor base can be secured into a wall via
the two mounting holes and secured with
two small nails.
▪Place the instrument on the wall and
floor base. The instrument can be placed
either with the power switch facing up or
sideways. The magnets will secure the
instrument in place.
▪ If the bubble vial is not centred, rotate
the thumbscrew until the bubble vial is
centred.
Mounting to a camera tripod
▪Select a place as close as practical to
the work site. Ensure the location is clear
of traffic.
▪Attach the wall and floor base 1/4”
thread.
▪Place the instrument on the wall and
floor base. The instrument can be placed
either with the power switch facing up or
sideways. The magnets will secure the
instrument in place.
▪ If the bubble vial is not centred, rotate
the thumbscrew until the bubble vial is
centred.
The camera tripod is an optional
accessory.
i

12
MEASURING FUNCTIONS
Vertical Alignment
▪Mount the wall and floor base onto
the wall (see page 10 & 11). Place the
instrument onto the wall and floor base.
▪Use the horizontal bubble vial align
the instrument. Adjust the instrument as
required by rotating the wall and floor
base.
▪Slide the power switch forward for line
operation or back for dot operation.
When marking, always reference
the centre of the laser dot or line
i
The instrument must be placed on
a level surface to avoid inaccurate
measurement results.
i

13

14
Horizontal Alignment
▪Mount the wall and floor base onto
the wall (see page 10 & 11). Place the
instrument onto the wall and floor base.
▪Use the horizontal bubble vial align
the instrument. Adjust the instrument as
required by rotating the wall and floor
base.
▪Slide the power switch forward for line
operation or back for dot operation.
When marking, always reference
the centre of the laser dot or line
i
The instrument must be placed on
a level surface to avoid inaccurate
measurement results.
i

15

16
Alignment of reference points
▪Mount the wall and floor base onto
the wall (see page 10 & 11). Place the
instrument onto the wall and floor base.
▪Adjust the instrument as required by
rotating the wall and floor base.
▪Slide the power switch forward for line
operation or back for dot operation.
When marking, always reference
the centre of the laser dot or line
i
The instrument must be placed on
a level surface to avoid inaccurate
measurement results.
i

17

18
TROUBLE SHOOTING
Error Cause & Solution
Laser does not turn on
▪Check the batteries. They may be in the wrong way or need
replacing.
▪Check the battery compartment for signs of damage.
Ensure they are clean and not bent.
Laser does not remain on
for long periods of use.
▪Check the batteries.
▪Check the battery compartment for signs of damage.
Ensure they are clean and not bent.

19
CARE AND MAINTENANCE
This is a precision measuring instrument
and should always be handled with care.
▪Always turn the instrument off when
transporting the instrument or moving
around the job site.
▪ Whenever possible, store the instrument
in a dry, shady location.
▪Calibration of the instrument is
recommended: every six months, if ongoing
accurate levelling is required, or an impact
has occurred.
▪The operator should check the accuracy
of the instrument before precision levelling
is attempted. Failure to do so may result
in inaccurate measurements.
▪ Clean the instrument with a dry, soft
cloth after use in dusty, damp or wet
conditions before storing.
▪Smudges and fingerprints may be
removed with a damp tissue or a soft, lint-
free cloth.

20
WARRANTY
AUSTRALIA
“Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or
refund for a major failure and for compensation
for any other reasonably foreseeable loss
or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does
not amount to a major failure.”
For more information please visit
consumerlaw.gov.au
The Centre Point TL1 comes with a 3 (three) year manufacturers warranty.
NEW ZEALAND
For more information please visit
consumerprotection.govt.nz
This instrument is intended for DIY use only. Using this instrument for professional
trade applications will void the warranty.
i
