Centro Natural Gas Conversion Kit User manual

WARNING
Failure to follow all of the manufacturer’s
instructions could result in hazardous
fires, explosions, property damage,
or serious personal injury or even death.
WARNING
Follow all leak check procedures carefully
prior to operation of barbecue,
even if barbecue was store assembled.
Do not try to light this barbecue
without reading the Lighting Instructions
section of this manual.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
DANGER
If You Smell Gas
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or your fire department.
THIS BARBECUE IS FOR
OUTDOOR USE ONLY
Read and save this manual for future reference.
If pre-assembled, leave this manual with
unit for consumer’s future reference.
Centro Customer Care Hotline
1-877-707-5463
SERIAL #:
Natural Gas Conversion Kit
FOR USE WITH MODEL: 85-1620-6 ONLY / FOR OUTDOOR USE ONLY
THIS NATURAL GAS CONVERSION KIT
CAN ONLY BE USED WITH CENTRO
ENTERTAINMENT ISLAND 6000SI
MODEL 85-1620-6.
Attention: Centro® recommends that a
qualified gas technician perform the
gas supply conversion and orifice replacement
for this BBQ model.

 WARNING 
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
i i
• This kit converts your grill to natural gas at 7 inch water column supply pressure.
Verify supply pressure with your local gas company. If supply pressure is different than
7 inch, contact a certified plumber for assistance. Not for use with LP gas.
• Grill installation must conform with local codes, or in their absence to National
Fuel Gas Code, NFPA 54 / ANSI Z223.1. Grill is not for use in or on recreational
vehicles and/or boats.
• All electrical accessories (such as rotisserie) must be electrically grounded in
accordance with local codes, or National Electrical Code, ANSI / NFPA 70.
Keep any electrical cords and/or fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and Canada only. Do not
modify for use in any other location. Modification will result in a safety hazard.
INSTALLATION
SAFETY PRECAUTIONS
The symbols and boxes shown below explain what each heading means. Read and follow
all of the messages found throughout the manual.
SAFETY
SYMBOLS
 DANGER 
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
 WARNING 
Indicates a potentially hazardous situation or unsafe practice which,
if not avoided, may result in minor or moderate injury.
 CAUTION 
Do not attempt to repair or alter the hose/valve/regulator
for any “assumed” defect. Any modification to this assembly will void
your warranty and create the risk of a gas leak and fire.
Use only authorized replacement parts supplied by manufacturer.
This conversion kit shall be installed in accordance with the manufacturer’s instructions and
all applicable codes and requirements of the authority having jurisdiction. If the informa-
tion in these instructions is not followed exactly, a fire, explosion or production of carbon
monoxide may result causing property damage, personal injury or loss of life. The assembler
or qualified service agency is responsible for the proper installation of this kit. The instal-
lation is not proper and complete until the operation of the converted appliance is
checked as specified in the manufacturer’s instructions supplied with the kit.

 WARNING 
1
USE AND CARE Natural Gas Connections and Service Regulators Above 1/2 psi.
Prior to 1998, all residual gas service regulators were set with an outlet pressure of 7 inches
water column.
In the 1998 edition of NFPA 54, the National Fuel Gas Code, a change was made allowing
service regulators of 2 and 5 psi.
With this change it was also required that an in line regulator be connected between the
service regulator and the appliance regulator if the 2 or 5 psi system is used. This additional
regulator is not supplied with the product.
It is possible for a consumer, making the connection themselves, or a plumber, not check-
ing, to tap into a 2 or 5 psi line. If a pressure of 2 psi or greater is supplied to the appliance
regulator on certain grills it will shut down and not deliver any gas to the grill. Other con-
cerns are the quick disconnect socket and hose which are only rated to 1/2 psi.
If the quick disconnect socket, hose, and grill are properly connected and still not getting
gas, delivery pressure needs to be verified. If pressure is greater than 1/2 psi, make sure that
an in line regulator is present.
Once the grill has been over-pressured, the regulator may or may not have been damaged.
The best practice is to replace the regulator.
This grill is designed for natural gas use at 7 inch water
column supply pressure. Verify supply pressure with your local gas company.
If supply pressure is different than 7 inch,
contact a certified plumber for assistance. Not for use with LP gas.
Incorrect connection can result in a gas leak with possibility of fire.
 DANGER 
For residential use only. Do not use for commercial cooking.
 CAUTION 

2

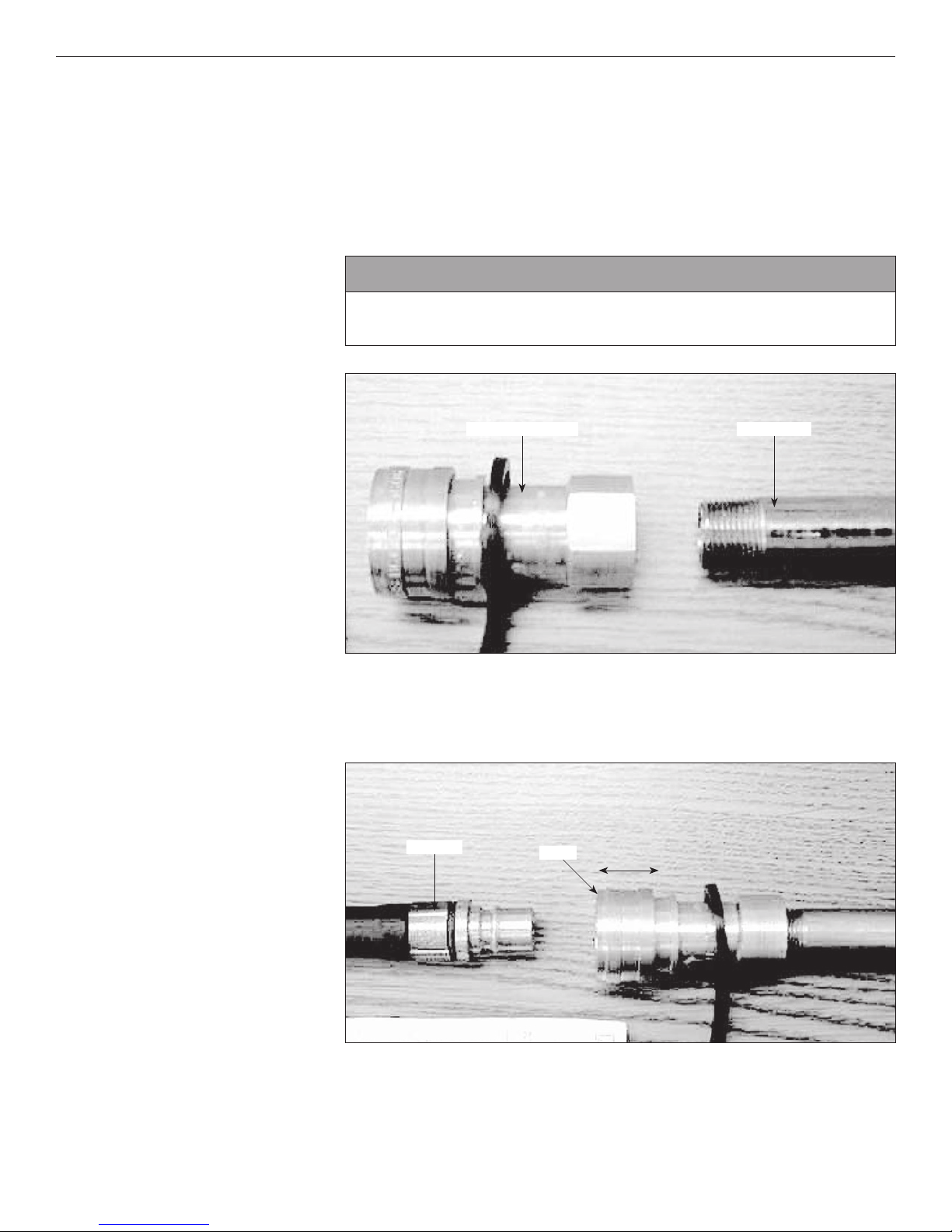

CONNECTING YOUR
GRILL TO THE
NATURAL GAS SOURCE
1. A professionally-installed shut-off valve between the supply piping and the
socket is recommended, but not required, by the National Fuel Gas Code.
Socket connection must be made outdoors.
2. Coat the gas supply pipe nipple with gas resistant dope or Teflon tape.
Screw socket onto gas supply pipe (house gas source) as shown in Figure A below,
and wrench-tighten.
The quick disconnect socket should never be connected to the grill.
Direction of gas flow is indicated on the socket.
 CAUTION 
3. Pull back the sleeve on the quick disconnect socket and insert the unattached
end of the gas hose into the socket. Release the sleeve and continue pushing the
hose into the socket until the sleeve snaps into the locked position. See Figure B.
Fig. A
Fig. B
Gas hose
Quick disconnect socket House piping
Sleeve

3

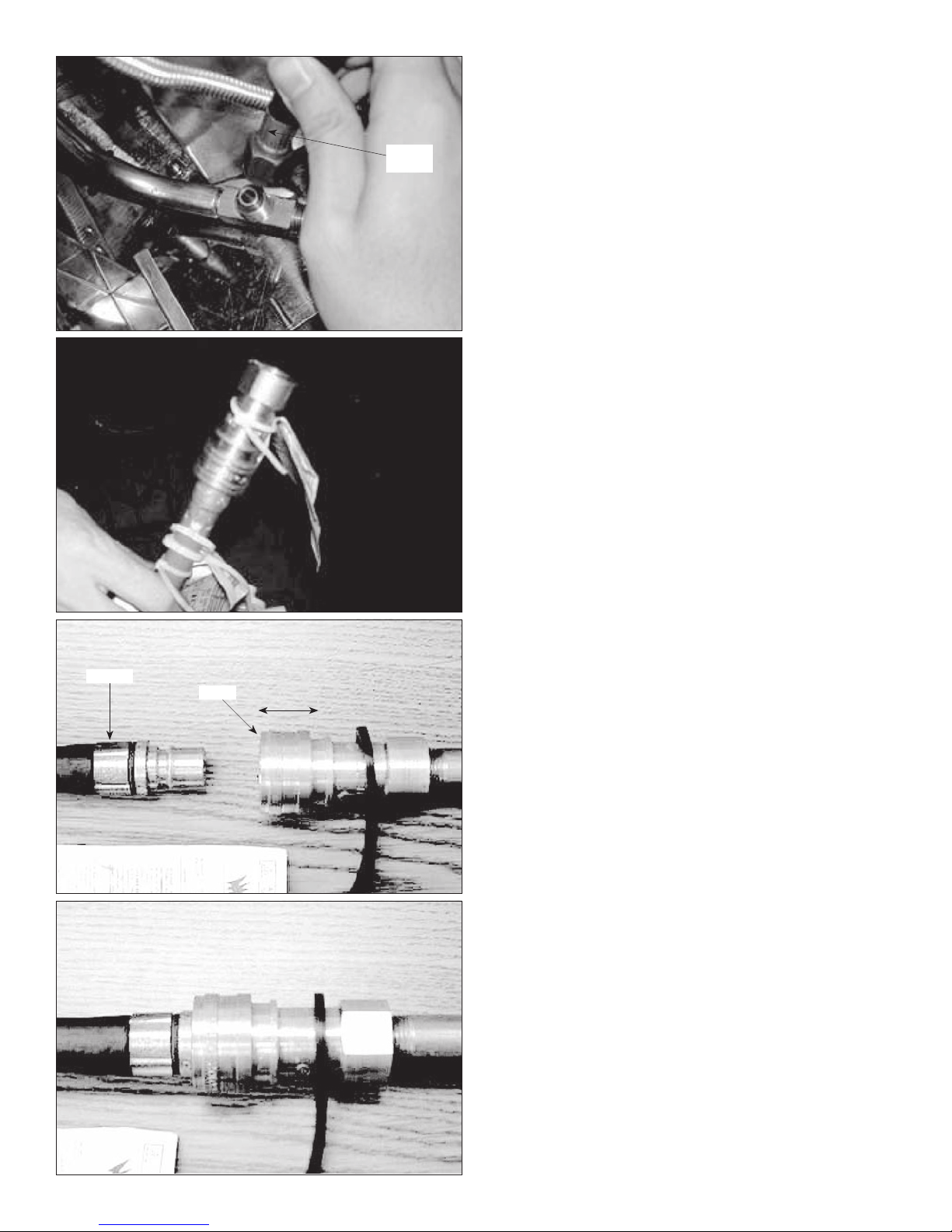

4. When the quick disconnect socket and the gas hose are connected, a valve in the sock-
et opens automatically to permit full gas flow. When the gas hose is disconnected, the
valve in the socket instantly and positively shuts off the flow of gas. Because the valve
in the socket positively shuts off the flow of gas, the grill can be disconnected from the
gas source by disconnecting the gas hose from the quick disconnect socket. The socket
should be left attached to the gas source (house piping). Figure C, on the following
page, shows properly connected hose and socket.

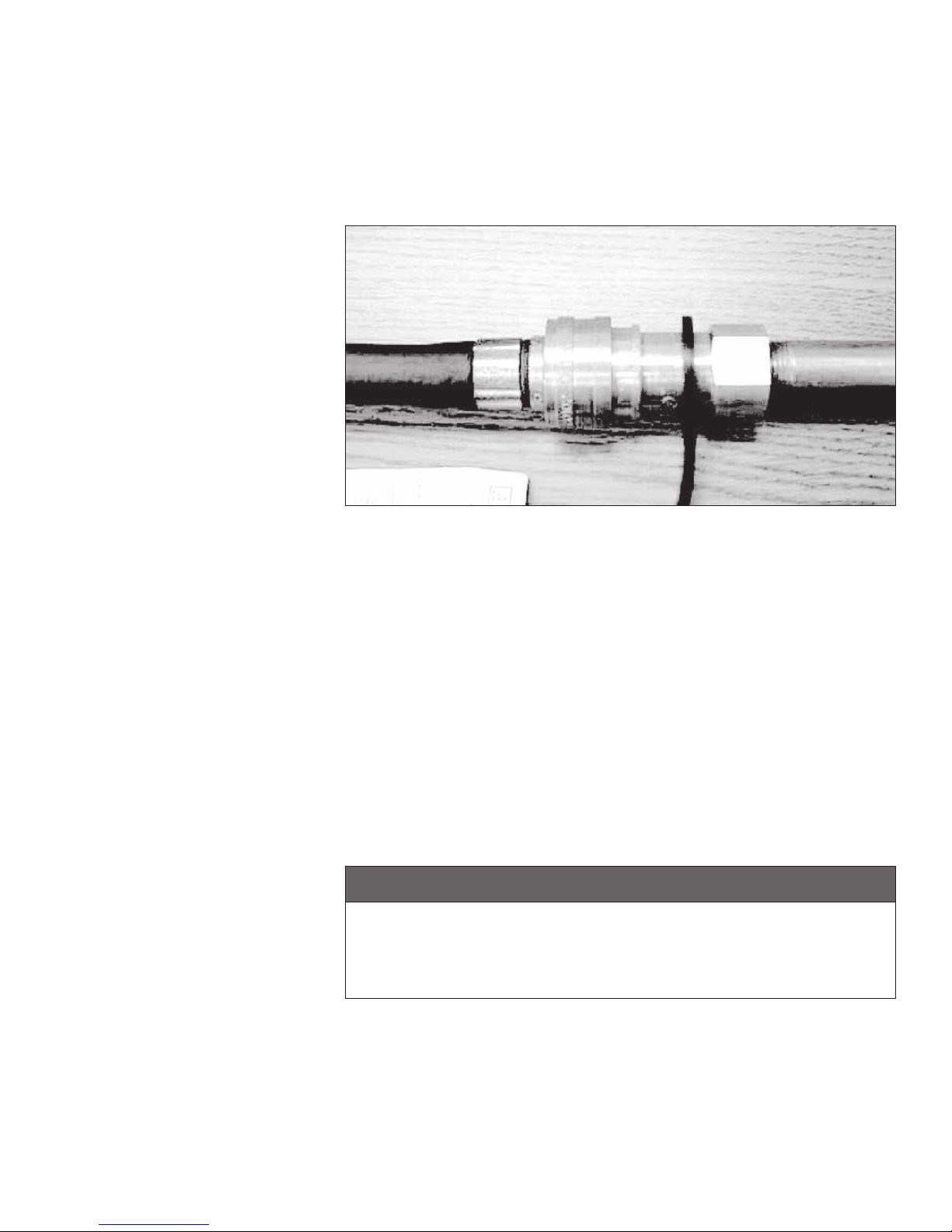

Fig. C
With proper assembly, the gas hose cannot be removed without pushing the quick
disconnect sleeve back. To disconnect, push sleeve back and pull plug out of sleeve (this
automatically shuts off gas).
Please Note: Hose and assembly are C.S.A. listed for natural gas, manufactured
gas, mixed gas and for liquefied petroleum and for LP Gas-Air mixtures on basis
of 0.64 specific gravity for 1000 BTU’s per cubic foot of gas at 0.3 in. water column
pressure drop. Only ANSI Z21.54 approved hoses should be used with this grill.
Pressure Tests: The appliance and its individual shut off valve must be disconnect-
ed from the gas supply piping system during any pressure testing on that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply pip-
ing system at test pressures equal to or less than 1/2 psi (3.5kPa).
 WARNING 
Do not use hard metal piping of any kind to connect this
type of grill to natural gas source. Use only hose specified by manufacturer.
Using hard metal piping or convoluted metal tubing is an
unsafe practice. Movement of the grill can cause breakage of metal pipe.

4
Although all gas connections on the grill are leak tested at the factory prior to shipment,
a COMPLETE gas tightness check must be performed following the installation of the NG
conversion Kit. Periodically check the whole system for leaks, or immediately check if the
smell of gas is detected.
 WARNING 
Do not smoke while leak testing. Extinguish all flames. Never leak test with
an open flame.
Leak Testing
1. Turn all grill control knobs to OFF.
2. Be sure gas hose is tightly connected to gas source.
3. Completely open gas source. If you hear a rushing sound, turn gas off immediately.
There is a major leak at the connection. Correct before proceeding.
4. Make a soap solution of one part liquid detergent and one part water.
You will need a spray or brush to apply the solution to the fittings. Apply solution.
5. If “growing” bubbles appear, there is a leak. Close gas source immediately
and retighten connection. If leaks cannot be stopped do not try to repair.
Call for replacement parts. Order new parts by giving the serial, model number
and name of items needed to the Grill Service Center at 1-877-707-5463
6. Always close gas source after performing leak test.
Hose Check
• Before each use, check to see if hoses are cut or worn. Replace damaged hoses before
using grill. Use only valve/hose/regulator specified by manufacturer.
 WARNING 
Do not use hard metal piping of any kind to connect this
type of grill to natural gas source. Use only hose specified by manufacturer.
Using hard metal piping or convoluted metal tubing is an
unsafe practice. Movement of the grill can cause breakage of metal pipe.

5
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• Cover grill if stored outdoors. Choose from a
variety of grill covers offered by manufacturer.
• Store grill indoors ONLY if gas source is turned off and disconnected.
• When removing grill from storage, follow the Burner Maintenance
instructions in the Grilling Guide before starting grill.
 CAUTION 
Natural Hazard – Spiders
FACT: Sometimes spiders and other small insects climb into the burner tubes attached to
the burners. The spiders spin webs, build nests and lay eggs. The webs or nests can be
very small, but they are very strong and can block the flow of gas. Clean burners prior to
use after storing, at the beginning of grilling season, or after a period of one month not
being used.
An obstruction can result in a “flashback” (a fire in the burner tubes). The grill may still
light, but the obstruction does not allow full gas flow to the burners.
If you experience the following:
1. Smell gas.
2. Burner(s) will not light.
3. A small yellow flame from burner (should be blue).
4. Fire coming from around or behind control knob.
STOP!
Immediately turn off gas at gas source!
SOLUTION: Wait for grill to cool.
Follow the Burner Maintenance instructions in the Grilling Guide. Clean burners often.
Use a 12” pipe cleaner to clean out the burner tubes. You may also force a stream of
water from a hose nozzle through burner tubes to clean them.

6

7

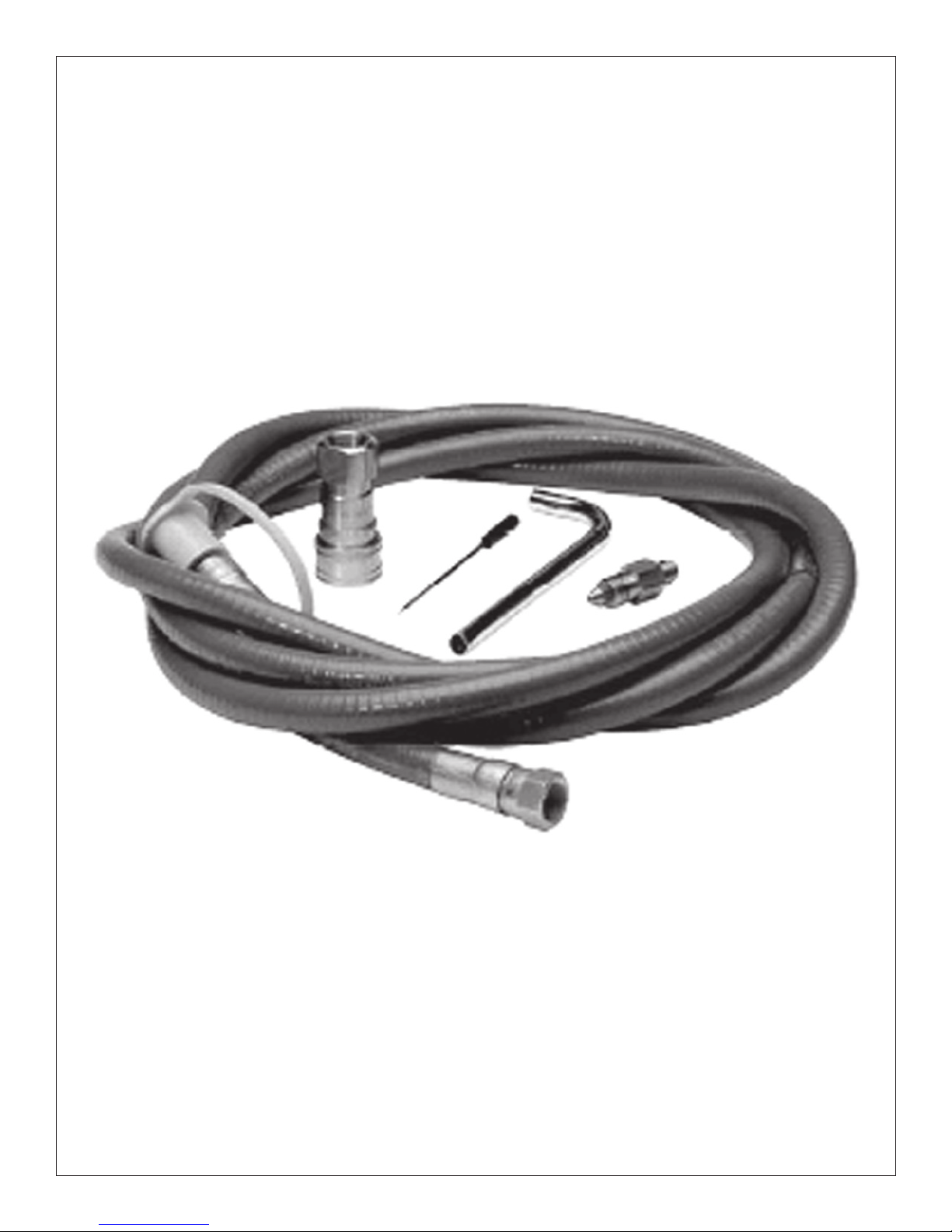

PARTS LIST AND DIAGRAM (85-1621-4)

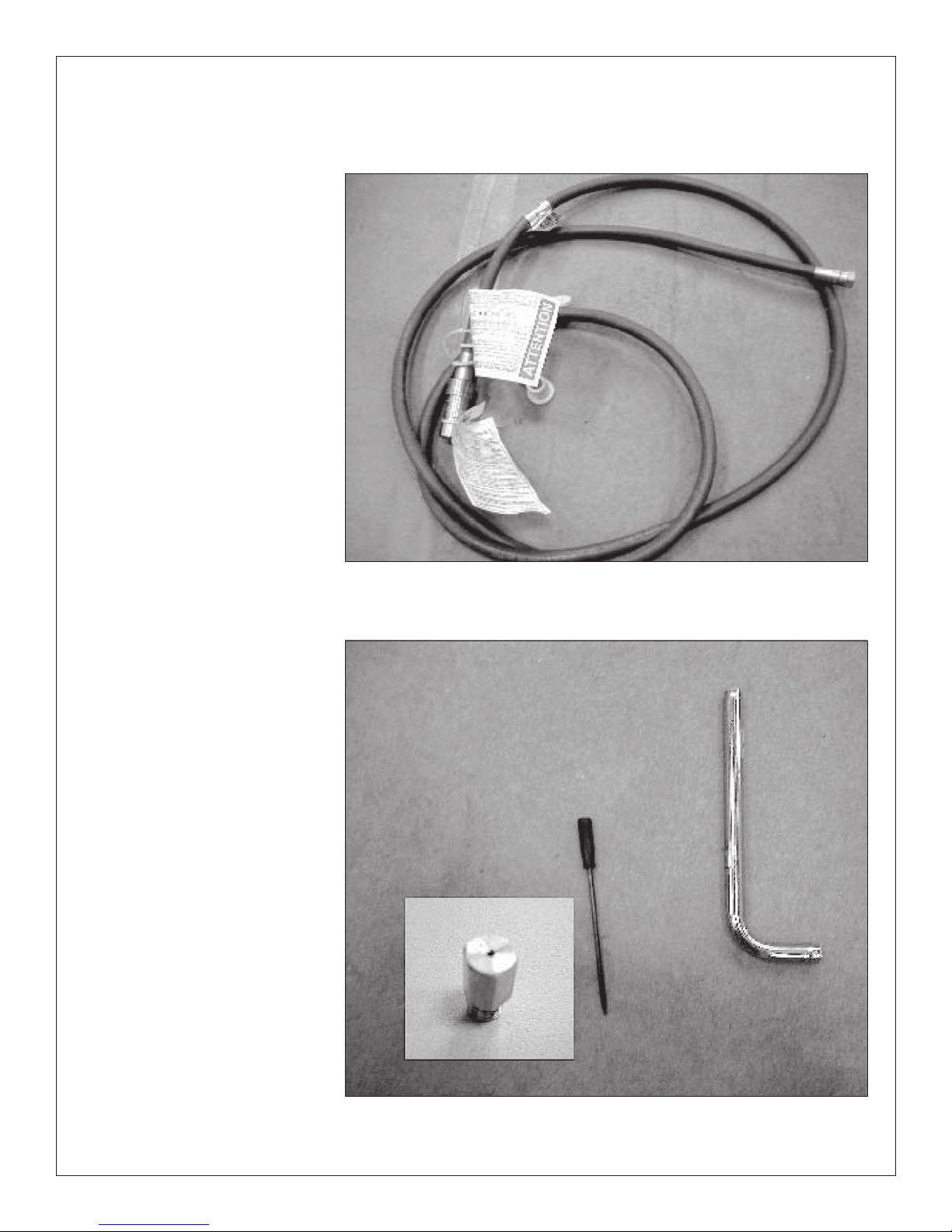

The Natural Gas
Conversion Kit includes:
1. NG hose
2. Orifice removal tool
3. Screw driver
4. NG orifice

8

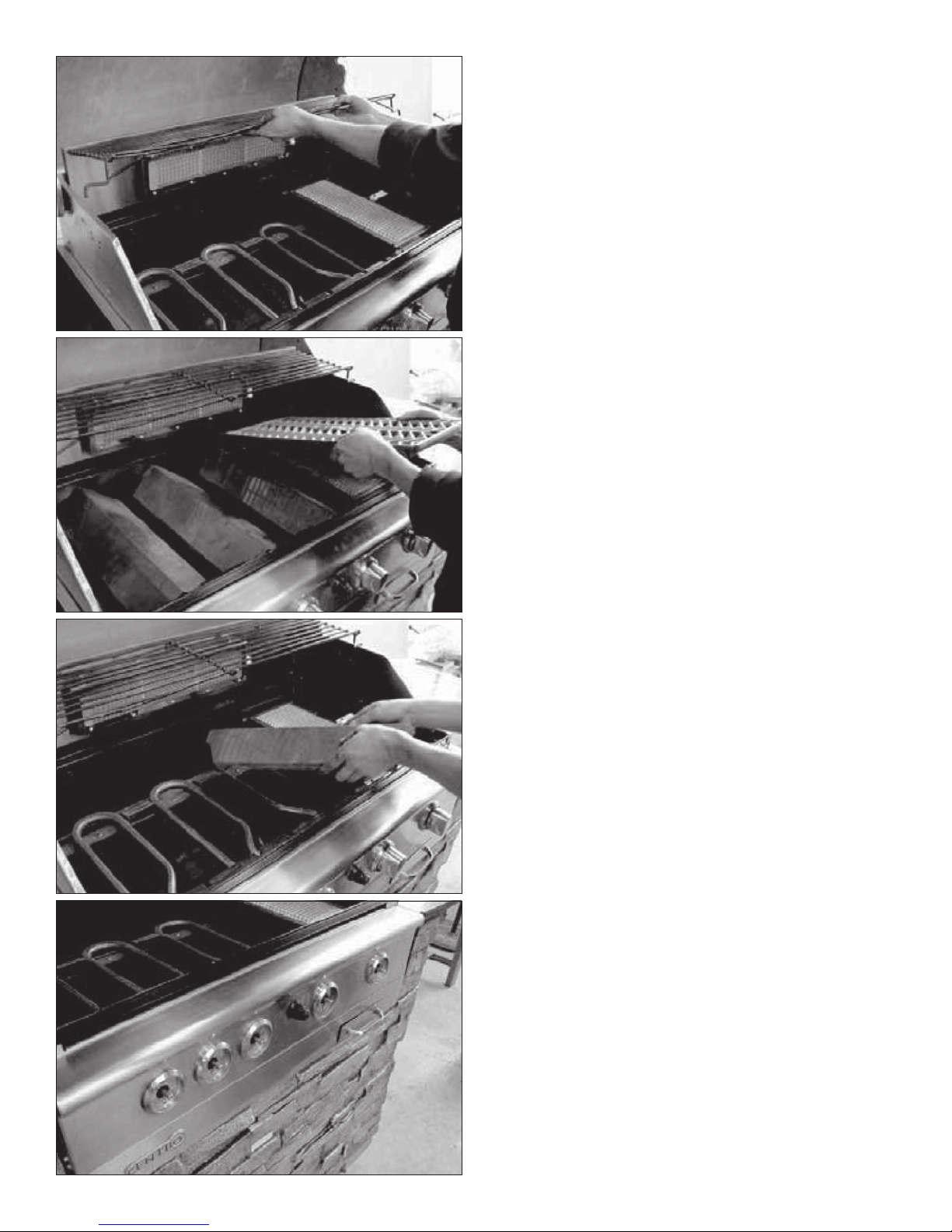

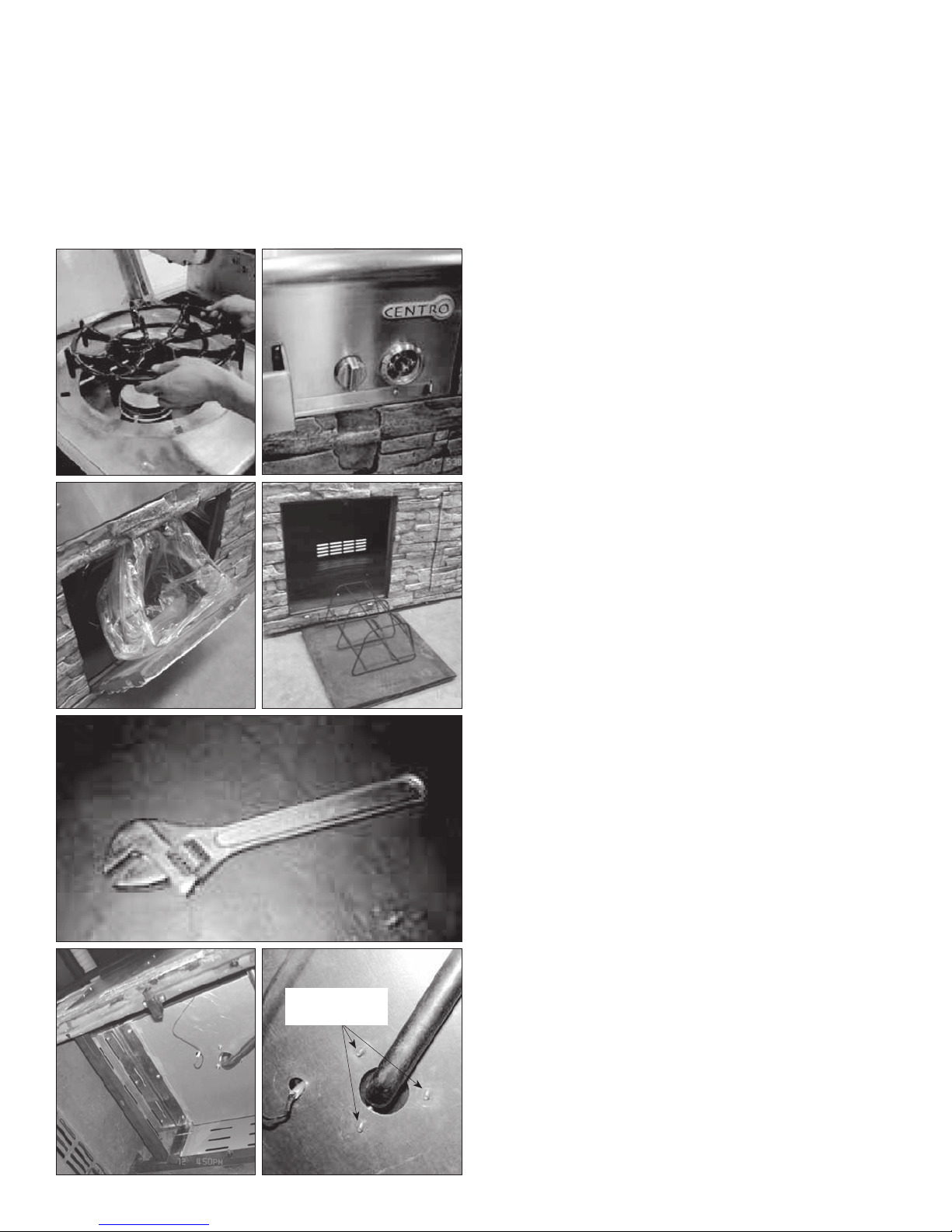

ASSEMBLY INSTRUCTIONS
1
Remove warming rack, cooking grates, flame tamers, and control
knobs from Centro 6000SI BBQ.

9

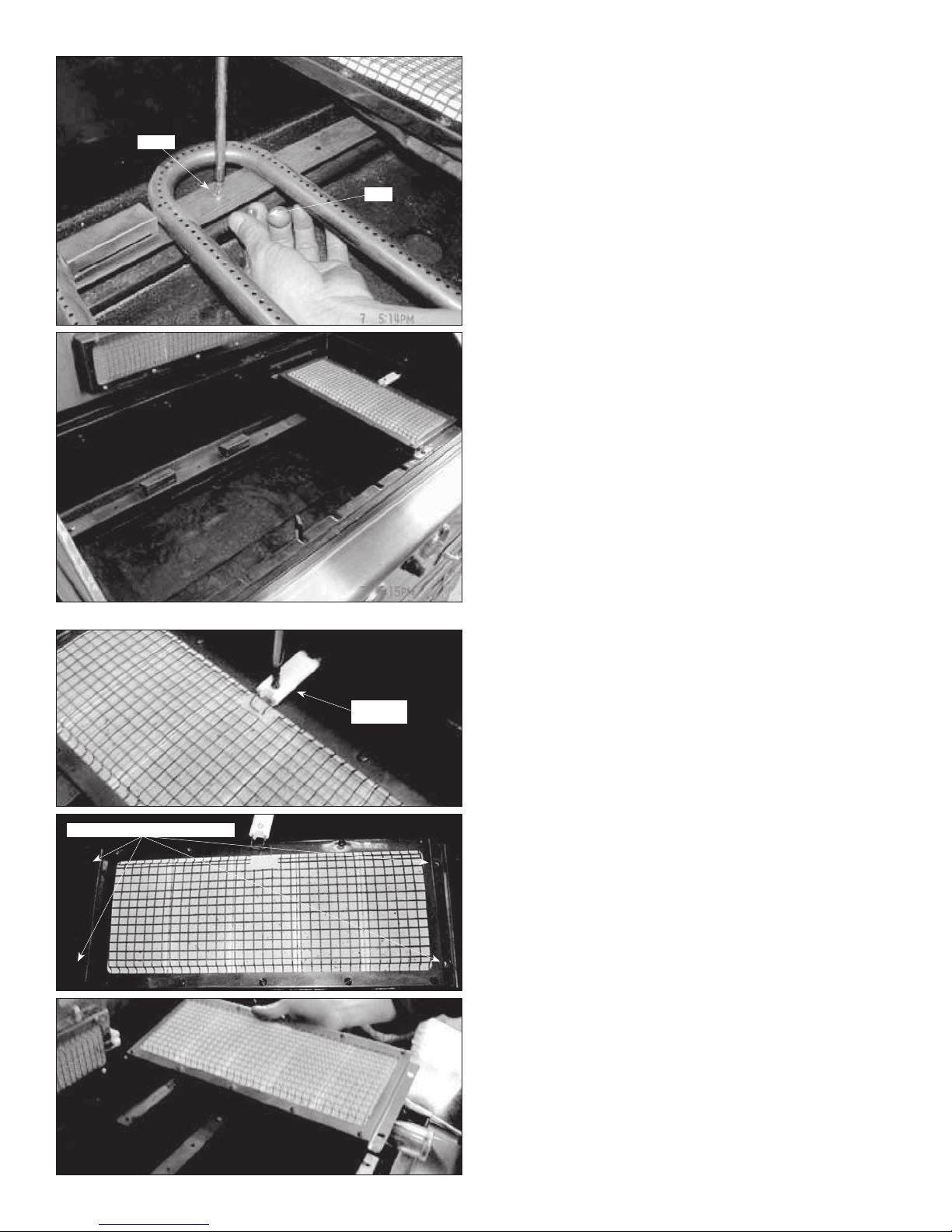

2

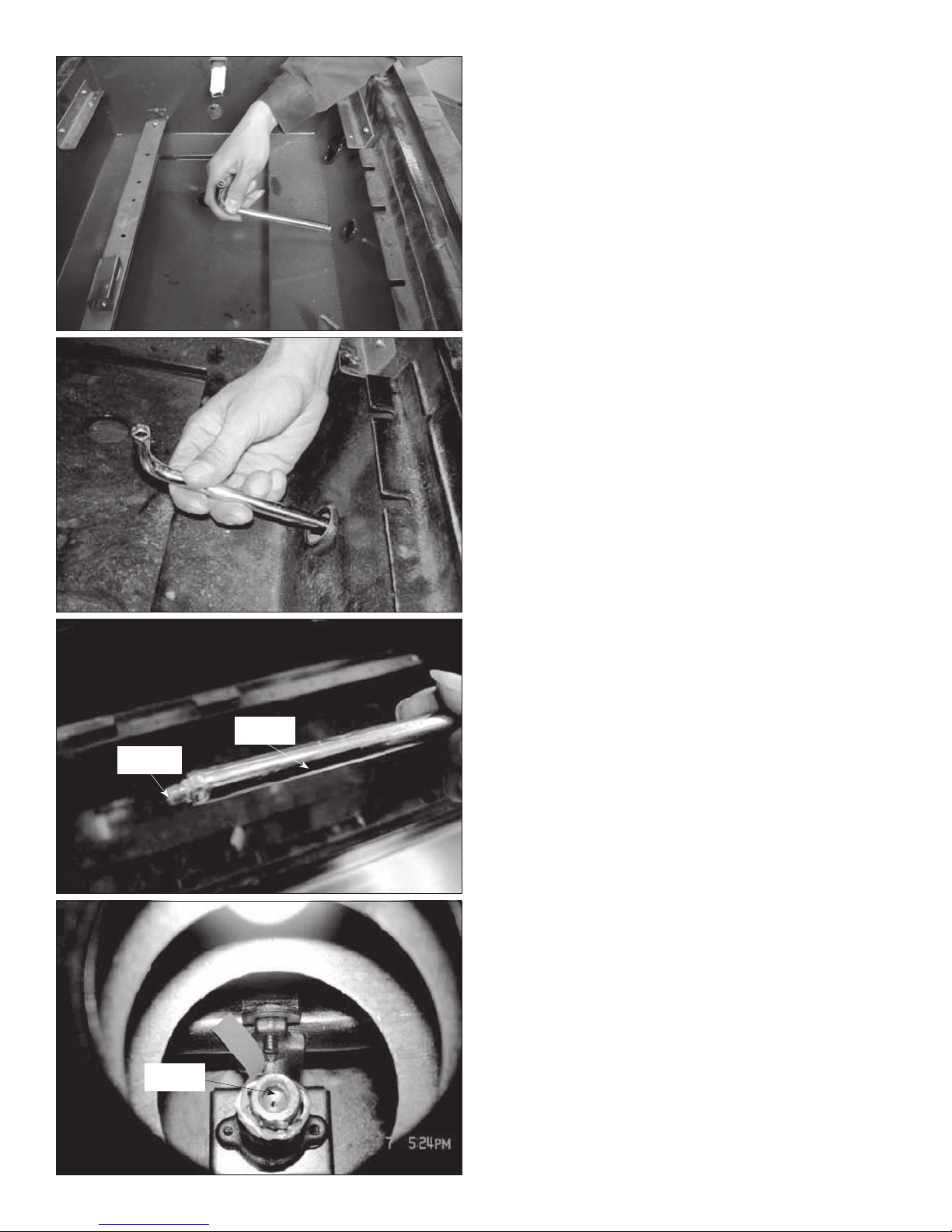

Remove all burners including the 3 main U burners, by unscrewing
the screw and nut that affix the burner to the burner support bar,
as shown in Figure A.
Nut
3

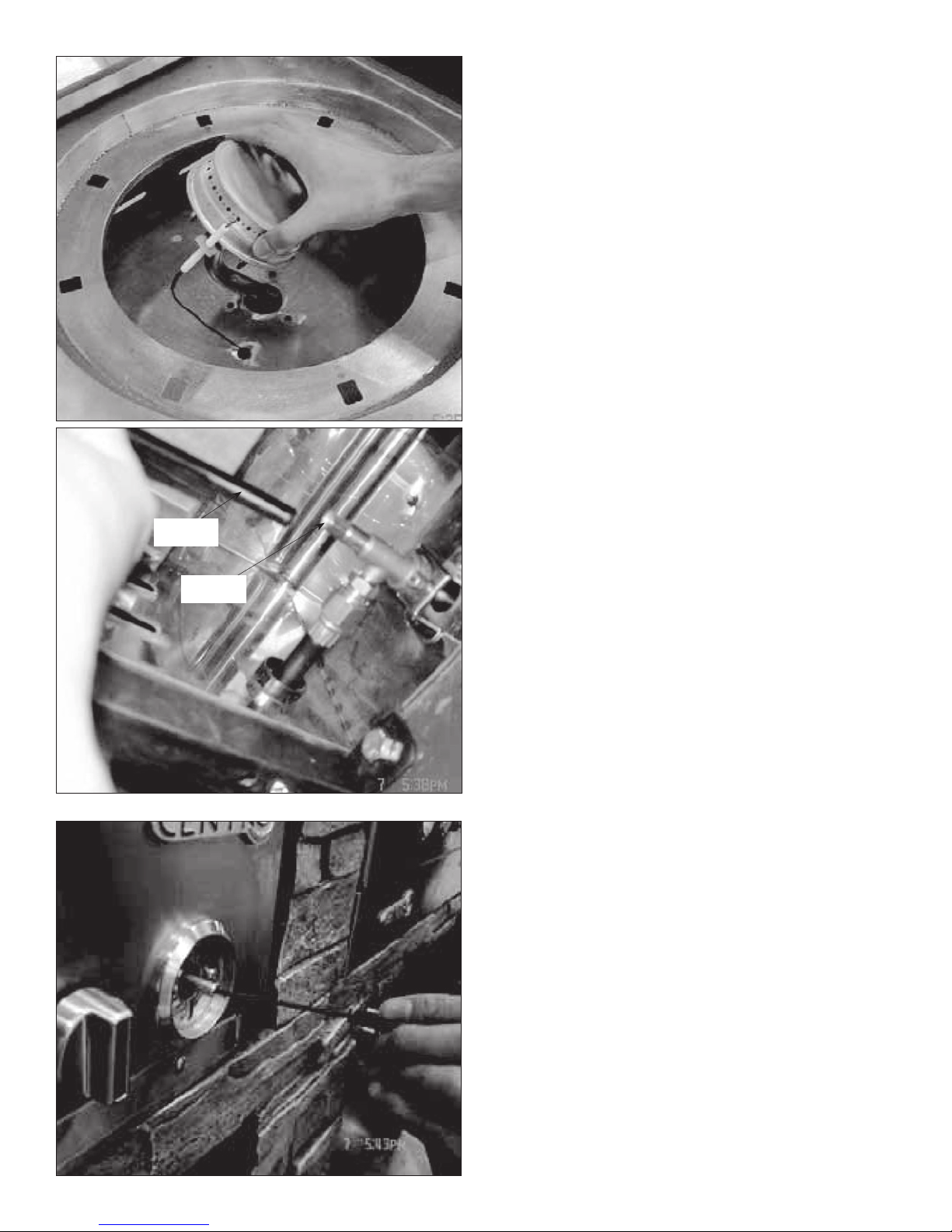

Remove the Sear Zone Burner (Figure E) by unscrewing the Sear
Zone electrode (Figure C), and 4 screws from the burner (Figure D).
Sear Burner
Electrode
These 4 screws have to be taken out
Screw
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E
Figure B shows all 3 main U-Burners removed.

1 0

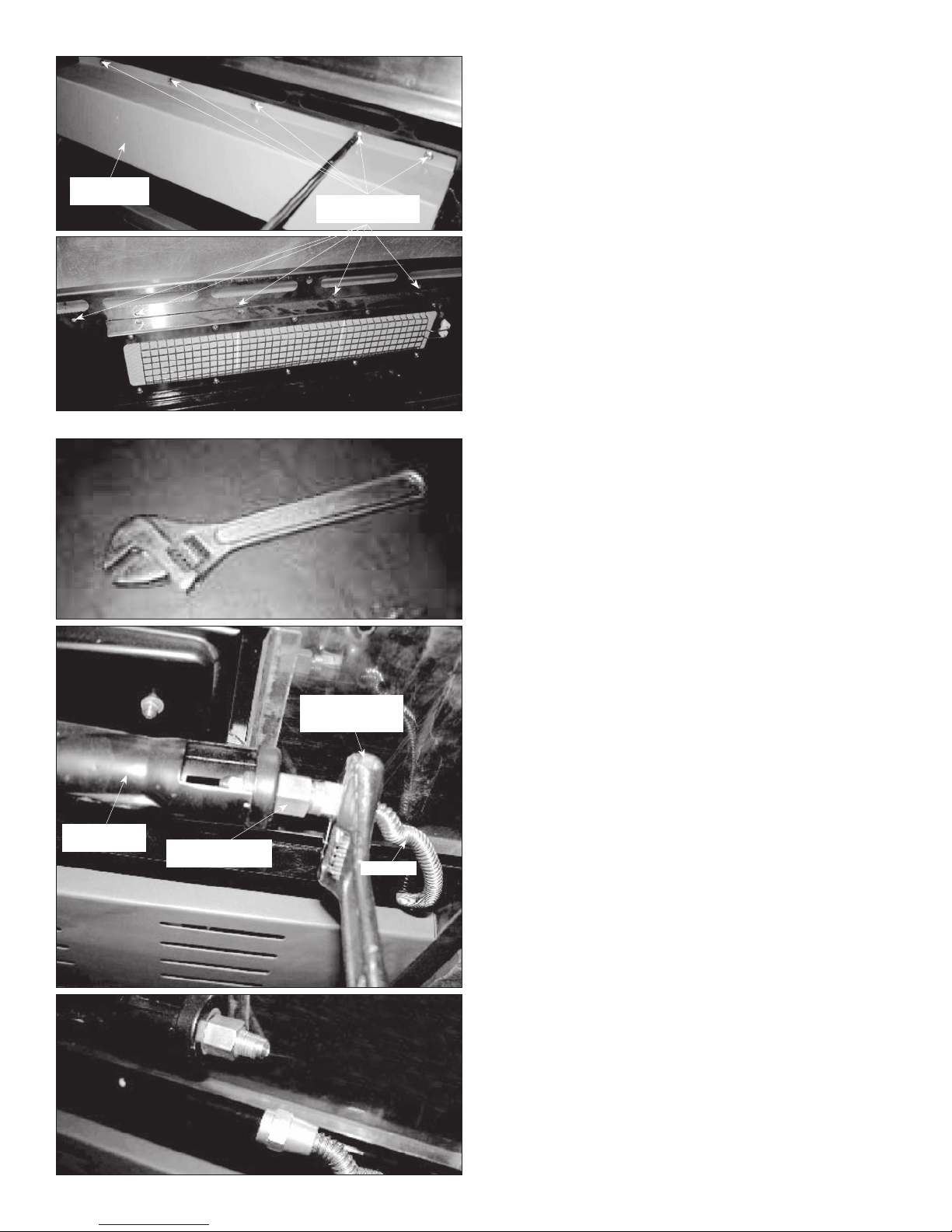

4

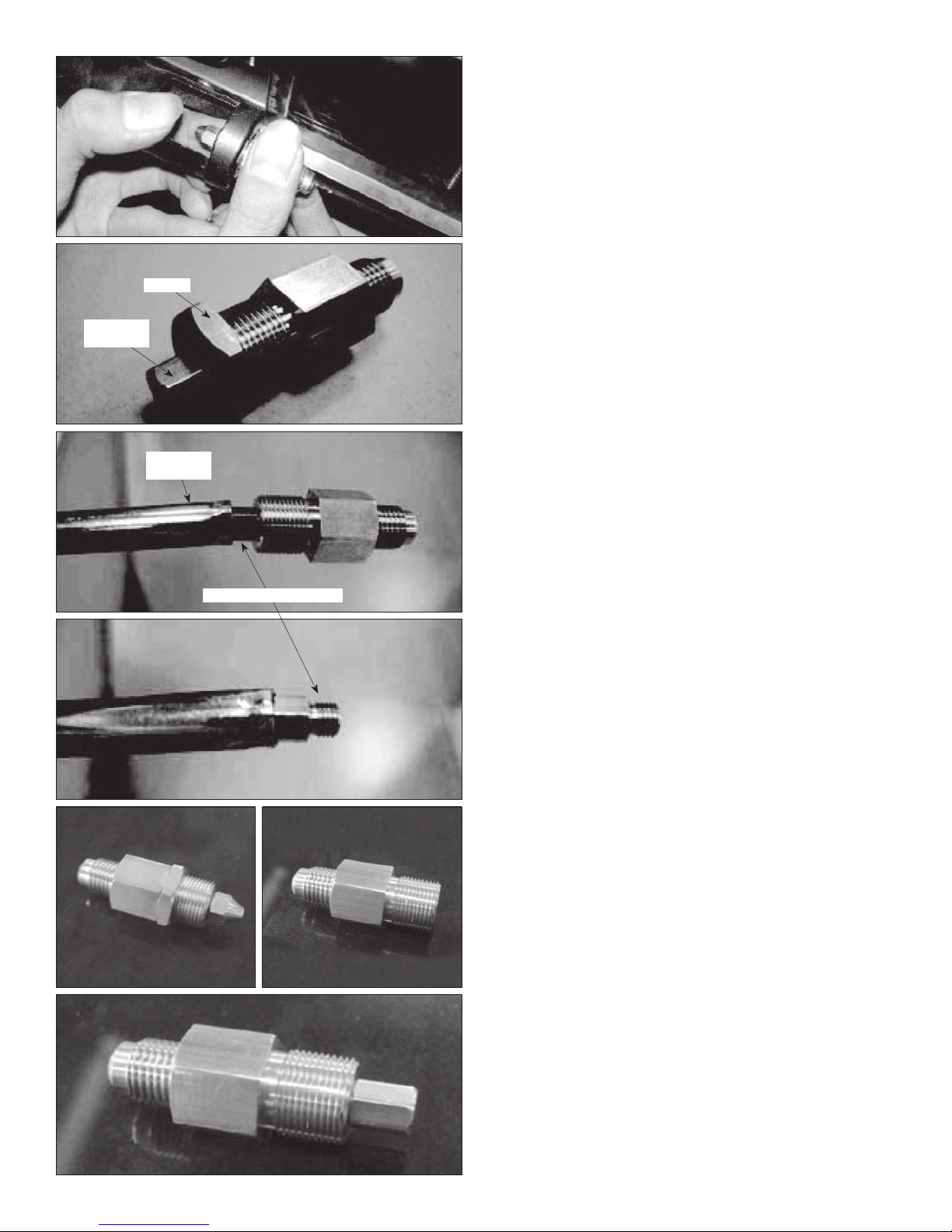

Using the Orifice removal tool provided, insert into hole on the rear
of the control panel (Fig. A and B), inside the burner box. Tool will fit
directly around the valve orifice. Once a connection is felt, turn the
tool counter-clockwise to remove all orifices, including Sear Zone.
Note: When removed, the valve orifice will sit inside
of the orifice removal tool as shown (Fig.C).
Note: View of the valve with LP orifice removed uncovering
the inner Natural Gas orifice. All burner valves
must appear the same as the image shown (Fig.D).
Fig. A
Fig. B
Fig. C
Fig. D
Valve orifice
is taken out
Orifice
removal out
Inner orifice
for NG

1 1
5
Replace Rotisserie and Sear Zone Control knobs (Figure A). Only
the 3 Main Burner Valves must be worked on in this step. Using the
screwdriver tool provided, place the end of the screw driver into the
valve stem (located on the front of the Control Panel as shown in
Figure B). Turn the connector 90 degrees to a vertical position.
VERY IMPORTANT!! This step must be followed.
Starting horizontal (LP) position (Fig.C).
Final vertical (NG) position (Fig.D).
Fig. A
Fig. B
Fig. C
Fig. D
Stem
valve

1 2
6
7
Multi-Purpose Side Burner Orifice Replacement
a) Remove side burner grate and control knob (Fig. A and B).
b) Disassemble the garbage door and garbage basket
(Fig. C and D).
Fig. A
c) Use a normal wrench to remove 3 nuts from the bottom of the
Multi-purpose Burner Side Heat Shield, visible from the space
inside of the garbage door, underneath the Multi-purpose Side
Burner (Figure E).
Fig. B
Fig. C Fig. D
Fig. E Fig. F
3 screws that are
under the Side Burner
Heat Shield
Safety Check. Confirm the following:
1. All 4 orifices have been removed from valves
(3 main U-Burner and Sear Zone Burner)
2. All 3 main U-Burner valve stems (Step 5) have
been adjusted to a horizontal position.
Once confirmed, the main burner conversion steps are com-
pleted. Reverse Step 3 to Step 1 to re-assemble the burner
box components.

1 3
8
Remove the side burner from the unit (Fig.A).
Fig. 8
Using the orifice removal tool, remove the side burner
valve orifice (Figure B). (View from inside the garbage door,
underneath the Multi-purpose Side Burner).
9
Using the screwdriver provided, reach into the side burner valve
stem as shown. Turn the thread from horizontal position (LP posi-
tion) to vertical position (NG position). VERY IMPORTANT!! This
step cannot be forgotten.
Multi-purpose Side Burner conversion has been completed. Reverse
Step 8, 7d, c, b, and a.
Fig. 9
Fig. A
Fig. B
Orifice
removal tool
Side Burner
valve orifice

1 4
10
Rotisserie Burner Orifice Replacement
Unscrew the 5 screws and nuts of the Rotisserie Burner from the
Rear Windshield Cover, located on the back of the burner box.
5 screws that need to
be taken out
Rear Rotisserie
Windshield
11
Using a wrench (NOT INCLUDED in the conversion kit) loosen the
Rotisserie Burner connector and the Metal Hose, located on the
back of the burner box as shown in Figure D.
Fig. E
Wrench
(not included in the
Conversion Kit)
Fig. D
Rotisserie Burner valve
connector and orifice
Rotisserie Burner
Venturi
Metal hose
Fig. A
Fig. B
Note: Once the Rotisserie Burner connector and metal
hose have been loosened, unscrew by hand (Figure E).
Fig. C

1 5
12
Unscrew the Wing nut by hand so that the orifice can be taken
out from the Rotisserie Burner Venturi (Figure A). Result shown in
Figure B. Use the orifice removal tool to take out the LP orifice, as
shown in Figure C. Then replace with a NG orifice that is provided
in the conversion kit package, as shown in Figure D.
Note: Before beginning re-assembly of Rotisserie Burner orifice,
ensure that the LP orifice has been removed. Proceed with re-
assembly by reversing Steps 10 to 12.
Replaced with NG orifice
LP orifice LP orifice removed
Fig. A
Fig. B
Fig. C
Fig. C
Fig. D Fig. D
Fig. D
Wing nut
Rotisserie
burner orifice
Orifice
removal tool
Rotisserie burner valve orifice

1 6
13
Gas Supply Conversion
Using a wrench, remove the hose and regulator inside the cart, as
shown in Figure A. Then connect a NG hose and perform leak test
and safety check on all maintenance.
Fig. A
Fig. B
Fig. C
Fig. D
Regulator
hose
Gas hose
Sleeve

1 7
Trileaf Distribution Trifeuil
Toronto, Canada
M4S 2B8
DISTRIBUTOR
