CEP 6506GU User manual

CEP 6506GU, 6506G
Temporary branch power distribution unit
with Ground fault protection for personnel
Installation and Operating Instructions
SPECIFICATION
These installation and operation instructions
apply to the following temporary power
branch distribution system components. Do
not discard these instructions, save for future
Reference.
PORATBLE POWER
DISTRIBUTION UNITS
All units are rated 50 amps, 125/250 VAC,
Single Phase, 5 milliampere leakage current
trip level. Downstream protection is not provided
through the 50 amp outlet. The 20 amp, 120 volt
outlets are individually
protected by circuit breakers and GFCI
circuit modules.
Model
Number
20 Amp
Receptacle
6506GU
U-Ground
6506G
Twist-Lock
INTRODUCTION
CEP temporary power distribution units equipped
with GFCI products will protect you from
electrocution hazards resulting from ground
faults. Ground faults are current leaks and can
result in electric shock. Currents of only 60/1000
of an ampere can be fatal. The GFCI protection
provided by CEP temporary power distribution
units significantly minimizes shock hazards. CEP
temporary power distribution units, which are UL
listed as Class A, Group I interrupters, respond
to fault currents as low as 3-6 milliamperes, and
will shut of the current within 1/40th of a second.
The temporary power distribution unit is
designed to provide protection against electrical
shock hazards due to line-to-ground faults.
Although the GFCI Module does not eliminate
the hazard of a shock, it does limit the duration
of the shock to a period considered safe for
normally healthy persons.
GFCI Modules will provide protection against
ground faults only. They will not protect against
overloads or short circuits. There is no known
device that will guard against the electrical shock
hazard resulting from contact with both the “hot”
and neutral wires of the electrical circuit.
ELECTRICITY IS DANGEROUS.
EVEN WHEN SAFETY DEVICES ARE
PRESENT, HANDLE WITH CARE AND USE
REASONABLE CAUTION.
LET CAUTION PREVAIL
The CEP temporary power distribution unit is
designed to be used on a grounded electrical
supply system. It will not operate when supplied
from a power source which is not grounded.
Over-current protection of the proper rating,
according to the National Electric Code, Article
240, must be used on the supply circuit feeding
the temporary power distribution units.
TEST PROCUDURE
All Models
Connect the temporary power distribution unit to
an appropriate power source.
CAUTION
Power is immediately available at the 50
amp outlet when the source is energized
on all models.
1. Verify all circuit breakers are in the “on”
position.

2. Push the test button on the individual GFCI
module. The unit should trip.
3. Push the reset button. The indicator light
should come on.
4. Repeat steps 2 & 3 for the remaining five
modules.
TROUBLE SHOOTING
The GFCI Modules within the temporary power
distribution unit will trip whenever one or more of
the following abnormal conditions exist in the line
(supply) side circuit:
1. Either line (hot) conductor is transposed with
the neutral conductor.
2. Either line (hot) conductor is open
(disconnected)
3. There is an excessive voltage imbalance
between line 1 and line 2 circuits. This may be
the result of an open neutral conductor in the
supply circuit.
When the abnormal condition(s) in the supply
circuit is corrected, the unit may be reset for
normal use by completely removing and then
reapplying line power. It is recommended that
the GFI test procedure be repeated at this time.
When a GFI module trips, attempt to reset it by
pressing the reset switch, being careful to look
for possible danger to personnel. If the module
resets, the fault was momentary and has
cleared. If it trips again immediately, the fault is
still present and the GFI module is performing its
safety function. To locate the fault, disconnect all
loads and again try pressing the reset switch.
The module should reset. Reconnect the loads
one at a time. The module will trip when the
faulted load is reconnected. Inspect all tools,
appliances and extension cords in the faulted
load circuit, repairing or replacing any that are
not in good condition.
NOTE: Tripping of a circuit breaker in these
models can only result from an overload or short
circuit condition in its individual load circuit.
When the fault in the load circuit is corrected or
removed, the circuit breaker can be reset for
normal use by switching handle to “OFF” position
and then to the “ON” position.
APPLICATION NOTES
1. Tripping of individual branch circuit breakers in
any temporary power distribution unit have no
effect on downstream units connected through
the 50 amp outlet.
2. There is no overload protection for the 50 amp
outlet.
NUISANCE TRIPPING
All cables have some capacitive leakage. In a
120 volt system, there is a limited to the length of
cable which can be run before sufficient leakage
to ground will build up causing a GFI to trip.
Individual 120 volt branch circuit load cords
should be limited to 250 feet in length.
HIGH VOLTAGE LIGHT
Indicates the input wiring is incorrect, and to
check the power source,
CONTACT MONITOR LIGHT
The red monitor light is a welded contact
indicator, that is, if the monitor light is on with the
unit tripped, it indicates the contact is welded,
and the unit should be replaced immediately --
there is no GFCI protection. (When the TEST
button is pressed, both the POWER light and
MONITOR light should go out, and come back
on when the RESET button is pressed.

MAINTENANCE & REPAIR
CAUTION: Electrical power supply MUST BE OFF AND DISCONNECTED before and during any
repair or maintenance. Repair and maintenance must be performed by a trained and competent
electrician.
WARNING: If any parts or components of this temporary distribution box appear to be missing,
broken or show signs of damage, DISCONTINUE USE IMMEDIATLEY! Do not modify these devices
in any way. Replace worn or damaged components. Failure to do so could cause serious personal
injury or death.

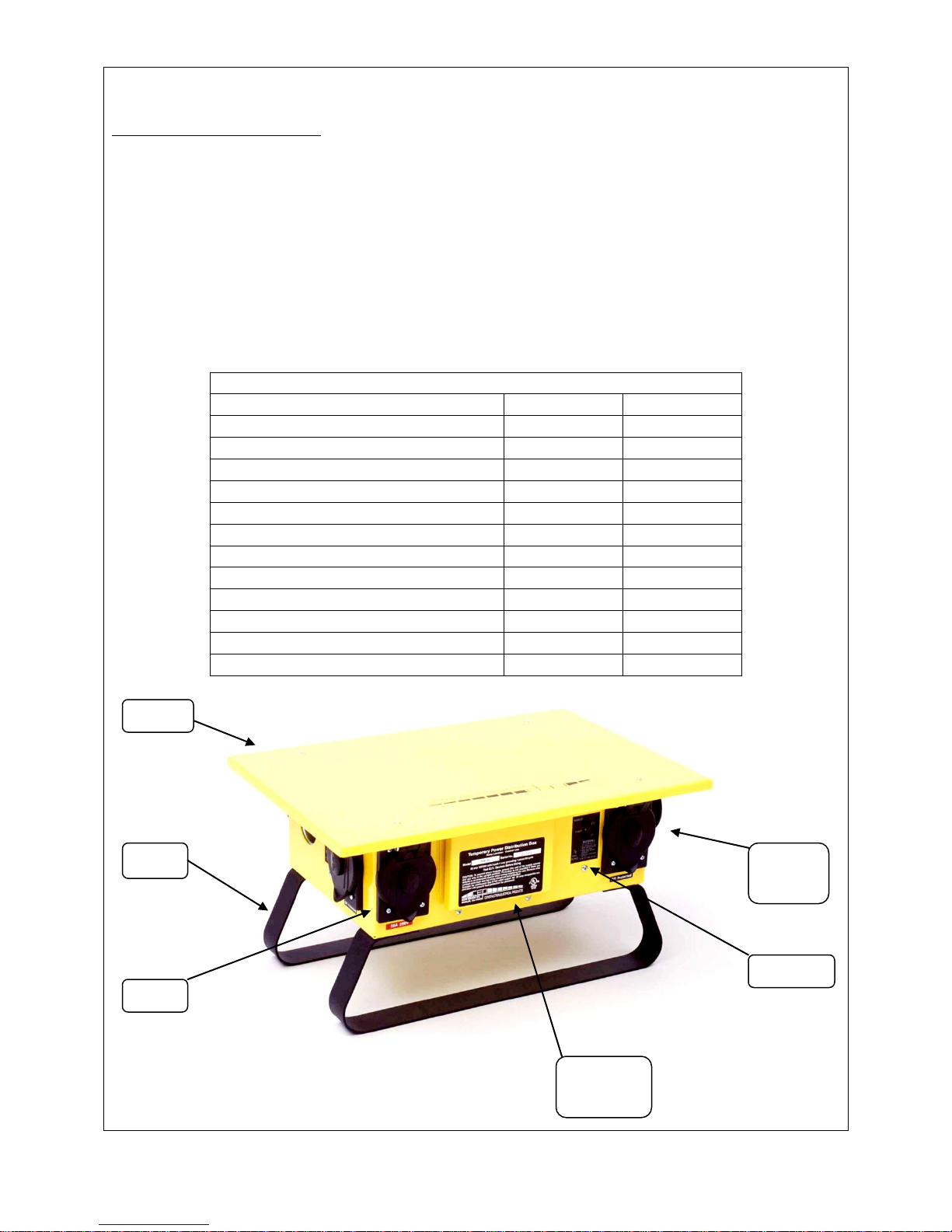

PARTS LIST
DESCRIPTION
6506GU
6506G
20 AMP 125V RECEPTACLE
520R1
205R
20 AMP RECEPTACLE COVER
7421
7420
30 AMP 250V TWIST LOCK RECEPTACLE
306R
306R
30 AMP RECEPTALCE COVER
7420
7420
50 AMP 125/250V TWIST LOCK INLET
6375M
6375M
50 AMP 125/250V TWIST LOCK RECPT.
6369M
6369M
50 AMP RECEPTACLE COVER
7788
7788
BOX LEG
LEGG
LEGG
BOX LID
LID6G
LID6G
GFCI MODULE
GF6095
GF6095
20A/125V SANP CIRCUIT BREAKER
CB120NS
CB120NS
30A/250V SNAP CIRCUIT BREAKER
CB230NS
CB230NS
LEGG
306R
520R1/
205R
LID6G
GF6095
5
CB120NS
CB230NS
