Important safety issues
1
1. While using this product, do not use pins or other metals.
2. Please check the frame before use. If there are any signs of cracks or breaks, stop using
the product.
3. Do not use the product when there is water.
4. The external projector must be used with the external projector cover so that there is no
direct contact between the product and skin. (There is risk of receiving a burn.)
5.
6. In case of thunder, lightning or an earthquake, please stop using the product and unplug it.
(There is risk of receiving an electric shock or a burn.)
7. Do not pull the cord to unplug or touch the power plug with wet hands.
(There is risk of receiving an electric shock or a burn.)
8. Apart from the mode for massaging the abdomen or the manual mode, do not use the
product laying face down.
(If the product is used lying down, do not use near the rib cage and only on the abdomen.)
Danger
In case of violating the instructions, there is an emergent possibility of serious
damage or even death.
Warning
In case of violating the instructions, there is some possibility of serious injury
or death.
Caution
In case of violating the instructions, there is possibility of minor injury or
property damage.
The information below stands to protect the safety of the user and to prevent any
property damage. All users must read the manual and use the product appropriately.
The important safety issues are divided into “Danger”, “Warning” and “Caution” and their
meanings are as follows. This picture is a symbol used to warn in case of dangerous
situations or dangerous control methods.
This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
The least favorable working condition is to use the thermal and massaging functions
continuously while applying 298lbs on the main mat and the supporting mat.

Important safety issues
2
1. Only use the product if it is in mechanically complete condition.
If damaged products are used, there is a possibility of injury or burns)
2. If you have finished using the product or will not use it for a long time, unplug the product.
3. Apart from the external projector cover provided by our company, do not place other products
or substances on top that may cause fires (such as fiber products, blankets and etc.)
(Overheating can cause fires and electric shocks.)
4. In case of use by a disabled person, guardians must be present.
5. Do not use the product if they are in the conditions mentioned below. Call the customer
center and request inspection or after-service.
- If the product has been dropped or is damaged
- If the product is wet
- If the cord or the power button is damaged. (There is a risk of an electric shock or a fire.)
6. Keep the power cord away from electric heating appliances or heaters.
7. This product has only been designed for indoor use. Do not use it outdoors.
8. Do not use the product where there are foreign substances in the air or places that handle oxygen.
9. Do not use or apply skin care, cosmetic or medical products on your skin before and during
the usage of this product.
10. When dismantling the product, make sure both the remote control and the main system are
switched “Off” before unplugging.
11. Be cautious of heated surfaces. (Can cause severe burns)
12. Do not use the external projector on parts of the body that have low levels of sensitivity or
parts that have reduced blood flow.
13. Please do not sleep on the equipment.
14. Do not randomly disassemble, repair or remodel the product. Call the customer center when
in need of a repair.
(There is a risk of electrick shock, fire, injury, and burns.)
15. Please take care not to insert your hand or any other body part into the main equipment
or auxiliary parts. (There is a risk of electric shock and injury.)
16. Device is only intended for use by people age 18 and over.
17. To avoid the risk of injury:
- If you have a pacemaker, defibrillator, other artificial implants or other medical devices,
consult with your doctor prior to use.
- If you have sensitive reactions or allergy to heat, you should also consult your doctor
before using the product.
- Do not use on bare skin; always wear clothing.
- Do not use if you have had any major surgeries, including back and/or hip surgeries.
- Consult your doctor prior to use if you have any external wound(s) or infection(s) on
the skin where the product will come into direct contact with your skin.
- Immediately stop using the unit if you start to feel sick or uncomfortable, or if the
massage seems too painful.
- As of now, there is no evidence to suggest that this product interferes with or influences
medications. Those taking any prescribed medications should consult their doctor before
using this product.
- Do not go to sleep while using the unit.
Important safety issues
3
Pregnant women, people who have malignancies, high fever, osteoporosis, people in
poor physical health, people in poor physical shape or undergoing any medical treatment,
and people suffering back, neck, shoulder or hip pain should consult their doctor before
using the product.
- Do not use the unit after drinking alcohol.
- Do not allow pets to play on or around the unit, especially during operation.
- Circulatory insuffiency or weak circulation in legs or heart diseases.
- Pain without cause defined.
-
Do not use in the presence of unexplained calf pain. Consult a physician prior to use.

5
Ground connection method
4
Danger
Check the connection of the product.
(Inappropriate connection may lead to electric shock and damage.)
This product must be connected to a ground connection.
The ground connection reduces resistance against electric currents in case there are any
defects or breakdowns which may lead to electric shocks and damage. On the product,
there are conductors and electric terminals where the power cord is located. The power
cord has been installed to comply with regional laws; therefore it must be connected to
where there is a socket.
If you suspect that the product’s power cord and connection point
has a problem, request investigation from an electrician or service
personnel. This product is for 100-127V~ and the power terminal is
installed as can be seen in the picture on the right. Connect the
power cord to a socket that looks like the one shown in the picture.
This product does not use an adaptor.
Notice to users
Caution
- Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limit for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equ-
ipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular
installation, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
>> Important Safety Issues
1. Product’s characteristics
2. The name of each part
07
1. Check product’s composition
2. Check before product installation
3. Installation
4. Check after installation
11
1. Remote control Layout / Back label
2. How to use the remote control
3. How to use the product (by mode)
4. How to move the product
17
1. Management techniques and storage methods
2.
3. Product specifications
4. Product warranty
33
C o n t e n t s
- Danger
- Warning
- Caution
01
41

6
MEMO
1. Product’s characteristics
2. The name of each part
of the product
7

1. Product’s characteristics
8
2. The name of each part
9
Head cushion
Remote control
connector
SD CARD
Internal
Projector
Main Heating
Element
Speakers
Outer fabric
Power switch
(Located at the side of the main machine)
Main frame
Supporting mat
(Auxiliary Heating element)
(Applied part)
Supporting frame
Remote control
External projectors
(3-Sphere, 9-Sphere)
(Applied part)
Earphone cord
SD card
slot
External projector
connector
Main body mat
(Applied part)
1. Easy-to-Use Exterior Design
2. Strength control function
Strength may be controlled in 6 levels according to the preference of users.
3. Slim, Easy-to-Use Remote Control
The slim and light remote control has function keys in the form of icons for
more convenient product operation and simpler manipulation.
4. External projectors (3-sphere, 9-sphere) provided
External projectors that can be used while this massaging equipment is
operated are provided as basic items; users may select 3-sphere or 9-sphere
projectors for the arms and abdomen.
5. Indications for Use:
The intended use of the Ceragem® Thermal Massager Model CGM MB-1101 Automatic
Thermal Massager is to provide muscle relaxation therapy by delivering heat and soothing
massage. Additionally, the product provides topical radiant infrared heat for:
- Temporary relief of minor muscle and joint pain stiffness
- Temporary relief of minor joint pain associated with arthritis
- Temporary increase in local circulation where applied
- Relaxation of muscles

10
MEMO
and preparation
1. Check product’s composition
2. Check before product installation
3. Installation
4. Check after installation
11

12
1. Install where the ground is flat to avoid the risk of damaging the product.
2. Try and avoid installation where there is a lot of humidity or dust.
(To avoid risking electric shocks or fire.)
3. Install according to the designated order.
5. Do not drop the product or apply any force to it.
(This could cause malfunctioning.)
4. When installing, check that the rated voltage is 100-127V~.
(To avoid circuit damage or fire.)
6. Do not use damaged power cords, plugs or old sockets.
7. You must connect to a socket with a connection terminal.
(To avoid risking electric shocks.)
2. Check before product installation
13
External projectors (3-Sphere, 9-Sphere)
Easy to use on body parts such as the arms and abdomen.
Two people should not use the device simultaneously.
External projector cover
It can be used while covering the external projector.
User manual
Information on how to use the product.
SD card
Users may add their preferred music in addition to the
Ceragem default sound.
Head cushion
This is attached to the top of the product.
Outer fabric
Protects against product contamination and burns; this detachable
fabric makes washing easy.
Assembly guide
Product assembly methods are described.
11
12
1
2
3
4
5
6
7
8
9
10
Remote Control Back Label
Indicates the functions of the keys of the remote control;
it can be attached to the back of the remote control.
Remote control cradle
The remote control cradle can be assembled onto and used
on the main body of the product.
13
Remote control
Used to check the product functions and operating condition
of the product.
External Projector Cable
To use the external projector, connect it to the main body.
Remote Control Cable
To use the remote control, connect it to the main body.
1. Check product’s composition
Power cord
Connects with the main body and plugs into an outlet for use.

15
3. Installation
14
Take out the product and its components from the box.
(
* Please refer to the Frame Assembly Guide on how to assemble the frame.
* Please check both sides of the rail carefully before assembling the supporting mat.
Sliding rail
Head cushion
Outer fabric
Warning
Do not touch the connector pin.
(Can cause bodily harm or mechanical failure)
3. Installation
accessories
Please connect the Remote Control, External Projectors and cable properly.
(Before connecting the power cord, connect the remote control first.)
Connect the power cord onto the main body and plug into a socket..
If the power cord is connected when the power switch is ”On”, it can cause mechanical failure.
Caution
SD CARD
Caution
Warning Do not touch the connector pin.(Can cause bodily harm or mechanical failure.)
Do not touch signal input, signal output or other connectors, and the patient simultaneously.
Assemble the remote control cradle onto the frame and place the remote
control onto the cradle. Check the connectors for the SD card, remote control
and the external projector and connect appropriately.

16
1. Remote control layout / Back label
2. How to use the remote control
3. How to use the product (by mode)
4. How to move the product

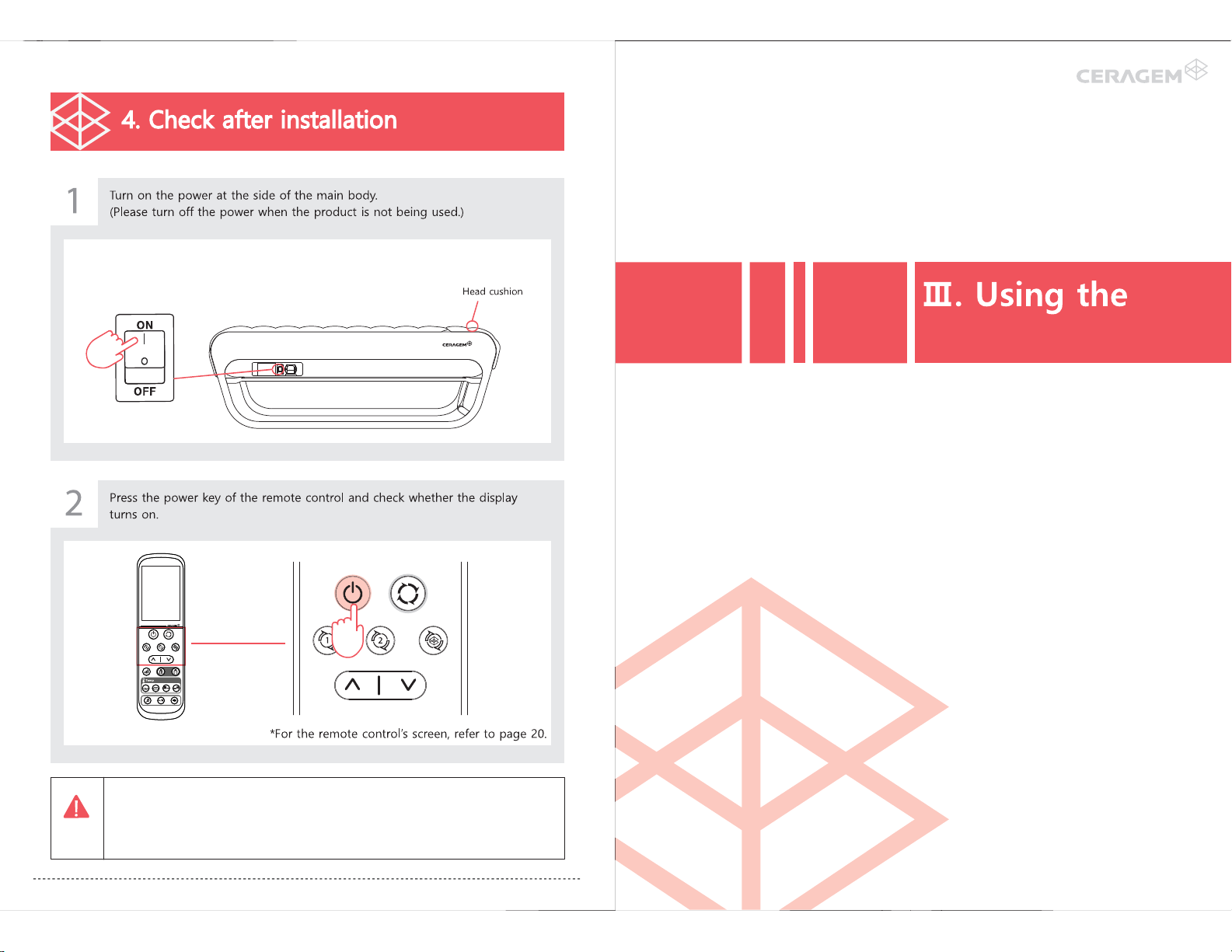

17
product
Caution
1. Before connecting the power cord, connect the remote control first.
2. According to the user, set the temperature appropriately when using the product.
3. When sitting down and using the product, open the supporting frame completely.
4. After using the product, turn off the power on the remote control and then turn off the main body.

18
1. Remote Control layout / Back label
Remote control button layout/Back label
2. How to use the remote control
19
Screen layout
(Automatic mode, Mode 1~9, Semi-Automatic/Manual mode)
When the mode is in operation, the time icon is turned on, displaying
the operating time by having the blank disappeared one by one.
2
3
4
1
5
6
External/Internal projector Main/Auxiliary heating element)
(Music number, Start/Pause, Volume)
Power button
Mode 1 button
Mode 2 button
Up/Down button
Strength button
Volume button
L
P

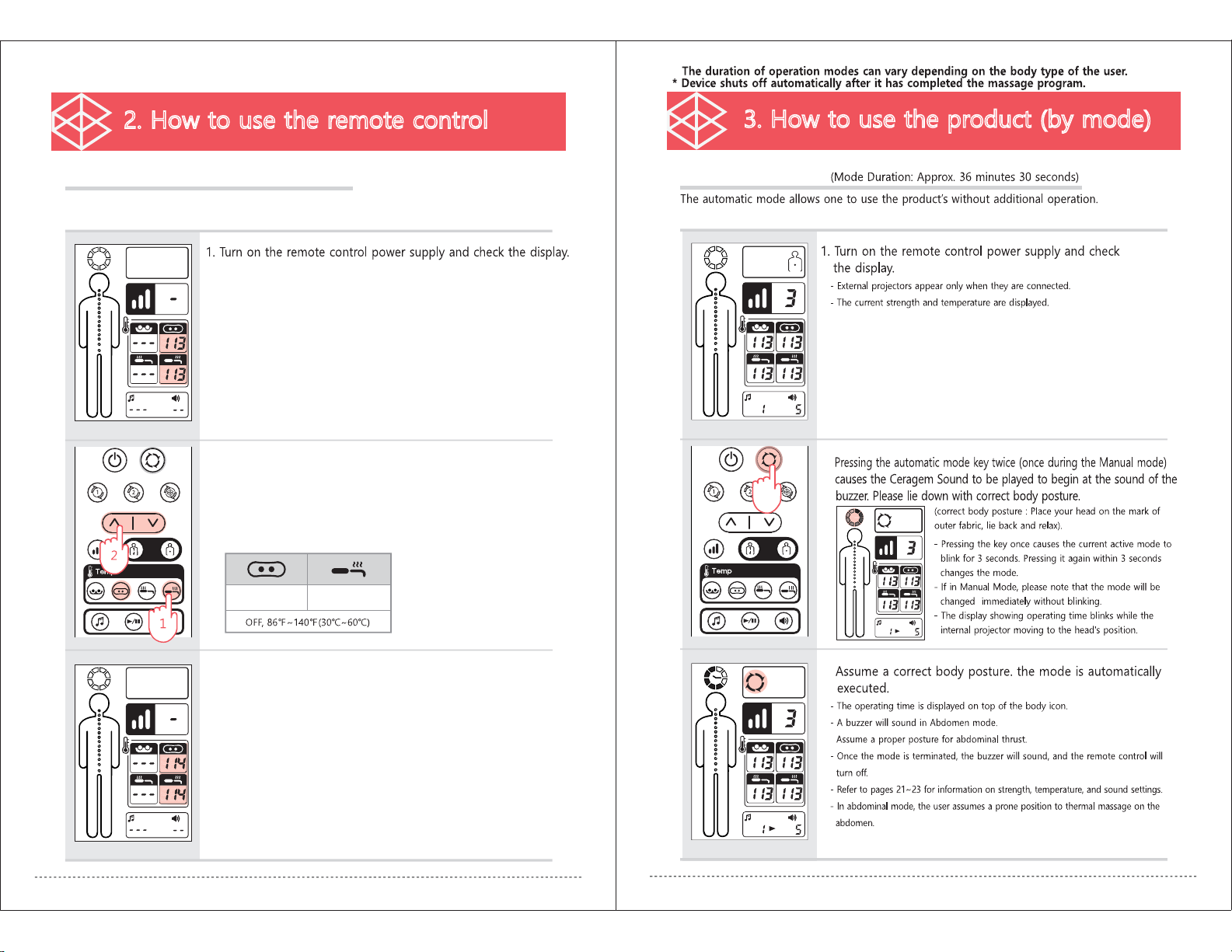

2. How to use the remote control
20

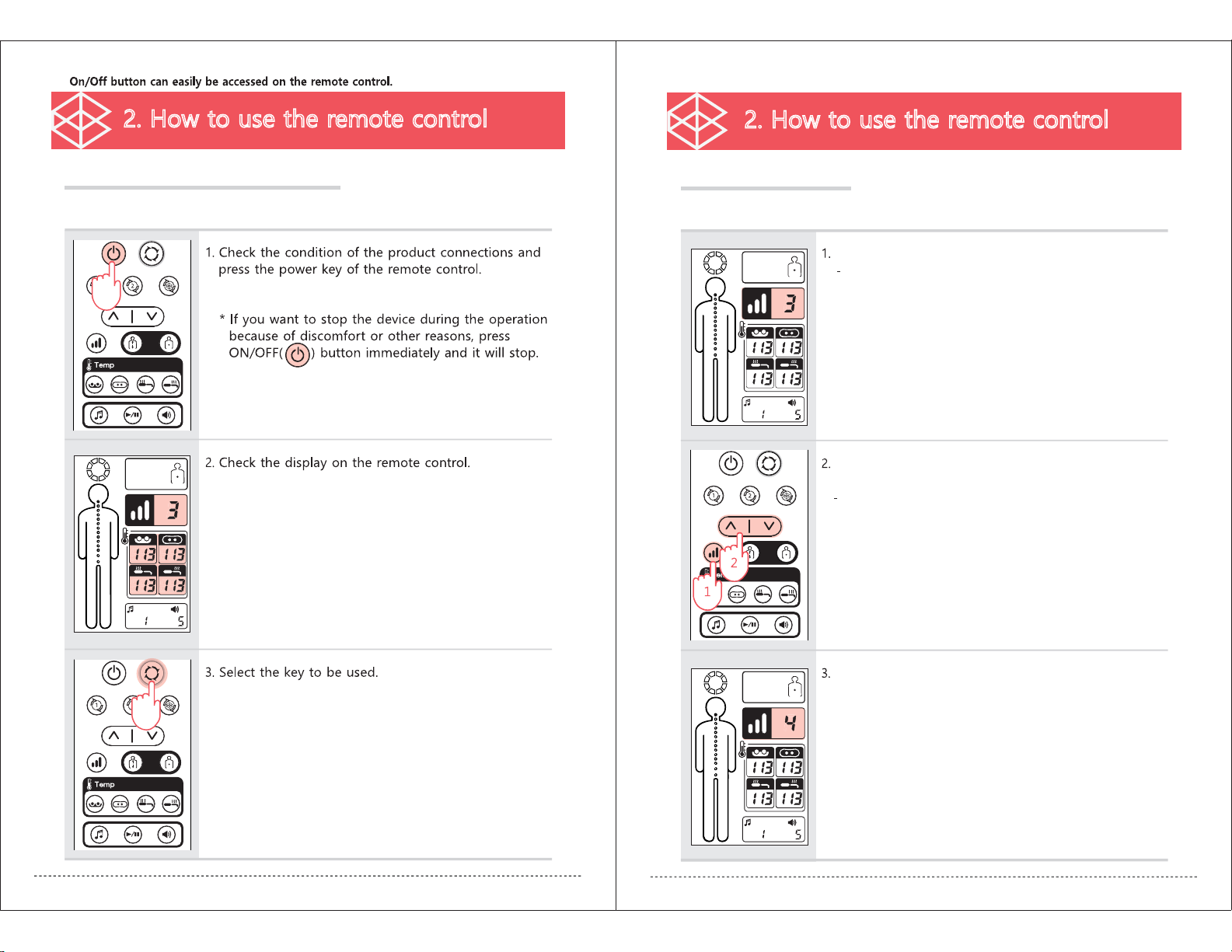

Turning on the remote control
- To turn off the remote control OFF, press and hold the power key for more
than 1 second.
- The current strength and temperature are displayed.
- The internal projectors automatically move to the position of the head
when the remote control turns on.
- Refer to pages 25~28 for the mode selection.
Check the current strength level.
Pressing the strength key causes the set point to flash.
After pressing the strength key, adjust the temperature
to the desired level using the Up/Down key.
Strength can be adjusted in 1~6 levels.
Check the changed strength set point on the remote
control display.
2. How to use the remote control
21
Adjusting Strength
The strength of the internal projectors can be adjusted before or during use.
Remote control must be held in the hand of the person using the device so that the
On/Off button can be accessed easily.
*

2. How to use the remote control
22

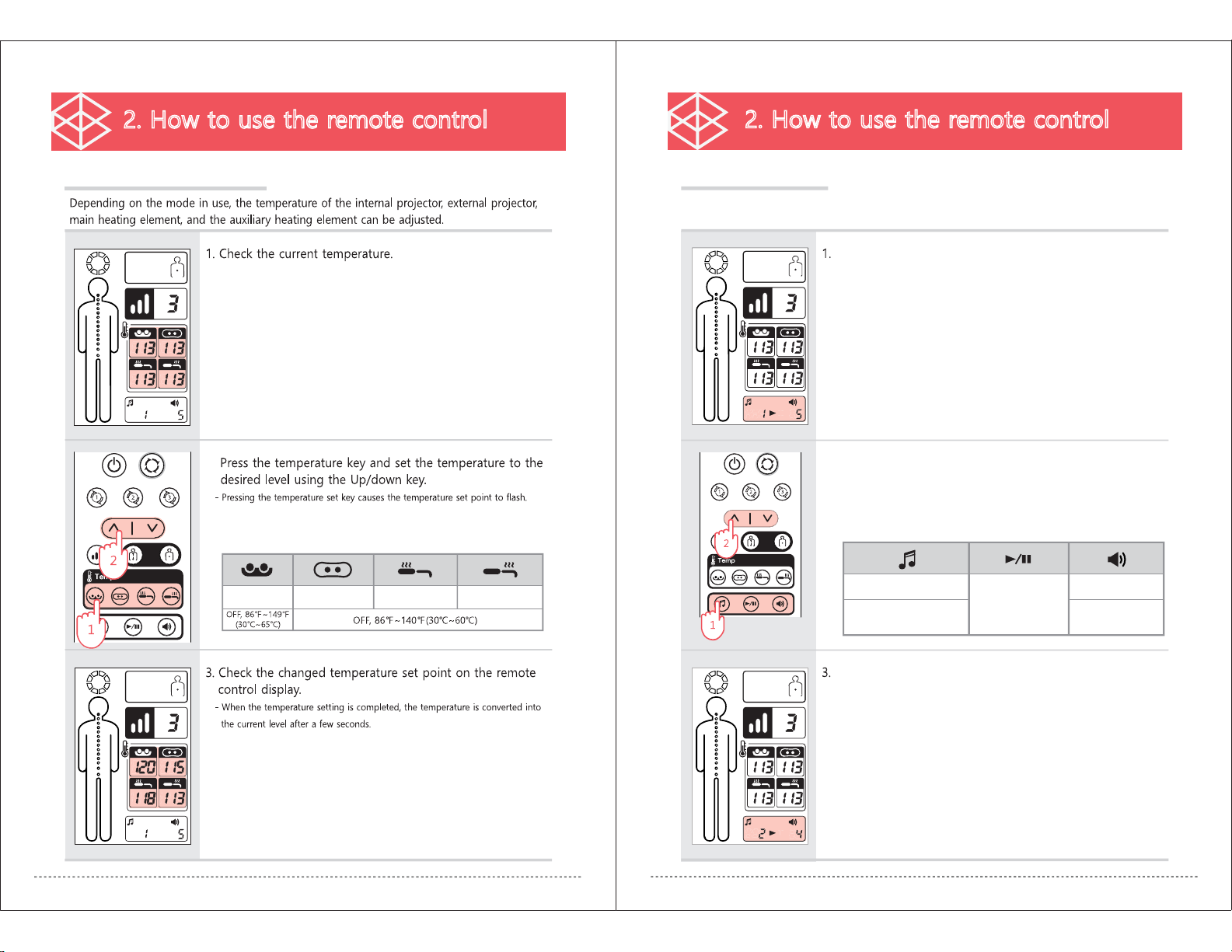

Adjusting Temperature
2.
External
Projector
Internal
Projector
Main Heating
Element
Auxiliary Heating
Element(see p.9)
Check the current condition of sound.
2. Press the sound key and select the desired setting
using the Up/Down key.
Check the condition of the changed sound on the
remote control display.
2. How to use the remote control
23
Adjusting Sound
Music Selection
Start/Pause
Volume
0~10
Ceragem Sound : 1~10
User Sound : 11~100
The sound settings can be adjusted while in use.

When the auxiliary part is closed
2. How to use the remote control
24
- External projectors appear only when they are connected.
2. Press the temperature key and select the desired
level of temperature using the Up/Down key.
3. Check the changed temperature set points on the
remote control display.
- When the temperature setting is completed, the temperature is converted
into the current level after a few seconds.
When the auxiliary part is closed the external heating element and the Thermal feature
can be used.
External
Projector
Auxiliary Heating
Element
Automatic Mode
3. How to use the product (by mode)
25
2.
3.
*

* *
3. How to use the product (by mode)
26
2.
( )
Mode 1 Mode 2
(18 minutes)
Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Mode 8 Mode 9
3. How to use the product (by mode)
( )
Press twice to select Mode 1
Press twice to select Mode 2
Long-press.
(Select modes 3~9 in sequence.)

*
3. How to use the product (by mode)
28
( )
2. After pressing the manual mode key twice, move the
internal projectors to the desired position.
3. Thermal massage begins from the designated position.
Assume a correct body posture
1
3
5
7
3
1
4
2
12
10
8
6
4
2
10 seconds
Standby
3
5
7
4
12
10
8
6
4
1
3
1
2
2
10 seconds
Standby
3. How to use the product (by mode)
29
Automatic Mode Mode 1
Mode 2 Mode 3
Ceramic moving pattern by mode Thermal massage (88 seconds)
2 minutes Standby
(Abdomen switch)
3
5
7
4
12
10
8
6
4
1
3
1
2
2
10 seconds
Standby
3
5
7
4
12
10
8
6
4
1
3
1
2
2
10 seconds
Standby
60 seconds Standby
(Abdomen switch)
Thermal massage (100 seconds)

Mode 5
Mode 6 Mode 7
3
5
7
4
12
10
8
6
4
10 seconds
Standby
3
5
7
4
12
10
8
6
4
1
3
1
2
2
10 seconds
Standby 1
3
1
2
2
3
5
7
4
12
10
8
6
4
3
5
7
4
12
10
8
6
4
1
3
1
2
2
10 seconds
Standby 1
3
1
2
2
10 seconds
Standby
3. How to use the product (by mode)
30
Ceramic moving pattern by mode Thermal massage (88 seconds)
The massage patterns may be adjusted depending on the user's height.
Mode 8 Mode 9
3
5
7
4
12
10
8
6
4
3
5
7
4
12
10
8
6
4
10 seconds
Standby 1
3
1
2
2
10 seconds
Standby 1
3
1
2
2
Ceramic moving pattern by mode
3. How to use the product (by mode)
31
Thermal massage (88 seconds)
Semi-automatic Mode
3
5
7
4
12
10
8
6
4
1
3
1
2
2
Up&Down(3 Times) + Thermal massage (60 seconds)
The massage patterns may be adjusted depending on the user's height.

32 33
1. Management techniques and storage methods
2. Importance of monitoring the activity
of the device Section
3. Product specifications
4. Product warranty
4. How to move the product
Two people must hold both sides of the main body frame and lift and move
horizontally.
Caution
When lifting the equipment, please lift slowly while straightening your
back and bending your knees.
Caution
Disconnect the power cord, remote control, and external projector from the main
body. Then, lift the head cushion and close the supporting mat.
(To open the supporting mat, pull forward and then lower it.)
<Close>
<Open>
SD CARD

34
Inspection points before use
Inspection points after use
35
1. Leather is an oil based product. Therefore it is crucial that it is not exposed to organic
solvents such as acetone, ballpoint pen ink, gasoline, thinners, sweat, mousse, spray,
and etc.
2. Where there is direct contact with the head or skin, wipe with a dry cloth.
3. If there is contact with cosmetic products or volatile emulsions and is left for a long
time, the surface may peel off so wipe with a dry cloth as soon as possible.
4. When washing the outer cloth, use a neutral detergent and wash alone by hand.
5. If there is contact with hot objects or heat, the leather will curl up so please use
caution.
6. Avoid direct sunlight or humid places.
(They can expose the product to bleaching or aging.)
7. Store at room temperature.

36
Does the remote control turn on?
Q: Is the power switch (located at the side of the product) turned on?
A: Turn on the power switch.
Q: Is the power cord connected properly?
A: Connect the power cord again.
Q: Is the remote control connected properly?
A: Connect the remote control again.
37
In case of error during operation, the following messages appear on the remote
control display:
Check the error messages displayed and contact the Customer Support Center
Please contact the support center if any of the following symbols appear
: tH, SE, HE, PH, Hod, HEE, HLE, CE, Vod, VEE
Caution
SE
tH
Hod
HLE
PH
HE
CE
High temperature error
External Projector
Internal Projector
Main Heating Element
Auxiliary Heating Element
Internal Projector
Main Heating Element
Auxiliary Heating Element
High temperature error
Faulty communication line Internal connection for main
computer
Main computer and remote
control connection
Overloading motor error
Faulty motor encoder
Faulty upper & lower limit switch
Horizontal motor drive
External Projector
Internal Projector
Internal circuit
Heating element error
Symbol Symbol Error location
VEE
Vod Overloading motor error
Overloading motor error
Vertical motor drive
Are the external projectors working?
Q: Are the external projectors connected properly?
A: Connect the external projectors again.
Is the product malfunctioning?
Q: Can you move the internal projectors using the Up/Down key?
A: Internal projectors can be moved using the Up/Down key only in semi-automatic
mode and manual mode.
Q: Can some of the remote control keys be operated?
A: Check the condition of the supporting mat.
Some of the remote control keys cannot be operated if the supporting mat is not
completely opened.
Q: Can the sound key of the remote control be operated?
A: The sound key of the remote control cannot be operated if the SD card is not
installed properly.
Q: Can you hear the music?
A: Please check the condition of the SD card.
A: Please turn the power off and then on again.
Are error messages displayed on the remote control?
Q: Does the remote control screen display tH, SE, HE, PH, Hod, HEE, HLE, CE, Vod, or VEE?
A: After checking the error messages, contact the Customer Support Center.
Never dismantle the product arbitrarily.
