CERLAND Carport Double Victor User manual

Ref.004925
Vers.1
Carport Double Victor
604x509xH269 cm

The essentials to enjoy your carport
1 Before assembly

You prepare the foundations of the carport. We recommend using type
“H” supports (not included) sealed in roughly 50cm foundations

You have made the inventory of the carport's components,

You store your carport in a covered, ventilated and flat place before
assembly in order to prevent mold and wood deformation,

In the event of a dispute, you send your dealer a service request
accompanied by a photo of the damaged item as well as the quality control
sheet attached to the instructions. Without these elements the dispute
cannot be taken into account.
2 During assembly

You do not screw any element without pre-drilling it first,
3 After assembly

You carefully keep all the documents attached to the product.
EN

Important! Please read this manual carefully before assembl y
Thank you for buying our product, we hope you will enjoy it.
Introduction:
This product is intended for private use to store materials, tools and gardening equipment.
Wood properties
: The product is made of natural wood. Its properties may vary depending on weather
conditions and exposure method. During winter season, it may slightly expand and shrink during summer season.
Such variations in dimensions are normal and do not affect the solidity, stability or functionality of the product. It
is best to unwrap the elements 48 hours before assembly and store them in a roofed area so that the wood can
adapt to the air humidity. (see paragraph "Warranty conditions")
Precaution before assembly
:
-
It is best to unwrap the elements 48 hours before assembly and store them in a roofed area so that the wood
can adapt to the air humidity.
-
Make a full inventory of the components before mounting the product and making a service request.
-
Before screwing screws to the shed parts, drill holes in them. Also, remember to ensure expansion gaps if the
shed shrinks in summer and expands in a rainy season : do not fix the planks together in order to allow the
movement of the boards (shelves, brackets, rails)
The shed is to be mounted by at least two people. The approximate time of assembly is one day.
Foundations:
Level the area where the shelter is to be placed. Flat, even surface will make work easier. Anchor the poles in the
ground (using H-shaped anchor bolts) and pour concrete when the structure is perfectly straight. We
recommend making foundations around 50 cm deep in the ground.
Maintenance :
-
If your carport has a shed, we recommend regular lubrication of door hinges and the lock. Do not leave the
door swinging in the wind.
-
During heavy snow, remove snow from the shed roof regularly if the snow layer is over 20 cm thick.
EN

Guarantee conditions: The guarantee is valid from the date of purchase. Proof of the date of purchase must be
provided for any warranty request. Our products are guaranteed for 2 years against any manufacturing defect.
Some features are acceptable, such as :
-
knots and stoppers in the wood,
-
non-adherent knots,
-
discoloration,
-
straight crack not open,
-
drying cracks (do not affect the quality of the product),
-
twists and torsion if assembly remains possible,
-
resin pockets,
-
any natural evolution relating to wood.
The warranty covers all defects in workmanship or material and is limited to repair or replacement of the
defective part. Any possible costs of assembly, disassembly and impregnation are not covered. The warranty
explicitly does not cover any claims or compensation.
In the case of supply at an address of residence, any complaints concerning the condition of the goods supplied
are accepted only in the form of a prepaid registered letter sent within 48 hours from the moment of supply of
the product to a given carrier (details of the carrier are given in the shipping document). We assume no liability
for any damage resulting from storage or transport on the distributor’s part. We are not obliged to accept any
new products returned for reasons outside the scope of our liability. If, as an exception, such products are
accepted, the client may be charged with any possible costs of repair or transport. We never accept already
assembled products. As far as wooden products are concerned, please remember that timber is a living material
that may naturally deform. Any claims regarding deformed elements must be accompanied by photographs of
such elements.
Warranty terms:
The following uses are excluded from the product warranty :
-
Misuse of the product or under "conditions of use not reasonably foreseeable”,
-
Non-compliance with the rules of the art of implementation of the product,
-
Use of the product for professional purposes not suited to the primary function of the product,
-
Modification of all or part of the product or one of its components,
-
Use of spare parts that are not original,
-
Use of cleaning and / or decoration products not recommended by Forest Style and / or not suitable,
-
Severe weather (wind> 100km / h and snow> 20cm) or natural disaster, flood, storm, fire etc.,
-
Use in the case of a place of residence,
-
Product degradation caused by foundations made outside of the state of the art,
-
Defects caused by poor ground levelness,
-
Storage and assembly defects as well as insufficient protective treatment.
Service:
For replacement parts, please contact the distributor and show the quality control sheet attached to this
manual. Service requests will not be considered without the above mentioned documents.
Please keep the quality control sheet attached to this assembly manual in a safe place. It is
required for the purpose of complaint consideration.

T20
T25
x2

V01
6x100mm (x12)
V02
6x160mm (x30)
Blister ref. S05431
V05
M6x60mm + washer 6 + nut M6
(x2)
V04
6x70mm (x36)
V06
M10x140mm + washer 10 + nut M10
(x6)
V07
4,8x35mm (x273)
V08
(x1)
V03
6x60mm (x44)
Vis / Screw /
schraube / Tornillo
Percage/ Drilling /
Bohrung/ Perforacion
6 ( V01, V02, V03,
V04 )
4
6 ( V05 ) 7
10 ( V06 ) 12
Pré-perçage / Pre-drilling / Vorbohren / Perforacion previa

S05511
S05494
S05495
S05536
S05522
S05498
2345x120x120
2242x120x120
2140x120x120
2570x180x45
2600x120x20
6000x180x45
M01
M02
M03
M04
M05
M06
x2
x2
x2
x4
x7
x8

S05534
S05535
757x180x45
3040x120x20
2600x900
S05351
M07
M08
M09
x14
x4
x16

M03
M02
M01
M04
M07
M08
M05
M09
M06
Global View

400
400
120
120
600
120
120
5720
1907 1907
90°
90°
120
120
1
/10
Fondations / Fundations
Plot Beton: 400x400x600 mm
Concrete block: 400x400x600 mm
Recommended
(not included)

M04 (x2)
V01
V06
V05 (x2)
60mm
35mm
2A-B
/10
x2
7mm
B A
No. Dimensions Qty
M04 2570x180x45
4
V05 M6x60mm + washer 6 + nut M6
2

M03 (x1)
V07 (x1)
92
3A
/10
V08 (x1)
92
Au sol / On the ground
No. Dimensions Qty
M03 2140x120x120
2

1907mm
1907 1907
M01 (x1) M02 (x1)
V08 (x1)
92
3B-C
/10
x2
92
B
C
No. Dimensions Qty
M02 2242x120x120
2
M01 2345x120x120
2

V01 (x2)
3D-E
/10
4mm
D
E
x6
No. Dimensions Qty
V01
6x100
12

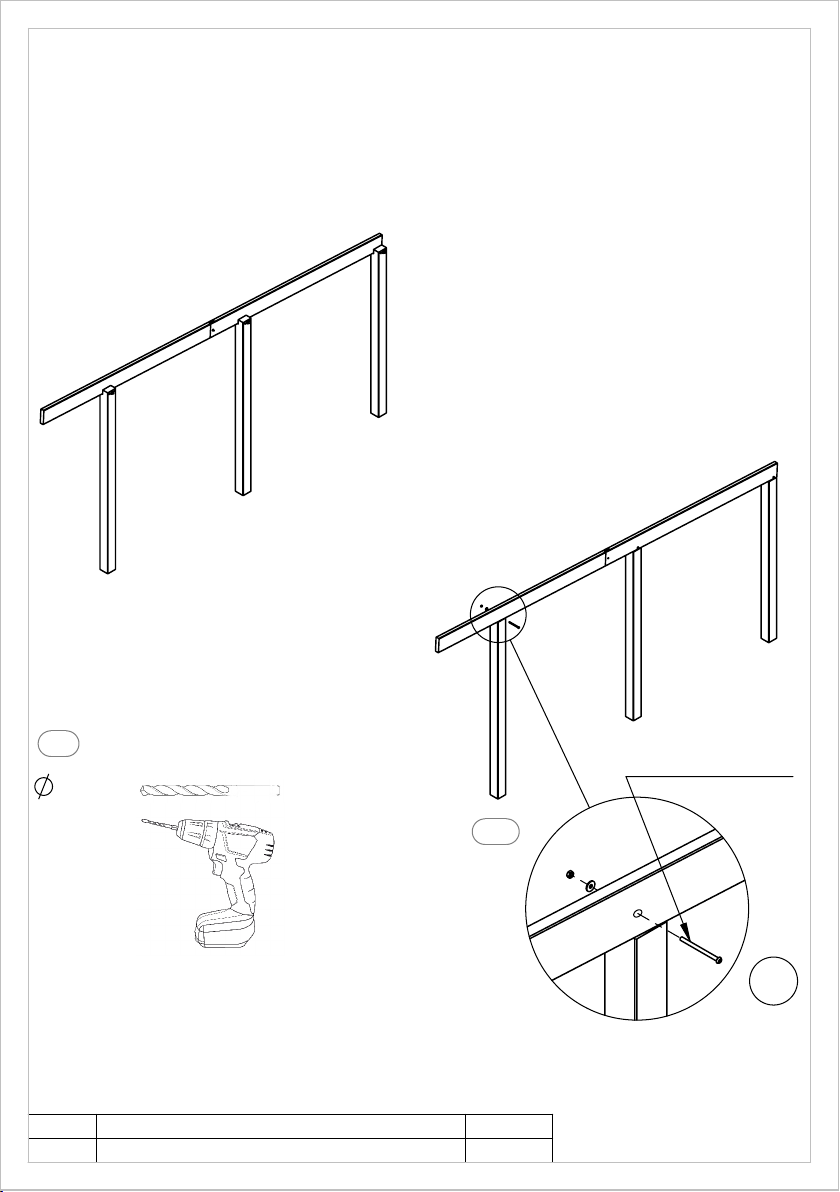

4A
/10
A

V06 (x1)/M01
4B-C
/10
12mm
B
C
x6
No. Dimensions Qty
V06 M10x140mm +washer 10 + nut M10
6

V02 (x1)
V04 (x3)
500
mm
M07 (x2)
x10
5A-B
/10
A
B
4mm
x10
No. Dimensions Qty
M07 757x180x45
10
V02
6x160mm
10
V04
6x70mm
30

M05 (x2)
4mm
V02 (x2)/M05
B
6A-B
/10
A
No. Dimensions Qty
M05 6000x180x45
2
V02
6x160mm
4

M05 (x5)
V02 (x2)/M05
B
880 673 801 801 801 801
7A-B
/10
4mm
A
No. Dimensions Qty
M05 6000x180x45
5
V02
6x160mm
10

V04 (x3)
V02 (x1)
M07 (x1)
B
M07 (x1)
V02 (x2)
C
8A-C
/10
4mm
A
No. Dimensions Qty
M07 757x180x45
4
V04
6x70mm
6
V02
6x160mm
6
