Certikin PU2MLP User manual

PU2 Underwater LED Light
PU2MLP, PU2MLPW – Concrete Pools
PU2MLPL, PU2MLPWL – Liner Pools
IMPORTANT:
READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE.
Notice to Installer:
The information within this document must be read before the installation
and start-up of this product. Once the product has been installed this
document must be given to the owner/operator of this equipment.
 01993 777200  [e-mail]
www.certikin.co.uk
Manufactured By:
Maysee Technology Ltd, China
Imported By:
Certikin International Ltd
Witan Park
Station Lane Industrial Estate
Witney
Oxfordshire
OX28 4FJ
FEBRUARY 2020

2
Product conformity information
This product complies with the following directives:
2014/30/EU: EMC Directive:
• EN55015:2013/A1:2015
• EN61547:2009
• EN61000-3-2:2014
• EN61000-3-3:2013
2011/65/EU: RoHS Directive
• IEC 62321-4:2013+AMD1:2017
• IEC 62321-5:2013
• IEC 62321-6:2015
• IEC 62321-7-1:2015
• IEC 62321-7-2:2017
• IEC 62321-8:2017
Safety Notices:
TO AVOID POSSIBLE HARM, READ AND FOLLOW THESE INSTRUCTIONS
WARNING This equipment must be installed by qualified persons only. Improper installation can create
electrical hazards which could result in property damage, serious injury or death. Improper installation and
servicing will void the warranty.
WARNING A qualified electrician must carry out all electrical wiring in accordance with local electrical
regulations.
NOTICE Do not operate the light in a ‘non-wet’ environment for long periods.
DANGER
This notice signifies an ELECTRICAL hazard with
a HIGH level of risk which, if not avoided, WILL
result in death or serious injury.
This notice signifies An ELECTRICAL hazard
with a MEDIUM level of risk which, if not
avoided, COULD result in death or serious
injury.
WARNING
This notice signifies a hazard with a HIGH level
of risk which, if not avoided, WILL result in
death or serious injury.
This notice signifies a hazard with a MEDIUM
level of risk which, if not avoided, COULD result
in death or serious injury.
DANGER WARNING
This notice signifies a hazard with a LOW level
of risk which, if not avoided, COULD result in
minor or moderate injury.
This notice signifies a potential risk of damage
to the product or property.
CAUTION NOTICE
11
Notes:

3
About the product
The PU2 Mini LED Light is a full colour changing or mono-colour (RGBW), or single white (W) light. The RGBW unit offers the
flexibility to allow a choice of colours and shades, create programmable lighting sequences and to be dimmable. The W unit is a
simple on/off white light
It can be used as a stand alone light, or in multiples.
This product is specifically designed for use as an underwater swimming pool light. The light is IP68 rated making it suitable for
permanent immersion in water.
This product is a Class III electric apparatus – it is designed to be powered by a SELV (Safety Extra Low Voltage) power source.
WARNING A qualified electrician must carry out all electrical wiring in accordance with local
electrical regulations.
Model No: Description
PU2MLP Mini LED Light (RGBW) – for concrete pools
PU2MLPW Mini LED Light (White) – for concrete pools
PU2MLPL Mini LED Light (RGBW) – for liner pools
PU2MLPLW Mini LED Light (White) – for liner pools
The design of the PU2MLP and PU2MLPW lights makes them suitable for a push fit application into open ended 11/2” Class C
piping, leaving just the fascia of the light visible on the swimming pool wall. These lights also come with an alternative sized o-ring
making them suitable for installation into 50mm Class C piping.
The design of the PU2MLPL and PU2MLPWL light makes them suitable for use in vinyl liner pools by means of a threaded
attachment into a new or existing Certikin liner inlet fitting.
RGBW units are designed to be operated and controlled by a separate Wi-Fi controller, driver unit and power supply. W units are
designed to be operated as an on/off light from a separate power supply.
10
Operation:
RGBW lights are operated via the control unit and/or App provided with the Wi-Fi 104 unit. Please refer to these instructions for
operational procedures relating to the light.
White lights are controlled by an in-line switch (not supplied) – this switch can be manual or automatic/timed.
WARNING A qualified electrician must carry out all electrical wiring in accordance with local electrical
regulations.
Maintenance:
NOTICE This product contains no serviceable or changeable parts. Do not attempt to open the light
housing. Opening the light housing will void all warranty.
Troubleshooting:
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
Light does not operate No power to the light Refer to qualified electrician to check wiring and power supply
Lack of control signal Refer to Wi-Fi 104 instructions
Failure of single light
within bank of lights
Failure of single R4-CC driver Refer back to installer/qualified electrician – interchange alternative light
and test if working/test non-illuminating light with alternative driver to
test if working. Replace driver if appropriate.
Failure of single light Refer back to installer/qualified electrician – interchange alternative light
and test if working/test non-illuminating light with alternative driver to
test if working. Replace light if appropriate.

4

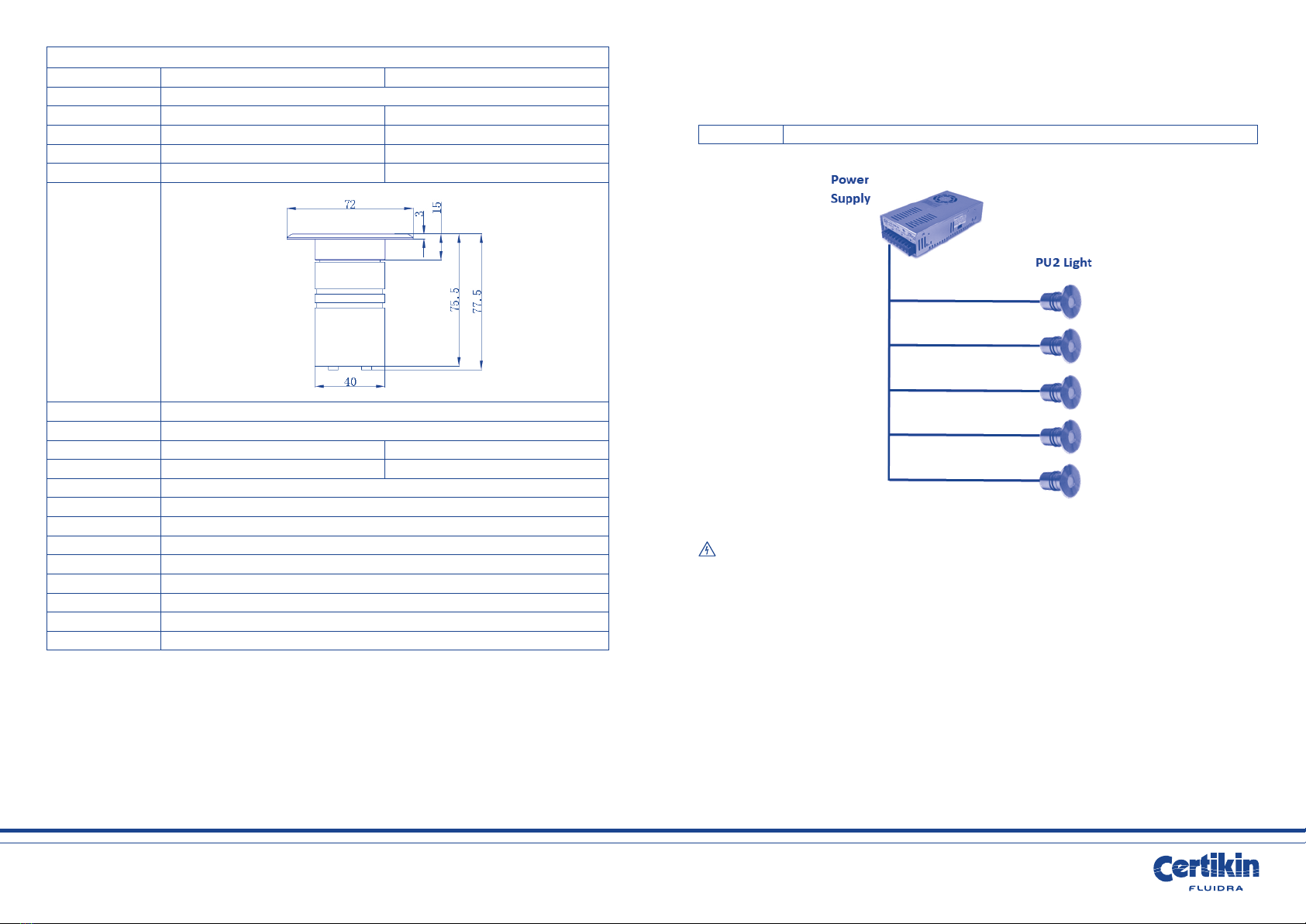

Technical Specification (Concrete Pool Lights)
Model PU2MLP PU2MLPW
Rated Power 12W
Input 24VDC 12VDC
Drive Mode External Constant Current Driver (Model: R4-CC) N/A
Drive Current RGBW: 350mA N/A
Control WIFI 104 Switch power on/off
Product Dimension
(We reserve the right
to change product
dimensions without
notice if this does not
compromise the critical
performance criteria of
the product).
Lens Angle 65°
Weight 0.7kg
Light Source White/RGB/RGBW White (5000-5200k)
Lumen White: 1750-2000lm, RGB: 450-500lm 1750-2000lm
CRI Ra>85
Max. Life Time 50,000H
Housing Material 316 Stainless Steel
Cover Material Tempered Glass
Working Temperature -20°C ~ 50°C
IP Grade IP68
Mounting Type Push fit into Class C 1.5” pipe (alternative o-rings included for fit into Class C 50mm pipe)
Cable Length 20m
Coverage 8m2
9
White (W) lights:
White lights operate as a simple switch power on/off only, however multiple lights can be powered by a single power supply.
The following power supply is available from Certikin, for powering of up to 26 lights:
PU2MLPS12V Power Supply 12v 320W (White light only)
WARNING Refer to and follow in the installation and operation instructions of each individual component.

5
Technical Specification (Liner Pool Lights)
Model PU2MLPL PU2MLPWL
Rated Power 12W
Input 24VDC 12VDC
Drive Mode External Constant Current Driver (Model: R4-CC) N/A
Drive Current RGBW: 350mA N/A
Control WIFI 104 Switch power on/off
Product Dimension
(We reserve the right
to change product
dimensions without
notice if this does not
compromise the critical
performance criteria of
the product).
Lens Angle 65°
Weight 1.0kg
Light Source White White (5000-5200k)
Lumen 1750-2000lm 1750-2000lm
CRI Ra>85
Max. Life Time 50,000H
Housing Material 316 Stainless Steel
Cover Material Tempered Glass
Working Temperature -20°C ~ 50°C
IP Grade IP68
Mounting Type Screw fit into new or existing Certikin liner inlet (with or without socket nipple connection)
Cable Length 20m
Coverage 8m2
NOTICE This product contains no serviceable or changeable parts. Do not attempt to open the light
housing. Opening the light housing will void all warranty.
Once expired, this product should not be disposed of via general waste, but through a regulated waste disposal and
recycling centre – please consult your local authority for full advice.
8
RGBW lights
Each RGBW light requires its own R4-CC driver unit (supplied separately) but multiples can be powered and controlled by a single
power supply and Wi-Fi 104 receiver/transmitter (supplied separately).
The following control items are recommended and available from Certikin, for powering of up to 26 lights:
PU2MLPS Power Supply 24v 320w
PU2MLWC Wi-Fi 104 Controller
PU2MLRC R4-CC Driver Receiving Controller
PU2MLE Wall Mounted ABS Enclosure For Power Supply
WARNING Refer to and follow in the installation and operation instructions of each individual component.

6
List of supplied components
• PU2 LED Light incl 20m cable pre-wired
• 2 x o-rings (fitted) for Class C 11/2” pipe fitting (PU2MLP & PU2MLPW only)
• 2 x o-rings (bagged) for Class C 50mm pipe fitting (PU2MLP & PU2MLPW only)
• Information for use document
Installation
WARNING This equipment must be installed by qualified persons only. Improper installation can create
electrical hazards which could result in property damage, serious injury or death. Improper installation and
servicing will void the warranty.
WARNING A qualified electrician must carry out all electrical wiring in accordance with local electrical
regulations.
For concrete pools – PU2MLP, PU2MLPW
This light is designed to be inserted into 11/2” pipe which has been cut flush and sealed at the pool wall face. It is recommended that
the receiving pipe/s be situated between 400-700mm below water level.
The receiving pipe should be extended/converted to conduit which then runs above the water level to create a run for the cable to
the central control/power point.
When the light cable is fed through the receiving pipe/conduit, sufficient cable should remain free within the pipe in order to be able
to remove the light unit to the pool surround.
Run the cable through the pipe/conduit back to the desired control/power point.
Coil the free cable into the pipe and insert the light body – the o-rings around the light will create a friction fit. The o-rings do not act as a
watertight seal. The use of a suitable lubricant on the o-rings will make the insertion of the light into the pipe easier.
Multiple lights can be installed within a single pool.
7
For vinyl liner pools – PU2MLPL, PU2MLPWL
This light is designed to be installed into a Certikin liner inlet fitting connected to either 11/2” or 2” pipe. It is recommended that the
receiving fitting/s be situated between 400-700mm below water level.
NOTICE The inlet fitting should be for use by the light only – it should not be connected to the pool
circulation system.
The liner fitting and the liner should be installed as normal. The light body is threaded and shaped in order to be a perfect fit into and
over the liner inlet clamp plate.
The pipework connected to the inlet fitting/s should be extended/converted to conduit which then runs above the water level to
create a run for the cable to the central control/power point.
When the light cable is fed through the receiving pipe/conduit, sufficient cable should remain free within the pipe in order to be able
to remove the light unit to the pool surround.
Run the cable through the pipe/conduit back to the desired control/power point.
Coil the free cable into the pipe and insert the light body – position the light body within the inlet fitting and screw the light into
place. When fully installed the light body will cover the inlet clamp plate exactly.
Multiple lights can be installed within a single pool.
