Introduction
Congratulations! Welcome to the Cerwin-Vega family!
You’ve joined a growing group of audio enthusiasts who have turned to Cerwin-Vega for some of the most advanced
audio reproduction systems available. All Cerwin-Vega products are thoroughly tested to ensure that they meet or
exceed our performance specifications. Backed by the best service in the industry, Cerwin-Vega is dedicated to
quality and reliability.
For a complete overview of Cerwin-Vega products and services, please visit www.cerwinvega.com
IMPORTANT SYMBOLS AND SAFETY INSTRUCTIONS
The exclamation point
within an equilateral
triangle is intended to alert
the users to the presence
of important operating and
maintenance (servicing)
instructions in the
literature accompanying
the product.
IMPORTANT SAFETY INSTRUCTIONS
1. Read and keep these instructions.
2. Heed all warnings and follow instructions
3. Do not use this apparatus near water.
4. Clean only with a dry cloth.
5. Do not block any ventilation openings.
6. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
that produce heat.
7. Only use attachments / accessories specified by the
manufacturer.
8. Use only with a cart, stand, bracket, or table
specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when
moving the cart /apparatus combination to avoid injury
from tip-over.
exposed to rain or moisture, does not operate
normally, or has been dropped.
9. To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
10. Refer all servicing to qualified service personnel.
Servicing is required when an apparatus has been
The lightning flash with the
arrowhead symbol, within
an equilateral triangle, is to
alert the user to the
presence of insulated
“dangerous voltage” within
the products enclosure
that may be of sufficient
magnitude to constitute a
risk of electric shock to
humans.
CAUTION: TO REDUCE THE
RISK OF ELECTRONIC
SHOCK - DO NOT REMOVE
COVER. NO USER
SERVICEABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
ATTENTION: POUR EVITER
LES RISQUES DE CHOC
ELECTRIQUE, NE PAS
ENLEVER LE COUVERCLE
AUCUN ENTRETIEN DE

3
PIECES INTERIEURES PAR
L’USAGER C O N F I E R L’ E
N T R E T I E N A U
PERSONNEL QUALFIE. AVIS:
POUR EVITER LES RISQUES
D’INCENDIE OU
D’ELECTROCUTION,
N’EXPOSEZ PAS CET ARTIC
damaged in any way, liquid has been spilled, or objects
have fallen into the apparatus.
WARNING: Changes or modifications to this unit is prohibited and any changes made that are not expressly approved
by Cerwin-Vega! Inc in writing will void the warranty and any subsequent claims that arise and made to Cerwin-Vega!
Connections:
1. CROSSOVER & SUBWOOFER INPUTS:
Some models can be BiWired or BiAmped:
•LA44, LA165, LA265 and LA365: allows the user to gain diect access to the woofer or tweeter independantly
by first removing the jumper bars.
•Top two terminals are the tweeter.
•Bottom two terminas are the woofer(s).

4
Connecting your Front Speakers:
The passive speakers all use an input terminal cup type of connection as shown in Figure 1 below.
Figure 1: Speaker Terminal Connection
Note: it is recommended that you turn your receiver and or amplifier volume down to a minimum that you
plan to use to power your speakers and then power off the receiver and or amplifier before attempting to
connect speaker wires to your receiver and or amplifier.
Connect your Left and Right front speakers first with speaker wires to the terminal connections as shown in
Figure 1 above.
Connect the other end of the speaker wire to your receiver / amplifier power output connections, please see
Figure 2, example shown below.

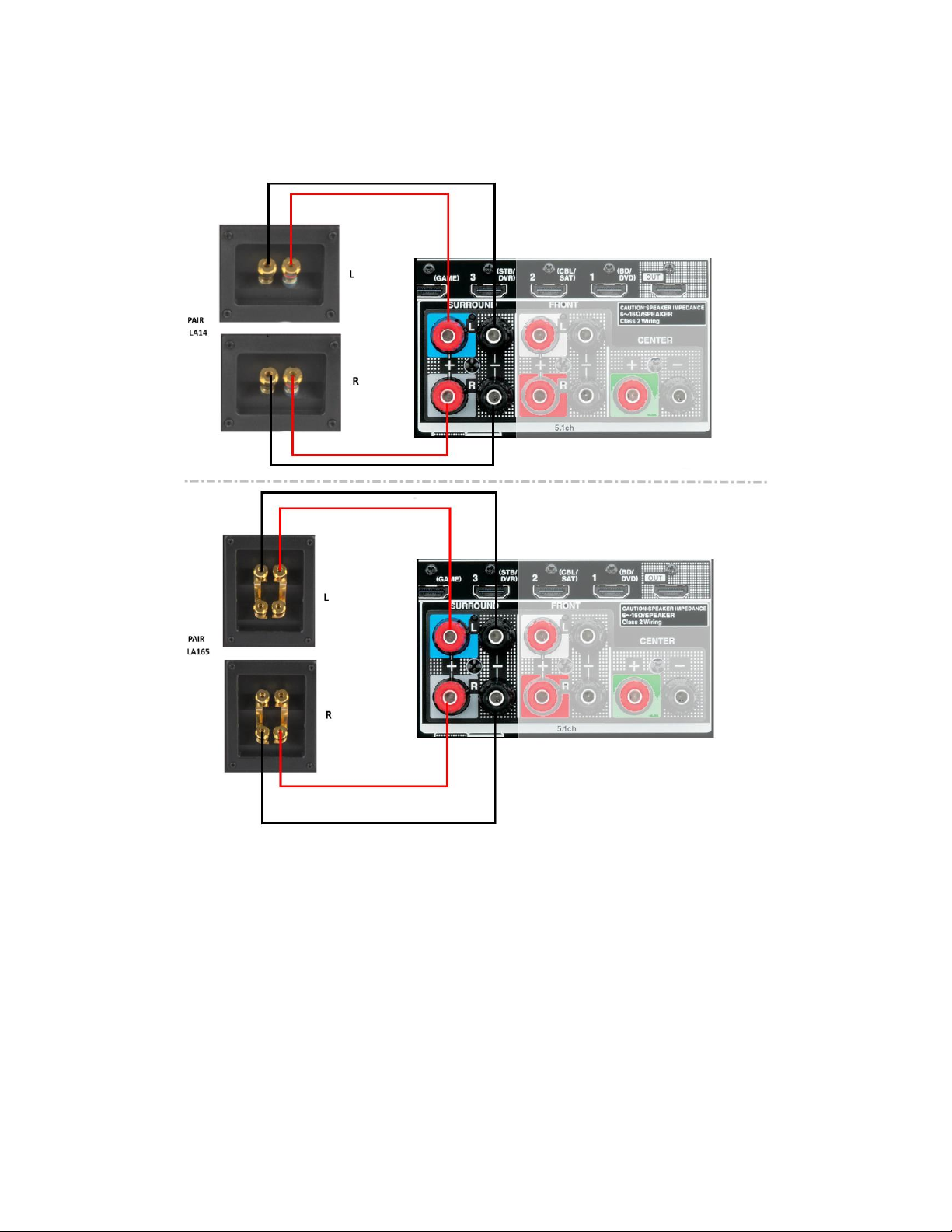

Figure 2: Receiver High Level Output to Front Speakers
Note: when plugging up each speaker, be sure to connect the (-) speaker terminal to the receiver / amplifier
(-) terminal that you will be using as your sound source.
Connect the (+) speaker to (+) between the speaker to the receiver / amplifier (+) terminal that you will be
using as your sound source.
Failure to connect properly may result in an out of speaker phase condition that may result in a diminished
overall sound.

5
Connecting your Center Channel:
Referencing figure 3 below, the center channel is a passive speaker and audio connections are made via the
input terminal cup either using a banana style of plug or simply unscrewing the metal hex nut connector and
placing the wire into the hole in the shaft then retighten the connection. Connect the other end of the
speaker wire to your receiver / amplifier “CENTER” channel output connections, please see Figure 3,
example shown below.
Note: Before attempting to connect speaker cables to your receiver or amplifier, it is also advised that you
decrease the volume of the device down to the lowest setting that you intend to use to power your speakers
and then turn the device off. Make sure to connect the (-) speaker terminal on each speaker to the (-)
receiver or amplifier terminal that will serve as your sound source.
Use only a high-quality grade of speaker wires to the center channel input terminal connections and your
receiver / amplifier.
An improper center channel connection could cause the speakers to be out of phase, which would degrade
the overall sound, but will not harm the speaker or receiver/amplifier.

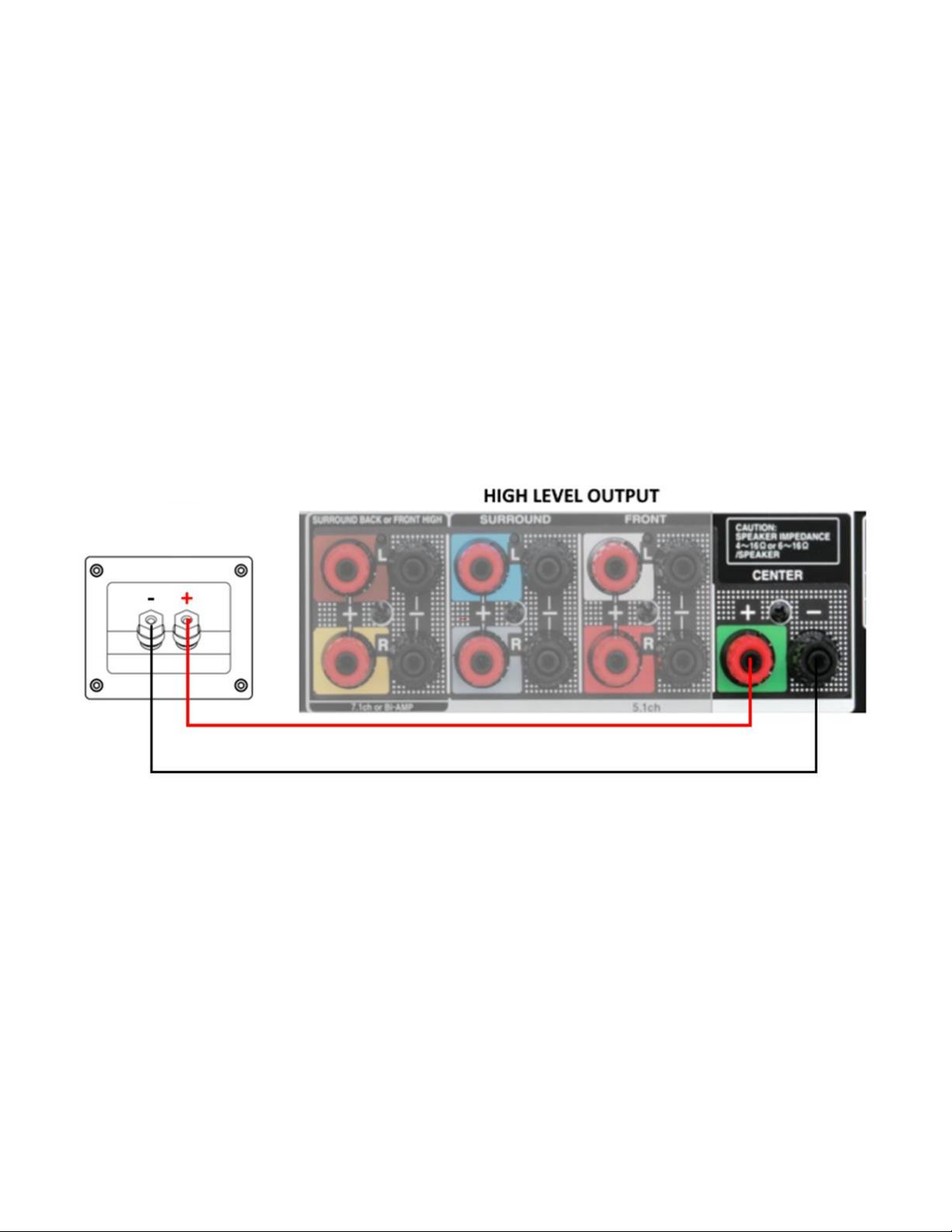

Figure 3 Center Channel Input terminals and Receiver Center Channel output connections.

6
Connecting your Surround Sound Speakers:
Referencing figures 4 & 5 below, the surrounds are passive speakers positioned typical just behind where the
person sits to the left and right sides.
Connections to the left and right channel surrounds are made via the input terminal cups. Connections can
be made using either a banana style of plug or simply unscrewing the metal hex nut connector and placing
the wire into the hole in the shaft then retighten the connection. Connect the other end of the speaker wire
to your receiver / amplifier “SURROUND” LEFT AND RIGHT channel output connections, please see Figure 4,
example shown below.
Note: Before attempting to connect speaker cables to your receiver or amplifier, it is also advised that you
decrease the volume of the device down to the lowest setting that you intend to use to power your speakers
and then turn the device off. Make sure to connect the (-) speaker terminal on each speaker to the (-)
receiver or amplifier terminal that will serve as your sound source.
Use only a high-quality grade of speaker wires when connecting the surround speakers to your receiver /
amplifier.
An improper surround speaker connection (reverse polarity) could cause the speakers to be out of phase,
which would degrade the overall sound, but will not harm the speaker or receiver/amplifier.
Figure 4 Typical Surround Sound Input terminals and Receiver Surround Channel output connections.

7
Connecting your Surround Sound Speakers (continued):
Figure 5 Connection showing either using the LA14 as your surround speaker or instead using the LA165 speakers

8
The following controls refer only to the LA110 subwoofer.
1. PHASE: speaker phase (0° to 180°) refers to sound waves arriving to the listener from multiple speaker boxes in
the room at the same time being in step with each other.
Sometimes for various reasons not covered in these instructions, speaker sounds from a speaker can arrive out of
phase as compared to other speakers which can cause a diminished overall sound to arrive at the listeners
positions.
When audio arrives being out of phase the sound from each speaker can cancel some of the sound resulting in an
overall diminished sound level. By switching the speaker phase switch from a state to another state can help to
clear up any diminished bass sounds.
2. POWER LED: Power indicator lamp. Glows green in “ON” mode if audio signal is present. Glows red in both “OFF”
mode and “ON” mode if receiving AC power, and if audio signal is not present after approximately 30 minutes.
3. Auto Switch: Two-position power switch. In the “ON” mode, the subwoofer’s amplifier is automatically activated
if an audio signal is present and will automatically become inactive when there is no audio signal present after
approximately 30 minutes. In the “OFF” mode, power is shut off to the amplifier.
4. CROSSOVER LEVEL: Allows the user to adjust the crossover frequency between 50Hz to 150Hz.
5. LEVEL: min and maximum for volume level.
6. Line Level Input/LFE: Low signal level input from Receiver or other low-level sources.
7. High Level Inputs: subwoofer can accept high level inputs from amplifier/receiver
8. High Level Outputs: provides a high-level loop through connection to the front speakers.
9. POWER: Two-position power switch. In the “ON” mode, the subwoofer’s amplifier is automatically activated if an
audio signal is present and will automatically become inactive when there is no audio signal present after
approximately 30 minutes. In the “OFF” mode, power is shut off to the amplifier.
10. POWER CORD RECEPTACLE: Connect the IEC power cord to this receptacle (supplied with the subwoofer). If the
IEC cord does not fit in your AC outlet, please purchase another AC cord from your audio dealer or electrical
supply store.
11. REPLACEABLE FUSE: Protects system from overload. Refer to qualified service personnel to change the fuse.
12. VOLTAGE MAINS: the subwoofer can accept AC Mains voltage ranging from 100VAC to 240VAC. The appropriate
power cord must be used depending on the country voltage being used.

9
SPECIFICATIONS:
LA14
4” 2-WAY
BOOKSHELF
SPEAKER
LA165
6.5”” 2-WAY
BOOKSHELF SPEAKER
LA24
4” 2-WAY
CENTER CHANNEL
SPEAKER
LA256
6.5” 3-Way
Tower Speaker
Frequency
Response
35Hz to 20KHz
33Hz to 20KHz
35Hz to 20KHz
28Hz to 20KHz
Power Handling
110W
150W
150W
265W
Sensitivity SPL
89dB
(1 watt / 1m)
90dB
(1 watt / 1m)
90dB
(1 watt / 1m)
91dB
(1 watt / 1m)
Impedance
4-8Ω
4-8Ω
4-8Ω
4-8Ω
Dimensions
(W x H x D)
6.6” x 10.4” x 10.4”
167 x 265 x 265mm
8” x 13.7” x 12.4”
203 x 347 x 315mm
19” x 6.2” x 10.4”
482 x 157 x 265mm
7.8” x 38.5” x 315”
203 x 977 x 265mm
Net Weight
18lbs
(8.2Kg)
29.8lbs
(13.5Kg)
15lbs
(6.8Kg)
38.8lbs
(16.7Kg)
LA44
4” 3-WAY
TOWER SPEAKER
LA365
6.5” 3-WAY
TOWER SPEAKER
Frequency
Response
26Hz to 20KHz
25Hz to 20KHz
Power Handling
280W
300W
Sensitivity SPL
91dB
(1 watt / 1m)
91dB
(1 watt / 1m)
Impedance
4-8Ω
4-8Ω
Dimensions
(W x H x D)
8” x 40.7” x 9.3”
205 x 1035 x 235mm
8” x 41.4” x12.4”
203 x 1052 x 315mm
Net Weight
29.5Lbs
(13.4Kg)
40.8Lbs
(18.5Kg)
Specifications and appearance subject to change:
Contact: [phone]

10
LA110
10” SUBWOOFER
SPEAKER
Amplifier Class:
“A/B”
Frequency Response:
22Hz-200Hz
MAX Power Output:
100W RMS / 200W PEAK
THD @Rated Power:
<1% ，300W limiter
Rated Power Signal to Noise (+A)
>85dBm
Standby power consumption:
<0.5W
Low Level Input Sensitivity Rated
Power
170mV
LFE Input Sensitivity Rated Power
215mV
THD @ Low Level Input 2V
<1%
Inputs
L & R RCA Jack
LFE RCA Jack
Hi-Level input to Hi Level Outputs
(loop through).
Controls
Volume
Freq Adj (50-200Hz)
Phase Switch (0/180°)
Port Tubes:
2x port tubes
Cabinet:
MDF
AC Mains Voltage Input
100-240VAC @ 50/60Hz
Dimensions (W x H x D)
318 x 450 x 405 (mm)
Net Weight
0.86Kg
Specifications and appearance subject to change:
Contact: [phone]

11
Troubleshooting
Symptoms
Causes
Solutions
Bass sounds distorted
Amplifier is at maximum output
Receiver tone controls are set too
high
Lower volume or receiver level
control
Set bass flat; use tone controls
sparingly
Distortion with volume control
near minimum
Defective receiver or preamplifier,
or shorted speaker wires
Repair defective receiver,
preamplifier or replace speaker
wires
Distortion on music peaks or
sound effects
Dynamic soundtrack (e.g.,
explosions)
Turn down volume control to
lower overall range
Buzz, hum, or crackle when
connecting wires
Connecting wires with power on
causes transient signal spikes
Connect wires only when system
power is Off
Buzz or hum when system is on
Grounding problem or
ground loop
Check receiver or preamplifier
manual for help in eliminating a
ground loop
No sound after listening
at high-levels
Amplifier’s thermal protection
has been temporarily activated
Lower subwoofer volume and
allow amplifier to cool down;
sound should resume
automatically

12
HOME PRODUCTS WARRANTY: LA SERIES
If at any time your CERWIN-VEGA LA Series home
product malfunctions as a result of faulty materials
or workmanship, CERWIN-VEGA or one of CERWIN-
VEGA's Authorized Service Centers in the United
States of America will repair the defect(s) or replace
the merchandise, as it deems appropriate at its
sole discretion based upon the information
presented below.
Warranty Period (from date of Purchase as listed
on the Bill of Sale):
2 Years Passive (LA14, LA24, LA44, LA165, LA265 &
LA365).
1 Year Active amps (LA110).
The end customer must register their product
with Cerwin-Vega within 15 days of ownership.
Warranty is not transferable from person to
person.
To claim warranty a customer must have
purchased the product through an authorized
CERWIN-VEGA Dealer located in the United States
of America.
CERWIN-VEGA will warrant all replacement parts
and repairs for ninety (90) days from the date of
original shipment.
THIS WARRANTY IS EXTENDED TO THE ORIGINAL
RETAIL PURCHASER ONLY AND MAY NOT BE
TRANSFERRED OR ASSIGNED TO SUBSEQUENT
OWNERS.
IN ORDER TO VALIDATE YOUR WARRANTY, AND AS
A CONDITION PRECEDENT TO WARRANTY
COVERAGE HEREUNDER, YOU MUST REGISTER
YOUR WARRANTY WITHIN FIFTEEN (15) DAYS
FOLLOWING THE ORIGINAL DATE OF PURCHASE-
YOUR PROOF OF PURCHASE OR SALES RECEIPT
This warranty is subject to the following limitations:
This warranty does not cover the following items listed
below:
•Any merchandise that has been altered or
modified in any way or upon which the serial
number has been tampered with or altered.
•Any merchandise whose warranty card has been
altered or upon which false information has
been given.
•Any merchandise that has been damaged due to
misuse, negligence, or improper operation.
•Any merchandise that has been damaged by
accident, flood, fire, lightening, or other acts of
God.
•Shipping damage of any kind.
•Any merchandise that has been subjected to
extremes of humidity or temperature.
•Any merchandise that has been purchased from
an unauthorized dealer, or upon which
unauthorized repair or service has been
performed.
CERWIN-VEGA HOME MAKES NO OTHER EXPRESS
WARRANTY OF ANY KIND WHATSOEVER.
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF
THIS WARRANTY ARE HEREBY DISCLAIMED AND
EXCLUDED FROM THIS WARRANTY.
SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES
SO THAT THE ABOVE MAY NOT APPLY TO YOU.
CERWIN-VEGA SHALL NOT BE LIABLE FOR ANY SPECIAL,
INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER
SIMILAR DAMAGES SUFFERED BY THE PURCHASER OR
ANY THIRD PARTY, INCLUDING WITHOUT LIMITATION,
DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR
DAMAGES RESULTING FROM USE OR PERFORMANCE OF

13
MUST ACCOMPANY ALL REQUESTS FOR WARRANTY
COVERAGE.
THE MERCHANDISE, WHETHER IN CONTRACT OR IN
TORT, EVEN IF CERWIN-VEGA OR ITS AUTHORIZED
REPRESENTATIVE HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, AND CERWIN-VEGA
SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR
SUITS ARISING OUT OF OR RELATING TO ANY OF THE
FOREGOING.FOR MERCHANDISE PURCHASED FROM AN
AUTHORIZED CERWIN-VEGA DISTRIBUTOR OUTSIDE OF
THE US, PLEASE CONTACT THE DISTRUBUTOR FROM
WHOM you PURCHASED YOUR MERCHANDISE FOR THE
HANDLING AND RESOLUTION OF ALL WARRANTY
ISSUES. FOR THESE PURCHASES, THE ABOVE-DESCRIBED
WARRANTY IS NOT APPLICABLE. “
For more information please visit:
WWW.CERWINVEGA.COM
