Cessna Grand Caravan 208B G1000 User manual

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
NOTICE
AT THE TIME OF ISSUANCE, THIS INFORMATION MANUAL
WAS AN EXACT DUPLICATE OF THE OFFICIAL PILOT’S
OPERATING HANDBOOK AND FAA APPROVED AIRPLANE
FLIGHT MANUAL AND IS TO BE USED FOR GENERAL
PURPOSES ONLY.
IT WILL NOT BE KEPT CURRENT AND, THEREFORE, CANNOT
BE USED AS A SUBSTITUTE FOR THE OFFICIAL PILOT’S
OPERATING HANDBOOK AND FAA APPROVED AIRPLANE
FLIGHT MANUAL INTENDED FOR OPERATION OF THE
AIRPLANE.
THE PILOT’S OPERATING HANDBOOK MUST BE CARRIED IN
THE AIRPLANE AND AVAILABLE TO THE PILOT AT ALL TIMES.
Revision 1 i

INTRODUCTION CESSNA
MODEL 208B G1000
U.S.
PERFORMANCE - SPECIFICATIONS
CARGO VERSION
*SPEED (KTAS):
Maximum Cruise at 10,000 Feet . . . . . . . . . . . . . . . . . . . . 175 Knots
Maximum Cruise at 20,000 Feet . . . . . . . . . . . . . . . . . . . . 164 Knots
RANGE:With 2224 pounds usable fuel and fuel allowance for engine
start, taxi, takeoff, climb, descent and 45 minutes reserve.
Max Cruise at 10,000 Feet . . . . . . . . . . . . . . . . . . . . Range 862 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 5.1 Hours
Max Cruise at 18,000 Feet . . . . . . . . . . . . . . . . . . Range - 1044 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 6.6 Hours
Max Range at 10,000 Feet . . . . . . . . . . . . . . . . . . . Range - 963 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 6.5 Hours
Max Range at 18,000 Feet . . . . . . . . . . . . . . . . . . Range - 1076 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 7.0 Hours
RATE-OF-CLIMB AT SEA LEVEL . . . . . . . . . . . . . . . . . . . . . . 925 FPM
SERVICE CEILING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22,800 Feet
MAXIMUM OPERATING ALTITUDE . . . . . . . . . . . . . . . . . 25,000 Feet
TAKEOFF PERFORMANCE:
Ground Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1405 Feet
Total Distance Over 50 Foot Obstacle . . . . . . . . . . . . . . . . 2500 Feet
LANDING PERFORMANCE:
Ground Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 915 Feet
Total Distance Over 50 Foot Obstacle . . . . . . . . . . . . . . . . 1740 Feet
STALL SPEED (KCAS):
Flaps Up, Idle Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Knots
Flaps Full, Idle Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Knots
MAXIMUM WEIGHT:
Ramp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8785 Pounds
Takeoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8750 Pounds
Landing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8500 Pounds
STANDARD EMPTY WEIGHT . . . . . . . . . . . . . . . . . . . . . 4680 Pounds
Maximum USEFUL LOAD . . . . . . . . . . . . . . . . . . . . . . . . 4105 Pounds
*Speeds are based on mid-cruise weight.
(Continued Next Page)
Revision 1
ii

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
PERFORMANCE - SPECIFICATIONS
CARGO VERSION (Continued)
WING LOADING . . . . . . . . . . . . . . . . . . . . . . 31.3 Pounds/Square Foot
POWER LOADING . . . . . . . . . . . . . . . 13.0 Pounds/Shaft Horsepower
FUEL CAPACITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335.6 Gallons
OIL CAPACITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Quarts
ENGINE: Pratt & Whitney Canada . . . . . . . . . . . . . . . . . . . PT6A-114A
Free Turbine Flat Rated at 675 Shaft Horsepower
PROPELLER:
McCauley 3-bladed, Constant Speed,
Full Feathering, Reversible Propeller
Diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 Inches
NOTE
The above performance figures are based on indicated
weights, standard atmospheric conditions, level, hard-
surfaced dry runways and no wind. They are calculated
values derived from flight tests conducted by Cessna
Aircraft Company under carefully documented conditions
and will vary with individual airplanes and numerous factors
affecting flight performance. Performance for other
operational conditions can be derived by reference to
operational data in other sections of this POH/AFM.
Revision 1 iii

INTRODUCTION CESSNA
MODEL 208B G1000
U.S.
PERFORMANCE - SPECIFICATIONS
PASSENGER VERSION
* SPEED (KTAS):
Maximum Cruise at 10,000 Feet . . . . . . . . . . . . . . . . . . . . 184 Knots
Maximum Cruise at 20,000 Feet . . . . . . . . . . . . . . . . . . . . 174 Knots
RANGE:With 2224 pounds usable fuel and fuel allowance for engine
start, taxi, takeoff, climb, descent and 45 minutes reserve.
Max Cruise at 10,000 Feet . . . . . . . . . . . . . . . . . . . Range - 907 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 5.1 Hours
Max Cruise at 18,000 Feet . . . . . . . . . . . . . . . . . . Range - 1109 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 6.6 Hours
Max Range at 10,000 Feet . . . . . . . . . . . . . . . . . . Range - 1026 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 6.6 Hours
Max Range at 18,000 Feet . . . . . . . . . . . . . . . . . . Range - 1163 NM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Time - 7.4 Hours
RATE-OF-CLIMB AT SEA LEVEL . . . . . . . . . . . . . . . . . . . . . . 975 FPM
SERVICE SEALING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23,700 Feet
MAXIMUM OPERATING ALTITUDE . . . . . . . . . . . . . . . . . 25,000 Feet
TAKEOFF PERFORMANCE:
Ground Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1365 Feet
Total Distance Over 50 Foot Obstacle . . . . . . . . . . . . . . . 2420 Feet
LANDING PERFORMANCE:
Ground Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 950 Feet
Total Distance Over 50 Foot Obstacle . . . . . . . . . . . . . . . . 1795 Feet
STALL SPEED (KCAS):
Flaps Up, Idle Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Knots
Flaps Full, Idle Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Knots
MAXIMUM WEIGHT:
Ramp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8785 Pounds
Takeoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8750 Pounds
Landing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8500 Pounds
STANDARD EMPTY WEIGHT . . . . . . . . . . . . . . . . . . . . . .4511 Pounds
Maximum USEFUL LOAD . . . . . . . . . . . . . . . . . . . . . . . . 4274 Pounds
*Speeds are based on mid-cruise weight.
(Continued Next Page)
Revision 1
iv

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
PERFORMANCE - SPECIFICATIONS
PASSENGER VERSION (Continued)
WING LOADING . . . . . . . . . . . . . . . . . . . . . . 31.3 Pounds/Square Foot
POWER LOADING . . . . . . . . . . . . . . . 13.0 Pounds/Shaft Horsepower
FUEL CAPACITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335.6 Gallons
OIL CAPACITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Quarts
ENGINE: Pratt & Whitney Canada . . . . . . . . . . . . . . . . . . . PT6A-114A
Free Turbine Flat Rated at 675 Shaft Horsepower
PROPELLER:
McCauley 3-bladed, Constant Speed,
Full Feathering, Reversible. Diameter . . . . . . . . . . . . . . . . . 106 Inches
NOTE
The above performance figures are based on indicated
weights, standard atmospheric conditions, level, hard-
surfaced dry runways and no wind. They are calculated
values derived from flight tests conducted by Cessna
Aircraft Company under carefully documented conditions
and will vary with individual airplanes and numerous factors
affecting flight performance. Performance for other
operational conditions can be derived by reference to
operational data in other sections of this POH/AFM.
Revision 1 v/vi

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
Cessna Aircraft Company
Model 208B G1000
This manual incorporates information issued in the Pilot's Operating
Handbook and FAA approved Airplane Flight Manual at Revision 1,
Dated 5 June 2008 (Part Number 208BPHBUS-01).
COPYRIGHT © 2008
CESSNA AIRCRAFT COMPANY
WICHITA, KANSAS, USA
208BIMBUS-01 vii/viii

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
TABLE OF CONTENTS
SECTION
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
EMERGENCY PROCEDURES . . . . . . . . . . . . . . . . . .3
NORMAL PROCEDURES . . . . . . . . . . . . . . . . . . . . . .4
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
WEIGHT AND BALANCE/EQUIPMENT LIST . . . . . . .6
AIRPLANE AND SYSTEM DESCRIPTION . . . . . . . . .7
HANDLING, SERVICE AND MAINTENANCE . . . . . . .8
SUPPLEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Revision 1 ix

INTRODUCTION CESSNA
MODEL 208B G1000
U.S.
WARNINGS, CAUTIONS, AND NOTES
Throughout the text, warnings, cautions, and notes pertaining to
airplane handling and operations are utilized. These adjuncts to the text
are used to highlight or emphasize important points.
WARNING
Operating procedures, techniques, etc., which can
result in personal injury or loss of life if not
carefully followed.
CAUTION
Operating procedures, techniques, etc., which can
result in damage to equipment if not carefully followed.
NOTE
An operating procedure, technique, etc., which is
considered essential to emphasize.
Revision 1
x

CESSNA INTRODUCTION
MODEL 208B G1000
U.S.
TABLE OF CONTENTS
SECTION
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
EMERGENCY PROCEDURES . . . . . . . . . . . . . . . . . .3
NORMAL PROCEDURES . . . . . . . . . . . . . . . . . . . . . .4
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
WEIGHT AND BALANCE/EQUIPMENT LIST . . . . . . .6
AIRPLANE AND SYSTEM DESCRIPTION . . . . . . . . .7
HANDLING, SERVICE AND MAINTENANCE . . . . . . .8
SUPPLEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
208BPHBUS-00 xiii/xiv

CESSNA SECTION 1
MODEL 208B G1000 GENERAL
U.S.
GENERAL
TABLE OF CONTENTS
Page

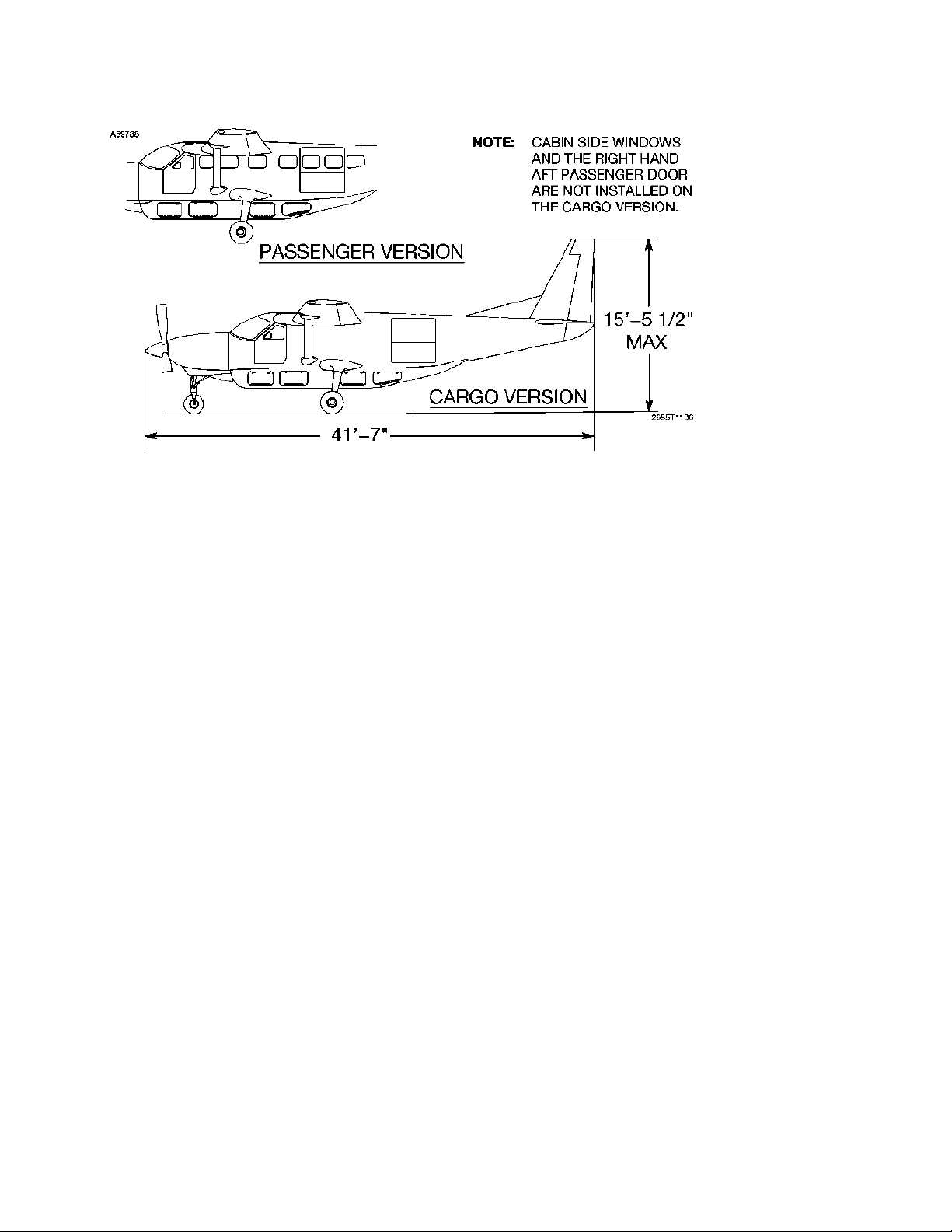

Three View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Descriptive Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Propeller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
Maximum Certificated Weights . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Cabin and Entry Door Dimensions . . . . . . . . . . . . . . . . . . . . . . . .1-9
Baggage/Cargo Compartment
and Cargo Door Entry Dimensions . . . . . . . . . . . . . . . . . . . . .1-9
Specific Loadings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Symbols, Abbreviations and Terminology . . . . . . . . . . . . . . . . . . . .1-10
General Airspeed Terminology and Symbols. . . . . . . . . . . . . . . . . .1-10
Engine Power Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Airplane Performance and Flight Planning Terminology . . . . . . .1-13
Weight and Balance Terminology . . . . . . . . . . . . . . . . . . . . . . . .1-13
Autopilot/Flight Director and TFS Terminology . . . . . . . . . . . . . .1-15
Warning, Cautions, and Notes . . . . . . . . . . . . . . . . . . . . . . . . . .1-16
Metric/Imperial/U.S. Conversion Charts. . . . . . . . . . . . . . . . . . . . . .1-16
Weight Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17
Length Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
Distance Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-23
Volume Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-24
Temperature Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-27
Pressure Conversions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-28
1-1/1-2208BPHBUS-00

CESSNA SECTION 1
MODEL 208B G1000 GENERAL
U.S.
Figure 1-1 (Sheet 1 of 2)
1-3208BPHBUS-00

SECTION 1 CESSNA
GENERAL MODEL 208B G1000
U.S.
Figure 1-1 (Sheet 2)
NOTE
1. Dimensions shown are based on standard empty weight and
proper inflation of nose and main gear tires.
2. Wing span dimension includes strobe lights.
3. Maximum height shown with nose gear depressed as far as
possible.
4. Wheel base length is 13’-3 1/2”.
5. Wing area is 279.4 square feet.
6. Minimum turning radius (*pivot point to outboard wing tip
strobe light) is 33’ -8”.
7. Propeller ground clearance with standard tires and nose gear
fork:
a. Nose tire inflated and nose gear barrel extended 3 5/8”: 11
1/4”.
b. Nose tire deflated and nose strut fully compressed: 2 1/2”.
8. Propeller ground clearance with standard tires and extended
nose gear fork:
a. Nose tire inflated and nose gear barrel extended 3 5/8”: 14
3/4”.
b. Nose tire deflated and nose strut fully compressed: 5 7/8”.
208BPHBUS-00
1-4

CESSNA SECTION 1
MODEL 208B G1000 GENERAL
U.S.
INTRODUCTION
This POH/AFM contains 9 sections, and includes the material required
to be furnished to the pilot by Federal Aviation Regulations and
additional information provided by Cessna Aircraft Company. This
handbook constitutes the FAA Approved Airplane Flight Manual.
WARNING
•This POH/AFM is not intended to be a guide for
basic flight instruction or a training manual and
should not be used as one. It is not a substitute
for adequate and competent flight instruction,
pilot skill, and pilot knowledge of current
Airworthiness Directives, applicable federal
aviation regulations and/or advisory circulars.
•Assuring the airworthiness of the airplane is the
responsibility of the airplane owner or operator.
Determining if the airplane is safe for flight is the
responsibility of the pilot in command. The pilot
is also responsible for adhering to the operating
limitations set forth by instrument markings,
placards, and this POH/AFM.
Generally, information in this POH/AFM is applicable to both the cargo
version and the passenger version of the Model 208B. Some
equipment differences exist between these versions. Specific versions
are identified through use of the terms “Cargo Version” and “Passenger
Version”. When one of these terms appears in text or on an illustration,
the information applies only to that group of airplanes. If no term
appears, the information applies to all airplanes.
Section 1 provides basic data and information of general interest. It
also contains definitions or explanations of symbols, abbreviations, and
terminology commonly used.
1-5208BPHBUS-00

SECTION 1 CESSNA
GENERAL MODEL 208B G1000
U.S.
DESCRIPTIVE DATA
ENGINE
Number of Engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Engine Manufacturer . . . . . . . . . . . . . Pratt & Whitney Canada, Inc.
Engine Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . PT6A-114A
Engine Type:
Free turbine, two-shaft engine utilizing a compressor section having
three axial stages and one centrifugal stage, an annular reverse-flow
combustion chamber, a one-stage compressor turbine, a one-stage
power turbine, and a single exhaust. The power turbine drives the
propeller through a two-stage planetary gearbox at the front of the
engine.
Horsepower . . . . . . . . . . . . . . . . Flat rated at 675 shaft horsepower.
PROPELLER
Propeller Manufacturer . . . . . . . . . . . McCauley Accessory Division
Propeller Model Number . . . . . . . . . . . . . . . 3GFR34C703/106GA-0
Number of Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Propeller Diameter. . . . . . . . . . . . . . . . . . . . . . Maximum 106 Inches
Minimum 104 Inches
Propeller Type:
Constant-speed, full-feathering, reversible, hydraulically-actuated
aluminum-bladed propeller, with a feathered blade angle of 88°, a
low pitch blade angle of 15.6°, and a maximum reverse blade angle
of -14° (30-inch station).
208BPHBUS-00
1-6

CESSNA SECTION 1
MODEL 208B G1000 GENERAL
U.S.
FUEL
Approved Fuel Grade (Specification):
JET A (ASTM-D1655)
JET A-1 (ASTM-D1655)
JET B (ASTM-D1655)
JP-1 (MIL-L-5616)
JP-4 (MIL-T-5624)
JP-5 (MIL-T-5624)
JP-8 (MIL-T-83133A)
Alternate/Emergency Fuels:
Aviation Fuel (All grades of military and commercial aviation
gasoline).
CAUTION
Aviation gasoline is restricted to emergency use and
shall not be used for more than 150 hours in one
overhaul period; a mixture of one part aviation gasoline
and three parts of Jet A, Jet A-1, JP-5 or JP-8 may be
used for emergency purposes for a maximum of 450
hours per overhaul period.
Approved Fuel Additives:
One of the following additives is required for anti-icing protection:
Ethylene Glycol Monomethyl Ether
Diethylene Glycol Monomethyl Ether
CAUTION
JP-4 and JP-5 fuel per MIL-T-5624 and JP-8 fuel per
MIL-T-83133A contain the correct premixed quantity of
an approved type of anti-icing fuel additive and no
additional anti-ice compounds should be added.
If additional anti-static protection is desired, the following additive is
approved for use:
Dupont Stadis 450
If additional biocidal protection is desired, the following additives are
permitted for use in certain conditions:
Sohio Biobor JF
Kathon FP 1.5
(Continued Next Page)
1-7208BPHBUS-00

SECTION 1 CESSNA
GENERAL MODEL 208B G1000
U.S.
FUEL (Continued)
NOTE
Refer to Section 8 for allowable concentrations of the above
additives and additional information.
Fuel Capacity:
Total Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 335.6 U.S. Gallons
Total Capacity Each Tank . . . . . . . . . . . . . . . . . . 167.8 U.S. Gallons
Total Usable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332.0 U.S. Gallons
OIL
Oil Grade (Specification):
Oil conforming to Pratt & Whitney Engine Service Bulletin No. 1001,
and all revisions or supplements thereto, must be used. Refer to
Section 8 for a listing of approved oils.
Total Oil Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 U.S. Quarts
(including filter, cooler, and hoses)
Drain and Refill Quantity . . . . . . . . . . . . . . . . . . . . . .9.5 U.S. Quarts
(approximately)
Oil Quantity Operating Range:
Fill to within 1 1/2 quarts of MAX HOT or MAX COLD (as
appropriate) on dipstick. Quart marking indicate U.S. quarts low if oil
is hot. For example, a dipstick reading of 3 indicates the system is
within 2 quarts of MAX if the oil is cold and within 3 quarts of MAX if
the oil is hot.
WARNING
Make sure oil dipstick cap is securely latched
down. Operating the engine with less than the
recommended oil level and with the dipstick cap
unlatched will result in excessive oil loss and
eventual engine stoppage.
(Continued Next Page)
208BPHBUS-00
1-8
