Cetacea Sound CART-ENS-903 User manual

Cetacea Sound Corp
2003 East Center Circle, Plymouth, MN 55441
T: [phone] T: [phone] F: [phone]
www.cetaceasound.com
INFORMATION: [email protected]
SALES: [email protected]
CUSTOMER SERVICE: [email protected]
© 2010 Cetacea Sound Corp. All rights reserved. Covered by multiple international patents. 6/10 201005-001
PORTABLE AUDIO SOLUTIONS
SKU #ENS-903
Quick Start Guide
Technical Support
Before contacting Cetacea Sound Corp for technical support, please read our Customer Service
& Diagnostic Procedures which can be found at www.cetaceasound.com/service/service.html.
[email protected]
T: [phone] T: [phone]

1 2
Welcome
The Ensémble is a portable speaker used by professional presenters. This includes sales
people, health care professionals, fire and rescue, personal development, law enforcement, the
military and many other professionals in the presentation, training, and development fields. The
Ensémble is the smallest and lightest, most powerful speaker made anywhere in the world. Its
small size and light weight make it ideal for the road warrior. It is also easy to stow away or lock
up securely to avoid theft.
The Ensémble outperforms other speaker systems many times its size and weight and is more
economical to own and easier to use.
This remarkable speaker only weighs 8 ounces yet contains a 3-input mixer for up to three devices.
These connections make it easy to switch between a microphone, projector, or iPAD®during the
presentation.
Group Listening Technology™
Using patented “Group Listening Technology”, the Ensémble is a high technology device that is
specifically engineered to make business meetings more productive. The sound it creates is heard
the same and understood by everyone in the room regardless of where they are seated. This
technology makes speech more easily understood and audiences more relaxed and focused on
the presentation.
The Ensémble is the only portable powered speaker that allows the listeners freedom of position
within the room without loss of sound quality.
Designed like no other, the Ensémble takes the worry out of presentations and you can rest
assured that every one can hear you and also understand you.
Index
Welcome . . . . . . . . . . . . . . . . . . . . . . 2
Group Listening Technology™ . . . . . . . . . . . . . . . . 2
Online Ordering, LaunchPad . . . . . . . . . . . . . . . . . 3
Newsletter Information . . . . . . . . . . . . . . . . . . 3
Kit Contents . . . . . . . . . . . . . . . . . . . . . . 4
System Instructions . . . . . . . . . . . . . . . . . . . 5
Room Arrangements . . . . . . . . . . . . . . . . . . 6 - 8
Hookup Diagrams . . . . . . . . . . . . . . . . . . 9 - 10
Options . . . . . . . . . . . . . . . . . . . . 11 - 13
Limited Warranty . . . . . . . . . . . . . . . . . . . 14
Technical Support . . . . . . . . . . . . . . . . . Back Cover
Additional seating arrangement illustrations on pages 6 - 8.
PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.www.cetaceasound.com
Index
Welcome | Group Listening Technology™

3 4www.cetaceasound.com
Online Ordering | Newsletter
Online Ordering
LaunchPad is your destination for convenience—featuring order placement, product catalog,
pricing, and customer service tools to effectively manage your Cetacea Sound account. More
information can be found at www.cetaceasound.com/launchpad.html.
LaunchPad Features
Product Catalog: Browse the complete Cetacea Sound product catalog, including
systems, accessories, and spares.
Online Ordering: Submit online purchase orders and quotes. Track them online.
Account Management: Keep track of your addresses, shipments, orders, customer
support tickets and RMA requests.
PLEASE SAVE THE BOXES IN CASE YOU NEED TO
RETURN THE ENSÉMBLE FOR ANY REASON.
Newsletter
Stay up-to-date with pertinent information involving your sound system by signing up to receive
our informational newsletter. Visit our website at http://cetaceasound.com/about/mailinglist.html
for more information.

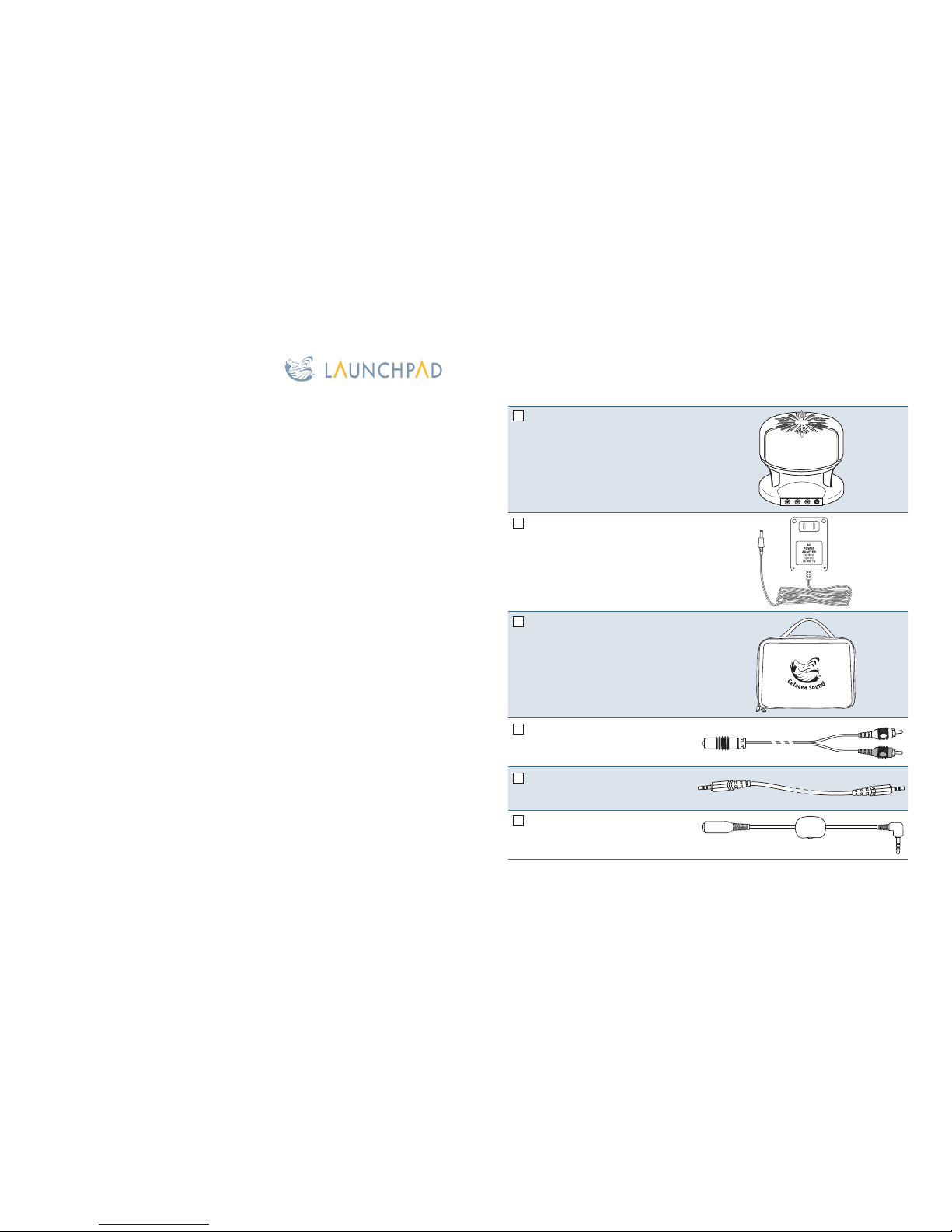

Kit Contents SKU #ENS-903
Ensémble™ Speaker
#ENS-903-SAT
,1387
$%&
'&
3:5
12 Volt Wall Mount
Power Supply
#FW-PS25W
Universal Carry Case
#UN-01
RCA to 3.5mm Female Stereo
VCR/DVD
#AB-122G
Speaker Cable, 3.5mm M-M, 1M
#AB-135G
In-line Volume Control
#AB-163RS
If any of these items are missing from your kit, contact Customer Service at [phone].
Kit Contents

5 6www.cetaceasound.com
System Instructions
PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.
Room Arrangements
Room Arrangements

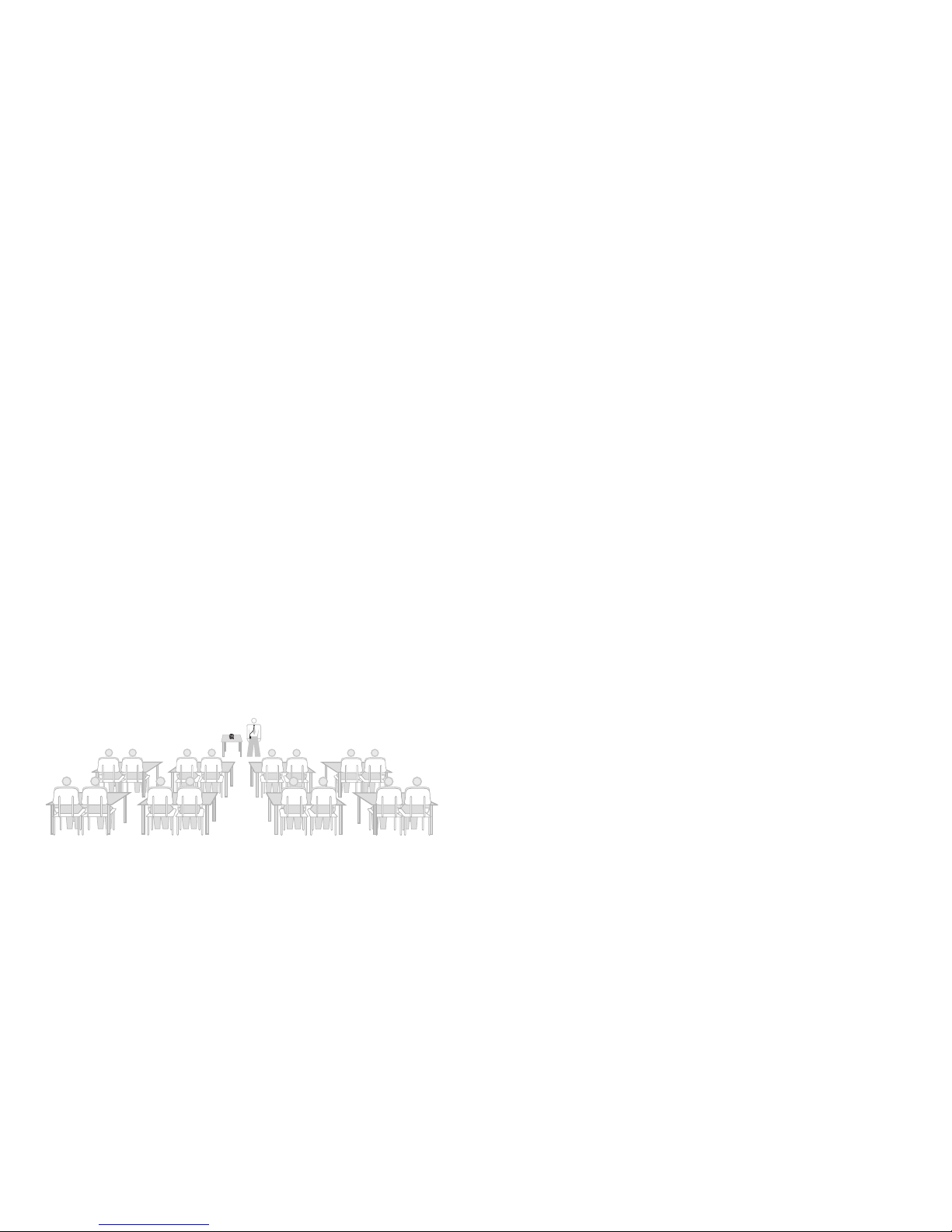

Classroom Seating
Normal classrooms of up to 90 people can use one speaker as long as all listeners are within 40 feet of the
Ensemble Speaker.
Auditorium Seating
Wide seating arrangements can use one Ensemble if all listeners are within forty feet of the Ensemble. If not,
just add another Ensémble Speaker.
In-line
Volume Control
Speaker Cable

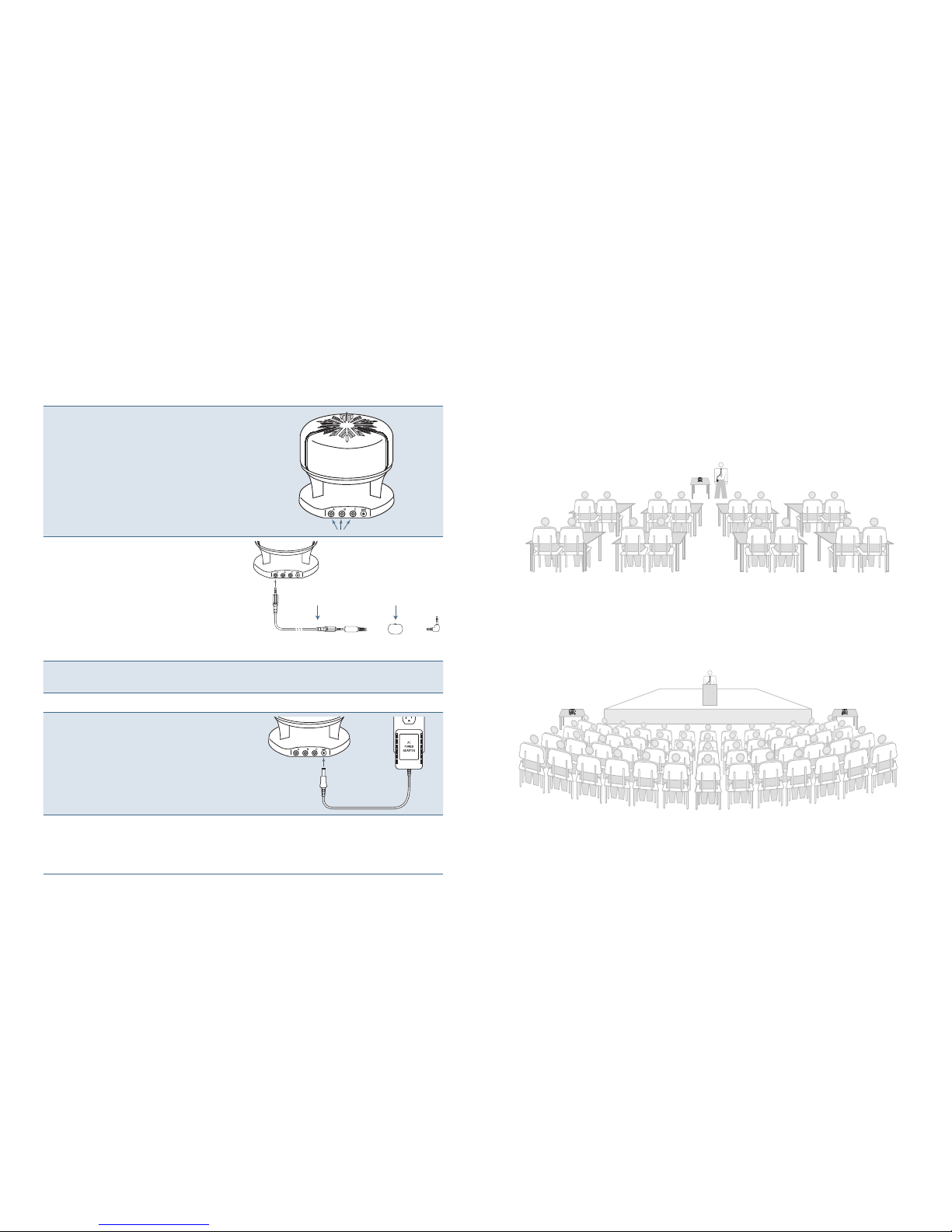

System Instructions
1-1 There are three (3) source-input jacks on
the Ensémble speaker base that can use
either mono or stereo inputs depending
on your “source”, i.e., computer, VCR,
DVD, projectors, microphones, etc.
1-2 The Ensémble does not have an internal
volume control. Use the volume control
on your source or, if required, use the
in-line volume control included in this kit.
The right angle plug of the volume control
must be plugged into the “source”. Use
the male-to-male extension cable to finish
the connection to one of the Ensémble
inputs labeled A, B, or C. Additional diagrams on page 6.
1-3 If your source has a BASS BOOST, or special effects like Spatializer, SRS, or controls that
say JAZZ, ROCK, BLUES, etc., turn them off for now.
1-4 Turn the volume down low before making the power connection.
1-5 The Ensémble speaker requires power
from the Cetacea Sound Corp approved
“Power Adapter/Conditioner”. Plug the
power adapter into a suitable source
of 110-220v power and the opposite
small end into the base of the Ensémble
speaker. (It will only fit in one location.)
1-6 Turn on the source and slowly turn up the volume (on both the source and the in-line
volume control). Be sure to use a high quality recording to fully appreciate the awesome
sound of the speaker. Once you are satisfied with the sound, add additional sources to
the other input jacks so you can use them without changing connections every time.

7 8
Room Arrangements
Room Arrangements
PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.www.cetaceasound.com
Room Arrangements

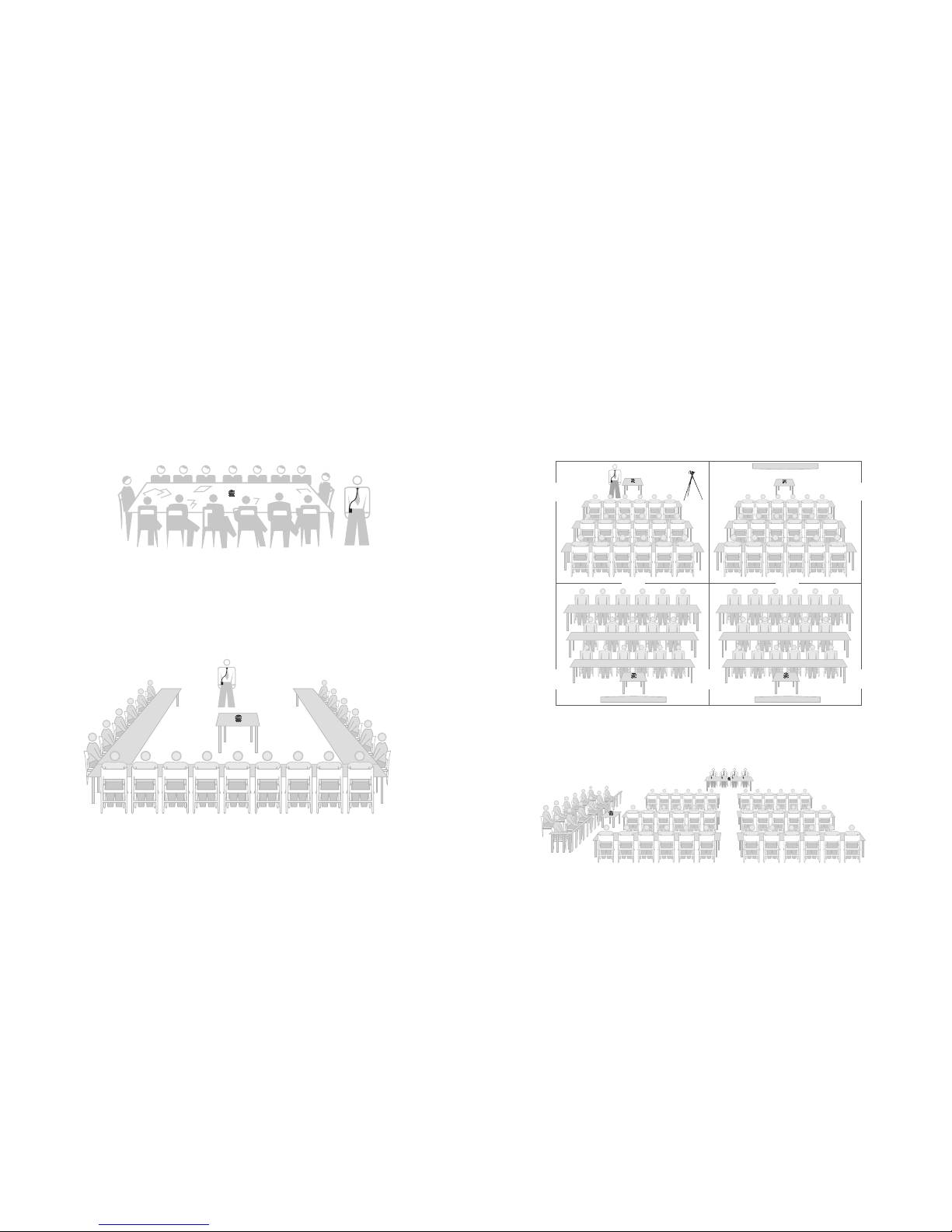

Conference Rooms & Translations
The clarity of the Ensemble makes it easy for small groups to collectively listen to soft or poorly recorded sound
tracks. When used with a microphone it also makes it easy to understand people with language difficulties or
assist listeners with hearing difficulties.
Horseshoe Seating
The omni-directional clarity of the Ensemble makes it easy for small groups seated at angles or even with their
backs to the presenter to understand speech.
When used with a microphone it also makes it easy to understand people who are moving about the room to
assist with written tasks or workshop assignments.
Room Arrangements
Isolated Rooms & Distance Learning
A) Presenter in same room as audience.
B,C,D) Audience in overflow rooms or listening to video stream from Room A.
Courtrooms, Dispositions & Grand Jurys
The Ensémble is shown placed close to the jury listening to recordings made by undercover agents.
=0+,6:*9,,5
=0+,6:*9,,5=0+,6:*9,,5
BA
CD

9 10
Hookup Diagrams
Hookup Diagrams
PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.www.cetaceasound.com
Hookup Diagrams
Computer Connections
76>,9
*655,*;065
=63<4,*65;963
L3RG
L32'&211(&7,21 63($.(5&211(&7,216
76>,9
*655,*;065
=63<4,*65;963
3(7,340*967/65,*=:34
;9(5:40;;,9*=: ;
46564050*()3,().
9,*,0=,9*=: 9
76>,9
*655,*;065
=63<4,*65;963
76>,9
*655,*;065
>/0;, 9,+
6<;7<;
(<+06 =0+,6 :=0+,6
iPod®Connections
Portable Projector Connections
DVD & VCR Connections
Wireless Microphone Connections

11 12PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.
Options
Options ptions

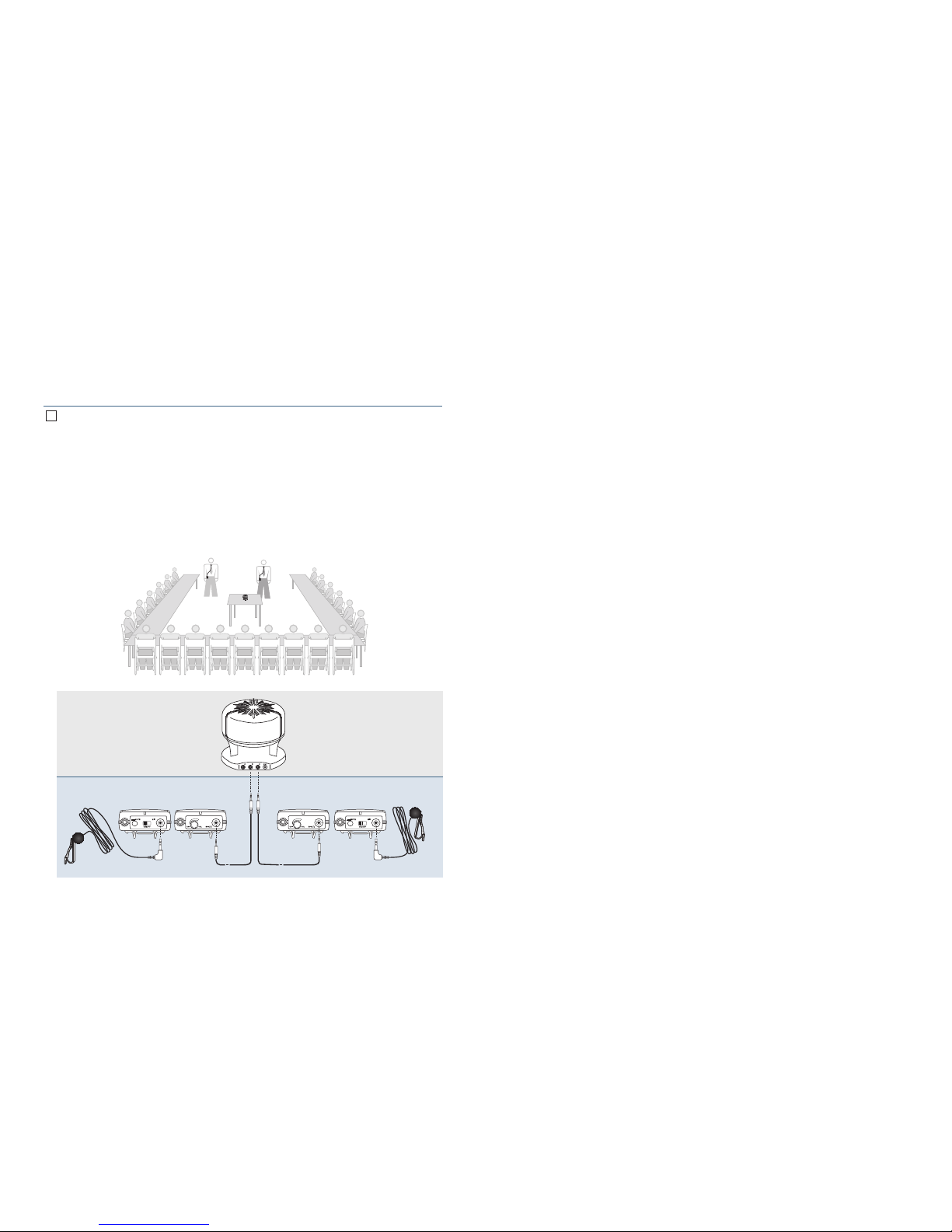

CVS96 Dual Speaker Kit includes second Ensémble Speaker
With CVS96 wireless receiver
#ENS903-962
Includes:
1 – Ensémble Speaker 1 – RCA to 3.5mm Female Stereo VCR/DVD
1 – UHF 96-Channel Body Pack Receiver 1 – Carry Case-Universal
1 – Speaker Cable, Stereo, 3.5mm m-m, 1M 1 – In-line Volume Control
1 – Speaker Cable, Mono, 3.5mm m-m, 1M 1 – Dual Unit Desktop Charging Stand
Usage:
This kit allows one presenter to add another Ensémble speaker by providing each Ensémble speaker
with a wireless receiver for the presenter’s microphone. There is no limit to how many additional
Ensémble speakers can be used with each microphone. Use this option for odd shaped rooms or seating
arrangements and especially for remote video broadcasts to separate rooms and "Distance Learning".
46564050*()3,(). 3(7,340*967/65,*=:34
;9(5:40;;,9
*=: ;
9,*,0=,9
*=: 9
9,*,0=,9
*=: 9
INCLUDED NOT INCLUDED
Options
www.cetaceasound.com
Options
CVS96 / Ensémble Portable
Microphone System
# CVS96-UK
Includes:
Ensémble Speaker Kit
UHF 96-Channel Body Pack Transmitter
UHF 96-Channel Body Pack Receiver
Microphone element only, lavaliere style
Dual Unit Desktop Charging Stand
Speaker cable, mono, 3.5mm m-m, 1M
Speaker cable, stereo, 3.5mm m-m, 1M
‘AA’ rechargeable batteries (4)
Usage
This kit allows one presenter to use one Ensémble speaker with a wireless microphone.
Learn more about these items by visiting its product page on our website, CetaceaSound.com.
To place an order for one of these accessories, contact [email protected] or sign up
for online ordering at http://cetaceasound.com/launchpad.html (see page 3 of this guide for
more information).

13 14
Limited Warranty
Limited Warranty
Cetacea Sound Corp. warrants to the original purchaser
that, if the product purchased from an authorized Cetacea
Sound Dealer fails in normal use due to defect in materials
or workmanship within two years of the date of the original
purchase, Cetacea Sound Corp. will, at its option, repair
or replace the product without charge. Products repaired
or replaced are warranted for the remainder of the original
warranty period.
THIS LIMITED WARRANTY DOES NOT COVER defects
caused by freight damage; abuse; inappropriate use;
exposure to extreme temperatures, solvents or other
liquids, or foreign particles or contaminates; modification;
alteration; accident or casualty; malfunction resulting
from the malfunction of other audio equipment; operation
of the product in a manner contrary to the instructions
accompanying the product; repair or service by anyone
other than Cetacea Sound Corp.; or poor sound quality
or noise due to poor cable quality, installation or routing,
power fluctuations, improper grounding, or failure to
follow the installation guidelines of the International
Communications Industry Association (ICIA) and the
Audio Engineering Society (AES).
ANY EXPRESS WARRANTY NOT PROVIDED IN THIS
LIMITED WARRANTY STATEMENT, AND ANY REMEDY
FOR BREACH OF CONTRACT THAT, BUT FOR THIS
PROVISION, MIGHT ARISE BY IMPLICATION OR
OPERATION OF LAW, IS HEREBY EXCLUDED AND
DISCLAIMED. MERCHANTABILITY AND OF FITNESS FOR
ANY PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THIS
LIMITATION MAY NOT APPLY TO YOU.
UNDER NO CIRCUMSTANCES SHALL CETACEA SOUND
CORP. BE LIABLE TO PURCHASER OR ANY OTHER
PERSON FOR ANY SPECIAL OR CONSEQUENTIAL
DAMAGES, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT OR OTHERWISE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU.
To obtain Warranty Service, the purchaser must contact
our Customer Service Department, follow the instructions
shown on our website, and return the product to us at
the address shown on the back of this booklet with the
Return Material Authorization number issued by Customer
Service. All removal, installation, and shipping expenses
are the responsibility of the purchaser.
This Warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
PLEASE READ THIS GUIDE THOROUGHLY & VISIT OUR WEBSITE FOR ADDITIONAL INFORMATION.www.cetaceasound.com
Options
Options
CVS96 Dual Presenter Kit includes second CVS-96 Microphone
For second presenter
#CVS96UK-2E
Includes:
2 – UHF 96-Channel Body Pack Transmitter 2 – Dual Unit Desktop Charging Stand
2 – UHF 96-Channel Body Pack Receiver 2 – Speaker Cable, Mono, 3.5mm m-m, 1M
2 – Microphone Element Only, Lavaliere Style 2 – Speaker Cable, Stereo, 3.5mm m-m, 1M
Usage:
This kit allows two presenters to simultaneously use one Ensémble speaker by providing each presenter
with a wireless microphone.
3(7,340*967/65,*=:34
;9(5:40;;,9
*=: ;
46564050*()3,().
9,*,0=,9
*=: 9
9,*,0=,9
*=: 9
;9(5:40;;,9
*=: ;
INCLUDED
SPEAKER
NOT INCLUDED
