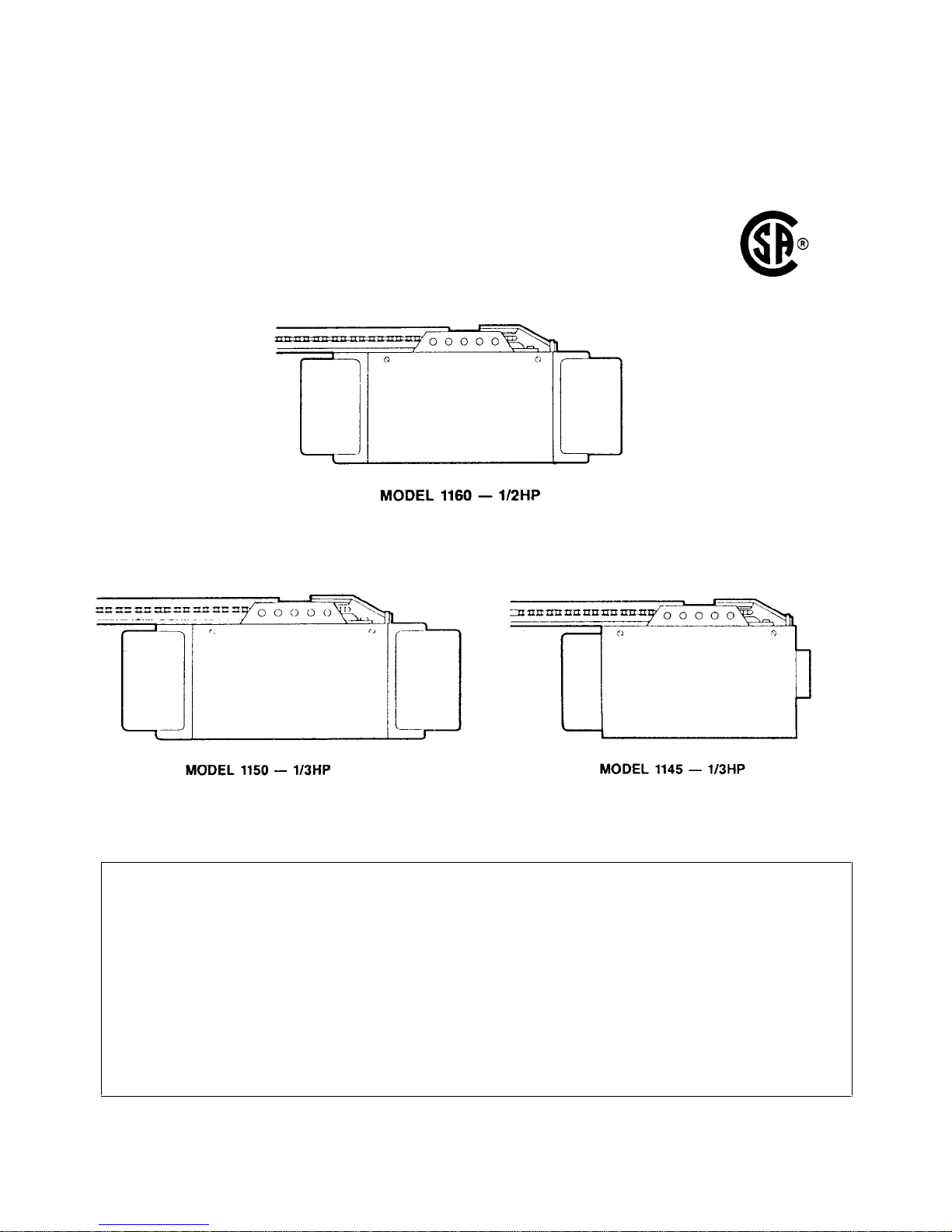

Owner's Manual
Garage Door Opener
(1100 Series -- Canada)
FOR RESIDENTIAL USE ONLY
Chamberlain Manufacturing Canada, Inc. Unit 11,
230 Bayview Drive Barrie, Ontario L4N 5E9
CAUTION! PLEASE READ THIS MANUAL CAREFULLY
The MODEL NUMBER label is located on the front panel of your opener
FASTEN THIS MANUAL NEAR THE GARAGE DOOR AFTER INSTALLATION.
PERIODIC CHECKS OF THE OPENER ARE REQUIRED TO INSURE SATISFACTORY OPERATION.
CONTENTS PAGE
Safety Rules............................................................. 2
Carton Inventory....................................................... 3
Features of Your Opener........................................... 3
Specifications........................................................... 3
Accessories.............................................................. 4
Completed Installation Illustration............................. 5
Installation Information ............................................. 5
Operation of Your Opener......................................... 6
Care and Maintenance of Your Opener..................... 7
Assembly.................................................................. 8
Installation................................................................ 10
CONTENTS PAGE
Limit Adjustment.......................................................20
Force Adjustment......................................................21
Safety Reverse Test..................................................22
The Protector System.............................................22
Setting/Changing Code.............................................23
Having a Problem? ...................................................24
Repair Parts, Rail Assembly......................................26
Repair Parts, Installation...........................................26
Repair Parts, Opener Assembly ................................27
How To Order Repair Parts.......................................28
Warranty...................................................................28

THIS SAFETY ALERT SYMBOL MEANS CAUTION—PERSONAL SAFETY OR PROPERTY DAMAGE
INSTRUCTION.
READ THESE INSTRUCTIONS CAREFULLY.
THIS GARAGE DOOR OPENER IS DESIGNED AND TESTED TO OFFER REASONABLY SAFE SERVICE
PROVIDED IT IS INSTALLED AND OPERATED IN STRICT ACCORDANCE WITH THE FOLLOWING
SAFETY INSTRUCTIONS.
FAILURE TO COMPLY WITH THE FOLLOWING INSTRUCTIONS MAY RESULT IN SERIOUS
PERSONAL INJURY OR PROPERTY DAMAGE.
CAUTION: IF YOUR GARAGE HAS NO SERVICE ENTRANCE DOOR, INSTALL MODEL 7702 EMERGENCY RELEASE
KEYLOCK. THIS ACCESSORY ALLOWS MANUAL OPERATION OF THE GARAGE DOOR FROM OUTSIDE IN CASE OF
POWER FAILURE.
KEEP GARAGE DOOR BALANCED. Sticking or
binding doors must be repaired. Garage doors,
door springs, cables, pulleys, brackets and their
hardware are under extreme tension and can
cause serious personal injury. DO NOT ATTEMPT
TO LOOSEN, MOVE OR ADJUST THEM. Call for
garage door service.
THE SAFETY REVERSE SYSTEM TEST IS VERY
IMPORTANT (page 22). Your garage door
MUST
reverse on contact with a 1-inch obstacle placed
on the floor. Failure to properly adjust the
opener may result in serious personal injury
from a closing garage door. REPEAT THE TEST
ONCE A MONTH AND MAKE ANY NEEDED
ADJUSTMENTS.
DO NOT WEAR RINGS, WATCHES OR LOOSE
CLOTHING while Installing or servicing a garage
door opener. Fasten the CAUTION LABEL adjacent to the door
control button as a reminder of safe operating
procedures.
To avoid serious personal injury from
entanglement, REMOVE ALL THE ROPES
CONNECTED TO GARAGE DOOR before
installing the garage door opener.
Install door control button (or any additional
push buttons) IN A LOCATION WHERE GARAGE
DOOR IS VISIBLE, BUT OUT OF THE REACH OF
CHILDREN. DO NOT ALLOW CHILDREN TO
OPERATE PUSH BUTTON(S) OR REMOTE
CONTROL TRANSMITTER. Serious personal
injury from a closing garage door may result
from misuse of the opener.
DISENGAGE ALL EXISTING GARAGE DOOR
LOCKS to avoid damage to garage door.
Installation and wiring must be in compliance with
your local building and electrical codes.CONNECT
THE POWER CORD ONLY TO A PROPERLY
GROUNDED OUTLET.
CAUTION: Activate opener only when the door is
in full view, free of obstructions and opener is
properly adjusted. NO ONE SHOULD ENTER OR
LEAVE THE GARAGE WHILE DOOR IS IN
MOTION. DO NOT ALLOW CHILDREN TO PLAY
NEAR THE DOOR.
LIGHTWEIGHT DOORS OF FIBERGLASS,
ALUMINUM OR STEEL MUST BE
SUBSTANTIALLY REINFORCED TO AVOID
DOOR DAMAGE. (See page 17.) The best
solution is to check with your garage door
manufacturer for an opener installation
reinforcement kit.
Use manual release ONLY to disengage the
trolley and, if possible, ONLY when the door Is
closed. DO NOT USE THE RED HANDLE TO
PULL DOOR OPEN OR CLOSED.
DO NOT USE THE FORCE ADJUSTMENTS TO
COMPENSATE FOR A BINDING OR STICKING
garage door. Excessive force will interfere with
the proper operation of the safety reverse
system or damage the garage door (page 21).
DISCONNECT ELECTRIC POWER TO GARAGE
DOOR OPENER BEFORE MAKING REPAIRS OR
REMOVING COVERS.
START BY READING THESE IMPORTANT SAFETY RULES
2

Sprocket
Cover Rail Grease Light Lens (1)
Model 1145
Light Lenses (2)
Model 1160 and
Model 1150
Remote Control
Transmitter (1)
HARDWARE BAG CONTENTS
6 lock washers, 5/16
6 nuts, 5/16"-18 x 1/2"
2 carriage bolts, 5/16"-18 x 2-1/2"
4 screws, 5/16"-18 x 7/8"
4 lag screws 5/16" x 1-7/8"
2 clevis pins, 5/16"-1"
1 clevis pin, 5/16"-2-3/4"
2 screws, 6ABx1" slotted pan head
3 ring fasteners
Anchors (2)
Insulated staples
Manual release rope
Manual release handle
Handy Hints label
FEATURES OF YOUR OPENER
1. Opener Light(s): Turns on and off automatically with 4 1/2
minute illumination for your safety and convenience. On Models
1160 and 1150, Light switch feature on Multi-Function Control
Panel can be activated for constant light. (Optional
accessory available for other models.)
2. Lock Switch Feature - (Standard on Models 1160, 1150;
optional on other models): When Lock Switch feature is activated
on the Multi-Function Control Panel, the opener will not operate
from portable remote control transmitters. The door will OPEN
from the door control button, Key Switch and Wireless Keyless
Entry System accessories, described below.
Door will CLOSE if door button is pressed and held through a
complete down cycle. If the door button is released before
travel is complete door will reverse.
3. Safety System: Independent up and down force adjustment.
The door REVERSES automatically when obstructed in
direction. The door STOPS when obstructed in UP direction.
4. Manual Release Handle: Pull cord disconnect permits manual
door operation in case of an emergency or power failure.
5. Automatic Reconnect: Trolley halves reconnect for automatic
operation when opener is activated after a manual disconnect.
6. Motor Power: Permanently lubricated motor with automatic
reset.
7. Digital Radio Controls: Codes can be set and changed easily
and as often as you would like.
8. Easy Limit Adjustment: Limits of door opening and closing
adjusted by turning screws without removing chassis cover.
SPECIFICATIONS
3
MOTOR
Type..........................................Permanent split capacitor
Speed.......................................1500 rpm
Volts .........................................120 Volts ?AC - 60 Hz. Only
Current .....................................4.5 amperes
DRIVE MECHANISM
Gears........................................16:1 worn gear reduction
Drive......................................... Full chain with two-piece trolley
on
................................................. steel T-rail
Length of travel.........................Adjustable to 7 1/2 feet
Travel rate.................................On when door starts to travel, off 4
1/2 minutes after stop. Models
1160 and 1150 have separate
Light Switch feature.
Door Linkage............................ Adjustable door arm. Pull cord
trolley release.
SAFETY
Personal................................... Push button and automatic
reversal in down direction. Push
button and automatic stop in UP
direction.
Electronic..................................Independent UP and DOWN
force adjustment screws.
Electrical...................................Motor overload protector and low
voltage push button wiring.
Limit device..............................Circuit actuated by limit nut
Limit adjustment...................... .Screwdriver adjustment on side
panel.
Start circuit............................... Low voltage push button or
radio control.
DIMENSIONS
Length (overall)........................ 124 inches
128 inches (Models 1160, 1150)
Headroom required.................. 2 inches
Hanging weight........................32 pounds

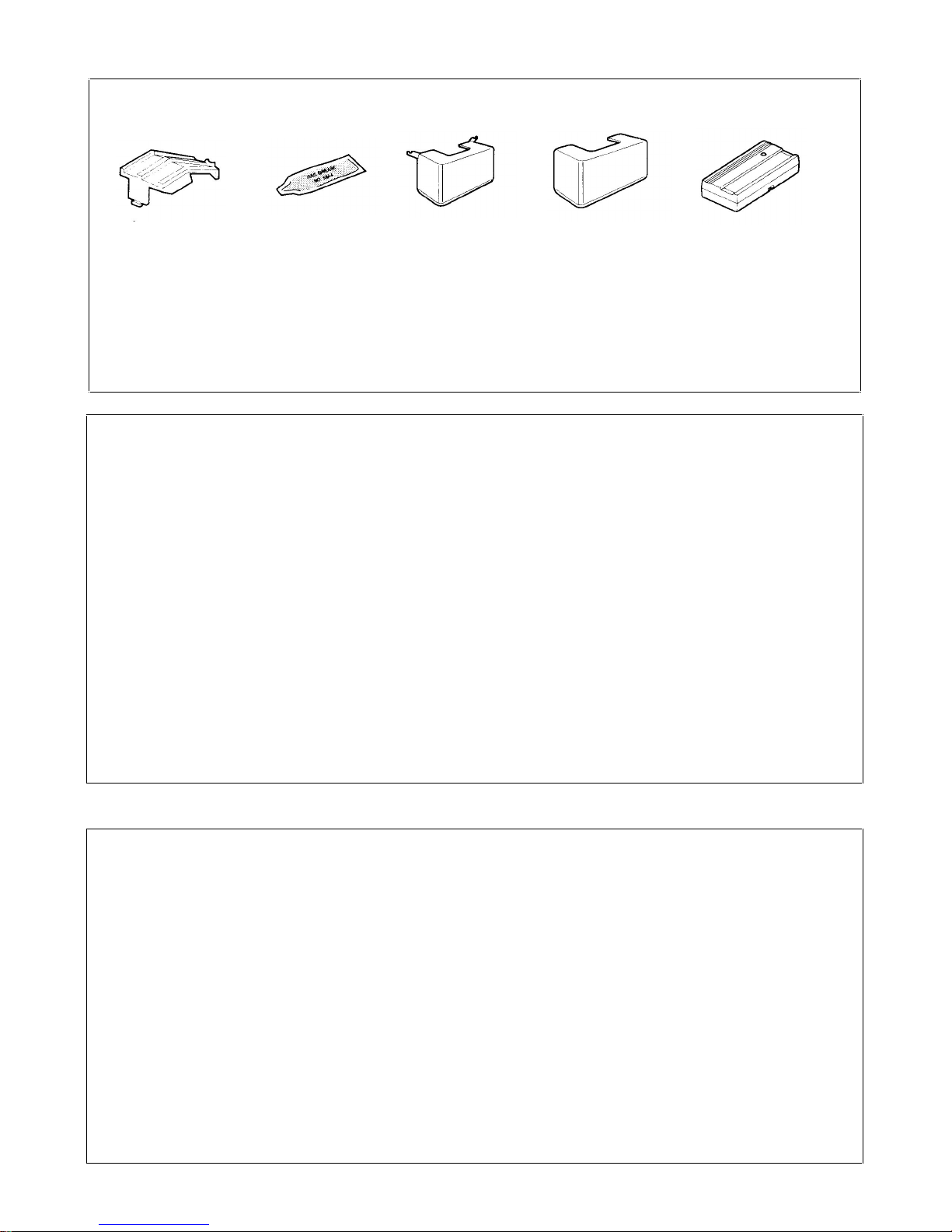

OPENER CARTON INVENTORY: Your garage door opener is packaged in two cartons which contain all parts
illustrated below and on page 26. Hardware for assembly and installation are listed below.

ACCESSORIES
Many useful accessories are available for your garage door opener. They are illustrated below with model numbers and
descriptions.
Model 61LM STANDARD REMOTE CONTROL
TRANSMITTER:
Single-Function with visor clip .
Model 1710
10-FT T-RAIL:
Fully assembled 10-ft. T-rail with full
chain. Allows 10-foot garage doors
to open fully
Model 62LM 2-CHANNEL REMOTE CONTROL
TRANSMITTER:
With visor clip.
Model 56 MULTI-FUNCTION CONTROL
PANEL:
Provides a Lock Switch feature
which prevents operation of garage
door opener from remote control
transmitters and a Light Switch
feature for constant light.
Model 63LM MULTI-FUNCTION REMOTE
CONTROL TRANSMITTER:
With visor clip. Model 60
OUTSIDE KEYLOCK:
Opens garage door automatically
from outside when transmitter is not
handy
MINI MULTI-FUNCTION REMOTE
CONTROL TRANSMITTER:
With key ring. Model 1702 OUTSIDE QUICK RELEASE
LOCK:
REQUIRED for a garage with NO
service door.
Allows manual operation of garage
door from outside in case of power
failure .
Model 66LM KEYLESS ENTRY SYSTEM:
Enables homeowner to operate
garage door opener from outside by
entering code on specially designed
keypad. "THE PROTECTOR SYSTEM":
Provides auxiliary support to the safety
features built into your opener. The
system's invisible beam, when broken by
an obstruction, causes a closing door to
open and prevents an open door from
closing. Strongly recommended for
homeowners with young children.
Model 1708 8-FT T-RAIL:
Fully assembled 8-ft. T-rail with full
chain. Allows 8-ft. garage doors to
open fully
4

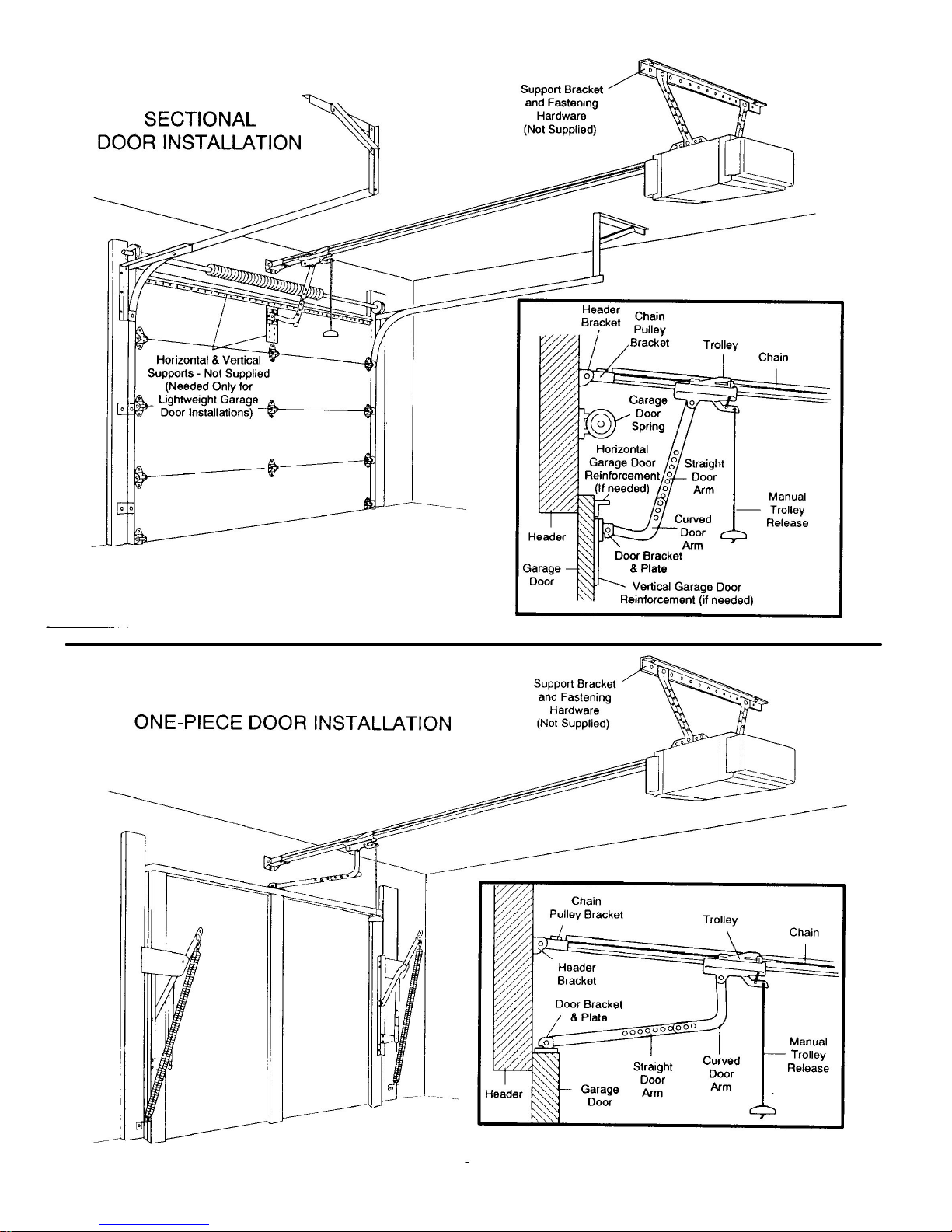

BEFORE YOU BEGIN, PLEASE TAKE SOME TIME TO CAREFULLY EXAMINE THE
ILLUSTRATIONS ON THE FOLLOWING PAGE OF A TYPICAL GARAGE DOOR OPENER
INSTALLATION ON BOTH A SECTIONAL AND A ONE-PIECE DOOR.
Some installation instructions vary for sectional and one-piece doors. Follow only those
instructions which apply to your door type.

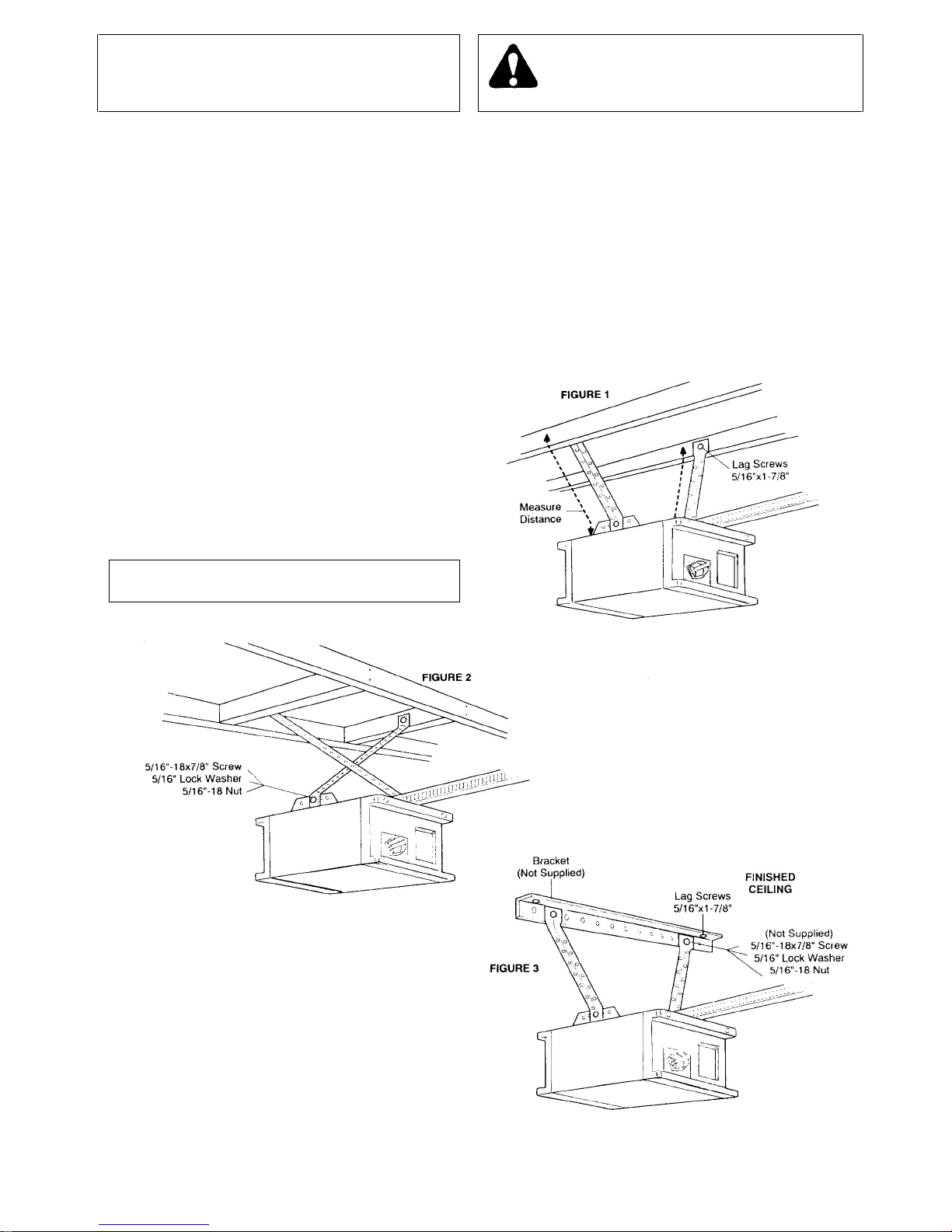

Do you have a finished ceiling in your garage? If so, you will need a support bracket
and additional fastening hardware. Refer to Step 4, Page 13 for specific requirements.
Do you have a lightweight or metal door (or does it have glass panels)? If so,
horizontal and vertical reinforcement is required. Refer to Step 8, Page 17.
Model 64LM
Model 70

5

Operation of Your Opener
• BEFORE YOU PROCEED, PLEASE READ THE SAFETY
RULES ON PAGE 2 AND OPERATING INSTRUCTIONS
ON THIS PAGE CAREFULLY.
• T0 AVOID DIFFICULTY DURING INSTALLATION, DO NOT
RUN OPENER UNTIL INSTRUCTED TO DO SO.
• DO NOT PERMIT CHILDREN TO PLAY IN DOOR AREA.
• OPERATE ONLY WHEN OPENER IS PROPERLY
ADJUSTED AND THE DOOR IS VISIBLE AND
UNOBSTRUCTED.
HOW TO ACTIVATE THE OPENER
Use any of Operation following devices:
1. The Remote Control Transmitter. Hold the push
button down until the door starts to move.
2. The Door Control Button. Hold the button down until
the door starts to move.
3. The Outside Keylock or Keyless Entry System (if
you have installed either of these accessories).
OPENER LIGHT(S) will turn on under the following
conditions: when the opener is initially plugged in; when
the power is interrupted; when the opener is activated.
Light(s) turns off automatically after
4 1/2 minutes. Bulb
size is 75 Watts maximum. If the Multi - Function Control
Panel (with the Light Switch Feature) is installed, the light
can remain ON or turn OFF before the automatic cycle is
completed, if desired.
HOW TO OPERATE THE DOOR MANUALLY
THE DOOR SHOULD BE FULLY CLOSED IF POSSIBLE.
WEAK OR BROKEN SPRINGS COULD ALLOW AN OPEN
DOOR TO FALL RAPIDLY. PROPERTY DAMAGE OR
SERIOUS PERSONAL INJURY COULD RESULT. DO
NOT USE THE MANUAL RELEASE HANDLE TO PULL
THE DOOR OPEN OR CLOSED.
HOW THE DOOR MOVES WHEN THE OPENER IS
ACTIVATED
1. If open, the door will close. If closed, the door will
o
p
en.
2. If closing, the door will reverse.
3. If opening, the door will stop (allowing space for entry
and exit of pets and for fresh air).
4. If the door has been stopped in a partially open
position, it will close.
5. If an obstruction is encountered while closing, the door
will reverse.
6. If an obstruction is encountered while opening, the door
will stop.
Disconnect the door from the opener by pulling down
sharply on the red handle. Lift the door manually. To
automatically reconnect the door to the opener, press the
Door Control Button.
7. The optional Protector System uses an invisible beam
which, when broken by an obstruction, causes a closing door
from closing door to open and prevents an open door from
closing. It is STRONGLY RECOMMENDED for homeowners
with young children.

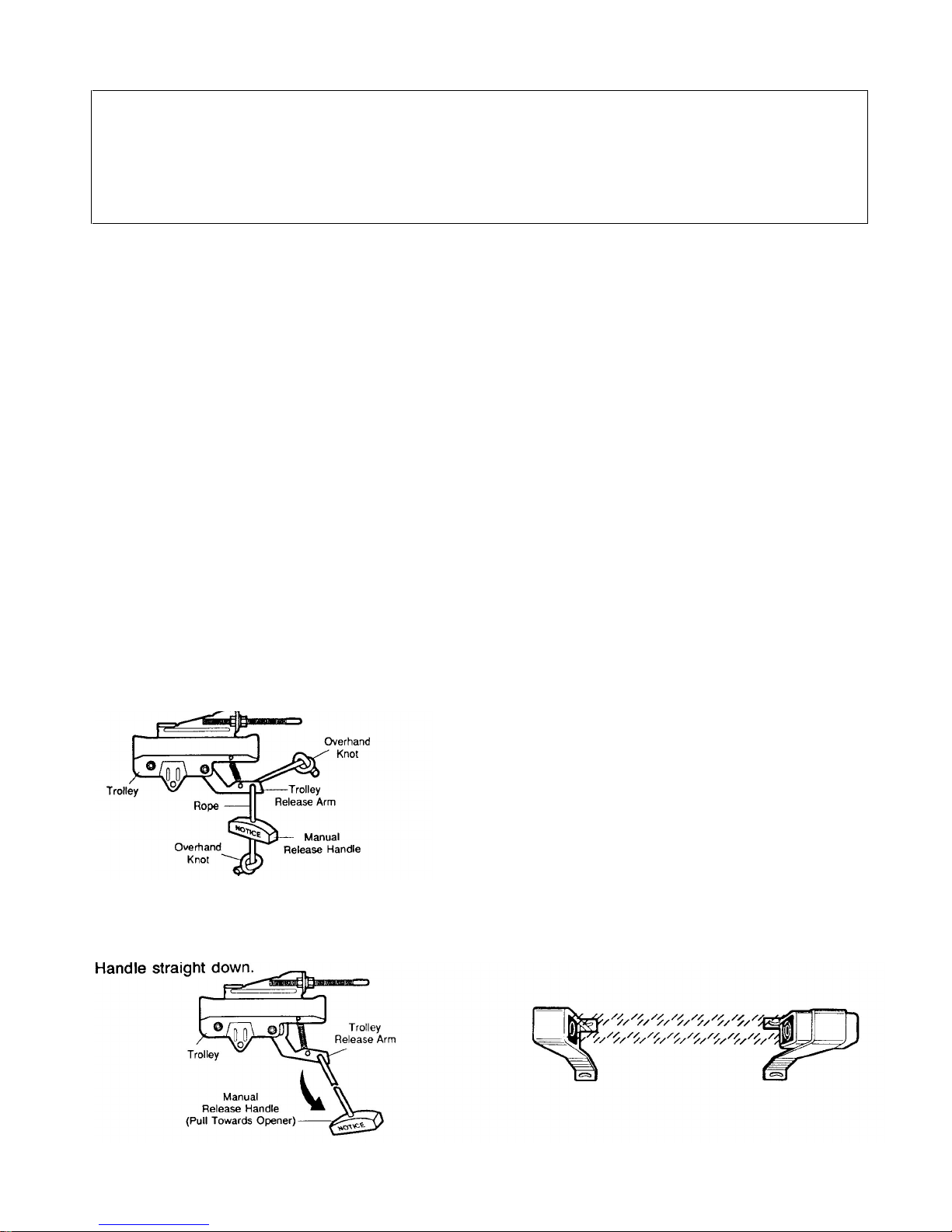

LOCKOUT FEATURE: prevents the trolley from
reconnecting automatically. If you need to use this feature,
pull the Manual Release Handle down and back (toward the
opener). Trolley will remain “Locked-Out” and the door can
be raised and lowered manually. To reconnect trolley, pull
the Manual Release Handle straight down.
CAUTION
6

CARE OF THE OPENER
When properly installed, opener will provide high
performance with a minimum of maintenance. The opener
does not require additional lubrication.
Most complaints of unsatisfactory opener operation can
be traced to problems with the door itself. When operated
manually, a properly balanced door will stay in any point
of travel while being supported entirely by its springs.
CHAIN TENSION ADJUSTMENT: After installation of the
opener and adjustment of forces and limits, the chain may
appear loose. This is normal.
TO CHECK THE CHAIN TENSION: Disconnect the trolley
by pulling the red handle. If the chain returns to the
position described and illustrated in Step 3 page 9, DO
NOT make ANY further adjustments.
THE OPENER IS NOT INTENDED TO CORRECT ANY
PROBLEMS THAT ARE CAUSED BY AN UNBALANCED
OR BINDING DOOR, BROKEN DOOR SPRINGS OR BY
FAULTY DOOR HARDWARE.
REMOTE CONTROL TRANSMITTER: The portable
remote control may be secured to a car sun visor with the
clip provided. Additional remotes can be purchased at any
time for use in all vehicles using garage. Refer to
Accessories on page 4.
Any new remotes must be set to the same code as the
original remote. Code setting procedures are described on
page 23.

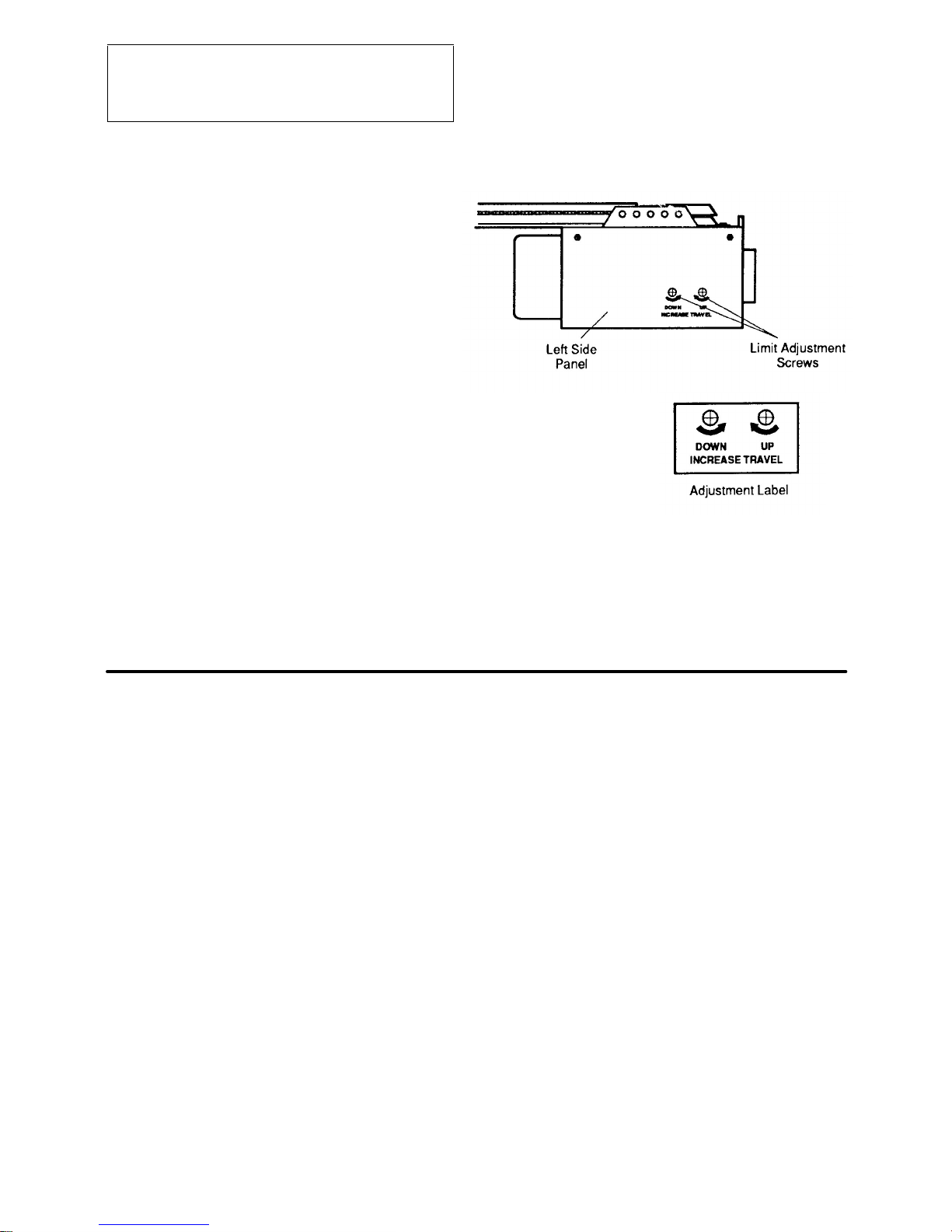

LIMIT AND FORCE ADJUSTMENTS: These adjustments
must be checked and properly set when opener is installed.
Only a screwdriver is required. Pages 20 and 21 refer to the
limit and force adjustments. Follow the instructions carefully. REMOTE CONTROL BATTERY: The 12 Volt battery
should produce power for at least one year. As long as
there is adequate power, the transmitter battery test light
will glow when the push button is pressed (and the opener
will operate). When the light becomes dim or does not
come on, replace the battery. If transmission range
lessens, check the battery test light.
TO CHANGE BATTERY: Slide the battery compartment
cover back. Discard the old battery and Position the new
battery as indicated on the case.
REPEAT THE SAFETY REVERSE TEST AFTER ANY
ADJUSTMENT. Weather conditions may cause some
minor changes in the door operation, requiring some
readjustments, particularly during the first year of
operation.
THE SAFETY REVERSE SYSTEM IS IMPORTANT (SEE
GARAGE DOOR MUST REVERSE ON CONTACT WITH
A 1-lNCH OBSTACLE PLACED ON THE FLOOR.
FAILURE TO PROPERLY ADJUST OPENER MAY
RESULT IN SERIOUS PERSONAL INJURY FROM A
CLOSING GARAGE DOOR.
MAINTENANCE OF YOUR OPENER
TWICE A YEAR
MANUALLY OPERATED DOOR. If it is unbalanced or
binding, call for professional garage door service.
CHECK TO BE SURE DOOR OPENS & CLOSES FULLY.
Adjust Limits and/or Force if necessary.
REPEAT SAFETY REVERSE TEST. Make any necessary
adjustments (See Page 22).
CHECK CHAIN TENSION. Adjust if necessary.
ONCE A YEAR
OIL DOOR ROLLERS, BEARINGS AND HINGES.
ONCE A MONTH
7

ASSEMBLY STEP 1
Attach T-Rail To Opener
TO AVOID INSTALLATION DIFFICULTIES,
DO NOT RUN OPENER UNTIL YOU ARE
INSTRUCTED TO DO SO.
USE ONLY THOSE SCREWS MOUNTED IN
TOP OF OPENER. FAILURE TO DO SO
WILL CAUSE SERIOUS DAMAGE TO THE
DOOR OPENER.

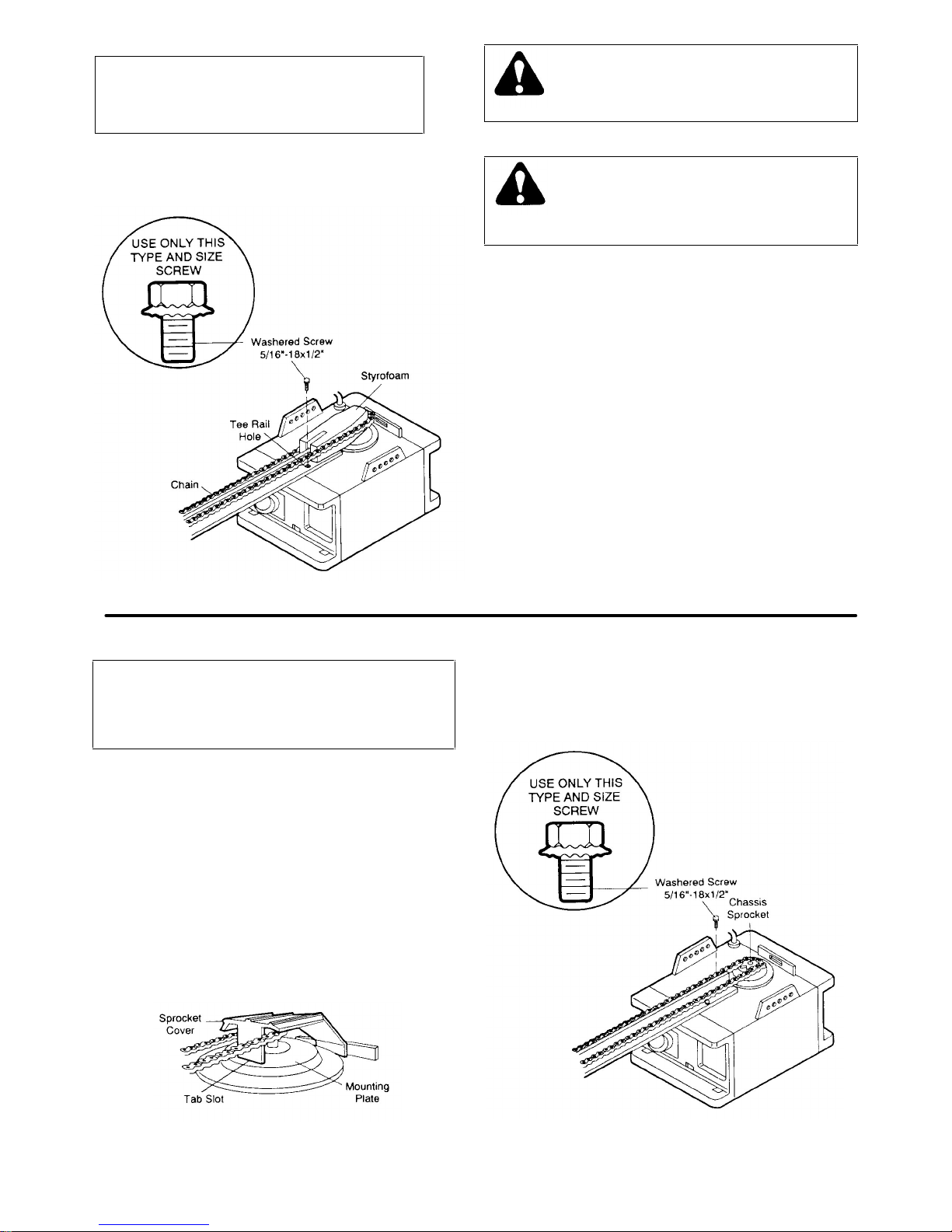

PROCEDURE: remove the two washered screws mounted
in top of opener. Position T-Rail at a 45 degree angle to
opener so one hole in T-rail and opener line up. Thread one
of the washered screws part way in.
CAUTION: USE ONLY THESE SCREWS! Use of any
other screws will cause serious damage to door
opener.
Align T-rail and styrofoam over opener sprocket. Cut tape
from T-rail, chain and styrofoam.
REMOVE STYROFOAM. Proceed to Step 2.
ASSEMBLY STEP 2
Attach Chain to Sprocket
PROCEDURE: Position chain over opener sprocket. If
necessary, loosen inner nut on trolley to obtain more
chain slack. Insert second washered screw.
CAUTION: Use only the screw previously removed
from opener
Tighten both screws securely through the T-rail into
opener as shown.
Insert back tab of sprocket cover in slot; then bend the
cover forward and insert front tab in slot provided on
mounting Plate.
8

ASSEMBLY STEP 3
Tighten the Chain Assembly
CAUTION: Keep the chain from twisting as nuts are
turned
PROCEDURE: Thread inner nut on the trolley in the
direction shown. Loosen outer nut, if necessary.
Tension is correct when the chain is approximately 1/2"
above the base of the T-rail, midway between the pulley
bracket and the opener.
To maintain proper tension, tighten outer nut as shown
Sprocket noise can result if chain Is either too loose
or too tight.
CAUTION: Do not overtighten the chain. Refer to
Page 7.
ASSEMBLY OF YOUR GARAGE DOOR OPENER IS NOW COMPLETE
BEFORE BEGINNING THE INSTALLATION OF YOUR GARAGE DOOR OPENER, BE SURE TO
COMPLY WITH ALL THE SAFETY RULES.
KEEP GARAGE DOOR BALANCED.
STICKING OR BINDING DOORS MUST BE
REPAIRED. THE GARAGE DOOR, DOOR
SPRINGS, CABLES, PULLEYS, BRACKETS
AND THEIR HARDWARE ARE UNDER
EXTREME TENSION AND CAN CAUSE
SERIOUS PERSONAL INJURY. DO NOT
ATTEMPT TO LOOSEN, MOVE OR
ADJUST THEM. CALL FOR GARAGE
DOOR SERVICE
DO NOT WEAR WATCHES, RINGS OR
LOOSE CLOTHING WHILE INSTALLING
OR SERVICING A GARAGE DOOR
OPENER.
IT IS RECOMMENDED THAT THE GARAGE DOOR OPENER BE INSTALLED 7 FEET OR MORE ABOVE THE
FLOOR. WHERE SPACE PERMITS.
9

INSTALLATION STEP 1
Position and Install Header Bracket
Installation procedures vary according to garage
door types. Follow the instructions which apply to
your door.
THE HEADER BRACKET MUST BE RIGIDLY
FASTENED TO HEADER WALL. REINFORCE
WALL WITH A 2x4 IF NECESSARY. FAILURE TO
COMPLY MAY RESULT IN IMPROPER
OPERATION OF SAFETY REVERSE SYSTEM
(SEE PAGE 22).
SECTIONAL DOOR & 1-PIECE DOOR WITH TRACK
1. Close door and mark the inside vertical centerline of
garage door. Extend the line onto header wall above
door.
2. Open door to highest point of travel as shown. Draw
an intersecting horizontal line on header wall 2" above
high point. This height will provide travel clearance for
top edge of door.
NOTE: When the headroom is not sufficient for 2"
clearance, the bottom edge of bracket may be placed
in line with the door's high point of travel.
3. Position bracket as shown (centered on vertical
guideline with bottom edge of bracket on horizontal
line).
Mark either top and bottom or left and right bracket
holes. Drill 3/16" pilot holes and fasten bracket.

ONE-PIECE DOOR WITHOUT TRACK
PLEASE READ AND COMPLY WITH THE WARNINGS ON PAGE 10. THEY APPLY TO THE INSTALLATION OF
THE HEADER BRACKET REGARDLESS OF DOOR TYPE.
1. Close door and mark inside vertical centerline of
garage door. Extend line onto header wall above
door.
2. Open door to highest point of travel as shown.
Measure the distance from top of door to floor.
Subtract actual height of door. Add 8" to remainder
(See Example).
EXAMPLE
Distance from top of door (at
highest point of travel) to floor
................................................................................92”
Actual height of door ..............................................-88”
Remainder.................................................................4"
Add .........................................................................+8
Bracket height on header wall ...............................=12”
(Measure UP from top of CLOSED door.)
NOTE: If the total number of inches exceeds height
available In garage, use the maximum height
possible. On finished ceilings, do not position the
bracket closer than 1/2" from ceiling. POSITION AND FASTEN HEADER BRACKET AS
DESCRIBED AND SHOWN IN NO. 3 ON PAGE 10.
INSTALLATION STEP 2
Attach the T-Rail to Header Bracket
PROCEDURE: Position opener on garage floor below
header bracket. Use packing material as a protective
base.
NOTE: To enable T-rail to clear sectional door
springs, it may be necessary to lift opener onto a
temporary support.
CAUTION: The opener must either be secured to a
support or held firmly In place by another person.
Raise T-rail until pulley and header brackets come
together. Align bracket holes and join with clevis pin as
shown. Insert ring fastener to secure.
11

INSTALLATION STEP 3
Position the Opener
Follow instructions which apply to your door
type as illustrated.
TO PREVENT DAMAGE TO LIGHT WEIGHT
DOORS AND/OR DOORS WITH WINDOWS, DO
NOT REST THE OPENER ON THE DOOR.
INSTALLATION-SECTIONAL DOOR & 1-PIECE DOOR WITH TRACK
NOTE: A 2 x4 is convenient for setting an ideal door
to T-rail distance. It is not necessary where
headroom is insufficient.

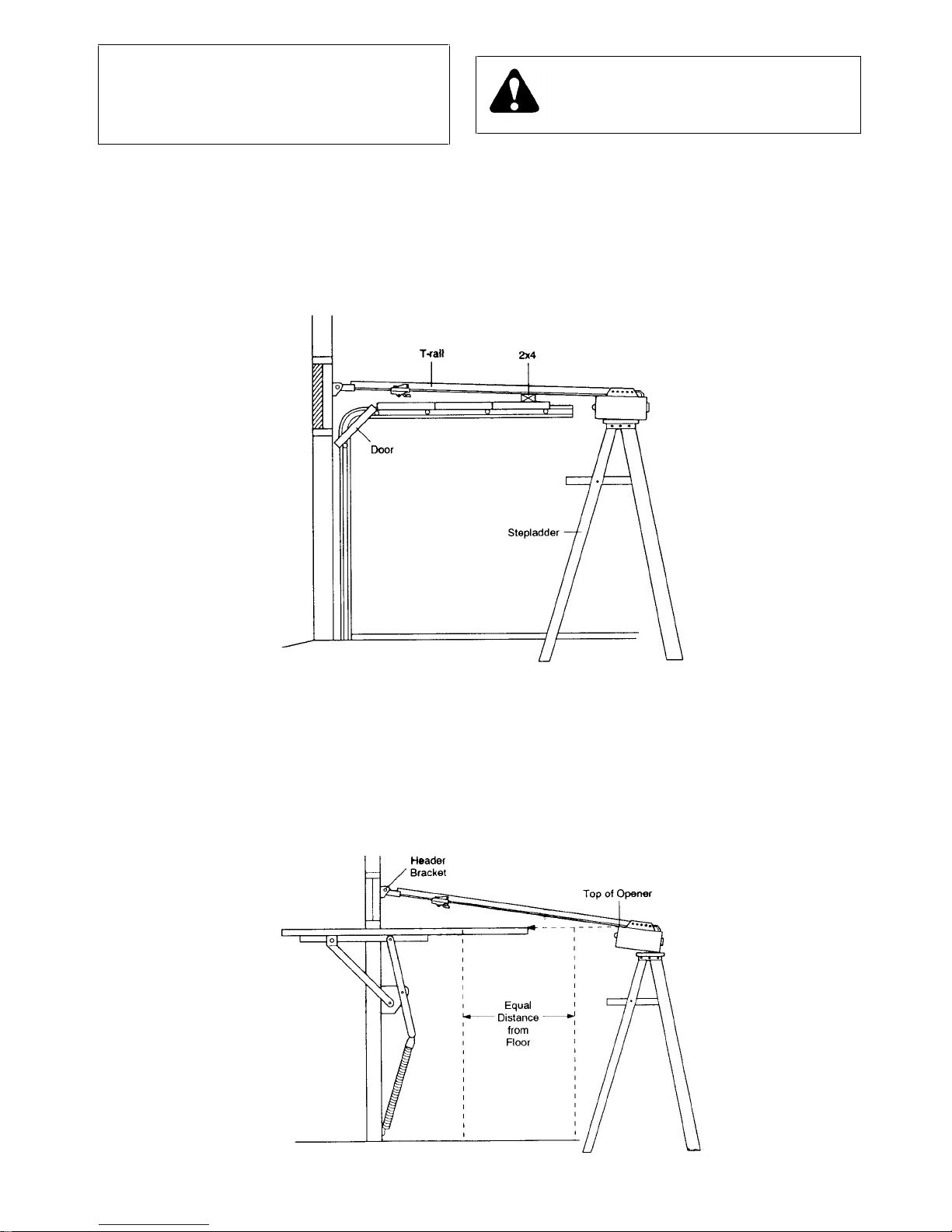

PROCEDURE: Raise the opener onto a stepladder. Open
garage door. Place a 2x4 on the top section of door near
centerline as shown. Rest T-rail on 2x4 as shown.
INSTALLATION - 1-PIECE DOOR WITHOUT TRACK
PROCEDURE: Measure the distance from floor to top of
door (in fully open position and parallel to the floor). Using
a stepladder as a support, raise opener to the same
distance from the floor (it will have a slight angle as
shown).
The top of the door should be level with the top of
opener. For maximum efficiency, do not position opener
more than 2 inches above this point.
12

INSTALLATION STEP 4
Hang the Opener
THE OPENER MUST BE SECURELY
FASTENED TO A STRUCTURAL SUPPORT
OF THE GARAGE.
Three representative installations are shown. Yours may be different.Hanging brackets should
be angled (Fig.1) or crossed (Fig.2) to provide rigid support. On finished ceilings (Fig.3), attach a
sturdy metal bracket (not supplied) to ceiling joists before installing opener.
PROCEDURE: Measure the distance from EACH side of
the opener to the structural support.
Cut both pieces of the hanging bracket to required
lengths. Flatten one end of each bracket and bend or
twist to fit the fastening angles. Do not bend at the
bracket holes. Drill 3/16" pilot holes in structural
supports. Attach flattened ends of brackets to the
supports with 5/16"x1-7/8" lag screws.
Lift opener and fasten to hanging bracket as shown.
Check to make sure the T-rail is centered over
door. REMOVE the 2x4.
Operate the door manually. If door hits the rail, raise
header bracket.
Grease the top and underside of rail surface on
which trolley slides. A tube of grease is supplied.
13

LOCATE DOOR CONTROL BUTTON (OR ANY ADDITIONAL PUSH BUTTONS) WHERE THE GARAGE DOOR IS VISIBLE.
AWAY FROM DOOR AND DOOR HARDWARE AND OUT OF THE REACH OF CHILDREN.
SERIOUS PERSONAL INJURY FROM A MOVING GARAGE DOOR MAY RESULT FROM MISUSE OF OPENER.
ALL OW CHILDREN TO OPERATE DOOR CONTROL BUTTON(S) or REMOTE CONTROL TRANSMITTER.
FASTEN THE CAUTION LABEL ON THE WALL NEAR DOOR CONTROL BUTTON AS A REMINDER OF SAFE OPERATING
PROCEDURES.
INSTALLATION STEP 5
Install Lighted Door Control Button
Models 1156,1155, 1146,1145,1140
OPERATION OF WIRING INSTRUCTIONS FOR ACCESSORIES
LIGHTED DOOR CONTROL BUTTON The Protector System
Press to open or close door. Press again to
REVERSE door during the CLOSING cycle or to
STOP door during OPENING cycle.
To white and black opener terminals
Outside Keylock
To red and white opener terminals
INSTALLING LIGHT: Install a 75 watt maximum light
bulb in socket as shown. The light will turn on and
remain lit for4-1/2 minutes when power is connected.
After 4-1/2 minutes it will turn off.
If light bulb burns out prematurely due to vibration,
replace with bulb specifically packaged for "Garage
Door Openers".
INSTALLING LENS (Models shown above except
1140): Locate (and loosen approximately 1/8") the two
screws near top of opener front panel. Position lens
against panel with slotted tabs directly below screws.
Slide lens up to seat tabs behind screws. Snap bottom
tabs of lens into panel slots. Retighten top panel screws
to secure lens. 14

Install Multi-Function Door Control Panel
Models 1160 and 1150 ONLY

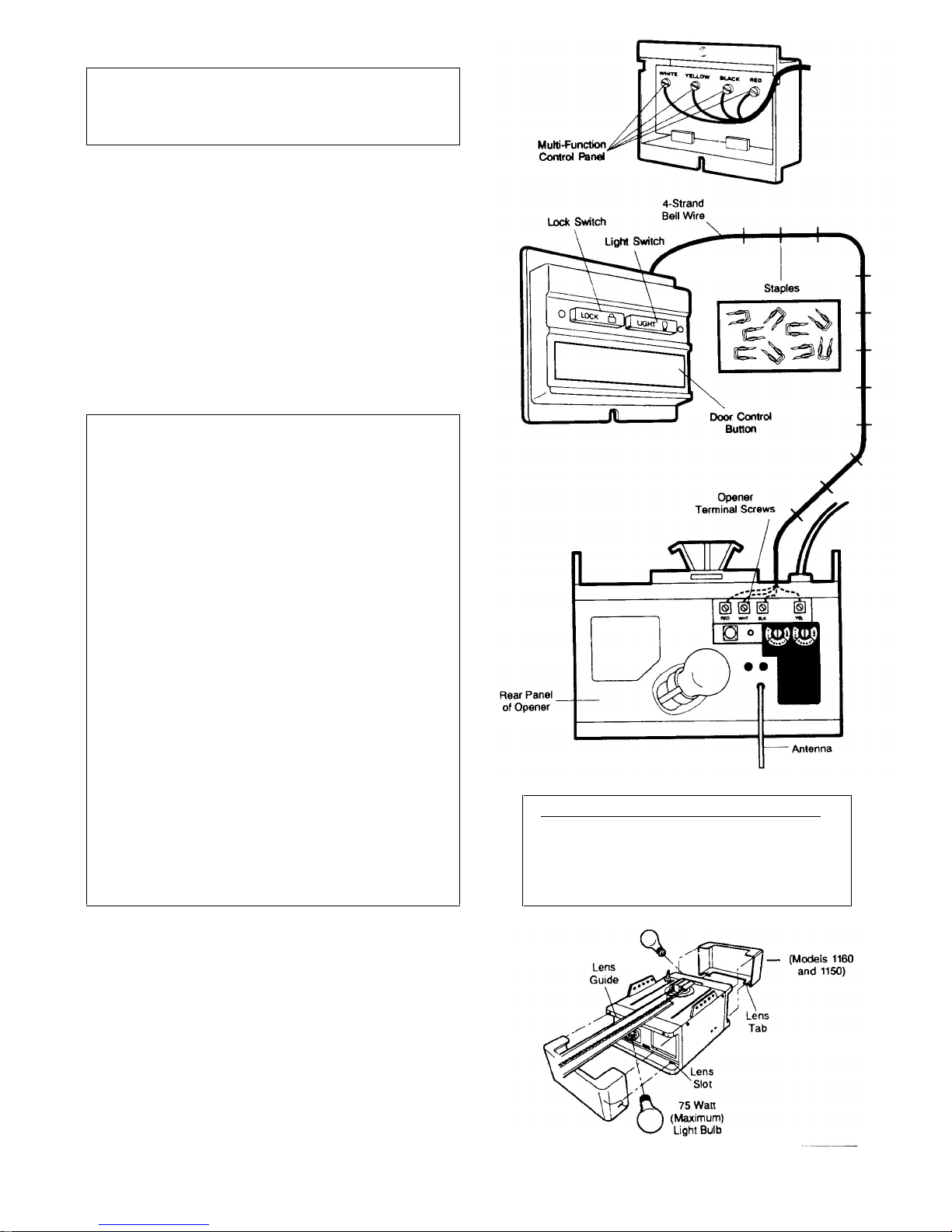

There are 4 screw terminals on the back of the Multi
Function Control. Connect bell wire by color; yellow
to yellow, white to white, red to red and black to black.
Install the Multi-Function Control on an inside garage wall as
shown. Use anchors if installing into drywall a convenient place is
alongside the service door.
LOCATE OUT OF THE REACH OF CHILDREN.
Run bell wire up the wall and across the ceiling to opener. Secure
with insulated staples.
Receiver terminals and antenna are Located on back panel of
opener. Position antenna wire as shown. Then connect the wire by
color to the red, white, black and yellow opener terminal screws.
OPERATION OF THE
MULTI-FUNCTION CONTROL PANEL
DOOR CONTROL PUSH BUTTON
Press to open or close door. Press again to REVERSE door
during CLOSING cycle or to STOP door while OPENING.
LOCK SWITCH: Activate ONLY when door is closed. The
LOCK Switch is designed to prevent operation of door from
portable remote control transmitters. Door will OPEN from Door
Control Button, Key Switch and Keyless Entry Systems. Door
will CLOSE if door control button is pressed and held until the
door closes fully. If button is released before down travel is
completed, door will reverse.
TO ACTIVATE: Press Lock Switch button. Indicator light will
turn ON. TO TURN OFF: Press Lock Switch button again.
Indicator light will turn OFF. Normal operation will
LIGHT SWITCH
TO ACTIVATE: Press Light Switch button. Indicator light will
turn ON. Opener light will turn on (or remain on if opener is still
in 41/2 minute automatic cycle). TO TURN OFF: Press Light
Switch button again. Opener light will turn OFF.
NOTE: To turn light OFF during 4-1/2 minute automatic
cycle, press Light Switch button twice • to activate and
then to turn off Light Switch Feature. Light will turn OFF
immediately.
INSTALL THE LIGHTS
Install a 75 Watt maximum light bulb in each socket. Lights will turn
ON and remain lit for 4-1/2 minutes when power is connected. Then
they will turn OFF. If bulbs burn out prematurely due to
vibration, replace with "Garage Door Opener" bulbs.
INSTALL THE LENSES
Slide lens into guides as shown. Snap bottom tabs into lens slots.
For convenience, lenses may be installed after Adjustment
Step 3, Page 22.
WIRING INSTRUCTIONS FOR ACCESSORIES
The Protector System
To white and black opener terminals
Outdoor Key Switch:
To red and white opener terminals
15

INSTALLATION STEP 6
Attach Manual Release Rope & Handle
USE MANUAL RELEASE ROPE ONLY TO
DISENGAGE TROLLEY. DO NOT USE ROPE AND
HANDLE TO PULL DOOR OPEN OR CLOSED.
PROCEDURE: Thread one end of rope through hole in top of red
handle so 'NOTICE' reads right side up as shown. Secure with an
overhand knot.
NOTE: Knot should be at least 1" from the end of the rope to
prevent slipping.
Thread other end of rope through hole in release arm of outer trolley.
Adjust rope length so that handle is 6 feet above the floor. Secure
with an overhand knot as above.
NOTE: If it is necessary to cut rope, heat seal cut end with a
match or lighter to prevent fraying and/or raveling.
INSTALLATION STEP 7
Connect Electric Power
TO AVOID SERIOUS PERSONAL INJURY FROM
ENTANGLEMENT, REMOVE ALL THE ROPES
CONNECTED TO GARAGE DOOR BEFORE
OPERATING OPENER.
TO AVOID DAMAGE TO GARAGE DOOR AND OPENER,
MAKE DOOR LOCKS INOPERATIVE BEFORE CONNECTING
ELECTRIC POWER. USE A WOOD SCREW OR NAIL TO
HOLD LOCKS IN "OPEN" /UNLOCKED) POSITION.
THE INSTALLATION & THE WIRING MUST BE IN
COMPLIANCE WITH LOCAL ELECTRICAL AND BUILDING
CODES.
OPERATION AT OTHER THAN 120V 60Hz WILL CAUSE
OPENER MALFUNCTION AND DAMAGE.
Opener MUST be permanently wired or plugged into
a grounded 3-prong receptacle wired according to
local electrical codes. DO NOT use a 2-wire adapter.
DO NOT USE an extension cord.
RIGHT WRONG
PROCEDURE FOR PERMANENT WIRING (if required by local codes)
DISCONNECT THE POWER AT THE FUSE BOX
BEFORE PROCEEDING.
Refer to illustration. Make connection through the 7/8"
diameter hole in top of opener.
1. Remove opener cover screws and set cover aside.
2. Remove attached 3-prong cord.
3. Connect black (line) wire to black wire on terminal
block; white (neutral) wire to white terminal wire;
Green (GROUND) wire to green around screw.
CAUTION: BE SURE THE UNIT IS GROUNDED
ACCORDING TO LOCAL CODE.
IMPORTANT NOTE: TO AVOID INSTALLATION
DIFFICULTIES, DO NOT RUN OPENER NOW.
16

INSTALLATION STEP 8
Fasten Door Bracket and Plate
Follow instructions which apply to your door type
as illustrated below.
TO PREVENT DAMAGE TO LIGHTWEIGHT
AND METAL GARAGE DOORS (OR THOSE
WITH GLASS PANELS),
ALWAYS REINFORCE THE INSIDE OF DOOR—
BOTH VERTICALLY AND HORIZONTALLY—WITH
2X4BOARDS OR ANGLE IRON.
The horizontal brace should be at least six feet long. The
vertical brace should cover height of top panel. The best solution
is to check with the garage door manufacturer for a door reinforcement kit to be used with an opener installation.
: :
Sectional Door Installation Procedure

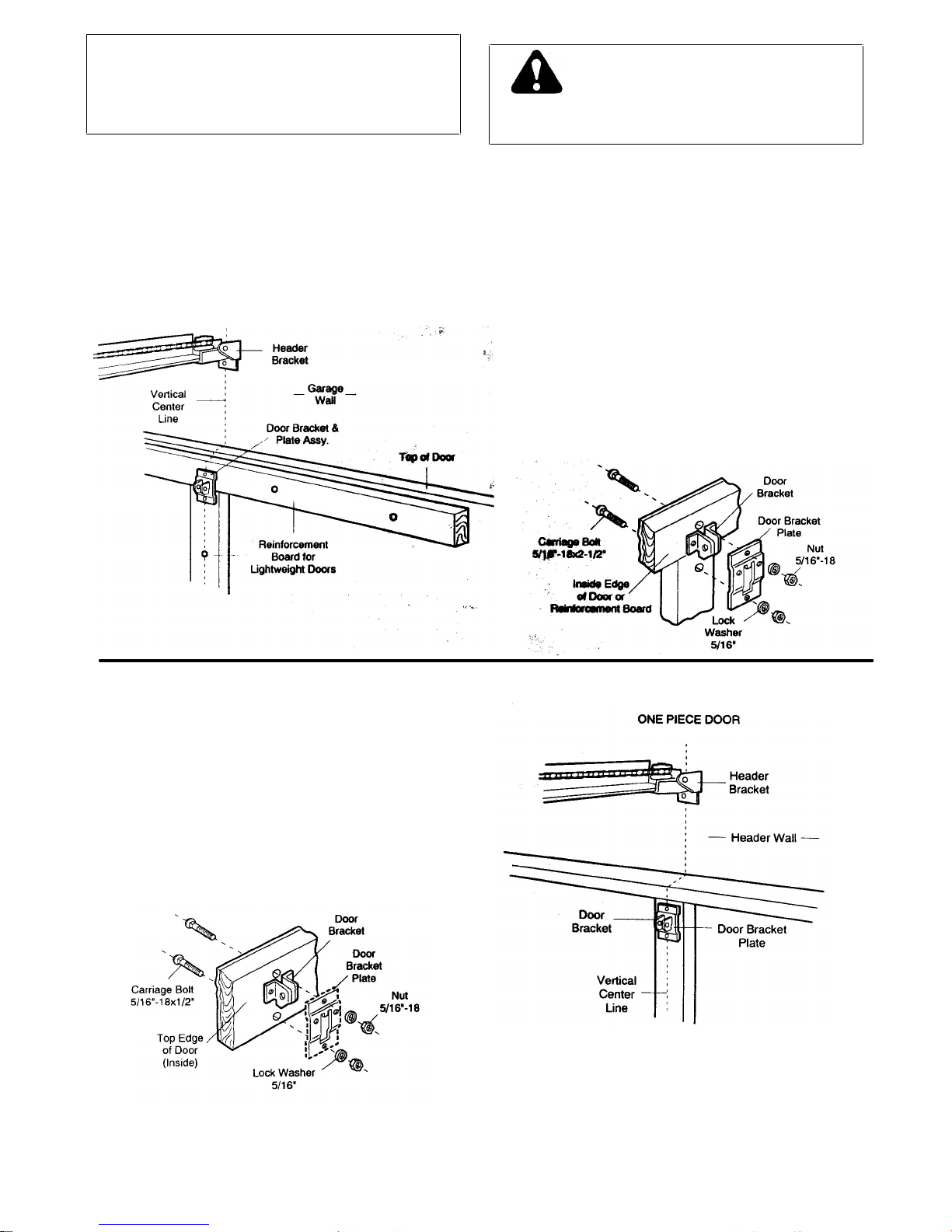

Position door bracket and plate assembly against door
within the following limits according to your
requirements (and centered on vertical guideline— or
to one toot left or right of center, if necessary):
A) Top edge of bracket 2" - 4" below top edge of door.
B) Directly below any structural support across top of
door.
Mark and drill 5/16" TOP and BOTTOM fastening holes.
Secure bracket assembly as shown.
17
All One-Piece Door Installation Procedure
NOTE: The door bracket has left and right side
fastening holes. Assemble and Install the door
bracket and plate if your installation requires top and
bottom fastening holes.
Center bracket (with or without plate as required) at the
top of the inside face of door as shown. Mark holes.
Drill 5/16" holes and fasten the door bracket with
hardware supplied.

INSTALLATION STEP 9
Connect Door Arm to Trolley
Follow instructions which apply to your door
type as illustrated.
SECTIONAL DOORS INSTALLATION
Make sure garage door is closed tight. Pull the manual release handle to disconnect the trolley. Manually
move outer trolley back to the center of inner trolley as shown in Figures A, B and C.

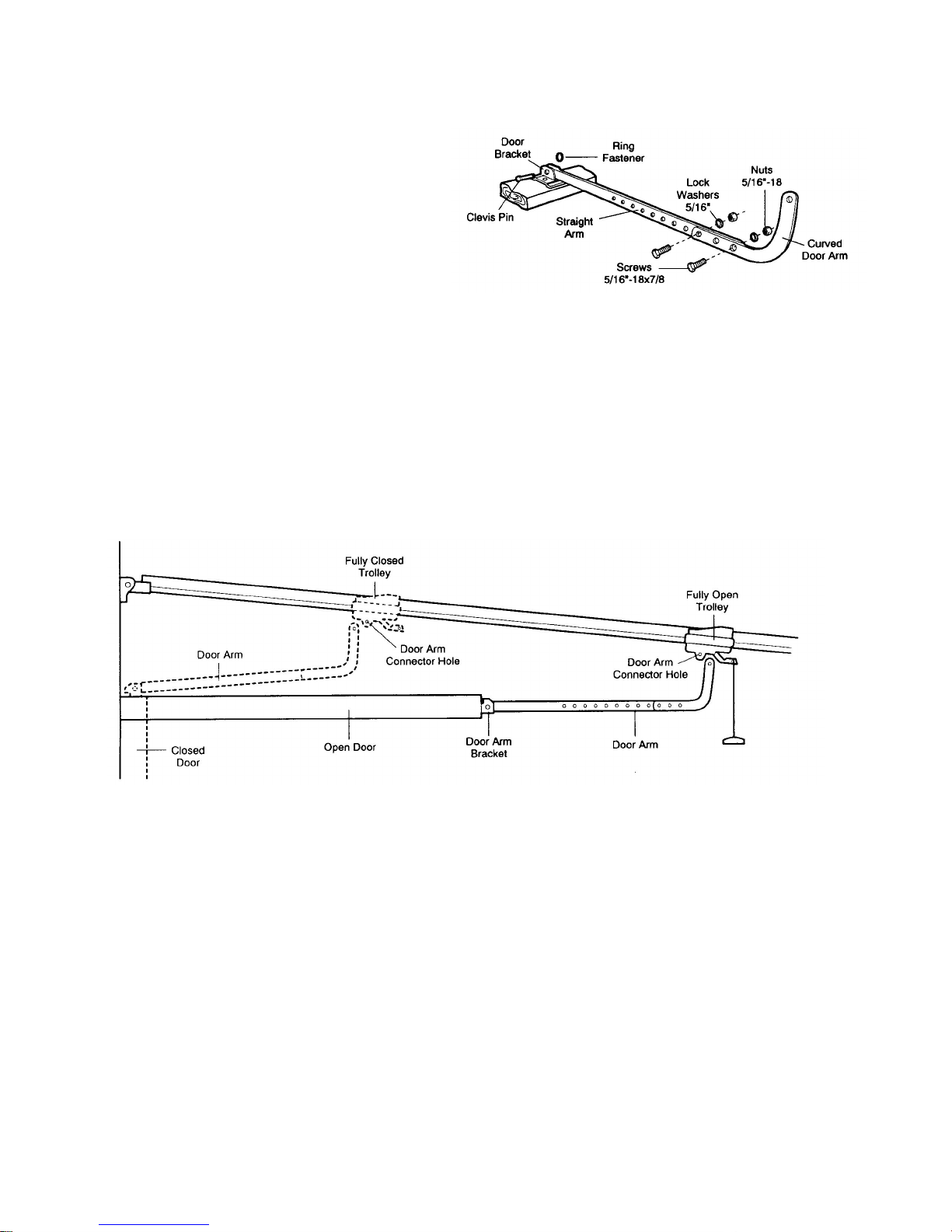

FIG A: Fasten straight door arm section to outer trolley
with a clevis pin. Secure the connection with a ring
fastener.
FIG B: Bring arm sections together. Find two pairs of
holes that line up and join sections. Select holes as far
apart as possible to increase door arm rigidity.
Fasten curved section to the door bracket in the same
way.
FIG C: If holes in curved arm are ABOVE holes in
straight arm, disconnect straight arm. Cut about 6"
from the solid end. Reconnect to trolley with CUT END
DOWN as shown.
Bring arm sections together. Find two pairs of holes
that line up and join with screws, lock washers and
nuts.
Proceed to Step 1,
page20. Trolley will re-engage automatically when opener is operated.
18

ALL ONE-PIECE DOORS
ASSEMBLE DOOR ARM: Fasten straight and curved
door arm sections together to their longest possible
length. With door closed, connect straight door arm
section to door bracket with a clevis pin. Secure with a
ring fastener.
Before connecting door arm to trolley, limits of travel must be adjusted on one-piece doors. Limit
adjustment screws are located on left side panel as shown in illustration on Page 20. Follow procedures
below.
ADJUSTMENT PROCEDURES
OPEN DOOR ADJUSTMENT CLOSED DOOR ADJUSTMENT
Decrease UP limit. Turn UP limit adjustment screw
counterclockwise 4 complete turns.
Press door control button. Trolley will travel to full open
position.
Manually raise door arm to open position (parallel to
floor) and lift door arm to trolley. The arm should touch
trolley just in back of door arm connector hole as
shown in solid line drawing. If arm does not extend far
enough, adjust limit further. One full turn equals 2" of
door travel.
Decrease DOWN limit. Turn DOWN limit adjustment
screw clockwise 8 complete turns.
Press door control button. Trolley will travel to full
closed position.
Manually close door and lift door arm to trolley. The
arm should touch trolley just ahead of door arm
connector hole as shown in dotted line drawing. If arm
is behind the connector hole, adjust limit further. One
full turn equals 2" of door travel.
CONNECT DOOR ARM TO TROLLEY: With door closed, join curved arm to connector hole in trolley with remaining
clevis pin. Secure with ring fastener. NOTE: It may be necessary to lift door slightly to make connection.
Run opener through a complete travel cycle. If door has a slight 'backward' slant in full open position, decrease UP
limits until door is parallel to floor.
19

THE FOLLOWING CHART OUTLINES ADJUSTMENT PROCEDURES. RUN THE OPENER THROUGH A
COMPLETE TRAVEL CYCLE AFTER EACH ADJUSTMENT.
NOTE: REPEATED OPERATION OF THE OPENER DURING ADJUSTMENT PROCEDURES MAY CAUSE
MOTOR TO OVERHEAT AND SHUT OFF. SIMPLY WAIT 15 MINUTES AND TRY AGAIN.
Read the chart carefully before proceeding to Step 2. Use a screwdriver to make limit adjustments.
LIMIT ADJUSTMENT CHART
IF DOOR DOES NOT OPEN COMPLETELY
BUT OPENS AT LEAST FIVE FEET IF ONE-PIECE DOOR DOES NOT
CLOSE COMPLETELY
Increase UP travel. Turn the UP LIMIT adjustment
screw clockwise. One turn equals 2" of travel.
If door does not open at least 5 feet: adjust UP
(OPEN) FORCE as explained in Step 2.
IF DOOR DOES NOT CLOSE COMPLETELY
Increase DOWN travel. Turn down limit adjustment
screw counterclockwise. One turn equals 2" of travel.
If the door still will not close completely, the header
bracket is positioned too high. See Step 1, page 10.
Increase DOWN travel. Turn down limit adjustment
screw counterclockwise. One turn equals 2 inches of
travel.
IF OPENER REVERSES IN FULLY
CLOSED POSITION.
Decrease DOWN travel. Turn down limit adjustment
screw clockwise. One turn equals 2 inches of travel.
IF DOOR REVERSES WHEN CLOSING AND THERE
IS NO INTERFERENCE TO TRAVEL CYCLE
Test door for binding: Pull manual release handle.
Manually open and close door. If door is binding, call a
door serviceman. If door is not binding or unbalanced,
adjust DOWN (CLOSE) FORCE. See Step 2.
LIMIT ADJUSTMENT settings regulate the points at
which the door will stop when moving up or down.
NOTE: Door STOPS in the UP direction if anything
interferes with door travel. Door REVERSES in the
DOWN direction if anything interferes with the door
travel (including binding or unbalanced doors).
PROCEDURE: To operate the opener, press the Door
Control Button. Run the opener through a COMPLETE
TRAVEL CYCLE. No limit adjustments are necessary
when the door opens and closes completely and doesn't
reverse unintentionally when fully closed.
ADJUSTMENT STEP 1
A
djust UP and DOWN Limits
20
