Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the front panel of your opener.
GARAGE DOOR OPENER
Model 5410E – EDITION 2013
For Residential Use Only

2
Introduction 2-7
Safety symbol and signal word review . . . . . . . . . . . . . . . . . . . . . 2
Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly 8-14
Assemble T-rail & attach the chain sprocket bracket . . . . . . . . .8-9
Install the trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fasten the T-rail to the motor unit. . . . . . . . . . . . . . . . . . . . . . . . 11
Install the chain and chain spreader . . . . . . . . . . . . . . . . . . . .12-13
Tighten the chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation 14-27
Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Determine the header bracket location . . . . . . . . . . . . . . . . . .15-16
Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Attach the T-rail to the header bracket . . . . . . . . . . . . . . . . . . . . 18
Position the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Install the light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Attach the emergency release rope and handle. . . . . . . . . . . . . . 22
Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fasten the door bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Connect the door arm to the trolley . . . . . . . . . . . . . . . . . . . .26-27
Adjustment 28-31
Adjust the travel limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjust the force. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Test the safety reversal system. . . . . . . . . . . . . . . . . . . . . . . . . . 30
Install the Protector System®. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Install wired door controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming the Remote Control 32
Accessories 33
Operation 34-35
Maintenance and operation of your garage door opener. . . . . . . 34
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Motor Unit Assembly Parts 36
Warranty 36
TABLE OF CONTENTS
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the warnings
that accompany them. The hazard may come from something
mechanical or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it will
alert you to the possibility of damage to your garage door and/or
the garage door opener if you do not comply with the cautionary
statements that accompany it. Read them carefully.
Mechanical
Electrical
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in
strict accordance with the instructions and warnings contained in this manual.

3
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
1/2" and 7/16" Sockets
and Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
3/16", 5/16" and
5/32" Drill Bits
Carpenter’s
Level (Optional)
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the
opener.
• ONLY operate garage door opener at 230V, 50 Hz to avoid
malfunction and damage.
To prevent possible SERIOUS INJURY or DEATH:
• ALWAYS call a trained door systems technician if garage door
binds, sticks, or is out of balance. An unbalanced garage door
may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, ALL of
which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to garage
door BEFORE installing and operating garage door opener to
avoid entanglement.
Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your garage door is
balanced and is not sticking or binding:
1. Lift the door about halfway as shown. Release the door. If
balanced, it should stay in place, supported entirely by its
springs.
2. Raise and lower the door to see if there is any binding or
sticking.
If your door binds, sticks, or is out of balance, call a trained door
systems technician.
Tools needed
During assembly, installation and adjustment of the opener,
instructions will call for hand tools as illustrated below.
Sectional Door
One-Piece Door
3/16", 5/16" and
5/32" Drill Bits
1/2" and 7/16" Sockets
and Wrench
Stepladder
Drill
Tape Measure
Wire Cutters
Hack Saw
Claw Hammer
Adjustable End Wrench
Screwdriver
Pliers
Pencil
Carpenter’s
Level (Optional)

4
— — — — — — — —
O
El espacio entre la base de la
puerta y el piso no debe
superar los 6 mm
Unidad de
control de
la puerta,
instalada
en la pared
Unidad del motor
Detector de seguridad de reversa
(Accesorio opcional)
Se necesita un refuerzo horizontal y
vertical para puertas ligeras de garaje
(fibra de vidrio, acero, aluminio,
puertas con paneles de vidrio, etc.)
Para mayores detalles consultar la página 25.
TECHO TERMINADO
Se requiere de un sostén
de soporte y tornillos de
sujeción. Consultar la página 21.
La holgura en la tensión
de la cadena es normal
cuando la puerta se encuentra cerrada
Pared de cabecera
Detector de
seguridad de reversa
(Accesorio opcional)
Resorte de
extensión
Puerta
de acceso
Resorte
de torsión
Línea vertical del
centro de la puerta
SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door. Survey your
garage area to see if any of the conditions below apply to your
installation. Additional materials may be required. You may
find it helpful to refer back to this page and the accompanying
illustrations as you proceed with the installation of your opener.
Depending on your requirements, there are several installation
steps which may call for materials or hardware not included in the
carton.
• Installation Step 1 – Look at the wall or ceiling above the
garage door. The header bracket must be securely fastened to
structural supports.
• Installation Step 5 – Do you have a finished ceiling in your
garage? If so, a support bracket and additional fastening
hardware may be required.
• Do you have an access door in addition to the garage door?
If not, Model 1702E Outside Quick Release is required. See
Accessories page.
Cable Pulley
Bracket
Header
Bracket Trolley
Straight
Door
Arm Emergency
Release
Rope & Handle
Door Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
CLOSED POSITION
T-rail
Chain
• Look at the garage door where it meets the floor. Any gap
between the floor and the bottom of the door must not exceed
6 mm. Otherwise, the safety reversal system may not work
properly. See Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass panel
door? If so, horizontal and vertical reinforcement is required
(Installation Step 10).
• The opener should be installed above the center of the door. If
there is a torsion spring or center bearing plate in the way of
the header bracket, it may be installed within 1.2 m to the left or
right of the door center. See Installation Steps 1 and 10.
Chain Sprocket
Bracket
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
Slack in chain tension
is normal when garage
door is closed.
Support bracket & fastening
hardware is required.
See page 20.
Motor unit
FINISHED CEILING
Extension
Spring
Torsion
Spring
Wall-
mounted
Door
Control
Safety Reversing Sensor
(Optional Accessory)
Gap between floor
and bottom of door
must not exceed 6 mm.
Vertical Centerline
of Garage Door
Access Door
OR
Header Wall
Safety Reversing
Sensor (Optional
Accessory)

5
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require reinforcement.
If your door is lightweight, refer to the information relating to
sectional doors in Installation Step 10.
• Depending on your door’s construction, you may need
additional mounting hardware for the door bracket (Step 10).
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
• The gap between the bottom of the garage door and the floor
MUST NOT exceed 6 mm. Otherwise, the safety reversal
system may NOT work properly.
• The floor or the garage door MUST be repaired to eliminate
the gap.
Safety
Reversing Sensor
(Optional Accessory)
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 21.
Slack in Chain Tension
is Normal When
Garage Door is Closed
Safety
Reversing Sensor
(Optional Accessory)
Header
Wall
Access
Door
Gap between floor and bottom
of door must not exceed 6 mm.
Wall-mounted
Door
Control
Motor Unit
ONE-PIECE DOOR WITHOUT TRACK
Access
Door
Gap between floor
and bottom of door
must not exceed 6 mm.
Safety Reversing
Sensor
Safety Reversing
Sensor
(Optional Accessory)
(Optional Accessory)
CLOSED POSITION
Cable
Pulley Bracket
Door
Bracket
Straight
Door
Arm
Trolley
Header
Wall
Rail
Garage
Door
Emergency Release
Rope & Handle
Chain
Header
Bracket
Curved
Door Arm
ONE-PIECE DOOR WITH TRACK
CLOSED POSITION
Cable
Pulley Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Header
Wall
Rail
Garage
Door
Chain Sprocket
Bracket
Chain Sprocket
Bracket
Support bracket
& fastening
hardware is required.
See page 20.

6

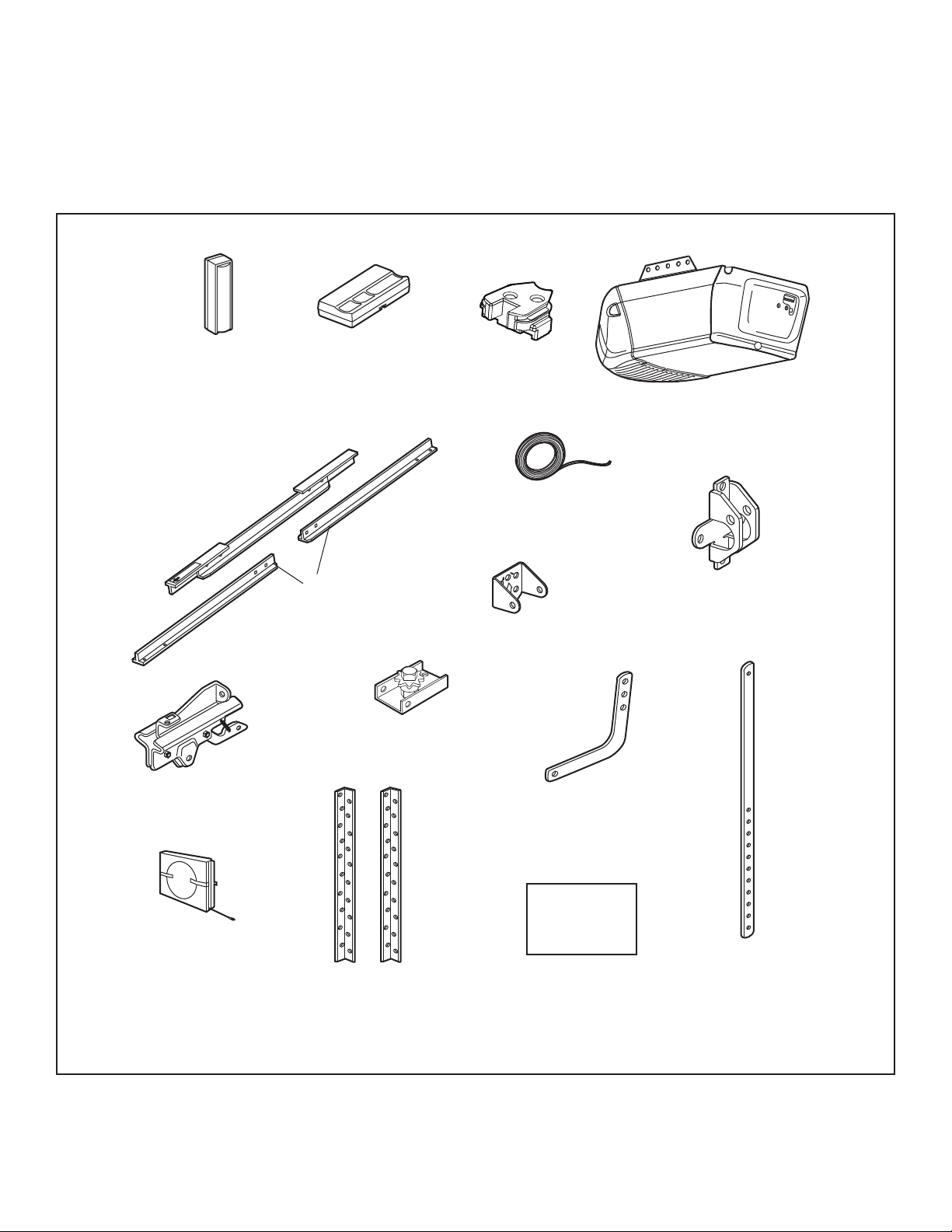

41B2616
Cable Pulley
Bracket
41B4494-1
2-Conductor Bell Wire
White & White/Red
41A3489
Trolley
41A4353
Header Bracket
178B35
Curved Door
Arm Section
178B34
Straight Door
Arm Section
Safety Labels
and
Literature
12B350
Hanging Brackets
UP
CEILINGMOUNTON
LY
41A5047
Door Bracket
973-315MK
SECURITY ✚®
Multi-function
Remote Control (2)
1B3117
T-rail
Center Section
OT G
R
AAGED
OOR
183B110
T-rail End Section (each)
41A4208
Chain Spreader
and Screws
41A3473-2
Chain/Cable
Dispensing Carton
41A5577-1
Lighted Door
Control Button
108D79
Motor Unit and Light Lens
Your garage door opener is packaged in one carton which
contains the motor unit and the parts illustrated below. Note that
accessories will depend on the model purchased. If anything is
missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for assembly and
installation is shown on the next page. Save the carton and
packing material until installation and adjustment is complete.
Carton Inventory
Chain Pulley
Bracket
41A2780
Motor Unit and Light Lens
41A4208-2
Chain Spreader
and Screws
94330E
SECURITY✚®
Multi-function
Remote Control (2)
75LM
Lighted Door
Control Button
41A2780
Chain Sprocket
Bracket
41A3611-2
Chain Dispensing
Carton

7
Tornillo
6ABx1-1/4" (2)
Tuerca
5/16"-18 (4)
NOTICE
Seguro de aro (3)Grasa de riel (1)
Arandela
5/16" (4)
Tornillo tirafondo
5/16"-9x1-5/8" (4)
Tuerca
5/16"-18 (5)
Arandela
5/16" (4)
Juego de enlace
maestro (2)
Perno roscado
del carro (1)
Tuerca de seguridad
1/4"-20x7/16" (12)
Pasador de chaveta
5/16"x2-3/4" (1)
Cordón
Manija
Pasador de chaveta
5/16"x1" (2)
Taquete (2)
Perno hexagonal
5/16"-18x7/8" (4)
Perno con arandela
5/16"-18x1/2" (2)
(en el cabezal)
Perno de coche
1/4"-20x1/2" (12)
Perno hexagonal
5/16"-18x7/8" (3)
Tornillo autorroscante
de 1/4-14x5/8 de pulg. (2)
INSTALLATION HARDWARE 41A3475-32
Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
Washered Bolt
5/16"-18x1/2" (2)
(mounted in opener)
Hex Bolt
5/16"-18x7/8" (3)
Nut
5/16"-18 (5)
Trolley Threaded Shaft (1)
Lag Screw
5/16"-9x1-5/8" (4)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin
5/16"x2-3/4" (1)
Handle
Hex Bolt
5/16"-18x7/8" (4)
Nut
5/16"-18 (4)
Lock Washer
5/16" (4)
Ring Fastener (3) Rope
Drywall Anchors (2)Clevis Pin
5/16”x1” (2)
Screw
6ABx1-1/4" (2)
Carriage Bolt
1/4"-20x1/2" (12)
Lock Washer
5/16" (4)
Lock Nut
1/4"-20x7/16" (12)
Master Link (2)
Rail Grease (1)

8

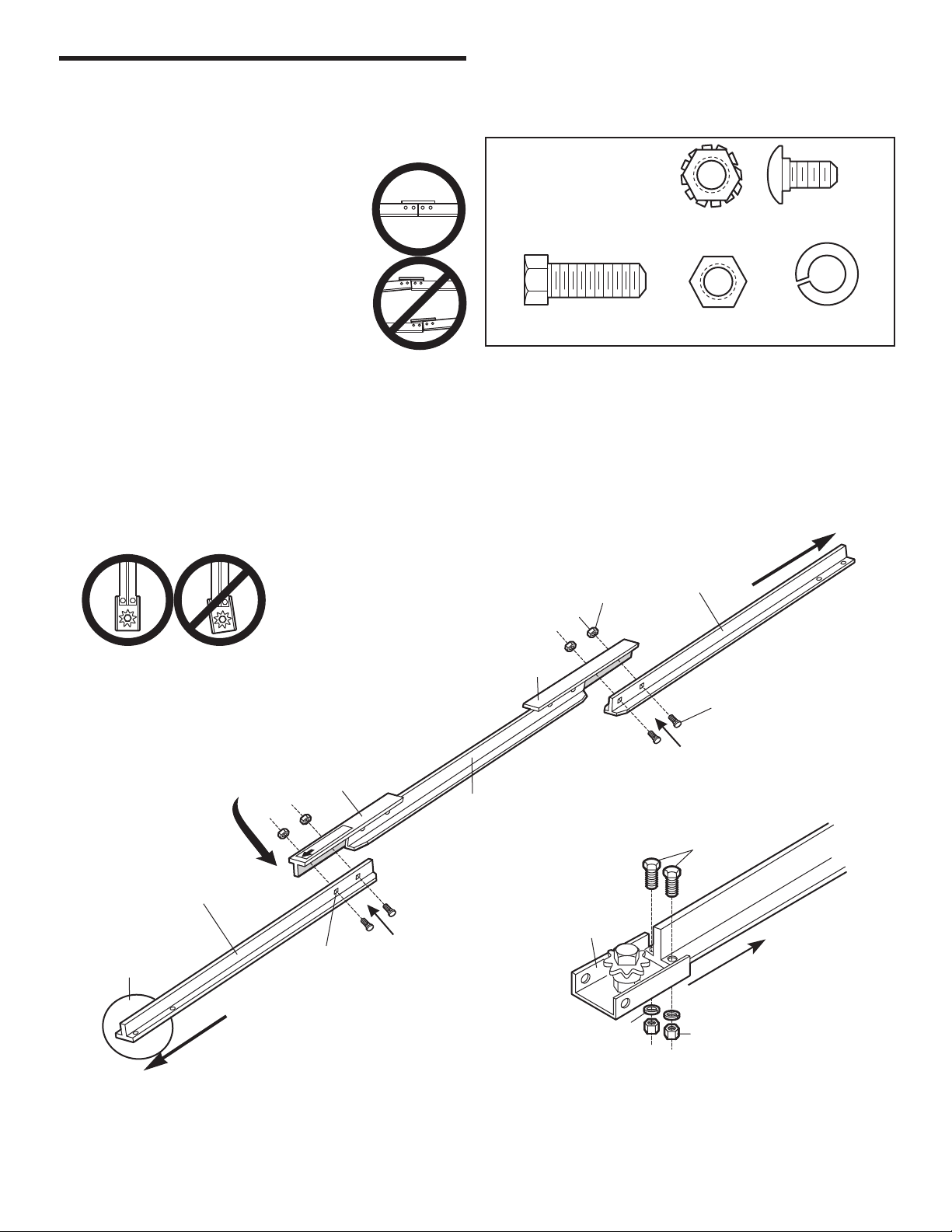

ASSEMBLY STEP 1
For Sectional and One-Piece Doors ONLY
Assemble the T-Rail and Attach the Chain Sprocket
Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1. Place the 3 T-rail sections on a flat surface
for assembly. The end sections are identical.
The center section must be positioned with
the braces against the end sections as shown.
Make sure the "directional arrow" on the center
section is pointing toward the front (to door).
Study the illustration carefully.
2. Bolt rail sections together with the hardware
illustrated and from the direction indicated.
(When assembled, T-rail has a front-to-back position as
shown.)
NOTE: If T-rail is not assembled exactly as shown, trolley will
not travel smoothly along length of rail or it will hit against nuts.
3. Position the chain sprocket bracket on the front end of the T-rail
as shown. Fasten securely with the hardware provided.
NOTE: When tightening the bolts be sure to keep bracket
parallel to the rail. Otherwise, the rail may bow when the opener
is operated.
Lock Nut
1/4"-20 Carriage Bolts 1/4"-20x1/2"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
Rail
(Center Section)
1/4'' Lock Nut
RAIL FRONT
(TO DOOR)
Cable pulley bracket
attaches to FRONT
END of Rail
Rail
(End Section)
RAIL BACK
(TO OPENER)
Rail
(End Section)
Carriage Bolt
1/4"-20x1/2"
Brace
Brace
Square Carriage
Bolt Holes
O
TG R
AGA D
EOO
R
Hex Bolts
5/16"-18x7/8"
Rail Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"
Cable Pulley
Bracket
Hex Bolts
5/16"-18x7/8"
Rail Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"
Chain Pulley
Bracket
11 mm Socket Wrench
13 mm Socket Wrench
Chain Sprocket
Bracket
Chain Sprocket Bracket
attaches to FRONT END
of Rail
HARDWARE
SHOWN ACTUAL SIZE

9
ASSEMBLY STEP 1
For Sliding and Swinging Gates ONLY
Assemble the T-Rail and Attach the Chain Sprocket
Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1. Place the 3 T-rail sections on a flat surface
for assembly. The end sections are identical.
Make sure the “arrow label” on the center
section is pointing in the direction shown in
the illustration.
2. Connect the center section and the 1/4" lock
nuts to the end sections from the same side,
as shown.
NOTE: If T-rail is not assembled exactly as
shown, trolley will not travel smoothly along length of rail or it
will hit against nuts.
3. Insert the carriage bolts from the opposite side of the end
sections. Tighten the nuts. When assembled, T-rail has a
front-to-back position as shown.
4. Position the chain sprocket bracket on the front end of the T-rail
as shown. Fasten securely with the hardware provided.
NOTE: When tightening the bolts be sure to keep bracket
parallel to the rail. Otherwise, the rail may bow when the opener
is operated.
Lock Nut
1/4"-20 Carriage Bolts 1/4"-20x1/2"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE
SHOWN ACTUAL SIZE
Rail
(Center Section)
1/4'' Lock Nut
Cable pulley bracket
attaches to this
end of rail.
Rail
(End Section)
Carriage Bolt
1/4"-20x1/2"
Brace
Square Carriage
Bolt Holes
R
OO
DE
GA
R
A
G
O
T
AWAY FROM
OPENER
Brace
Rail
(End Section)
Rail connects to
opener at this end. Tuerca de 1/4" Riel en "T"
(Sección Extrema)
El sostén de la polea
del cable se fija a este
extremo del riel en "T".
Hex Bolts
5/16"-18x7/8"
Cable Pulley
Bracket
Rail Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"
13 mm Socket Wrench
11 mm Socket Wrench
Hex Bolts
5/16"-18x7/8"
Chain Pulley
Bracket
Rail Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"
Chain Sprocket
Bracket
Chain sprocket bracket
attaches to this end
of Rail

10
Outer Nut
5/16"-18
Trolley
Threaded
Shaft
Lock Washer
5/16"
Inner Nut
5/16"-18
R
O
OD
E
G
A
R
A
G
O
T
Hex Bolt
Trolley Stop
Hex Bolt
5/16"-18x7/8"
Inner Nut
5/16"-18
Lock Washer
5/16"
Chain Pulley
Bracket

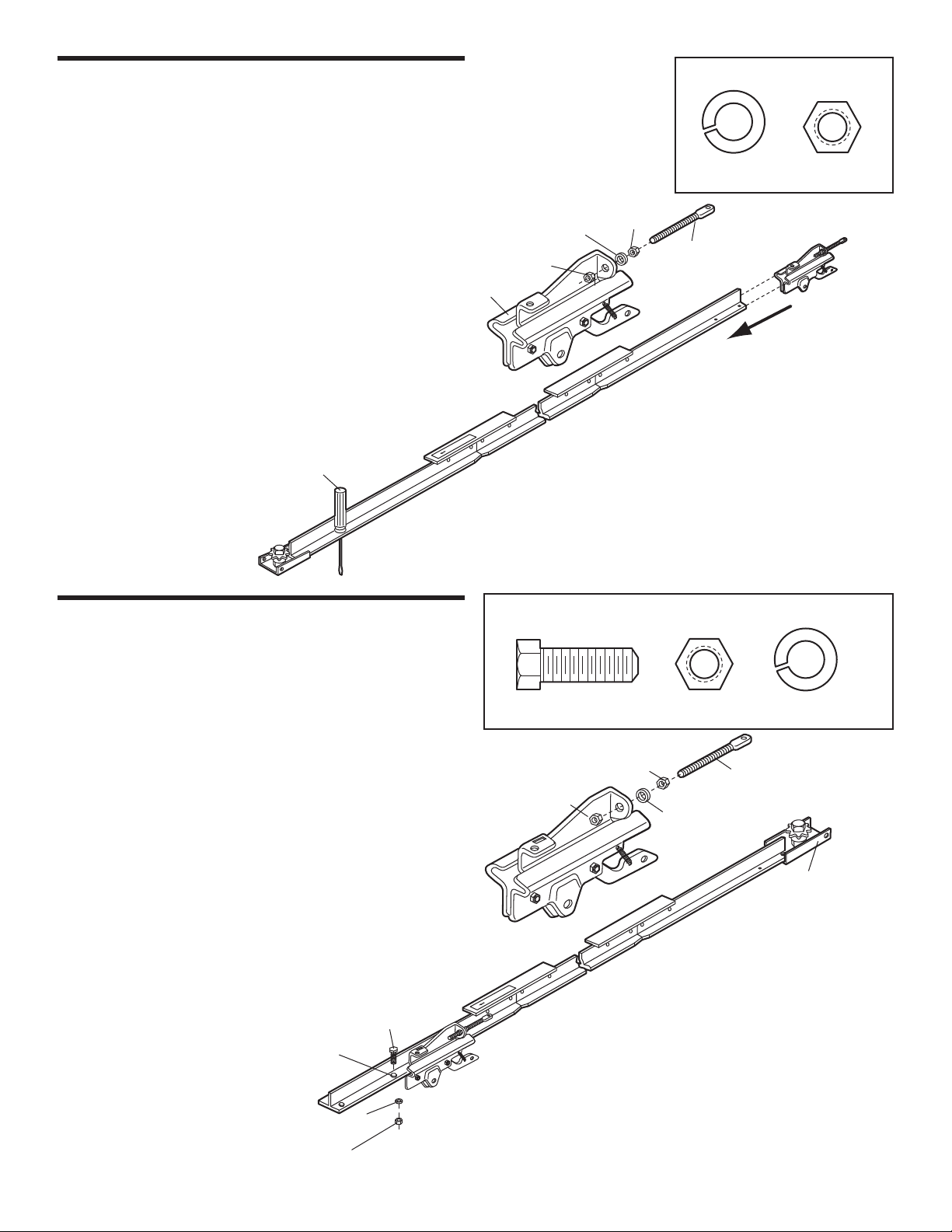

ASSEMBLY STEP 2
For Sectional and One-Piece Doors Only
Install the Trolley on the T-Rail
• Attach the trolley threaded shaft to the trolley with the lock
washer and nuts as shown.
• As a temporary stop, insert a screwdriver into the hole in the
front end of the T-rail.
• Slide the trolley assembly along the rail to the screwdriver stop.
NOTE: If trolley hits against any nuts on the T-rail, the bolts
and nuts were attached from the wrong side and must be
repositioned. Review Assembly Step 1.
Lock Washer
5/16" Nut
5/16"-18
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
For Sliding and Swinging Gates Only
Install the Trolley on the T-Rail
• Attach the trolley threaded shaft to the trolley with the lock
washer and nuts as shown.
• Insert a hex bolt into the hole in the front end of the T-rail.
• Slide the trolley assembly along the rail until it rests against the
hex bolt (trolley stop).
NOTE: If trolley hits against any nuts on the T-rail, the bolts
and nuts were attached from the wrong side and must be
repositioned. Review Assembly Step 1.
Nut
5/16"-18 Lock Washer 5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
Chain Sprocket
Bracket
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Temporary Stop
Screwdriver
TOGARAGEDOOR

11

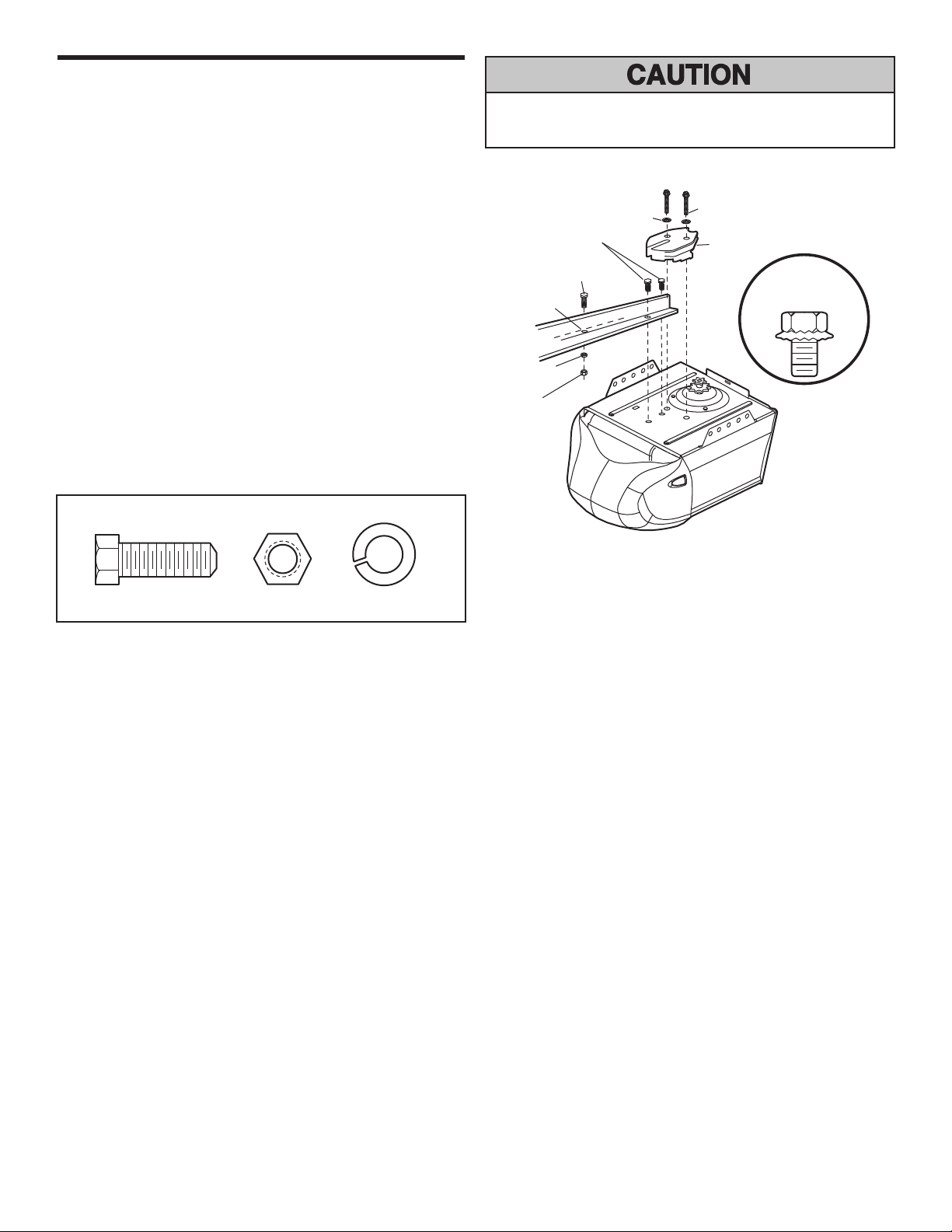

ASSEMBLY STEP 3
Fasten the T-Rail to the Motor Unit
• Place the opener on packing material to protect the cover. For
convenience, put a support under the chain sprocket bracket.
• Remove the two 5/16"-18x1/2" washered bolts mounted in the
top of the motor unit.
• Align the holes in the back section of the T-rail with the holes in
the motor unit.
• Fasten the rail with the two washered bolts previously removed.
Tighten securely. Remember to use only these bolts! Any
other bolts will cause serious damage to the opener.
• Insert a 5/16"-18x7/8" hex bolt into the cover protection bolt
hole in the T-rail as shown. Tighten securely with a 5/16" lock
washer and nut.
NOTE: This bolt prevents trolley over-travel. Keep a 25 mm
minimum between the trolley and this bolt when adjusting travel
limits (see page 28).
• Attach chain spreader with #8x1" hex screws and washers as
shown.
Nut
5/16"-18 Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
To avoid SERIOUS damage to opener, ONLY use bolts/
fasteners mounted in top of motor unit.
Nut
5/16"-18
#8x1"
Hex Screws
Chain
Spreader
USE ONLY THIS
TYPE AND SIZE
BOLT
Cover
Protection
Bolt Hole
Rail
(Back
Section)
Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
Washers
Washered Bolt
5/16"-18x1/2"

12
Master
Link Bar
Flat End
of Trolley
Trolley
Pin
Pin Notch
Flat End of
Threaded Shaft
Master Link
Clip-On Spring
Master
Link Cap
Install Chain
In This Direction
Chain
Pulley
Bracket

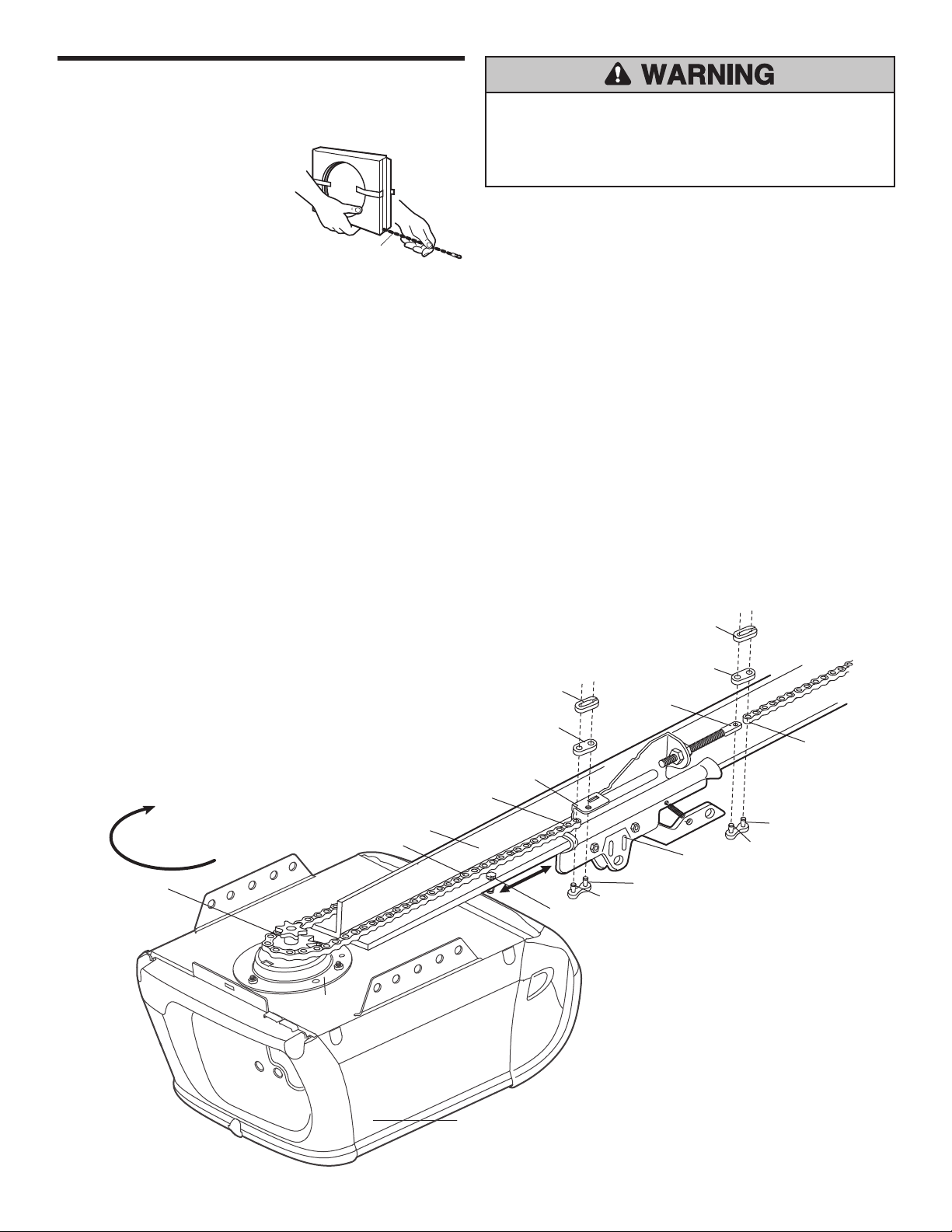

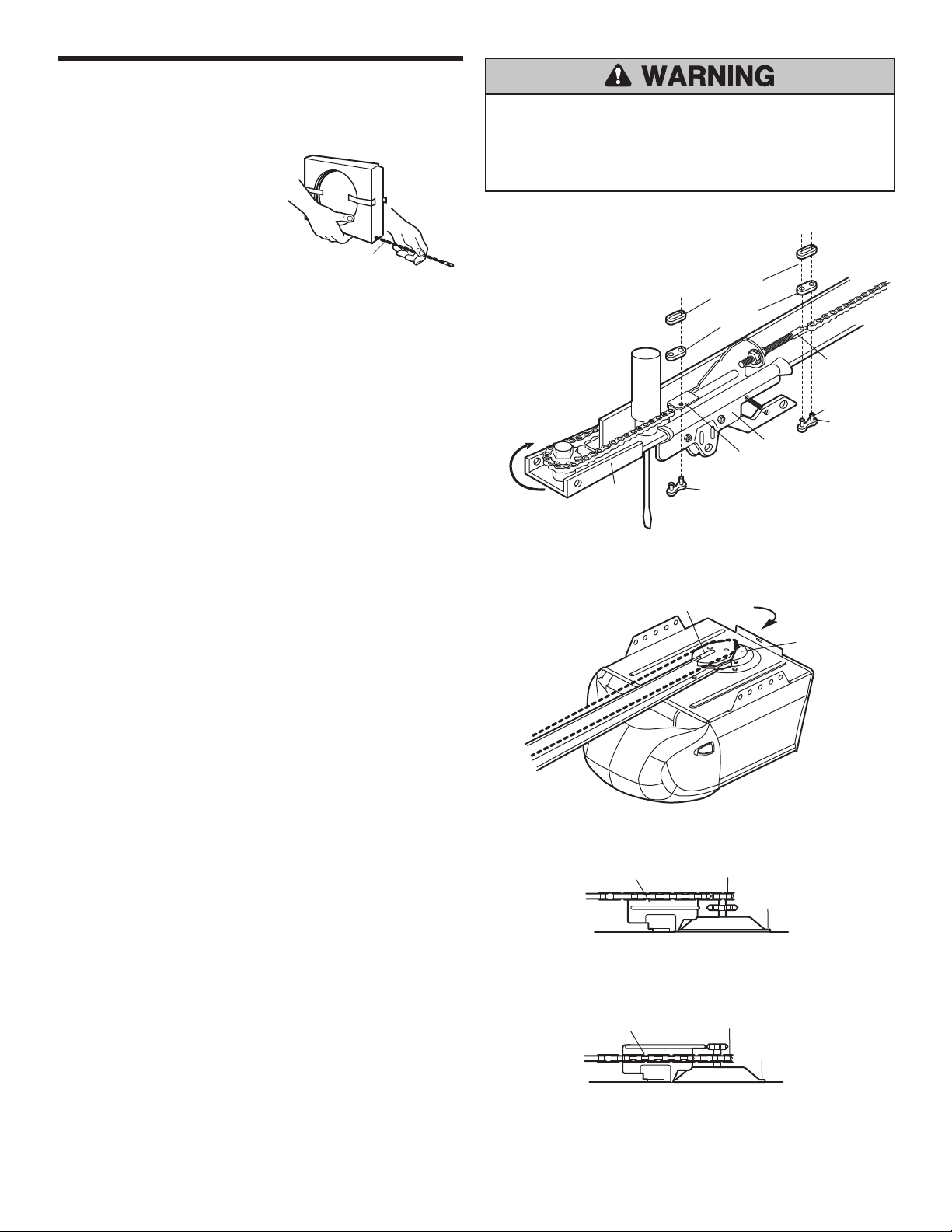

ASSEMBLY STEP 4
For Sectional and One-Piece Doors Only
Install the Chain
1. Dispense a few inches of chain
from carton and fasten to trolley
with a master link from the
hardware bag (Figure 1).
• Push pins of master link bar
through chain link and hole in
front end of trolley.
• Push master link cap over pins
and past pin notches.
• Slide clip-on spring over cap and onto pin notches until both
pins are securely locked in place.
2. With the trolley against the screwdriver, dispense the chain
around the chain sprocket bracket.
3. Continue along the rail and around the motor unit sprocket
(Figure 2). Proceed back around the correct groove in the chain
spreader (Figure 3). The sprocket teeth must engage the chain.
4. Use the second master link to connect the chain to the flat end
of the shaft (Figure 1). Check to make sure the chain is not
twisted.
5. Remove the screwdriver.
To avoid possible SERIOUS INJURY to fingers from moving
garage door opener:
• ALWAYS keep hand clear of sprocket while operating opener.
• Securely attach sprocket cover BEFORE operating.
Figure 2
Figure 1
6-Tooth
Sprocket
Mounting
Plate
Chain
Spreader
8-Tooth
Sprocket
Mounting
Plate
Chain
Spreader
Figure 3
One-Piece Doors
6- Tooth Sprocket Application
Sectional Doors
8-Tooth Sprocket Application
(6-Tooth sprocket can be used if slower travel speed is
desired.)
Chain
Sprocket
Bracket
Chain
Spreader
Motor Unit
Sprocket
Install Chain
In This Direction
ONE-PIECE DOORS
SECTIONAL DOORS
Deje la cadena y
el cable dentro del
cartón para evitar
que se tuerzan.
Mantenga tensos el cable
la cadena mientras los alimente.
Leave Chain Inside
Carton to Prevent
Kinking
Keep Chain Taut When
Dispensing

13
ASSEMBLY STEP 4
For Sliding and Swinging Gates Only
Install the Chain
1. Dispense a few inches of chain
from carton and fasten to trolley
with a master link from the
hardware bag. (Figure 1).
• Push pins of master link bar
through chain link and hole in
front end of trolley.
• Push master link cap over pins
and past pin notches.
• Slide clip-on spring over cap and onto pin notches until both
pins are securely locked in place.
2. To prevent the trolley from jamming against the opener during
operation, position trolley 5 to 15 cm from the stop hole as
shown. Then dispense the chain around the opener sprocket
(Figure 1). Make sure the sprocket teeth engage the chain.
• Proceed around to the chain sprocket bracket and forward to
the threaded trolley shaft.
3. Use the second master link to connect the chain to the flat end
of the shaft (Figure 1). Check to make sure the chain is not
twisted.
To avoid possible SERIOUS INJURY to fingers from moving
opener:
• ALWAYS keep hand clear of sprocket while operating opener.
• Securely attach sprocket cover BEFORE operating.
Sprocket
Motor Unit
Mounting
Plate
Install Chain
and Cable
in this Direction
Master
Link Pin
Master Link
Clip-On Spring
Master Link
Clip-On Spring
Flat End
of Trolley
Trolley Pin Notch
Flat End of
Threaded Shaft
Master
Link Cap
ChainLink
Rail
Master
Link Cap
Chain
Chain Link
Trolley Stop
(Hex Bolt)
m
c
51
-5
Pin Notch
Master
Link
Pin
Figure 1
Flat End of Trolley
Threaded Shaft
Install Chain
In This Direction
Deje la cadena y
el cable dentro d
cartón para evita
que se tuerzan.
Mantenga tensos el cable
la cadena mientras los alimente.
Leave Chain
Inside Carton to
Prevent Kinking
Keep Chain Taut When
Dispensing

14
ASSEMBLY STEP 5
Tighten the Chain
• Spin the inner nut and lock washer down the trolley threaded
shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction shown. AS
YOU TURN THE NUT, KEEP THE CHAIN FROM TWISTING.
• When the chain is approximately 13 mm above the base of
the T-rail at its midpoint, re-tighten the inner nut to secure the
adjustment.
Sprocket noise can result if chain is either too loose or too tight.
NOTE: When installation is complete, you may notice some chain
droop with the door closed. This is normal. If the chain returns to
the position shown when the door is open, do not re-adjust the
chain.
NOTE: During future maintenance, ALWAYS pull the emergency
release handle to disconnect trolley before adjusting chain.
You have now finished assembling your garage door opener.
Please read the following warnings before proceeding to the
installation section.
IMPORTANT INSTALLATION INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND
INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and
lubricated garage door. An improperly balanced door may NOT
reverse when required and could result in SEVERE INJURY or
DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST
be made by a trained door systems technician BEFORE installing
opener.
4. Disable ALL locks and remove ALL ropes connected to garage door
BEFORE installing opener to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, but at least
6 feet (1.83 m) above the floor and avoiding contact with vehicles
to avoid accidental release.
7. NEVER connect garage door opener to power source until
instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or
servicing opener. They could be caught in garage door or opener
mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door.
• out of reach of children at minimum height of
5 feet (1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door
control.
11. Place manual release/safety reverse test label in plain view on
inside of garage door.
12. Upon completion of installation, test safety reversal system. Door
MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a
2x4 laid flat) on the floor.
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNINGWARNING
INSTALLATION
Lock
Washer
To Tighten Outer Nut
Inner Nut
Chain
Base of Rail
13 mm
To Tighten
Inner Nut
Outer Nut

15
INSTALLATION STEP 1
Determine the Header Bracket Location
Installation procedures vary according to garage door types.
Follow the instructions which apply to your door.

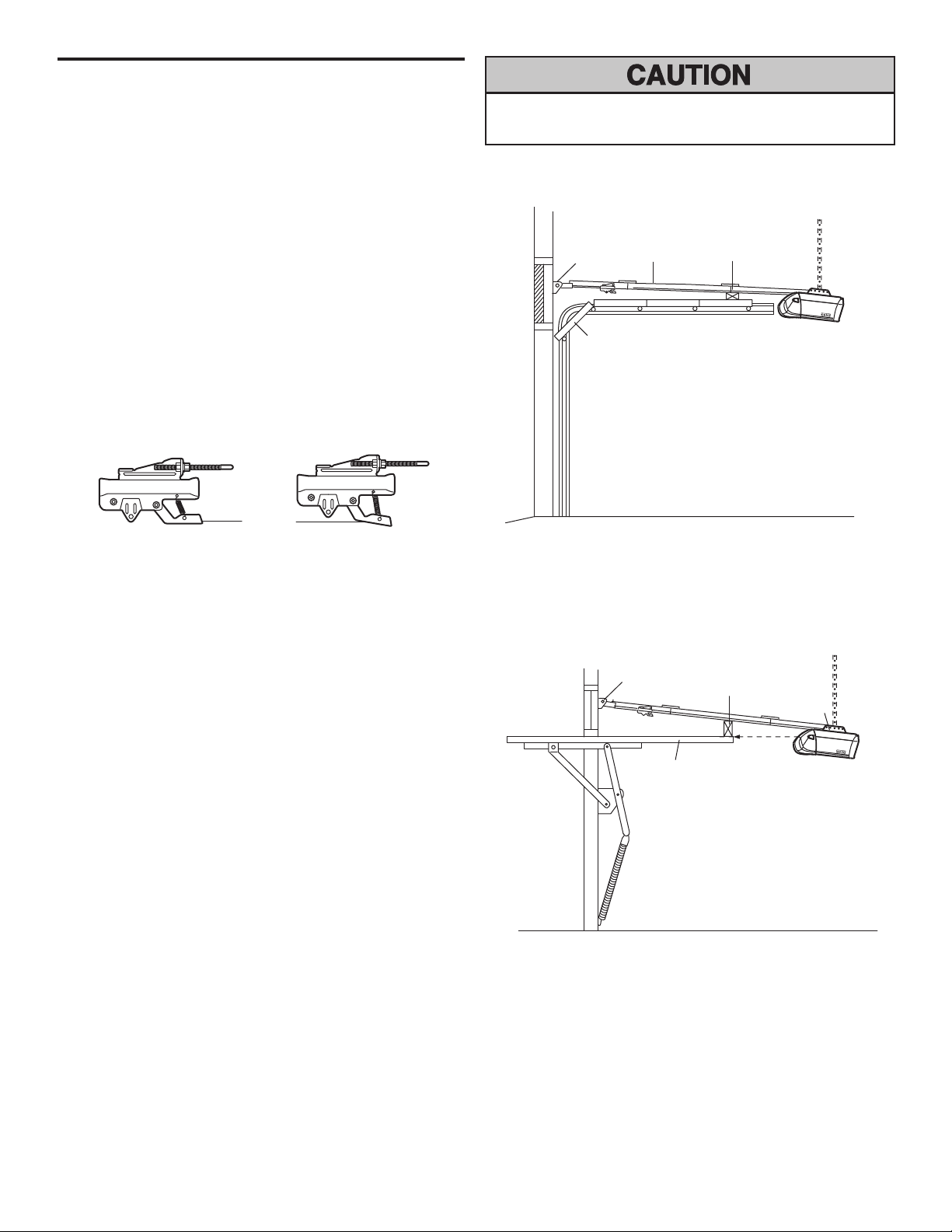

If your door is a canopy or dual-track style garage door, a
door arm conversion kit is REQUIRED. Follow the installation
instructions included with the replacement door arm sectional.
SECTIONAL DOOR AND ONE-PIECE DOOR WITH TRACK
1. Close the door and mark the inside vertical centerline of the
garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 1.2 m of the left
or right of the door center only if a torsion spring or center
bearing plate is in the way; or you can attach it to the
ceiling (see page 17) when clearance is minimal. (It may
be mounted on the wall upside down if necessary, to gain
approximately 1 cm.)
If you need to install the header bracket on a 38 mm board
(on wall or ceiling), use lag screws (not provided) to securely
fasten the 38 mm board to structural supports as shown here
and on page 16.
3. Open your door to the highest point of travel as shown. Draw an
intersecting horizontal line on the header wall 5 cm above the
high point. This height will provide travel clearance for the top
edge of the door.
Proceed to Step 2, page 17.
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might NOT reverse when required. DO NOT install header
bracket over drywall.
• Concrete anchors MUST be used if mounting header bracket
or 38 mm board into masonry.
• NEVER try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, ALL of which are
under EXTREME tension.
• ALWAYS call a trained door systems technician if garage door
binds, sticks, or is out of balance. An unbalanced garage door
might NOT reverse when required.
Finished
Ceiling
Header
Wall
38 mm
Board Structural
Supports
Vertical
Centerline of
Garage Door
Header
Wall
Ceiling
SECTIONAL DOOR
WITH CURVED TRACK
Track
Highest Point
of Travel
Door
Header
Wall
Door Track
Jamb
Hardware
Highest Point
of Travel
ONE-PIECE DOOR
WITH HORIZONTAL
TRACK & JAMB
HARDWARE
Highest Point
of Travel
Door
Track
Garage
Exterior
Track
Header
Wall
Highest Point
of Travel
Door
Track CANOPY ONE-PIECE
DOOR WITH
VERTICAL TRACK
Header
Wall
ONE-PIECE DOOR
WITH HORIZONTAL &
VERTICAL TRACK

16
EXAMPLE
Distance from top of door
(at highest point of travel) to floor . . . . . . . . . . . . . . . . . . . 234 cm
Actual height of door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-224 cm
Remainder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 cm
Add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+ 20 cm
Bracket height on header wall . . . . . . . . . . . . . . . . . . . . . . . . .= 30 cm
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 17.
Header Wall
Vertical
Centerline
of Garage
Door
2x4
Unfinished
Ceiling
2x4
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Supports
ONE-PIECE DOOR WITHOUT TRACK
1. Close the door and mark the inside vertical centerline of your
garage door. Extend the line onto the header wall above door, as
shown.
If headroom clearance is minimal, you can install the header
bracket on the ceiling. (See page 17.)
If you need to install the header bracket on a 38 mm board
(on wall or ceiling), use lag screws (not provided) to securely
fasten the 38 mm board to structural supports as shown.
2. Open your door to the highest point of travel as shown.
Measure the distance from the top of the door to the floor.
Subtract the actual height of the door. Add 20 cm to the
remainder. (See Example.)
3. Close the door and draw an intersecting horizontal line on the
header wall at the determined height.
NOTE: If the total number of centimeters exceeds the height
available in your garage, use the maximum height possible, or
refer to page 17 for ceiling installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware
38 mm
Board
38 mm Board

17
INSTALLATION STEP 2
Install the Header Bracket

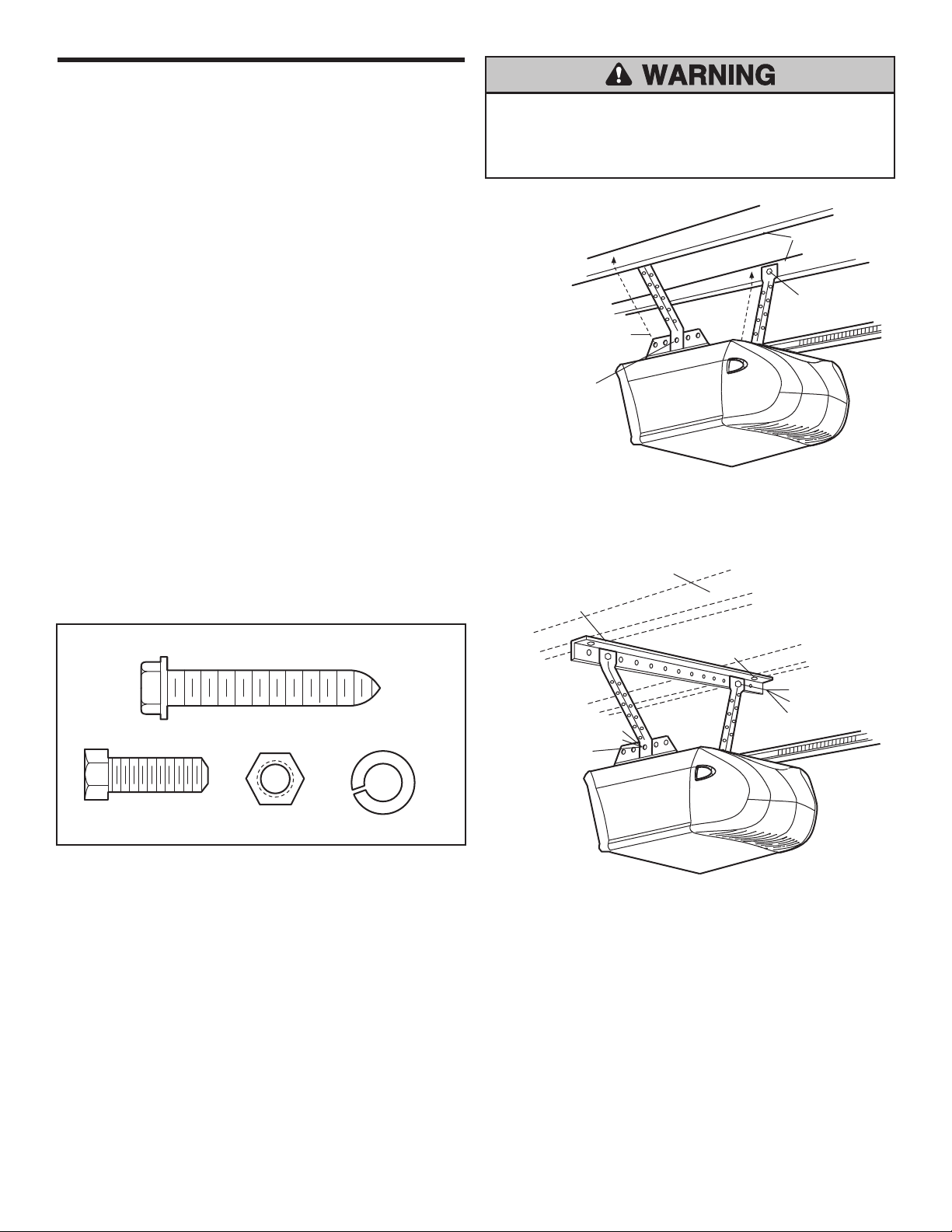

You can attach the header bracket either to the wall above the
garage door, or to the ceiling. Follow the instructions which will
work best for your particular requirements. Do not install the
header bracket over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with the bottom
edge of the bracket on the horizontal line as shown (with the
arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes (do not use the holes
designated for ceiling mount). Drill 5 mm pilot holes and fasten
the bracket securely to a structural support with the hardware
provided.
Lag Screw
5/16"-9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as shown.
• Center the bracket on the vertical mark, no more than 15 cm
from the wall. Make sure the arrow is pointing toward the wall.
The bracket can be mounted flush against the ceiling when
clearance is minimal.
• Mark the side holes. Drill 5 mm pilot holes and fasten bracket
securely to a structural support with the hardware provided.
Wall Mounting Holes
Vertical
Centerline of
Garage Door
Vertical Centerline
of Garage Door
38 mm
Board
Garage
Door
Highest Point of
Garage Door Travel
Lag Screws
5/16"x9x1-5/8"
Door Spring
Header
Wall
Header
Bracket
Optional
Wall Mounting Holes
Finished Ceiling
Vertical Centerline
of Garage Door
Vertical
Centerline of
Garage Door
Garage Door
Header Wall
Door
Spring
Header
Bracket
15 cm Maximum
Ceiling Mounting Holes
Lag Screws
5/16"x9x1-5/8"

18
Header Wall
Rail
Garage
Door
Temporary
Support
Header Bracket
Chain Sprocket
Bracket
Pasador de chaveta
5/16"x2-3/4"
Seguro de aro
Ménsula
del cabezal
Ménsula
Riel
Clevis Pin
5/16"x2-3/4" Ring Fastener
HARDWARE SHOWN ACTUAL SIZE
INSTALLATION STEP 3

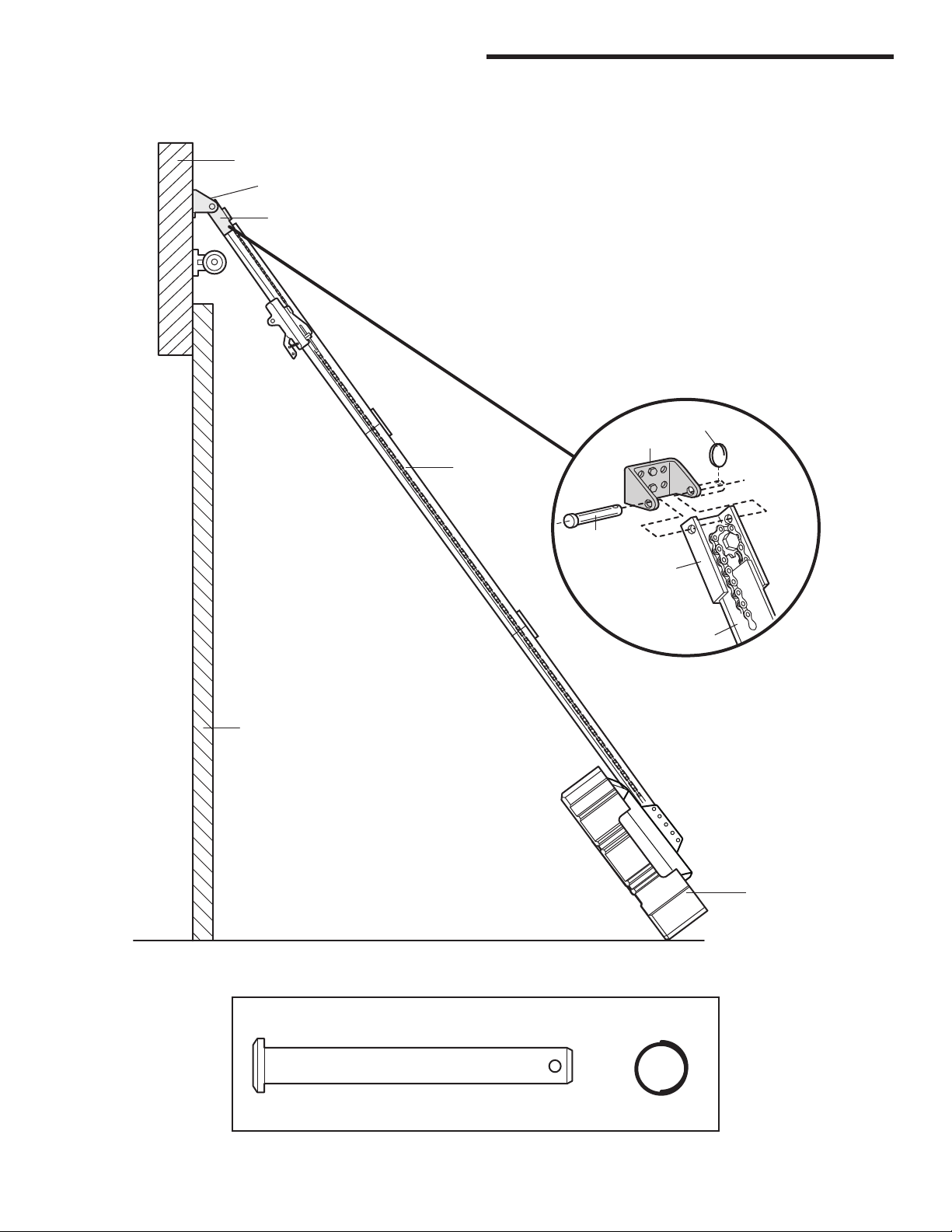

Attach the T-Rail to the Header Bracket
• Position the opener on the garage floor below the header
bracket. Use packing material as a protective base.
NOTE: If the door spring is in the way you’ll need help. Have
someone hold the opener securely on a temporary support to
allow the rail to clear the spring.
• Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin as shown.
• Insert a ring fastener to secure.
Rail
Clevis Pin
5/16"x2-3/4"
Header
Bracket
Ring Fastener
Chain
Sprocket
Bracket

19
ONE-PIECE DOOR WITHOUT TRACK
A 38 mm board is convenient for setting an ideal door-to-T-rail
distance.
• With the door fully open and parallel to the floor, measure the
distance from the floor to the top of the door.
• Using a stepladder as a support, raise the top of the opener to
this height.
• The top of the door should be level with the top of the motor
unit. Do not position the opener more than 5 cm above this
point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK
A 38 mm board is convenient for setting an ideal door-to-T-rail
distance.
• Raise the opener onto a stepladder. You will need help at this
point if the ladder is not tall enough.
• Open the door all the way and place a 38 mm board on the top
section beneath the T-rail.
• If the top section or panel hits the trolley when you raise
the door, pull down on the trolley release arm to disconnect
inner and outer sections. Slide the outer trolley toward
the motor unit. The trolley can remain disconnected until
Installation Step 11 is completed.
Header
Bracket
Door
Rail 38 mm
Board
Trolley
Release Arm
ENGAGED RELEASED
To prevent damage to garage door, rest garage door opener
rail on 38 mm board placed on top section of door.
38 mm
Board
Header
Bracket
Top of Door
Top of Motor Unit

20
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
— FINISHED CEILING —
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
Lag Screw
5/16"-18x1-7/8"
INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours may be
different. Hanging brackets should be angled (Figure 1) to provide
rigid support. On finished ceilings (Figure 2), attach a sturdy metal
bracket to structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit to the
structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 5 mm pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.
5. Fasten the opener to the hanging brackets with 5/16"-18x7/8"
hex bolts, lock washers and nuts.
6. Check to make sure the T-rail is centered over the door (or in
line with the header bracket if the bracket is not centered above
the door).
7. Remove the 38 mm board. Operate the door manually. If the
door hits the rail, raise the header bracket.
8. Grease the top and underside of the rail surface where the
trolley slides with rail grease.
To avoid possible SERIOUS INJURY from a falling garage
door opener, fasten it SECURELY to structural supports of
the garage. Concrete anchors MUST be used if installing ANY
brackets into masonry.
Measure
Distance
Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 1
Figure 2
HARDWARE SHOWN ACTUAL SIZE
13 mm Socket Wrench
