Chamberlain HD210C User manual

The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
CONTENTS
Preparation .............................. 1-4
Assembly................................. 5-9
Installation............................ 10-19
Install the Door Control ............. 20-21
Install the Protector System®...... 22-25
Power.................................. 26-27
Adjustments .......................... 28-30
Operation.................................. 31
Features................................... 32
Door Control .......................... 33-34
Remote Control ...................... 34-35
To Erase the Memory.................... 35
To Open the Door Manually ............ 36
Maintenance.............................. 37
Troubleshooting...................... 38-39
Accessories............................... 40
Warranty .................................. 41
Repair Parts .......................... 42-43
1/2 hp Chain Drive
Garage Door Opener
■ Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System®is connected and
properly aligned.
■Periodic checks of the garage door opener are required to ensure safe operation.
■The model number label is located on the front panel of your garage
door opener.
■This garage door opener is compatible with Security+ 2.0®accessories.
■ DO NOT install on a one-piece door if using devices or features providing unattended
close. Unattended devices and features are to be used ONLY with sectional doors.
Models HD210C,
LW2200C, PD510,
and PD512
FOR RESIDENTIAL USE ONLY
Serial Number:
Date of Purchase:
Write down the following information
for future reference:
.
.

1
Safety Symbol and Signal Word Review
This garagedooropenerhasbeendesignedand tested to offer safe service provided it is installed,
operated, maintainedand tested in strict accordance with the instructionsand warnings contained in this
manual.
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to
yourgaragedoorand/or the garagedooropener if you do not comply with the cautionary statements that
accompany it. Read them carefully.
Unattended Operation
Any device or feature that allows the door to close withoutbeing in the line of sight of the door is
considered unattended close. Devices that allow unattendedoperation are to be used ONLY with
sectionaldoors.
Check the Door
To preventpossible SERIOUS INJURY or DEATH:
lALWAYS call a traineddoorsystems technician if garagedoor binds, sticks, or is outofbalance.
An unbalanced garagedoor may NOT reverse when required.
lNEVER try to loosen, move or adjust garagedoor, door springs, cables, pulleys, brackets or their
hardware, ALL of which are underEXTREME tension.
lDisable ALL locksand remove ALL ropes connected to garagedoorBEFORE installation and
operating garagedooropener to avoid entanglement.
lDO NOT install on a one-piece door if using devices or features providing unattended close.
Unattendeddevices andfeatures are to be used ONLY with sectionaldoors.
To preventdamage to garagedoorandopener:
lALWAYS disable locksBEFORE installing andoperating the opener.
lONLY operate garagedooropener at 120 V, 60 Hz to avoid malfunction anddamage.
Before you begin:
1. Disable locksand remove any ropes connected to the garagedoor.
2. Lift the doorhalfway up. Release the door. If balanced, it should stay
in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If yourdoor
binds, sticks, or is outofbalance, call a traineddoorsystems
technician.
4. Check the seal on the bottom of the door. Any gapbetween the floor
and the bottom of the door must not exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center of the door. If there
is a torsion spring or center bearing plate in the way of the header
bracket, it may be installed within 4 feet (1.2 m) to the left or right of
the door center. See page 11.
Torsion
Spring
Extension
Spring
OR
Preparation

2
Additional Items You May Need:
Surveyyour garage area to see if you will need any of the following items:
n(2) 2X4 PIECES OF WOOD
Maybe used to fasten the header bracketto the structural supports. Also used to position the
garage door opener during installation and for testing the safety reversing sensors.
nSUPPORT BRACKET AND FASTENING HARDWARE
Must be used ifyou have a finished ceiling in your garage.
nEXTENSION BRACKETS (MODEL 041A5281-1) OR WOOD BLOCKS
Depending upon garage construction,extension brackets or wood blocks maybe needed to
install the safety reversing sensor.
nFASTENING HARDWARE
Alternate floor mounting of the safetyreversing sensor will require hardware not provided.
nDOOR REINFORCEMENT
Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.
nRAIL EXTENSION KIT
Required ifyour garage door is more than 7 feet (2.13 m) high.

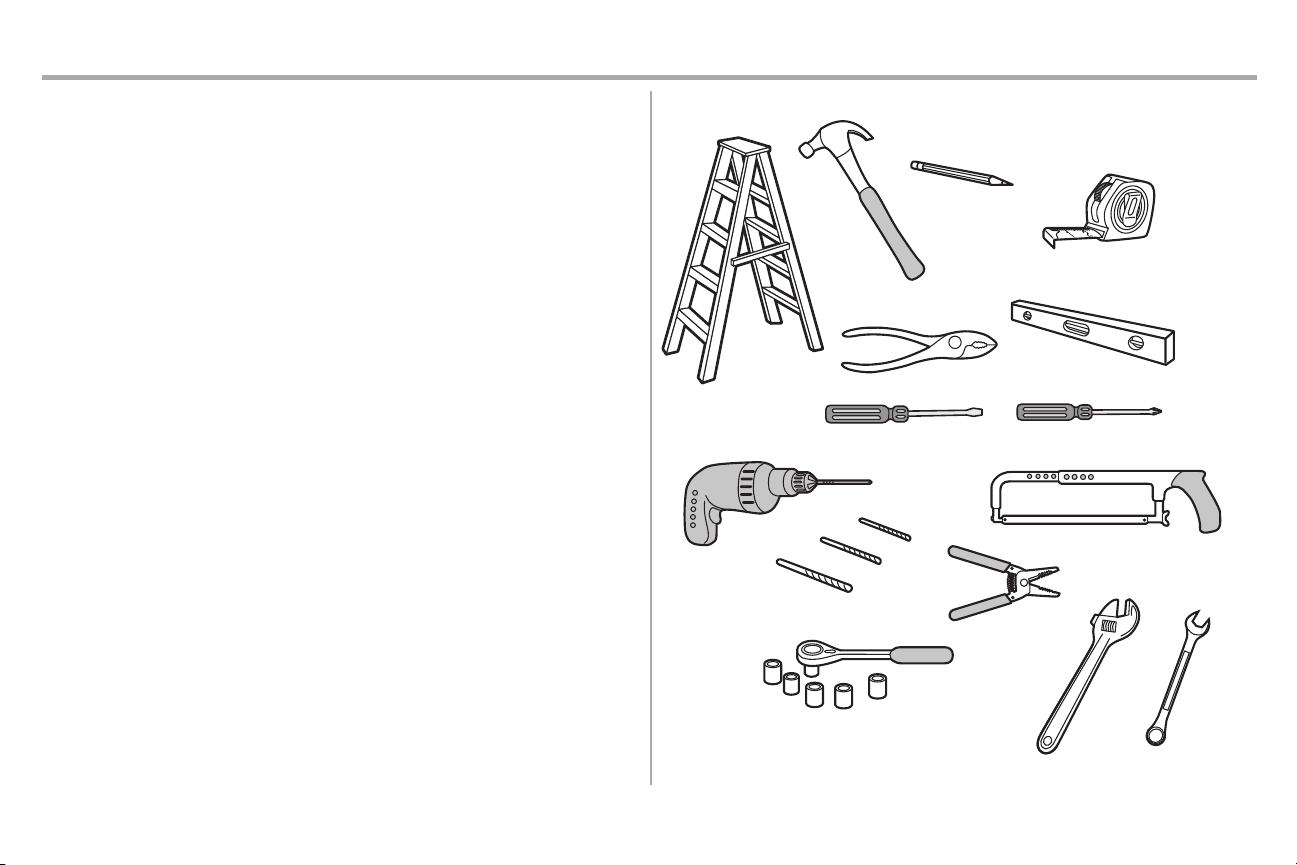

Tools Needed
3/16
7/16
1/2
5/32
5/16
5/8
9/16
1/4
7/16
Preparation

3
Carton Inventory
Your garage door opener ispackaged in one carton which contains the motor unit and all parts
illustrated below.Accessories vary depending on the garage door opener model purchased. Depending
on your model, other accessories may be included with your garage door opener.Instructions for these
accessories will be attached to the accessory and are not included in this manual.Save the carton and
packing material until the installation and adjustment is complete. The images throughout this manual
are for reference only and your product may look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm (Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2) (Packaged inside the front rail section)
J. Garage door opener (motor unit)
K. Chain spreader with screws
L. “U” bracket
M. Chain and cable
N. Door control - Push button (Model HD210C and LW2200C) or Multi-function control panel (Models PD510 and
PD512)
O. Remote control - 1 Button 950ESTD (Models HD210C, PD510, and PD512) or 3 Button 953ESTD (Model
LW2200C)
P. The Protector System®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor (1),
Receiving Sensor (1), and Safety Sensor Brackets (2)
NOTSHOWN
White and red/white wire
Owner's manual
Hardware
N
A
B
C
H
K
J
O
I
D
E
F
G
L
M
P
OR
Preparation

4

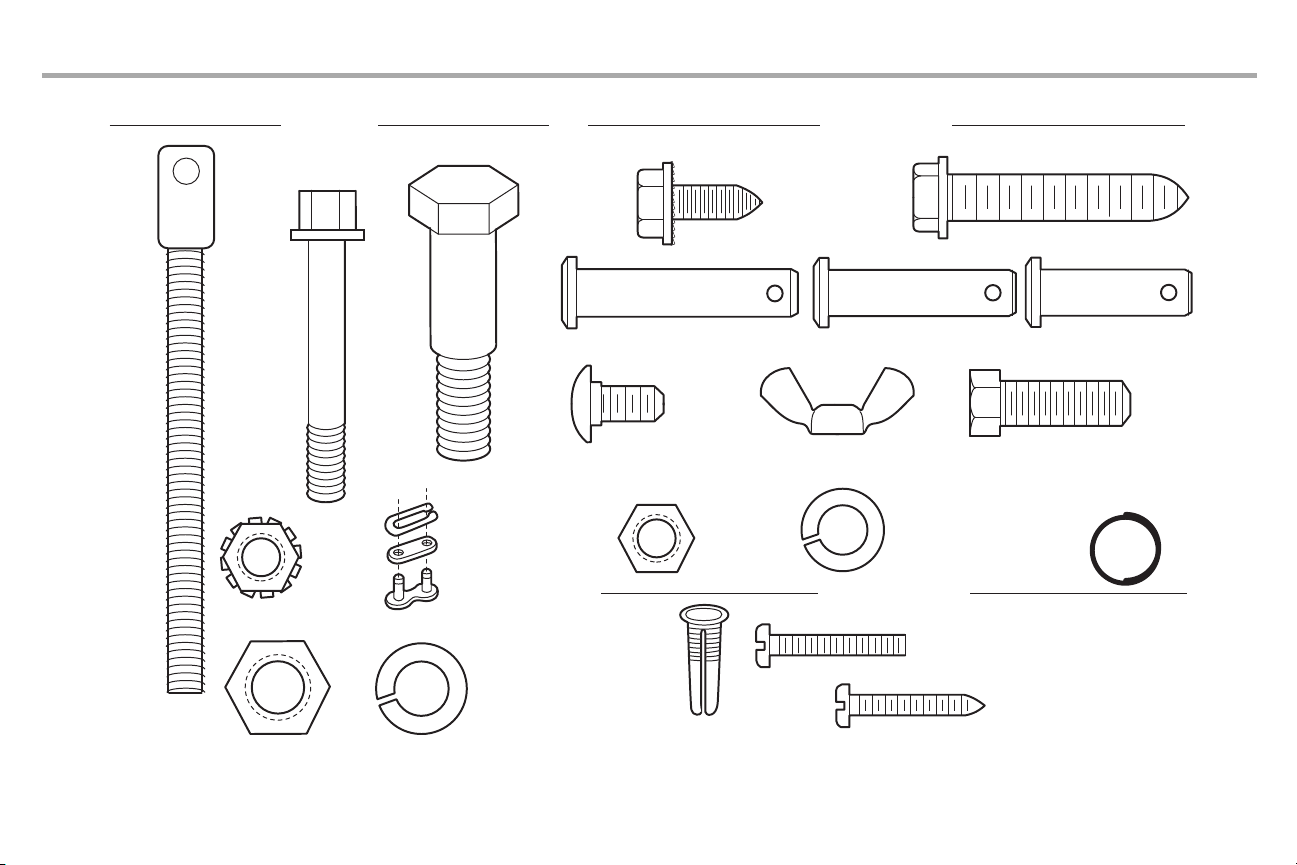

Hardware
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
Bolt
Nut 3/8" Lock Washer 3/8"
Master Link
Clevis Pin 5/16"x1-1/2"
Ring Fastener (3)
Hex Bolt 5/16"-18x7/8" (4)
Lock Washer
5/16"-18 (5)
Nut
5/16"-18 (6)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
ASSEMBLY INSTALLATION
Screw 6ABx1" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
DOOR CONTROL
Insulated
Staples
(Not Shown)
Lag Screw 5/16"-9x1-5/8" (4)
Threaded
Shaft
Preparation

5
Assembly

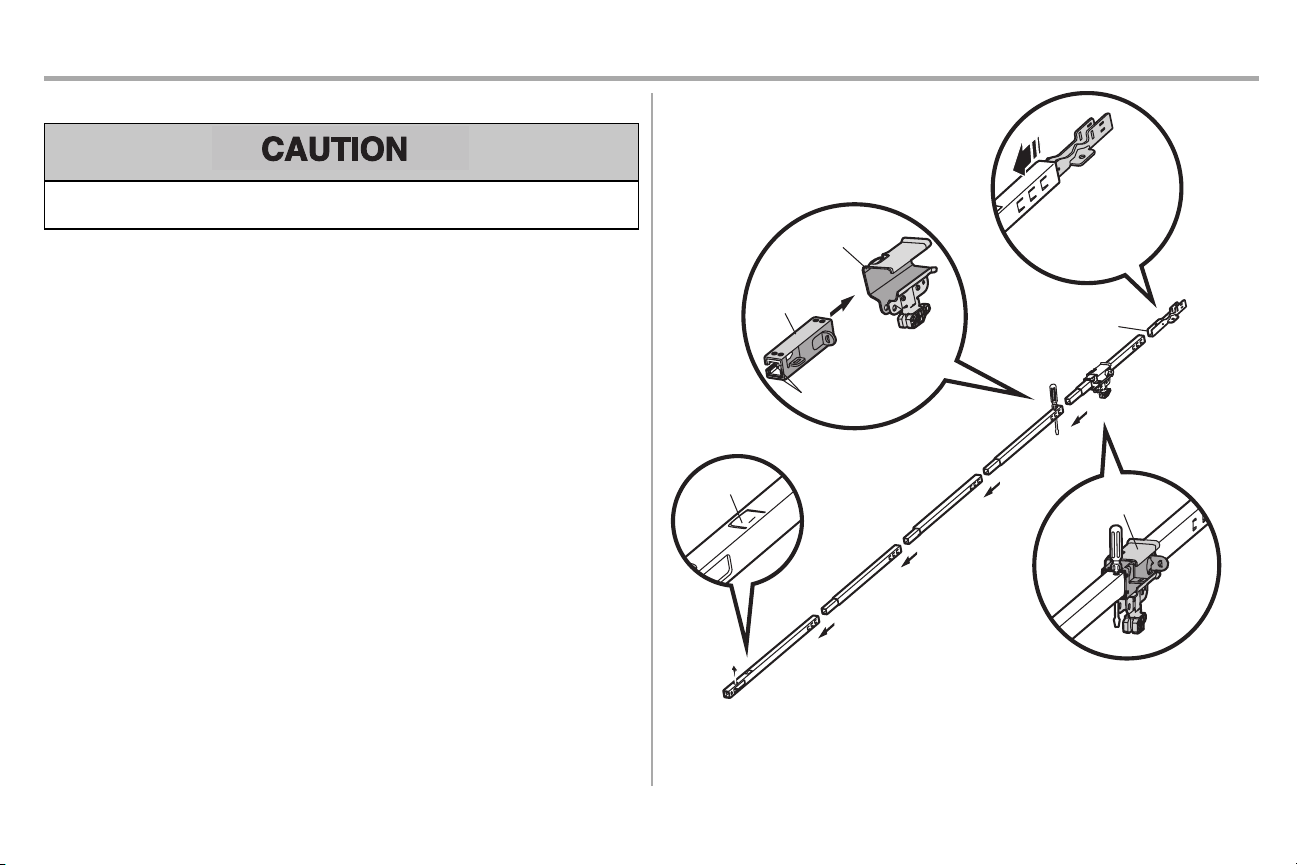

STEP 1 Assemble the rail and install the trolley
To preventINJURY from pinching, keep handsand fingers away from the joints while assembling the
rail.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when
assembled.
1. Remove the straightdoor arm and hanging bracket packaged inside the frontrail and setaside
for Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove
the straight door arm stored within the rail section.
2. Align the rail sectionson a flat surface asshown and slide the tapered ends into the larger ones.
Tabsalong the side will lock into place.
3. Place the motor unit on packing material to protect the cover,and restthe backend of the rail on
top. For convenience, put a support under the front end ofthe rail.
4. As a temporarystop,insert a screwdriver into the hole in the second rail section from the motor
unit, as shown.
5. Check to be sure there are 4 plastic wear padsinside the inner trolley. If they became loose
during shipping, check all packing material. Snap them back into position as shown.
6. Slide the trolley assembly toward the screwdriver as shown.
7. Slide the rail onto the “U” bracket,until it reaches all the stops on the top and sides of the “U”
bracket.
To garage
door opener
(TO MOTOR UNIT)
Front Rail
Section
(TO DOOR)
“U” Bracket
Outer Trolley
Inner Trolley
Wear Pads
SLIDE TO STOPS
ON TOP AND
SIDES OF
“U” BRACKET
Trolley
Rail Tab

6
Assembly

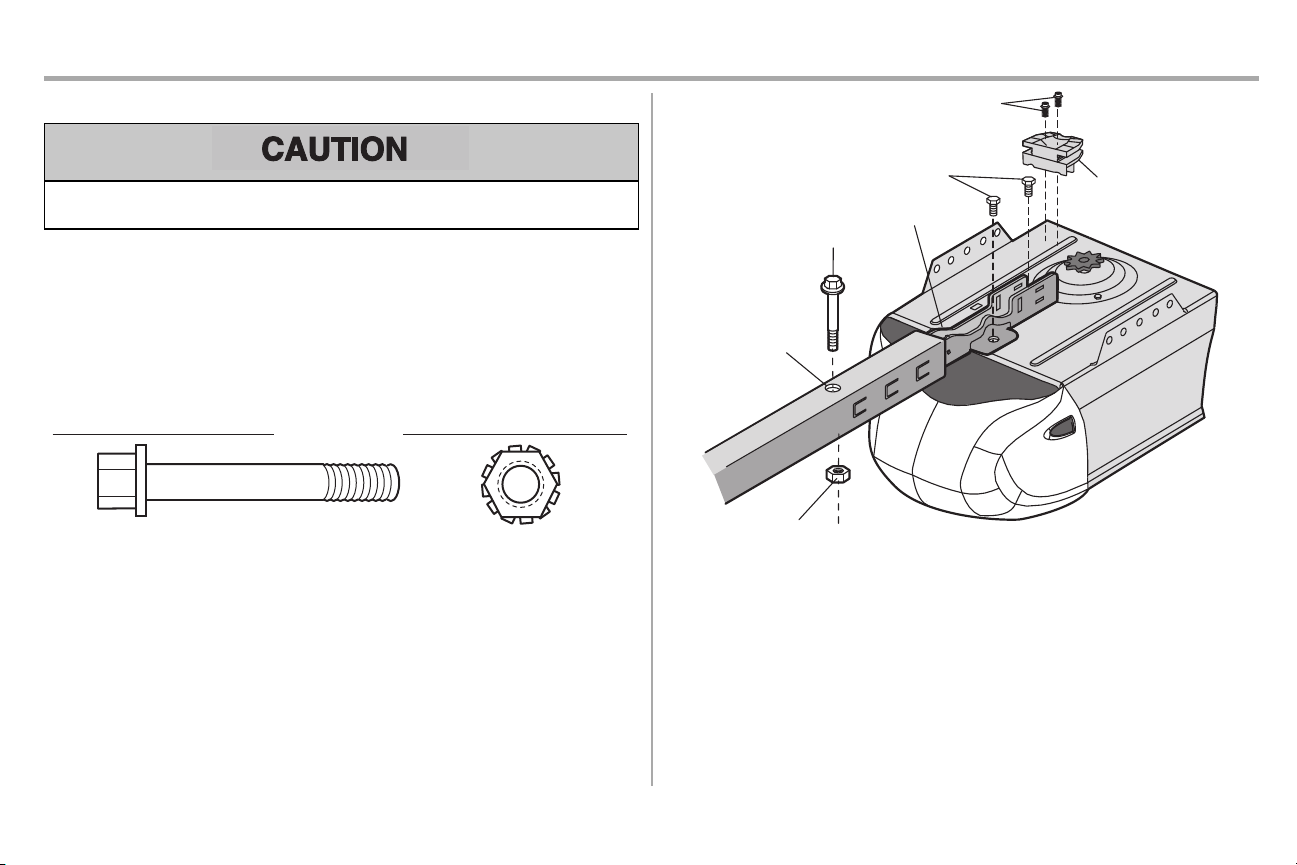

STEP 2 Fasten the rail to the motor unit
To avoid SERIOUS damage to garage door opener,use ONLY those bolts/fastenersmounted in the
top of the opener.
1. Inserta 1/4"-20x1-3/4" bolt into the cover protection bolthole on the backend of the rail as
shown. Tighten securelywith a 1/4"-20 locknut. DO NOT overtighten.
2. Remove the boltsfrom the top of the motor unit.
3. Use the carton to supportthe frontend of the rail.
4. Place the “U” bracket, flat side down onto the motor unitand align the bracket holes with the bolt
holes.
5. Fasten the “U” bracketwith the previouslyremoved bolts; DO NOT use any power tools.The use
ofpower toolsmaypermanently damage the garage door opener.
6. Attach chain spreader to the motor unit with two screws.
HARDWARE
Bolt 1/4"-20x1-3/4" Lock Nut 1/4"-20
“U” Bracket
Hex Screws
8-32x7/16
Cover
Protection
Bolt Hole
Bolt
1/4"-20x1-3/4"
Lock Nut 1/4"-20
Bolts (Mounted in the
garage door opener) Chain
Spreader

7
Assembly

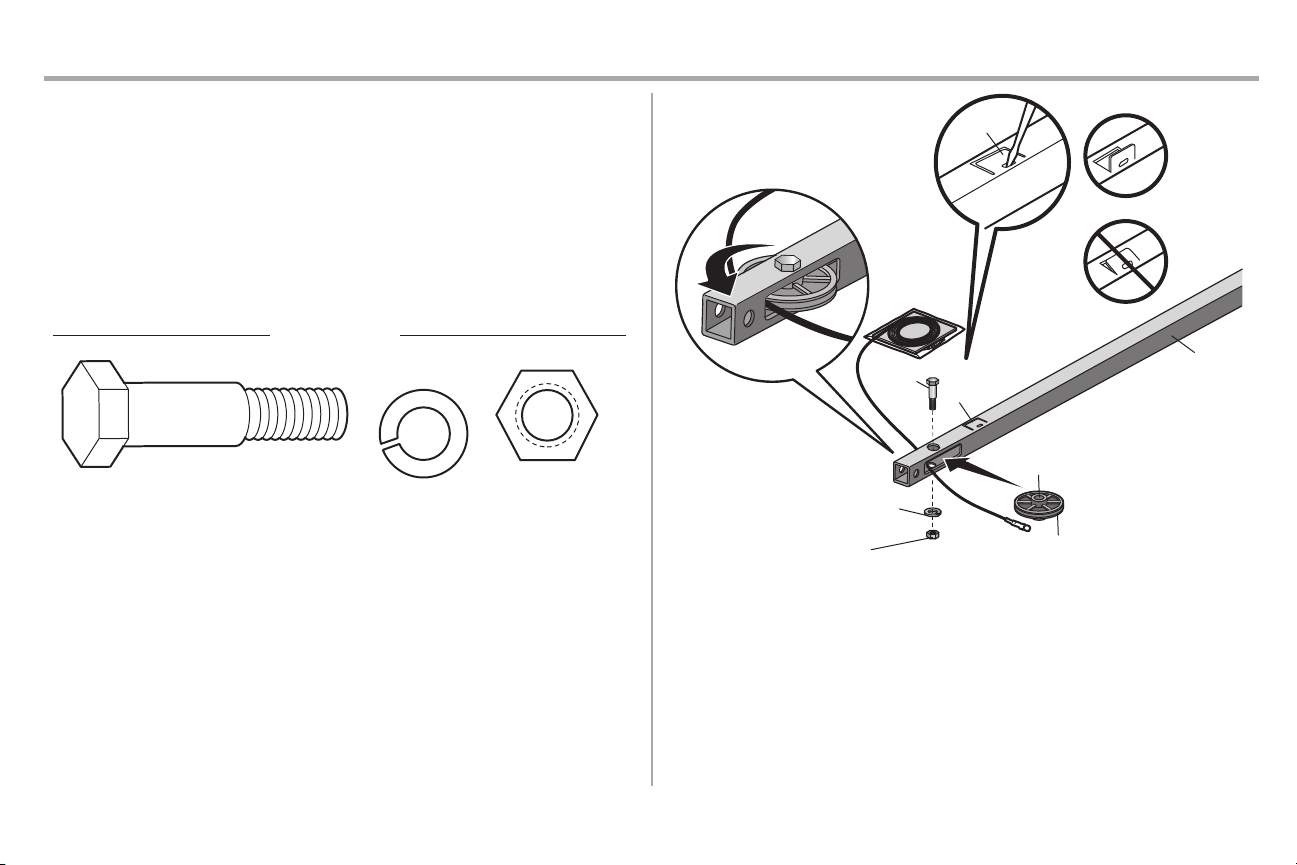

STEP 3 Install the idler pulley
1. Lay the chain/cable beside the rail, as shown.Grasp the end of the cable and pass
approximately 12" (30 cm) ofcable through the window. Allowit to hang until Assembly Step 4.
2. Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease
to ensure proper operation.
3. Place the idler pulley into the window as shown.
4. Insertthe idler boltfrom the top through the rail and pulley. Tighten with a 3/8" lock washer and
nut underneath the rail until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab.The rail tab isnear the idler pulley on the frontrail section. Use a flathead
screwdriver and lift the rail tab until the tab is vertical (90º).
HARDWARE
Bolt Nut 3/8"
Lock Washer 3/8"
Rail
Idler Pulley
Grease Inside Pulley
Bolt
Lock Washer 3/8"
Nut 3/8"
Rail
Tab
CORRECT
INCORRECT
Rail Tab

8
Assembly

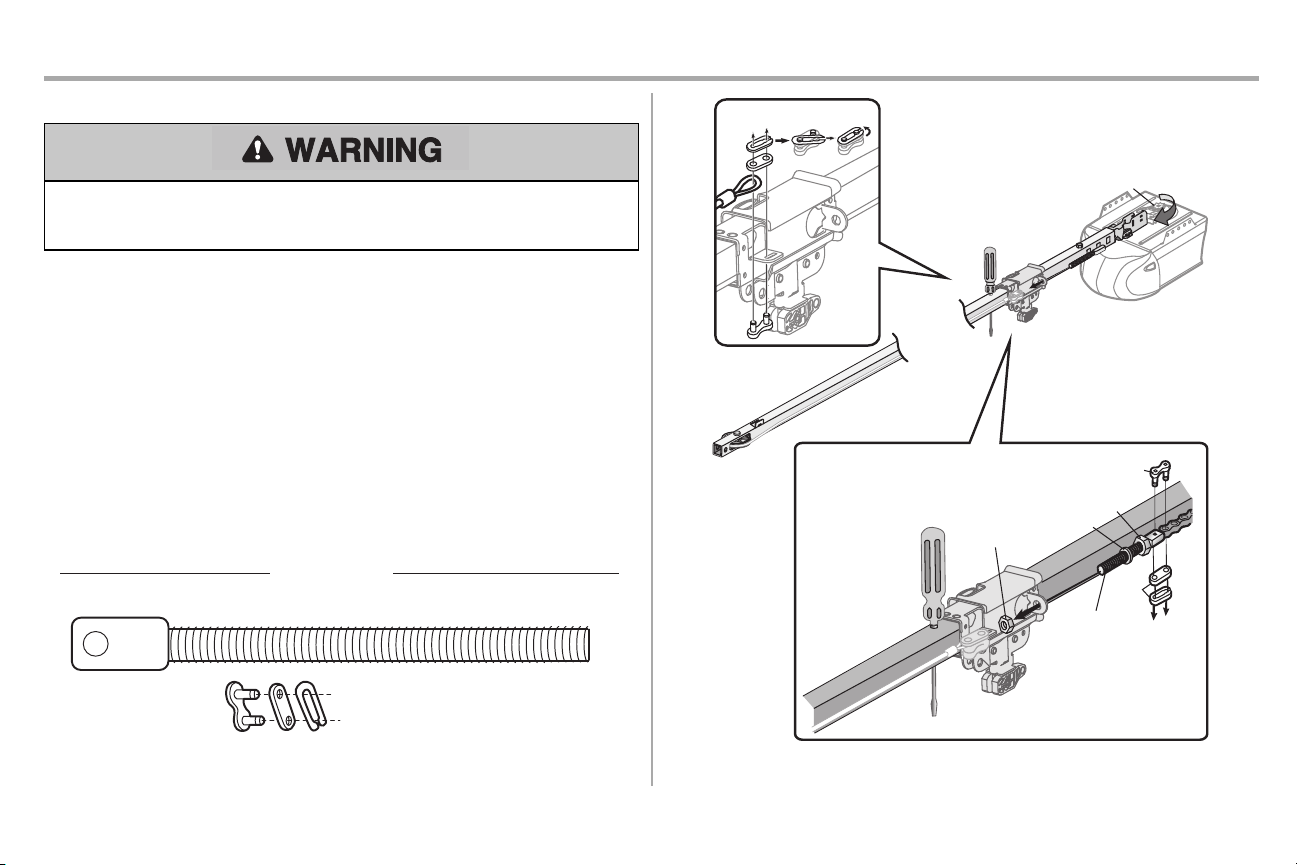

STEP 4 Install the chain
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
lALWAYS keep hand clear of sprocketwhile operating opener.
lSecurelyattach chain spreader BEFORE operating.
1. Pull the cable around the idler pulley and toward the trolley.
2. Connectthe cable to the retaining slot on the trolley,as shown.(Figure 1)
a. Push pins of master link bar through cable link and trolley slot.
b. Push master link cap over pins and past pin notches.
c. Slide the closed end of the clip-on spring over one of the pins.Push the open end of the
clip-on spring onto the other pin.
3. With the trolley againstthe screwdriver,dispense the remainder of the cable/chain along the rail
toward the motor unit around the sprocket and continuing to the trolley assembly. The sprocket
teeth must engage the chain. (Figure 2)
4. Check to make sure the chain is nottwisted, then connectit to the threaded shaft with the
remaining master link.
5. Thread the inner nut and lock washer onto the trolley threaded shaft.
6. Insertthe trolley threaded shaftthrough the hole in the trolley. Be sure the chain is not twisted.
(Figure 3)
7. Looselythread the outer nut onto the trolley threaded shaft.
8. Remove the screwdriver.
HARDWARE
Master
Link
Threaded Shaft
Figure 3
Threaded
Shaft
Outer
Nut
Inner
Nut
Lock
Washer
Master Link
Master
Link
Figure 2
Sprocket
Figure 1
a.
b.
c.

9
Assembly
STEP 5 Tighten the chain
1. Spin the inner nutand lockwasher down the trolley threaded shaft, away from the trolley.
2. To tighten the chain, turn the outer nut in the direction shown.
3. When the chain is approximately1/4" (6 mm) above the base ofthe rail at it'smidpoint,retighten
the inner nut to secure the adjustment.
Sprocket noise can result if the chain is too loose.When installation is complete,you maynotice some
chain droop with the door closed. This isnormal. If the chain returns to the position shown when the door
is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect the
trolley before adjusting the chain.
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section.
Outer
Nut
Lock
Washer
Trolley
Threaded
Shaft
Inner Nut
To Tighten
Inner Nut
To Tighten Outer Nut
Base of Rail Mid length of Rail
Chain
1/4" (6 mm)

10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door. An
improperly balanced door may NOT reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairsto cables,spring assemblies and other hardware MUST be made bya trained door
systemstechnician BEFORE installing opener.
4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing opener
to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, butatleast6 feet(1.83 m) above the floor and
avoiding contact with vehiclesto avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be
caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
lwithin sight of the garage door.
lout of reach of children at minimum height of 5 feet (1.5m).
laway from ALL moving parts of the door.
10. Place entrapment warning label on wall nextto garage door control.
11. Place manual release/safety reverse test label in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a
1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATHfrom electrocution, disconnectALL electric
power BEFORE performing ANY service or maintenance.
14. DO NOT install on a one-piece door if using devices or features providing unattended close.
Unattended devices and features are to be used ONLY with sectional doors.

11
Installation
STEP 1 Determine the header bracket location
To preventpossible SERIOUS INJURY or DEATH:
lHeader bracket MUSTbe RIGIDLY fastened to structural support on header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket over
drywall.
lConcrete anchorsMUSTbe used if mounting header bracketor 2x4 into masonry.
lNEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their
hardware,ALL of which are under EXTREME tension.
lALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door might NOT reverse when required.
Installation procedures varyaccording to garage door types.Follow the instructionswhich apply to your
door.
1. Close the door and mark the inside vertical centerline of the garage door.
2. Extend the line onto the header wall above the door.You can fasten the header bracket within 4
feet (1.22 m) ofthe leftor right ofthe door center only ifa torsion spring or center bearing plate is
in the way; or you can attach itto the ceiling (see page 12) when clearance isminimal. (Itmay be
mounted on the wall upside down ifnecessary,to gain approximately1/2" (1 cm). If you need to
install the header bracketon a 2x4 (on wall or ceiling),use lag screws(not provided) to securely
fasten the 2x4 to structural supports as shown here and on page 12.
3. Open your door to the highestpoint of travel as shown.Draw an intersecting horizontal line on
the header wall 2" (5 cm) above the high point :
l2" (5 cm) above the high pointfor sectional door and one-piece door with track.
l8" (20 cm) above the high point for one-piece door withouttrack.
This heightwill provide travel clearance for the top edge ofthe door.NOTE: If the total number of inches
exceeds the height available in your garage, use the maximum height possible, or refer to page 12 for
ceiling installation.
Header Wall Vertical Centerline of Garage Door
2x4 Structural
Supports
Level
(Optional)
Unfinished
Ceiling
2x4
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest
Point of
Travel
Door
One-piece door with horizontal track
Header Wall
Track
2" (5 cm)
Highest
Point of
Travel
Door
One-piece door without track:
jamb hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Jamb
Hardware
One-piece door without track:
pivot hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Pivot

12
Installation

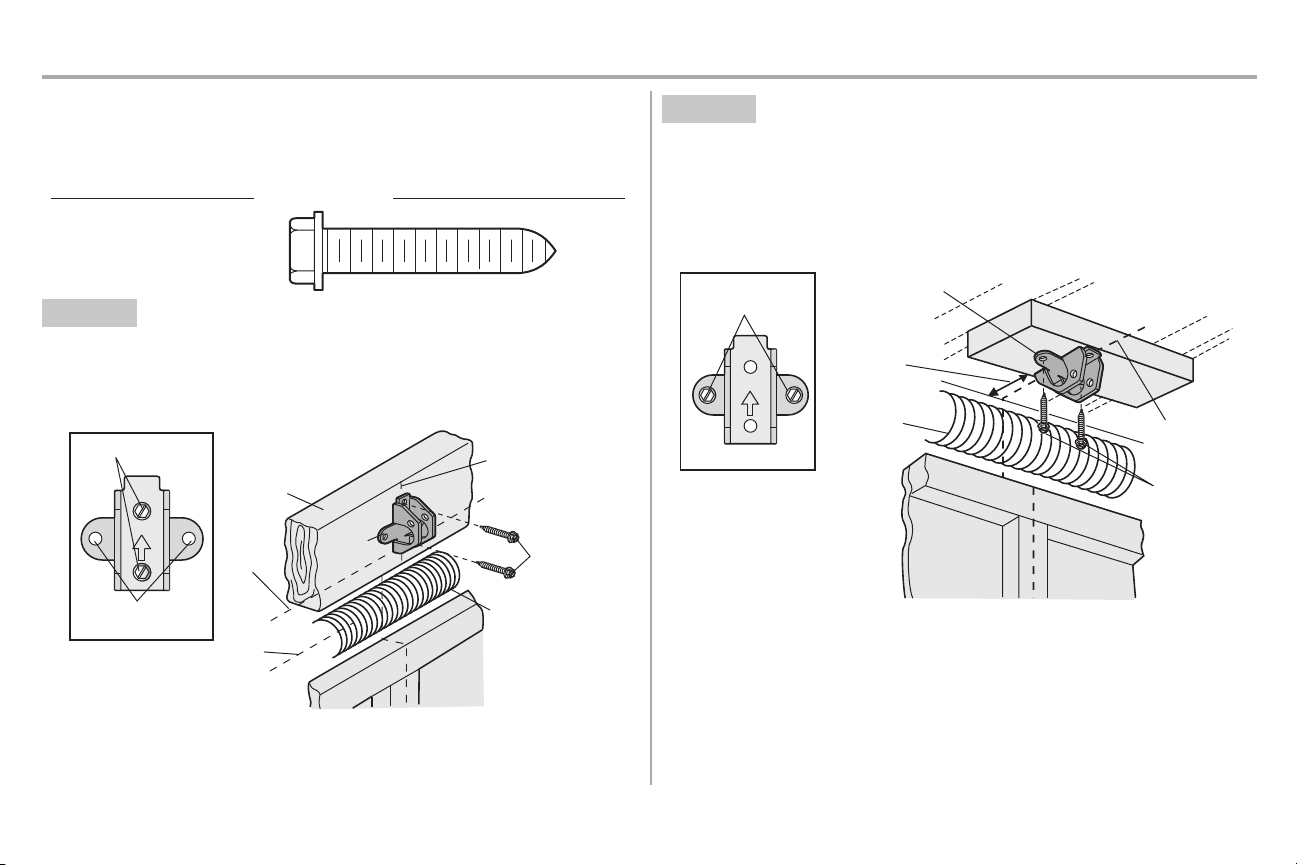

STEP 2 Install the header bracket
You can attach the header bracket either to the wall above the garage door,or to the ceiling.Follow the
instructions which will work bestfor your particular requirements. Do notinstall the header bracket over
drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal
line asshown (with the arrow pointing toward the ceiling).
2. Mark the vertical setofbracket holes.Drill 3/16" pilot holes and fasten the bracketsecurely to a
structural support with the hardware provided.
UP
Wall Mount
Optional Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point
of Garage
Door Travel
Horizontal
Line
Lag Screw
5/16"-9x1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15cm) from the wall.Make sure the
arrow is pointing awayfrom the wall. The bracket can be mounted flush againstthe ceiling when
clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with
the hardware provided.
UP
(Header Wall)
Ceiling Mounting
Holes (Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9x1-5/8"

13
Installation
STEP 3 Attach the rail to the header bracket
1. Position the opener on the garage floor below the header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way, you will need help. Have someone hold the opener
securely on a temporary support to allow the rail to clear the spring.
2. Position the rail bracket against the header bracket.
3. Align the bracket holes and join with a clevispin as shown.
4. Inserta ring fastener to secure.
HARDWARE
Clevis Pin 5/16"x1-1/2" Ring Fastener
Clevis Pin
5/16"x1-1/2"
Ring Fastener
STEP 4 Position the garage door opener
To preventdamage to garage door,restgarage door opener rail on 2x4 placed on top section ofdoor.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail. For one-piece doors without tracks,
lay the 2x4 on it's side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall
enough you will need help at this point. Ifthe door hits the trolley when it is raised, pull the trolley release
arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door
opener. The trolley can remain disconnected until instructed.
Connected Disconnected
One-piece
door
without tracks
All other
door types

14
Installation

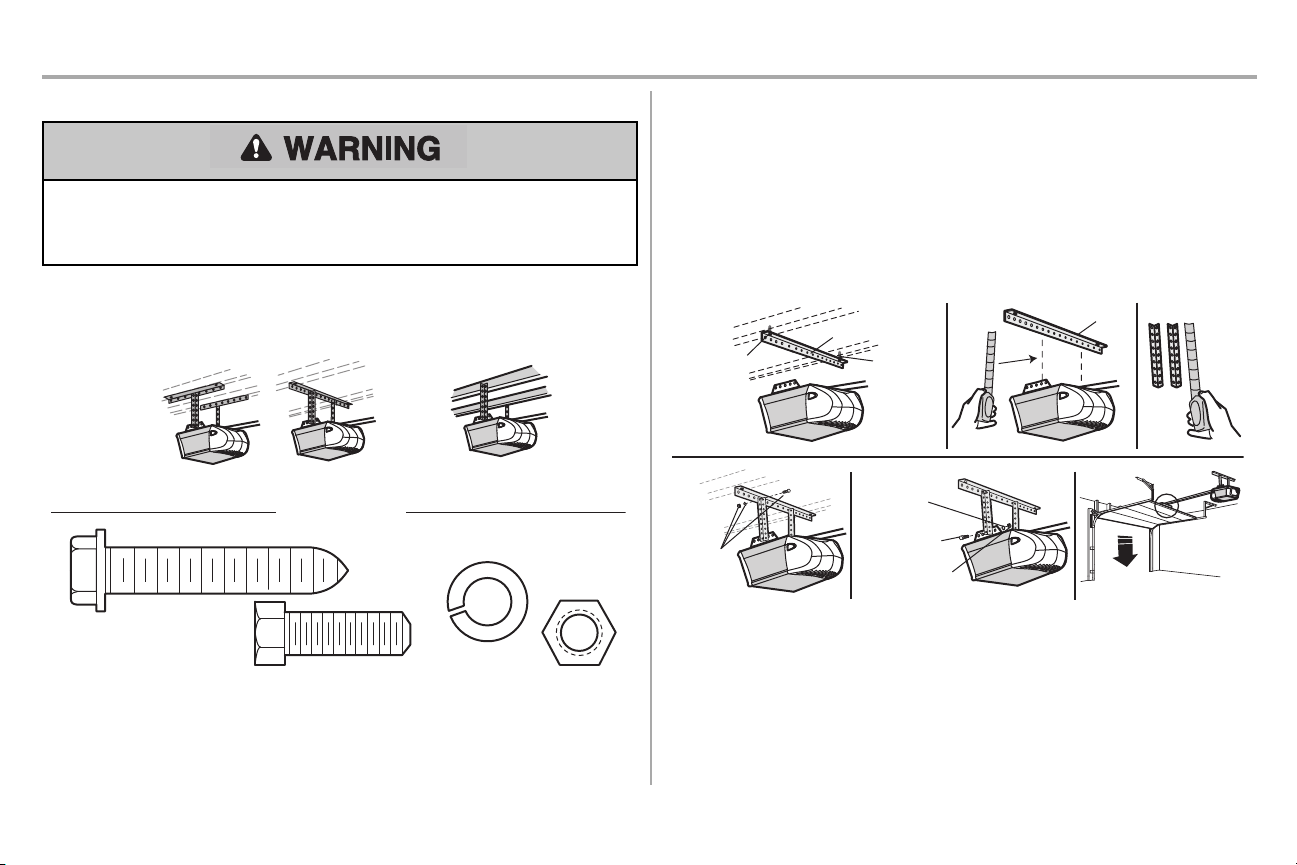

STEP 5 Hang the garage door opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to
structural supportsof the garage.Concrete anchors MUST be used ifinstalling ANY bracketsinto
masonry.
Hanging the garage door opener will vary depending on your garage.Below are three example
installations.Your installation maybe different. For ALL installationsthe garage door opener MUST be
connected to structural supports.The instructions illustrate one of the examplesbelow.
Finished Ceiling Unfinished Ceiling
HARDWARE
Hex Bolt 5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
Lag Screw 5/16"-9x1-5/8"
1. On finished ceilings, use the lag screwsto attach a supportbracket(not provided) to the structural
supports before installing the garage door opener.
2. Make sure the garage door opener is aligned with the header bracket.Measure the distance
from each side of the garage door opener to the support bracket.
3. Cutboth piecesofthe hanging bracketto required lengths.
4. Attach the end of each hanging bracket to the supportbracket with appropriate hardware (not
provided).
5. Attach the garage door opener to the hanging brackets with the hex bolts,lock washers, and
nuts.
6. Remove the 2x4 and manuallyclose the door. If the door hits the rail,raise the header bracket.
Finished
Ceiling (not provided)
Lag Screw
5/16"-
9x1-5/8"
123
(not
provided)
Hex Bolt
5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
456
Lag Screw
5/16"-
9x1-5/8"
(not provided)

15
Installation
STEP 6 Install the light bulb
To prevent possible OVERHEATING of the endpanel or light socket:
lDO NOT use short neck or specialty light bulbs.
lDO NOTuse halogen bulbs. Use ONLY incandescent.
To preventdamage to the opener:
lDO NOTuse bulbs larger than 100W.
lONLY use A19 size bulbs.
1. Install a 100 watt maximum light bulb in the socket. Light bulb size should be A19, standard neck
only. The light will turn ON and remain lit for approximately4-1/2 minuteswhen power is
connected. Then the light will turn OFF.
2. Insert bottom lens tabs into slots on chassis. Tilt towards chassis to engage top tabs, then drop
down gently into place (see illustration).
3. To remove,depress both top lenstabs.Tiltlens slightlyoutward and down, then pull out to clear
bulb.Use care to avoid snapping off bottom lenstabs.
4. Use A19, standard neckgarage door opener bulb for replacement.
NOTE: Use only standard light bulb. The use of short neck or speciality light bulbs may overheat the
endpanel or light socket.
STEP 7 Attach the emergency release rope and handle
To preventpossible SERIOUS INJURY or DEATHfrom a falling garage door:
lIf possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weakor broken springs or unbalanced door could resultin an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed.If rope knotbecomesuntied, you could fall.
1. Insertone end of the emergency release rope through the handle.Make sure that“NOTICE” is
rightside up.Tie a knot at least 1 inch (2.5 cm) from the end of the emergencyrelease rope.
2. Insertthe other end of the emergency release rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding
contact with vehicles to preventaccidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.

16
Installation

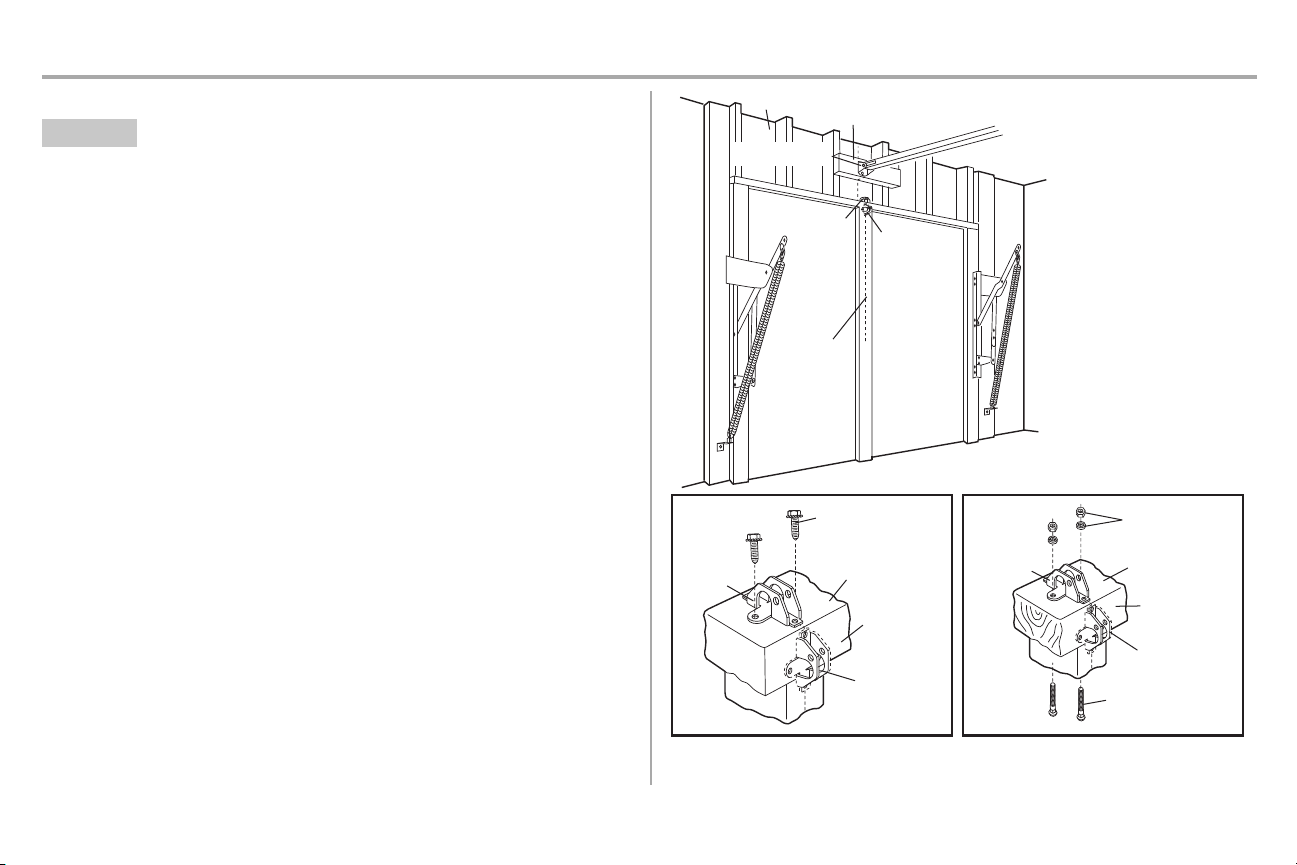

STEP 8 Install the door bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation of door bracket. Contactthe garage door manufacturer or installing dealer for opener
reinforcementinstructions or reinforcement kit.Failure to reinforce the top section as required
according to the door manufacturer mayvoid the door warranty.
A horizontal and vertical reinforcement isneeded for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcementbrace should be long enough to be
secured to two or three vertical supports. A vertical
reinforcementbrace should cover the heightofthe top
panel. Contact the garage door manufacturer or installing
dealer for opener reinforcement instructionsor
reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket; proceed to the next step.
Self-Threading Screw
1/4"-14x5/8"
HARDWARE
OPTION A SECTIONAL DOORS
1. Center the door bracket on the previouslymarked vertical centerline used for the header bracket
installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge ofthe door,OR directly
below any structural supportacross the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction.
Metal orlight weight doors using a verticalangle iron brace between the door panelsupport and
the door bracket:
lDrill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self threading
screws. (Figure 1)
lAlternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided). (Figure 2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracketusing the self-threading screws. (Figure 3)
Wood Doors:
lUse top and bottom or side to side door bracket holes.Drill 5/16" holes through the door and
secure bracket with 5/16"-18x2" carriage bolts, lock washers and nuts (not provided). (Figure 4)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3 FIGURE 4
FIGURE 2
Vertical
Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
Vertical Reinforcement
Vertical Centerline
of Garage Door
Hardware
(not provided)
Door Bracket
UP
Vertical
Centerline
of Garage
Door
UP
Vertical Centerline of
Garage Door
Hardware
(not provided)
UP
Inside Edge of Door or
Reinforcement Board
Self-Threading Screw
1/4"-14x5/8"
Self-Threading
Screw
1/4"-14x5/8"

17
Installation
STEP 8 Install the door bracket (continued)
OPTION B ONE-PIECE DOORS
1. Center the door bracket on the top ofthe door,in line with the header bracketasshown.
2. Mark either the left and right,or the top and bottom holes.
Metal Doors:
lDrill 3/16" pilot holes and fasten the bracket with the self-threading screwsprovided.
Wood Doors:
lDrill 5/16" holes and use 5/16"-18x2" carriage bolts, lock washers and nuts (not provided) or
5/16"x1-1/2" lag screws (not provided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your installation.
(Refer to the dotted line optional placement drawing.)
For a door with no exposed
framing, or for the optional
installation, use lag screws
5/16"x1-1/2" (not provided)
to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support (Finished Ceiling)
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Hardware
(not provided)
Hardware
(not provided)
Metal Door Wood Door
Self-Threading
Screw 1/4"-14x5/8"

18
Installation

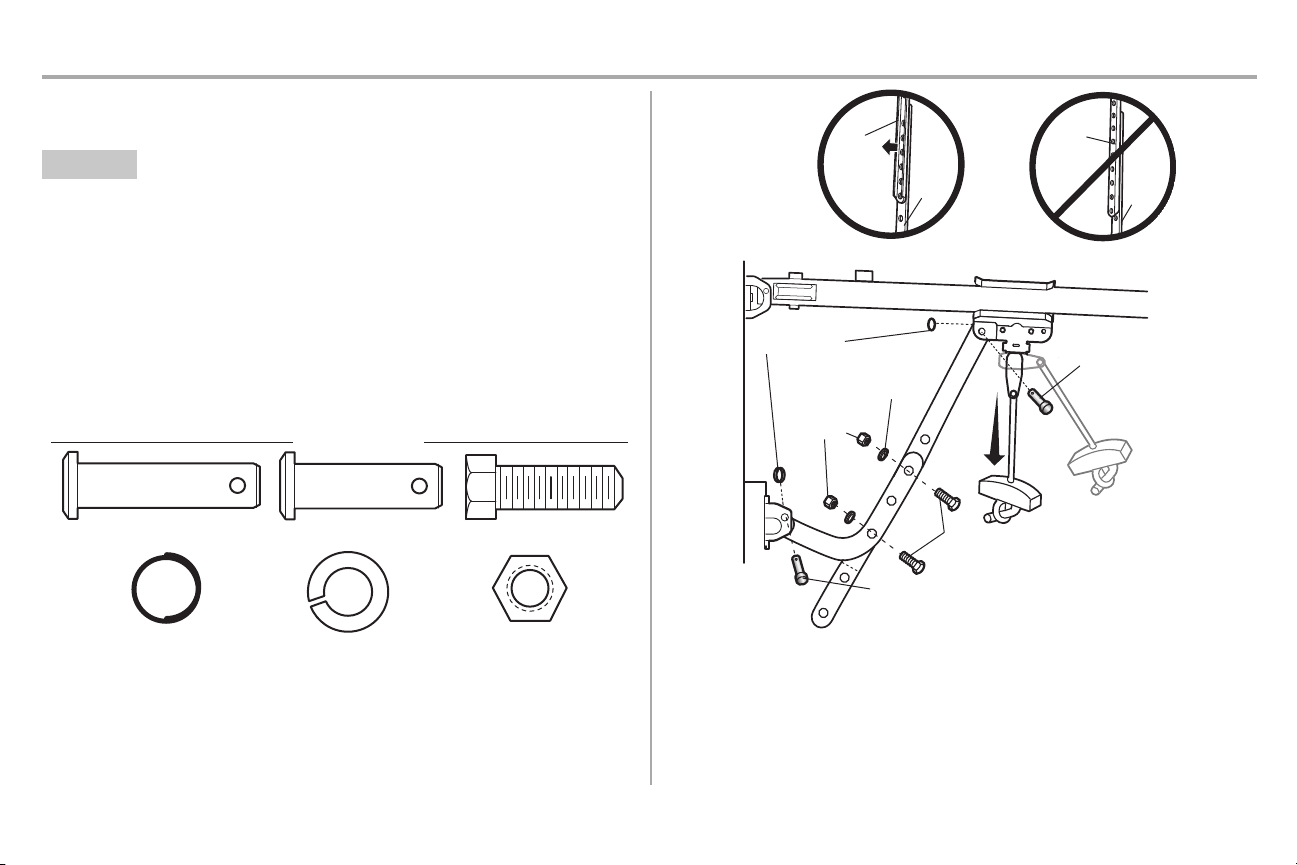

STEP 9 Connect the door arm to the trolley
Installation will vary according to the garage door type. Follow the instructions which apply to your door.
OPTION A SECTIONAL DOORS
IMPORTANT: The groove on the straight door arm MUST face awayfrom the curved door arm.
1. Close the door.Disconnectthe trolley bypulling the emergencyrelease handle.
2. Attach the straight door arm to the outer trolleyusing the clevispin. Secure with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Secure with the ring fastener.
4. Bring arm sections together. Find two pairs ofholesthat line up and join sections. Selectholes as
far apartas possible to increase door arm rigidity and attach using the bolts, nuts,and lock
washers.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm
is horizontal. The trolley will re-engage automatically when the garage door opener is activated.
NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the straight
door arm,selecttwo holes (as far apart as possible) and attach using bolts , nuts, and lock washers . If the
straight door arm is hanging down too far, you may cut 6 inches (15 cm) from the solid end.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer 5/16" -18
Clevis Pin 5/16"x1"Clevis Pin 5/16"x1-1/4"
Ring Fastener
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Lock Washer
5/16" -18
Nut
5/16"-18
Hex Bolt 5/16"-18x7/8"
Clevis Pin 5/16"x1-1/4"
Ring Fastener Clevis Pin
5/16"x1"

19
Installation

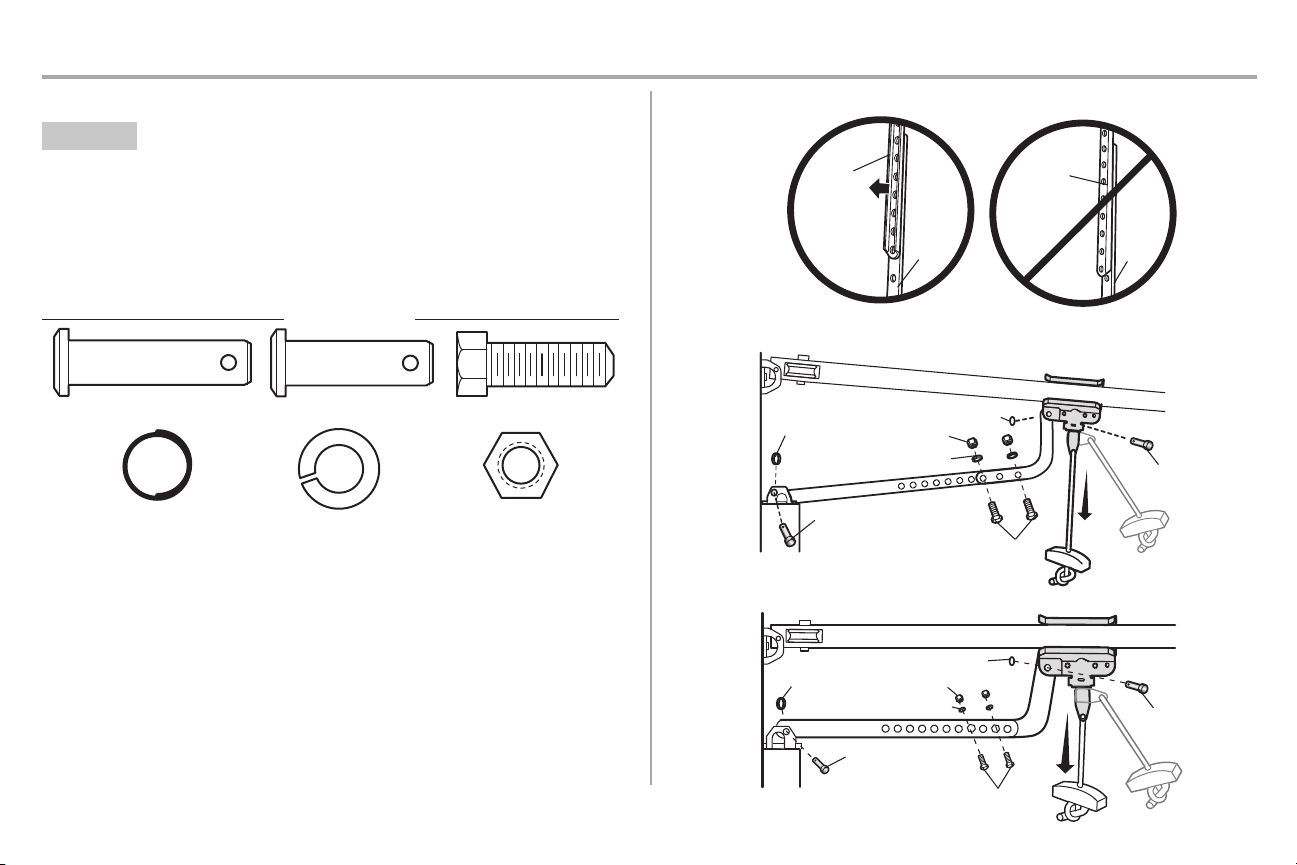

STEP 9 Connect the door arm to the trolley (continued)
OPTION B ONE-PIECE DOORS
IMPORTANT: The groove on the straight door arm MUST face awayfrom the curved door arm.
1. Close the door.Disconnectthe trolley bypulling the emergencyrelease handle.
2. Fasten the straight door arm and the curved door arm together to the longest possible length
(with a 2 or 3 hole overlap) using the bolts, nuts, and lockwashers.
3. Attach the straight door arm to the door bracketusing the clevis pin. Secure with the ring fastener.
4. Attach the curved door arm to the trolley using the clevis pin. Secure with the ring fastener.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm
is horizontal.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer 5/16" -18
Clevis Pin 5/16"x1"Clevis Pin 5/16"x1-1/4"
Ring Fastener
One-Piece Door without Track
One-Piece Door with Track
Straight
Door Arm
Curved
Door
Arm
(Groove
facing out)
CORRECT INCORRECT
Straight
Door
Arm
Curved
Door
Arm
Ring
Fastener Ring Fastener
Nut 5/16"-18
Nut 5/16"-18
Ring
Fastener
Ring Fastener
Lock Washer 5/16" -18
Lock Washer 5/16" -18
Clevis Pin 5/16"x1-1/4"
Clevis Pin
5/16"x1-1/4"
Hex Bolt 5/16"-18x7/8"
Hex Bolt 5/16"-18x7/8"
Clevis Pin
5/16"x1"
Clevis Pin
5/16"x1"
