Chamberlain HD920EV User manual

Model Number:
Serial Number:
Date of Purchase:
CONTENTS
Preparation . . . . . . . . . . . . . . . .2-5
Assembly . . . . . . . . . . . . . . . . 6-10
Installation . . . . . . . . . . . . . . 11-20
Install the Door Control. . . . . . 21-23
Install the Protector System®. . 23-26
Power. . . . . . . . . . . . . . . . . . 27-28
Adjustments . . . . . . . . . . . . . 29-31
Battery Backup. . . . . . . . . . . . 32-33
Operation . . . . . . . . . . . . . . . . . 34
Features . . . . . . . . . . . . . . . . . . 35
Door Control . . . . . . . . . . . . . 36-38
Remote Control . . . . . . . . . . . 39-40
To Erase the Memory . . . . . . . . . 40
To Open the Door Manually . . . . . 41
Maintenance . . . . . . . . . . . . . . . 42
Troubleshooting. . . . . . . . . . . 43-44
Repair Parts . . . . . . . . . . . . . 45-46
Accessories. . . . . . . . . . . . . . . . 47
Warranty. . . . . . . . . . . . . . . . . . 48
Belt Drive Battery Backup Garage Door Opener
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless the Protector System®is connected and properly
aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■The model number label is located on the left side panel of your garage door opener.
■This garage door opener is compatible with MyQ™and Security✚2.0™ accessories.
■DO NOT enable the Timer-to-Close feature if you are installing the garage door opener
on a one-piece door. The Timer-to-Close is to be used ONLY with sectional doors.
www.chamberlain.com
.
Write down the following information for
future reference:
Models
HD920EV • 349544 • WD962KEV • WD962KPEV
FOR RESIDENTIAL USE ONLY

2
Safety Symbol and Signal
Word Review
Thisgarage door opener hasbeen designed and
tested to offer safe service provided it isinstalled,
operated,maintained and tested in strict
accordance with the instructions and warnings
contained in this manual.
When you see these Safety Symbolsand Signal
Words on the following pages, they will alert you
to the possibilityof serious injury or death if you
do notcomply with the warnings that accompany
them. The hazard maycome from something
mechanical or from electric shock. Read the
warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following
pages, it will alertyou to the possibilityof damage
to your garage door and/or the garage door
opener if you do notcomply with the cautionary
statements that accompany it. Read them
carefully.

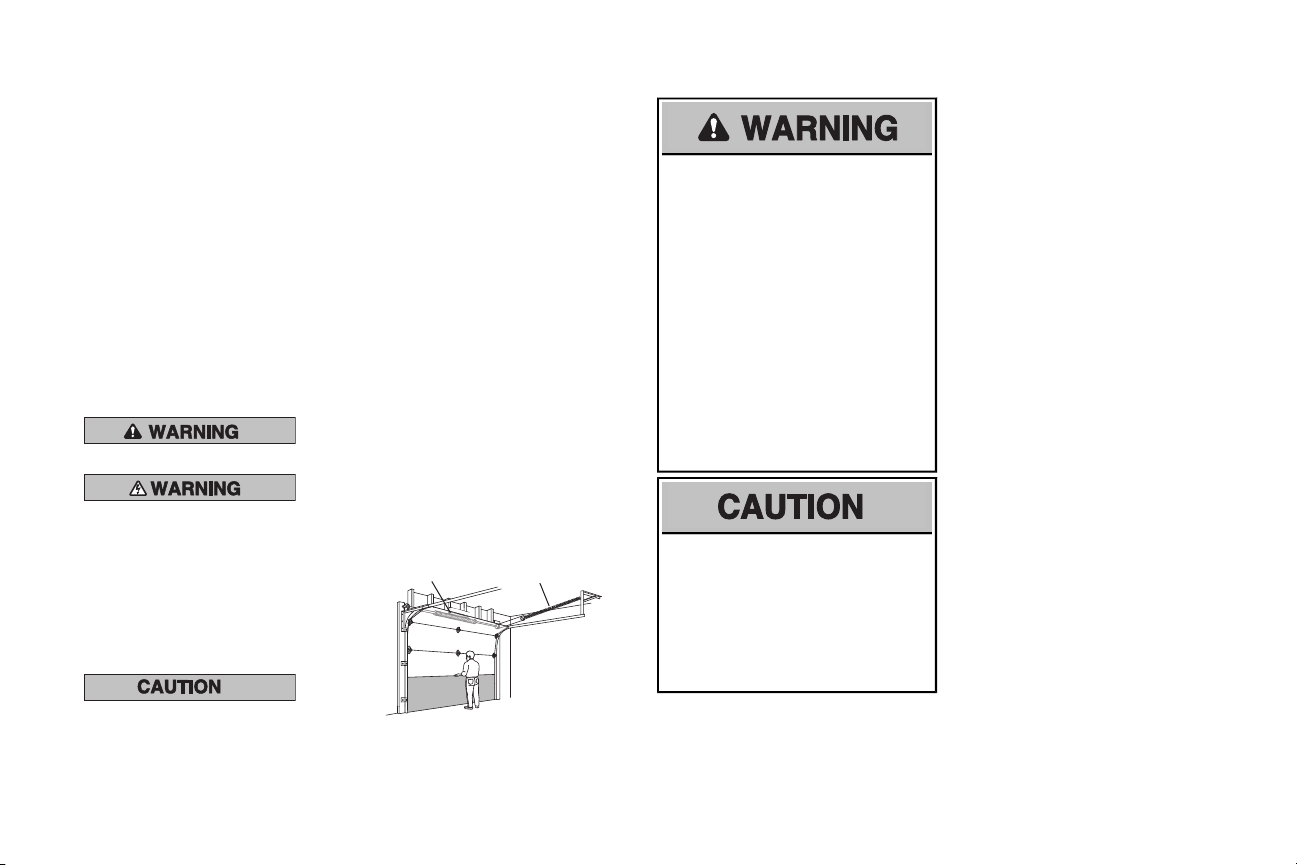

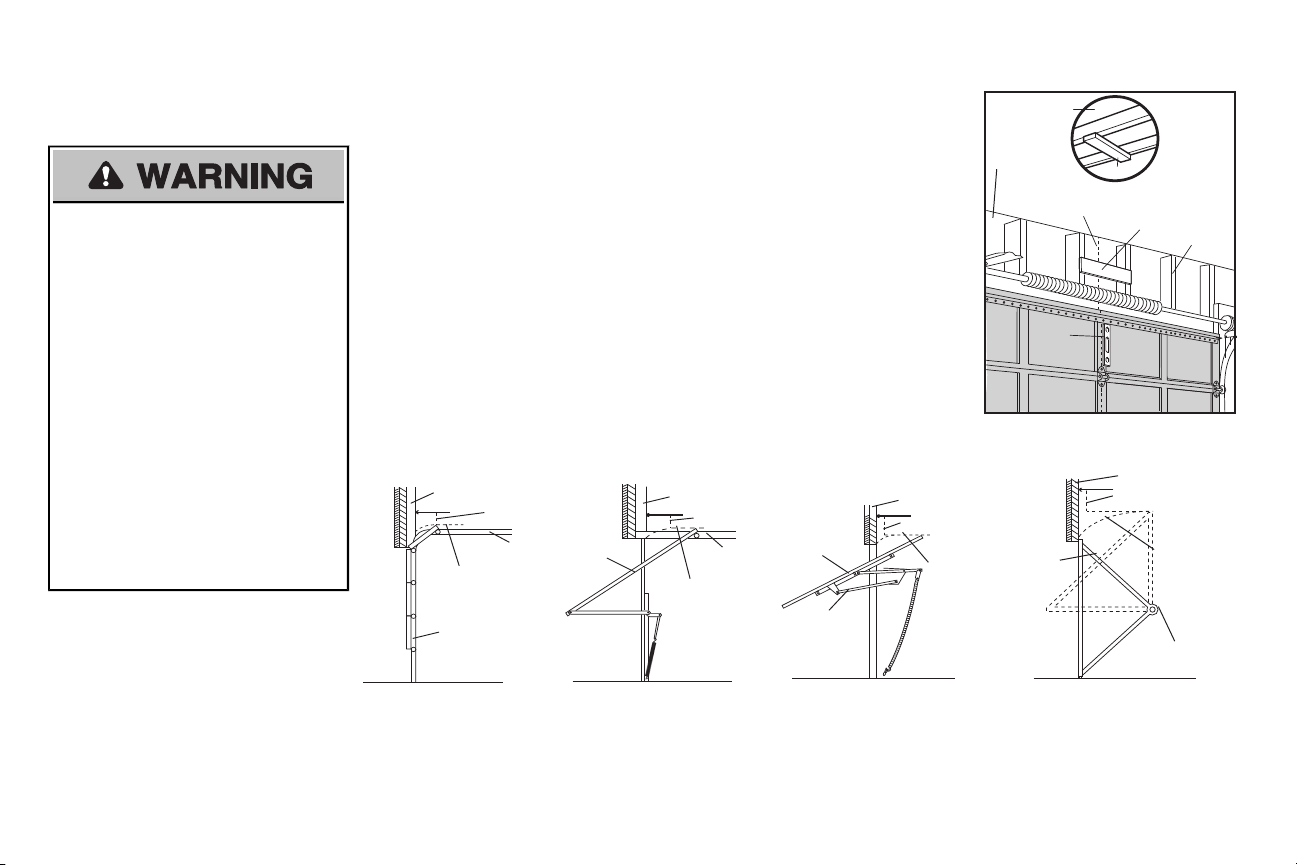

Check the Door
1. Disable locks and remove any ropes
connected to the garage door.
2. Lift the door halfway up. Release the
door. If balanced, it should stay in
place, supported entirely by its springs.
3. Raise and lower the door to check for
binding or sticking. Ifyour door binds,
sticks, or is out of balance, call a trained
door systems technician.
4. Check the seal on the bottom of the
door.Anygap between the floor and
the bottom of the door mustnot exceed
1/4 inch (6 mm). Otherwise, the safety
reversal system may not work properly.
5. The opener should be installed above
the center of the door. If there is a
torsion spring or center bearing plate
in the way ofthe header bracket,itmay
be installed within 4 feet (1.2 m) to the
left or right of the door center.
See page 13.
Torsion Spring Extension Spring
OR
To prevent possible SERIOUS NJURYor
DEATH:
• ALWAYS call a trained door systems
technician if garage door binds, sticks, or
isoutofbalance. An unbalanced garage
door may NOT reverse when required.
• NEVER try to loosen, move or adjust
garage door,door springs,cables,
pulleys,brackets or their hardware,
ALLof which are under
EXTREMEtension.
• Disable ALLlocks and remove ALLropes
connected to garage door BEFORE
installation and operating garage door
opener to avoid entanglement.
To prevent damage to garage door and
opener:
• ALWAYS disable locks BEFORE
installing and operating the opener.
• ONLY operate garage door opener at
120 V,60 Hzto avoid malfunction and
damage.
Preparation

3
üAdditional items you may need:
Survey your garage area to see if you will need
any of the following items:
q(2) 2X4 PIECES OF WOOD
Maybe used to fasten the header bracket to
the structural supports. Also used to position
the garage door opener during installation
and for testing the safetyreversing sensors.
qSUPPORT BRACKET AND FASTENING
HARDWARE
Mustbe used if you have a finished ceiling in
your garage.
qEXTENSION BRACKETS (MODEL
41A5281) OR WOOD BLOCKS
Depending upon garage construction,
extension brackets or wood blocks may be
needed to install the safetyreversing sensor.
qFASTENING HARDWARE
Alternate floor mounting of the safety
reversing sensor will require hardware not
provided.
qOUTSIDEQUICKRELEASE
(MODEL 7702CB)
Required for a garage with NO accessdoor.
qDOOR REINFORCEMENT
Required ifyou have a lightweightsteel,
aluminum, fiberglass or glass panel door.
qRAIL EXTENSION KIT
Required ifyour garage door is more than 7
feet (2.13 m) high.
Tools Needed
2
1
3/16
7/16
1/2
5/32
5/16
5/8 9/16 1/4
7/16
Preparation

4

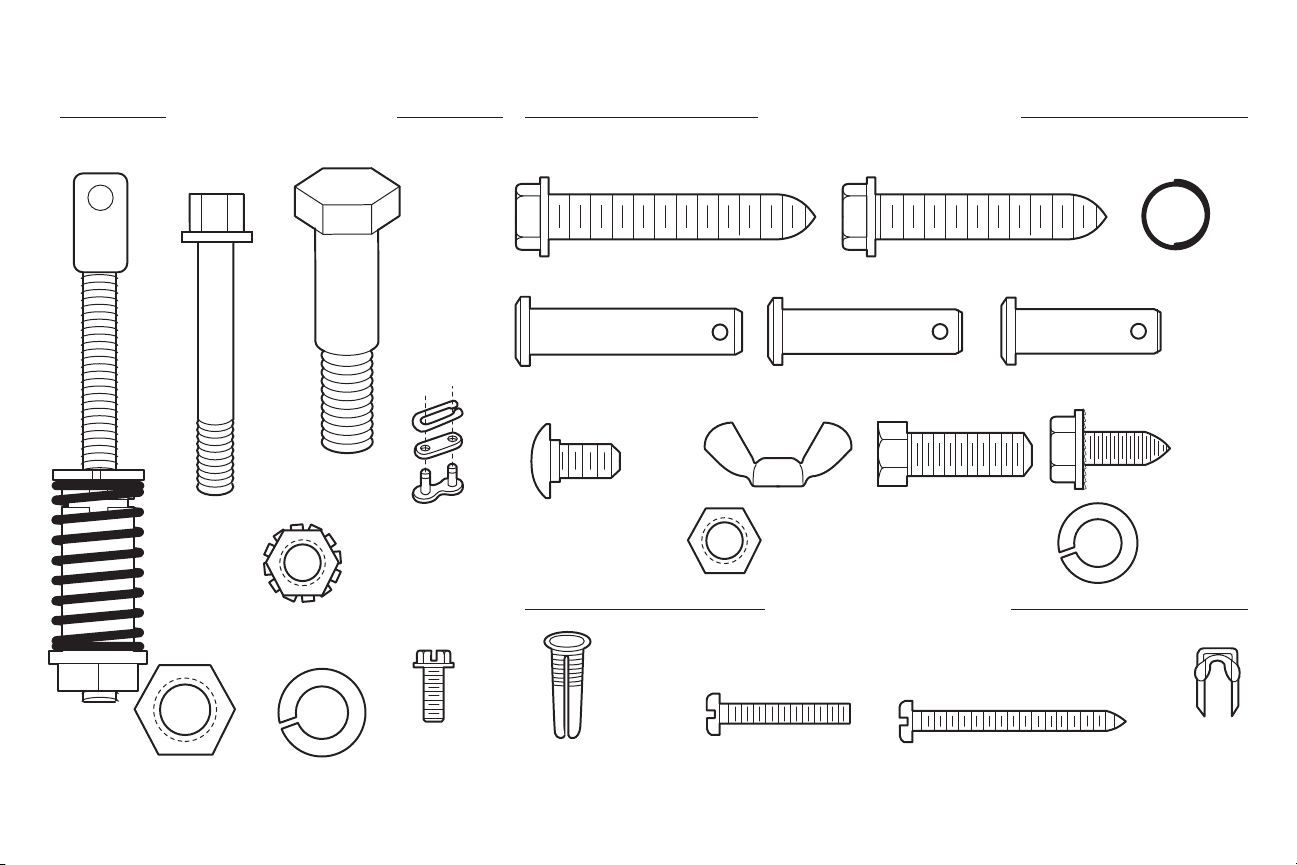

Carton Inventory
Your garage door opener ispackaged in one carton which containsthe motor unitand all partsillustrated below.Accessoriesvarydepending on the garage door opener model purchased.Depending on your
model, other accessoriesmaybe included with your garage door opener.Instructions for these accessories will be attached to the accessory and are notincluded in this manual. Ifanything ismissing, carefully
check the packing material. Partsmay be stuck in the foam. Hardware for assembly and installation is shown on the nextpage. Save the carton and packing material until the installation and adjustment is
complete. The images throughout this manual are for reference only and your product may look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside rail section)
F. Trolley
NOTE: Be sure to assemble the trolley
before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside rail section)
J. Garage door opener
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door control (Motion-Detecting Control
Panel or Smart Control Panel®)
O. Remote control
P. The Protector System®
Safety reversing sensors with 2 conductor
white and white/black wire attached:
Sending Sensor (1), Receiving Sensor (1),
and Safety Sensor Brackets (2)
NOTSHOWN
White and red/white wire
Owner's manual
N
A
B
C
H
K
J
O
I
D
E
F
G
L
M
P
OR
Preparation

5
Carton Inventory
H9
Hex Screw #8x3/8" (3)
(packed with the
sprocket cover)
H2
Bolt
1/4"-20x1-3/4" (2)
H4
Lock Nut 1/4"-20 (2)
H3
Bolt
H6
Nut 3/8" H7
Lock Washer 3/8"
H5
Master Link
H8
Spring
Trolley Nut
H12
Clevis Pin 5/16"x1-1/2"
H19
Ring Fastener (3)
H15
Hex Bolt 5/16"-18x7/8" (4)
H21
Lock Washer 5/16"-18 (7)
H20
Nut 5/16"-18 (8)
H16
Self-Threading Screw
1/4"-14x5/8" (2)
H14
Clevis Pin 5/16"x1"
H13
Clevis Pin 5/16"x1-1/4"
H17
Carriage Bolt 1/4"-20x1/2" (2)
H18
Wing Nut 1/4"-20 (2)
ASSEMBLY HARDWARE INSTALLATION HARDWARE
Screw 6ABx1-1/2" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
DOOR CONTROL HARDWARE
Insulated
Staples
H11
Lag Screw 5/16"-9x1-5/8" (2)
H10
Lag Screw 5/16"-18x1-7/8" (2)
H1
Threaded
Shaft
with
Preparation

6
To prevent NJURY from pinching, keep hands
and fingers away from the joints while assembling
the rail.
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1.1 Assemble the trolley by sliding the inner
trolley into the outer trolley.
1.2 Carefully remove the straight door arm
and hanging brackets packaged inside the
front rail.
1.3 Align the railson a flat surface as shown.
The front rail has a cut out window near
the end. Make sure that the larger hole on
the front rail isfacing up.
1.4 Slide the tapered end of each rail section
into the larger end of the rail section in
frontofit. The tabs along the side will lock
in place. All holes in the rail sections
should face up.
1.5 Insert a screwdriver into the hole shown
(this will temporarily keep the trolley from
sliding off the end of the rail).
1.6 Checkto make sure that the 4 plastic wear
padsare inside the inner trolley.Ifthey are
missing check all the packing material and
snap them back into place.
1.7 Slide the trolley along the rail toward the
screwdriver as shown.
Trolley
To garage
door opener
Wear Pads
Inner Trolley
Outer Trolley
Assembly
1 Assemble the rail and trolley

7
2 Fasten the rail to the garage door opener
To avoid SERIOUS damage to garage door
opener, use ONLY those bolts/fasteners
mounted in the top of the opener.
(Mounted in the
garage door opener)
HARDWARE
H2
Bolt 1/4"-20x1-3/4"
H4
Lock Nut 1/4"-20
NOTE: ONLY use the bolts removed from the
garage door opener.Place the garage door
opener on the packing material to prevent
scratching.
2.1 Insert the bolt (H2) into the hole on the
back end of the rail as shown. Tighten
securely with the locknut (H4). Do not
overtighten.
2.2 Remove the two bolts from the top of the
garage door opener.
2.3 Place the “U” bracket, flatside down onto
the garage door opener and align the
bracket hole with the bolt holes.Fasten the
“U” bracketwith the previouslyremoved
bolts.
2.4 Prop up the end of the rail on the carton to
help align it with the “U” bracket.
2.5 Slide the rail onto the “U” bracket, until it
reaches all the stops on the top and sides
of the “U” bracket.
H2
“U” Bracket
Bolts
H4
SLIDE RAIL TO
STOPS ON TOP AND
SIDES
Cover
Protection
Bolt Hole
Carton
Assembly

8
HARDWARE
H3
Bolt H2
Bolt 1/4"-20x1-3/4"
H4
Lock Nut 1/4"-20
H6
Nut 3/8"
H7
Lock Washer 3/8"
3.1 Lay the belt beside the rail, as shown.
Grasp the end with the hooked trolley
connector and pass approximately12" (30
cm) of belt through the window. Keep the
ribbed side toward the rail,and allowit to
hang.
3.2 Remove the tape from the pulley.The
center should be greased, if not, regrease
the center of the pulley.
3.3 Insert the pulley into the window of the
front rail.
3.4 Insert the bolt (H3) into the rail and pulley.
Tighten securely with the lockwasher (H7)
and nut (H6).
3.5 Rotate the pulley to be sure it spins freely.
3.6 Insert the bolt (H2) into the hole shown
and fasten with the lock nut(H4).
H6
H7
H4
Screwdriver
Rail
Pulley
Trolley
Connector
H2
H3
Assembly
3 Install the pulley

9
4.1 Pull the belt around the pulley and toward
the trolley.The ribbed side mustcontact
the pulley.
4.2 Hook the trolley connector into the
retaining slot on the trolley as shown.
4.3 With the trolleyagainst the screwdriver,
dispense the remainder of the belt along
the rail length toward the motor unit and
around the sprocket. The sprocket teeth
must engage the belt.
4.4 Checkto make sure the belt isnot twisted.

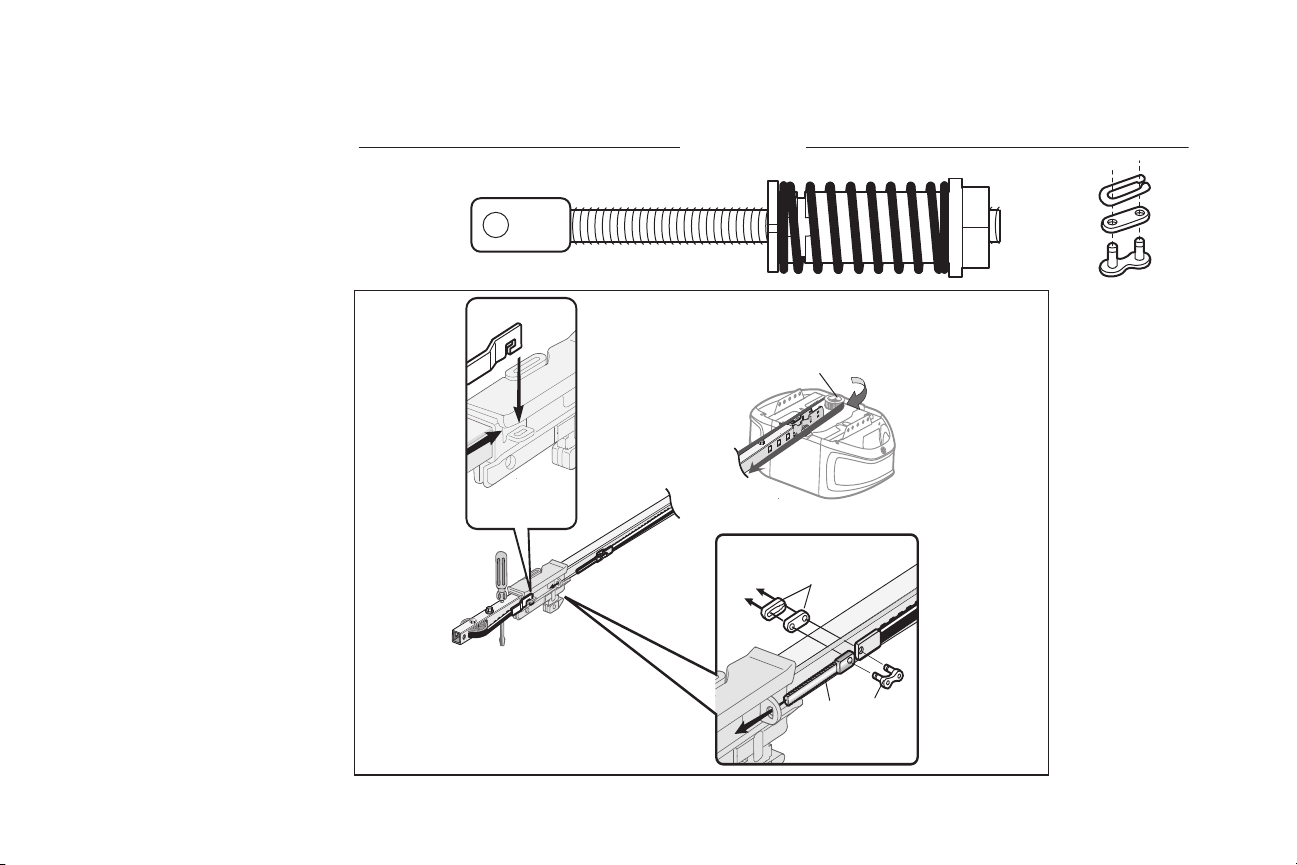

Connect the trolley threaded shaft (H1)
with the master link (H5).
• Push pins of master link bar through
holes in end of beltand trolleythreaded
shaft (H1).
• Push master link cap over pins and past
pin notches.
• Slide clip-on spring over cap and onto
pin notches until both pins are securely
locked in place.
4.5 Remove the spring trolley nut (H8) from
the threaded shaft (H1).
4.6 Insert the trolley threaded shaft (H1)
through the hole in the trolley.
HARDWARE
H5
Master Link
H8
Spring
Trolley Nut
H1
Threaded Shaft
with
H5
H1
H5
Sprocket
Assembly
4 Install the belt

10
To avoid possible SERIOUS NJURY to finger from moving garage door opener:
• ALWAYS keep hand clear of sprocket while operating opener.
• Securely attach sprocket cover BEFORE operating.
H8
Spring Trolley Nut H9 (3)
Hex Screw #8x3/8"
(Packed with the
sprocket cover)
HARDWARE
5.1 By hand, thread the spring trolley nut on the
threaded shaft(H8) until itis finger tight
againstthe trolley.Do not use any tools.
Remove the screwdriver.
H8
(to motor unit)
5.2 Insert a flathead screwdriver tip into one
of the nut ring slotsand brace itfirmly
against the trolley.
Nut ring slot
5.3 Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a quarter turn until the spring releasesand snapsthe
nut ring againstthe trolley.This sets the spring to optimum belttension.
Nut Ring
BEFORE
1"
(2.5 cm)
Nut Ring
AFTER
1-1/4"
(3.18 cm)
5.4 Position the sprocket cover over the garage
door opener sprocket and attach with hex
screws (H9).
H9
Assembly
5 Tighten the belt and install the sprocket cover

11
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door.An
improperly balanced door may NOT reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairsto cables, spring assemblies and other hardware MUSTbe made by a trained
door systemstechnician BEFORE installing opener.
4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing
opener to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, butatleast 6 feet(1.83 m) above the floor and
avoiding contactwith vehicles to avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVERwear watches, rings or loose clothing while installing or servicing opener. They could
be caughtin garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight ofthe garage door.
• out of reach of children at minimum height of 5 feet (1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control.
11. Place manual release/safety reverse testlabel in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact
with a 1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL NJURY or DEATH from electrocution, disconnectALL
electric and battery power BEFORE performing any service or maintenance.
14. DO NOT enable the Timer-to-Close functionalityif operating either one-piece or swinging
garage doors. To be enabled ONLY when operating a sectional door.
Installation

12
1Determine the header bracket
location
To prevent possible SERIOUS INJURY or
DEATH:
• Header bracket MUST be RIGIDLY
fastened to structural supporton header
wall or ceiling, otherwise garage door might
NOT reverse when required. DO NOT
install header bracket over drywall.
• Concrete anchors MUST be used if
mounting header bracket or 2x4 into
masonry.
• NEVER try to loosen, move or adjust
garage door, springs, cables, pulleys,
brackets, or their hardware, ALL of which
are under EXTREME tension.
• ALWAYS call a trained door systems
technician if garage door binds, sticks, or is
outof balance.An unbalanced garage
door might NOT reverse when required.
Installation
Installation procedures vary according to garage door types.Followthe instructions which apply to your
door.
1.1 Close the door and mark the inside vertical centerline of the garage door.
1.2 Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door
center only if a torsion spring or center bearing plate is in the way; or you can attach it to
the ceiling when clearance is minimal. (It may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (1 cm).
If you need to install the header bracketon a 2x4 (on wall or ceiling), use lag screws(not
provided) to securely fasten the 2x4 to structural supports.
1.3 Open your door to the highest point oftravel as shown.Draw an intersecting horizontal line on
the header wall 2" (5 cm) above the high point.
• 2" (5 cm) above the high point for sectional door and one-piece door with track.
• 8" (20 cm) above the high point for one-piece door without track. This height will provide travel
clearance for the top edge ofthe door.NOTE:If the total number of inches exceeds the height
available in your garage, use the maximum height possible, or refer to page 13 for ceiling
installation.
Sectional door with
curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
One-piece door with
horizontal track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
One-piece door without track:
jamb hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Jamb
Hardware
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door 2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
One-piece door without track:
pivot hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Pivot

13
You can attach the header bracket either to the
wall above the garage door,or to the ceiling.
Follow the instructions which will work best for
your particular requirements.Do not install the
header bracket over drywall. If installing into
masonry, use concrete anchors (not provided).
HARDWARE
H11 (2)
Lag Screw
5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
2.1A Center the bracket on the vertical
centerline with the bottom edge of the
bracket on the horizontal line as shown
(with the arrow pointing toward the
ceiling).
2.2A Mark the vertical set of bracket holes (do
not use the holes designated for ceiling
mount). Drill 3/16" pilot holes and fasten
the bracket securely to a structural
support with the hardware provided
(H11).
OPTION B CEILING INSTALLATION
2.1B Extend the vertical centerline onto the
ceiling as shown.
2.2B Center the bracket on the vertical mark,
no more than 6" (15 cm) from the wall.
Make sure the arrowis pointing away
from the wall. The bracket can be
mounted flush againstthe ceiling when
clearance is minimal.
2.3B Mark the side holes. Drill 3/16" pilot holes
and fasten bracketsecurely to a structural
support with the hardware
provided (H11).
UP
Wall Mount
Optional
Mounting
Holes
H11
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
UP
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
H11
Installation
2 Install the Header Bracket

14

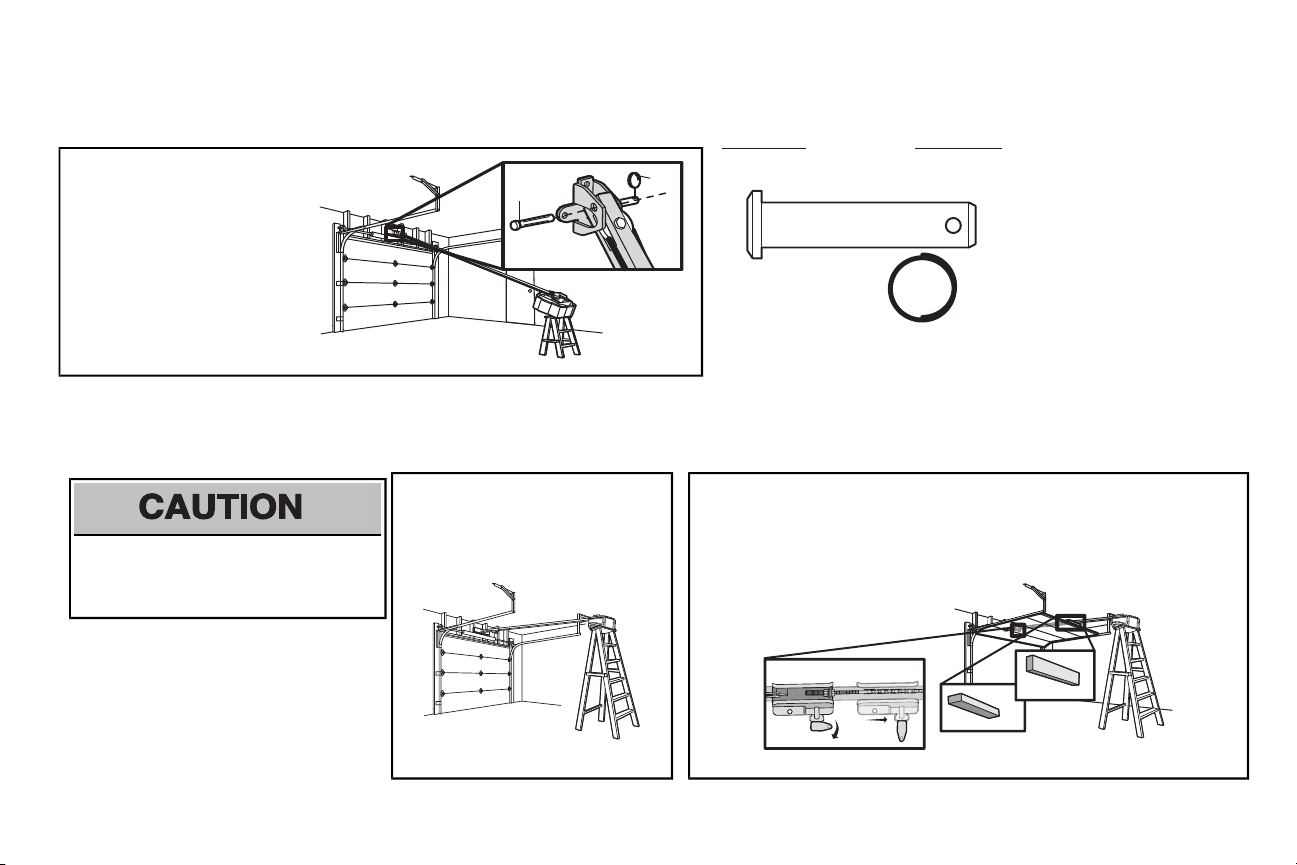

3.1 Align the rail with the header
bracket. Insert the clevis pin
(H12) through the holes in the
header bracket and rail. Secure
with the ring fastener (H19).
NOTE: Use the packing material as a
protective base for the garage door
opener.
H12 H19
HARDWARE
H12
Clevis Pin 5/16"x1-1/2"
H19
Ring Fastener
4Position the garage door opener
To prevent damage to garage door,restgarage
door opener rail on 2x4 placed on top section of
door.
4.1 Remove the packing material and liftthe
garage door opener onto a ladder.
NOTE: A 2x4 is ideal for setting the distance
between the rail and the door. If the ladder is
not tall enough you will need help at this point.
4.2 Fully open the door and place a 2x4 (laid flat) under the rail.For one-piece doors without
tracks,lay the 2x4 on it's side.
NOTE: Ifthe door hits the trolley when it is raised, pull the trolley release arm down to
disconnect the inner and outer trolley. Slide the outer trolley toward the garage door opener.
The trolley can remain disconnected until instructed.
Connected Disconnected
One-piece
door
without tracks
All other
door types
Installation
3Attach the rail to the header bracket

15
To avoid possible SERIOUS NJURY from a
falling garage door opener, fasten it SECURELY to
structural supports of the garage. Concrete anchors MUST
be used if installing ANY brackets into masonry.
HARDWARE
H10 (2)
Lag Screw 5/16"- 18x1-7/8" H15 (2)
Hex Bolt 5/16"- 18x7/8"
H21 (2)
Nut 5/16"-18
H20 (2)
Lock Washer
5/16"-18

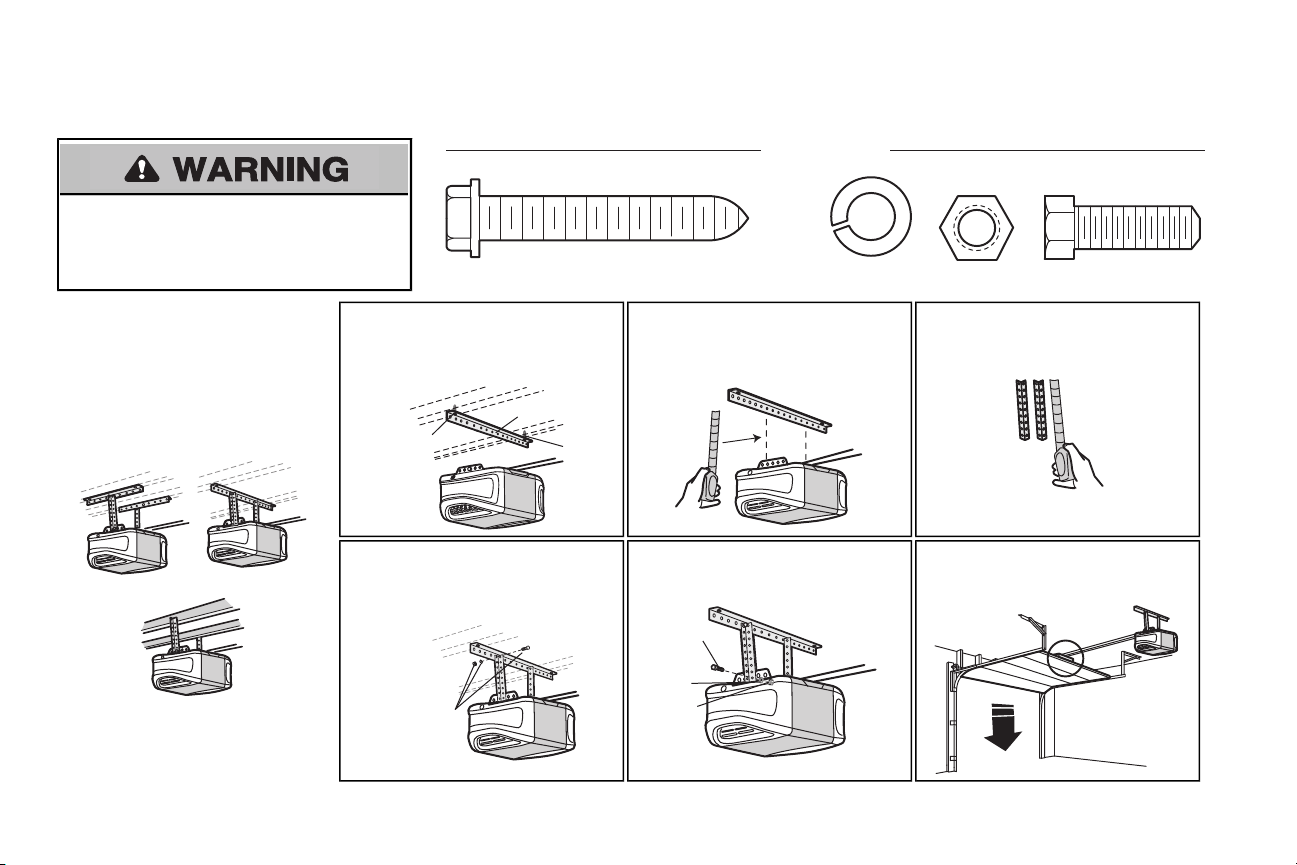

Hanging the garage door opener will vary
depending on your garage. Below are three
example installations. Your installation may be
different.For ALL installations the garage door
opener MUST be connected to structural
supports. The instructions illustrate one of the
examples below.
Finished Ceiling
Unfinished Ceiling
5.1 On finished ceilings,use the lag screws
(H10) to attach a support bracket(not
provided) to the structural supports
before installing the garage door opener.
Finished
Ceiling H10
(not provided)
H10
5.2 Make sure the garage door opener is
aligned with the header bracket.Measure
the distance from each side of the garage
door opener to the supportbracket.
5.3 Cut both pieces of the hanging bracket
(not provided) to required lengths.
5.4 Attach the end of each hanging bracketto
the support bracket with appropriate
hardware (not provided).
(not provided)
5.5 Attach the garage door opener to the
hanging brackets with the bolts(H21),
lock washers (H15) and nuts (H20).
H15
H20
H21
5.6 Remove the 2x4 and manually close the
door.If the door hitsthe rail, raise the
header bracket.
Installation
5Hang the garage door opener

16
To prevent possible OVERHEAT NG of the end panel or light socket:
• Use ONLY A19 incandescent or compact fluorescent light bulbs.
• DO NOT use incandescent bulbs larger than 100W.
• DO NOT use compact fluorescent light bulbs larger than 26W (100W) equivalent.
• DO NOT use halogen bulbs.
• DO NOT use short neck or specialty light bulbs.

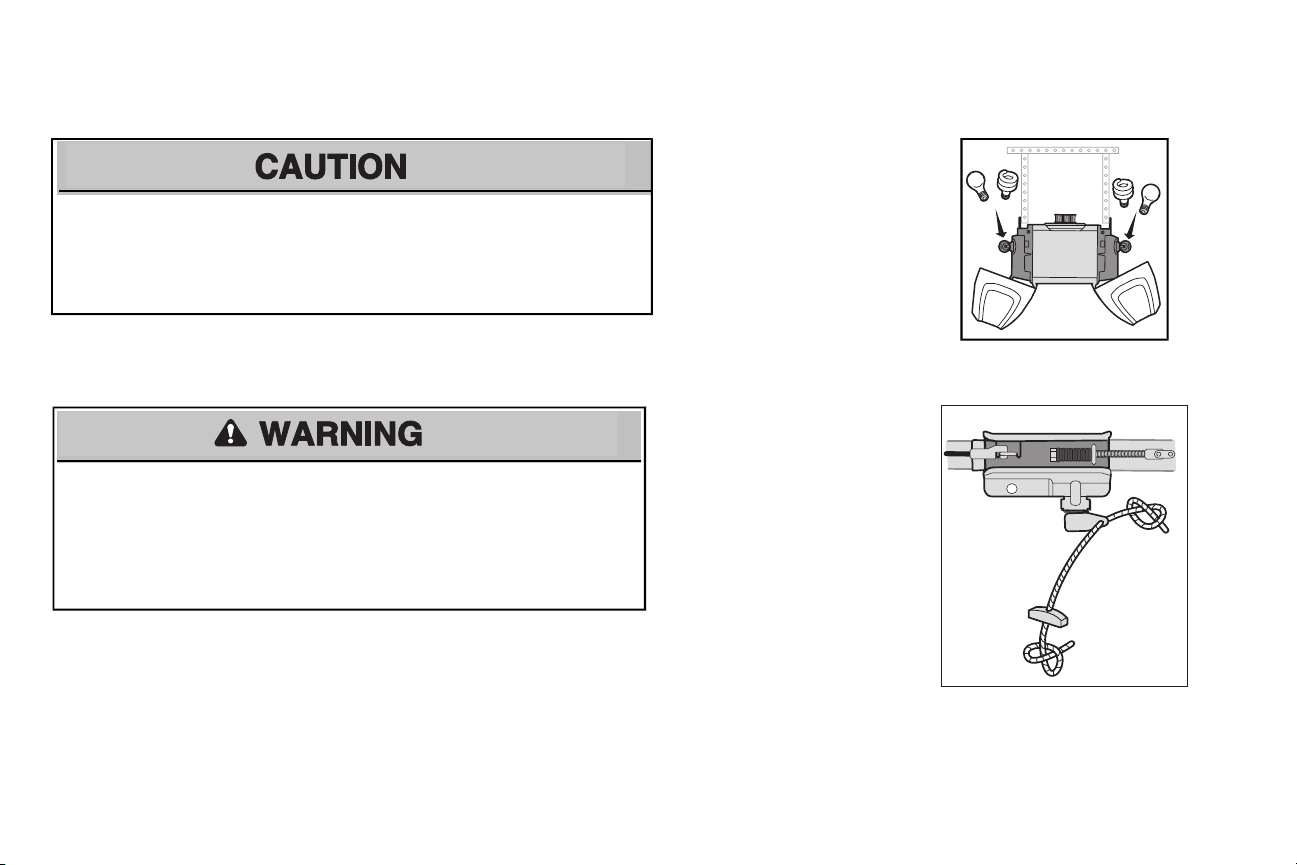

6.1 Pull on the top sides ofthe lightlensand
rotate the lightlensdown.
6.2 Insert an A19 incandescent or compact
fluorescent light bulb (100 watt maximum),
into the light socket.
6.3 Rotate the lens up to close.
NOTE: The use of short neck or speciality light
bulbs may overheat the end panel or light socket.
or or
7Attach the emergency release rope and handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
• If possible,use emergencyrelease handle to disengage trolley ONLY when garage door is
CLOSED.Weak or broken springs or unbalanced door could resultin an open door falling
rapidlyand/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
• NEVER use handle to pull door open or closed. Ifrope knot becomesuntied, you could fall.
7.1 Insert one end ofthe emergency release
rope through the handle. Make sure that
“NOTICE” is rightside up. Tie a knotat
least 1 inch (2.5 cm) from the end of the
emergency release rope.
7.2 Insert the other end of the emergency
release rope through the hole in the
trolley release arm.Make sure the
handle is 6 feet (1.83 m) above the floor
and secure with a knot.
NOTE: If it is necessary to cut the emergency
release rope, seal the cut end with a match or
lighter to prevent unraveling. Ensure the
emergency release rope and handle are
above the top of all vehicles to avoid
entanglement.
NOT CE
Installation
6Install the light bulbs

17
Fiberglass, aluminum or lightweight steel garage doors WILLREQUIRE reinforcement BEFORE
installation of door bracket.Contact your door manufacturer for reinforcement kit.
Figure 1 shows one piece of angle iron asthe horizontal brace.
For the vertical brace,2 pieces ofangle iron are used to create a
U-shaped support. The bestsolution is to check with your garage
door manufacturer for an opener installation door reinforcement
kit.
NOTE: Many door reinforcement kits provide for direct attachment
of the clevis pin and door arm. In this case you will not need the
door bracket; proceed to the next step.
H16 (2)
Self-Threading Screw
1/4˝-14x5/8˝
HARDWARE
OPTION A SECTIONALDOORS
8.1A Center the door bracket on the previously marked vertical centerline used for the header bracket
installation. Note correct UP placement, as stamped inside the bracket.
8.2A Position the top edge of the bracket 2"-4" (5-10 cm) belowthe top edge ofthe door, OR directly
below anystructural supportacrossthe top of the door.
8.3A Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support
and the door bracket:
• Drill 3/16" fastening holes. Secure the door bracketusing the two self threading screws (H16).
(Figure 2)
• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 3)
Metal, insulated or light weight factory reinforced doors:
• Drill 3/16" fastening holes.Secure the door bracketusing the self-threading screws(H16).
(Figure 4)
Wood Doors:
• Use top and bottom or side to side door bracket holes.Drill 5/16” holesthrough the door and
secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 5)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
8Install the door bracket
A horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, aluminum, steel, doors
with glass panel, etc.) (not provided).
A horizontal reinforcement brace
should be long enough to be secured
to two or three vertical supports.
A vertical reinforcement brace should
cover the height of the top panel.
FIGURE 1
FIGURE 2
FIGURE 4 FIGURE 5
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
H16
Vertical Reinforcement
Vertical Centerline
of Garage Door
Bolt 5/16"-18x2"
(not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical Centerline
of Garage Door
UP
H16
Vertical
Centerline of
Garage Door
Bolt 5/16"-18x2"
(not provided)
UP
Inside Edge of Door or
Reinforcement Board
Installation

18
OPTION B ONE-PIECEDOORS
8.1B Center the door bracket on the top of the
door,in line with the header bracket as
shown.
8.2B Mark either the leftand right, or the top
and bottom holes.
Metal Doors:
• Drill 3/16" pilot holes and fasten the bracket
with the self-threading screws (H16)
provided.
Wood Doors:
• Drill 5/16" holes and use 5/16"x2" carriage
bolts, lock washers and nuts (not provided)
or 5/16"x1-1/2" lag screws (not provided)
depending on your installation needs.
NOTE: The door bracket may be installed on the
top edge of the door if required for your
installation. (Refer to the dotted line optional
placement drawing.)
For a door with no exposed framing, or for the
optional installation, use lag screws 5/16"x1-1/2"
(not provided) to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support
(Finished Ceiling)
H16
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Carriage Bolt 5/16"x2"
(not provided)
Nut 5/16"-18
Lock Washer 5/16"
Metal Door
Wood Door
Installation
8Install the door bracket

19
9 Connect the door arm to the trolley
Installation will vary according to the garage door type.Follow the instructions which apply to your door.
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm (Figure 1).
OPTION A ONE-PIECE DOORS
9.1A Close the door. Disconnect the trolley
by pulling the emergency release
handle.
9.2A Fasten the straight door arm and the
curved door arm together to the
longestpossible length (with a 2 or 3
hole overlap) using the bolts (H15),
nuts (H20) and lock washers (H21).
9.3A Attach the straightdoor arm to the door
bracket using the clevispin (H13).
Secure with the ring fastener (H19).
9.4A Attach the curved door arm to the
trolley using the clevispin (H14).
Secure with the ring fastener (H19).
9.5A Pull the emergency release handle
toward the garage door opener until
the trolley release arm is horizontal.
H20
H21
H15
H13
H19 H19
H14
H20
H13
H19
H15
H21 H14
H19
One-Piece Door without Track
One-Piece Door with Track
Straight
Door Arm Curved
Door
Arm
(Groove
facing out)
CORRECT
FIGURE 1
INCORRECT
Straight
Door
Arm Curved
Door
Arm
HARDWARE
H15
Hex Bolt 5/16"-18x7/8"
H20
Nut
5/16"-18
H21
Lock
Washer
5/16" -18
H14
Clevis Pin 5/16"x1"
H13
Clevis Pin 5/16"x1-1/4"
H19
Ring Fastener
Installation

20
9 Connect the door arm to the trolley
OPTION B SECTIONAL DOORS
IMPORTANT: The groove on the straight door arm
MUST face away from the curved door arm (Figure 1).
9.1B Close the door. Disconnect the trolleyby
pulling the emergencyrelease handle.
9.2B Attach the straightdoor arm to the outer
trolley using the clevispin (H14).Secure with
the ring fastener (H19).
9.3B Attach the curved door arm to the door
bracket using the clevispin (H13). Secure
with the ring fastener (H19).
9.4B Bring arm sectionstogether. Find two pairs of
holes thatline up and join sections. Select
holes as far apart as possible to increase
door arm rigidityand attach using the bolts
(H15), nuts (H20) and lock washers (H21).
9.5B Pull the emergency release handle toward
the garage door opener until the trolley
release arm is horizontal. The trolley will re-
engage automaticallywhen the garage door
opener is activated.
NOTE: Ifthe holes in the curved door arm and the
straight door arm do not align, reverse the straight
door arm, select two holes (as far apart as possible)
and attach using bolts (H15), nuts (H20), and lock
washers (H21). If the straight door arm is hanging
down too far, you may cut 6 inches (15 cm) from the
solid end.
H14
H13
H19
H19
H15
H20
H21
Straight
Door Arm Curved
Door
Arm
(Groove
facing out)
CORRECT INCORRECT
FIGURE 1
Straight
Door
Arm Curved
Door
Arm
HARDWARE
H15
Hex Bolt 5/16"-18x7/8"
H20
Nut
5/16"-18
H21
Lock
Washer
5/16" -18
H14
Clevis Pin 5/16"x1"
H13
Clevis Pin 5/16"x1-1/4"
H19
Ring Fastener
Installation
