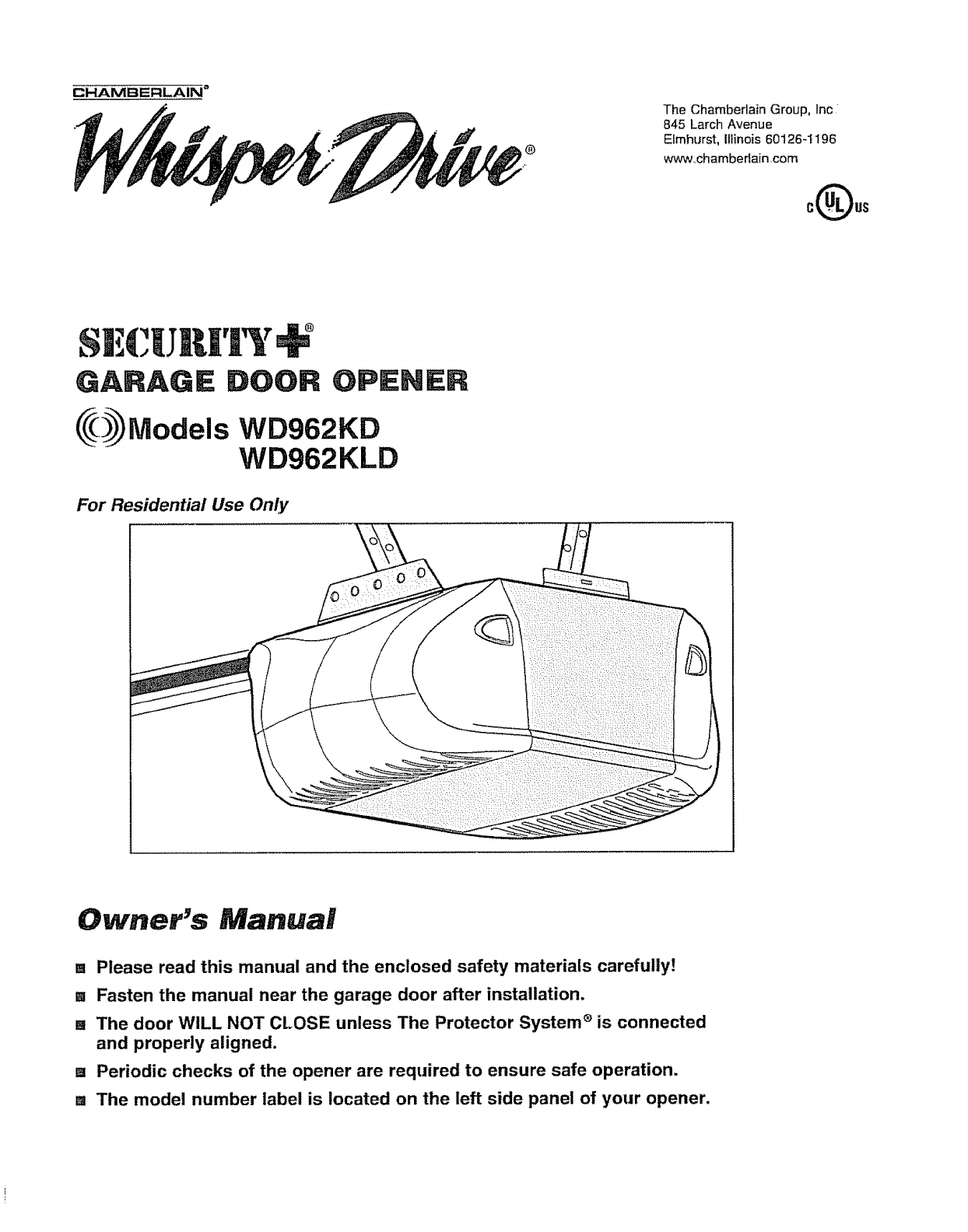

Chamberlain WhisperDrive WD962KD User manual

CHAMBERLAIN =
®
The Chamberlain Group, Inc •
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.,chamberiain com
GARAGE DOOR OPENER
_Models WD962KD
WD962KLD
For Residential Use Only
Owner's Manual
aPlease read this manual and the enclosed safety materials carefully!
e Fasten the manual near the garage door after installation.
e The door WILL NOT CLOSE unless The Protector System ®is connected
and properly aligned.
• Periodic checks of the opener are required to ensure safe operation.
uThe model number label is located on the left side panel of your opener.

TABLE OF COHTSNTS
Introduction 2-7
Safety symbol and signal word review ........................... 2
Preparing your garage door ........................................ 3
Tools needed ........................................................... 3
Planning ........................................................ 4-5
Carton inventory ........................................................ 6
Hardware inventory .................................................. 7
Assembly 8.1 t
Assemble the rail and install the trolley ....................... 8
Fasten the rail to the motor unit ...................................... 9
install the idler pulley ................................................... 9

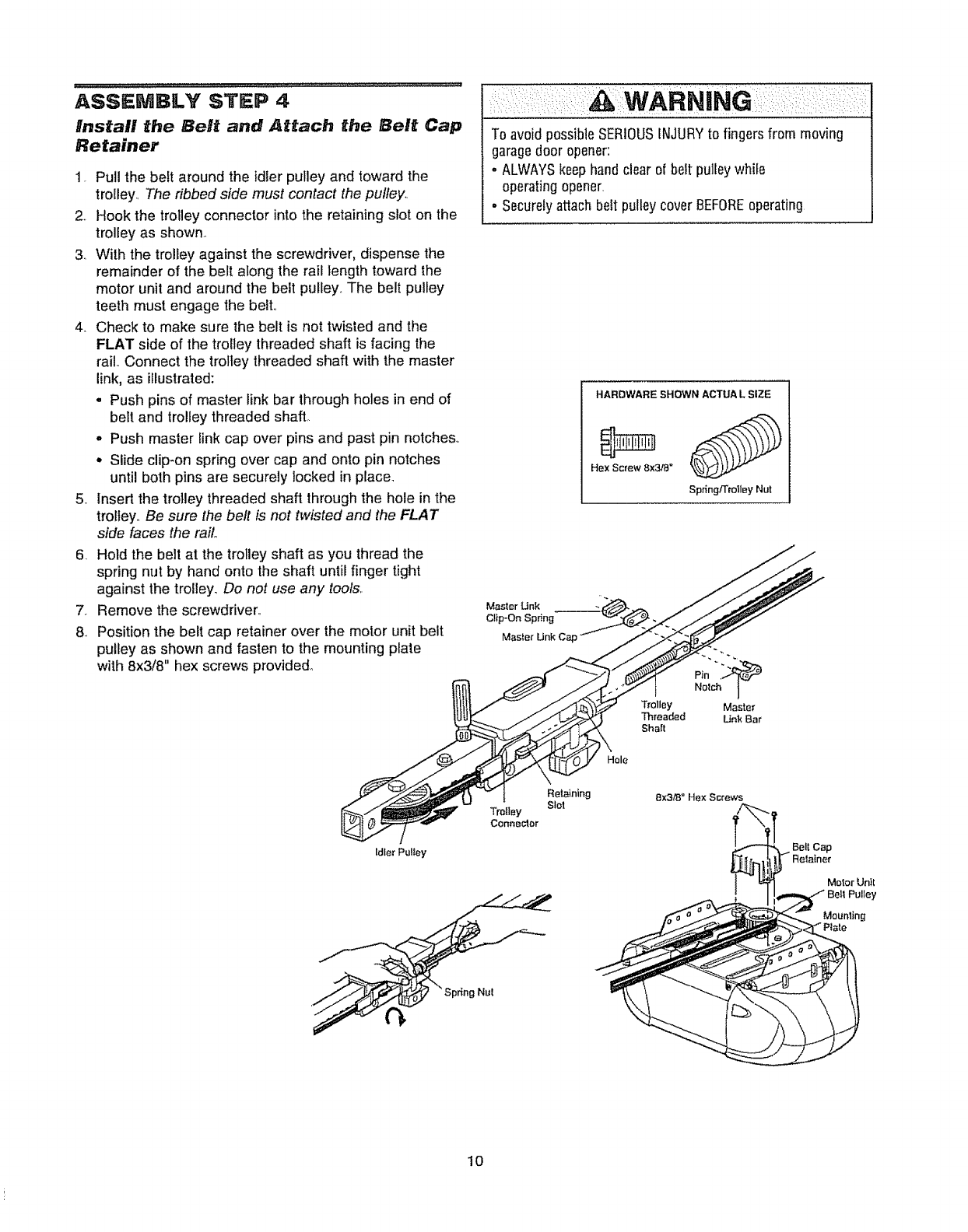

Install the belt and attach the belt cap retainer .............. 10
Set the tension .................................................... 11
Installation 11-26
Installation safety instructions .................................. 11
Determine the header bracket location ................... 12

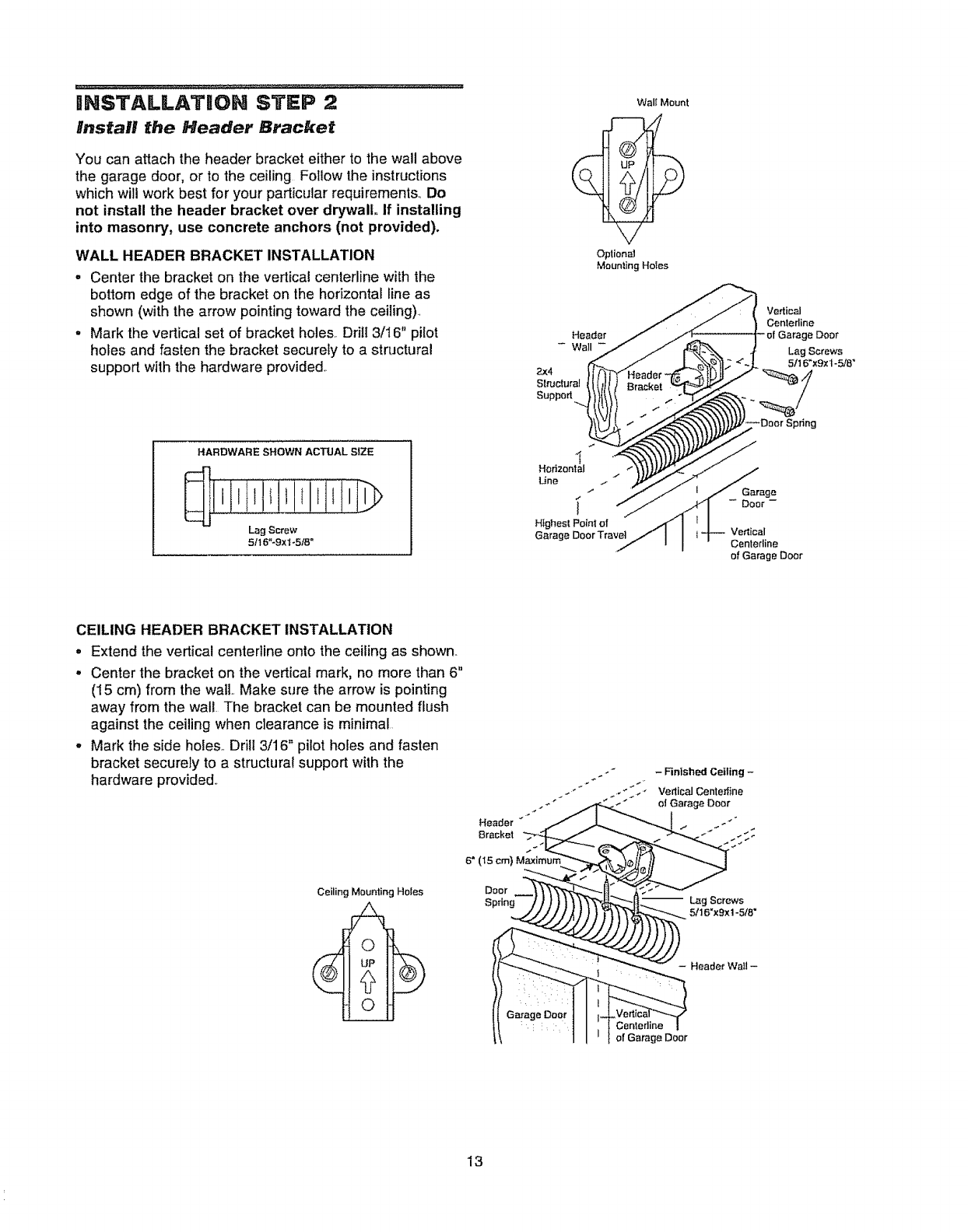

Install the header bracket ....................................... t3
Attach the rail to the header bracket ........................ 14
Position the opener .................................................... 15

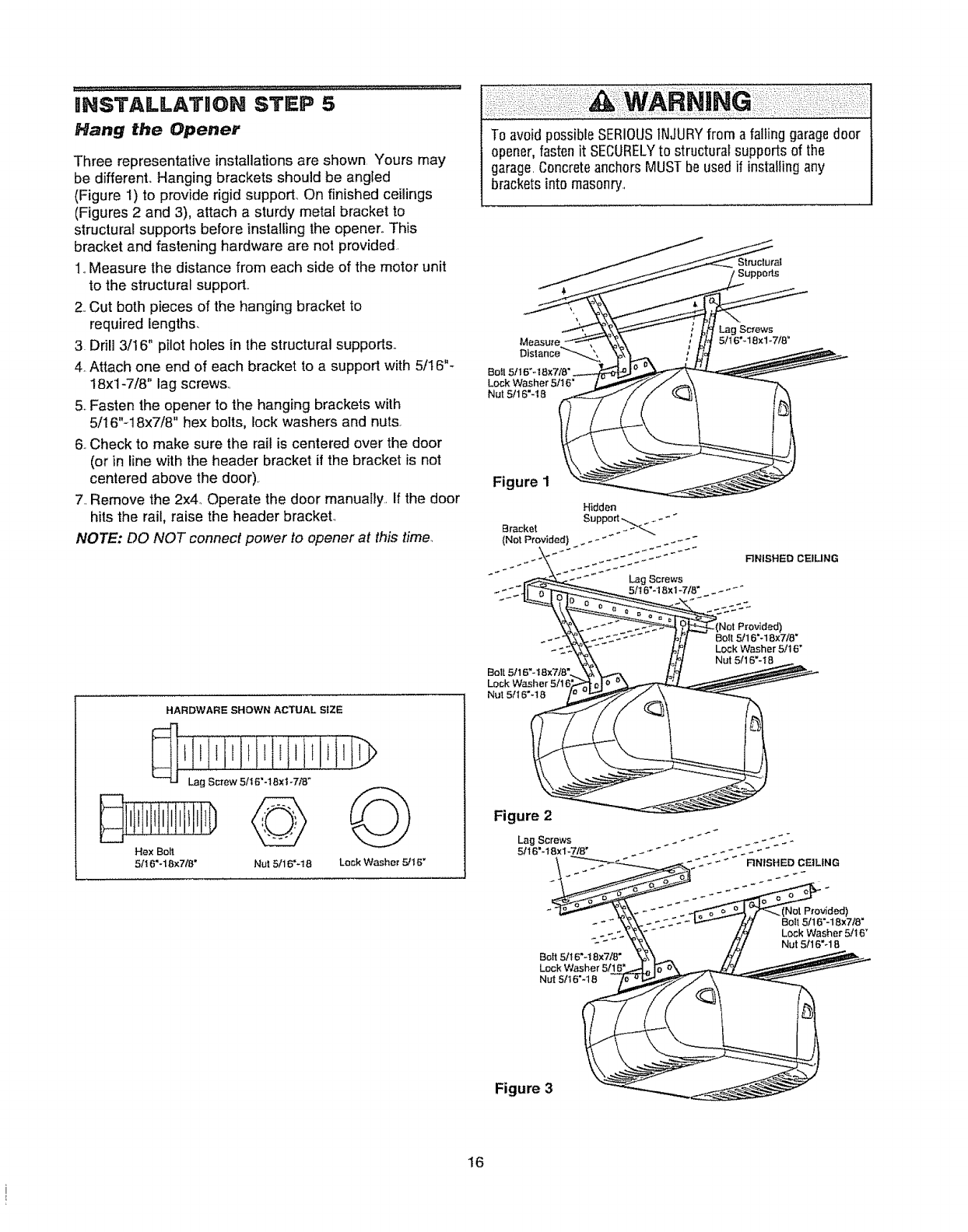

Hang the opener....................................................... 16
install the control console ........................................... 17

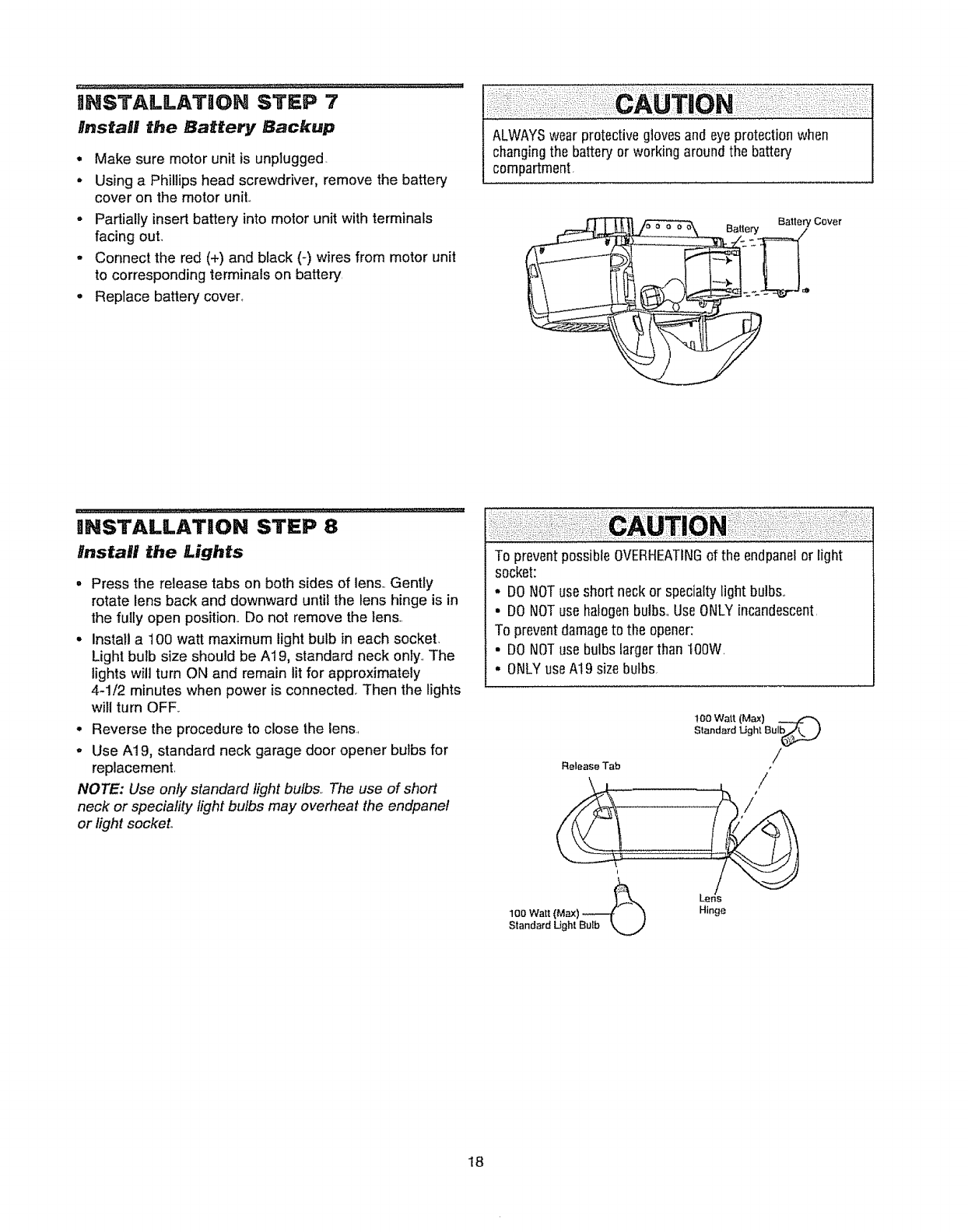

Install the battery ..................................................... 18
Install the lights.......................................................... 18
Attach the emergency release rope and handle .......... 19
Electrical requirements ............................................ 20
Install The Protector Systeme (safety sensors) ........ 21-23
Fasten the door bracket ..................................... 24-25
Connect the door arm to the trolley ......................... 26-27
Adjustment 28.30
Program the travel limits .......................................... 28
Setting the force ......... ............................................ 29
Test the safety reversal system .......................... 30
Test The Protector System @ (safety sensors) ............. 30
Operation 3 t-37
Operation safety instructions ................................ 31
Using your opener .................................................. 31
Using the wall-mounted control console ...................... 32
Care of your opener ...................................................... 33
To open the door manually ..................................... 33
Battery backup ........................................................ 34
Having a problem? (Troubleshooting) ..................... 35
Diagnostic chart ............................................................ 36
Programming 37.38
To add or reprogram a hand-held remote control .......... 37
To erase all codes from motor unit memory ................. 37
3-Button remotes ....................................................... 37
To add, reprogram or change a
Keyless Entry PIN ...................................................... 38
Repair Parts 39.40
Installation paris ............................................................ 39
Motor unit assembly parts ......................................... 40
Accessories 41
Notes 42-43
Repair Parts and Service
Warranty
44
44
|NTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the
warnings that accompany them The hazard may come
from something mechanical or from electric shock Read
the warnings carefully
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully

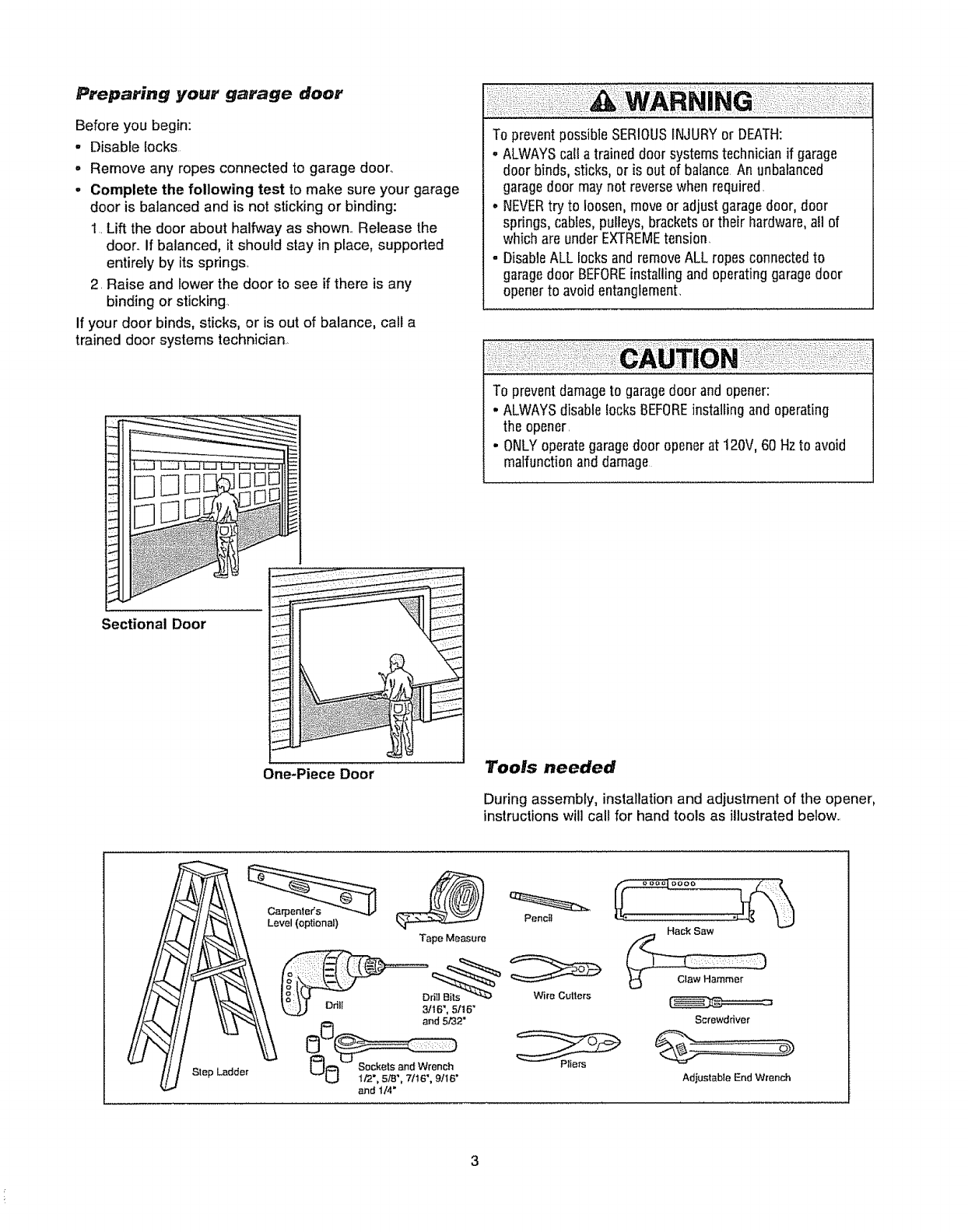

Preparing your garage door
Before you begin:
o Disable locks
o Remove any ropes connected to garage door.
- Complete the following test to make sure your garage
door is balanced and is not sticking or binding:
1 Lift the door about halfway as shown Release the
door. if balanced, it should stay in place, supported
entirely by its springs
2 Raise and lower the door to see if there is any
binding or sticking
If your door binds, sticks, or is out of balance, call a
trained door systems technician
TopreventpossibleSERIOUSINJURYor DEATH:
- ALWAYSca!la traineddoor systemstechnicianif garage
door binds,sticks, or is out ofbalance An unbalanced
garagedoor maynot reversewhenrequired
oNEVERtry to loosen,moveor adjustgaragedoor,door
springs,cables,pulleys,bracketsor their hardware,a!; of
which areunderEXTREMEtension
° DisableALL locksandremoveALL ropesconnectedto
garagedoor BEFOREinstallingand operatinggaragedoor
openerto avoidentanglement.
To preventdamageto garagedoor and opener:
•ALWAYSdisablelocksBEFOREinstallingand operating
theopener
• ONLYoperategaragedoor openerat!20V, 60 Hzto avoid
malfunctionanddamage
Sectional Door
One-Piece Door Tools needed
During assembly, installation and adjustment of the opener,
instructions will call for hand tools as illustrated below
Step Ladder
Level (optional) _ Penc_f
Tape Measure
Wire Cutters
Drill 3/16', 5ft 6"
_,_ and 5/32"
and 1/4"
Hack Saw
Screwdriver
Adjustable End Wrench

Planning
identify the type and height of your garage door Survey
your garage area to see if any of the conditions below
apply to your installation Additional materials may be
required You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with
the installation of your opener,r
Depending on your requirements, there are several
installation steps which may call for materials or hardware
not included in the carton_
o installation Step 1 - Look at the wall or ceiling above
the garage door° The header bracket must be securely
fastened to structural supports
* Installation Step 5 - Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required
-Installation Step 11 - Depending upon garage
construction, extension brackets or wood blocks may be
needed to instal! sensors
o installation Step 11 - Alternate floor mounting of the
safety reversing sensor will require hardware not
provided,
• Do you have an access door in addition to the garage
door? If not, Model 7702CB Emergency Key Release is
required See Accessories page
• Look at the garage door where it meets the floor Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 ram) Otherwise, the safety reversal
system may not work properly See Adjustment Step 3_
Floor or door should be repaired
SECTIONAL DOOR INSTALLATIONS
oDo you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforcement
is required (installation Step 12),
o The opener should be installed above the center of the
door, If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1_2m) to the left or right of the door
center See Installation Steps 1 and 12
•If your door is more than 7 feet (21 m) high, see rail
extension kits listed on Accessories page
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinlorcement
isneeded for ftghtwetght garage doors
(libergfass, steel, atuminum_ door with
glass panels, etc ) See page 24 for details,
Header Wall
OR
TorsionSpring
FINISHED CEILING
Support bracket &
fastening hardware
is required.
See page 16
Sensor
1 Vertica!
Centerline
o! Garage Door
Gap between floor
and bottom o! door
must not exceed 1/4" (6 mm)
Wallo
mounted
ODor
Conlrol
5
Safely
Reversing
Sensor
Access Door
O
eader
rail
arage
_or
H_ader
Bracket Trolley
Bolt
Garage
Door
Spring
CLOSED POSITION
Trolley
Belt
Emergency Release
Rope & Handle
Curved
Door
Arm
Bracket

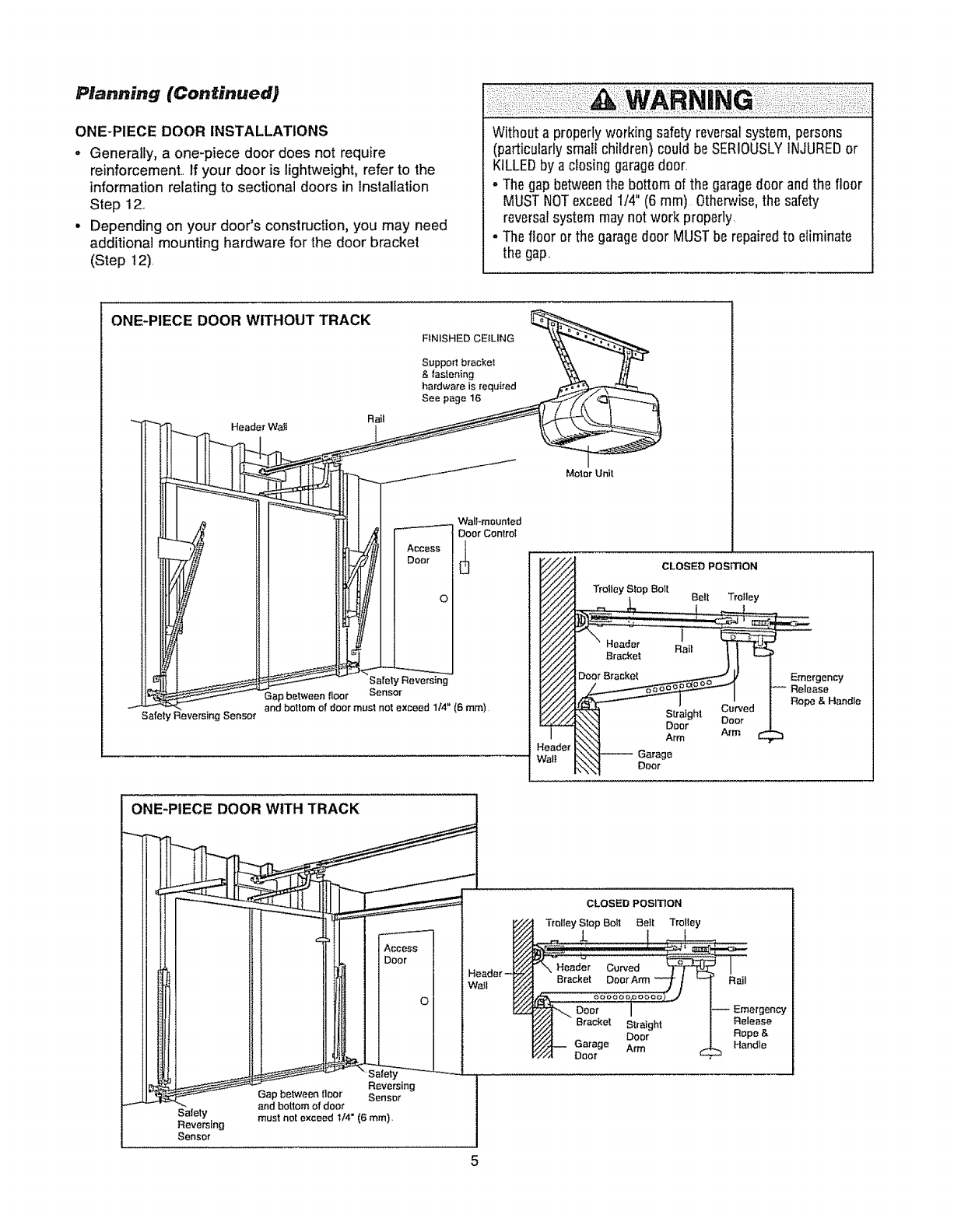

Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
-Generally, aone-piece door does not require
reinforcement.. If your door is lightweight, refer to the
informationrelating to sectional doors in installation
Step 12..
•Depending on your door's construction, you may need
additional mounting hardware for the door bracket
(Step !2)
Withouta properlyworkingsafetyreversalsystem,persons
(particularlysmaIEchildren)couldbe SERIOUSLYINJUREDor
KILLEDbya closinggaragedoor.
- Thegapbetweenthebottom of thegaragedoor and thefloor
MUSTNOTexceed1/4" (6 ram) Otherwise,the safety
reversalsystemmay notwork properly.
oThefloor orthe garagedoor MUSTbe repairedto eliminate
thegap.
ONE-PIECE DOOR WITHOUT TRACK FINISHED CEILING
SupporZ brackel
& fastening
hardware is required
See page 16
Rall
_'_ -_ Header WatI
,_.,___.__,_ WalFmeunted
Door Control
Access _]
IIII
"Safety Reversing
between floe Sensor
ap
and bottom o! doer must not exceed 1I4" (6 ram)
Safety Reversing Seoso_
Motar Unit
ONE-PIECE DOOR WITH TRACK
O
Reversing '**j
Gap between floor Sensor
"- and bottom of door
Safety must not exceed !I4" (6 ram).
Reversing
Sensor
5
CLOSED POSITION
TrolIey Stop Bolt Belt Trolley
Rail
Door Emergency
Straight Release
Door Rope &
Garage Arm Handle
Door

Carton Inventory
Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below..Accessories will depend on the model purchased..
If anything is missing, carefully check the packing
material Parts may be stuck in the foam. Hardware for
assembly and installation is shown on the next page..
Save the carton and packing material until installation
and adjustment is complete..
SECURITY÷ _
3-Sutton Remote Control (2)
Trolley
Battery
2*Conductor Be!_Wire
White & While/Red
Motion Detecting
Control Console
Motor Unit with 2 Ught Lenses
Belt
Rail
Front (header)
Section
Parking Assfst
(Model WD962KLD
only)
Rail
Center/Back
Sections
Belt Cap Retainer
Safety Sensor
Bracket (2)
Hanging Brackets
The Protector System"
(2) Safety Reversing Sensors
(I Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire alfached
SECURITY÷ _
Keyleas Entry
Heeder Bracket
CurvedDoor
Arm Section
Safety Labels
and
Uterature
Door Bracket
Straight Door
Arm Section

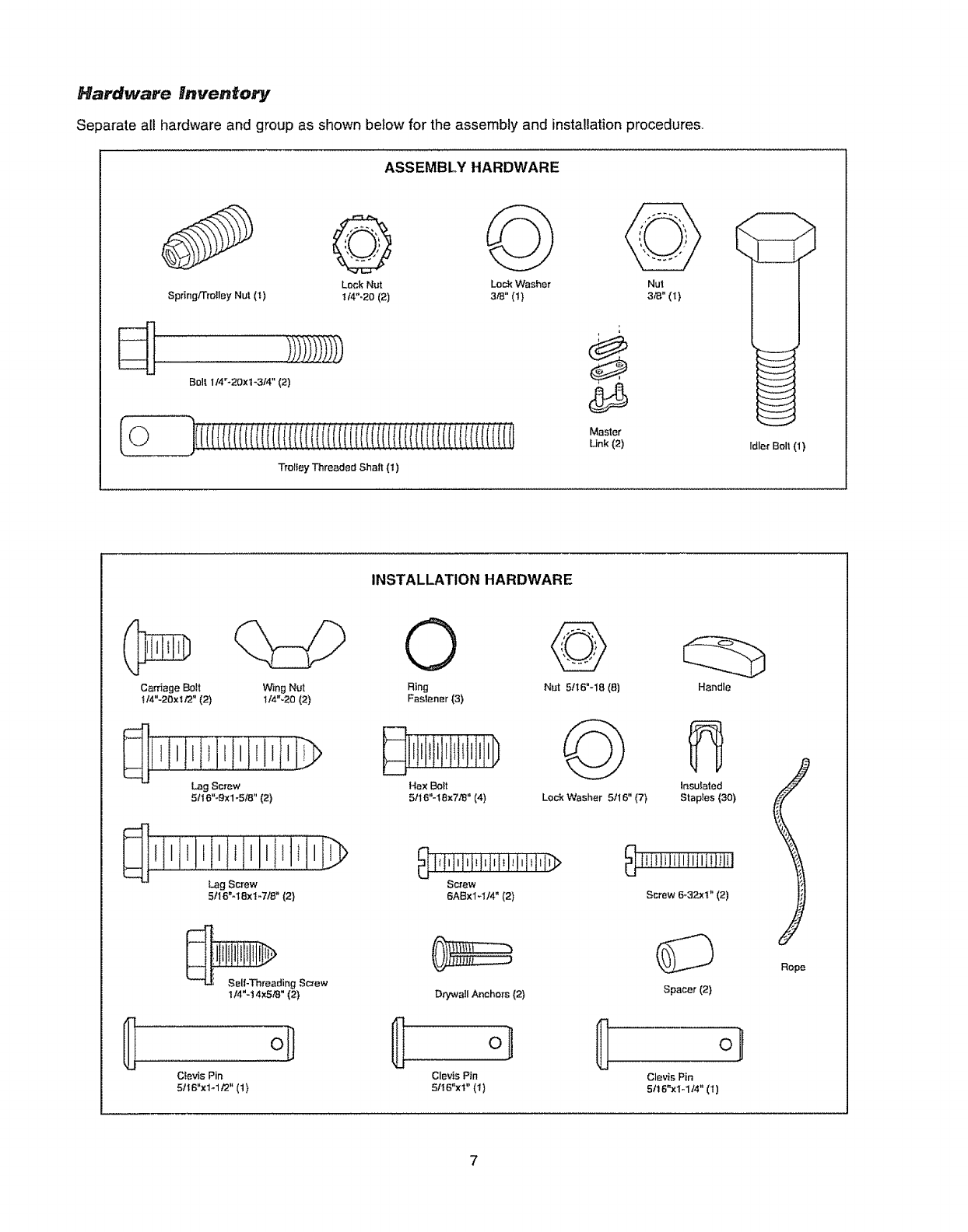

Hardware Invenftoty
Separate all hardware and group as shown below for the assembly and installationprocedures,,
ASSEMBLY HARDWARE
Lock Nut LockWasher
Springfrrotley Nut (t) !/4"-20 (2) 3/8" (1)
Bolt 114"-20xt-314" (2)
Nut
3/8" (I)
_(!'!Ii((!(!((Ii((Ii(((((((((((((Iii(iIii((i((illii(((((iiiiiii_
Troltey Threaded Shaft (t)
Master
Link (2) Idiot Bol! (1)
INSTALLATION HARDWARE
Carriage Beff
_/4"-20xt t'2" (2)
_"_IitIil!llii!Ii_
Lag Screw
5f16"_9x1-518" (2)
_l_I,Fr,iiiii]
5fl 6"-t 8xl-7/8" (2}
_ding Sc[ew
114"-94x5/8" (2)
©
Ring
Faslener (3)
Hex Beft
5/16"-18x7/8" (4)
Screw
6ABx1_l/4" (2)
Drywall Anchors (2)
©
Nut 5tt6"-18 (8)
C_evis Pin Clevis Pin
5116"xl-1 f2" (t) 51I6"xt" ('l)
LockWasher 5116" (7)
Handle
Insulated
Staples (30)
Spacer (2)
o,_
Clevis Pin
51t6"xl -1/4" (1}
Rope

ASSEMBLY STEP t
Assemble the Rail and Install the Trolley
To avoid installation difficulties, do not run the garage
door opener until instructed to do so.
The front rail has a cut out "window" at the door end (see
illustration). The hole above this window is larger on
the top of the rail than on the bottom.. A smaller hole
3-1/2" (8.9 cm) away is close to the rail edge. Rotate the
back rail so it has a similar hole close to the opposite
edge, about 4-3/4" (!2 cm) from the far end.
1. Remove the straight door arm and hanging bracket
packaged inside the front rail and set aside for
Installation Step 5 and 12_NOTE: To prevent INJURY
while unpacking the rail carefully remove the straight
door arm stored within the rail section.,
2.Align the rail sections on a flat surface as shown and
slide the tapered ends intothe larger ones.,Tabs along
the side will lock into place.
TopreventINJURYfrom pinching,keephandsandfingers I
awayfrom thejointswhileassemblingthe rail. I
I
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top..
For convenience, put a support under the front end of
the rail..
4. As a temporary stop, insert a screwdriver into the hole
I0" (25 cm) from the front end of the rail, as shown..
5. Check to be sure there are 4 plastic wear pads inside
the inner trolley.. If they became loose during shipping,
check all packing material. Snap them back into position
as shown..
6 Slide the trolley assembly along the rail from the back
end to the screwdriver..
KEEP LARGER
HOLE ON TOP
End
Trolley
lack Rails
(TO MOTOR UNIT)
End
8

ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
* Insert a 1/4"-20xl-3/4 bolt into the cover protection bolt
hole on the back end of the rail as shown Tighten
securely with a 1/4"-20 lock nut. Do not overtighten.
o Remove the two bolts from the top of the motor uniL
, Place the "U" bracket, fiat side down, on the motor unit
and align the bracket holes with the bolt holes Fasten
with the previously removed bolts.
° Align the rai! assembly with the top of the motor unit..
Slide the rail end onto the "U"bracket, all the way to the
stops that protrude on the top and sides of the bracket,
ToavoidsERIOus damageto garagedoor opener,useONLY
those bets/fastenersmountedin the top ofthe opener..
"U" Bracket
Boil
{ Cover
Motor Unit
Belt Pulley
/
HARDWARE SHOWN ACTUAL SIZE
Bolt I14"-20xl-3!4" t/4"-20
SLIDE RAiLTO STOPS
ON TOP AND StDES
OF BRACKET
Loc_kNu!
ASSEMBLY STEP 3
install the Idler Pulley
oLay the belt beside the rail, as shown.. Grasp the end
with the hooked trolley connector and pass
approximately 12" (30 cm) of belt through the window,.
Keep the ribbed side toward the rail, and allow it to hang
until Assembly Step 5.
- Remove the tape from the idler pulley. The inside center
should be pre-greased If dry, regrease to ensure proper
operation,.
•Place the idler pulley into the window as shown..
• Insert the idler bolt from the top through the rail and
pulley° Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer iscompressed
- Rotate the pulley to be sure it spins freely.
•Insert a 1/4"-20xl-3/4 bolt intothe trolley stop hole in
the front of the rail as shown. Tighten securely with a
1/4"-20 lock nut
Bolt
Trolley
Grease Stop F_
_-- Inside Pulley
LockWasher _ Idler Pulley
_- Nut3,_" ,,,,,,_..
Y
Conneclor
Pulley 1
1
!
I_ Lock
Nut
Idler Boll
HARDWARE SHOWN ACTUAL SIZE
Boll 114"-20xt-3/4" Look Nut 1/4"-20 Nut 318" Lock Washer 3.,'8"

ASSEMBLY STEP 4
install the Belt and A_tach the Belt Cap
Retainer
1. Pull the belt around the idler pulley and toward the
trolley, The ribbed side must contact the pulley.,
2, Hook the trolley connector into the retaining slot on the
trolley as shown,
3, With the trolley against the screwdriver, dispense the
remainder of the belt along the rail Iength toward the
motor unit and around the belt pulley.,The belt pulley
teeth must engage the bell
4, Check to make sure the belt is not twisted and the
FLAT side of the trolley threaded shaft is facing the
rail,,Connect the trolley threaded shaft with the master
link, as illustrated:
• Push pins of master link bar through holes in end of
belt and trolley threaded shaft,,
o Push master link cap over pins and past pin notches.,
° Slide clip-on spring over cap and onto pin notches
until both pins are securely locked in place,
5. insert the trolley threaded shaft through the hole in the
trolley,, Be sure the belt is not twisted and the FLAT
side faces the rail,,
6. Hold the belt at the trolley shaft as you thread the
spring nut by hand onto the shaft until finger tight
against the trolley_ Do not use any tools,.
7. Remove the screwdriver.,
8, Position the belt cap retainer over the motor unit belt
pulley as shown and fasten to the mounting plate
with 8x3/8" hex screws provided,
Idler PulIey
ToavoidpossibleSERIOUSiNJURYto fingers from moving
garagedoor opener:
- ALWAYSkeephandclearofbelt pulleywhile
operatingopener,
• SecurelyattachbeltpulleycoverBEFOREoperating
HARDWARE SHOWN ACTUA L SIZE
Hax Screw 8x3,"8°
Springrrrolley Nut
Master Unk
C!tp-On Spdng
Master Unk Cap
Retaining
Slot
Trolley
Conneclor
Hole
Pin ._'_
Nolch 1
Trolley Master
Threaded Link Bar
Shaft
8x3tS" Hex Screws
TBell Cap
Relatner
Motor Unit
_./Bell Pulley
Mounling
10

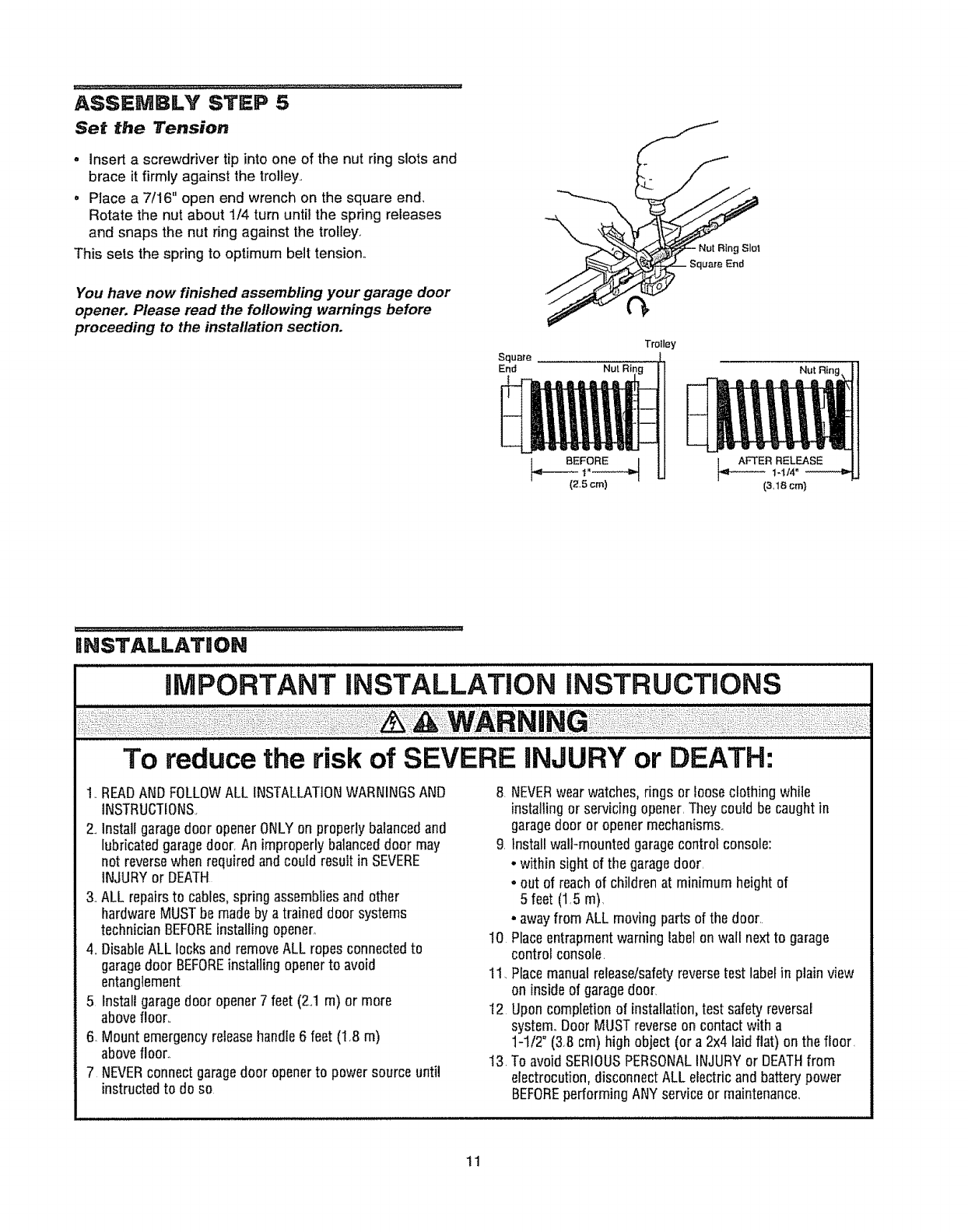

ASSEMBLY STEP 5
SeE the Tension
, Insert a screwdriver tip into one of the nut ring slots and
brace it firmly against the trolley.,
o Place a 7/16" open end wrench on the square end_
Rotate the nut about 1/4 turn until the spring releases
and snaps the nut ring against the trolley..
This sets the spring to optimum belt tension..
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the instaflation section.
Square
End Nut Rinc
J
Trolley
Nut Rin
INSTALLATllON
iMPORTANT iNSTALLATiON iNSTRUCTiONS
To reduce the risk of SEVERE iNJURY or DEATH:
1.,READANDFOLLOWALL INSTALLATIONWARNINGSAND
INSTRUCTIONS.,
2.,Installgaragedoor openerONLYon properlybalancedand
lubricatedgaragedoor, An improperlybalanceddoor may
not reversewhenrequiredandcould resultin SEVERE
INJURYor DEATH
3,,ALL repairsto cables,springassembliesandother
hardwareMUSTbe madebya traineddoor systems
technicianBEFOREinstallingopener.
4,,DisableALL locksand removeALL ropesconnectedto
garagedoor BEFOREinstallingopenerto avoid
entanglement
5 Installgaragedoor opener7 feet (2,,1m) or more
abovefloor,,
6. Mount emergencyreleasehandle6 feet (1,8 m)
abovefloor..
7 NEVERconnectgaragedoor openerto powersourceuntil
instructedto do so
8. NEVERwearwatches,rings or looseclothing white
installingor servicingopener,Theycouldbe caughtin
garagedoor or openermechanisms,,
9 Installwalt-mountedgaragecontrol console:
•within sight of thegaragedoor
•out of reachof childrenat minimum heightof
5 feet (1,5m)
•awayfrom ALL movingparts ofthe door
I0 Placeentrapmentwarninglabelon wall nextto garage
control console.
11_Placemanualrelease/safetyreversetestlabelin plainview
on insideof garagedoor,
I2 Uponcompletionof installation,test safetyreversal
system°DoorMUSTreverseon contactwith a
1-1/2" (3,8crn)high object (or a 2x4 laidflat) on thefloor.
t3. ToavoidSERIOUSPERSONALINJURYor DEATHfrom
electrocution,disconnectALL electricandbatterypower
BEFOREperforming ANYserviceor maintenance.
11

INSTALLATION STEP t
Determine the Header Bracket
Location
Topreventposs!bteSERIOUSINJURYor DEATH:
• HeaderbracketMUSTbeRIGIDLYfastenedto structural
supporton headerwall or ceiling, otherwisegaragedoor
might not reversewhenrequired DONOTinstall header
bracketoverdrywall.
- Concreteanchors MUSTbe usedif mounting headerbracket
or 2x4intomasonry.
• NEVERtry to loosen,move or adjustgaragedoor, springs,
cables,pulleys,brackets,or their hardware,affof whichare
underEXTREMEtension.
• ALWAYScai]a traineddoor systemstechnicianif garage
door binds,sticks, or is out ofbalance.An unbalanced
garagedoor might not reversewhenrequired
Installation procedures vary according to garage door
types..Follow the instructions which apply to your door..
1..Close the door and mark the inside vertical centertine of
the garage door,
2 Extend the line onto the header wall above the door..
You can fasten the header bracket within 4 feet (1.22
m) of the left or right of the door center only if a
torsion spring or center beating plate is in the way;
or you can attach it to the ceiling (see page t3)
when clearance is minimal. (It may be mounted on
the wall upside down if necessary, to gain
approximately 112"(1 cm)).
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page t3
3.Open your door to the highest point of travel as shown.,
Draw an intersecting horizontal line on the header wall
above the high point:
,, 2" {5 cm) above the high point for sectional door and
one-piece door with track..
• 8" (20 cm) above the high point for one-piece door
without track°
This height will provide travet clearance for the top edge
of the door°
NOTE: if the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page I3 for ceiling installation,.
Header Wall
CEILING
MOUNT
FOR
HEADER
BRACKET
Verticaf Centertine
of Garage Door
2x4 Structural
Supports
Level
(optional)
Header Waif
;-_-'-'- 2"(Scm) Track
_Hilhelst Point
of Trave{
Door
Sectiona! door with curved track
Z
Header Wali Track
nl
One-piece door with horizontal track
_w_ _t _ _"(_0cm)
,;" ',' Highest
Door I_',,_ Highest I_"_ ,V" ,', Point
I._._ Point
_ _ O,T_'.svel Door-_-_._._;:" ',ii:°fTrave'
Hardware
_door without track: One-piece door without track:
jamb hardware pivot hardware
12

mNSTALLATBON STEP 2
Knstal# the Header Bracket
You can attach the header bracket either to the wall above
the garage door, or to the ceiling Follow the instructions
which wil! work best for your particular requirements., Do
not install the header bracket over drywall. If installing
into masonry, use concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
o Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).,
• Mark the vertical set of bracket holes..DrilI 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided,.
HARDWARE SHOWN ACTUAL SIZE
,t,]iiiiiif,>
Lag Screw
5/15"-9xt -5/8"
Header
-- Wall
2x4
Struclural
Support
t
Hodzontal
Une i .i j
T
Htghesl Point of
Garage Door Travel
Wall Mount
Optional
Mounting Holes
Vertical
Centerlina
eDOOr
Lag Screws
5/16"xgx1-5/'8"
Vertical
Centerline
of Garage Door
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centefline ontothe ceiling as shown,,
°Center the bracket on the vertical mark, no more than 6"
(15 cm) from the wall.,Make sure the arrow ispointing
away from the watl. The bracket can be mounted flush
against the ceiling when clearance is minimal
-Mark the side holes.,Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.,
Ceiling Mounting Hales
@
Fintshed Ce_ting
."""_ _ Vertical Centerftne
.. _" at Garage Door
Header "
Bracket __
6" (I5 cm) Maximum
-Header Wall -
Centerline
of Garage Door
13

Header Wall
•Header Bracket
Idler Pulley
mHSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you
may re-use the old header bracket with the two plastic
spacers included in the hardware bag, Place the spacers
inside the bracket on each side of the rail, as illustrated
• Position the opener on the garage floor below the
header bracket Use packing material as a protective
base NOTEE'.ff the door spring is in the way, you will
need helpo Have someone hold the opener securely on
a temporary support to allow the rail to clear the spring
• Position the rail bracket against the header bracket
= Align the bracket holes and join with a clevis pin
as shown
• Insert a ring fastener to secure_
Bracket
Existing
Header Bracket
0
G arage
Door
Spacer Mounting
Hole
OPTION WITH
SOME EXISTING
INSTALLATIONS
Opener Ca_on or
Suppo_
HARDWARE SHOWN ACTUAL SIZE
0
Cle_s Pin 5tt 6"xt-1/2 _ Ring Fastener
14

UHSTALLATaOH STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrate&
SECTIONAL DOOR OR ONE-PIECE DOOR
WITH TRACK
A 2x4 laid flat isconvenient for setting an ideal
door4o-rail distance,
-Remove foam packaging,
° Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tail enough,
•Open the door all the way and place a 2x4 laidfiat on
the top section beneath the rail.,
oIf the top section or panet hits the trolley when you raise
the door, pull down on the trolley release arm
to disconnect inner and outer sections Slide the outer
trolley toward the motor uniL The trolley can remain
disconnected until Installation Step 12 is completed.
_O__TtTtoltoy
Release Arm --_ l
ENGAGED RELEASED \__j
To preventdamageto garagedoor, restgaragedoor opener 1
ra on 2x4placedon top sectionofdoor,, I
Rai_ i
oor _oe4ml_c_r;CentdgmtOoudne_enrghinegh '
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door4o-raii distance.,
• Remove foam packaging.,
- Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
oOpen the door all the way and place a 2x4 on its side
on the top section of the door beneath the rail
• The top of the door should be level with the top of the
motor unit,,Do not position the opener more than
4" (10 cm) above this poinL
r-- i
BrackNeader
2x4 is used to determine
the correct mounting height
from ceiling
15

IHSTALLATIION STEP 5
Hang the Opener
Three representative installationsare shown Yours may
be differenL Hanging brackets should be angled
(Figure 1) to provide rigid support, On finished ceilings
(Figures 2 and 3), attach a sturdy metal bracket to
structural supports before installingthe opener..This
bracket and fastening hardware are not provided
1,,Measure the distance from each side of the motor unit
to the structural support..
2..Cut both pieces of the hanging bracket to
required lengths,
3 Drill 3/16" pilot holes in the structural supports..
4..Attach one end of each bracket to a support with 5/I6"-
18xl-7/8" lag screws.,
5.Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6,Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the dooO
7. Remove the 2x4_Operate the door manually, If the door
hits the rail, raise the header bracket,.
NOTE: DO NOT connect power to opener at this time_
HARDWARE SHOWN ACTUAL SiZE
Hex Bolt
5.tt 6"-18x7/8" Nut 5116"-18 Lock Washer 5/t6"
ToavoidpossibleSERIOUSINJURYfrom a falling garagedoor
opener,fastenit SECURELYto structuralsupports ofthe
garage.ConcreteanchorsMUSTbe usedif installingany
bracketsinto masonry.,
Boil
Lock Washer 5/16'
Nut 5/16"-t 8
Lag Screws
--" 5/! 6'-18xl-7/8"
FINISHED CEILING
Bolt 5116"- t8x7/8".
Lock Washer 5/16,t
Nut 5/16"_
Figure 2
Lag Screws
5/16"_18x1-7/8"
Bolt 5116"-t 8x718"
Lock Washer 5/18'
Nut 5It 6"-18
Bolt 5/16"-1 8x7/8"
Lock Washer 5/16'
_.::_': _ "RNISHED CEILING
" " _ -.(Not P_ovided)
Bolt 5/16"-18x718"
Lock Washer 5/16 _
Nut 5116"-18
Figure 3
16

BNSTALLATiON STEP 6
Insfall t_e Door Contro/J
Locate door control within sight of door, at a minimum
height of 5 feet (1,5 m) where small children cannot reach,
away from moving parts of door and door hardware.,
If installing into drywall, drill 5/32" holes and use the
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).,
1,Strip 7/t6" (11 ram) of insulation from one end of bell
wire and connect to the two screw terminals on back of
the door control by color: white wire to 2 and white/red
wire to the 1.,
2,Remove cover by gently prying at slot in top of the cover
with a small flat head screwdriver, Fasten with 6ABx1-
1/4" setf4apping screws (drywall installation) or 6-32xl"
machine screws (into gang box) as follows:
- install bottom screw, allowing 1/8" (3 mm) to protrude
above walt surface,
• Position bottom of the door control on screw head and
slide down to secure.. Adjust screw for snug fit.,
o Drill and install top screw with care to avoid cracking
plastic housing., Do not overtighten.
• Insert top tabs and snap on cover•
3,,(For standard installation only) Run bell wire up wall
and across ceiling to motor unit° Use insulated staples
to secure wire in several places. Do not pierce wire with
a staple, creating a short or open circuit,,
4. Strip 7/16" (11 mm) of insulation from end of bell wire,
Connect bell wire to the quick-connect terminalsas
follows: white to white and white/red to red..
5, Position the antenna wire as shown,,
6, Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent location
on inside of garage door,.
NOTE: DO NOT connect power and operate opener at
this time., The trolley will travel to the full open position but
will not return to the close position until the sensor beam is
connected and properly aligned,
To preventpossibleSERIOUSIr_lJURYor DEATHfrom
electrocution:
. DisconnectALLelectricandbatterypowerBEFORE
performingANYserviceor maintenance,
. ConnectONLYto 24 VOLTlowvoltagewires.,
To preventpossibleSERIOUSINJURYor DEATHfrom a cfosing
garagedoor:
° Installthe door controlwithin sight of garagedoor, outof
reachofchildrenata minimum heightof 5 feet (1.5 m), and
awayfromALL movingpads of door
.NEVERpermit childrento operateor playwith the door
controfpushbuttonsor remotecontrols.
- ActivatedoorONLYwhen itcanbeseendearly, is properly
adjusted,andthereareno obstructionsto door travel,
° ALWAYSkeepgaragedoor in sight untilcompletelyclosed..
NEVERpermitanyoneto crosspathof closing garagedoor.,
Outside Keylock Accessory Connections
To opener quick-connectterminals:white towhite; white/
red to red.,
HARDWARE SI-tOWN ACTUAL SiZE
(standard installation)
_ !i!l!illli*iiliHil
Screw 6_32x1"
(p_'e-wired) Drywall Anchors
Figure 1 Figure 2
STANDARD WALL MOUNT
To Replace PBE_WtRED 1NSTALLATION_
tnserl Top lI_
Tabs First _,[
Push Bar Cover Switch
Push Bar Cover_ _ Switch _,OFF
_Top
IF" \_1- Mounting
f - tJ] ,o,o
,_ _., Terminal
,,III Screws
Bet!lll_.,---__"_lII Bottom
w_,._ HMoOUnt,ng
(BACK VIEW)
Door Controi Connections
Strip wi_e 7tl 6" (t 1 ram)
To insert or release wi_o,
1screwdriver tip
i.................. /
17

UtNISTALLATilON STEP 7
Install the Battery Backup
-Make sure motor unit is unplugged.
• Using a Phillips head screwdriver, remove the battery
cover on the motor unit.,
•Partially insert battery into motor unit with terminals
facing out.
• Connect the red (+) and black (-) wires from motor unit
to corresponding terminals on battery.
• Replace battery cover.,
;:i;::ii :::i:::i _::b'::::¸ ....
ALWAYSwearprotectivegtovesand eyeprotectionwhen
changingthebatteryor working aroundthe battery
compartment.
Batten] Battery Cover
gNSTALLATIION STEP 8
Nnstali the Lights
• Press the release tabs on both sides of lens..Gently
rotate lens back and downward until the lens hinge is in
the fully open position.. Do not remove the lens..
• Install a 100 watt maximum light bulb in each socket.
Light bulb size should be A19, standard neck only.,The
lights wilt turn ON and remain lit for approximately
4-1/2 minutes when power is connected_ Then the lights
will turn OFF,.
° Reverse the procedure to close the lens.,
o Llse A19, standard neck garage door opener bulbs for
replacement,
NOTE: Use only standard light bulbs,. The use of short
neck or speciality light bulbs may overheat the endpanel
or light socket°
To preventpossibleOVERHEATINGof the endpanelor light
socket:
o DONOTuseshort neck or specialtylight bulbs,.
• DONOTusehalogenbulbs,,UseONLYincandescent,
To preventdamageto the opener:
• DONOTusebulbs largerthan IOOW.
• ONLYuseA19 sizebulbs
!oo Watt (Max)
Standard Light Bul_
/
Release Tab
I
1O0Walt (Max) Hinge
Standard Ught Bulb
18

mNSTALLATl!OH STEP 9
Attach the Emergency Release Rope
and Handle
• Thread one end of the rope through the hole in the top
of the red handle so "NOTICE" reads right side up as
shown. Secure with an overhand knot at least 1"
(2,,5cm) from the end of the rope to prevent slipping
° Thread the other end of the rope through the hole inthe
release arm of the outer trolley,,
° Adjust rope length so the handle is 6 feet (18 m) above
the floor.,Ensure that the rope and handle clear the tops
of all vehicles to avoid entanglemenL Secure with an
overhand knot,
NOTE: If it is necessary to cut the rope, heat seal the cut
end with a match or lighter to prevent unraveling,
To preventpossibleSERIOUSINJURYor DEATHfrom a falling
garagedoor:
•If possible,useemergencyreleasehandleto disengage
trolley ONLYwhengaragedoor is CLOSEDWeakor broken
springs or unbalanceddoor couldresult inan opendoor
falling rapidlyand/or unexpectedly,
° NEVERuseemergencyreleasehandleunlessgarage
doorwayis clearofpersonsand obstructions
° NEVERusehandleto pu_ldoor openor closed,,If ropeknot
becomesuntied,you couldfall,
Trolley
!,
Trol;ey
Release arm
Emergency -_ ,,,_ Overhand
Release HandJe ,_Kn ot
19

mNSTALLATmON STEP t{)
Elec*rical Requirements
To avoid installation difficulties, do not run the opener
at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third grounding
pin, This plug will only fit intoa grounding type outlet, If
the plug doesn't fit intothe outlet you have, contact a
qualified electrician to installthe proper outleL
TopreventpossibleSERIOUSINJURYor DEATHfrom
electrocutionor fire:
• DisconnectALL electricand batterypowerBEFORE
performingANYserviceor maintenance,
•Garagedoor installationandwiring MUSTbe in compliance
with ALL localelectricaland building codes
•NEVERusean extensioncord,2-wire adapter,or change
plug inanywayto makeit fit out]eL Besuretheopener
is grounded
PERMANF-NT WIRING
CONNECTION
If permanent wiring is required by your local code,
refer to the following procedure.
To make a permanent connection through the 7/8" (2 cm)
hole in the top of the motor unit:
,, Remove the motor unit cover screws and set the cover
aside.,
*Remove the attached 3-prong cord.
° Connect the black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on the
silver terminal; and the ground wire to the green ground
screw.,The opener must be grounded,
° Reinstall the cover,
To avoid installation difficulties, do not run the opener
at this time.
Ground Tab
Green
Ground S_ew
Ground Wire Wire
Black Wire
2O
