Chamberlain LiftMaster MH5011U User manual

Radio Receiver
Built on Board
315 MHz
Installation Date
MH 5011U
MHS 5011U
MGJ 5011U
MT 5011U
BMT 5011U
MJ 5011U
www.liftmaster.com
CONTACT INFORMATION
MEDIUM DUTY LOGIC
USER'S GUIDE

2
Congratulations on purchasing a quality, LiftMaster Medium Duty Commercial Door Operator. Your new operator is capable of operating
up to 12 cycles per hour or 50 cycles per day. It is equipped with a built in radio receiver that is compatible with our existing 315 MHz
product line as well as a Timer-to-Close (TTC) feature that can be enabled when LiftMaster Commercial Protector System®is installed
and aligned properly.
INTRODUCTION
DETERMINE THE WIRING TYPE
The functionality of this operator is based on the wiring type. The operator is shipped from the factory in standard C2 wiring type
(factory default). LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP) DEVICE IS REQUIRED.
NOTES:
• The LED on the logic board will blink once when in C2 and twice when in B2.
• The operator will automatically convert to B2 wiring when Monitored Entrapment Protection Device is installed. If the Monitored
Entrapment Protection Device is removed, the operator will go into a Restricted Close mode**. Turn power OFF and ON to reset wiring
type.
** Restricted close mode requires a constant pressure close command. The operator will begin closing after a 5 second delay and will
continue to close to the close limit switch. The operator will stop if the pressure to close is released before reaching the close limit.
BASIC PROGRAMMING
RECOMMENDED INSTALLATION: B2 WIRING TYPE WITH
MONITORED ENTRAPMENT PROTECTION DEVICE
• Momentary contact to open, close and stop.
• Open override that reverses when closing by any opening
device.
• Wiring for entrapment protection device to reverse.
NOTE: The operator will automatically convert to B2 wiring
when Monitored Entrapment Protection Device is installed. (See
accessories page for Monitored Entrapment Protection Devices.)
• Timer-to-Close (TTC) feature available.
Photoelectric Sensor
MONITORED ENTRAPMENT PROTECTION DEVICE
No Programming Required

3
Photoelectric Sensor
ALTERNATE INSTALLATION: C2 WIRING TYPE WITH MONITORED
ENTRAPMENT PROTECTION DEVICE
• Momentary contact to open and stop with constant pressure to
close.
• Open override that reverses when closing by any opening
device.
• Wiring for entrapment protection device to reverse.
NOTE: The operator will automatically convert to B2 wiring
when Monitored Entrapment Protection Device is installed. (See
accessories page for Monitored Entrapment ProtectionDevices.)
• Timer-to-Close (TTC) feature not available.
Press and hold the LEARN and CLOSE buttons until the LED
goes out (approximately 3 seconds).
MONITORED ENTRAPMENT PROTECTION DEVICE
To Program:
TTC
LED
AUX ANT
R27
L5
TP1 C20
C9
C29
R24
J2
C21
J4
K2
LT
P1
C32
U4
D7
D6
D5
D4
R25
U1
C31
D14
C18
014A1030
^^^^
D9
LEARN
1234567
LMEP1 LMEP2 INTRLKCOM STOP CLOSE OPEN
STOP CLOSE OPEN
AUXANT
Logic Board
Electrical Box
D14
LED
LEARN
12345 67
STOP CLOSE OPEN
ALTERNATE INSTALLATION: C2 WIRING TYPE WITHOUT
MONITORED ENTRAPMENT PROTECTION DEVICE
(FACTORY DEFAULT)
• Momentary contact to open and stop with constant pressure to
close.
• Open override that reverses when closing by any opening
device.
• Wiring for entrapment protection device to reverse.
NOTE: The operator will automatically convert to B2 wiring
when Monitored Entrapment Protection Device is installed.
(See accessories page for Monitored Entrapment Protection
Devices.)
• Timer-to-Close (TTC) feature not available.
NON-MONITORED ENTRAPMENT PROTECTION DEVICE
Sensing Edge
Remove any monitored entrapment protection devices.
Press and hold the LEARN and STOP buttons until LED goes
out (approximately 3 seconds).
Reset to FACTORY DEFAULT (C2) without Monitored Entrapment
Protection Device:
1
1
2
BASIC PROGRAMMING
DETERMINE THE WIRING TYPE
To Reset to B2 with Monitored Entrapment Protection Device:
Press and hold the LEARN and STOP buttons until the LED
goes out (approximately 3 seconds).
1

4
BASIC PROGRAMMING
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN

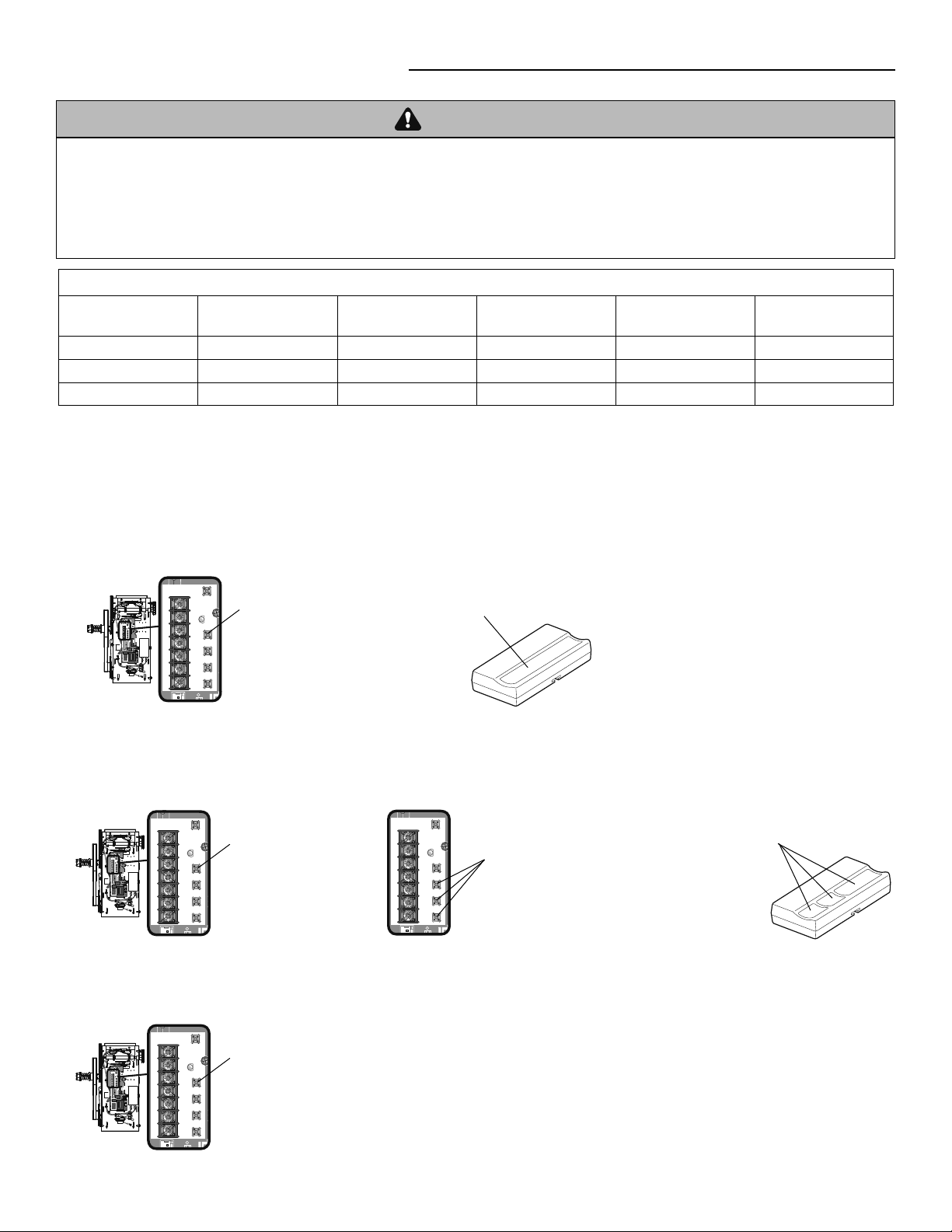

SINGLE BUTTON REMOTE CONTROL
1
Press and release
the LEARN button
(LED will light).
2
Repeat steps 1 and 2 for additional remote controls.
REMOTE CONTROLS
Built in 315 MHz radio receiver permits as many as 20 Security✚®remote controls or dip switch remote controls in any combination.
Press and hold the button on the remote control until the LED
flashes rapidly, then release to complete programming (LED
will go out).
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN
TO ERASE ALL REMOTE CONTROLS
1Press and hold the
LEARN button (over
5 seconds) until the
LED goes out. All
programmed remote
controls will be
erased.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN
3-BUTTON REMOTE CONTROL TO OPERATE AS A WIRELESS 3-BUTTON CONTROL STATION
NOTE: The feature will use 3 of the 20 memory channels in the operator.
123
Press and hold
the LEARN button
(LED will light).
Press the desired
button on the logic
board (OPEN,
CLOSE or STOP).
Release both
buttons.
Press and hold the desired button of the remote
control until LED flashes rapidly, then release.
Repeat steps 1 through 3 to program additional buttons.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
RADIO OPERATION
MODE OPEN CLOSE STOP REVERSE WHILE
CLOSING
TTC RESET
B2XXXX
B2 with TTC X X (3-button remote) X X X when open
C2 X X X
To prevent possible SEVERE INJURY or DEATH:
• Install a LiftMaster Monitored Entrapment Protection (LMEP)
device.
• NEVER permit children to operate or play with door control
push buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is properly
adjusted and there are no obstructions to door travel.
• ALWAYS keep door in sight until completely closed. NEVER
permit anyone to cross the path of closing door.

5
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN
Press and
release the
LEARN button
(LED will light).
BASIC PROGRAMMING
TIMER DEFEAT
The TTC can be temporarily disabled by pressing a STOP button. TTC will become enabled after the next open command.
123
CLEAR THE TIMER-TO-CLOSE (TTC)
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Press and hold
the TTC button
for 6 seconds.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Release the
TTC button
(LED will go
out). The TCC
will no longer
be active.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Press and
release the
TTC button.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN
Press and hold
the LEARN button
(LED will light).
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Every press and release
of the STOP button
will add 5 seconds to
the Timer-to-Close.
Example: 30 second
TTC = 6 presses of the
STOP button.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Press and release
the TTC button to
exit programming
mode. The LED
will flash once per
5 seconds of timer
setting.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Press and
release the
TTC button.
3
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
AUXANT
^^^^
AUXANT
AUXANT
D14
COMINTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1LMEP2
234567
STOP CLOSE OPEN
Press and
release the
LEARN button
(LED will light).

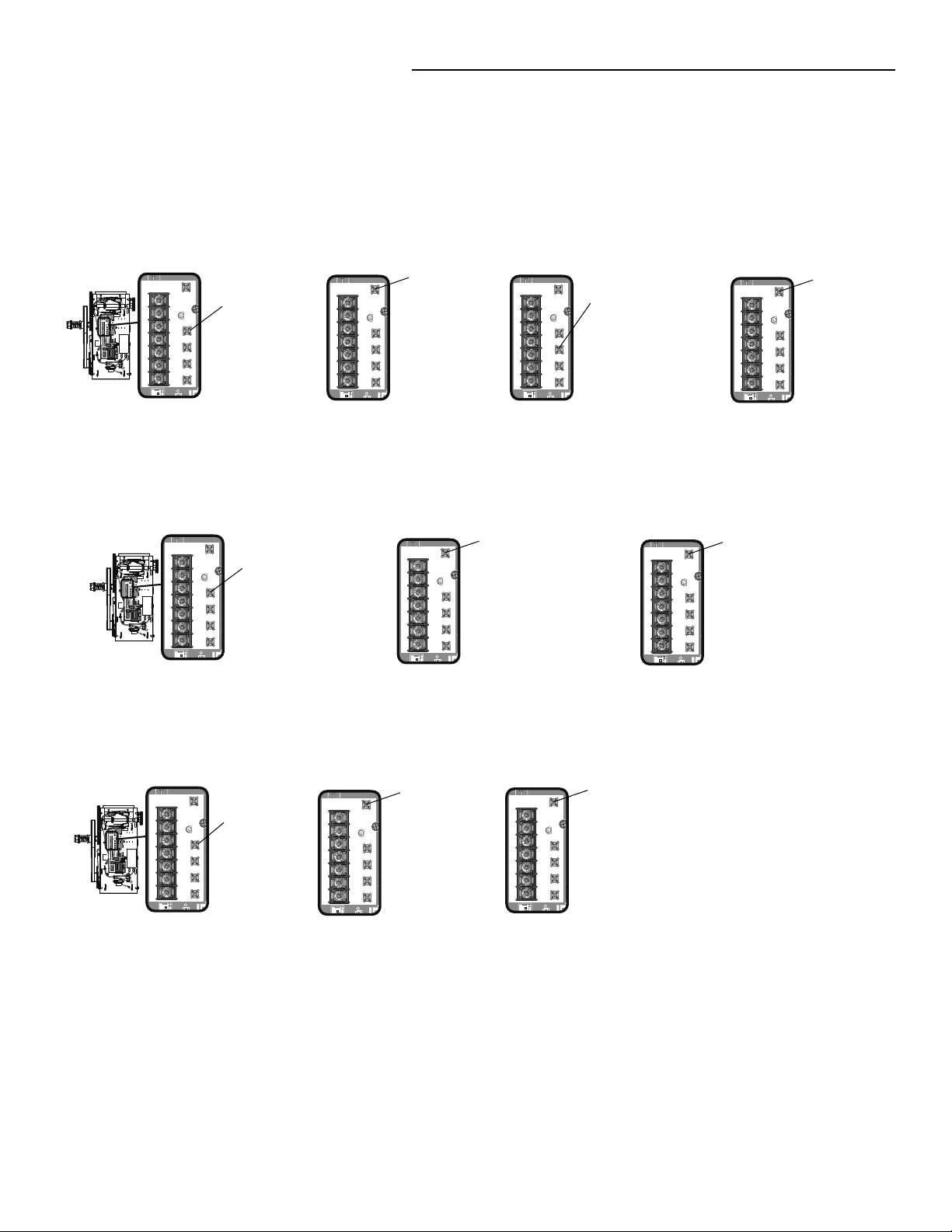

TIMER-TO-CLOSE (TTC)
TO PROGRAM
Begin with door in fully closed position.
Timer-to-Close feature enables the operator to close from the open limit after a preset time, adjustable from 5 to 60 seconds. Requires
LiftMaster Monitored Entrapment Protection (LMEP) device.
12 4
123
TO VERIFY TIMER-TO-CLOSE (TTC) SETTING
The TTC will become active after completion of the next open cycle. NOTE: The LED does not indicate that timer is running.
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
Press and release the TTC button a
second time. The LED will flash once
per 5 seconds of timer setting.

6
Requires B2 wiring type and compatible LiftMaster remote control.
In C2 wiring the remote control will open the door only.
Press remote control button.
Door should open. Allow the door to fully open.
Press remote control button.
Door should close. Allow door to fully close.
TESTING
Turn on power, LED will flash 4 times on power up. Test all controls and entrapment protection devices to make sure they are working
properly. It may be necessary to refer back to the Adjustment section for adjustment of the limits.
IMPORTANT NOTES:
• Do not leave power to the operator on unless all entrapment protection devices have been tested and are working properly.
• Be sure you have read and understand all safety instructions included in this manual.
• Be sure the owner or person(s) responsible for operation of the door have read and understand the safety instructions, know how to
electrically operate the door in a safe manner and how to manually disconnect the door from the operator.
Press OPEN button. (The door should move in the open
direction.)
Press STOP button. (The door should stop.)
Press CLOSE button. (The door should move in the close
direction.)
Release CLOSE button. Door should stop if in C2 mode.
(The door should continue closing if in B2 mode.)
Press STOP button. (The door should stop.)
1
2
3
TEST 3-BUTTON CONTROL STATION
4
5
Press OPEN button. (The door should open.)
Allow the door to fully open.
Press CLOSE button. (The door should close.)
Allow the door to fully close.
If the limits are not set properly, remove power and adjust limits
(refer to installation manual).
1
2
3
TEST LIMIT ADJUSTMENT
4
Open the door.

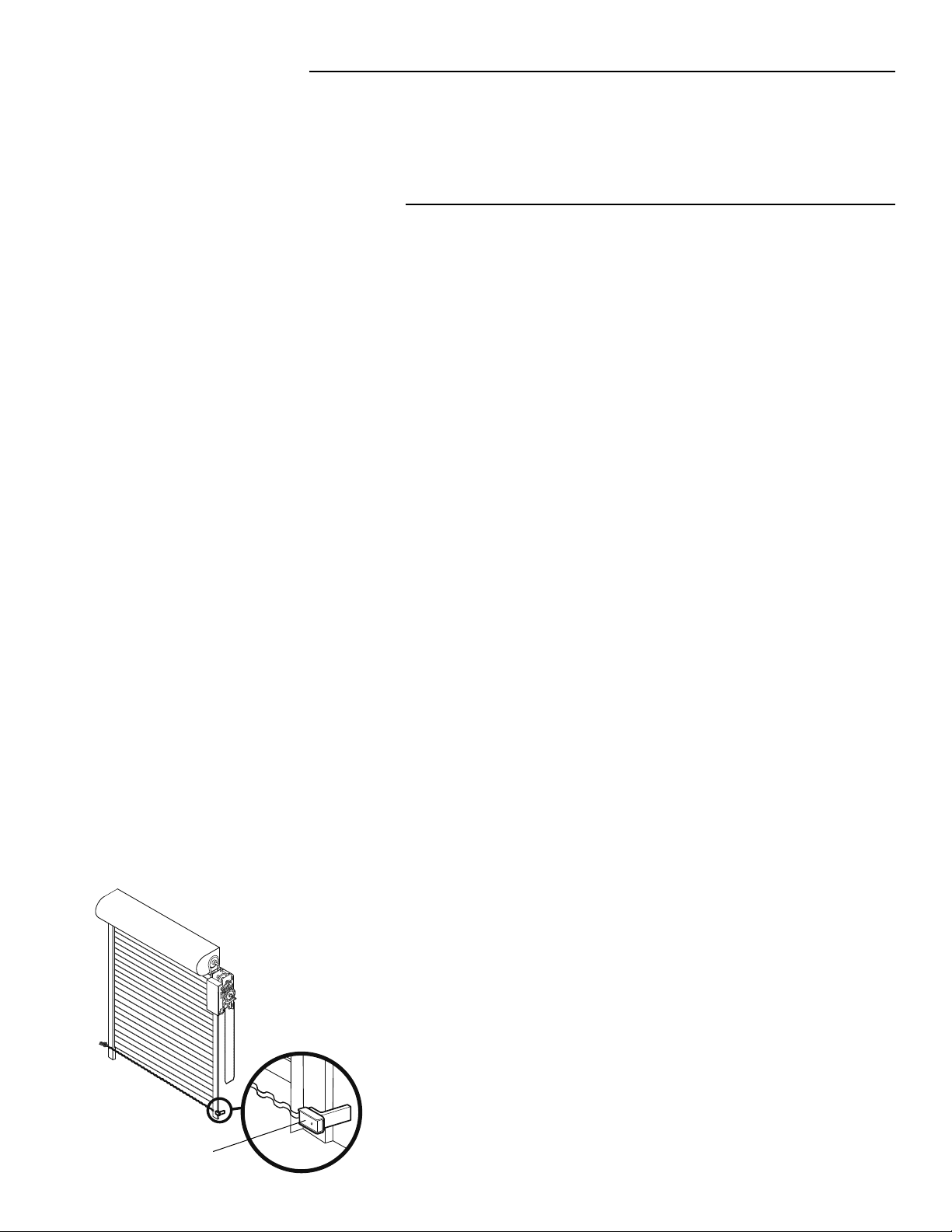

Place an obstruction in the path of the photoelectric sensors
or sensing edge.
Press the CLOSE button. The door should not close if
photoelectric sensors are installed. The door should close to
obstruction and reverse if sensing edge is installed.
Remove the obstruction.
Press CLOSE button. Door should close.
If door did not reverse from obstruction, check entrapment
protection devices.
1
2
3
TEST THE ENTRAPMENT PROTECTION DEVICES
4
5
TEST REMOTE CONTROL
1
2
3
4
To avoid SERIOUS personal INJURY or DEATH:
• Disconnect electric power BEFORE performing ANY
adjustments or maintenance.
• ALL maintenance MUST be performed by a trained door
systems technician.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA

7
The operators have provisions for manually operating the door in case of emergency or power failure. Refer to the appropriate
instructions for your model operator.
MODEL MT/BMT
EMERGENCY DISCONNECT
NO ECIT
Emergency
Disconnect
Door
Emergency
Release Handle
Emergency
Disconnect
Door Arm
Pull emergency release handle straight down. Emergency
disconnect will open.
Lift free end of door arm to trolley.
Pull emergency release handle to allow arm to engage roll
pin.
Let go of the emergency release handle. Emergency
disconnect will close.
TO DISCONNECT DOOR FROM OPERATOR
TO RECONNECT DOOR ARM TO TROLLEY
1
1
2
3
Emergency
Disconnect
Door Arm
To prevent possible SERIOUS INJURY or DEATH from a falling
door or arm:
• DO NOT stand under the door arm when pulling the emergency
release.
• If possible, use emergency release handle to disengage trolley
ONLY when door is CLOSED. Weak or broken springs or
unbalanced door could result in an open door falling rapidly
and/or unexpectedly.
• NEVER use emergency release handle unless doorway is clear
of persons and obstructions.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNINGWARNING
CAUTION
WARNING
WARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA

8

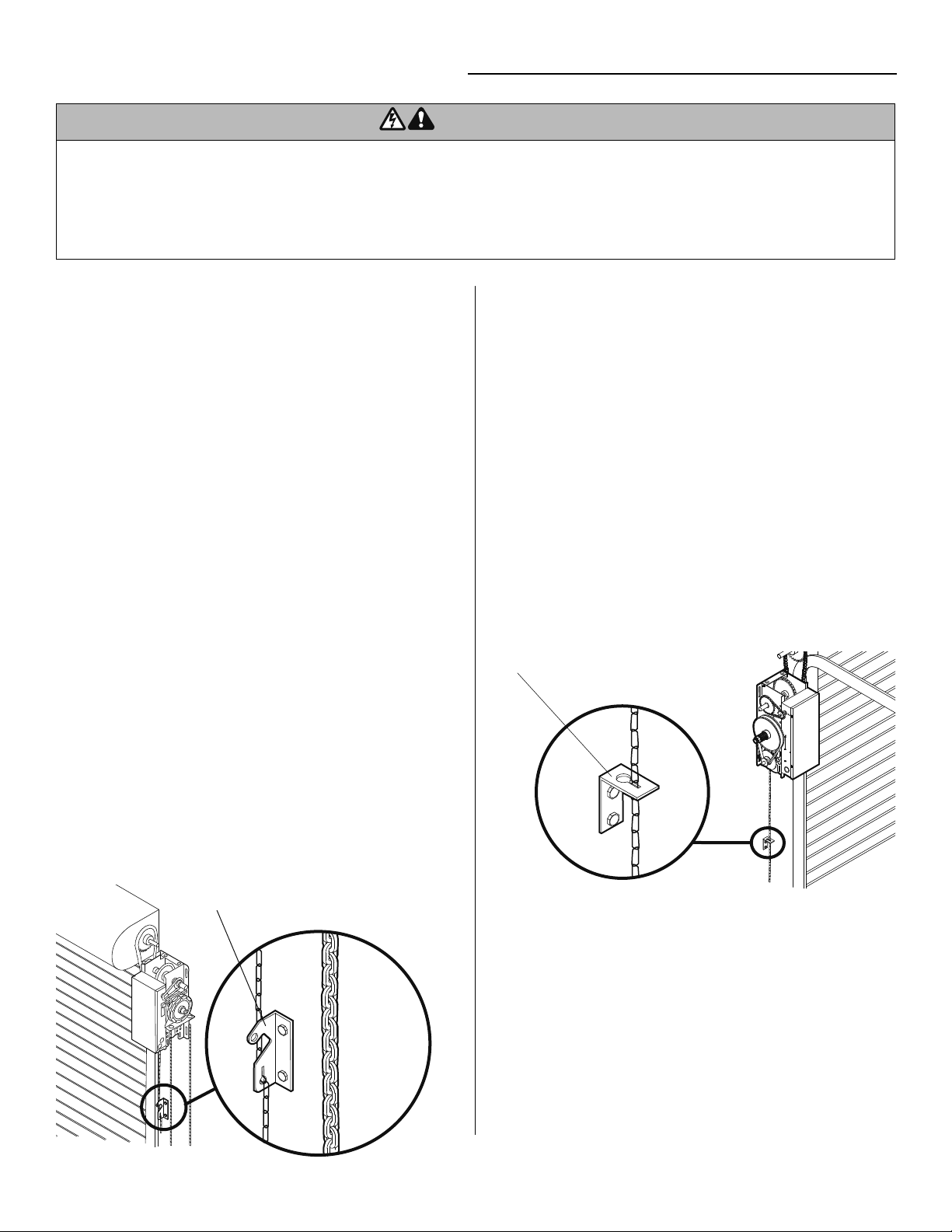

EMERGENCY DISCONNECT
MODEL MH
These operators are equipped with a manual hoist. An electrical
interlock will disable the electrical controls when the hoist is used.
Pull the disconnect chain (sash chain) to engage the hoist
mechanism. The disconnect chain may be locked in position
by slipping the end through the keyhole of the chain keeper
mounted on the wall.
Operate the door in the desired direction by pulling on one
side or the other of the continuous loop hoist chain.
The disconnect chain must be released from the chain keeper
before the door will operate again electrically.
1
2
3
ELECTRICAL INTERLOCK WITH HOIST FOR MODELS MH AND MHS
Chain Keeper
(with pad locking provisions)
MODEL MHS
The MHS operator includes both a floor level disconnect sash
chain to disconnect the door from the door operator that allows
manual push up operation and an additional sash chain to engage
the manual chain hoist that also electrically disables the operator
controls.
Refer to Model MH instructions for hoist operation.
Refer to Model MJ instructions for emergency operation.
When the manual chain hoist sash chain is engaged, electrical
operation will not function.
1
2
Keyhole Bracket
EMERGENCY DISCONNECT FOR MODELS MJ
MODELS MJ AND MGJ
This operator has a floor level disconnect chain to disconnect the
door from the door operator.
To disengage, pull the chain and secure in the disengaged
position by slipping the end through the keyhole bracket
mounted on the wall. Or if emergency egress device is used,
pull handle to disengage operator from door.
The door may now be pushed up or pulled down manually.
Release the disconnect chain or reset the emergency egress
device to operate the door again electrically.
1
2
3
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
To prevent possible SERIOUS INJURY from a moving chain:
• DISCONNECT electric power to the operator BEFORE manually
operating your door.
• If possible, use emergency disconnect ONLY when door is
CLOSED. Weak or broken springs or unbalanced door could
result in an open door falling rapidly and/or unexpectedly.
• NEVER use emergency disconnect unless doorway is clear of
persons and obstructions.

9
To locate a dealer in your area visit us online at www.liftmaster.com.
Every 3 months or 5,000 cycles repeat all tests in the Testing section.
Call qualified service contractor for maintenance. To locate a dealer in your area visit us online at www.liftmaster.com.
The operator should be serviced at the following intervals:
• Every 3 months or 5,000 cycles
• Every 6 months or 10,000 cycles
• Every 12 months or 20,000 cycles
TROUBLESHOOTING
MAINTENANCE SCHEDULE
To avoid SERIOUS personal INJURY or DEATH from
electrocution, disconnect ALL electric power BEFORE performing
ANY maintenance.
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNINGWARNING
PRECAUCIÓN ADVERTENCIA
ADVERTENCIAADVERTENCIA
CONDITION POSSIBLE CAUSE FIX
OPERATOR WILL NOT
RESPOND TO ANY
COMMANDS
No power ➤Check circuit breaker.
Accessory failure ➤Verify photoelectric sensors are aligned.
Possible component failure ➤Contact your installing dealer.
OPERATOR MAKES
NOISE BUT DOOR
DOES NOT MOVE
Operator requires adjustment ➤Contact your installing dealer.
DOOR DRIFTS AFTER
OPERATOR STOPS
Operator or door requires
adjustment ➤Contact your installing dealer.
DOOR OPENS/CLOSES
TOO FAR Operator requires adjustment ➤Contact your installing dealer.
DOOR REVERSES
UNEXPECTEDLY
Entrapment protection device
activated
➤Verify photoelectric sensors are aligned. If photoelectric sensors are
aligned and operator still does not operate properly, contact your
installing dealer.
RADIO FUNCTIONALITY
NO RESPONSE Remote control is not
programmed ➤See PROGRAMMING REMOTE CONTROLS section.
Low battery ➤Replace battery.
REMOTE CANNOT BE
PROGRAMMED Low battery ➤Replace battery.
POOR RANGE Low battery in remote ➤Replace battery.
Possible radio interference ➤Contact your installing dealer.

10
OPERATOR NOTES

11
M
MO OD DE EL L M MT T5 50 01 11 1U U/ /B BM MT T5 50 01 11 1U U
QUICK START
aglkdngdnadiakdn
alkndjandjan
adlknsa;fkn;d
agndan;djksna;dkjn
dgajndsandoai
langdlaknskdnoa
lknagdndjoang;
gksdjna;ogdnr
aglkna;gn;djkand
adgsndajgndoia
lajgdajngciosuhadoajdnald
dagjdl;abndjnbag;duhajbdnkajbn
agjdaghadsuabndkjbn
dsgakjbndsubhadsjbnakjdbn
kgjadkjbagudb
kdsjgbsAZdlsuabhdijbadub
^
^
OPEN
OPEN
CLOSE
CLOSE
O
STOP
STOP
CPS-EI
Monitored Sensing Edge Interface:
Requires 4-wire monitored sensing edge.
Medium Duty Angle Mounting Bracket:
Heavy-gauge steel bracket. May be welded.
For use with MJ, MGJ, and MH operators.
10-9095
Commercial Protector System:
LiftMaster Monitored Entrapment Protection
(LMEP) provides protection on doors up to 45'
wide. NEMA-4 rated.
CPS-UN4
OPEN
OPEN
CLOSE
Commercial Protector System:
LiftMaster Monitored Entrapment Protection
(LMEP) provides protection on doors up to
30' wide.
OPEN
OPEN
CLOSE
ENTRAPMENT PROTECTION DEVICES
OPEN
OPEN
CLOSE
Mounting Brackets:
Angle mounting bracket, Painted steel, for MJ,
MH, and MHS.
10-12360
MOUNTING BRACKETS
CPS-U
OPEN
OPEN
CLOSE
40-34141-1
LMEP2
LMEP1
E1
E2
E3
E4
CPS-EI
OPEN
OPEN
CLOSE
OPEN CLOSE
OPEN
OPENOPEN
CLOSECLOSE
373LM
WPB3LM3
371LM
WPB1LM3
3-Button SECURITY✚®Remote Control:
Includes visor clip.
Wireless 3 Button Control Station
SECURITY✚®:
Rugged composite housing. (Wireless controls
cannot be used in place of hard wired controls.)
1-Button SECURITY✚®Remote Control:
Includes visor clip.
Wireless Single Push Button Control
SECURITY✚®:
Rugged composite housing. (Wireless controls
cannot be used in place of hard wired controls.)
12
45
78
*
0
3
6
9
#
333LM
WKP5LM3 (5 4-digit entry codes)
WKP250LM3 (250 4-digit entry codes)
3-Button Tri-Colored Dip Switch Remote
Control:
Open/Close/Stop functionality. Includes visor
clip.
Wireless Access Control Keypads
SECURITY✚®:
Rugged composite housing. (Wireless controls
cannot be used in place of hard wired controls.)
2-Button Control Station:
Steel enclosure.
02-102
3-Button Control Station:
Steel enclosure.
02-103
Key Control Station:
Indoor flush mount, NEMA 1.
02-109
REMOTE CONTROLS 315 MHZ
CONTROL STATIONS
LiftMaster offers a variety of SECURITY✚®
Remote Controls for your application needs.
Single to 4-Button, visor or key chain. Contact
your authorized dealer.
Chain Tensioner:
For 1" shafts
71-6023
71-6125
Chain Tensioner:
For 1-1/2" shafts
For Jackshaft Type
Operators
ACCESSORIES
CHAIN TENSIONERS
65ME1234
Miller ME123 4-Wire Monitored Safety Edge:
For sectional or rolling doors.
65ME110
Miller ME110 4-Wire Monitored Safety Edge:
For rolling grilles and counter shutters.

© 2010, The Chamberlain Group, Inc.
All Rights Reserved
ACCESSORIES
FIELD MODIFICATION KITS
71MLSBC
Single Button Control:
Provides additional input for Single Button Control functionality.
Input functions as Close input when the operator is stopped at
the Open limit. Input functions as Open input at all other times.
Also used with external radio controls.
71 MLMOTION
Door-In-Motion:
Provides dry contact and a terminal block with contacts
switched to power an auxiliary device while the door is in
motion.
01-34006B

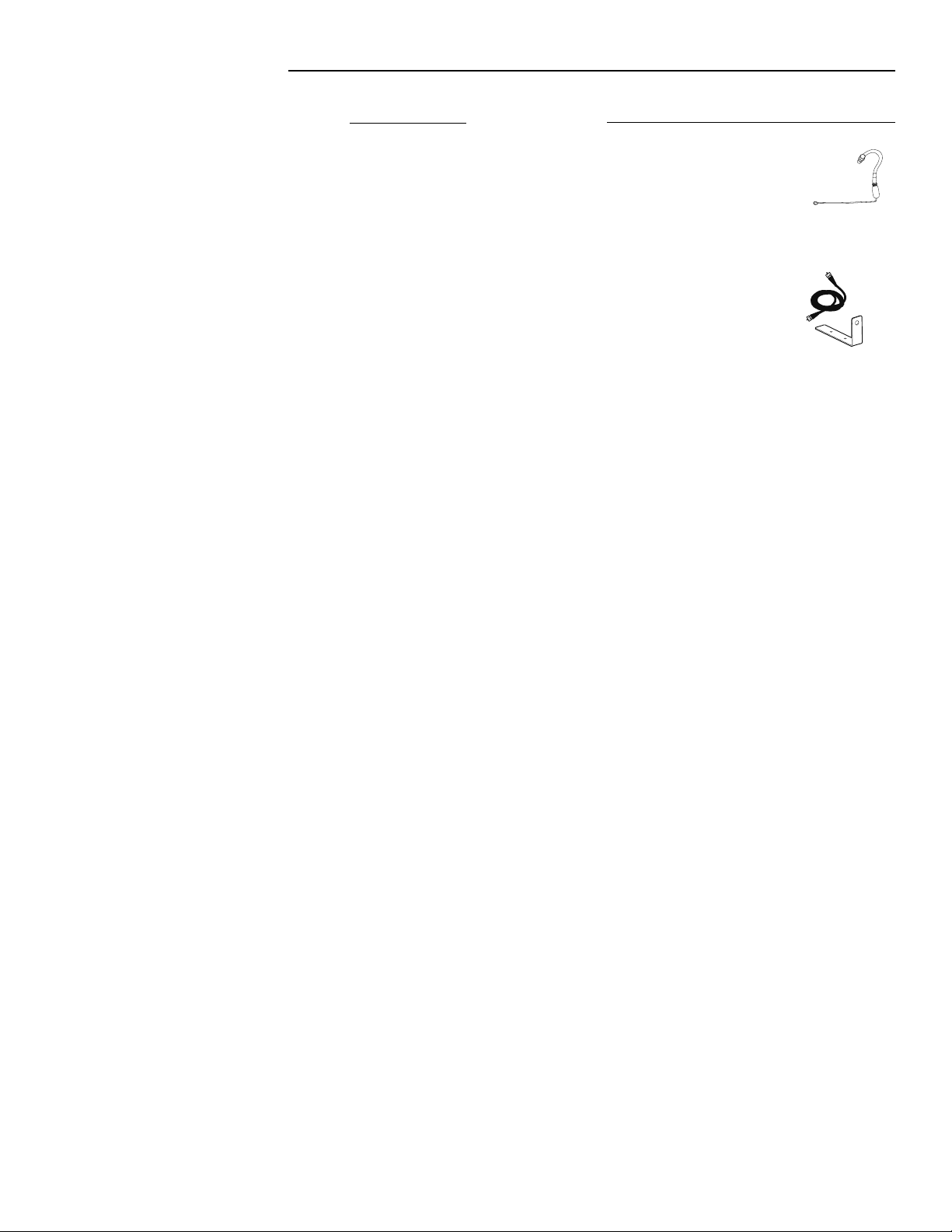

ANTENNA
EXT-ANT
Antenna:
External kit for medium duty.
OPEN
OPEN
CLOSE
86LM (15')
86LMT (25')
Antenna Extension Kit:
The antenna extension kit can be used with
EXT-ANT for maximum radio receiver range.
OPEN
OPEN
CLOSE
