Chamberlain MGJ User manual

OWNER'S MANUAL
MODEL
MGJ (S-Series)
INDUSTRIAL DUTY DOOR OPERATOR
FOR USE WITH SS90 FIRE DOOR CONTROLLER
NOT FOR RESIDENTIAL USE
LISTED DOOR OPERATOR
41B6
Serial #
(located on electrical box cover)
Installation Date
Wiring Type
2 YEAR WARRANTY

2
TABLE OF CONTENTS
HARDWARE PACKING LIST
Before beginning your installation check that all components were supplied and received undamaged. Refer to list below
for Factory Supplied parts.
Before attempting to install, operate or maintain the operator, you must read and fully understand this
manual and follow all safety instructions.
These instructions are intended to highlight certain safety related issues. These instructions are
not intended to be comprehensive. Because each application is unique, it is the responsibility of
the purchaser, designer, installer and end user to ensure that the total door system is safe for its
intended use.
PART #
01-18600
02-103-R
10-10463
19-41119MB
77-13709
QTY.
1
1
1
1
1
DESCRIPTION
OWNERS MANUAL, MGJ SSSI
REWORK, PBS, RED PAINT
KEY HOLE BRACKET
CHAIN #41X119 W/ MASTER
LABEL KIT MED DUTY
HARDWARE KIT MGJ SSSI (K77-18599)
OPERATOR SPECIFICATIONS
Hardware Packing List . . . . . . . . . . . . . . . . . . . . .2
Operator Specifications . . . . . . . . . . . . . . . . . . . .3
Operator Dimensions . . . . . . . . . . . . . . . . . . . . . .3
Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . .4
Handing Preparation . . . . . . . . . . . . . . . . . . . . . . .4
Operator Mounting
. . . . . . . . . . . . . . . . . . . . . . . . . .5 & 6
Entrapment Protection . . . . . . . . . . . . . . . . . . . . .7
Limit Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .7
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . .8
Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Single Phase Wiring Diagram . . . . . . . . . . . . . . . .10
Three Phase Wiring Diagram . . . . . . . . . . . . . . . .11
Replacement Parts Electrical Box . . . . . . . . . . . . .12
Electrical Box Diagram . . . . . . . . . . . . . . . . . . . . .13
Replacement Parts Frame . . . . . . . . . . . . . . . . . .14
Frame Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .15
Control Connections . . . . . . . . . . . . . . . . . . . . . . .16

3
MOTOR
TYPE: .................................Intermittent Duty
HORSEPOWER:.................1/2Hp 1 or 3 Phase
SPEED:...............................1050 RPM
VOLTAGE: ..........................115, 60HZ, 1Ph
230V, 60Hz, 3Ph
CURRENT: See motor nameplate
MECHANICAL
DRIVE REDUCTION:..............40:1 Reduction
(Heavy duty wormgear-in-oil-bath speed reducer)
OUTPUT SPROCKET: ..........Size #41
DOOR SPEED:.........1Ph, 23RPM
3Ph, 39RPM
BEARINGS: Heavy duty wormgear-in-oil-bath
speed reducer.
SAFETY
DISCONNECT :.......................Floor level disconnect for
emergency manual door operation.
REVERSING EDGE:...............(Optional) Electric
A REVERSING EDGE IS STRONGLY RECOMMENDED
FOR
ALL COMMERCIAL OPERATOR INSTALLATIONS.
REQUIRED WHENTHE 3 BUTTON CONTROL STATION
IS OUT OF SIGHT OF DOOR OR ANY OTHER CON-
TROL (AUTOMATIC OR MANUAL) IS USED.
SPECIFICATIONS
ELECTRICAL
TRANSFORMER:.............24VAC
CONTROL STATION:......NEMA 1 three button station.
OPEN/CLOSE/STOP
WIRING TYPE:.................B2-C2 (Factory Shipped)
LIMIT ADJUST:................Linear driven, fully adjustable
screw type cams. Adjustable to 24 feet.
7.50”
7.00” 11.00”
9.25”
10.50”
11.05”

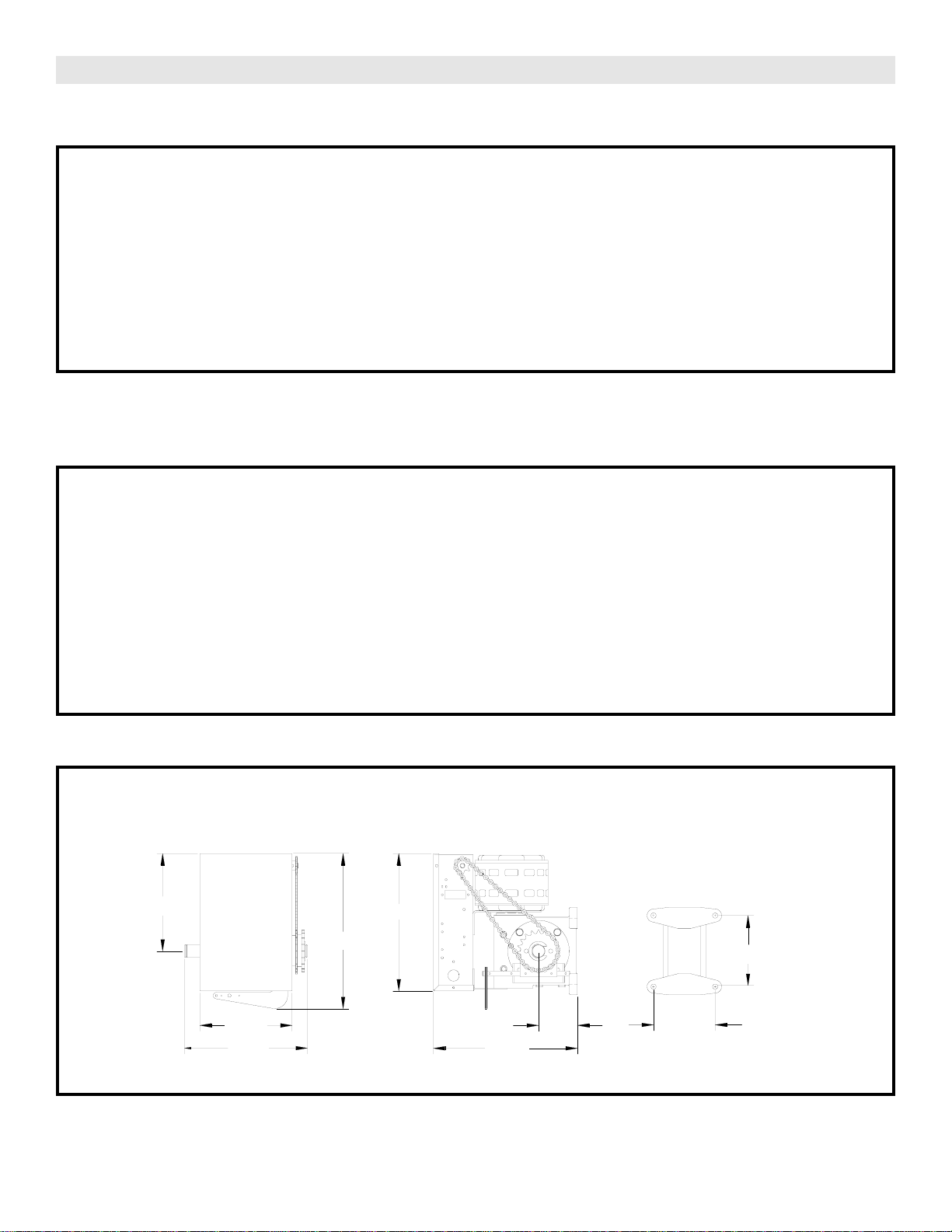

MOUNTING DIMENSIONS
3.00”
5.50”
4.75”
MGJ WEIGHTS AND DIMENSIONS
HANGING WEIGHT: .........80-110 LBS.

4
2-1/4"
FIGURE 1
Shaft Support Bracket
with Bearing (Not Supplied)
Door Sprocket
TO AVOID DAMAGE TO DOOR AND OPERATOR,
MAKE ALL DOOR LOCKS INOPERATIVE. SECURE
LOCK(S) IN "OPEN" POSITION.
IF THE DOOR LOCK NEEDS TO REMAIN FUNCTION-
AL, INSTALL AN INTERLOCK SWITCH.
DO NOT CONNECT ELECTRIC POWER UNTIL
INSTRUCTED TO DO SO.
KEEP DOOR BALANCED. STICKING OR BINDING
DOORS MUST BE REPAIRED. DOORS, DOOR
SPRINGS, CABLES, PULLEYS, BRACKETS AND
THEIR HARDWARE MAY BE UNDER EXTREME TEN-
SION AND CAN CAUSE SERIOUS PERSONAL
INJURY. CALL A PROFESSIONAL DOOR SERVICE-
MAN TO MOVE OR ADJUST DOOR SPRINGS OR
HARDWARE.
WARNING
CAUTION
CAUTION
WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
SITE PREPARATIONS
It is imperative that the wall or mounting surface provide
adequate support for the operator.
This surface must:
a) Be rigid to prevent play between operator and
door shaft.
b) Provide a level base.
c) Permit the operator to be fastened securely and
with the drive shaft parallel to the door shaft.
The safety and wear of the operator will be adversely
affected if any of the above requirements are not met.
For metal buildings, fasten 2” x 2” x 3/16” (or larger) angle
iron frames to the building purlins. For proper spacing,
retain .2.75” between. See Figure 1.
IMPORTANT SAFETY NOTES
2.75
Shipped from the factory for either left hand or right hand mounting.Refer to next to last digit in the model number for hand-
ing of your unit. If necessary, model MGJ may also be field modified to accommodate opposite handing. Refer to the con-
version instructions below and on page 5.
KEYS
SPRING
DISCONNECT
HUB
E RING
SPROCKET
YOKE
BRACKET
SHAFT
DISCONNECT
LEVER

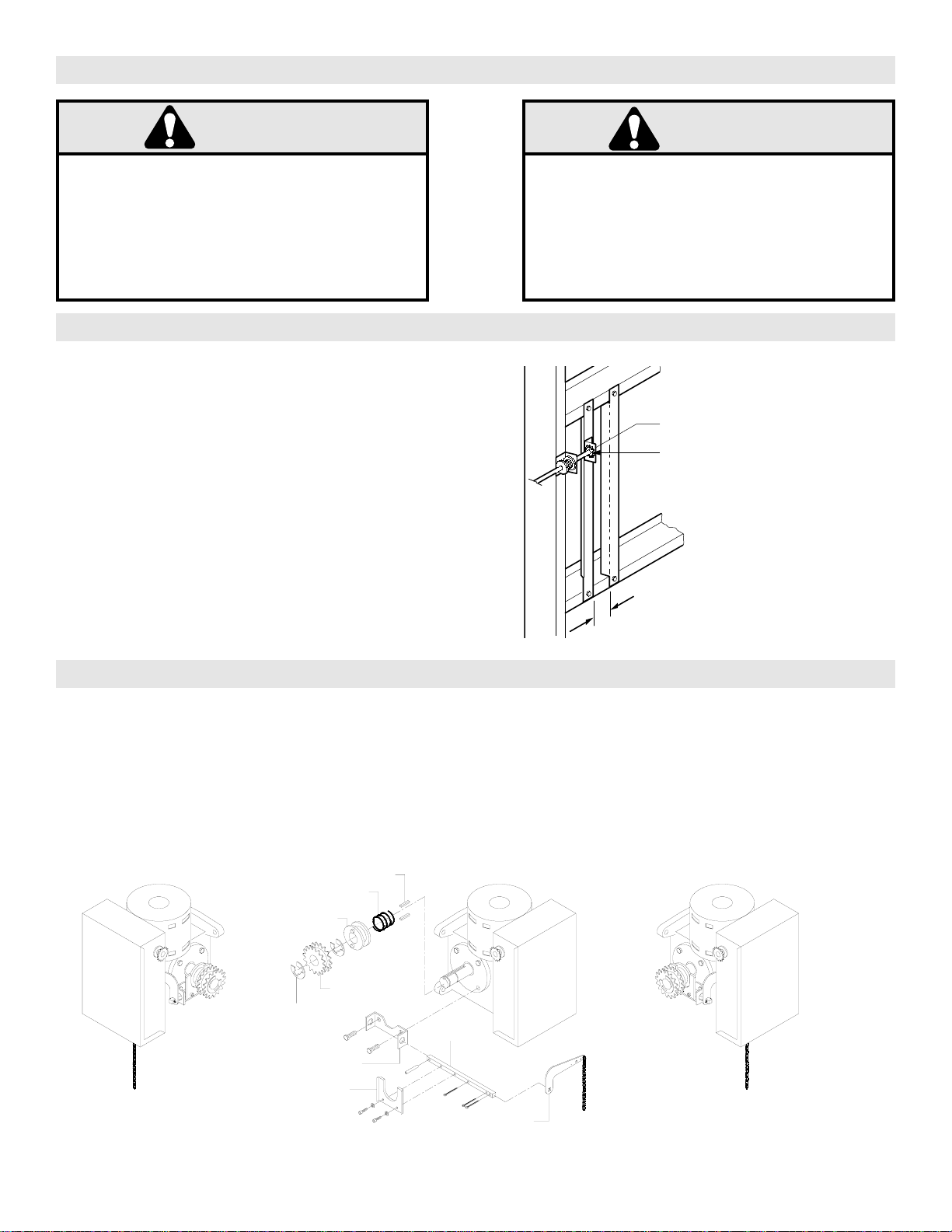

OPPOSITE HANDING PREPARATIONS
1. Remove Disconnect Assembly Components
Remove the master link from the limit chain, remove the
chain and set it aside.
Remove the two E Rings securing the sprocket on the
gear reducer shaft. Remove the screws securing the yoke
to the disconnect shaft, set the yoke aside.

5
1a.Wall Mounting
The operator should generally be installed below the door
shaft, and as close to the door as possible. The optimum
distance between the door shaft and operator drive shaft is
between 12” - 15”.Refer to Figure 3.
OPERATOR MOUNTING
IMPORTANT:The shelf or bracket must provide adequate
support, prevent play between operator and door shaft,
and permit operator to be fastened securely and with the
drive shaft parallel to the door shaft.
1b.Bracket or Shelf Mounting
The operator may be mounted either above or below the
door shaft. The optimum distance between the door shaft
and operator drive shaft is between 12” - 15”. Refer to
Figure 4.
1c.Place door sprocket on the door shaft. Do not insert the
key at this time.
2. Wrap drive chain around door sprocket and join roller
chain ends together with master link.
3.Raise operator to approximate mounting position and
position chain over operator sprocket.
4.Raise or lower operator until the chain is slightly taut
(not tight). Make sure the operator output shaft is paral-
lel to door shaft and sprockets are aligned. When in
position, secure the operator to wall or mounting brack-
et.
5.Align sprockets and secure, (see Figure 5).

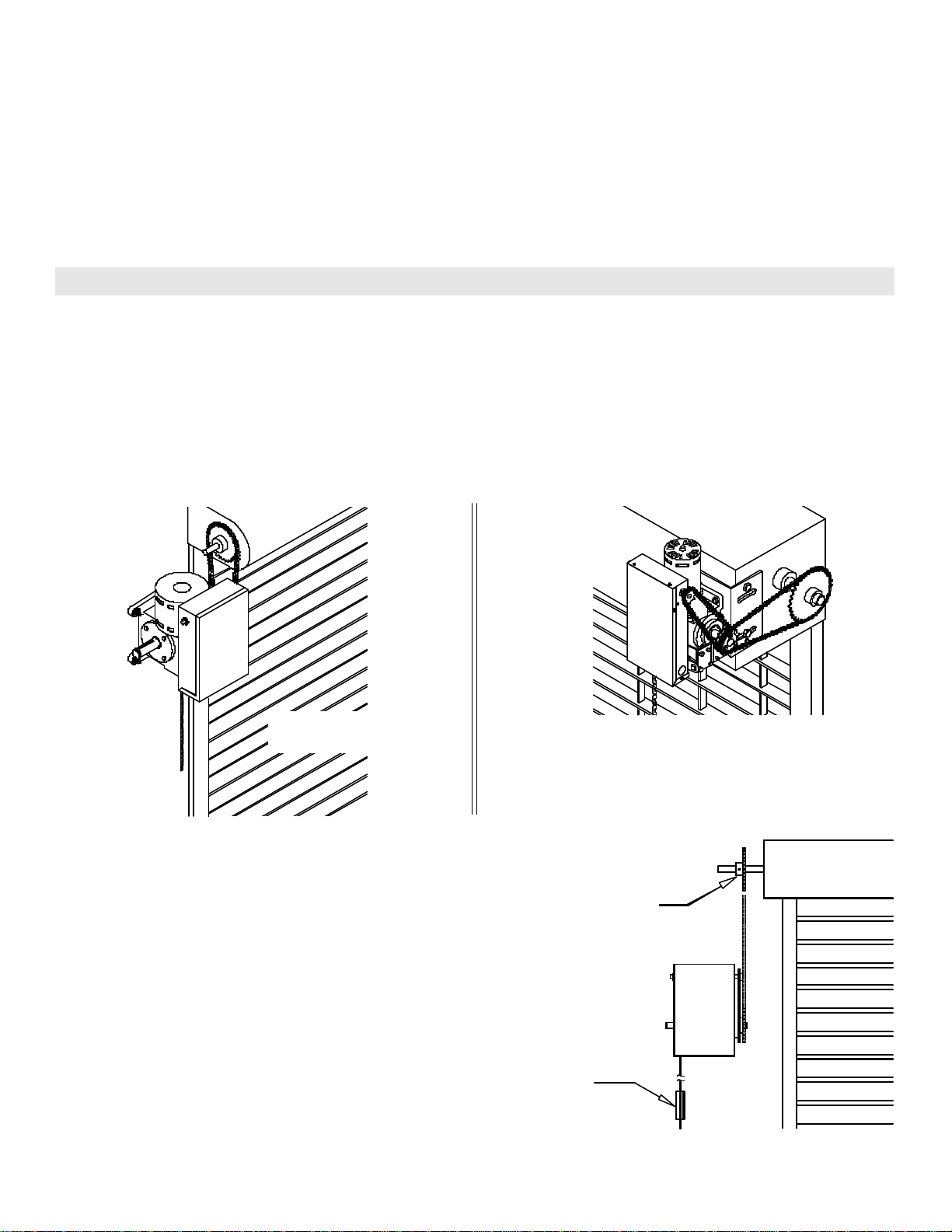

FIGURE 4
FIGURE 3
Before your operator is installed, be sure the door has been properly aligned and is working smoothly. The operator may
be wall mounted or mounted on a bracket or shelf. If necessary, refer to the operator preparations on page 3. Refer to the
illustration and instructions below that suits your application.
Typical Left Hand
Wall Mounted Operator
Be sure door
sprocket is properly
aligned with drive
before securing to
the shaft.
Chain Keeper
FIGURE 5
Remove the three cotter pins from the disconnect shaft.
Do not discard the pins. Slide the disconnect shaft out of
the support bracket. The release lever will now be free
inside the motor frame. Remove the release lever and
sash chain from the motor frame. Slide the disconnect
hub, compression spring, and flatwasher from the end of
the gear reducer shaft. Remove the disconnect support
bracket by first removing the the two gear reducer hous-
ing screws. Replace the screws in the gear reducer and
firmly tighten.
2. Re-assemble Disconnect Assembly
Remove the two screws on the opposite side of the gear
reducer and mount the disconnect support bracket with
the notched side facing the motor. For the remainder of
the installation, follow the steps outlined above in reverse
order, referring to the illustration as necessary.

6
EMERGENCY MANUAL OPERATION
This operator has a floor level disconnect chain to dis-
connect the door from the door operator allowing for
manual operation of the door in case of emergency or
power failure.
1. To disengage, pull the chain and secure in the disen-
gaged position by slipping the end through the keyhole
bracket mounted on the wall. Or if emergency egress
device is used, pull handle to disengage operator from
door.
2. The door may now be pushed up or pulled down
manually. Release the disconnect chain to operate the
door again electrically.

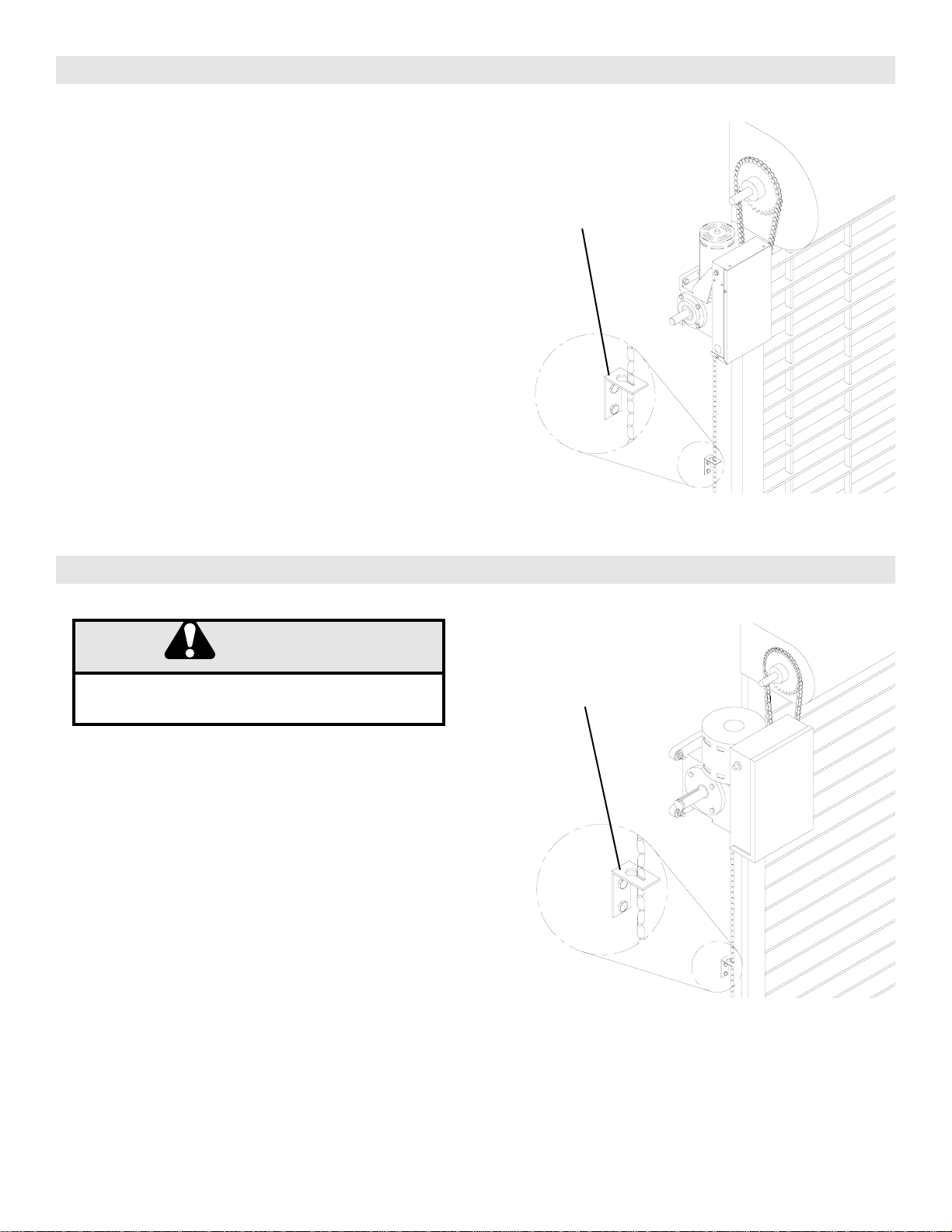

Keyhole Bracket
6. Mount Chain Keeper / Keyhole Bracket
Using suitable hardware mount the chain keeper
approximately 4 feet above the floor, near the free
hanging chain. Remove disconnect sash chain from
bag and place the end through the keyhole in the the
chain keeper. Remove excess links if necessary.
TURN OFF POWER TO THE OPERATOR BEFORE
MANUALLY OPERATING YOUR DOOR.
WARNING
CAUTION
CAUTION
WARNING
WARNING
Pull sash chain and secure
in bracket for manual oper-
ation of the door.
OPERATOR MOUNTING CONT’D

7
TO AVOID SERIOUS PERSONAL INJURY OR DEATH
FROM ELECTROCUTION, DISCONNECT ELECTRIC
POWER BEFORE MANUALLY MOVING LIMIT NUTS.
WARNING
CAUTION
WARNING
WARNING

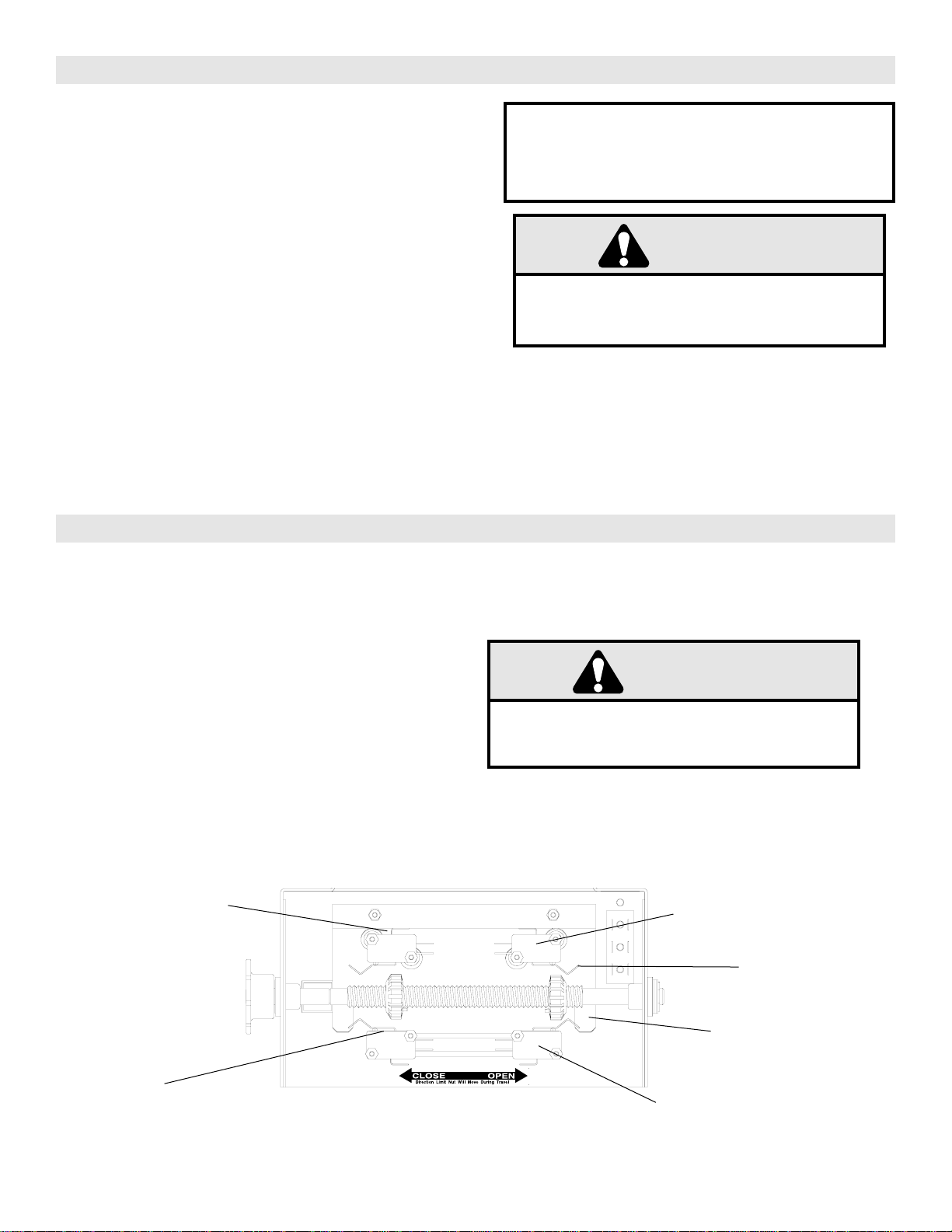

LIMIT SWITCH ADJUSTMENT
MAKE SURE THE LIMIT NUTS ARE POSITIONED BETWEEN THE LIMIT SWITCH ACTUATORS BEFORE PRO-
CEEDING WITH ADJUSTMENTS.
ELECTRIC SENSING EDGES
Electric sensing edges with an isolated normally open
(N.O.) output are compatible with your operator. If your
door does not have a bottom sensing edge and you wish
to purchase one, contact the supplier of your operator.
If not pre-installed by the door manufacturer, mount the
sensing edge on the door according to the instructions
provided with the edge. The sensing edge may be elec-
trically connected by either coiled cord or take-up reel.
Refer to the steps below
Important Notes:
a) Proceed with Limit Switch Adjustments before mak-
ing any sensing edge wiring connections to operator
as described below.
b) Electrician must hardwire the junction box to the
operator electrical box in accordance with local
codes.
ENTRAPMENT PROTECTION ACCESSORIES (OPTIONAL)
TAKE-UP REEL: Take-up reel should be installed 12"
above the top of the door.
COIL CORD: Connect operator end of coil cord to junc-
tion box (not supplied) fastened to the wall approximate-
ly halfway up the door opening.
Retaining Plate
CLOSE Limit Switch
SAFETY
(Aux. Close) Limit Switches
(1 Required for SS90 Input)
OPEN Limit Switch
1. To adjust limit nuts depress retaining plate to allow nut
to spin freely. After adjustment, release plate and
ensure it seats fully in slots of both nuts.
2. To increase door travel, spin nut away from actuator.
To decrease door travel, spin limit nut toward actua-
tor.
3. Adjust open limit nut so that door will stop in open
position with the bottom of the door even with top of
door opening.
4. Repeat Steps 1 and 2 for close cycle. Adjust close
limit nut so that actuator is engaged as door fully
seats at the floor.
Actuator
Aux. OPEN Limit Switches
(1 Required for SS90 Input)
AN ELECTRIC SENSING EDGE IS REQUIRED WHEN
USING THIS OPERATOR IN CONJUNCTION WITH
THE SS90 FIRE DOOR CONTROLLER.
WARNING
CAUTION
WARNING
WARNING
IT IS STRONGLY RECOMMENDED THAT A
SENSING EDGE OR OTHER ENTRAPMENT PRO-
TECTION DEVICE BE USED IN CONJUNCTION
WITH THIS OPERATOR.

8
✳✳Use SAE 30 Oil (Never use grease or silicone spray).
✔✔Repeat ALL procedures.
■■Do not lubricate motor. Motor bearings are rated for continuous operation.
■■Inspect and service whenever a malfunction is observed or suspected.
■■CAUTION: BEFORE SERVICING, ALWAYS DISCONNECT OPERATOR FROM POWER SUPPLY.
Check at the intervals listed in the following chart.
EVERY EVERY EVERY
ITEM PROCEDURE 3 MONTHS 6 MONTHS 12 MONTHS
Drive Chain Check for excessive slack.
Check & adjust as required.
Lubricate.* ●✔
Sprockets Check set screw tightness ●●✔✔
Fasteners Check & tighten as required ●●✔✔
Manual Disconnect Check & Operate ●●✔✔
Bearings & Shafts Check for wear & lubricate ●●✔✔
MAINTENANCE SCHEDULE
HOW TO ORDER REPAIR PARTS
& CUSTOMER SUPPORT
INSTALLATION AND SERVICE INFORMATION
ARE AVAILABLE 5 DAYS A WEEK
CALL OUR TOLL FREE NUMBER - 866-522-9007
HOURS 8:00 TO 5:00 p.m. Eastern Standard Time)
MONDAY Through FRIDAY

9
CONTROL WIRING
Standard C2 or B2 Wiring
Model MGJ operators are shipped from the factory with
jumper set for C2 wiring, which requires constant pres-
sure on button to close the door. If momentary contact
on close direction is desired (B2 wiring) you must include
an entrapment protection device. See close control
jumper setting below.
Constant pressure on close (C2 wiring)
Red jumper wire was placed on terminal #2 in the elec-
trical enclosure. The operator will require constant pres-
sure on close control in order to keep door moving in the
close direction.
Momentary contact on close (B2 wiring)
Move red jumper wire from terminal #2 to terminal #3.
The operator will require only momentary contact to
close the door.
LOCATING THE CONTROL STATION
All operators are supplied with some type of control station. Generally a three button station (OPEN/CLOSE/STOP) is pro-
vided.A two-position key switch or control station (OPEN/CLOSE) may be added or substituted when requested at the time
of order. Mount the control station near the door.
WARNING
CAUTION
WARNING
WARNING
INSTALL THE CONTROL STATION WHERE THE DOOR
IS VISIBLE, BUT AWAY FROM THE DOOR AND ITS
HARDWARE. IF CONTROL STATION CANNOT BE
INSTALLED WHERE DOOR IS VISIBLE, OR IF ANY
DEVICE OTHER THAN THE CONTROL STATION IS
USEDTO ACTIVATETHE DOOR,
A REVERSING EDGE
MUST BE INSTALLED ON THE BOTTOM OF THE
DOOR.
FAILURE TO INSTALL A REVERSING EDGE
UNDER THESE CIRCUMSTANCES MAY RESULT IN
SERIOUS INJURY OR DEATH TO PERSONS
TRAPPED BENEATH THE DOOR.
WARNING
TO PREVENT ENTRAPMENT
DO NOT START DOOR DOWNWARD
UNLESS DOORWAY IS CLEAR
OPEN
OPEN
CLOSE
CLOSE
STOP
Control Station
WARNING Notice
Push
Buttons
IMPORTANT: Mount WARNING NOTICE beside or
below the push button station.
MOUNT WARNING NOTICE
DETERMINE WIRING TYPE
Refer to the wiring diagram located on the inside cover the electrical box to determine the type of control wiring.
SPECIAL CONTROL WIRING
If your operator was shipped from the factory with non-
standard control wiring or with optional accessories that
require additional instructions, refer to the wiring dia-
gram(s) indicated in the special control wiring data box.
When a replacement wiring diagram is present, wiring
diagrams in this manual will not apply. Refer only to the
replacement wiring diagram for all connections.
MODEL MGJ

SINGLE PHASE SCHEMATIC DIAGRAM 1893
10
(OPTIONAL)
BIMETAL
CLOSE-A
RED AND YELLOW MOTOR WIRES.
* TO REVERSE MOTOR ROTATION INTERCHANGE
PULL SWITCH
OPEN & CLOSE
CLOSE
TO
SAFETY
EDGE
OPEN
BR
2
P
7
Y
10
GY
Y
AUX.
R1
BR
1
OR
GY
OPEN
AUX.
L/S
OPEN-B
BL
OR
12
BL C
(OPTIONAL 115V OPERATORS ONLY)
CLOSE L/S
BK
3STOP
L2
BK
BK
4
R
OPEN-A
W
C
CAPACITOR
Y
N.O.
100W
MAX.
W
LIGHT RELAY
C
SEC.
OPEN L.S.
CLOSE L/S
P
CL
OR
R
N.O. R
OR
OP
N.C. C
W
W
W
11
BR
L1
MOTOR *
R
Y
10VA.
PR1.
24VAC. Y/BK
W
O/L BK
A
B
W
WIRE NUT
R3
R2
N.C. C
Y
WIRE NUT
CLOSE-B
RES.
BL
Y
21
20
19
17 22
23
P
18
C2 WIRING - Constant Presssure to Close
RED WIRE ON TERMINAL #12 (Shipped from Factory)
B2 WIRING - Momentary Contact to Close
MOVE RED WIRE FROM TERMINAL #12 TO TERMINAL #2
*
CLOSE CONTROL WIRING OPTIONS
- Shipped from Factory
*
REMOVE JUMPER
TO CONNECT
SS90 FIRE DOOR
CONTROLLER
REMOVE JUMPER
TO CONNECT
SS90 FIRE DOOR
CONTROLLER

11
THREE PHASE SCHEMATIC DIAGRAM
4356
12
43
21
65
L3
L2
(GY)
(PUR)
(YEL)
EXTERNAL
STOP
345 T1
24VAC
SEC.
PRI.
AUX. CLOSE
LIMIT SWITCH
NC C
1
7
10
OPEN
SAFETY
EDGE
OPEN & CLOSE LIMIT SWITCH
AUX. OPEN
C
NO
NC
LIMIT SWITCH
NC C
TO MOTOR
POWER IN
L1
3 PHASE
INTERLOCK
OP
R1
OP
OP
CL
CL OP
CL
OP
14
13
(IN MOTOR)
R1
OPEN & CLOSE
R2
R1
OPEN
CLOSE 2
14
13
CL
CL LIMIT SWITCH
NC
CLOSE
C
R1
(BK)
(BK)
(BK)
(BRN)
(BR)
(YEL)
(OR) (OR) (OR) (OR)
(RED) (RED)
(OR)
(YEL)
(YEL)
(PUR)
(OR)
(PUR) (PUR)
(PUR)
(PUR)
(PUR)
R3 (RED)
(BRN)
(YEL)
(OR)
(OR)
(SEE NOTE #1)
(RED)
(GY) (GY)
RADIO TO
A1 A2
A2 A1
(YEL)
NUT
WIRE
(WHEN PRESENT)
230V BRAKE
2
3
YEL
BRN
BRN
PUR
GY 1
6
9
BL/BK
BL/BK
O/L
4
7
85
230 VOLT - 3 PHASE
MOTOR CONNECTION
*
NOTE:
1. Voltage same as line voltage.
(BK) (BK)
OVERLOAD
(RED)
C2 WIRING - Constant Presssure to Close
RED WIRE ON TERMINAL #2 (Shipped from Factory)
B2 WIRING - Momentary Contact to Close
MOVE RED WIRE FROM TERMINAL #2 TO TERMINAL #3
*
CLOSE CONTROL WIRING OPTIONS
- Shipped from Factory
*
19
20 21
17
22
23
18
REMOVE JUMPER
TO CONNECT
SS90 FIRE DOOR
CONTROLLER
REMOVE JUMPER
TO CONNECT
SS90 FIRE DOOR
CONTROLLER
1894

Below are replacement kits available for your operator. For replacement of electrical box, motor or brake components be
sure to match model number of your unit to kit number below to ensure proper voltage requirements. Optional modifica-
tions and/or accessories included with your operator may add or remove certain components from these lists. Please con-
sult a parts and service representative regarding availability of individual components of kits specified below. Refer to page
8 for all repair part ordering information.
12
REPLACEMENT PART KITS MGJ
NOTES:
1) Reversing Contactor (03-11112), Used only on three
phase operators. Single phase operators use relays.
2) Capacitor (29-10338), Capacitor Clamp (10-11421)
and Resistor (29-2) used only on single phase
operators.
Complete Electrical Box Replacement Kits
K-MGJ5011L Model MGJ5011LS
K-MGJ5023L Model MGJ5023LS
K-MGJ5011R Model MGJ5011RS
K-MGJ5023R Model MGJ5023RS
Electrical Box Sub-Assemblies
K72-12565 MGJ Limit Shaft Assembly
K75-18566 MGJ SSSI Limit Switch Assembly
Motor Kits
K20-1050C1M-R Model MGJ5011
K20-3050C4M-R Models MGJ5023
Disconnect Assembly Kit
K75-12567 Model MGJ Operators
COMPLETE ELECTRICAL BOX KITS
P/N
03-11112
10-11403-R
10-11420-R
10-11421
(See Var. Comp.)
24-24-1
29-10338
29-2
42-10040
42-110
42-112-2
40-18552
10-18552
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Qty
1
1
1
1
1
2
1
1
1
1
1
1
1
Description
Reversing Contactor (See Notes)
Electrical Box Cover
Electrical Box
Capacitor Clamp (See Notes)
Transformer
24V DPDT Relay
Capacitor, 7MFD (See Notes)
Resistor, 20 Ohm
Terminal Block Assy, 3 Lug
10 Position Terminal Block
12 Position Terminal Block
Auxiliary Block Marker
Bracket, Auxiliary Terminal Block
K72-12565 LIMIT SHAFT ASSEMBLY KIT
Item
L1
L2
L3
L4
L5
L6
L7
L8
Description
MGJ Limit Shaft
3/8” Bearing, Plastic Flange
Limit Nut
Sprocket, 48B07
Washer, Shim 3/8” I.D. x .01
Flatwasher, 3/8”
Roll Pin, 1/8” Dia. x 3/4” Long
E Ring, 3/8”
Qty
1
2
2
1
1
2
1
1
K75-18566 LIMIT SWITCH ASSEMBLY KIT
P/N
11-11373
12-10458
13-10024
15-48B07AXX
80-10026
85-FW-38
86-RP04-012
87-E-038
Item
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
Description
Depress Plate
Spring, Depress Plate
SPDT Limit Switch
Spacer, .115” ID x 5/8” Long
Screw, #6-32 x 1” Pan HD PH
Screw, #4-40 x 1-1/2” Pan HD PH
Nut, #6-32 Double Tinnerman
Locknut #6-32
Limit Switch, Double
Screw, #4-40 x 2” Pan HD PH
Qty
1
2
2
8
2
4
4
2
2
4
P/N
10-11419
18-10036
23-10041
31-13062
82-PX06-16
82-PX04-20
84-DT-06
84-LH-06
23-10041-1
82-PX04-24
VARIABLE COMPONENT KITS
P/N
21-5115
21-5230
Description
Transformer, 115V
Transformer, 230V
MGJ5011 MGJ5023
Item
5

13
MGJ ELECTRICAL BOX - ILLUSTRATED PARTS
6
6
8
5
S6
10
4
7
3
2
L4
L5
L2
L1
L3
L2
L6
L8
1
9
S9
S9
S4
S7
S5
S2
S8
S9
S10
S1
S3
S7
L3
L7
13
11
12

14
REPLACEMENT PART LISTS – MODEL MGJ
Refer to the parts lists below for replacement kits available for your operator. If optional modifications and/or accessories
are included with your operator, certain components may be added or removed from these lists. Individual components of
each kit may not be available. Please consult a parts and service representative regarding availability of individual com-
ponents. Refer to page 8 for all repair part ordering information.
K75-12567 DISCONNECT ASSEMBLY KIT
ITEM PART # DESCRIPTION
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
Disconnect Hub
Bevel Gear Yoke
Disconnect Support Bracket
Release Lever
Disconnect Shaft MGJ
Sprocket, 41B19 x 1.25 Bore
Compression Spring
12ft. Of Sash Chain
Disconnect Key 1/4 x 1/4 x 7/8
Washer, 1” I.D. x 1/16” Thick
Screw, #10-32 Hex Head Socket
#10 Lock Washer ZP
Cotter Pin, 1/8” x 1-3/4” Long
Roll Pin, 1/8” Dia. x 1” Long
E Ring, 1” Plated
1
1
1
1
1
1
1
1
2
1
2
2
4
1
2
07-11418
10-11023
10-11358
10-11394
11-11361
15-11377
18-10467
19-8A-12
80-11416
80-206-11
82-SH10-12
85-LS-10
86-CP04-112
86-RP04-100
87-E-100
INDIVIDUAL PARTS
ITEM PART # DESCRIPTION
1
2
3
4
5
Brake Mounting Plate
Front Bracket
Gear Reducer, 45:1
Electrical Box
Motor
1
1
1
1
1
10-11357
10-11359
32-11414-R
See Page 20
See Page 20

15

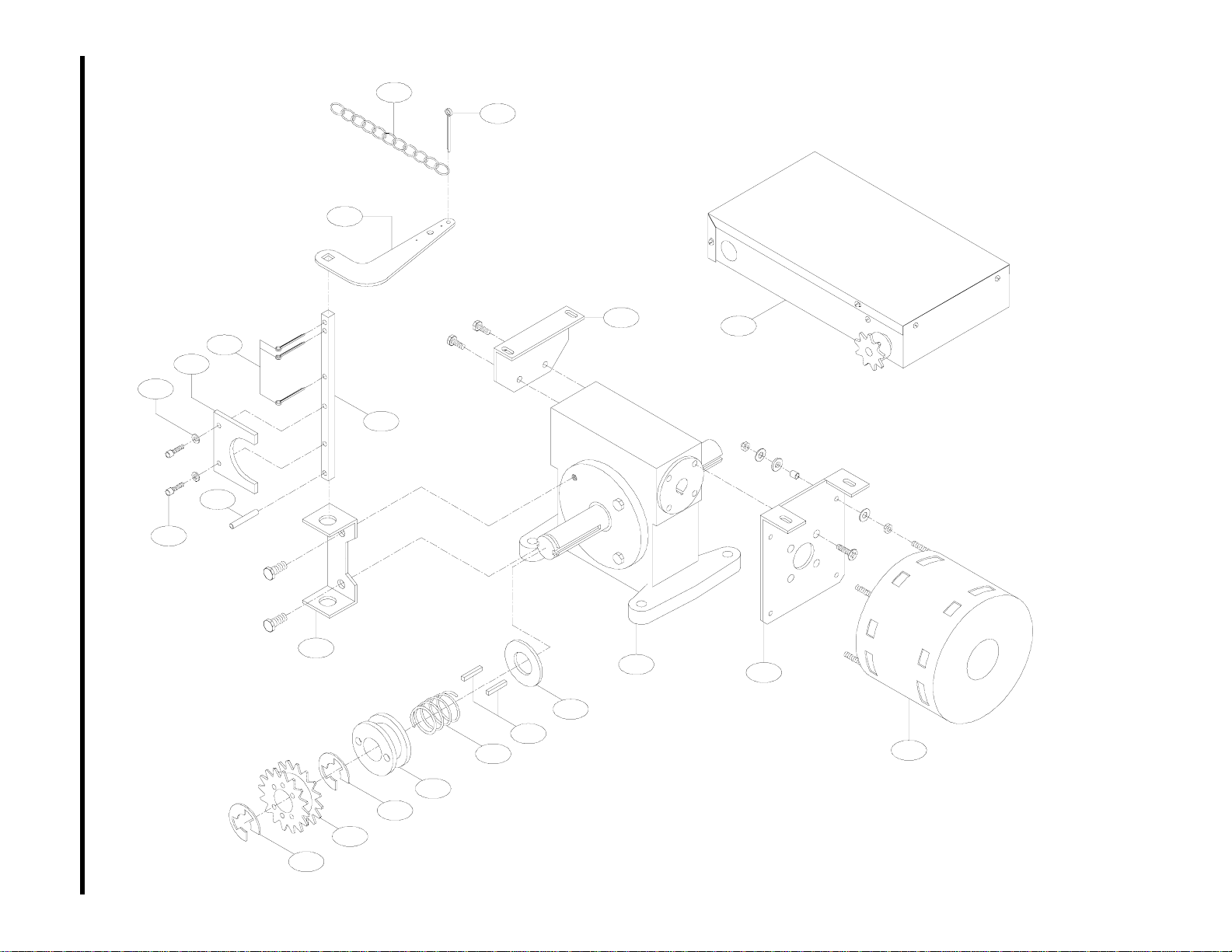

ILLUSTRATED PARTS – MODEL MGJ
D15
D6
D15
D1
D7
D9
D10
D3
31
D5
D11
D14
D12
D2
D13
M
EB
2
D4
D8
D13

c2002, The Chamberlain Group, Inc.
All rights Reserved

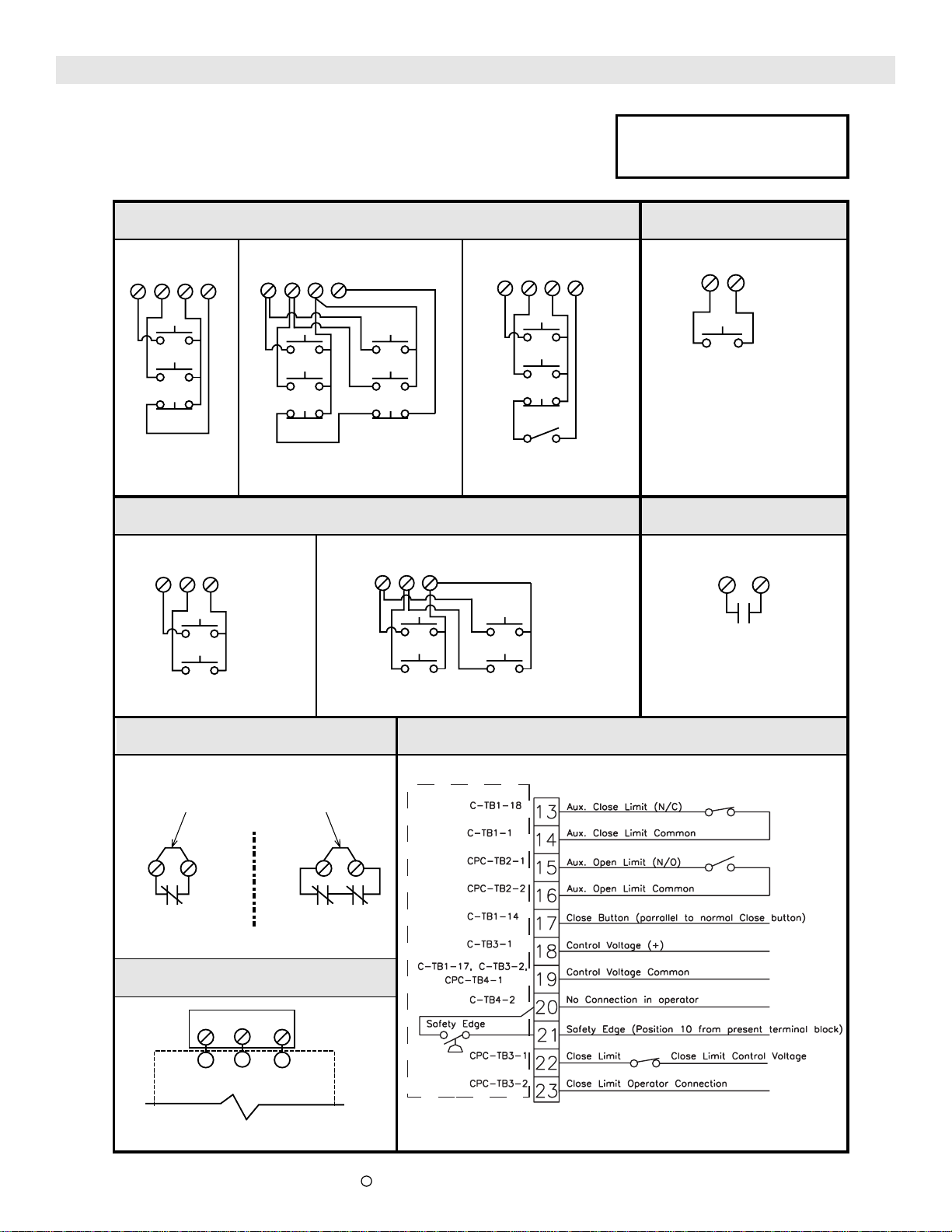

MGJ CONTROL CONNECTION DIAGRAM
01-18600A
3 BUTTON STATION or 3 POSITION KEYSWITCH w/ SPRING
RETURN TO CENTER AND STOP BUTTON
2 OR MORE KEY LOCKOUT
R1 R2 R3
1 2 3 4
Stop
Close
Open
Stop
Close
Open
1 2 3 4
Stop
Close
Open
2 BUTTON STATION or 3 POSITION KEYSWITCH w/ SPRING RETURN TO CENTER
STANDARD
1 2 4
Close
Open
ALL CONTROL
WIRING TYPES
2 OR MORE
1 2 4
Close
Open
Close
Open
OPEN / CLOSE
37
RADIO CONTROL
1 BUTTON STATION or
ANY AUXILIARY DEVICE
RESIDENTIAL RADIO CONTROLS
SENSING DEVICE TO
REVERSE OR STOP
EXTERNAL INTERLOCK (THREE PHASE ONLY)
20 21
4545
Remove Jumper
When Interlock is Used
ONE 2 OR MORE
STANDARD
1 2 3 4
Stop
Close
Open
IMPORTANT NOTES:
1) The 3-Button Control Station provided must be connected for operation.
2) If a STOP button is not used, a jumper must be placed between termianls 3 and 4.
3) Auxiliary control equipment may be any normally open two wire device such as
pullswitch, single button, loop detector, card key or such device.
Keyswitch
Sensing Device
ALL CONTROL WIRING TYPES
B2 or T1
WIRING TYPES ONLY
EXTERNAL
TERMINAL BLOCK
ALL CONTROL
WIRING TYPES
ALL CONTROL
WIRING TYPES
ALL CONTROL WIRING TYPES
ALL CONTROL WIRING TYPES
ATTENTION ELECTRICIAN:
USE 16 GAUGE OR HEAVIER WIRE
FOR ALL CONTROL CIRCUIT WIRING.
SEE NOTE #2
SEE NOTE #2
SEE NOTES
#2 AND #3
INTERCONNECTIONS SS90 FIRE DOOR CONTROLLER
ALL CONTROL WIRING TYPES
SS90 FIRE CONTROL
TERMINAL BLOCK MGJ "SS90"
TERMINAL BLOCK
NOTE: There are two boards in an SS90-CPC unit; the "C" and the "CPC". Therefore, connections are listed by
Board - Terminal Block - Position. (Example CPC-TB3-2 designates a connection to the "CPC" board,
terminal block 3, position 2)
