Chamberlain Power Drive 3132E User manual

Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the front panel of your opener.
TM
GARAGE DOOR OPENER
Models 3132E • 3142E
For Residential Use Only

2
Introduction Pages 2-8
Safety symbol and signal word review........................2
Preparing your garage door........................................3
Tools needed...............................................................3
Planning ..................................................................4-6
Carton inventory..........................................................7
Hardware inventory .....................................................8
Assembly Pages 9-15

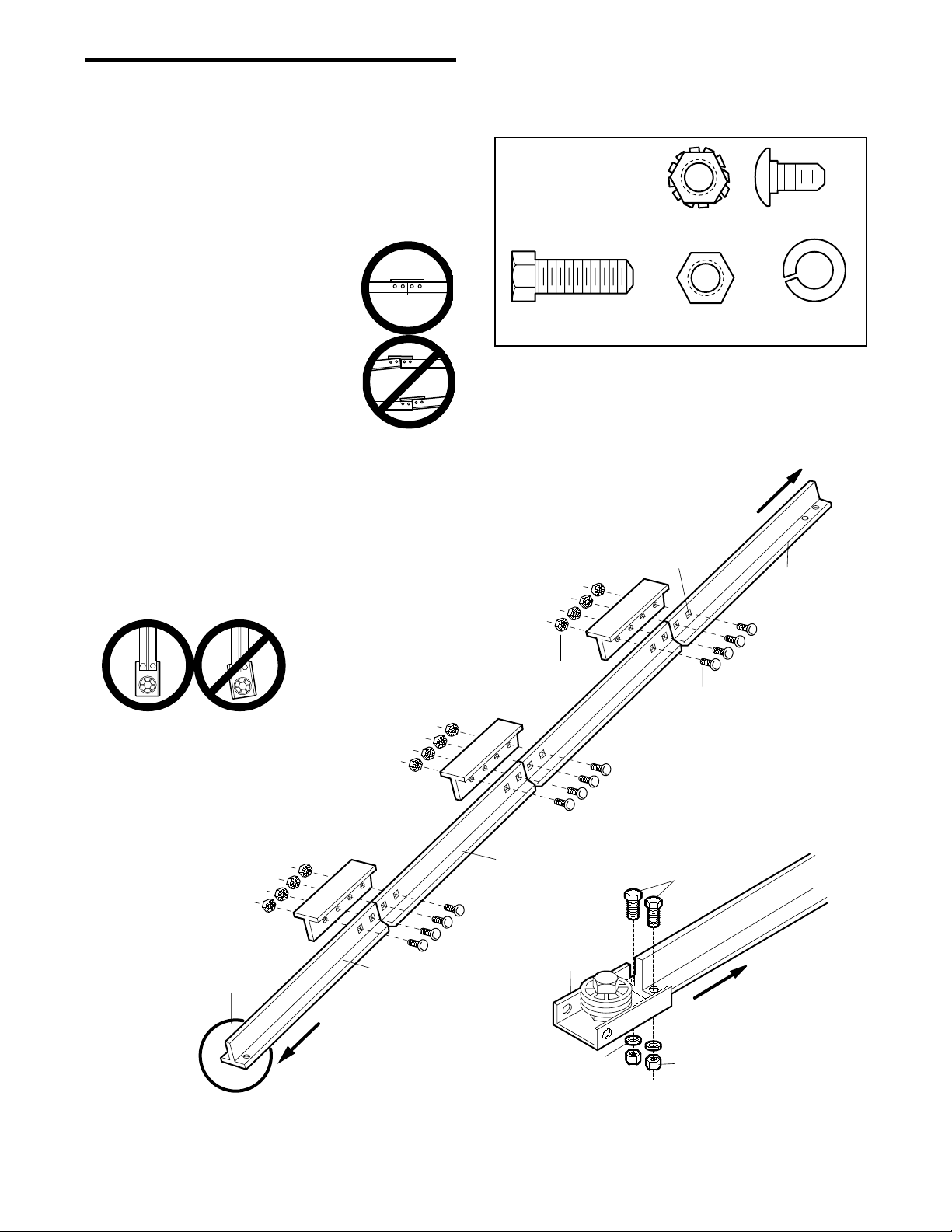

Assemble T-rail & attach the pulley bracket ...........9-10
Install the trolley........................................................11
Fasten the T-rail to the motor unit..............................12

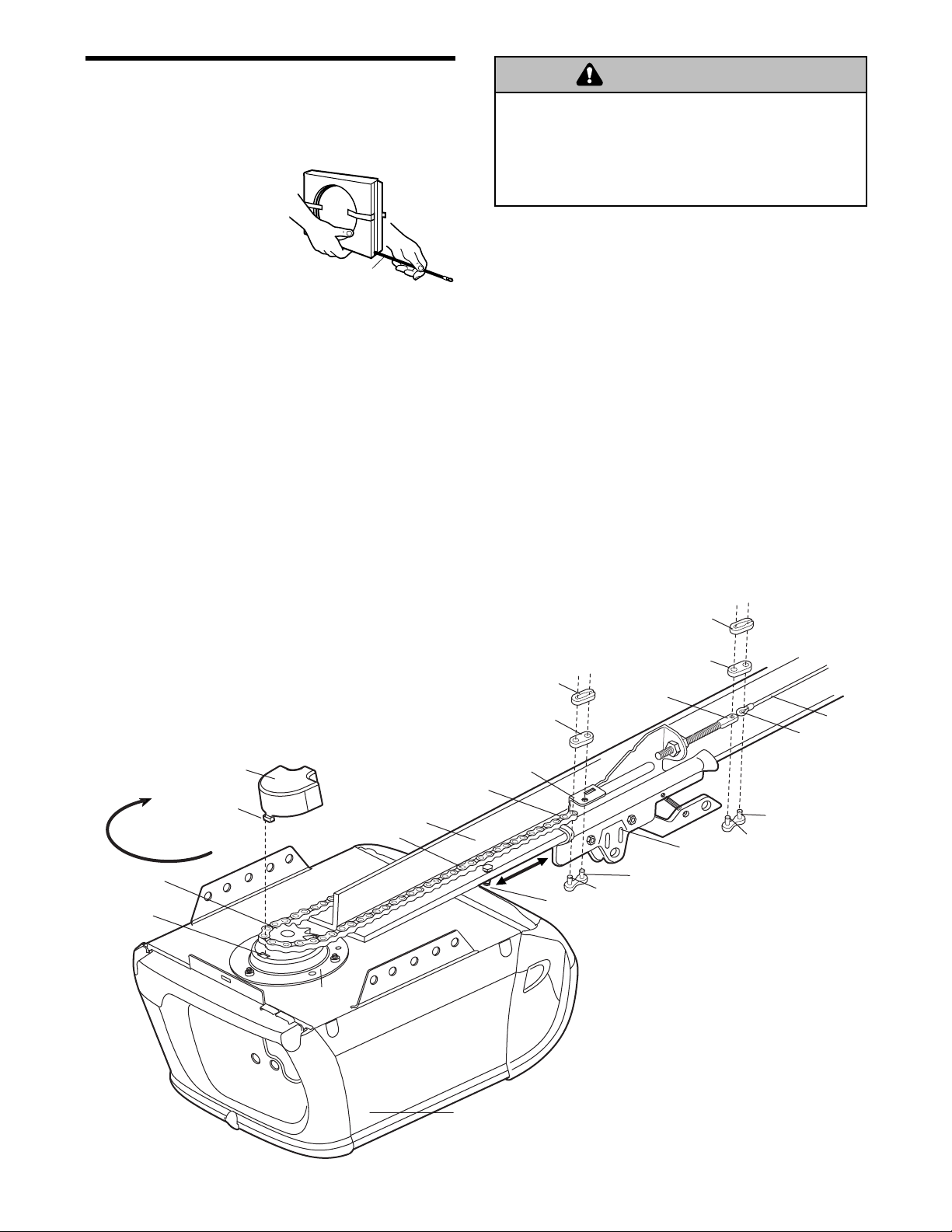

Install the chain/cable and attach the
sprocket cover......................................................13-14
Tighten the chain and cable......................................15
Installation Pages 15-28
Installation safety instructions ...................................15
Determine the header bracket location................16-17
Install the header bracket..........................................18
Attach the T-rail to the header bracket ......................19
Position the opener ...................................................20
Hang the opener .......................................................21
Install the door control...............................................22
Install the light...........................................................23
Attach the emergency release rope and handle.......23
Electrical requirements..............................................24
Fasten the door bracket .......................................25-26
Connect the door arm to the trolley.....................27-28
Adjustment Pages 29-31
Adjust the travel limits ...............................................29
Adjust the force .........................................................30
Test the safety reversal system.................................31
Operation Pages 32-35
Operation safety instructions.....................................32
Using your garage door opener................................32
Using the wall-mounted door control ........................33
To open the door manually........................................33
Care of your garage door opener .............................34
Having a problem?...............................................34-35
Programming Pages 36-37
To add a hand-held remote control...........................36
To erase all codes.....................................................36
Multi-function remotes...............................................36
To add or change a Keyless Entry PIN.....................37
Repair Parts 38
Accessories 39
Service Numbers 40
Warranty 40
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical or
from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
Mechanical
Electrical
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.

3
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
Socket Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
5mm & 8mm
Drill Bits
Carpenter's
Level
To prevent damage to garage door and opener:
• ALWAYS disable locks before installing and operating
the opener.
• ONLY operate garage door opener at 120V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may not reverse when
required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all
of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage
door opener to avoid entanglement.
Preparing your garage door
Before you begin:
•Disable locks.
•Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Sectional Door
One-Piece Door

Safety Reversing Sensor
Support bracket &
fastening hardware
is required.
See page 21.
— — — — — — — —
Door
Center
Header Wall
FINISHED CEILING
Torsion
Spring
Extension
Spring
OR
Safety Reversing Sensor
Gap between floor
and bottom of door
must not exceed 6 mm.
Access
Door
Wall-
mounted
Door
Control
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 25 for details.
Motor unit
Slack in chain tension
is normal when
garage door is closed
(Optional Accessory)
(Optional Accessory)
4
SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required.You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
•Installation Step 1 – Look at the wall or ceiling
above the garage door.The header bracket must
be securely fastened to structural supports.
•Installation Step 5 – Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
•Do you have an access door in addition to the
garage door? If not, Model 7702CB Outside Quick
Release is required. See Accessories page.
•Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 6 mm. Otherwise, the safety
reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
•Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 10).
•The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 1.2 m to the left or right of
the door center. See Installation Steps 1 and 10.
Cable Pulley
Bracket
Header
Bracket Trolley
Straight
Door
Arm Emergency
Release
Rope & Handle
Door Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
CLOSED POSITION
T-rail
Chain

5
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 10.
•Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 10).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage
door.
• The gap between the bottom of the garage door and
the floor MUST NOT exceed 6mm. Otherwise, the
safety reversal system may not work properly.
• The floor or the garage door MUST be repaired to
eliminate the gap.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Safety
Reversing Sensor
(Optional Accessory)
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 21.
Slack in Chain Tension
is Normal When
Garage Door is Closed
Safety
Reversing Sensor
(Optional Accessory)
Header
Wall
Access
Door
Gap between floor and bottom
of door must not exceed 6 mm.
Wall-mounted
Door
Control
Motor Unit
ONE-PIECE DOOR WITHOUT TRACK
CLOSED POSITION
Access
Door
Gap between floor
and bottom of door
must not exceed 6 mm.
Safety Reversing
Sensor
(Optional Accessory)
Wall-
Mounted
Door
Control
Cable
Pulley Bracket
Door
Bracket Straight
Door
Arm
Trolley
Header
Wall
T-rail
Garage
Door Emergency Release
Rope & Handle
Chain
Header
Bracket Curved
Door Arm
Safety Reversing
Sensor
(Optional Accessory)
ONE-PIECE DOOR WITH TRACK
CLOSED POSITION
Cable
Pulley Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Header
Wall
Cable
T-rail
Garage
Door

6
Safety Reversing Sensor
(Optional Accessory)
Safety Reversing Sensor
(Optional Accessory)
Header Wall
Safety Reversing Sensor
(Optional Accessory)
Safety Reversing Sensor
(Optional Accessory)

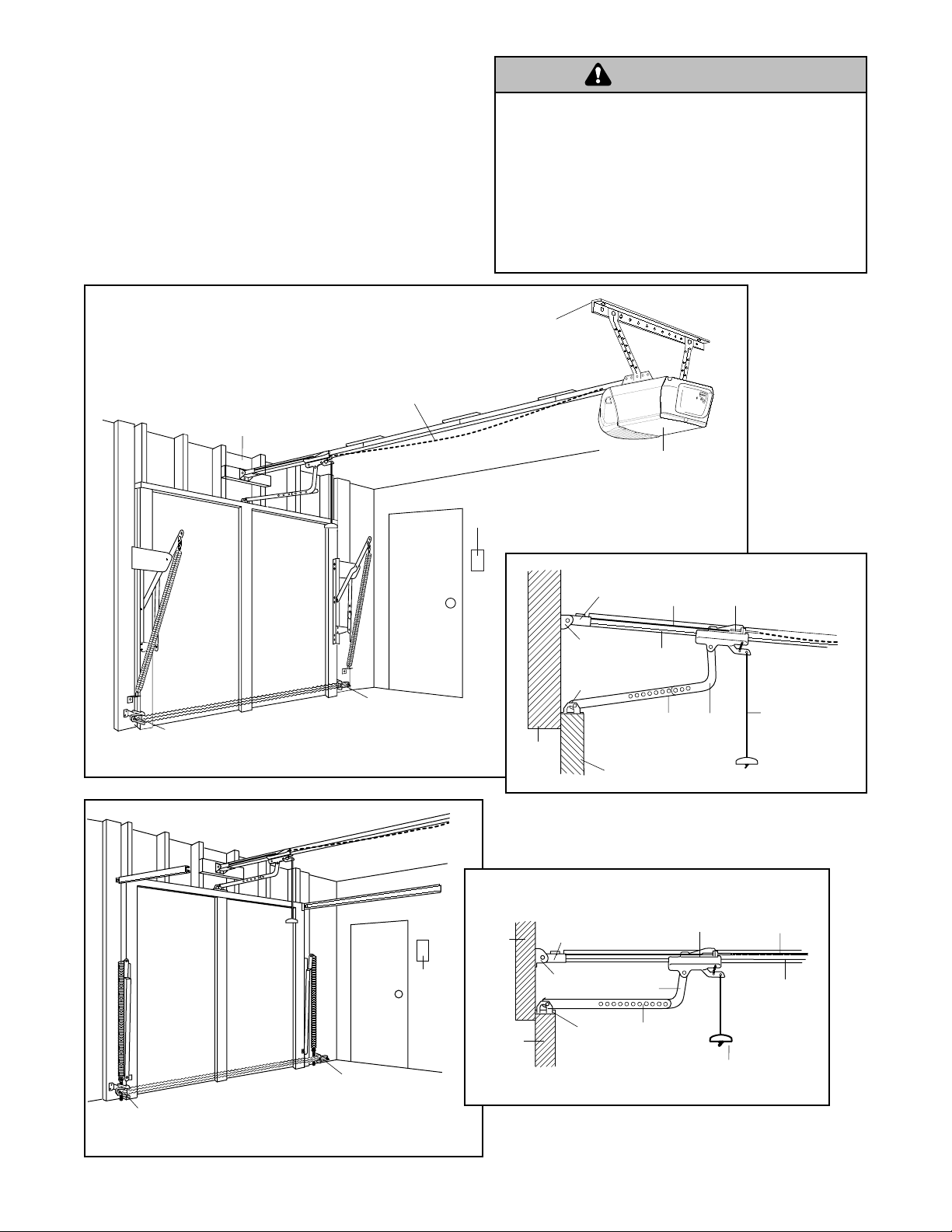

SLIDING GATE INSTALLATION
SWINGING GATE INSTALLATION
Planning (Continued)
GATE INSTALLATIONS
•It is recommended that you attach fine mesh or
screening across the inside of swinging or sliding
gates in order to prevent intruders from reaching
through the bars and releasing the trolley from the
door arm or pressing the door control button.
•The opener must be protected from rain and/or
moisture.
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing gate.
• Activate gate ONLY when the gate is in full view and
free from any obstructions.
• ALWAYS keep gate in sight until completely closed.
NEVER permit anyone to cross the path of the moving
gate.
• ALWAYS keep gate in good repair and make sure it
moves freely. An improperly maintained gate may not
reverse when required and could result in SEVERE
PERSONAL INJURY or DEATH.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT

7
41B2616
Cable Pulley
Bracket
217A238
2-Conductor Bell Wire
White & White/Red
41A3489
Trolley
41A4353
Header Bracket
178B35
Curved Door
Arm Section
178B34
Straight Door
Arm Section
Safety Labels
and
Literature
12B350
Hanging Brackets
UP
CEILINGMOUNTONLY
41A5047
Door Bracket
108D68
Light Lens
950-315CB
SECURITY✚
Single-function
Remote Control (2)
41A5577-1
Lighted Door
Control Button
41A3473
Chain/Cable
Dispensing Carton
31D380
Sprocket
Cover
Rail Brace
Rail Brace
T-Rail
Center Section
183B111 (each)
T-Rail
End Section
(each) 183B113
T-Rail
End Section
183B113 (each)
LOCK
LIGHT
41A5276-14
Multi-Function
Door Control Button
Model 3132E Only Model 3142E Only
Your garage door opener is packaged in one carton
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material.
Parts may be stuck in the foam. Hardware for
assembly and installation is shown on the next page.
Save the carton and packing material until installation
and adjustment is complete.
Carton Inventory

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
8
Hex Bolt
5/16"-18x7/8" (4)
Screw
6ABx1-1/4" (2)
Lock Washer
5/16" (4)
Nut
5/16"-18 (6)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle Insulated
Staples (10)
Assembly Hardware 41A2848
Installation Hardware 41A3475-18
Dry Wall Anchors (2)
Rope
Lock Nut
1/4"-20x1/2" (12)
Nut
5/16"-18 (5)
Washered Screw
5/16"-18x1/2" (2)
(mounted in opener)
Carriage Bolt
5/16"-18x2-1/2" (2)
Carriage Bolt
1/4"-20x1/2" (12)
Hex Bolt
5/16"-18x7/8" (3) Master Link (2)
Ring Fastener (3)
Trolley
Threaded Shaft (1)
Lock Washer
5/16" (6)
Lag Screw
5/16"-9x1-5/8" (2)
Lag Screw
5/16"-18x1-7/8" (2)
Clevis Pin
5/16"x1" (1)
Clevis Pin
5/16"x1-1/4" (1)

T-RAIL BACK
(TO MOTOR UNIT)
T-RAIL FRONT
(TO DOOR)
Cable pulley bracket
attaches to FRONT
END of T-rail
T-rail
(End Section)
T-rail
(Center Section)
Carriage Bolt
1/4"-20x1/2"
T-rail
(End Section)
Square Carriage
Bolt Hole
1/4" Lock Nut
Hex Bolts
5/16"-18x7/8"
Cable Pulley
Bracket
Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"-18
9

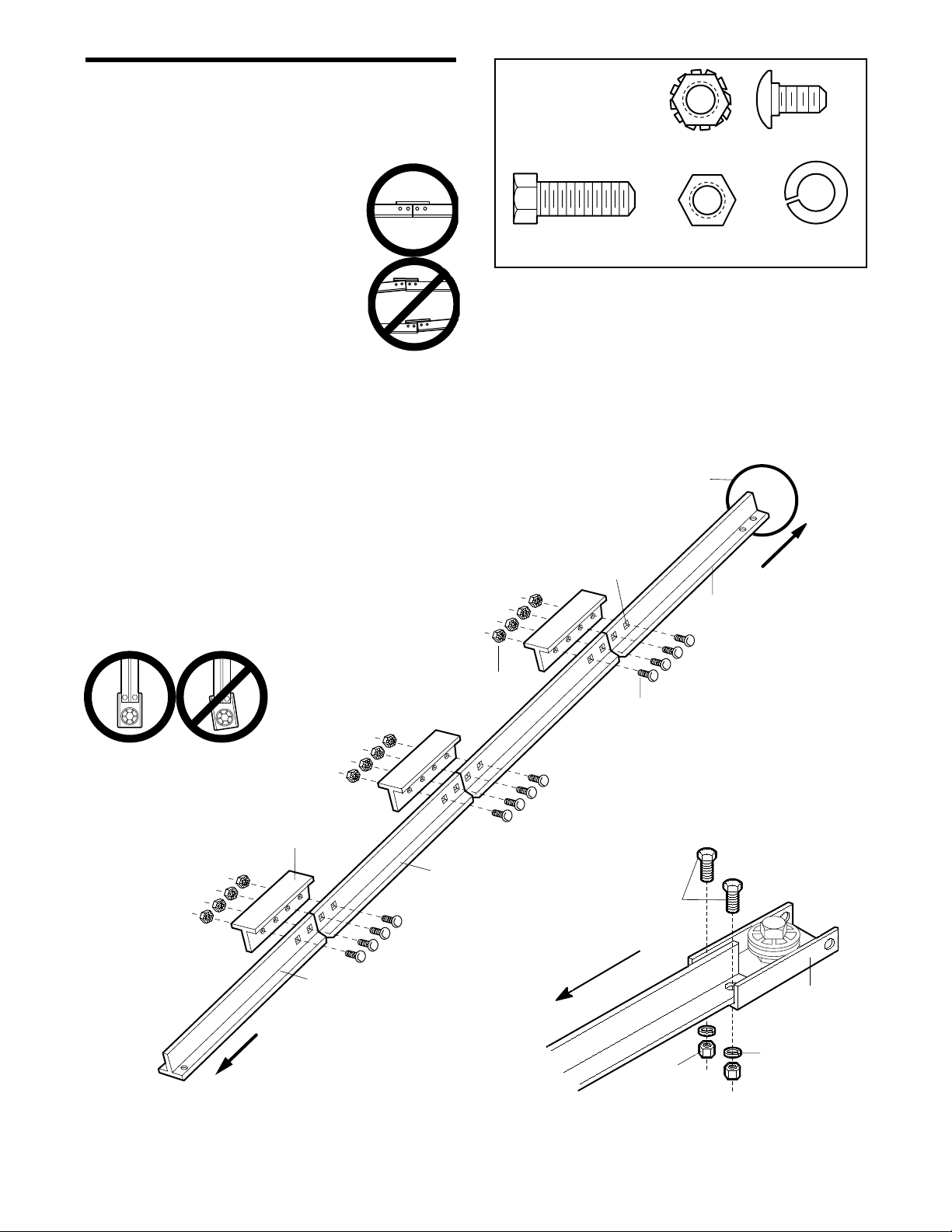

ASSEMBLY STEP 1
For Sectional and
One-Piece Doors ONLY
Assemble the T-Rail and
Attach the Cable Pulley Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1.Align the four T-rail sections on a flat
surface exactly as shown. Center
sections are interchangeable. Front
and back sections are also
interchangeable for ease of assembly.
2. Insert the carriage bolts so the square
bolt necks seat in the square holes in
the T-rail sections and pass through
the round holes in the rail braces.
Assemble lock nuts, ensure alignment
and tighten.
NOTE: If T-rail is not assembled
exactly as shown, trolley will not travel smoothly
along length of rail or it will hit against nuts.
3.Position the cable pulley bracket on the front end
of the T-rail as shown. Fasten securely with the
hardware provided.
NOTE: When tightening the bolts be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
Lock Nut
1/4"-20
Carriage Bolts
1/4"-20x1/2"
Hex Bolt
5/16"-18x7/8" Nut
5/16"-18 Lock Washer
5/16"
HARDWARE
SHOWN ACTUAL SIZE

AWAY FROM
OPENER
Rail connects to
opener at this end.
T-rail
(End Section)
Carriage Bolt
1/4"-20x1/2"
T-rail
(End Section)
Square Carriage
Bolt Hole
1/4" Lock Nut
Brace
Cable pulley bracket
attaches to this
end of T-rail.
T-rail
(Center Section)
10
ASSEMBLY STEP 1

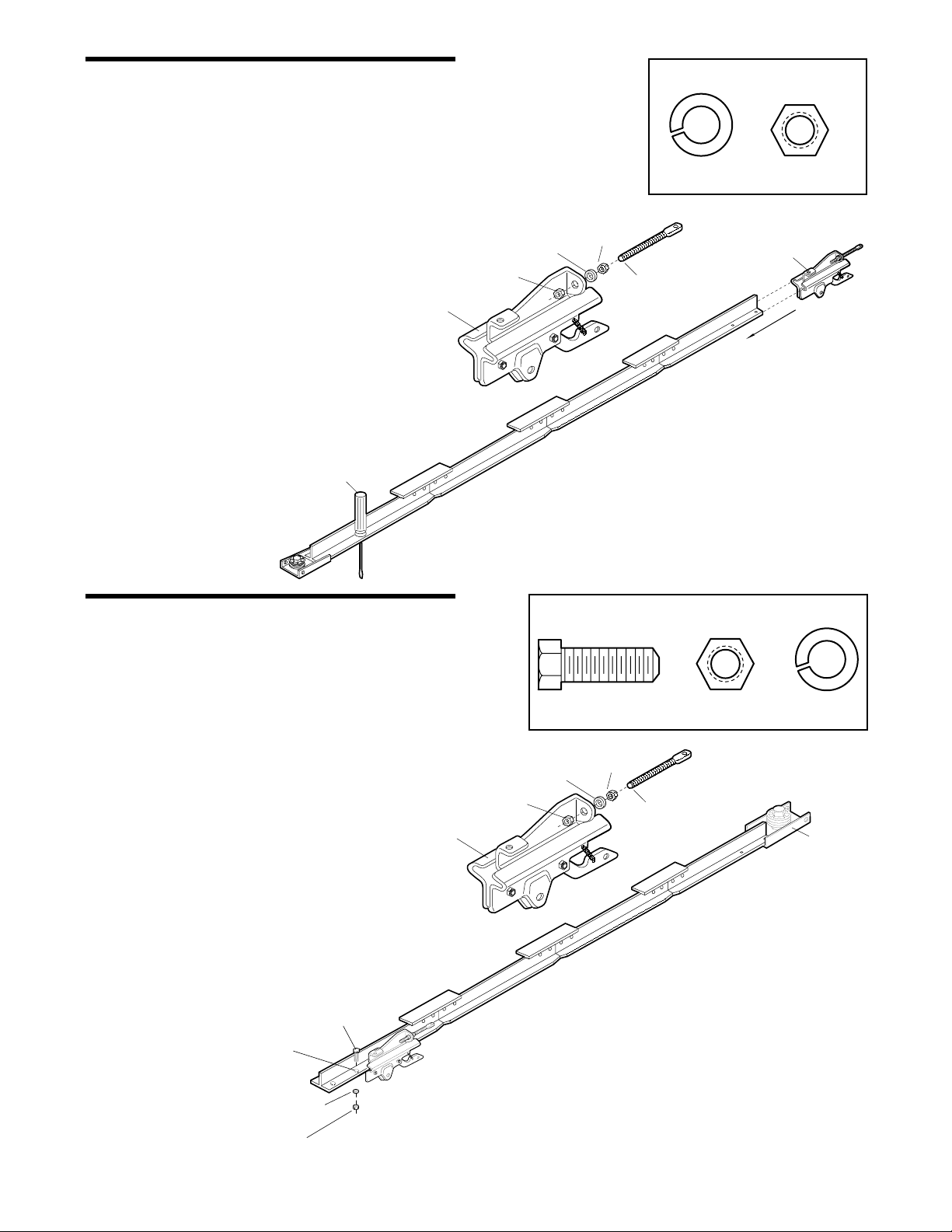

For Sliding and Swinging Gates ONLY
Assemble the T-Rail and
Attach the Cable Pulley Bracket
To avoid installation difficulties, do
not run the garage door opener until
instructed to do so.
1.Align the four T-rail sections on a flat
surface exactly as shown. Center
sections are interchangeable. Front
and back sections are also
interchangeable for ease of
assembly.
2.Connect the center sections and the
1/4" lock nuts to the end sections from
the same side, as shown.
NOTE: If T-rail is not assembled exactly as shown,
trolley will not travel smoothly along length of rail or
it will hit against nuts.
3.Insert the carriage bolts from the opposite side of
the end sections.Tighten the nuts.When
assembled, T-rail has a front-to-back position as
shown.
4.Position the cable pulley bracket on the front end
of the T-rail as shown. Fasten securely with the
hardware provided.
NOTE: When tightening the bolts be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
Lock Nut
1/4"-20
Carriage Bolts
1/4"-20x1/2"
Hex Bolt
5/16"-18x7/8" Nut
5/16"-18 Lock Washer
5/16"
HARDWARE
SHOWN ACTUAL SIZE
Hex Bolts
5/16"-18x7/8"
Cable Pulley
Bracket
Rail Bracket & T-rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"

Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Trolley
Temporary Stop
Screwdriver
11
ASSEMBLY STEP 2
For Sliding and Swinging Gates Only
Install the Trolley
•Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
•Insert a hex bolt into the hole in the front end of
the T-rail.
•Slide the trolley assembly along the rail until it
rests against the hex bolt (trolley stop).
NOTE: If trolley hits against any nuts on the
T-rail, the bolts and nuts were attached
from the wrong side and must be
repositioned. Review Assembly Step 1.
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Hex Bolt
Trolley Stop
Hex Bolt
5/16"-18x7/8"
Nut
5/16"-18
Lock Washer
5/16"
Cable Pulley
Bracket
Nut
5/16" Lockwasher
5/16"-18
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
For Sectional and One-Piece Doors Only
Install the Trolley
•Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
•As a temporary stop, insert a screwdriver into the
hole in the front end of the T-rail.
•Slide the trolley assembly along the rail to the
screwdriver stop.
NOTE: If trolley hits against any nuts on the
T-rail, the bolts and nuts were attached
from the wrong side and must be
repositioned. Review Assembly Step 1.
Lock Washer
5/16" Nut
5/16" -18
HARDWARE SHOWN ACTUAL SIZE

12

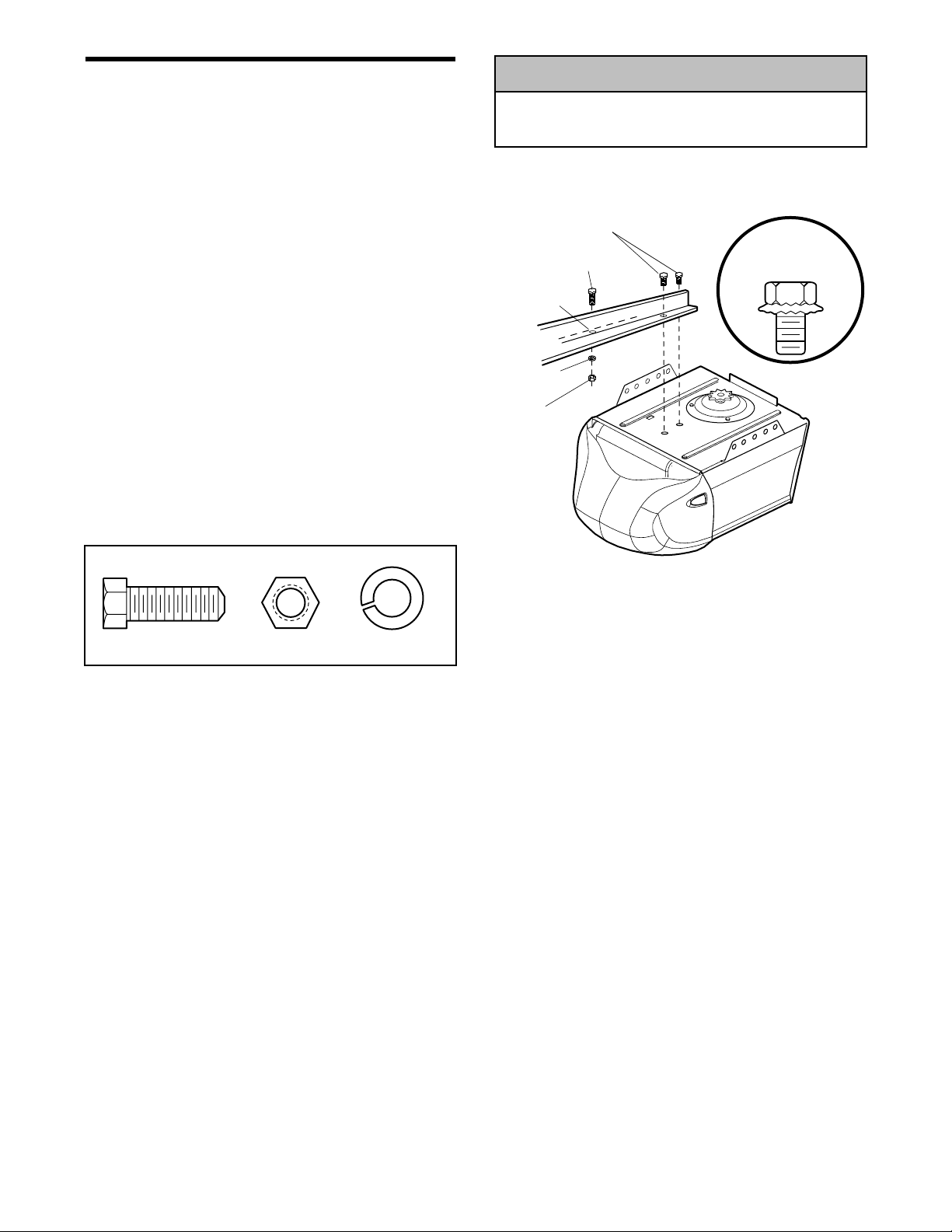

ASSEMBLY STEP 3
Fasten the T-Rail to the Motor Unit
•Place the opener on packing material to protect
the cover. For convenience, put a support under
the cable pulley bracket.
•Remove the two 5/16"-18x1/2" washered bolts
mounted in the top of the motor unit.
•Align the holes in the back section of the T-rail with
the holes in the motor unit.
•Fasten the rail with the two washered bolts
previously removed.Tighten securely. Remember
to use only these bolts! Any other bolts will
cause serious damage to the opener.
•Insert a 5/16"-18x7/8" hex bolt into the cover
protection bolt hole in the T-rail as shown.Tighten
securely with a 5/16" lock washer and nut.
NOTE: This bolt prevents trolley over-travel. Keep a
25 mm minimum between the trolley and this bolt
when adjusting travel limits (see page 29).
Washered Bolt
5/16"-18x1/2"
T-rail
(Back
Section)
Cover
Protection
Bolt Hole
Nut
5/16"-18
Hex Bolt
5/16"-18x7/8"
Lock Washer
5/16"
USE ONLY THIS
TYPE AND SIZE
BOLT
Nut
5/16"-18 Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
To avoid serious damage to opener, ONLY use bolts
mounted in top of motor unit.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT

Cable
Pulley
Cable
Loop
Master
Link Bar
Master Link
Clip-On Spring
Pin
Pin
Notch
Chain
Flat end
of Trolley
Threaded
Shaft
Master Link Cap
Master
Link Cap
Master Link
Clip-On Spring

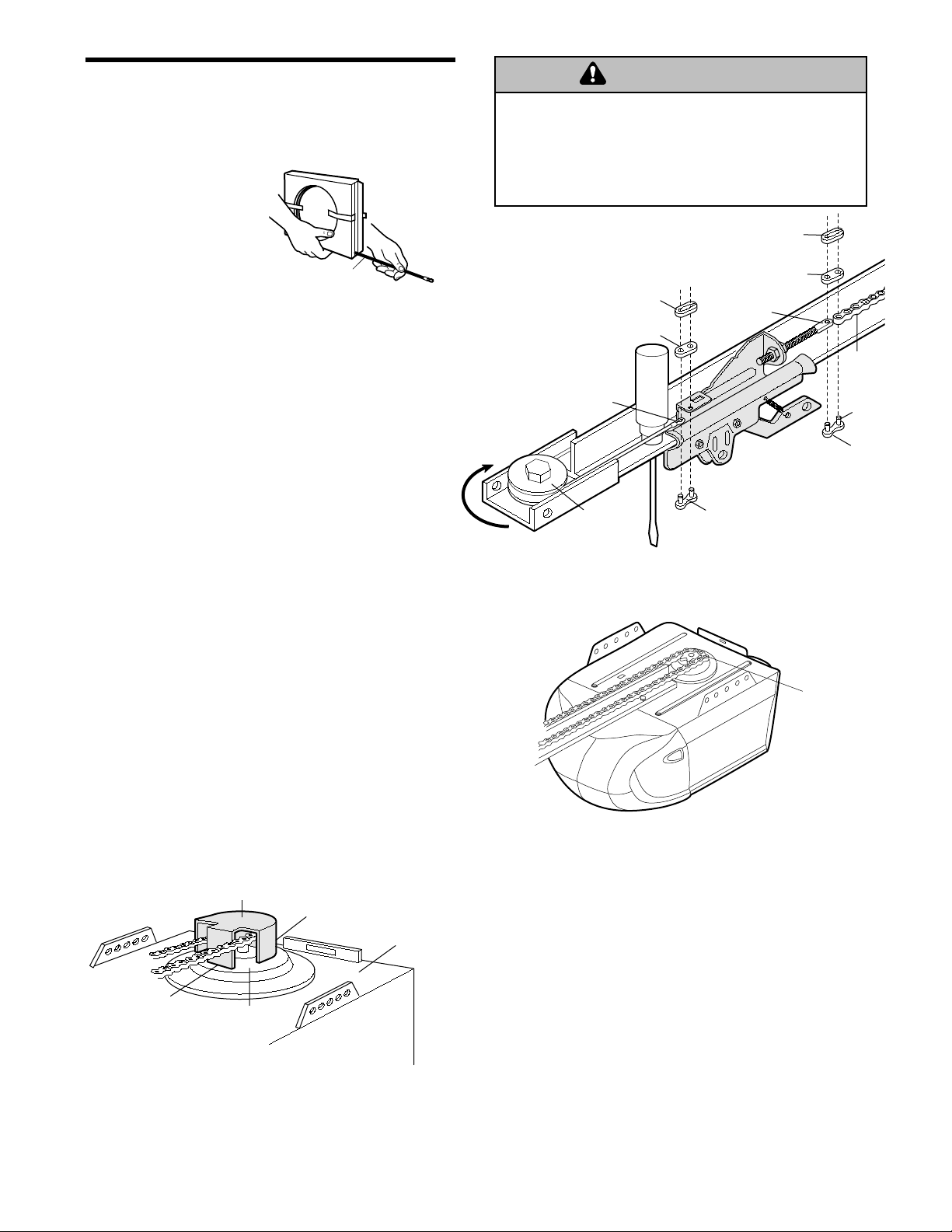

Install Chain & Cable
In This Direction
ASSEMBLY STEP 4
For Sectional and One-Piece Doors Only
Install the Chain/Cable and Attach
the Sprocket Cover
1.Pull the cable loop from
the carton and fasten it
to the trolley with a
master link from the
hardware bag
(Figure 1).
• Push pins of master
link bar through cable
loop and hole in front end of trolley.
• Push master link cap over pins and past pin
notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked in
place.
2.With the trolley against the screwdriver, dispense
the cable around the pulley.
3. Continue along the rail and around the motor unit
sprocket (Figure 2).The sprocket teeth must
engage the chain. Continue forward to the trolley
threaded shaft.
4. Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Check to make
sure the chain is not twisted.
5.Remove the screwdriver.
ATTACHING THE SPROCKET COVER
Insert the back tab in the slot on the back of the
mounting plate. Squeeze the cover slightly and insert
the front tab (Figure 3).
13
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener:
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Motor Unit
Sprocket
Figure 2
Figure 1
Leave Chain
& Cable
Inside Carton to
Prevent Kinking.
Keep Chain & Cable
Taut When Dispensing
Sprocket
Cover
Mounting
Plate
Front Tab Slot
Back Tab Slot
Top of Motor Unit
Figure 3

14

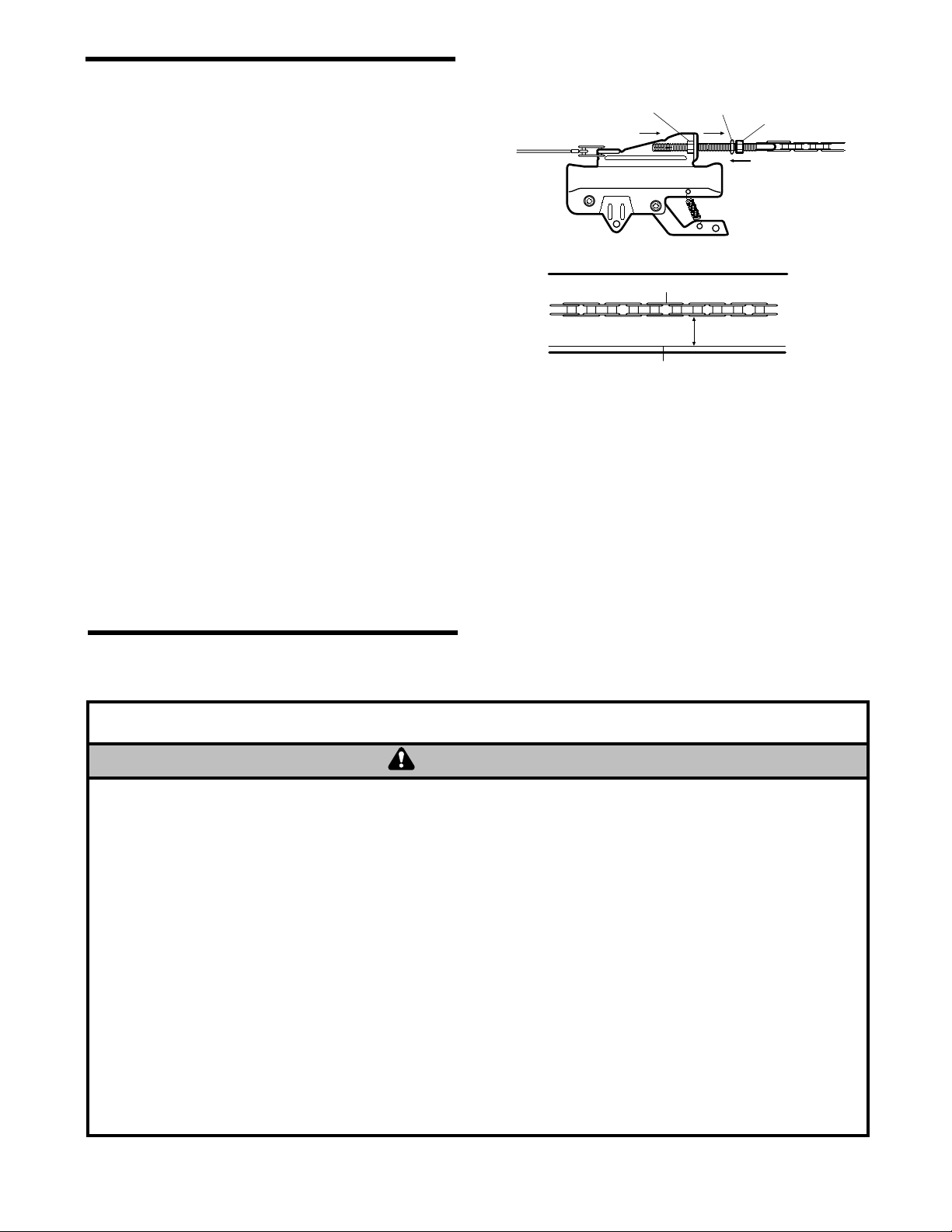

ASSEMBLY STEP 4
For Sliding and Swinging Gates Only
Install the Chain/Cable and Attach
the Sprocket Cover
1.Pull the cable loop from
the carton and fasten it to
the trolley with a master
link from the hardware
bag (Figure 1).
• Push pins of master link
bar through cable loop
and hole in front end of
trolley.
• Push master link cap over pins and past
pin notches.
• Slide clip-on spring over cap and onto pin
notches until both pins are securely locked
in place.
2.To prevent the trolley from jamming against the
opener during operation, position trolley 5 to 15 cm
from the stop hole as shown.Then dispense the
chain around the opener sprocket (Figure 1). Make
sure the sprocket teeth engage the chain.
• Proceed around to the pulley bracket and forward
to the threaded trolley shaft.
3.Use the second master link to connect the chain to
the flat end of the shaft (Figure 1). Check to make
sure the chain is not twisted.
ATTACHING THE SPROCKET COVER
3112E ONLY
Insert the back tab in the slot on the back of the
mounting plate. Squeeze the cover slightly and
insert the front tab.
To avoid possible SERIOUS INJURY to fingers from
moving opener:
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Leave Chain
& Cable
Inside Carton to
Prevent Kinking.
Keep Chain & Cable
Taut When Dispensing
Sprocket
Motor Unit
Back
Tab Slot
Mounting
Plate
Install Chain
in this Direction
Master
Link Pin
Master Link
Clip-On Spring
Master Link
Clip-On Spring
Flat End
of Trolley
Trolley Pin Notch
Flat End of
Threaded Shaft
Master
Link Cap
T-rail
Master
Link Cap
Chain
Back Tab
Sprocket
Cover
Chain Link
Trolley Stop
(Hex Screw)
5-15 cm
Pin Notch
Master
Link
Pin
Cable Loop
Cable
Figure 1

15
ASSEMBLY STEP 5
Tighten the Chain and Cable
•Spin the inner nut and lock washer down the trolley
threaded shaft, away from the trolley.
•To tighten the chain, turn outer nut in the direction
shown. ASYOU TURN THE NUT, KEEP THE
CHAIN FROM TWISTING.
•When the chain is approximately 13 mm above the
base of the T-rail at its midpoint, re-tighten the
inner nut to secure the adjustment.
Sprocket noise can result if chain is either too
loose or too tight.
NOTE: When installation is complete, you may notice
some chain droop with the door closed.This is
normal. If the chain returns to the position shown
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
Lock
Washer
To Tighten Outer Nut Inner Nut
Chain
Base of T-rail
13 mm
To Tighten
Inner Nut
Outer Nut
IMPORTANT INSTALLATION INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION WARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result in
severe injury or death.
3. All repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician before installing opener.
4. Disable all locks and remove all ropes connected to
garage door before installing opener to avoid
entanglement.
5. Install garage door opener 2.1 m or more above floor.
6. Mount emergency release handle 1.8 m above floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door
• out of reach of children at minimum height of 1.5 m
• away from all moving parts of the door.
10. Place entrapment warning label on wall next to garage
door control.
11. Place manual release/safety reverse test label in plain
view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a 25 mm
obstruction on the floor.
To reduce the risk of severe injury or death:
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
INSTALLATION

16
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
If your door is a canopy or dual-track style garage
door, a door arm conversion kit is REQUIRED. Follow
the installation instructions included with the
replacement door arm sectional.
SECTIONAL DOOR AND
ONE-PIECE DOOR WITH TRACK
1.Close the door and mark the inside vertical
centerline of the garage door.
2.Extend the line onto the header wall above the
door.
You can fasten the header bracket within 1.2 m
of the left or right of the door center only if a
torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 17) when clearance is minimal. (It may be
mounted on the wall upside down if necessary,
to gain approximately 1 cm .)
If you need to install the header bracket on a
25 mm board (on wall or ceiling), use lag screws
(not provided) to securely fasten the 25 mm board
to structural supports as shown here and on
page 17.
3.Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 5 cm above the high point.This height
will provide travel clearance for the top edge of the
door.
Proceed to Step 2, page 18.
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling, otherwise
garage door might not reverse when required. DO NOT
install header bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 25 mm board into masonry.
• NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware, all
of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when
required.
Vertical
Centerline
Finished
Ceiling
Vertical
Centerline
Header
Wall 25 mm
Board Structural
Supports
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Header
Wall
Ceiling

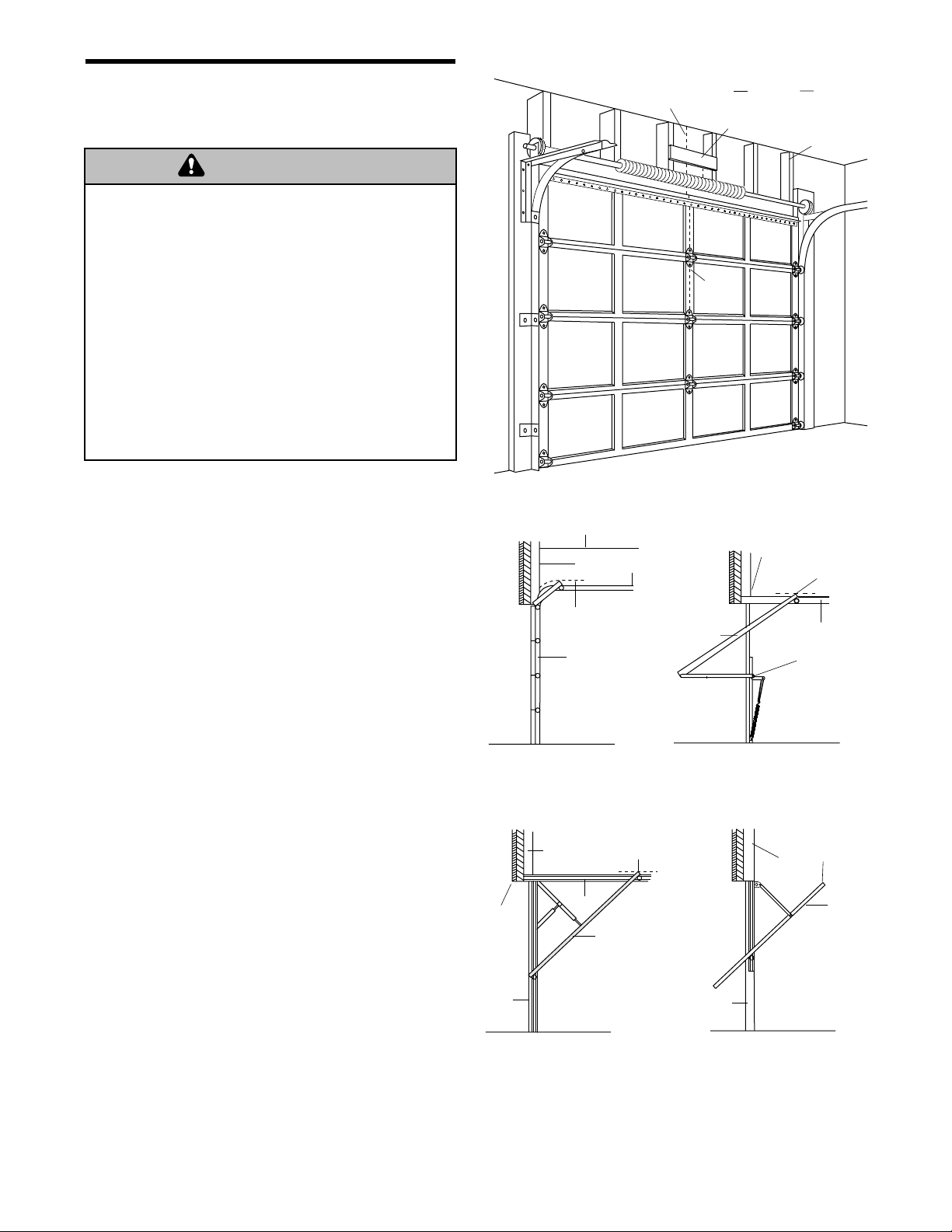

SECTIONAL DOOR
WITH CURVED TRACK
Track
Highest Point
of Travel
Door
Header
Wall
Door Track
Jamb
Hardware
Highest Point
of Travel
ONE-PIECE DOOR
WITH HORIZONTAL
TRACK & JAMB
HARDWARE
Highest Point
of Travel
Door
Track
Garage
Exterior
Track
Header
Wall
Highest Point
of Travel
Door
Track CANOPY ONE-PIECE
DOOR WITH
VERTICAL TRACK
Header
Wall
ONE-PIECE DOOR
WITH HORIZONTAL &
VERTICAL TRACK

EXAMPLE
Distance from top of door
(at highest point of travel) to floor ..........234 cm
Actual height of door.............................-224 cm
Remainder................................................10 cm
Add.........................................................+20 cm
Bracket height on header wall................=30 cm
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 18.
17
Header Wall Vertical
Centerline
Vertical
Centerline
of Garage
Door
25mm
Board
Unfinished
Ceiling
25 mm Board OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Supports
ONE-PIECE DOOR WITHOUT TRACK
1.Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. (See page 18).
If you need to install the header bracket on a
25 mm board (on wall or ceiling), use lag screws
(not provided) to securely fasten the 25 mm board
to structural supports as shown.
2.Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 20 cm to the remainder. (See Example).
3.Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of centimeters exceeds
the height available in your garage, use the
maximum height possible, or refer to page 18 for
ceiling installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware

18
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 5 mm
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
Lag Screw
5/16"-9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
Lag Screws
5/16"x9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
Header
Wall
Garage
Door
UP
CEILING MOUNT ONLY
Wall Mounting Holes
Optional
Wall Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
CEILINGMOUNTONLY
Door Spring
Header
Bracket
25 mm
Board
Vertical
Centerline
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
Lag Screws
5/16"x9x1-5/8"
Garage Door
Vertical Centerline
Header Wall
– Finished Ceiling –
Header
Bracket
15 cm Maximum
Vertical
Centerline
Door
Spring
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 15 cm from the wall. Make sure the arrow is
pointing toward the wall.The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 5 mm pilot holes and
fasten bracket securely to a structural support with
the hardware provided.

Clevis Pin
5/16" x 2-3/4" Ring Fastener
HARDWARE SHOWN ACTUAL SIZE
Header
Bracket
Temporary
Support
Header Wall
Garage
Door
T-rail
Cable
Pulley
Bracket
Clevis Pin
5/16"x2-3/4"
Ring Fastener
Header
Bracket
Cable
Pulley
Bracket
T-rail
19
INSTALLATION STEP 3
Attach the T-Rail to the Header
Bracket
•Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the
spring.
•Position the rail bracket against the header
bracket.
•Align the bracket holes and join with a clevis pin
as shown.
•Insert a ring fastener to secure.

20
ONE-PIECE DOOR WITHOUT TRACK
•With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
•Using a stepladder as a support, raise the top of
the opener to this height.
•The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 5 cm above this point.

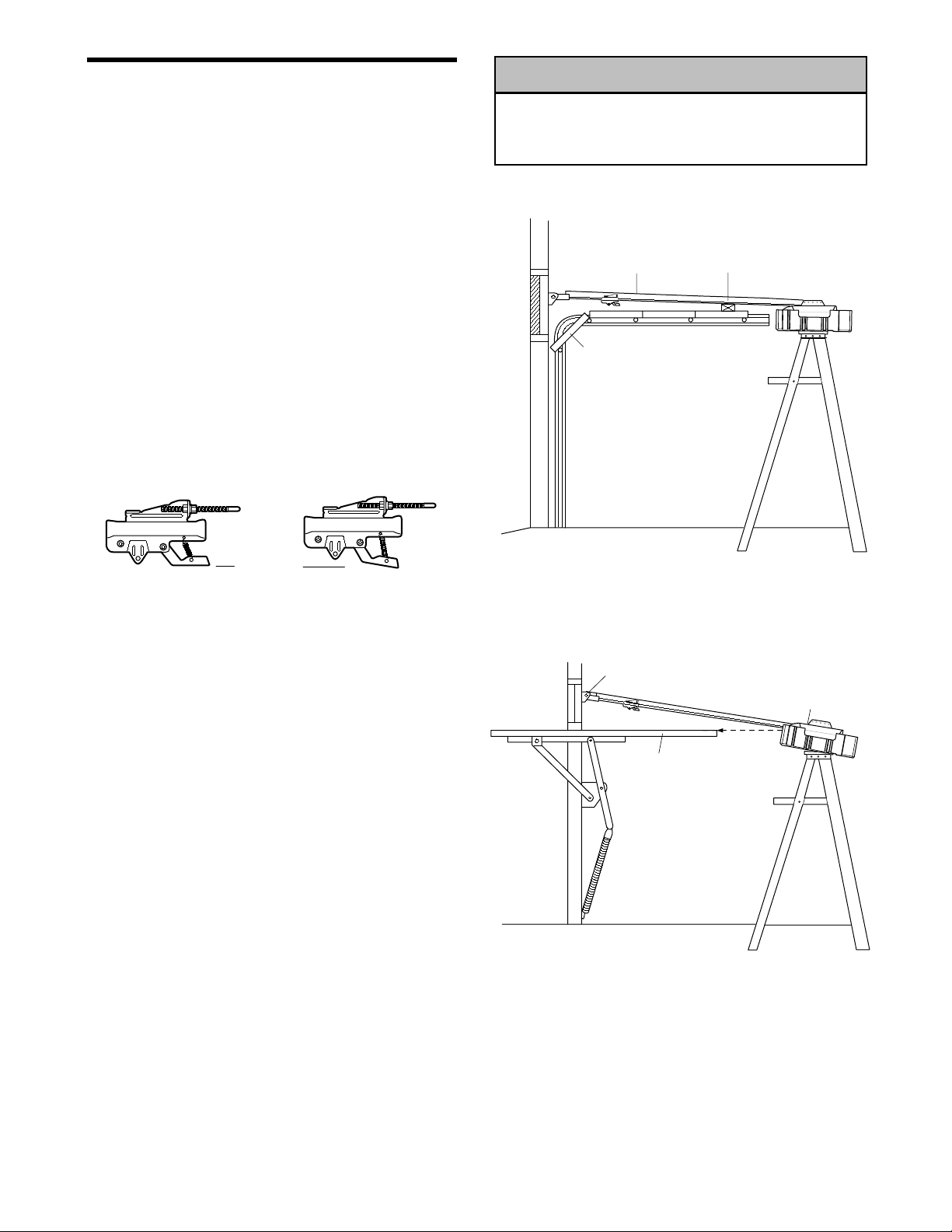

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 25 mm board is convenient for setting an ideal
door-to-T-rail distance.
•Raise the opener onto a stepladder.You will need
help at this point if the ladder is not tall enough.
•Open the door all the way and place a 25 mm
board on the top section beneath the T-rail.
•If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit.The trolley can
remain disconnected until Installation Step 11
is completed.
T-Rail 25 mm
Board
Door
Trolley
Release Arm
ENGAGED RELEASED
To prevent damage to garage door, rest garage door
opener rail on 25 mm board placed on top section of
door.
WARNING
CAUTION
WARNING
WARNING
ATTENTION
AVERTISSEMENT AVERTISSEMENT
AVERTISSEMENT
Top of Motor Unit
Header
Bracket
Top of Door
