Chamberlain Power Drive PD505D User manual

The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
GARAGE DOOR OPENER
Model PD505D
For Residential Use Only
Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless the Protector System®is connected and
properly aligned.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located under the light lens on the left side panel of
your opener.

2
TABLE OF CONTENTS
Introduction 2-7
Safety symbol and signal word review. . . . . . . . . . . . . . . 2
Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . 3
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly 8-11
Assemble the rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Fasten the rail to the motor unit and
install the trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

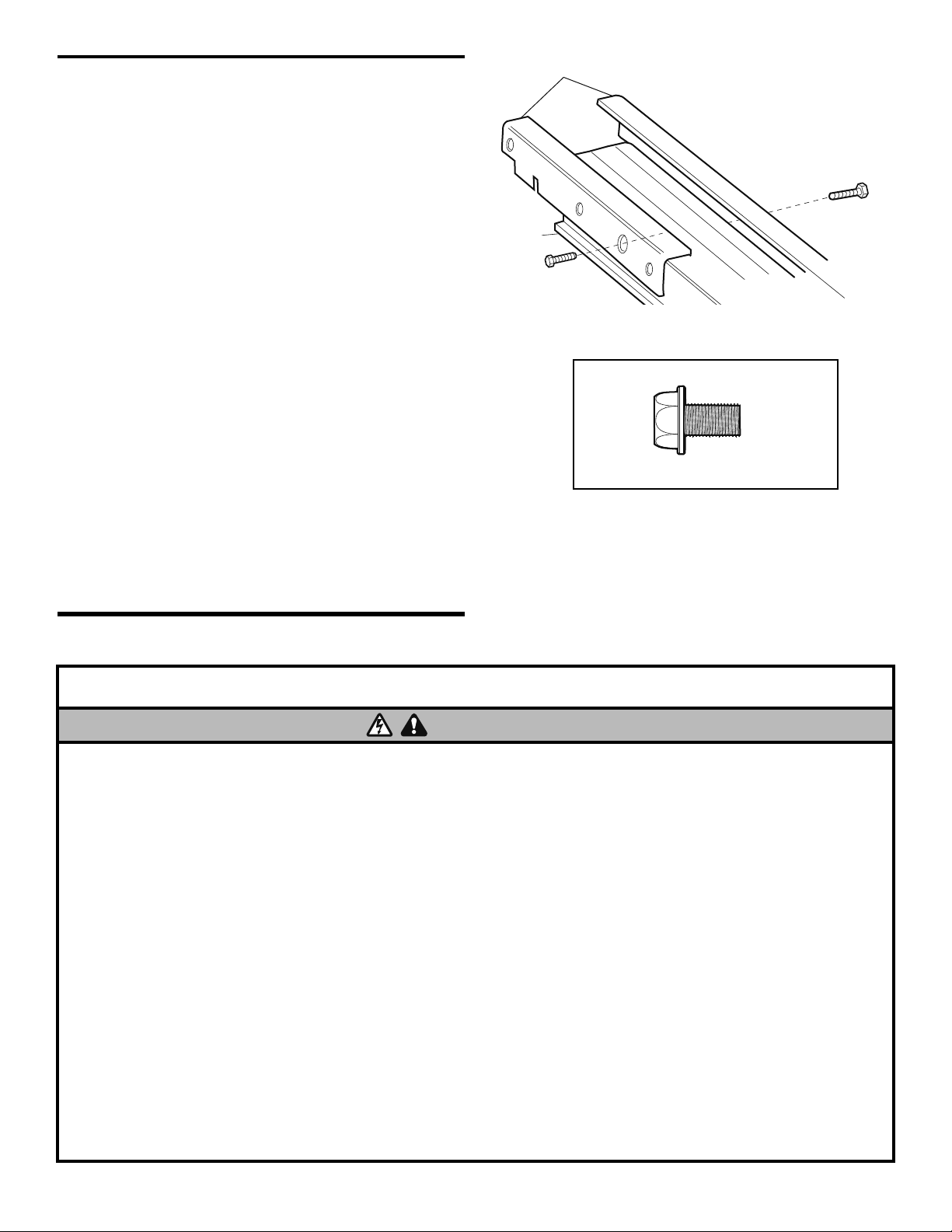

Attach the rail brackets. . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation 11-26
Installation safety instructions . . . . . . . . . . . . . . . . . . . . 11
Determine the header bracket location . . . . . . . . . . . . . 12
Install the header bracket. . . . . . . . . . . . . . . . . . . . . . . . 13
Attach the rail to the header bracket . . . . . . . . . . . . . . . 14
Install the Protector System®. . . . . . . . . . . . . . . . . . 15-17
Position the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Hang the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Install the standby power (optional) . . . . . . . . . . . . . . . . 21
Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Attach the emergency release rope and handle . . . . . . 21
Electrical requirements. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Complete safety reversing sensor installation . . . . . . . . 22
Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . . 23-24
Connect the door arm to the trolley . . . . . . . . . . . . . 25-26
Adjustment 27-29
Program the travel limits . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Test the safety reversal system . . . . . . . . . . . . . . . . . . . 29
Test the Protector System®. . . . . . . . . . . . . . . . . . . . . . 29
Operation 30-34
Operation safety instructions . . . . . . . . . . . . . . . . . . . . . 30
Using your garage door opener . . . . . . . . . . . . . . . . . . . 30
Using the wall-mounted door control . . . . . . . . . . . . . . . 31
To open the door manually . . . . . . . . . . . . . . . . . . . . . . 31
Standby Power (Optional) . . . . . . . . . . . . . . . . . . . . . . . 32
Care of your garage door opener. . . . . . . . . . . . . . . . . . 32
Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Programming 35-36
To add or reprogram a hand-held remote control . . . . . 35
To erase all codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
To add, reprogram or change a Keyless Entry PIN. . . . 36
Repair Parts 37-38
Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . 38
Accessories 39
Repair Parts and Service 40
Warranty 40
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come
from something mechanical or from electric shock. Read
the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical

3
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
1/2" and 3/8" Sockets
and Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
3/16", 5/16" and
5/32" Drill Bits
Carpenter's
Level (Optional)

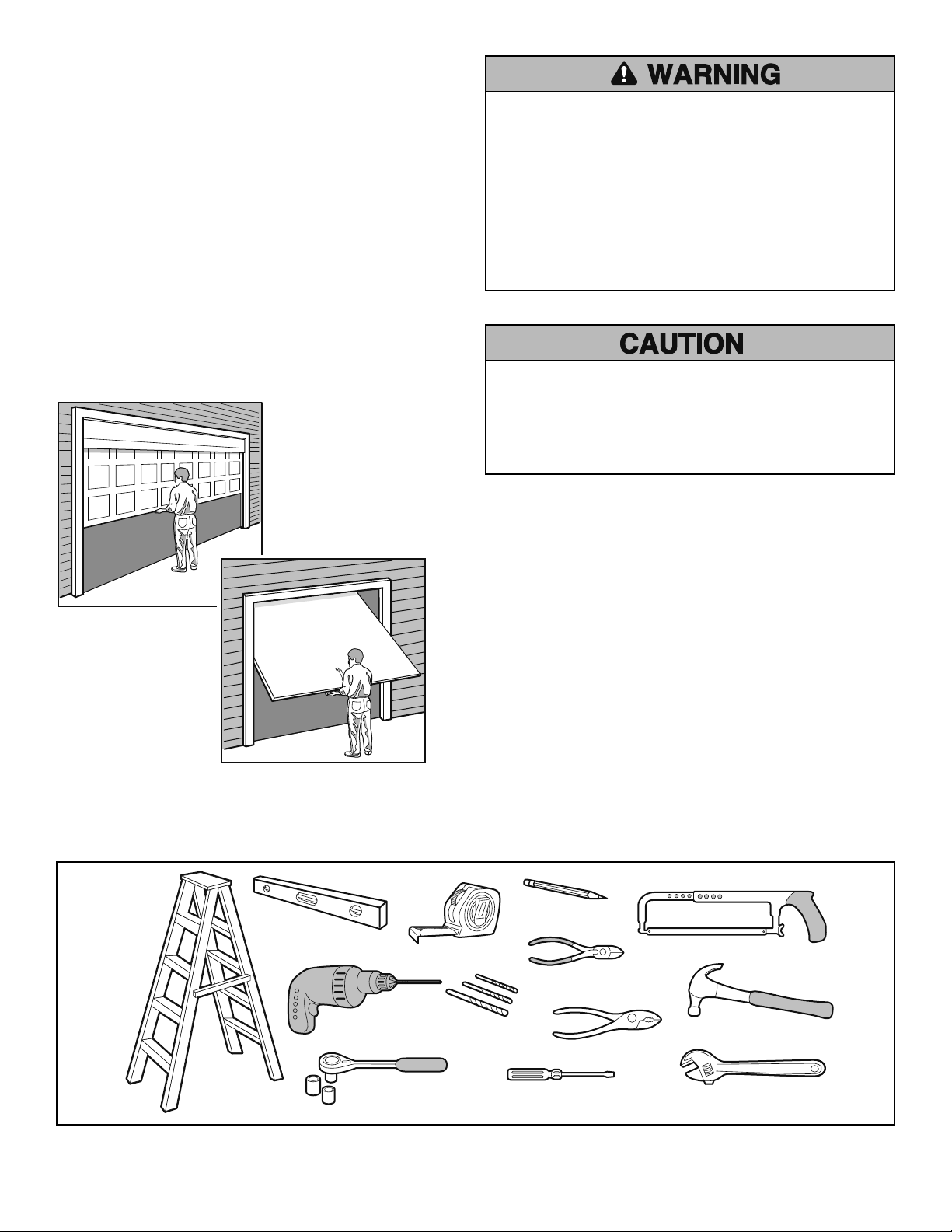

Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your garage
door is balanced and is not sticking or binding:
1. Lift the door about halfway as shown. Release the
door. If balanced, it should stay in place, supported
entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as illustrated
below.
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the
opener.
• ONLY operate garage door opener at 120V, 60 Hz to avoid
malfunction and damage.
To prevent possible SERIOUS INJURY or DEATH:
• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door may not reverse when required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all of
which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage door
opener to avoid entanglement.
Sectional Door
One-Piece Door

4
Safety Reversing Sensor
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23 for details.
Support bracket &
fastening hardware
is required.
See page 19.
— — — — — — — —
Header Wall
Safety Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
FINISHED CEILING
Torsion
Spring
Access Door
Motor unit
Wall-
mounted
Door
Control
Rail
Extension
Spring
OR
Vertical
Centerline
of Garage
Door

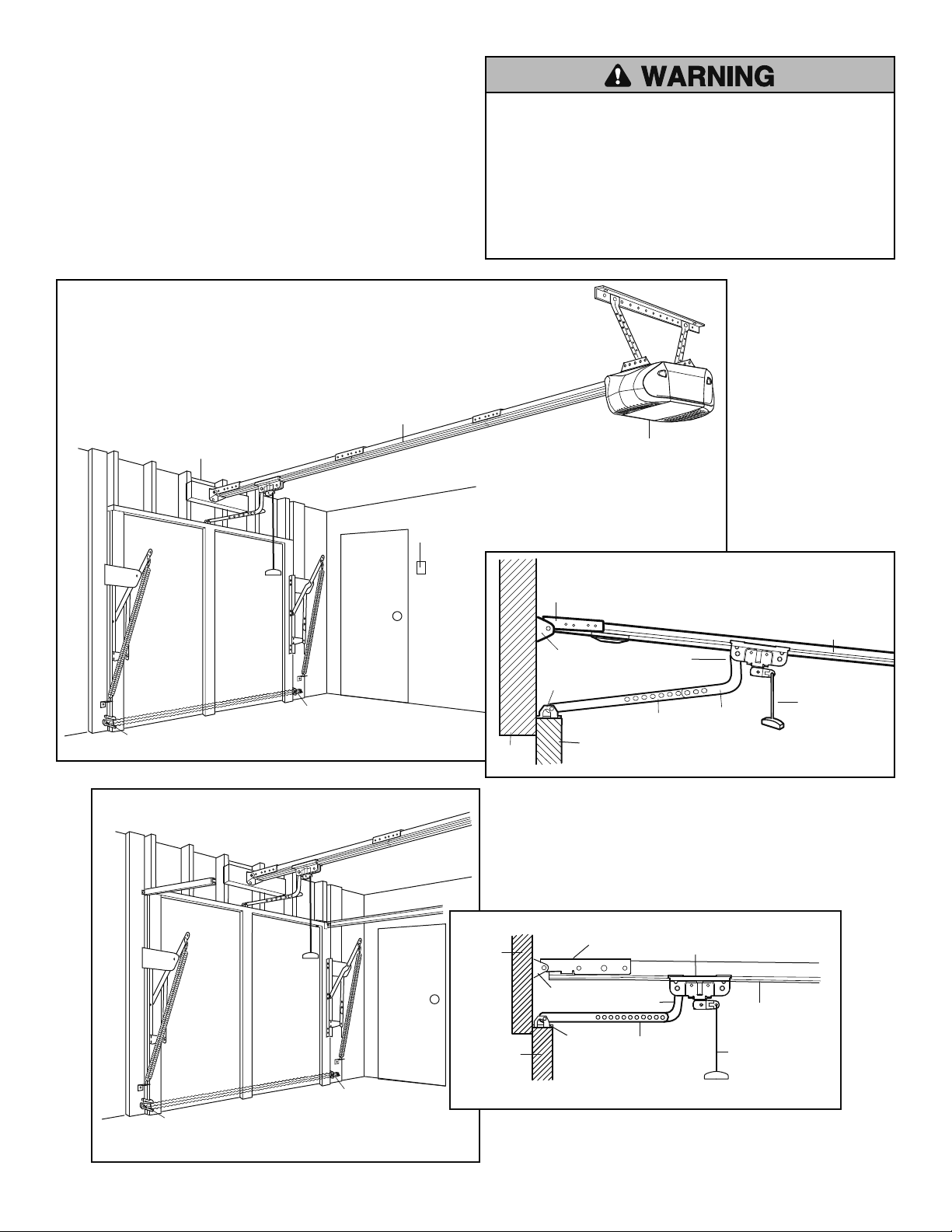

SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door. Survey
your garage area to see if any of the conditions below
apply to your installation. Additional materials may be
required. You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with
the installation of your opener.
Depending on your requirements, there are several
installation steps which may call for materials or hardware
not included in the carton.
• Installation Step 1 – Look at the wall or ceiling above
the garage door. The header bracket must be securely
fastened to structural supports.
• Installation Step 4 – Depending upon garage
construction, extension brackets or wood blocks may be
needed to install sensors.
• Installation Step 4 – Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.
• Installation Step 6 – Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required.
• Do you have an access door in addition to the garage
door? If not, Model 7702CB Emergency Key Release is
required. See Accessories page.
• Look at the garage door where it meets the floor. Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 mm). Otherwise, the safety reversal
system may not work properly. See Adjustment Step 3.
Floor or door should be repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforcement
is required (Installation Step 13).
• The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1.2 m) to the left or right of the door
center. See Installation Steps 1 and 13.
Header
Bracket Rail Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door
Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
Rail Assembly
CLOSED POSITION

5
Safety
Reversing Sensor
Safety
Reversing Sensor
Access
Door
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Header
Bracket
Door
Bracket Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency Release
Rope & Handle
Rail Assembly
Garage
Door
Header
Wall
CLOSED POSITION
Rail Bracket
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 13.
• Depending on your door’s construction, you may need
additional mounting hardware for the door bracket
(Step 13).
Safety Reversing Sensor
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 19.
Safety Reversing
Sensor
Access
Door
Gap between floor
and bottom of door must not exceed 1/4" (6 mm).
Wall-mounted
Door Control
Header Wall Motor unit
Rail
ONE-PIECE DOOR WITHOUT TRACK
ONE-PIECE DOOR WITH TRACK
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
• The gap between the bottom of the garage door and the floor
MUST NOT exceed 1/4" (6 mm). Otherwise, the safety
reversal system may not work properly.
• The floor or the garage door MUST be repaired to eliminate
the gap.
Garage
Door
Header
Wall
Rail Assembly
Door Arm Emergency
Release
Rope & Handle
Rail
Bracket
Trolley
CLOSED POSITION
Header
Bracket
Straight
Door
Arm
Door
Bracket
Curved
Door
Arm

6
Straight Door
Arm Section
Curved Door
Arm Section
Header Bracket
UP
CEILING MOUNT ONLY
Sprocket
Coupling
Remote Control
Visor Clip (2)
Trolley
Rail Support
Braces (4)
Rail Assembly
Hanging Brackets Door Bracket
Motion Detecting
Door Control
Safety Labels
and
Literature
The Protector System®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with attached 2-Conductor
White & White/Black Bell Wire
Safety Reversing Sensor
Mounting Bracket (2)
2-Conductor Bell Wire
White & White/Red
3-Button Remote Control (2)
3-Button Mini-Remote Control
Motor Unit with 2 Light Lenses
Header/Rail
Brackets
Battery
Keyless Entry
LOCKLIGHT
Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
PARTS MAY BE STUCK IN THE FOAM. Hardware for
assembly and installation is shown on the next page. Save
the carton and packing material until installation and
adjustment is complete.
Carton Inventory

7
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2)
Handle
Nut 5/16"-18 (6)
Ring
Fastener (3)
Clevis Pin
5/16"x2-3/4" (1)
Insulated
Staples (30)
Drywall Anchors (2)
Clevis Pin
5/16"x1" (1)
Rope
Lock Washer 5/16" (6)
Lag Screw
5/16"-9x1-5/8" (2)
Hex Bolt
5/16"-18x7/8" (4)
Clevis Pin
5/16"x1-1/4" (1)
Lag Screw
5/16"-18x1-7/8" (2)
Screw
6ABx1-1/4" (2) Screw 6-32x1" (2)
Spacer
Self-Threading Screw
1/4"-14x5/8"
INSTALLATION HARDWARE
Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
Metal Sleeve (2) C-Clip (2) Hex bolt 1/4-20x7/16" (14) Wire Clips (6)
Sprocket Coupling Sleeve
ASSEMBLY HARDWARE

8
To prevent INJURY from pinching, keep hands and fingers
away from the joints while assembling the rail.
ASSEMBLY STEP 1
Assemble the Rail
To avoid installation difficulties, do not run the garage
door opener until instructed to do so.
1. Open the rail carton and remove the contents onto a
level work surface. Keep it clean and free of debris
while you are working.
2. Identify the rail sections and orient the sections on a flat
surface as shown. The back rail has a black gear on
one end. The header rail has a black plastic rack inside
the rail on the screw. The remaining section is the
center rail.
NOTE: Use caution when handling the center rail section.
The screw can slip out if the section is tipped up too far.
Hex Bolt 1/4-20x7/16"
HARDWARE SHOWN ACTUAL SIZE
Hex Bolts
1/4-20x7/16"
Center Rail
Header Rail
Back Rail
Straight Door Arm
Rail Support Braces
Hanging Brackets
Rail Assembly
Sprocket Coupling
Header Rail Brackets
Remove Cardboard Packing
Rail Assembly Carton
Remove Cardboard Packing
Rail Assembly
Remove
Cardboard
Packing
Hex Bolts
1/4-20x7/16"
Hex Bolts
1/4-20x7/16"
Hex Bolts
1/4-20x7/16"

9
Assemble the Rail (continued)
3. Attach rail support braces to the back rail. Loosely insert
1/4-20x7/16" hex bolts into the aligned holes of the end
rail and rail support brace (Figure 1). Do not finger
tighten.
4. Extend the drive screw a few inches from the center rail,
and slide the sleeve onto the long journal (Figure 2).
5. Interlock the long and short journal of the center and
back rails. Slide the sleeve over the journal connection
(Figure 3).
6. Place the c-clip onto the long journal shaft (center rail) to
ensure that the sleeve does not slide (Figure 4).
7. Slide the center rail so that the center rail and rail brace
holes are aligned (Figure 5). Secure with bolts.
8. Tighten all hex bolts.
9. Repeat steps 3-8 for header section.
Metal Sleeve C-Clip Hex bolt 1/4-20x7/16"
HARDWARE SHOWN ACTUAL SIZE
Rail Support Brace
Rail Support Brace
Rail
Figure 1
Metal Sleeve
C-Clip
Figure 4
Center Rail
Center Rail
Figure 5
Rail Support Brace
Long Journal
Short Journal
Figure 3
Rail Support Brace
Metal Sleeve
Metal Sleeve
Long Journal
Drive Screw
Center Rail
Figure 2

10
Coupling
Motor Unit
Bracket Motor Unit
Sprocket
Foam Packaging
Hex Bolts
1/4"-20x7/16"
Hex Bolts
1/4-20x7/16"
Rail
Sprocket
Rail
Assembly
Coupling
Release arm
ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit and
Install the Trolley
NOTE: To aid in assembly and installation, replace the
foam packing around the motor unit. Remove it after
Installation Step 4.
1. Working on a level surface, align the rail assembly with
the motor unit, as shown.
2. Slip the coupling over the rail sprocket.
3. Slide the rail through the motor unit bracket until the
coupling fits securely over the motor unit sprocket.
4. Align the four bolt holes in the rail with those in the
motor unit bracket. Insert four 1/4"-20x7/16" hex bolts.
Tighten securely with a 3/8" socket wrench.
5. Disengage trolley by turning the release arm down.
Slide trolley onto and along the bottom of the rail until it
aligns with the rack. Turn release arm up. This will join
the rack and the trolley.
Hex Bolt 1/4-20x7/16"
HARDWARE SHOWN ACTUAL SIZE
Trolley
To the motor unit
Rack

11
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNINGWARNING
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND
INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and
lubricated garage door. An improperly balanced door may
not reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware
MUST be made by a trained door systems technician
BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing opener to avoid
entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above
floor.
6. Mount emergency release handle 6 feet (1.83 m) above floor.
7. NEVER connect garage door opener to power source until
instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door.
• out of reach of children at minimum height of 5 feet
(1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door
control.
11. Place manual release/safety reverse test label in plain view
on inside of garage door.
12. Upon completion of installation, test safety reversal system.
Door MUST reverse on contact with a 1-1/2" (3.8 cm) high
object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect ALL electric and battery power
BEFORE performing ANY service or maintenance.
ASSEMBLY STEP 3
Attach the Rail Brackets
• Align rail brackets to end of rail assembly, as shown.
• Insert two 1/4"-20x7/16" hex bolts. Tighten securely with
a 3/8" socket.
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.
Hex Bolt
1/4-20 x 7/16"
Hex Bolt
1/4-20x7/16"
Rail Brackets
Rail
Hex Bolt 1/4-20x7/16"
HARDWARE SHOWN ACTUAL SIZE

12
Header Wall
Sectional door with curved track
Highest Point
of Travel
Door
Track
3" (7.5 cm)
One-piece door with horizontal track
Door
Track
Header Wall
Highest Point
of Travel
3" (7.5 cm)
Header Wall
Vertical Centerline
of Garage Door
Level
(optional)
2x4
2x4
Structural
Supports
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Unfinished
Ceiling

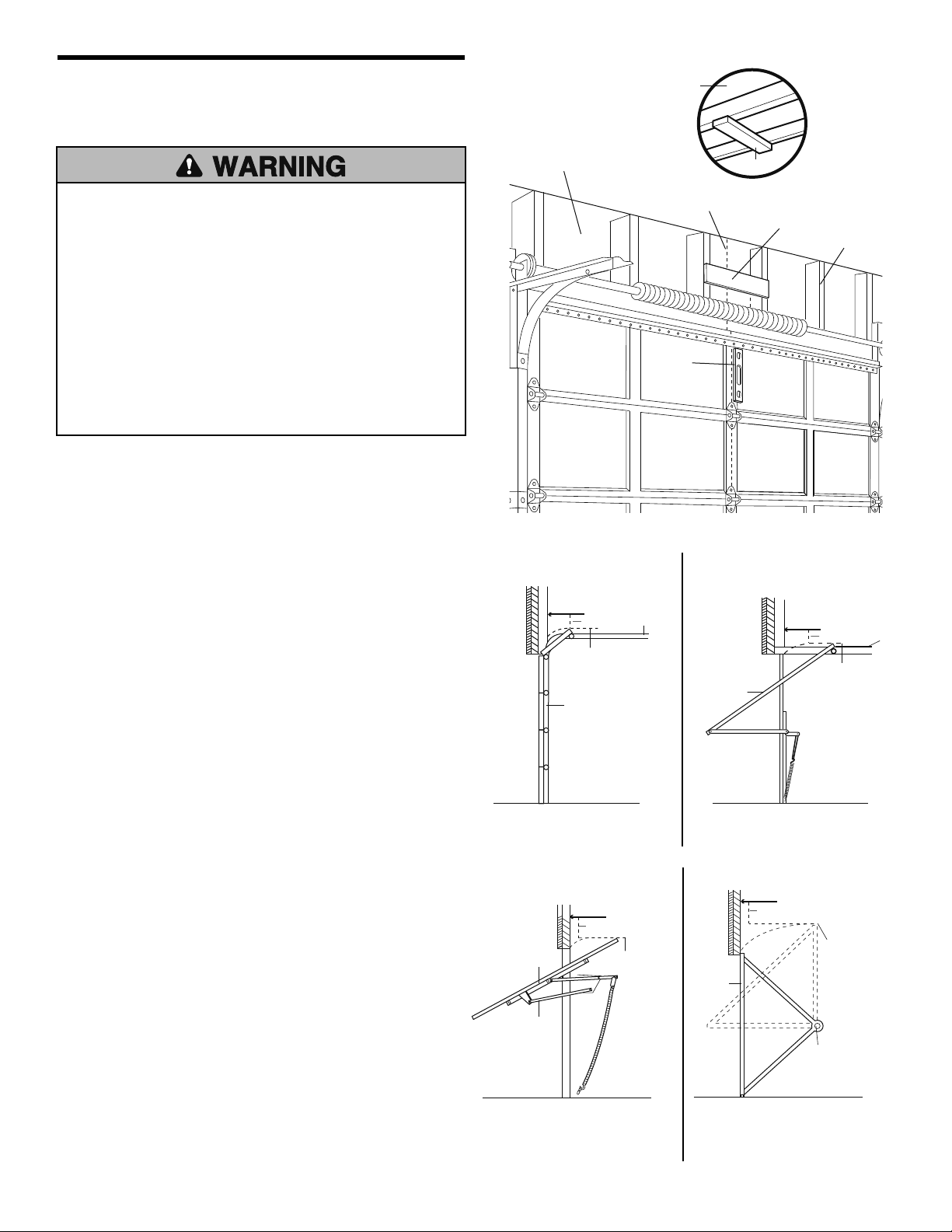

INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline of
the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet (1.22
m) of the left or right of the door center only if a
torsion spring or center bearing plate is in the way;
or you can attach it to the ceiling (see page 13)
when clearance is minimal. (It may be mounted on
the wall upside down if necessary, to gain
approximately 1/2" (1 cm).
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as shown.
Draw an intersecting horizontal line on the header wall
above the high point:
• 3" (7.5 cm) above the high point for sectional door
and one-piece door with track.
• 8" (20 cm) above the high point for one-piece door
without track.
This height will provide travel clearance for the top edge
of the door.
NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page 13 for ceiling installation.
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might not reverse when required. DO NOT install header
bracket over drywall.
• Concrete anchors MUST be used if mounting header bracket
or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, all of which are
under EXTREME tension.
• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door might not reverse when required.
Door
Jamb
Hardware
One-piece door without track:
jamb hardware
8" (20 cm)
Highest
Point
of Travel Door
Pivot
8" (20 cm)
One-piece door without track:
pivot hardware
Highest
Point
of Travel
Header Wall
Header Wall

13
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above
the garage door, or to the ceiling. Follow the instructions
which will work best for your particular requirements. Do
not install the header bracket over drywall. If installing
into masonry, use concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes (do not use the
holes designated for ceiling mount). Drill 3/16" pilot holes
and fasten the bracket securely to a structural support
with the hardware provided.
Lag Screw
5/16"-9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as shown.
• Center the bracket on the vertical mark, no more than 6"
(15 cm) from the wall. Make sure the arrow is pointing
toward the wall. The bracket can be mounted flush
against the ceiling when clearance is minimal.
• Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.
Lag Screws
5/16"-9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline of
Garage Door
Header
Wall
Garage
Door
UP
CEILING MOUNT ONLY
Wall Mounting Holes
Optional
Wall Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
CEILING MOUNT ONLY
Door Spring
Header
Bracket
2x4
Structural
Support
Vertical
Centerline of
Garage Door
Horizontal
Line
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
Lag Screws
5/16"-9x1-5/8"
Garage Door
Vertical
Centerline
of Garage Door
Header Wall
– Finished Ceiling –
Header
Bracket
6" (15 cm)
Maximum
Vertical
Centerline
of Garage Door
Door
Spring

14
Header Bracket
Header/Rail Bracket
Opener Carton or
Temporary
Support
Header Wall
Garage
Door
Rail
Clevis Pin
5/16"x2-3/4"
Ring Fastener
Spacer
Header Bracket
Header/Rail
Bracket
Rail
Clevis Pin
5/16"x2-3/4" Ring Fastener Spacer
HARDWARE SHOWN ACTUAL SIZE

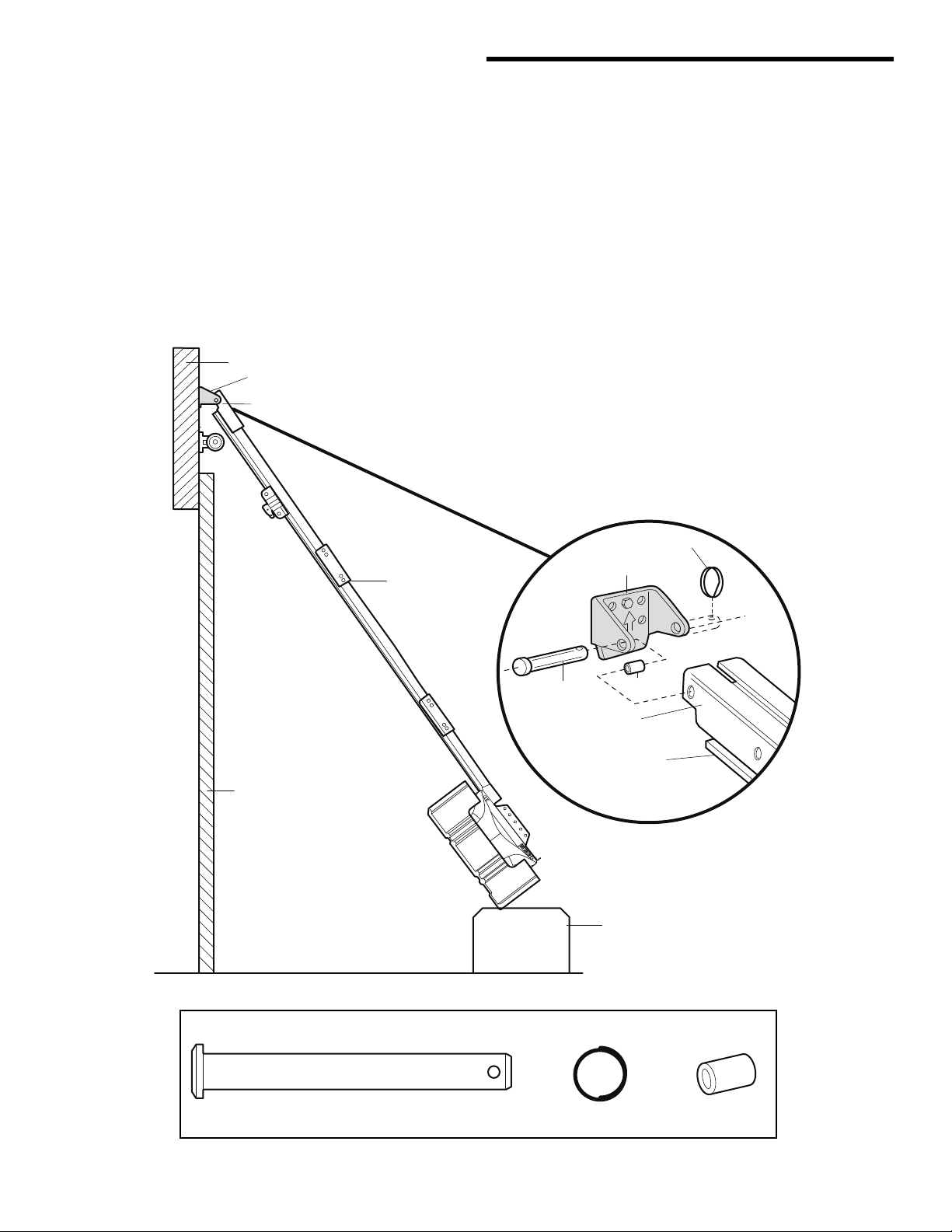

INSTALLATION STEP 3
Attach the Rail to the Header Bracket
• Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.
• Position the header/rail bracket against the header
bracket.
• Align the bracket holes and join with a clevis pin
5/16"x2-3/4" as shown. Spacer can be installed on
either side of rail.
• Insert a ring fastener to secure.

15
Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor Safety Reversing Sensor
6" (15 cm) max. above floor
Facing the door from inside the garage

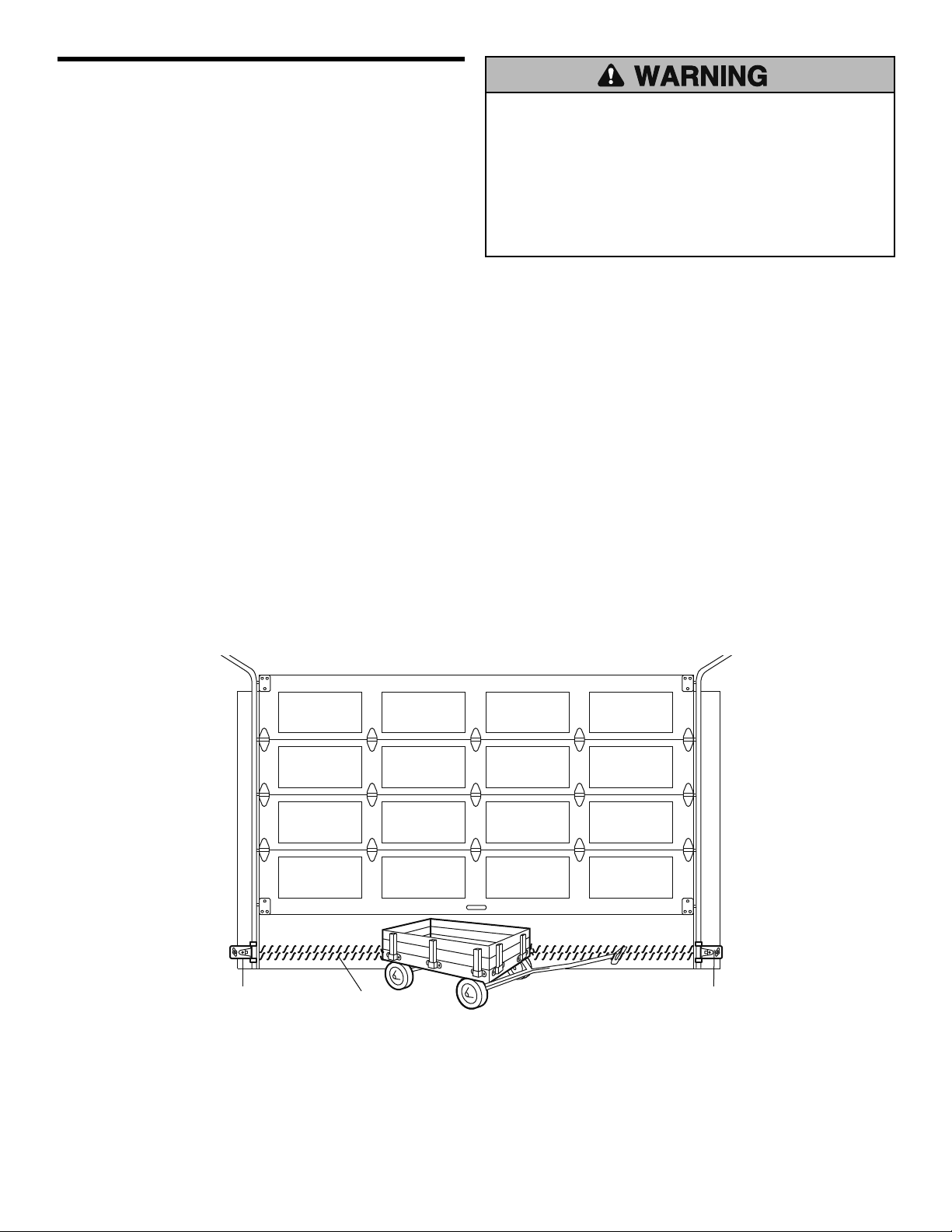

INSTALLATION STEP 4
Install The Protector System®
The safety reversing sensor must be connected and
aligned correctly before the garage door opener will
move in the down direction.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properly connected and aligned, the sensor will
detect an obstacle in the path of its electronic beam. The
sending eye (with an amber indicator light) transmits an
invisible light beam to the receiving eye (with a green
indicator light). If an obstruction breaks the light beam
while the door is closing, the door will stop and reverse to
full open position, and the opener lights will flash 10 times.
The units must be installed inside the garage so that the
sending and receiving eyes face each other across the
door, no more than 6" (15 cm) above the floor. Either can
be installed on the left or right of the door as long as the
sun never shines directly into the receiving eye lens.
The mounting brackets are designed to clip onto the track
of sectional garage doors without additional hardware.
If it is necessary to mount the units on the wall, the
brackets must be securely fastened to a solid surface such
as the wall framing. Extension brackets (see accessories)
are available if needed. If installing in masonry
construction, add a piece of wood at each location to
avoid drilling extra holes in masonry if repositioning is
necessary.
The invisible light beam path must be unobstructed. No
part of the garage door (or door tracks, springs, hinges,
rollers or other hardware) may interrupt the beam while
the door is closing.
Be sure power is not connected to the garage door opener
BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from a closing garage
door:
• Correctly connect and align the safety reversing sensor. This
required safety device MUST NOT be disabled.
• Install the safety reversing sensor so beam is NO HIGHER
than 6" (15 cm) above garage floor.

16
DOOR TRACK MOUNT (RIGHT SIDE)
Indicator
Light
Lens
Lip
Sensor
Bracket
Door
Track
FLOOR MOUNT (RIGHT SIDE)
WALL MOUNT (RIGHT SIDE)
Indicator
Light
Sensor
Bracket
Lens
Extension
Bracket
(See Accessories)
Inside
Garage
Wall
(Provided with
Extension
Bracket)
(Provided with
Extension Bracket)
Figure 1
Figure 2
Figure 3
Figure 4
WALL MOUNT (RIGHT SIDE)
Attach with
Concrete Anchors
(Not Provided)
Inside
Garage
Wall
Sensor
Bracket
Lens
Indicator
Light
Inside
Garage
Wall
Indicator
Light Sensor
Bracket
Lens
Lag Screws
(Not Provided)
Fasten Wood Block to Wall with
Lag Screws (Not Provided)
INSTALLING THE BRACKETS
Be sure power to the opener is disconnected. Install
and align the brackets so the sensors will face each other
across the garage door, with the beam no higher than 6"
(15 cm) above the floor. They may be installed in one of
three ways, as follows.
Garage door track installation (preferred):
• Slip the curved arms over the rounded edge of each
door track, with the curved arms facing the door. Snap
into place against the side of the track. It should lie
flush, with the lip hugging the back edge of the track, as
shown in Figure 1.
If your door track will not support the bracket securely,
wall installation is recommended.
Wall installation (Figure 2 & 3):
• Place the bracket against the wall with curved arms
facing the door. Be sure there is enough clearance for
the sensor beam to be unobstructed.
• If additional depth is needed, an extension bracket (See
Accessories) or wood blocks can be used.
• Use bracket mounting holes as a template to locate and
drill (2) 3/16" diameter pilot holes on the wall at each
side of the door, no higher than 6" (15 cm) above the
floor.
• Attach brackets to wall with lag screws (Not provided).
• If using extension brackets or wood blocks, adjust right
and left assemblies to the same distance out from the
mounting surface. Make sure all door hardware
obstructions are cleared.
Floor installation (Figure 4):
• Use wood blocks or extension brackets (See
Accessories) to elevate sensor brackets so the lenses
will be no higher than 6" (15 cm) above the floor.
• Carefully measure and place right and left assemblies at
the same distance out from the wall. Be sure all door
hardware obstructions are cleared.
• Fasten to the floor with concrete anchors as shown.
Wing Nut
1/4"-20
Staples
Carriage Bolt
1/4"-20x1/2"
HARDWARE SHOWN ACTUAL SIZE

17

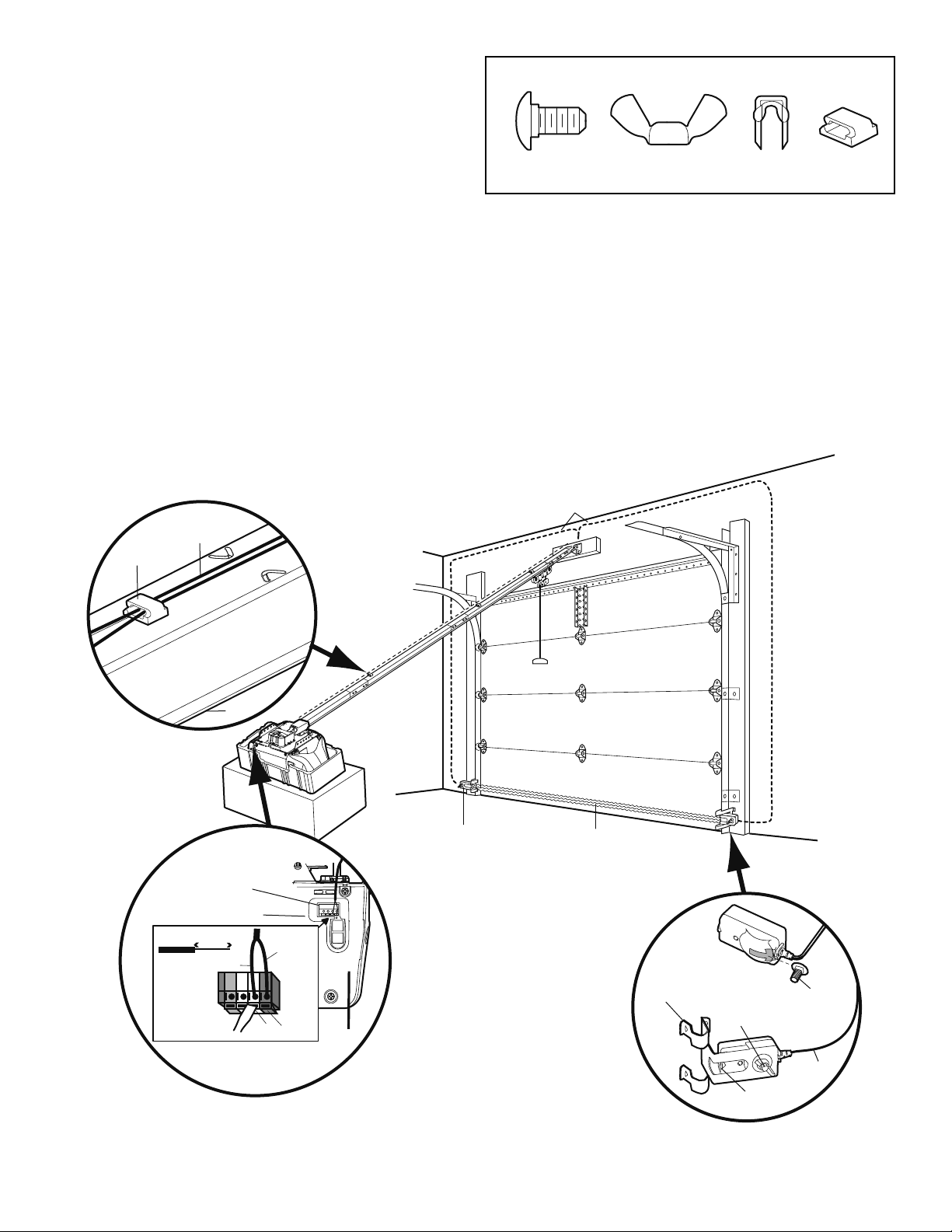

MOUNTING THE SAFETY SENSORS
• Slide a 1/4”-20x1/2” carriage bolt head into the slot on
each sensor. Use wing nuts to fasten sensors to
brackets, with lenses pointing toward each other across
the door. Be sure the lens is not obstructed by a bracket
extension (Figure 5).
• Finger tighten the wing nuts.
Recommended Wire Routing
1. Using insulated staples, run the wires from both sensors
to the rail at the door header (Figure 5A).
2. Run the wires through wire clips at the top of the rails.
NOTE: If your access door is near the garage door, you
may choose to install the door control at this time and run
the door control wire along the rail with the sensor wires.
3. Separate the white and white/black wires. Strip 7/16”
(11 mm) of insulation from the end of the sensor wires.
Twist like colored wires together. Connect the bell wire
from safety reversing sensors to the quick-connect
terminals: white wires to the white terminal and white/
black wires to grey terminal (Figure 5B).
Invisible Light Beam
Protection Area
Safety Reversing Sensor
Bell Wire
Sensor Wire
Wire Clips
Rail
Carriage Bolt
1/4"-20x1/2"
Bracket
Bell Wire
Lens
Wing Nut
1/4"-20
Strip wire 7/16"
7/16" (11 mm)
GreyWhite
White/Black
Wire
White Wire
Quick-Connect
Terminals
Left Side Panel
Antenna
To release
or insert
wire, push
in tab with
screwdriver tip
SAFETY REVERSING
SENSORS CONNECTIONS
Wing Nut
1/4"-20
Staples
Carriage Bolt
1/4"-20x1/2"
Wire Clip
HARDWARE SHOWN ACTUAL SIZE
Figure 5A
Figure 5B
Figure 5

18

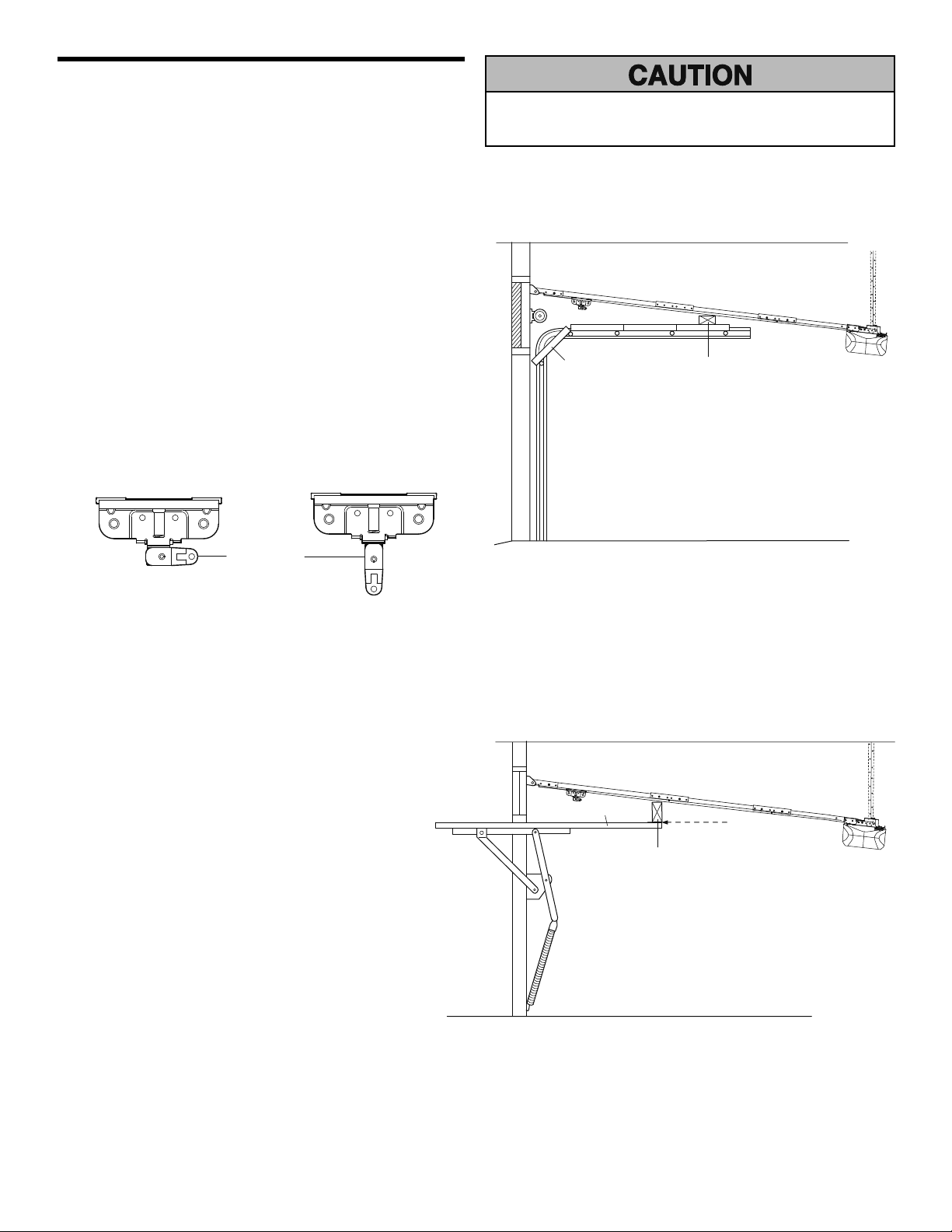

ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 on its
side on the top section of the door beneath the
rail.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 4" (10 cm) above this point.
INSTALLATION STEP 5
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal door-to-rail
distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
• If the top section or panel hits the trolley when you raise
the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 14 is completed.
To prevent damage to garage door, rest garage door opener
rail on 2x4 placed on top section of door.
Trolley
Release Arm
ENGAGED
RELEASED
2x4 is used to determine
the correct mounting height
from ceiling.
Door
Top of Door
Top of Door
2x4 is used to determine
the correct mounting height
from ceiling.

19
INSTALLATION STEP 6
Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figure 2 and Figure 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided (see
accessories).
Existing brackets from a previous installation may be
fastened to the sides of the motor unit as in Figures 1, 2
and 3. Then continue with step 6 below.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the door
hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
Lag Screw 5/16"-18x1-7/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE SHOWN ACTUAL SIZE
To avoid possible SERIOUS INJURY from a falling garage door
opener, fasten it SECURELY to structural supports of the
garage. Concrete anchors MUST be used if installing any
brackets into masonry.
Measure
Distance
Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
— FINISHED CEILING —
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
Figure 1
Figure 2
Figure 3

20
INSTALLATION STEP 7
Install the Door Control
Locate door control within sight of door at a minimum
height of 5 feet (1.5 m) where small children cannot reach,
and away from moving parts of door and door hardware. If
installing into drywall (Figure 1), drill 5/32" holes and use
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).
1. Strip 7/16" (11 mm) of insulation from one end of bell
wire and connect to the two screw terminals on back of
door control by color: white wire to 2 and white/red wire
to the 1.
2. Remove cover by gently prying at slot in top of the
cover with a small flat head screwdriver. Fasten with
6ABx1-1/4" self-tapping screws (drywall installation) or
6-32x1" machine screws (into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to protrude
above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid cracking
plastic housing. Do not overtighten.
• Insert top tabs and snap on cover.
3. (Standard installation only) Run bell wire up wall and
across ceiling to opener. Use insulated staples to
secure wire in several places. Do not pierce wire with a
staple, creating a short or open circuit. If your access
door is near the garage door, you may run this wire with
the Safety Reversing Sensor wires along the top of the
rail. See page 17.
4. Separate the white and red/white wires. Strip 7/16"
(11 mm) of insulation from the end of the bell wires.
Twist like colored wires together. Connect the bell wire
from door control and safety reversing sensors to the
quick-connect terminals: red/white wire to the red
terminal, white wires to the white terminal and white/
black wires to grey terminal.
NOTE: When connecting multiple door controls to the
opener, twist same color wires together. Insert wires
into quick-connect holes: white to white and red/white to
red.
5. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent location
on inside of garage door.
NOTE: DO NOT connect the power and operate the
opener at this time. The trolley will travel to the full open
position but will not return to the close position until the
sensor beam is connected and properly aligned. See Step
12 on Page 22.
Drywall Anchors
Insulated
Staples
Screw 6ABx1-1/4"
Control Panel (std installation)
Screw 6-32x1"
Control Panel (pre-wired)
HARDWARE SHOWN ACTUAL SIZE
LOCK LIGHT
To Replace
Insert Top
Tabs First
STANDARD WALL MOUNT
Detector
Switch
Push Bar Cover
ON
OFF
24 Volt Bell Wire
PRE-WIRED INSTALLATION
LOCKLIGHT
To Replace
Insert Top
Tabs First
Detector
Switch
Push Bar Cover
ON
OFF
Figure 1 Figure 2
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door
control.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Install door control within sight of garage door, out of reach
of children at a minimum height of 5 feet (1.52 m), and away
from all moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
Strip wire 7/16"
7/16" (11 mm)
Red GreyWhite
Quick-Connect
Terminals
Antenna
To release or insert wire, push in tab with screwdriver tip
Door Control
Connections Safety Reversing
Sensors Connections
Battery
Status LED
Terminal
Scre ws
(BACK VIEW)
Top
Mounting
Hole
Bottom
Mounting
Hole
WHITE
2
RED
1
Bell
Wire
Push Bar
Light
Button
Lock
Button
LOCKLIGHT
