Chamberlain Whisper Drive Security+ 459950 User manual

The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
GARAGE DOOR OPENER
Models 459950 • 547445 • HD900CD
For Residential Use Only
Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless The Protector System®is connected and properly aligned.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the left side panel of your opener.
®
®

2
TABLE OF CONTENTS
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility
of serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come
from something mechanical or from electric shock. Read
the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained
and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
Introduction 2-7
Safety symbol and signal word review . . . . . . . . . . . . . . . 2
Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . 3
Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly 8-11
Assemble the rail and install the trolley. . . . . . . . . . . . . . . 8
Fasten the rail to the motor unit . . . . . . . . . . . . . . . . . . . . 9
Install the idler pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install the belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tighten the belt and install the sprocket cover . . . . . . . . 11
Installation 11-27
Installation safety instructions . . . . . . . . . . . . . . . . . . . . 11
Determine the header bracket location . . . . . . . . . . . . . . 12
Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . . 13
Attach the rail to the header bracket . . . . . . . . . . . . . . . . 14
Position the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Attach the emergency release rope and handle. . . . . . . . 19
Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Install The Protector System®. . . . . . . . . . . . . . . . . 20-23
Fasten the door bracket. . . . . . . . . . . . . . . . . . . . . . . 24-25
Connect the door arm to the trolley . . . . . . . . . . . . . 26-27
Adjustment 28-30
Program the travel limits. . . . . . . . . . . . . . . . . . . . . . . . . 28
Set the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Test the safety reversal system. . . . . . . . . . . . . . . . . . . . 30
Test The Protector System®. . . . . . . . . . . . . . . . . . . . . . 30
Operation 31-37
Operation safety instructions . . . . . . . . . . . . . . . . . . . . . 31
Using your garage door opener . . . . . . . . . . . . . . . . . . . 31
Using the wall-mounted door control . . . . . . . . . . . . . . . 32
Standby power unit (Optional) . . . . . . . . . . . . . . . . . . . . 33
To open the door manually . . . . . . . . . . . . . . . . . . . . . . . 34
Care of your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Having a problem? (Troubleshooting) . . . . . . . . . . . . . . 35
Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Smart Control Panel®Messages. . . . . . . . . . . . . . . . . . . 37
Programming 38-39
To add or reprogram a hand-held remote control. . . . . . 38
To erase all codes from motor unit memory. . . . . . . . . . 38
3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
To add, reprogram or change a Keyless Entry PIN . . . . . 39
Repair Parts 40-41
Rail assembly parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . 41
Accessories 42
Notes 43
Repair Parts and Service 44
Warranty 44

3
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and
operating the opener.
• ONLY operate garage door opener at 120V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY or DEATH:
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may NOT reverse when
required.
• NEVER try to loosen, move or adjust garage door,
door springs, cables, pulleys, brackets or their
hardware, ALL of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected
to garage door BEFORE installing and operating
garage door opener to avoid entanglement.
Preparing Your Garage Door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your garage
door is balanced and is not sticking or binding:
1. Lift the door about halfway as shown. Release the
door. If balanced, it should stay in place, supported
entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.

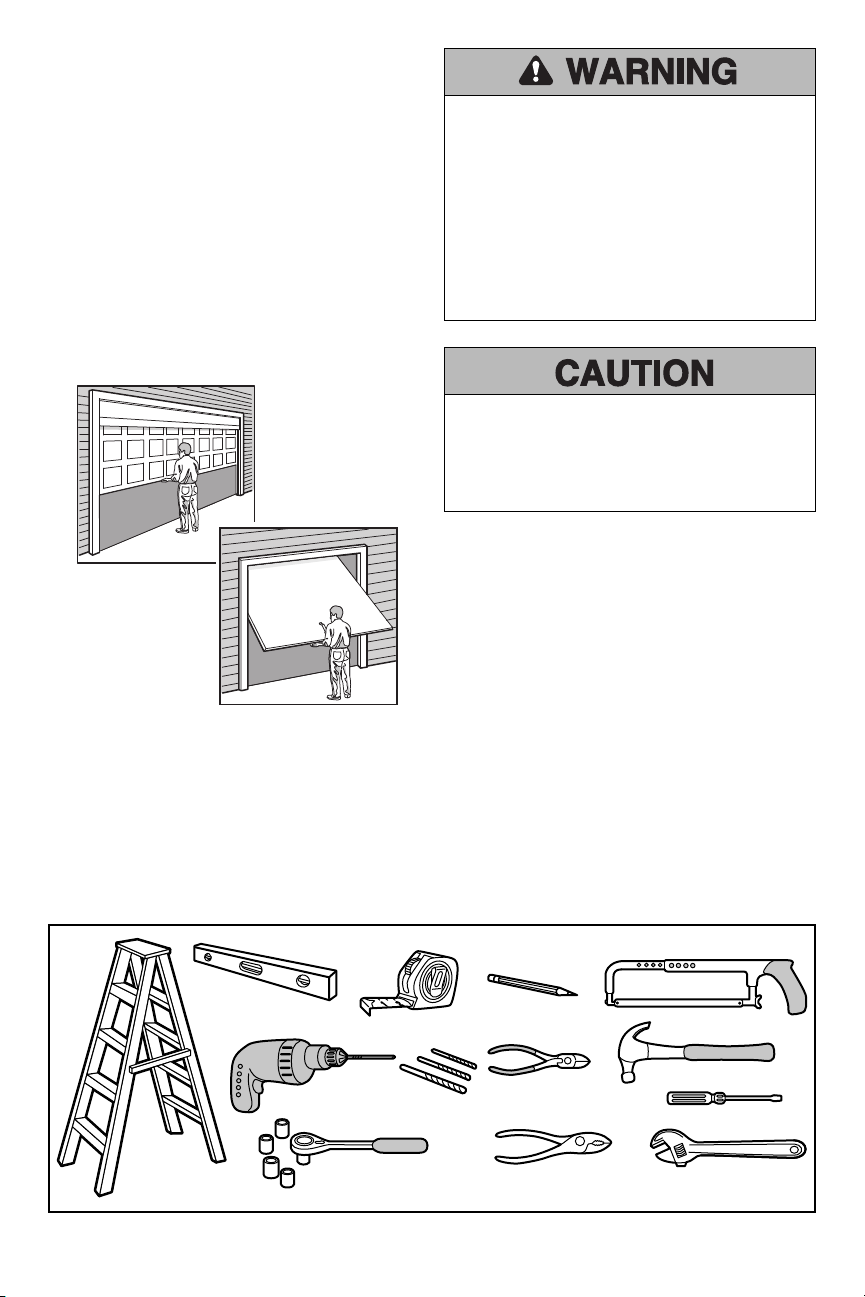

Tools needed
During assembly, installation and adjustment of
the opener, instructions will call for hand tools as
illustrated below.
Sectional Door
Stepladder
Carpenter’s
Level (optional) Tape Measure
Drill
Sockets and Wrench
1/2", 5/8", 7/16", 9/16"
and 1/4"
Pencil
Wire Cutters
Pliers Adjustable End Wrench
Claw Hammer
Screwdriver
Hack Saw
Drill Bits
3/16", 5/16"
and 5/32"
One-Piece Door

4

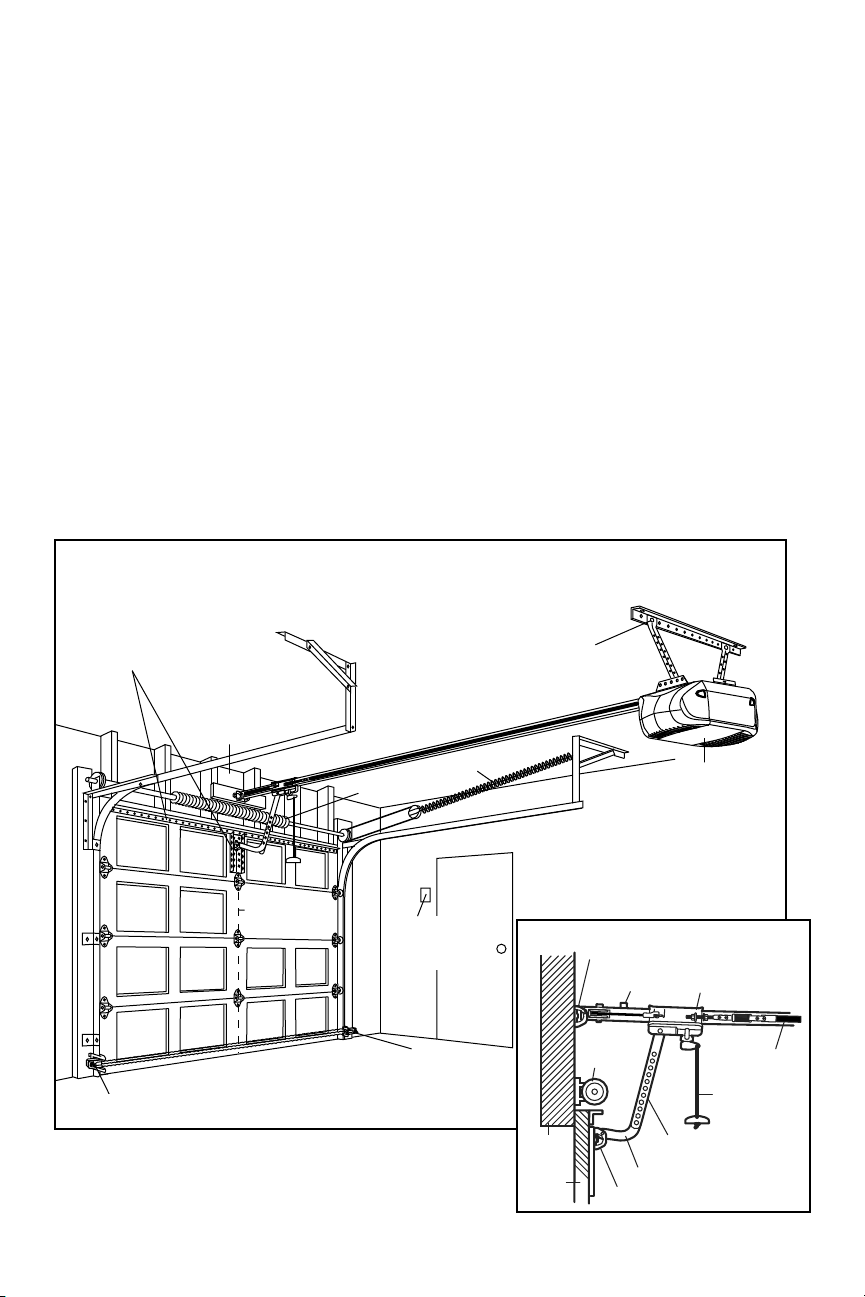

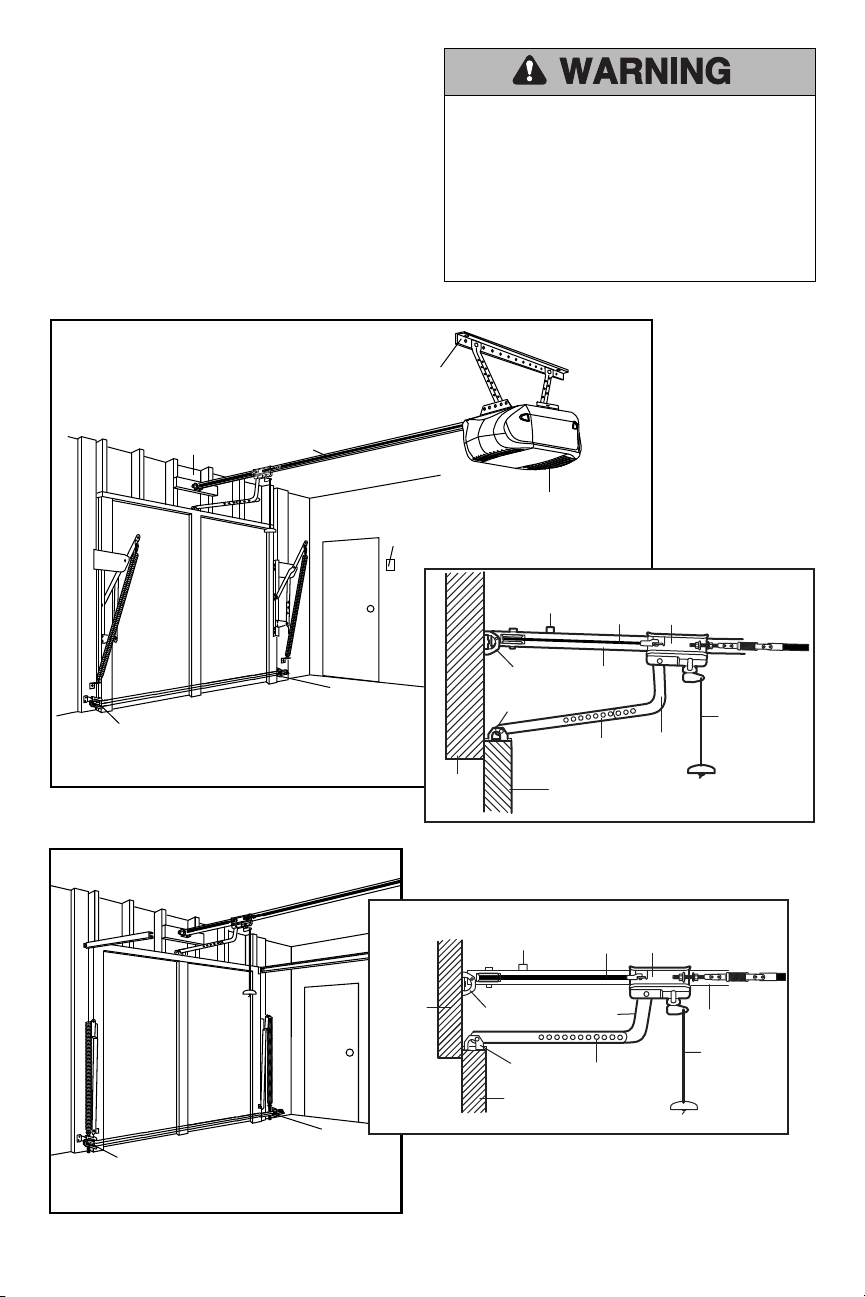

SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage
doors (fiberglass, steel, aluminum,
door with glass panels, etc.).
FINISHED CEILING

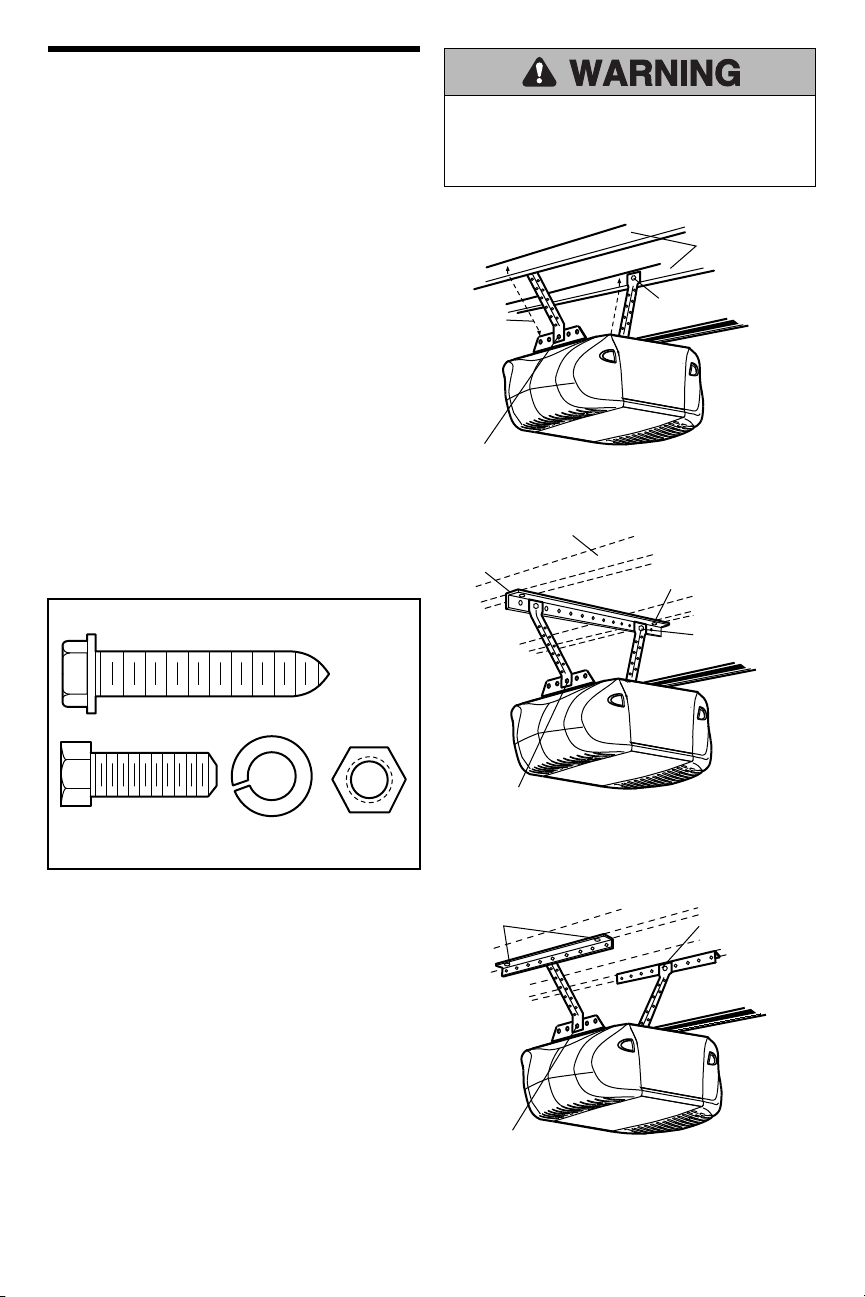

Support bracket &
fastening hardware
is required.
Motor unit
Extension
Spring
Torsion
Spring OR
Wall-mounted
Door Control
Access
Door
Vertical
Centerline
of Garage Door
Gap between floor and
bottom of door must not
exceed 1/4" (6 mm).
Safety
Reversing
Sensor
Safety Reversing Sensor
Header Wall
CLOSED POSITION
Header
Wall
Garage
Door
Header Bracket
Trolley
Straight Door Arm
Emergency
Release
Rope & Handle
Door Bracket
Curved Door Arm
Garage Door
Spring Belt
Rail Tab
Planning
Identify the type and height of your garage door. Survey
your garage area to see if any of the conditions below
apply to your installation. Additional materials may be
required. You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with
the installation of your opener.
Depending on your requirements, there are several
installation steps which may call for materials or hardware
not included in the carton.
• Installation Step 1 – Look at the wall or ceiling above
the garage door. The header bracket must be securely
fastened to structural supports.
• Installation Step 5 – Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required.
• Installation Step 11 – Depending upon garage
construction, extension brackets or wood blocks may
be needed to install sensors.
• Installation Step 11 – Alternate floor mounting of
the safety reversing sensor will require hardware not
provided.
• Do you have an access door in addition to the garage
door? If not, Model 7702C Emergency Key Release is
required. See Accessories page.
• Look at the garage door where it meets the floor. Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 mm). Otherwise, the safety reversal
system may not work properly. See Adjustment Step 3.
Floor or door should be repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforcement
is required (Installation Step 12).
• The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1.2 m) to the left or right of the door
center. See Installation Steps 1 and 12.
• If your door is more than 7 feet (2.1 m) high, see rail
extension kits listed on Accessories page.
See page 24 for details. See page 16.

5
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 12.
• Depending on your door’s construction, you may need
additional mounting hardware for the door bracket
(Step 12).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage
door.

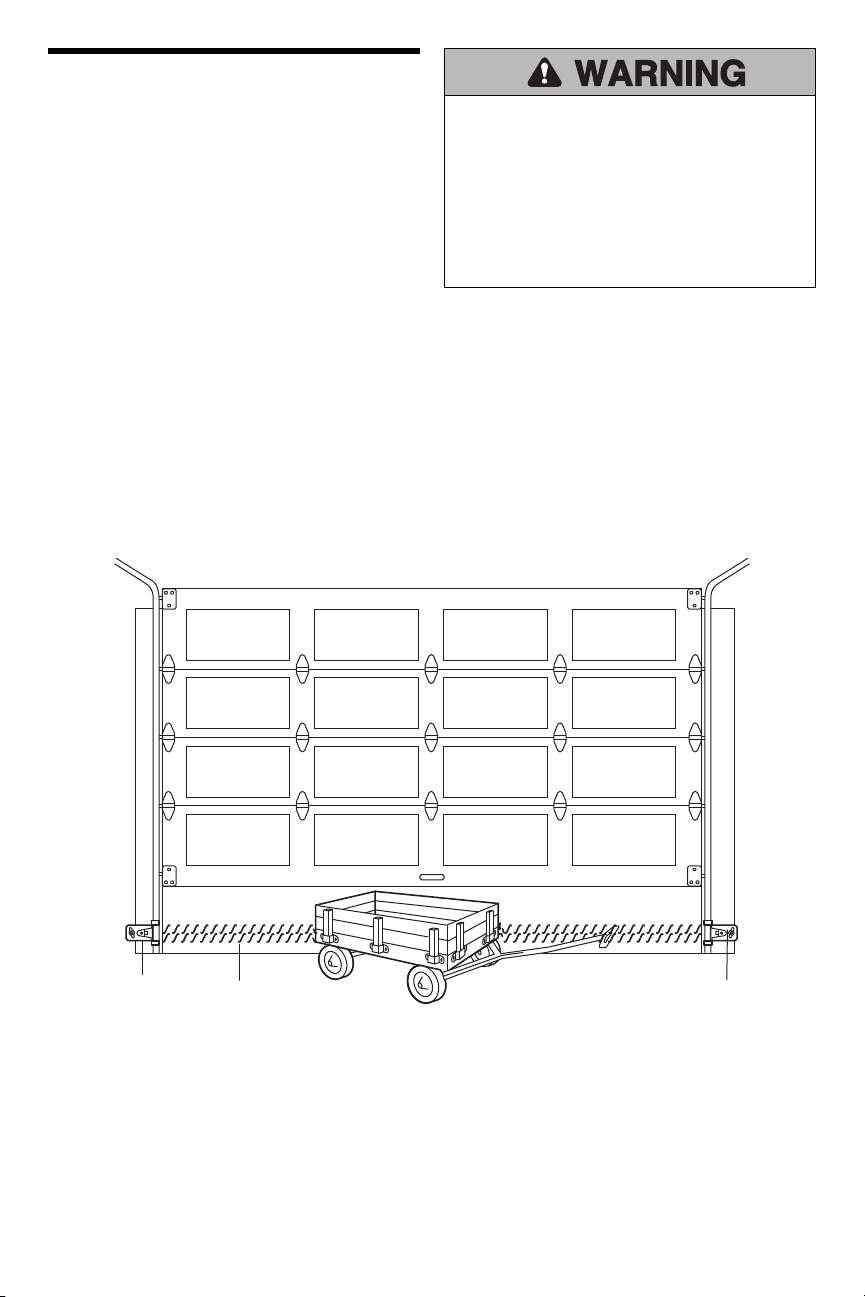

• The gap between the bottom of the garage door and
the floor MUST NOT exceed 1/4" (6 mm). Otherwise,
the safety reversal system may NOT work properly.
• The floor or the garage door MUST be repaired to
eliminate the gap.
See page 16.
ONE-PIECE DOOR WITHOUT TRACK
Header Wall Rail
Gap between floor and
bottom of door must not
exceed 1/4" (6 mm).
Safety Reversing
Sensor
Safety Reversing
Sensor
Access
Door
FINISHED CEILING
Support bracket &
fastening hardware
is required.
Motor unit
Wall-mounted
Door Control
ONE-PIECE DOOR WITH TRACK
Gap between floor and
bottom of door must not
exceed 1/4" (6 mm).
Safety
Reversing
Sensor
Safety Reversing
Sensor
Access
Door
CLOSED POSITION
Header
Wall
Header Bracket
Trolley
Straight Door Arm
Emergency
Release Rope
& Handle
Door Bracket
Curved
Door Arm
Garage Door
Belt
Rail Tab
Rail
CLOSED POSITION
Header
Wall Header Bracket
Trolley
Straight Door Arm
Emergency
Release Rope
& Handle
Door
Bracket
Curved
Door Arm
Garage Door
Belt
Rail Tab
Rail

6

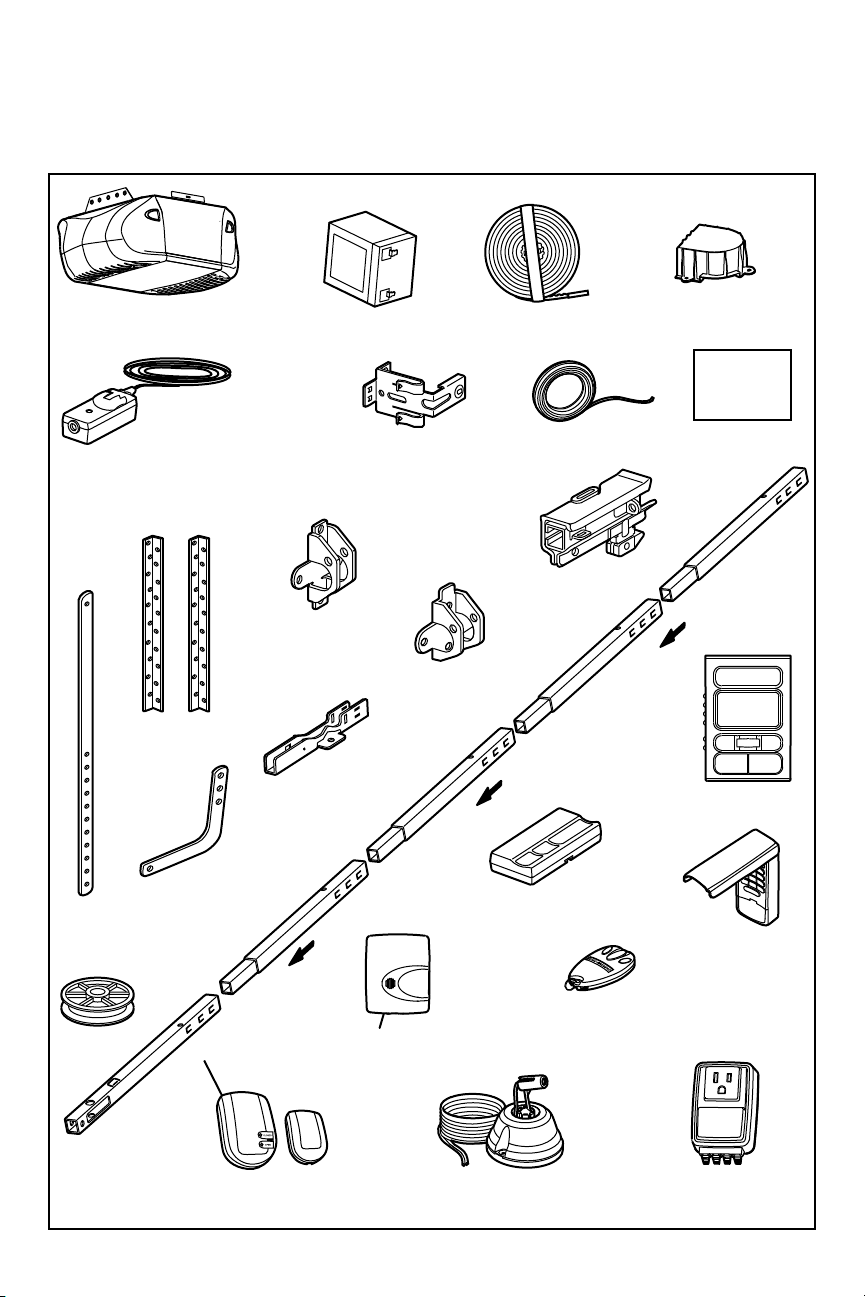

Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
Hardware for assembly and installation is shown on the
next page. Save the carton and packing material until
installation and adjustment is complete.
Carton Inventory
SECURITY✚®3-Button
Remote Control (2)
SECURITY✚®3-Button
Mini-Remote Control (1)
Model 547445 Only
2-Conductor Bell Wire
White & White/Red
Park Assist
Model 547445 Only
Motor Unit with 2 Light Lenses
Rail Front
(header) Section
Smart Control Panel®
Battery
Trolley
Belt
Idler Pulley Remote Light Control
Door Bracket
Rail Center/Back
Sections
SECURITY✚®
Keyless Entry
Sprocket Cover
Header Bracket
Straight Door
Arm Section
Hanging Brackets
Safety Labels
and
Literature
Curved Door
Arm Section
Safety Reversing
Sensor Bracket (2)
“U” Bracket
Garage Door Monitor
Model 547445 Only
Surge Protector
Model 547445 Only
The Protector System®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached

7
Lock Washer 3/8" Nut 3/8" Master Link
Idler Bolt
Lock Nut 1/4"-20
Bolt 1/4"-20x1-3/4"
Carriage Bolt
1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2) Ring Fastener (3) Nut 5/16"-18 (6)
Handle
Lag Screw 5/16"-9x1-5/8" (4)
Screw 6AB-x1" (2) Screw 6-32x1" (2)
Hex Bolt
5/16"-18x7/8" (4) Lock Washer 5/16" (5) Self-Threading Screw 1/4"-14x5/8" (2)
Drywall Anchors (2)
Insulated
Staples
(Not shown)
Clevis Pin
5/16"x1-1/2" Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"
Rope

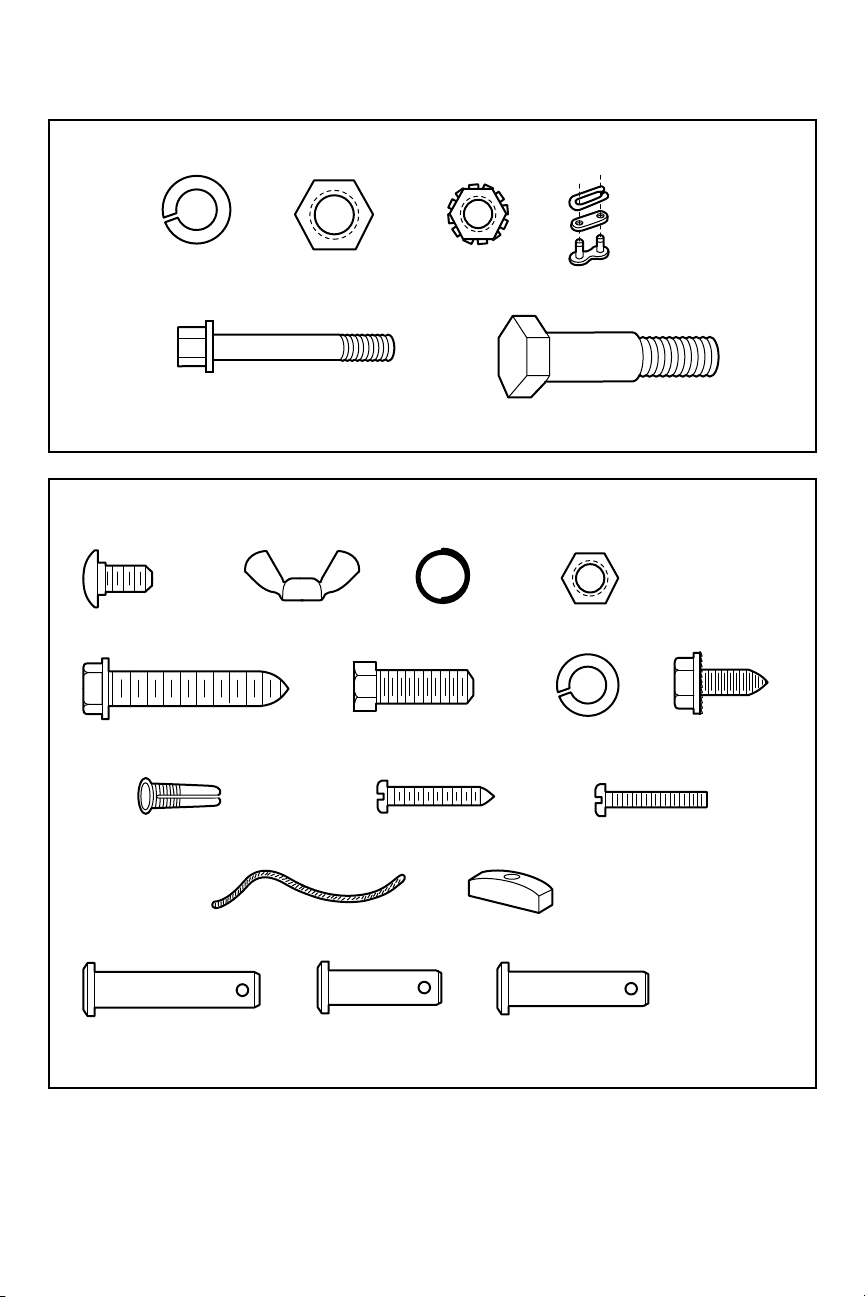

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
INSTALLATION HARDWARE
ASSEMBLY HARDWARE

8
ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the garage
door opener until instructed to do so.
The front rail has a cut out “window” at the door end
(see illustration). The hole above this window is larger on
the top of the rail than on the bottom. A smaller hole
3-1/2" (8.9 cm) away is close to the rail edge. Rotate the
back rail so it has a similar hole close to the opposite
edge, about 4-3/4" (12 cm) from the far end.
1. Remove the straight door arm and hanging bracket
packaged inside the front rail and set aside for
Installation Step 5 and 12. NOTE: To prevent INJURY
while unpacking the rail carefully remove the straight
door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and
slide the tapered ends into the larger ones. Tabs along
the side will lock into place.
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front end of
the rail.
To prevent INJURY from pinching, keep hands and
fingers away from the joints while assembling the rail.

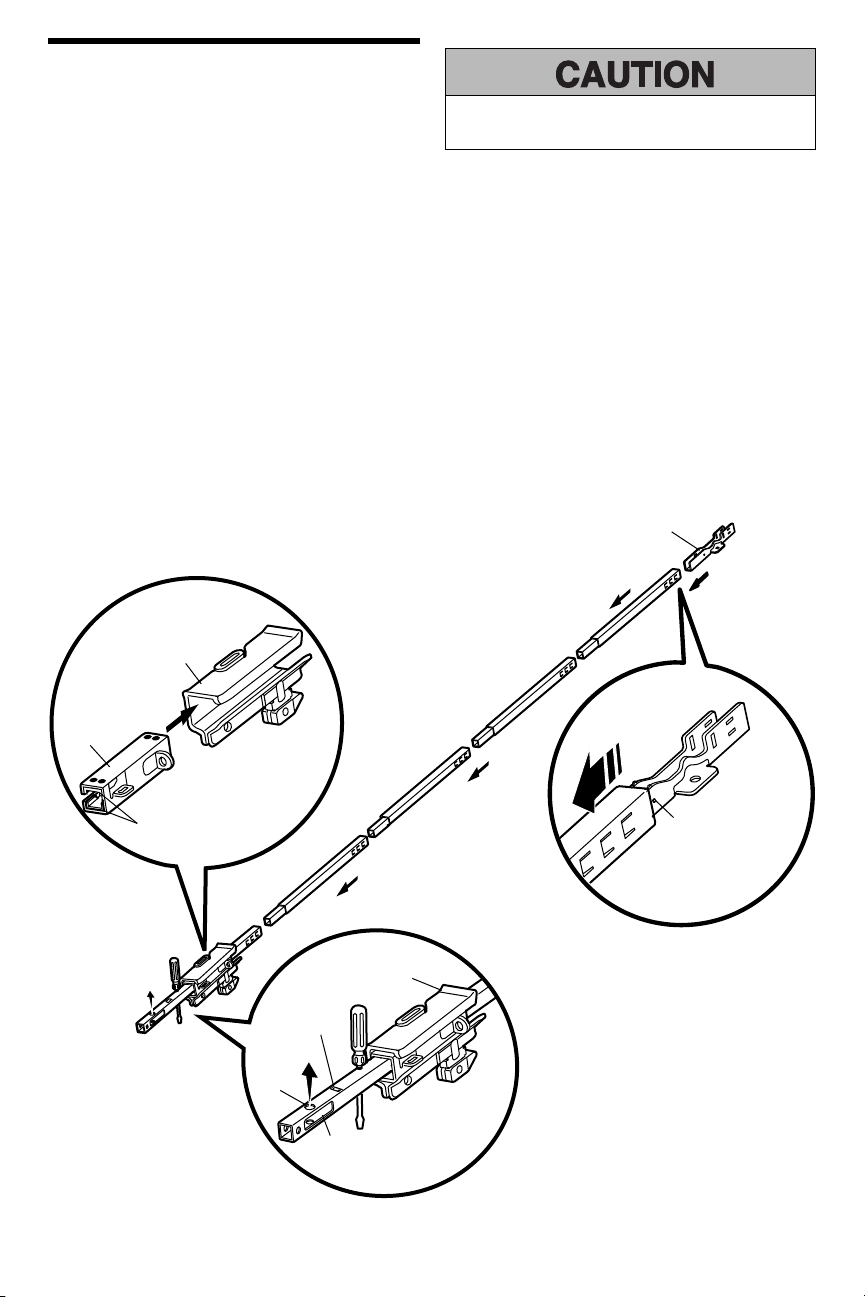

Outer Trolley
Inner Trolley
Wear Pads
“U” Bracket
Trolley
Window Cut-Out
Rail Tab
Idler
Pulley
Hole
SLIDE TO
STOPS ON TOP
AND SIDES OF
“U” BRACKET
Front Rail Section
(TO DOOR)
Back Rail Section
(TO MOTOR)
“U” Bracket
4. As a temporary stop, insert a screwdriver into the hole
10" (25 cm) from the front end of the rail, as shown.
5. Check to be sure there are 4 plastic wear pads inside
the inner trolley. If they became loose during shipping,
check all packing material. Snap them back into
position as shown.
6. Slide the trolley assembly along the rail from the back
end to the screwdriver.
7. Slide the rail onto the “U” bracket, until it reaches all
the stops on the top and sides of the “U” bracket.

9
ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit

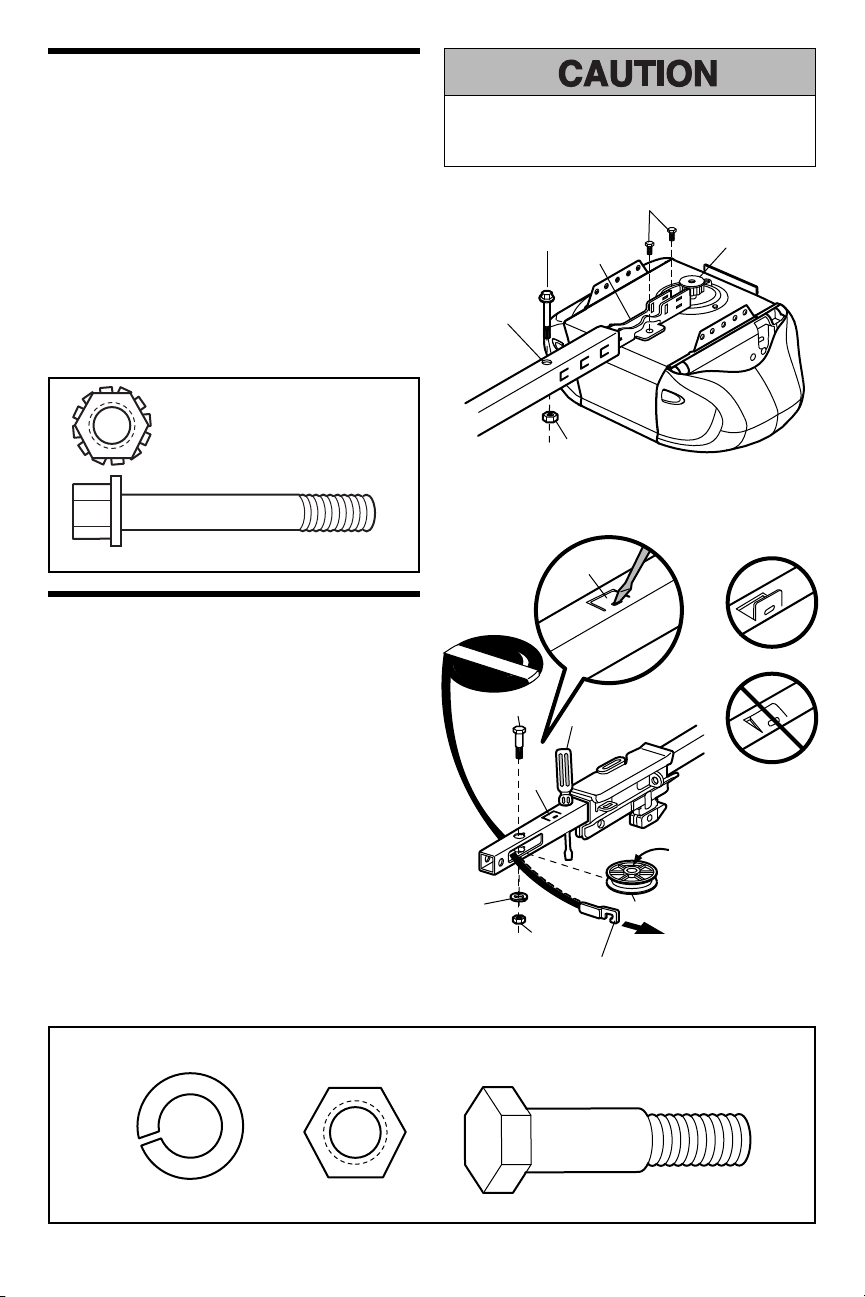

1. Insert a 1/4"-20x1-3/4" bolt into the cover protection
bolt hole on the back end of the rail as shown. Tighten
securely with a 1/4"-20 lock nut. DO NOT overtighten.
2. Remove the two bolts from the top of the motor unit.
3. Use the carton to support the front end of the rail.
4. Place the “U” bracket, flat side down onto the motor
unit and align the bracket holes with the bolt holes.
Fasten the “U” bracket with the previously removed
bolts; DO NOT use any power tools. The use of power
tools may permanently damage the garage door
opener.
To avoid SERIOUS damage to garage door opener, use
ONLY those bolts/fasteners mounted in the top of the
opener.
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 3
Install the Idler Pulley
1. Lay the belt beside the rail, as shown. Grasp the
end with the hooked trolley connector and pass
approximately 12" (30 cm) of belt through the window.
Keep the ribbed side toward the rail, and allow it to
hang until Assembly Step 4.
2. Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to ensure
proper operation.
3. Place the idler pulley into the window as shown.
4. Insert the idler bolt from the top through the rail
and pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is between the idler bolt
and the trolley in the front rail section. Use a flat head
screwdriver and lift the rail tab until the tab is vertical
(90°).
Lock Washer 3/8" Nut 3/8" Idler Bolt
HARDWARE SHOWN ACTUAL SIZE
Bolt 1/4"-20x1-3/4"
Lock Nut
1/4"-20
“U” Bracket
Cover
Protection
Bolt Hole
Lock Nut
Sprocket
Bolt
Bolts
CORRECT
INCORRECT
Rail Tab
Rail
Tab
Trolley
Connector
Lock
Washer
3/8" Nut 3/8"
Idler Bolt Screwdriver
Idler Pulley
Grease Inside Pulley

10
ASSEMBLY STEP 4
Install the Belt
1. Pull the belt around the idler pulley and toward the
trolley. The ribbed side must contact the pulley.
2. Hook the trolley connector into the retaining slot on the
trolley as shown (Figure 1).
3. With the trolley against the screwdriver, dispense the
remainder of the belt along the rail length toward the
motor unit and around the sprocket (Figure 2). The
sprocket teeth must engage the belt.
4. Thread the inner nut and lock washer onto the trolley
threaded shaft (Figure 3). Check to make sure the belt
is not twisted.
5. Insert the trolley threaded shaft through the hole in the
trolley (Figure 3). Be sure the belt is not twisted.
6. Loosely thread the outer nut onto the trolley threaded
shaft.
7. Remove the screwdriver.
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener:
• ALWAYS keep hand clear of belt pulley while
operating opener.
• Securely attach belt pulley cover BEFORE operating.
Trolley
Connector Sprocket
Inner Nut
Lock Washer
Retaining Slot
Trolley
Threaded Shaft
Hole
Outer Nut
Figure 1
Figure 2
Figure 3

11
ASSEMBLY STEP 5
Tighten the belt and install the sprocket
cover
1. Spin the inner nut and lock washer down the trolley
threaded shaft, away from the trolley.
2. To tighten the belt, turn outer nut in the direction
shown until the line on the spring retainer plate is
visible. Be sure the belt is not twisted, and the ribbed
side faces the rail.
3. Tighten the inner nut to secure the adjustment. This
sets the spring to optimum belt tension.
4. Position the sprocket cover over the sprocket as shown
and fasten to the mounting plate with 8x3/8" hex
screws provided.
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNINGWARNING
1. READ AND FOLLOW ALL INSTALLATION
WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly
balanced and lubricated garage door. An improperly
balanced door may NOT reverse when required and
could result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected
to garage door BEFORE installing opener to avoid
entanglement.
5. Install garage door opener 7 feet (2.1 m) or more
above floor.
6. Mount the emergency release within reach, but at
least 6 feet (1.8 m) above the floor and avoiding
contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing
while installing or servicing opener. They could be
caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door.
• out of reach of children at minimum height
of 5 feet (1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to
garage door control.
11. Place manual release/safety reverse test label in
plain view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on
the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH
from electrocution, disconnect ALL electric and
battery power BEFORE performing ANY service or
maintenance.
Sprocket
8x3/8" Hex Screws
Mounting
Plate
Sprocket Cover
INCORRECT
CORRECT
Line
Lock Washer
Inner Nut Spring Retainer
Outer Nut
Line

12
INSTALLATION STEP 1
Determine the Header Bracket Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline of
the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center only if
a torsion spring or center bearing plate is in the way;
or you can attach it to the ceiling (see page 13) when
clearance is minimal. (It may be mounted on the wall
upside down if necessary, to gain approximately 1/2"
(1 cm).)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as shown.
Draw an intersecting horizontal line on the header wall
above the high point:
• 2" (5 cm) above the high point for sectional door and
one-piece door with track.
• 8" (20 cm) above the high point for one-piece door
without track.
This height will provide travel clearance for the top edge
of the door.
NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page 13 for ceiling installation.
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling,
otherwise garage door might NOT reverse when
required. DO NOT install header bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware,
ALL of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might NOT reverse when
required.
Header Wall Header Wall
Highest
Point
of Travel
Jamb
Hardware
Highest
Point
of Travel
One-piece door without track:
jamb hardware One-piece door without track: pivot hardware
8" (20 cm)
8" (20 cm)
Header Wall Header Wall
Highest
Point
of Travel
Highest
Point
of Travel
Sectional door with
curved track One-piece door with horizontal track
2" (5 cm)
2" (5 cm)
Track
Track
Door
Door
Door
Door
Pivot
Header Wall
Level
(optional)
Unfinished Ceiling
Vertical Centerline
of Garage Door
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Structural
Supports
2x4
2x4

13
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above
the garage door, or to the ceiling. Follow the instructions
which will work best for your particular requirements. Do
not install the header bracket over drywall. If installing
into masonry, use concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
1. Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes. Drill 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
CEILING HEADER BRACKET INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is
pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.
Lag Screw
5/16"-9x1-5/8"
Vertical
Centerline
of Garage
Door
Vertical
Centerline
of Garage Door
Vertical Centerline
of Garage Door
Vertical
Centerline
of Garage Door
Garage Door
Optional
Mounting Holes
Lag Screws
5/16"-9x1-5/8"
Lag Screws
5/16"-9x1-5/8"
2x4
Structural
Support
Horizontal
Line
Ceiling Mounting Holes
Wall Mount
Header
Bracket
Header
Bracket
Door Spring
Door
Spring
Highest Point of
Garage Door Travel
6" (15 cm) Maximum
- Garage Door -
- Header Wall -
- Header Wall -
- Finished Ceiling -

14

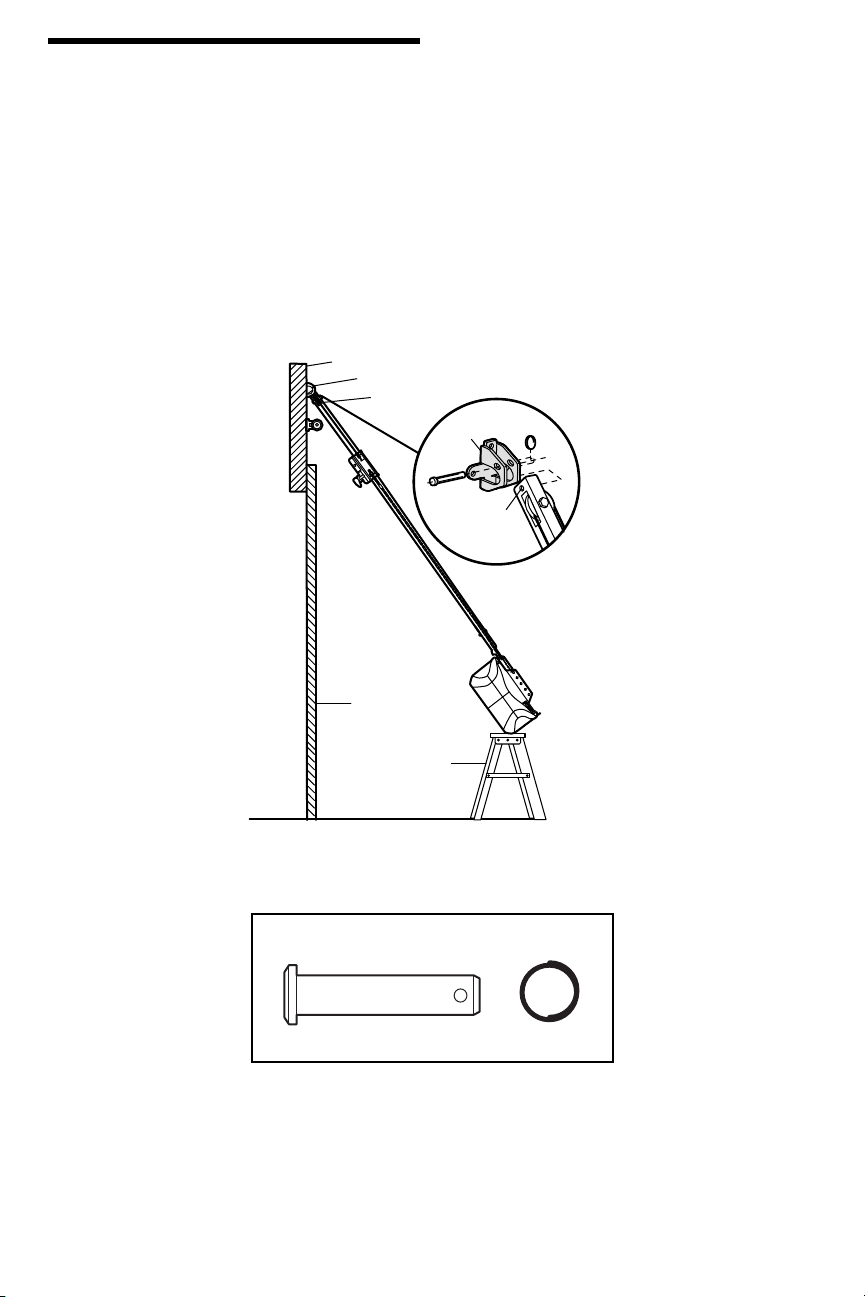

INSTALLATION STEP 3
Attach the Rail to the Header Bracket
1. Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way, you will
need help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.
2. Position the rail bracket against the header bracket.
3. Align the bracket holes and join with a clevis pin
as shown.
4. Insert a ring fastener to secure.
HARDWARE SHOWN ACTUAL SIZE
Clevis Pin 5/16"x1-1/2" Ring Fastener
Temporary
Support
Header Bracket
Idler Pulley
Header Wall
Header
Bracket
Mounting
Hole
Garage
Door

15
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
1. Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
2. Open the door all the way and place a 2x4 on its side on
the top section of the door beneath the rail.
3. The top of the door should be level with the top of the
motor unit. Do not position the opener more than
4" (10 cm) above this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR
WITH TRACK
A 2x4 laid flat is convenient for setting an ideal door-to-rail
distance.
1. Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
2. Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
3. If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.
To prevent damage to garage door, rest garage door
opener rail on 2x4 placed on top section of door.
Header
Bracket
Top of Door
2x4 is used to determine
the correct mounting height
from ceiling.
Rail
Door 2x4 is used to determine
the correct mounting height
from ceiling.
Trolley
Release Arm
ENGAGED RELEASED

16
INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figures 2 and 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-9x1-5/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the door
hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
To avoid possible SERIOUS INJURY from a falling
garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be
used if installing ANY brackets into masonry.
HARDWARE SHOWN ACTUAL SIZE
Lock Washer
5/16"
Nut
5/16"-18
Hex Bolt
5/16"-18x7/8"
Lag Screws 5/16"-9x1-5/8"
Structural
Supports
Figure 1
Figure 2
Figure 3
Measure
Distance
Lag Screws
5/16"-9x1-5/8"
Lag Screws
5/16"-9x1-5/8"
Lag Screws
5/16"-9x1-5/8"
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bracket
(Not Provided)
Hidden Support FINISHED CEILING
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING

17
INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot reach,
away from moving parts of door and door hardware.
If installing into drywall, drill 5/32" holes and use the
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).
NOTE: The functional temperature range of the door
control is between -4° F (-20° C) and 122° F (50° C).
Scroll speed of display is slower at lower temperatures
although the door control remains fully functional.
CAUTION: Continuous exposure of the door control to
temperatures below -22° F (-30° C) may damage the LCD
screen.
1. Strip 7/16" (11 mm) of insulation from one end of bell
wire and connect to the two screw terminals on back of
door control by color: white wire to W (2) and white/red
wire to the R (1).
2. Remove cover by gently prying at slot in top of the
cover with a small flat head screwdriver. Fasten with
6ABx1" self-tapping screws (drywall installation) or
6-32x1" machine screws (into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to
protrude above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid cracking
plastic housing. DO NOT overtighten.
• Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated staples
to secure wire in several places. DO NOT pierce wire
with a staple, creating a short or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent location
on inside of garage door.
NOTE: DO NOT connect power and operate opener at
this time. The trolley will travel to the full open position but
will not return to the close position until the sensor beam
is connected and properly aligned.
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Disconnect ALL electric and battery power BEFORE
performing ANY service or maintenance.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from
a closing garage door:
• Install door control within sight of garage door, out
of reach of children at a minimum height of 5 feet
(1.5 m), and away from ALL moving parts of door.
• NEVER permit children to operate or play with door
control push buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions to
door travel.
• ALWAYS keep garage door in sight until completely
closed. NEVER permit anyone to cross path of
closing garage door.
Terminal
Screws
Top
Mounting
Hole
Bell
Wire (BACK VIEW)
Bottom
Mounting
Hole
Drywall Anchors
Push Bar
Cover
To Replace
Insert Top
Tabs First
24 Volt
Bell Wire
HARDWARE SHOWN ACTUAL SIZE
Screw 6ABx1"
(standard installation)
Insulated Staples
(not shown)
Screw 6-32x1" (Gang box installation)
Outside Keylock Accessory Connections
To opener quick-connect terminals: white to white;
white/red to red.
Door Control Connections
Strip wire 7/16" (11 mm)
To insert or release wire, push
in tab with screwdriver tip
Red White Grey
Figure 1 Figure 2
REMOVE & REPLACE COVER PRE-WIRED
INSTALLATION

18
ALWAYS wear protective gloves and eye protection
when changing the battery or working around the
battery compartment.

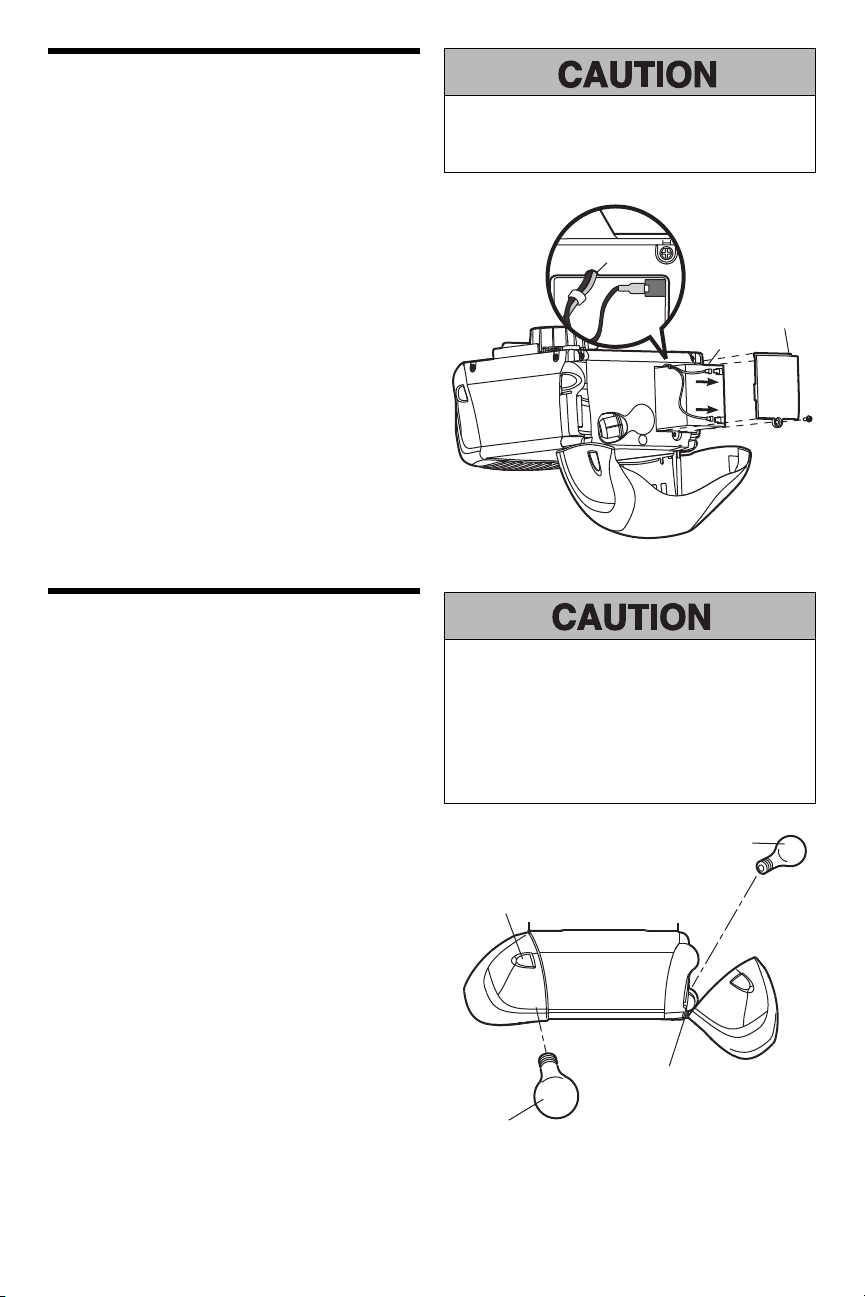

INSTALLATION STEP 7
Install the Battery
1. Make sure motor unit is unplugged.
2. Using a Phillips head screwdriver, remove the battery
cover on the motor unit.
3. Partially insert battery into motor unit with terminals
facing out.
4. Connect the red (+) and black (-) wires from motor unit
to corresponding terminals on battery.
5. Verify the battery wires are seated in the channel.
6. Replace battery cover.
INSTALLATION STEP 8
Install the Lights
1. Press the release tabs on both sides of lens. Gently
rotate lens back and downward until the lens hinge is in
the fully open position. Do not remove the lens.
2. Install a 100 watt maximum light bulb in each socket.
Light bulb size should be A19, standard neck only. The
lights will turn ON and remain lit for approximately
4-1/2 minutes when power is connected. Then the
lights will turn OFF.
3. Reverse the procedure to close the lens.
4. Use A19, standard neck garage door opener bulbs for
replacement.
NOTE: Use only standard light bulbs. The use of short neck
or speciality light bulbs may overheat the endpanel or light
socket.
To prevent possible OVERHEATING of the endpanel or
light socket:
• DO NOT use short neck or specialty light bulbs.
• DO NOT use halogen bulbs. Use ONLY incandescent.
To prevent damage to the opener:
• DO NOT use bulbs larger than 100W.
• ONLY use A19 size bulbs.
Channel
Battery
Cover
100 Watt (Max)
Standard Light Bulb
100 Watt (Max)
Standard Light Bulb
Lens
Hinge
Release Tab
Battery

19
To prevent possible SERIOUS INJURY or DEATH from a
falling garage door:
• If possible, use emergency release handle to
disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door
could result in an open door falling rapidly and/or
unexpectedly.
• NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope
knot becomes untied, you could fall.
INSTALLATION STEP 9
Attach the Emergency Release Rope
and Handle
1. Insert one end of the emergency release rope through
the handle. Make sure that “NOTICE” is right side up.
Tie a knot at least 1 inch (2.5 cm) from the end of the
emergency release rope.
2. Insert the other end of the emergency release rope
through the hole in the trolley release arm. Mount the
emergency release within reach, but at least 6 feet
(1.83 m) above the floor, avoiding contact with vehicles
to prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release
rope, seal the cut end with a match or lighter to prevent
unraveling. Ensure the emergency release rope and handle
are above the top of all vehicles to avoid entanglement.
INSTALLATION STEP 10
Electrical Requirements
To avoid installation difficulties, do not run the opener
at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third grounding
pin. This plug will only fit into a grounding type outlet.
If the plug doesn’t fit into the outlet you have, contact a
qualified electrician to install the proper outlet.
If permanent wiring is required by your local code, refer
to the following procedure.
To make a permanent connection through the 7/8" hole in
the top of the motor unit:
1. Remove the motor unit cover screws and set the cover
aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on
the silver terminal; and the ground wire to the green
ground screw. The opener must be grounded.
4. Reinstall the cover.
To avoid installation difficulties, do not run the opener
at this time.
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
• Disconnect ALL electric and battery power BEFORE
performing ANY service or maintenance.
• Garage door installation and wiring MUST be in
compliance with ALL local electrical and building
codes.
• NEVER use an extension cord, 2-wire adapter, or
change plug in ANY way to make it fit outlet. Be sure
the opener is grounded.
PERMANENT WIRING
CONNECTION
RIGHT WRONG
Green
Ground
Screw
Ground Tab
Ground Wire
White Wire
White Wire
Black
Wire
Black
Wire
Emergency
Release Handle
Trolley
Trolley
Release arm
Overhand Knot

20
INSTALLATION STEP 11
Install The Protector System®
The safety reversing sensor must be connected and
aligned correctly before the garage door opener will
move in the down direction.
IMPORTANT INFORMATION ABOUT THE SAFETY
REVERSING SENSOR
When properly connected and aligned, the sensor will
detect an obstacle in the path of its electronic beam. The
sending eye (with an amber indicator light) transmits an
invisible light beam to the receiving eye (with a green
indicator light). If an obstruction breaks the light beam
while the door is closing, the door will stop and reverse to
full open position, and the opener lights will flash 10 times.
The units must be installed inside the garage so that the
sending and receiving eyes face each other across the
door, no more than 6" (15 cm) above the floor. Either can
be installed on the left or right of the door as long as the
sun never shines directly into the receiving eye lens.
The mounting brackets are designed to clip onto the track
of sectional garage doors without additional hardware.
If it is necessary to mount the units on the wall, the
brackets must be securely fastened to a solid surface such
as the wall framing. Extension brackets (see Accessories)
are available if needed. If installing in masonry
construction, add a piece of wood at each location to
avoid drilling extra holes in masonry if repositioning is
necessary.
The invisible light beam path must be unobstructed. No
part of the garage door (or door tracks, springs, hinges,
rollers or other hardware) may interrupt the beam while
the door is closing.
Be sure power is NOT connected to the garage door
opener BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from a closing
garage door:
• Correctly connect and align the safety reversing
sensor. This required safety device MUST NOT
be disabled.
• Install the safety reversing sensor so beam is
NO HIGHER than 6" (15 cm) above garage floor.
Facing the door from inside the garage.
Safety Reversing Sensor
6" (15 cm) max.
above floor
Safety Reversing Sensor
6" (15 cm) max.
above floor
Invisible Light Beam
Protection Area
