GARAGE DOOR OPENER
Model 2580C 1/2 HP
For Residential Use Only
®
Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation
■The door WILL NOT CLOSE unless the Protector System®is connected and
properly aligned
■Periodic checks of the opener are required to ensure safe operation
■The model number label is located under the light lens on the left side
panel of your opener

2
Introduction Pages 2-5
Safety symbol and signal word review........................2
Preparing your garage door ........................................3
Tools needed ...............................................................3
Planning .....................................................................4
Carton inventory ..........................................................5
Hardware inventory .....................................................5
Assembly Pages 6-7
Attach the T-rail to the motor unit................................6
Set the belt tension .....................................................6
Attach the belt cap retainer .........................................7
Installation Pages 7-23
Installation safety instructions .....................................7
Determine the header bracket location....................8-9
Install the header bracket.......................................... 0
Attach the T-rail to the header bracket ......................
Position the opener ................................................... 2
Hang the opener ....................................................... 3
Install the door control............................................... 4
Install the lights ......................................................... 5
Attach the emergency release rope and handle ....... 5
Electrical requirements.............................................. 6
Install the Protector System®................................ 7- 9
Fasten the door bracket .......................................20-2
Connect the door arm to the trolley .....................22-23
Adjustment Pages 24-26
Adjust the travel limits ...............................................24
Adjust the force .........................................................25
Test the safety reversal system.................................26
Test the Protector System®........................................26
Operation Pages 27-30
Operation safety instructions.....................................27
Using your garage door opener ................................27
Using the wall-mounted door control ........................28
To open the door manually........................................28
Care of your garage door opener..............................29
Having a problem?...............................................29-30
Programming Pages 31-32
To add a hand-held remote control ...........................3
To erase all codes .....................................................3
3-Channel remotes....................................................3
To add or change a Keyless Entry PIN .....................32
Repair Parts Pages 33-34
Rail assembly parts...................................................33
Installation parts ........................................................33
Motor unit assembly parts .........................................34
Accessories 35
Repair Parts and Service 36
Warranty 36
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING

3
To prevent damage to garage door and opener:
• ALWAYS disable locks before installing and operating
the opener.
• ONLY operate garage door opener at 20V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may not reverse when
required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all
of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage
door opener to avoid entanglement.
Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
/2" and 7/ 6" Sockets
and Wrench
Drill
Tape Measure
2
Stepladder
Pencil
3/ 6", 5/ 6" and
5/32" Drill Bits
Carpenter's
Level
Sectional Door
One-Piece Door

Safety Reversing Sensor
Support bracket &
fastening hardware
is required.
See page 3.
— — — — — — — —
Door
Center
Header Wall
FINISHED CEILING
Torsion
Spring
Extension
Spring
OR
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed /4"
Access
Door
Wall-
mounted
Door
Control
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 20 for details.
Motor Unit
OR
One-Piece Door-Extension Spring
Header Wall
Door Track
4

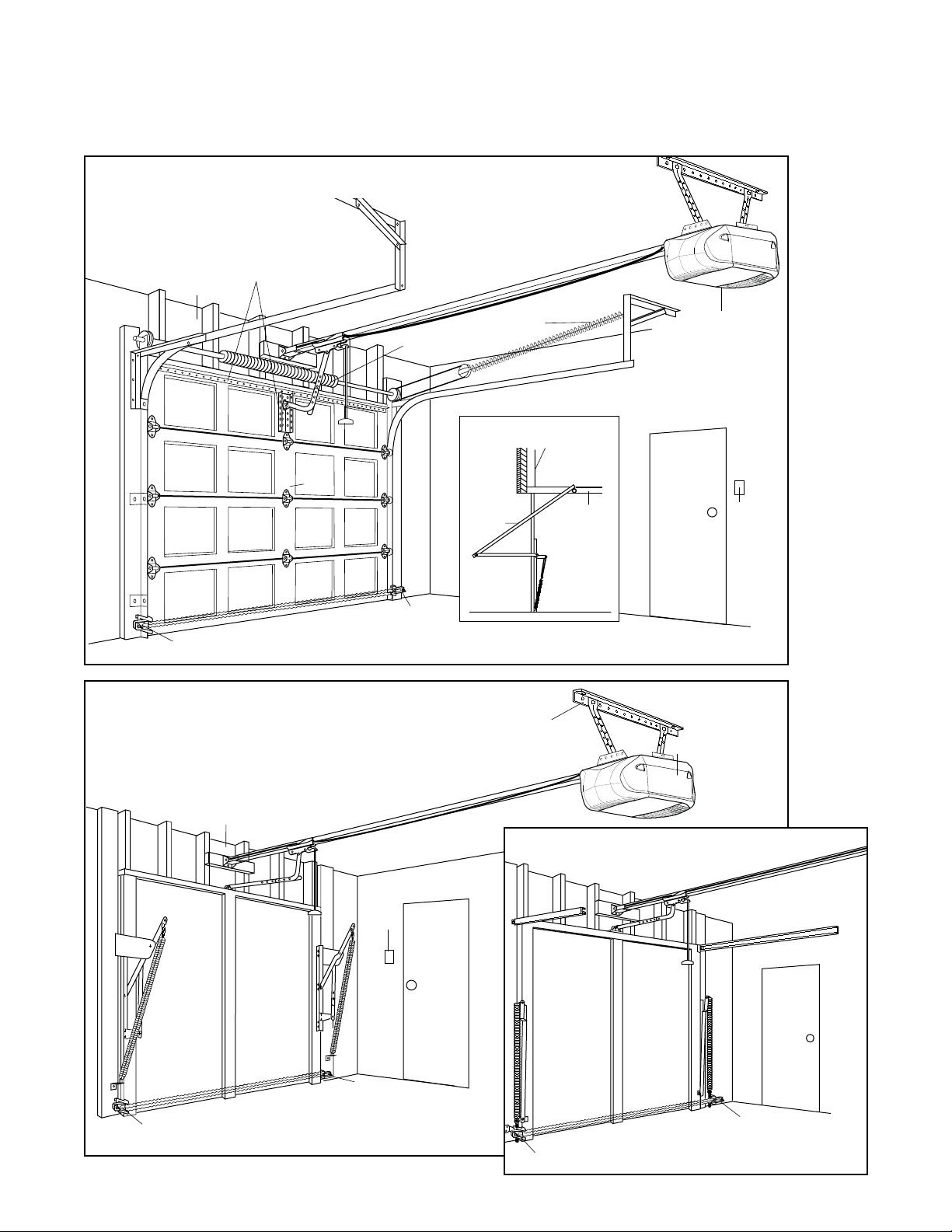

SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below
apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with the installation of your opener.
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 3.
Safety
Reversing Sensor
Header
Wall
Access
Door
Safety
Reversing Sensor
Gap between floor and bottom of
door must not exceed /4"
Wall-
mounted
Door
Control
Motor Unit
ONE-PIECE DOOR WITHOUT TRACK
Access
Door
Safety Reversing Sensor
Gap between floor and bottom of door
must not exceed /4"
Safety Reversing Sensor
ONE-PIECE DOOR WITH TRACK

5
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
Header Bracket
UP
CEILING MOUNT ONLY
Belt Cap Retainer
2-Conductor Bell Wire
White & White/Red
Light Lens (2)
Remote Control
Transmitter Visor Clip
Door Bracket
One-Piece
T-rail
Styrofoam
Belt
Pulley Bracket
Belt
Trolley
SECURITY✚
3-Channel Remote Control
(2) Safety Reversing Sensors
( Sending Eye and Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Safety Sensor
Bracket (2)
LOCKLIGHT
Motion Detecting
Door Control Panel
Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Accessories will depend on the model
purchased. If anything is missing, carefully check the
packing material. Parts may be stuck in the foam.
Hardware for installation is also listed below.
Carton Inventory
INSTALLATION HARDWARE
Hex Bolt 5/ 6"- 8x7/8" (4)
Hex Screw #8 x 3/8" (2)
Lag Screw 5/ 6"-9x -5/8" (2)
Lag Screw 5/ 6"- 8x -7/8" (2)
Clevis Pin 5/ 6"x2-3/4" ( )
Clevis Pin 5/ 6"x - /4" ( )
Clevis Pin 5/ 6"x " ( )
Nut 5/ 6"- 8 (4)
Lock Washer 5/ 6" (4)
Screw 6ABx - /4" (2)
Self-Threading Screw /4"- 4x5/8" (2)
Screw 6-32x " (2)
Insulated Staples (30)
Ring Fastener (3)
Dry Wall Anchors (2)
Rope
Handle
Rail Grease
Carriage Bolt /4"-20x /2" (2)
Wing Nut /4”-20 (2)

6
ASSEMBLY STEP 1
Attach the T-Rail to the Motor Unit
To avoid installation difficulties, do not run the
garage door opener until instructed to do so
• Remove the two washered bolts mounted in top of
motor unit.
• Align T-rail and styrofoam over sprocket. Cut tape
from T-rail, chain and styrofoam.
• REMOVE STYROFOAM.
• Insert both washered bolt through the T-rail into
the motor unit. Tighten bolts securely.
Use only these bolts! Use of any other bolts
will cause serious damage to door opener
• Position belt over the motor unit sprocket.
To avoid SERIOUS damage to opener, ONLY use bolts
mounted in top of motor unit.
WARNING
CAUTION
WARNING
WARNING
ASSEMBLY STEP 2
Set the Belt Tension
• By hand, thread the spring trolley nut on the
threaded shaft until it is finger tight against the
trolley (Figure ). Do not use any tools.
• Insert a screwdriver tip into one of the nut ring
slots and brace it firmly against the trolley
(Figure 2).
• Place a 7/ 6" open end wrench on the square
end. Rotate about /4 turn until the spring releases
and snaps the nut ring against the trolley
(Figure 3).
This extends the spring for optimum belt tension.
Styrofoam
Belt
T-Rail
Hole
Washered Bolt
5/ 6"- 8x /2"
Washered Bolt
5/ 6"- 8x /2"
T-Rail
Hole
Motor unit
Sprocket
T-Rail
Hole
USE ONLY THIS
TYPE AND SIZE
BOLT
Trolley
Threaded
Shaft
Spring/Trolley Nut
Nut
Ring
Trolley
Threaded
Shaft
Nut Ring
Slots
Square
End
Nut Ring Trolley Nut Ring Trolley
1" 1-1/4"
BEFORE AFTER RELEASE
Figure 1
Figure 2
Figure 3

7
ASSEMBLY STEP 3

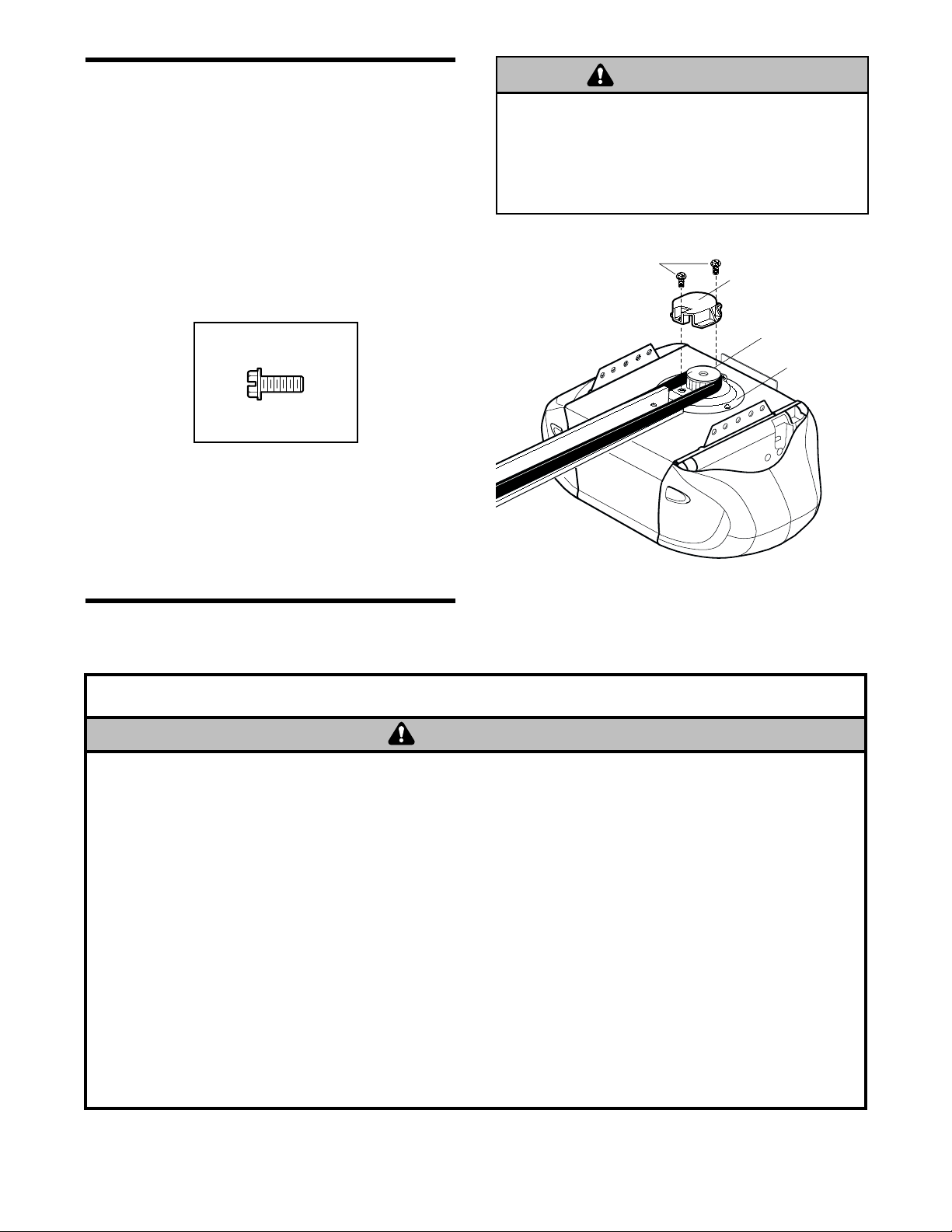

Attach the Belt Cap Retainer
• Position the belt cap retainer over the motor unit
sprocket so the two holes in cap align with the two
holes in mounting plate. Attach with #8x3/8" hex
screws provided.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
IMPORTANT INSTALLATION INSTRUCTIONS
. READ AND FOLLOW ALL INSTALLATION WARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result in
severe injury or death.
3. All repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician before installing opener.
4. Disable all locks and remove all ropes connected to
garage door before installing opener to avoid
entanglement.
5. Install garage door opener 7 feet or more above floor.
6. Mount emergency release handle 6 feet above floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door
• out of reach of children at minimum height of 5 feet
• away from all moving parts of the door.
0. Place entrapment warning label on wall next to garage
door control.
. Place manual release/safety reverse test label in plain
view on inside of garage door.
2. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a one-
inch high object (or a 2x4 laid flat) on the floor.
To reduce the risk of severe injury or death:
WARNING
CAUTION WARNING
WARNING
INSTALLATION
Motor Unit
Sprocket
Mounting Plate
8x3/8" Hex Screws Belt Cap
Retainer
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener:
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION WARNING
WARNING
Hex Screw
#8x3/8"
HARDWARE SHOWN
ACTUAL SIZE

8
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
. Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4 feet
of the left or right of the door center only if a
torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 10) when clearance is minimal (It may be
mounted on the wall upside down if necessary,
to gain approximately 1/2" )
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 0.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 2" above the high point. This height
will provide travel clearance for the top edge of the
door.
Proceed to Step , page 10. One-piece
door with
horizontal
track
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling, otherwise
garage door might not reverse when required. DO NOT
install header bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware, all
of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when
required.
Header Wall
Ceiling
Track
Highest Point
of Travel
Door
2"
Sectional door
with curved
track
Door
Track
Header Wall
Highest Point
of Travel
2"
Finished
Ceiling
Vertical
Centerline
Header
Wall 2x4 Structural
Supports
Vertical
Centerline
WARNING
CAUTION WARNING
WARNING

EXAMPLE
Distance from top of door
(at highest point of travel) to floor ...................... 92"
Actual height of door .......................................... -88"
Remainder.......................................................... 4"
Add..................................................................... +8"
Bracket height on header wall............................ = 2"
(Measure UP from top of CLOSED door.)
Proceed to Step , page 10.
9
Header Wall Vertical
Centerline
Vertical
Centerline
of Garage
Door
2x4
Unfinished
Ceiling
2x4
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Supports

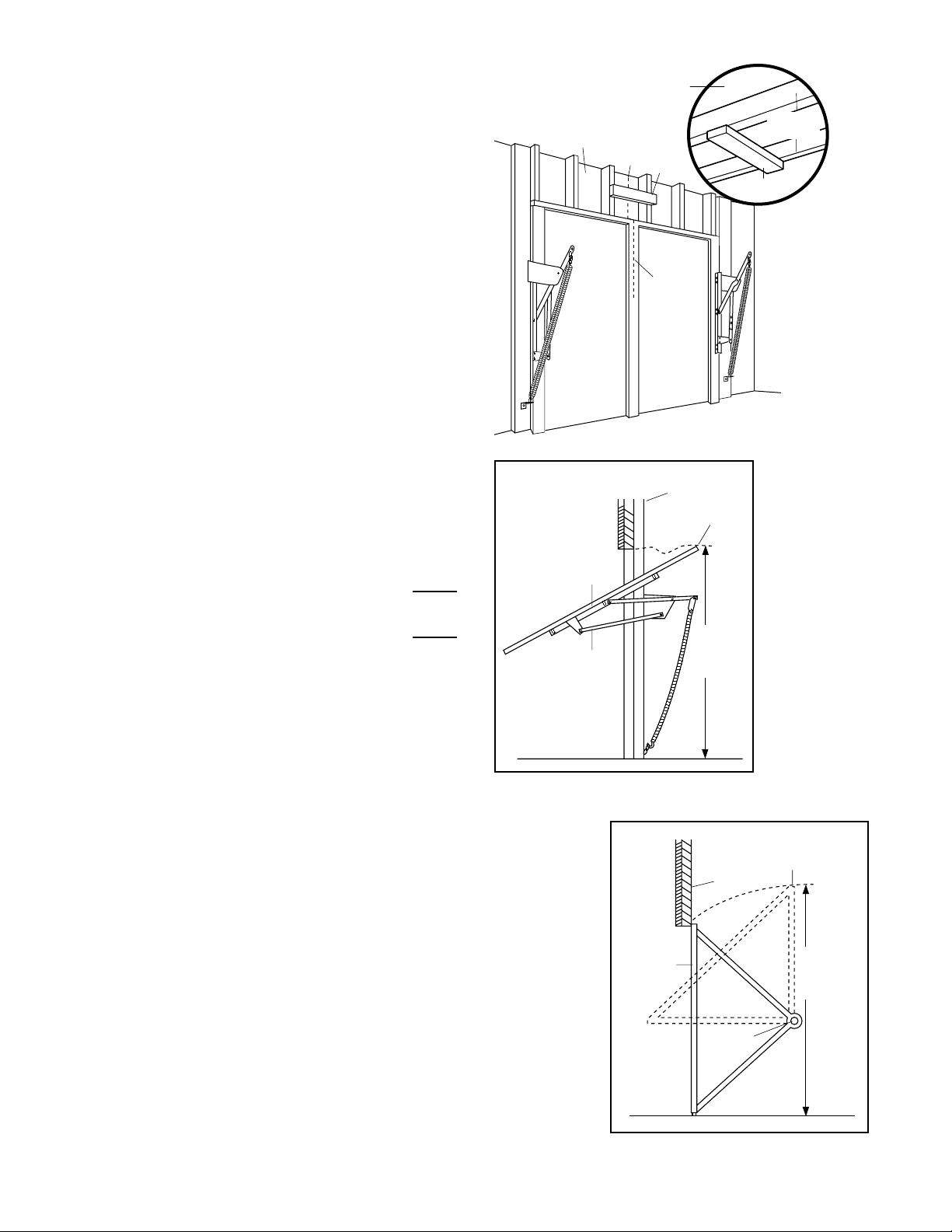

ONE-PIECE DOOR WITHOUT TRACK
. Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 0.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" to the remainder. (See Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 10 for ceiling
installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware

0
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall If installing into masonry, use
concrete anchors (not provided)
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 3/ 6"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
Lag Screw
5/ 6"-9 x -5/8"
HARDWARE SHOWN ACTUAL SIZE
Lag Screws
5/ 6"-9x -5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
Header
Wall
Garage
Door
UP
CEILING MOUNT ONLY
Wall Mounting Holes
Optional
Wall Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
CEILING MOUNT ONLY
Door Spring
Header
Bracket
2x4
Structural
Support
Vertical
Centerline
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
Lag Screws
5/ 6"-9x -5/8"
Garage Door
Vertical Centerline
Header Wall
– Finished Ceiling –
Header
Bracket
6" Maximum
Vertical
Centerline
Door
Spring
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" from the wall. Make sure the arrow is
pointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/ 6" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.

Clevis Pin
5/16"x2-3/4" Ring Fastener
11
Header
Bracket
Belt Pulle
Bracket
Temporar
Support
Header Wall
Garage
Door
Clevis Pin
5/16"x2-3/4"
Ring
Fastener
Header
Bracket
Belt Pulle
Bracket
T-Rail
HARDWARE SHOWN ACTUAL SIZE
INSTALLATION STEP 3
Attach the T-Rail to the Header
Bracket
• Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: If the door spring is in the
way you’ll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
• Position the rail bracket against the header
bracket.
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.

12
ONE-PIECE DOOR WITHOUT TRACK
• With the door full open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 2" above this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which appl to our door t pe as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal door-
to-rail distance.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the wa and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolle when ou
raise the door, pull down on the trolle release arm
to disconnect inner and outer sections. Slide the
outer trolle toward the motor unit. The trolle can
remain disconnected until Installation Step 12
is completed.
T-Rail
2x4
laid flat
Door
Trolle
Release Arm
ENGAGED RELEASED
To prevent damage to garage door, rest garage door
opener rail on 2x4 placed on top section of door.
WARNING
CAUTION
WARNING
WARNING
Top of Motor Unit
Header
Bracket
Top of Door

13

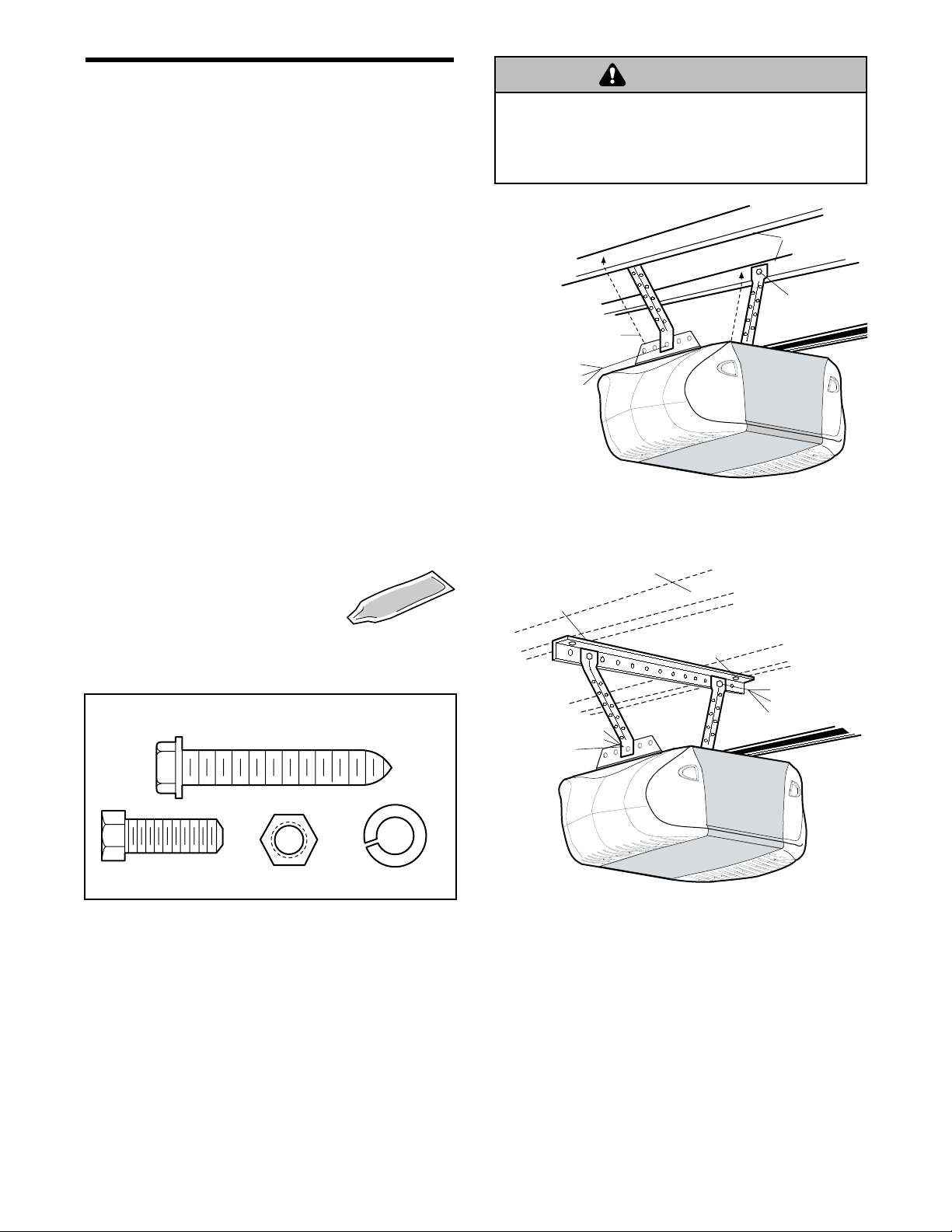

INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
ma be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturd metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Remove foam packaging. Measure the distance
from each side of the motor unit to the structural
support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manuall . If the
door hits the rail, raise the header bracket.
8. Grease the top and underside of the rail surface
where the trolle slides with rail grease.
To avoid possible SERIOUS IN URY from a falling
garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be used
if installing any brackets into masonry.
Lag Screw 5/16"-18x1-7/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE SHOWN ACTUAL SIZE
Measure
Distance
Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
— FINISHED CEILING —
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 1
Figure 2
WARNING
CAUTION WARNING
WARNING

To release wire, push in tab
with screwdriver tip
Door Control
Connections
7/16"
Strip wire 7/16"
Red Gre
White
14

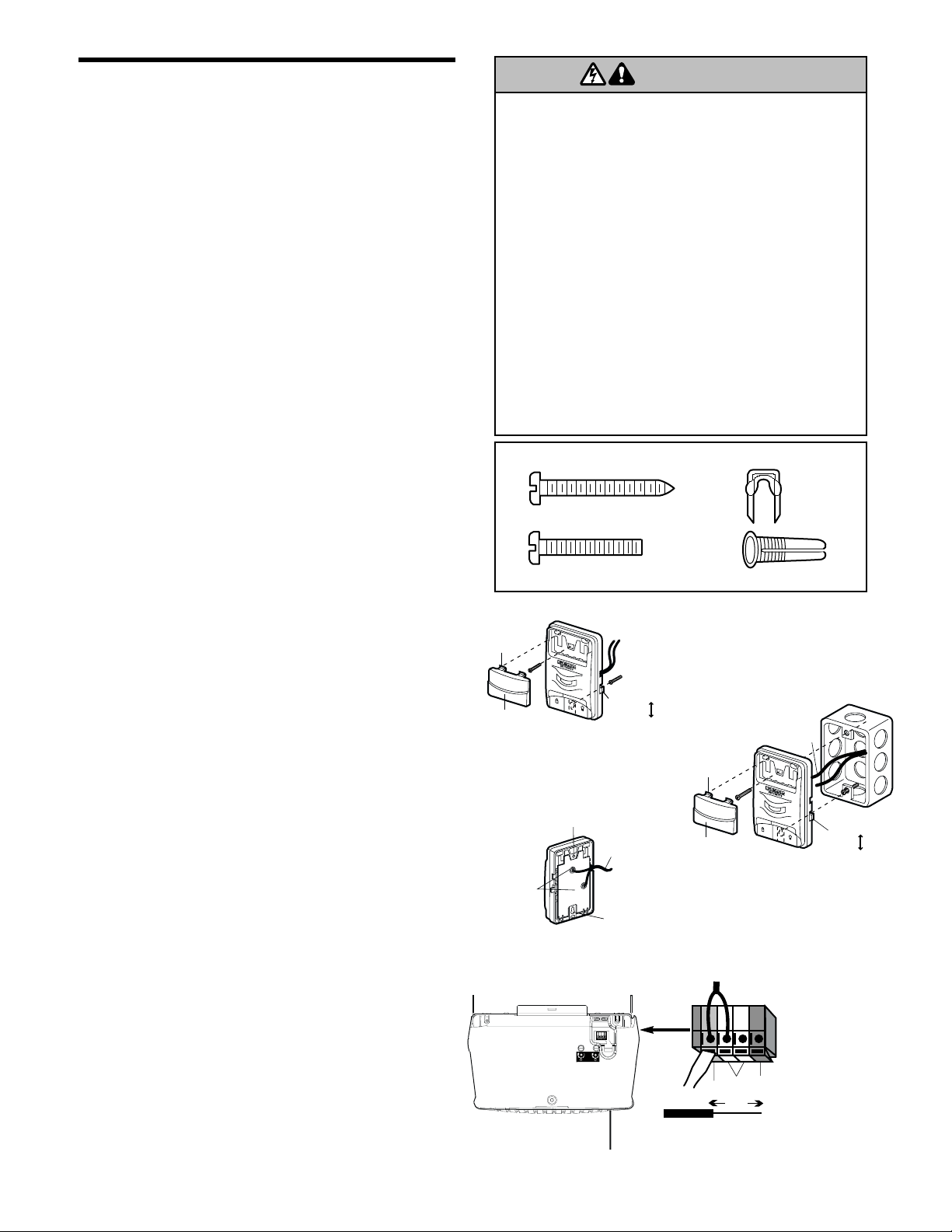

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of the door at a
minimum height of 5 feet where small children cannot
reach, and awa from moving parts of the door and
door hardware. The installation surface must be
smooth and flat. If installing into dr wall (Figure 1),
drill 5/32" holes and use anchors provided. For pre-
wired installations (as in new home construction), it
ma be mounted to a single gang box (Figure 2).
NOTE: After installation, a green indicator light behind
the cover will indicate proper connection. If not lit, the
Lock and Light features will not function (reverse
wires to correct .
1. Strip 7/16" of insulation from one end of bell wire
and connect to the two screw terminals on back of
door control b color: white wire to 2 and white/red
wire to the 1 (Figure 3).
2. Remove white cover b gentl pr ing at slot in top
of the cover with a small flat head screwdriver.
Fasten with 6ABx1-1/4"self-tapping screws (dr wall
installation) or 6-32x1" machine screws (into gang
box) as follows:
• Drill and install bottom screw, allowing 1/8" to
protrude above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Install top screw with care to avoid cracking plastic
housing. Do no over igh en.
• Insert top tabs and snap on cover.
NOTE: The push bar may stick if the door control is
not mounted on a smooth surface. If a click is not
heard when pressing the push bar, loosen the two
mounting screws or relocate the door control to a
smoother surface.
3. (Standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated
staples to secure wire in several places. Do not
pierce wire with a staple, creating a short or open
circuit.
4. Strip 7/16" of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red.
NOTE: When connecting multiple door controls to the
opener, twist same color wires together. Insert wires
into quick-connect holes: white to white and red/white
to red.
5. Use tacks or staples to permanentl attach
entrapment warning label to wall near door control,
and manual release/safet reverse test label in a
prominent location on inside of garage door.
NOTE: DO NOT connect the power and operate the
opener at this time. The trolley will travel to the full
open position but will not return to the close position
until the sensor beam is connected and properly
aligned. See Safety Reversing Sensor Instructions
beginning on page 17.
Dr Wall Anchors
Insulated
Staples
Screw 6AB x 1-1/4"
(dr wall installation)
Screw 6-32 x 1"
(gang box installation)
HARDWARE SHOWN ACTUAL SIZE
To prevent possible SERIOUS IN URY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door
control.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS IN URY or DEATH from a
closing garage door:
• Install door control within sight of garage door, out of
reach of children at a minimum height of 5 feet, and
away from all moving parts of door.
• NEVER permit children to operate or play with door
control push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions to door
travel.
• ALWAYS keep garage door in sight until completely
closed. NEVER permit anyone to cross path of closing
garage door.
WARNING
CAUTION
WARNING
WARNING
KG
1
3
9
7
5
KG
1
3
9
7
5
Figure 2
LOCKLIGHT
To Replace
Insert Top
Tabs First
STANDARD WALL MOUNT
Detector
Switch
Push Bar Cover
ON
OFF
Figure 1
24 Volt Bell Wire
PRE-WIRED INSTALLATION
LOCKLIGHT
To Replace
Insert Top
Tabs First
Detector
Switch
Push Bar Cover ON
OFF
1
RED
2
WHITE
Door
Control
Terminal
Screws
24 Volt
Bell Wire
Back View
Bottom
Mounting
Hole
Top
Mounting Hole
Figure 3

15

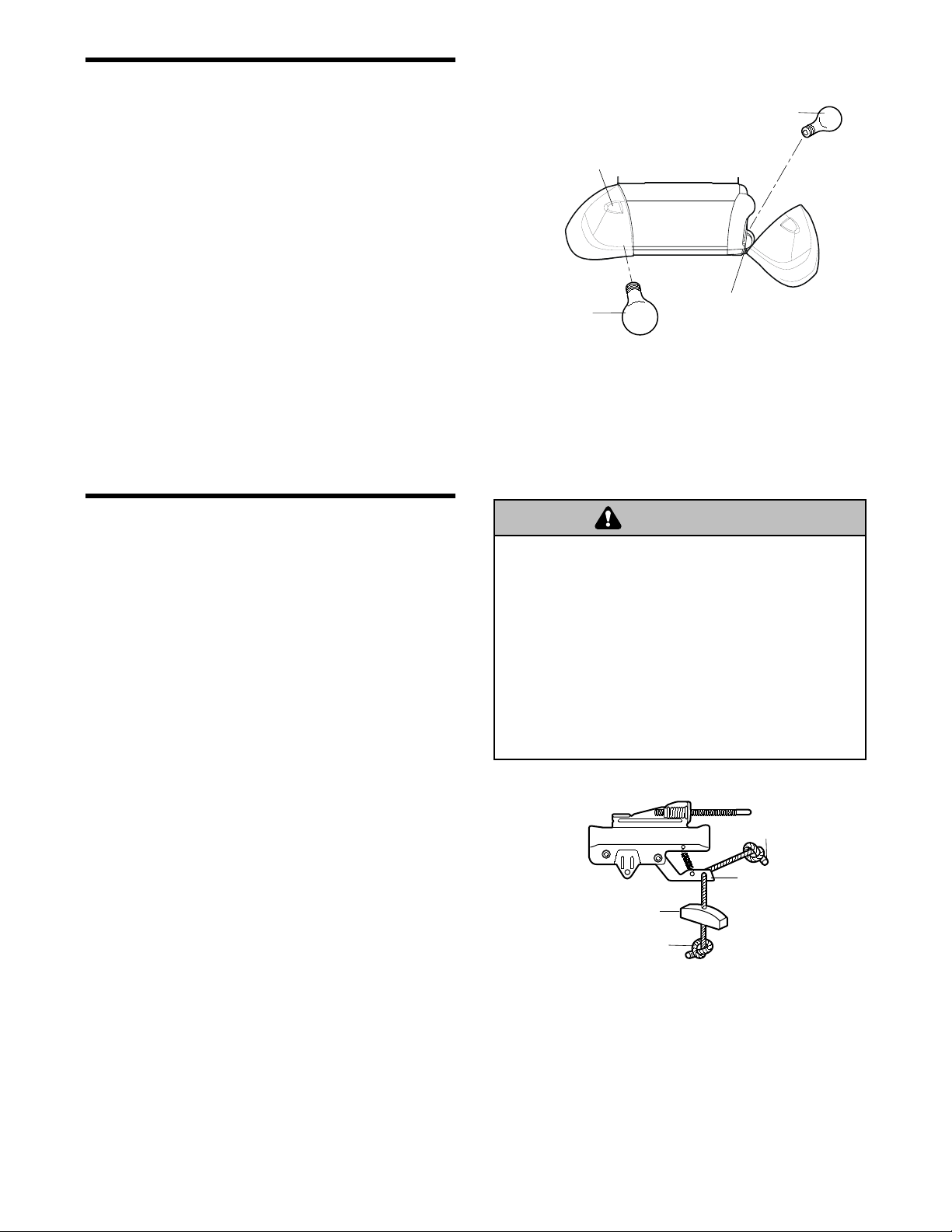

INSTALLATION STEP 7
Install the Lights
• Press the release tabs on both sides of lens.
Gentl rotate lens back and downward until the
lens hinge is in the full open position. Do not
remove the lens.
• Install up to a 100 watt maximum light bulb in each
socket. The lights will turn ON and remain lit for
approximatel 4-1/2 minutes when power is
connected. Then the lights will turn OFF.
• Reverse the procedure to close the lens.
• If the bulbs burn out prematurel due to vibration,
replace with a Garage Door Opener bulb.
NOTE: Use only standard light bulbs. The use of
short neck or speciality light bulbs may overheat the
endpanel or light socket.
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" from the end of the rope to prevent
slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolle .
• Adjust rope length so the handle is 6 feet above
the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
• To prevent possible SERIOUS IN URY or DEATH from
a falling garage door:
– If possible, use emergency release handle to
disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced
door could result in an open door falling rapidly
and/or unexpectedly.
– NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope
knot becomes untied, you could fall.
Lens
Hinge
100 Watt (Max)
Standard Light Bulb
Release Tab
100 Watt (Max)
Standard Light Bulb
NOTICE
Overhand
Knot
Emergenc
Release Handle
Overhand
Knot
Trolle
Release
Arm
WARNING
CAUTION WARNING
WARNING

16

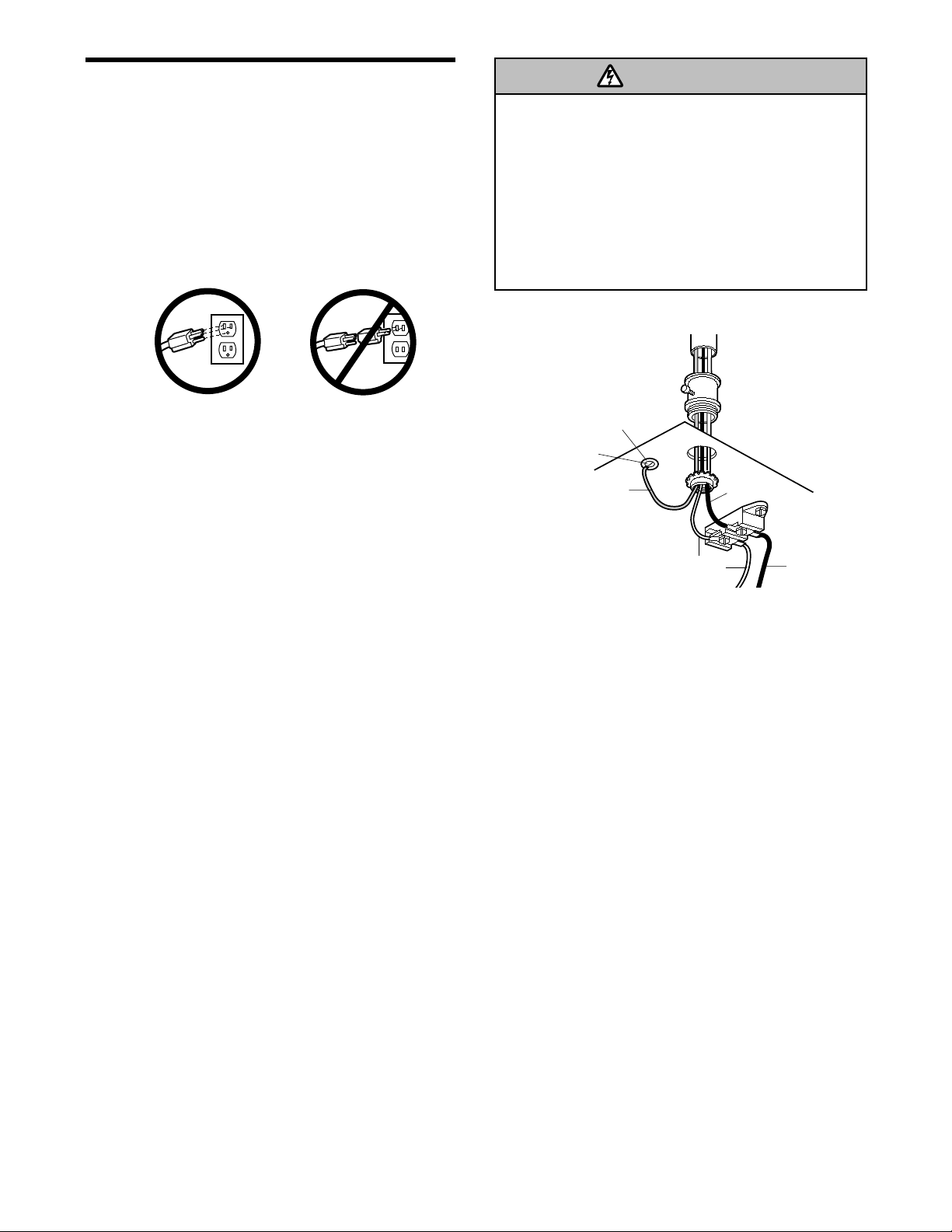

INSTALLATION STEP 9
Electrical Requirements
To avoid ins alla ion difficul ies, do no run he
opener a his ime.
To reduce the risk of electric shock, our garage door
opener has a grounding t pe plug with a third
grounding pin. This plug will onl fit into a grounding
t pe outlet. If the plug doesn't fit into the outlet ou
have, contact a qualified electrician to install the
proper outlet.
If permanen wiring is required by your local
code, refer o he following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener mus be
grounded.
• Reinstall the cover.
To avoid ins alla ion difficul ies, do no run he
opener a his ime.
RIGHT WRONG
To prevent possible SERIOUS IN URY or DEATH from
electrocution or fire:
• Be sure power is not connected to the opener, and
disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
• Garage door installation and wiring MUST be in
compliance with all local electrical and building codes.
• NEVER use an extension cord, 2-wire adapter, or
change plug in any way to make it fit outlet. Be sure
the opener is grounded.
Ground Tab
Green
Ground Screw
Ground Wire
Black Wire
PERMANENT WIRING
CONNECTION
White Wire
Black
Wire
WARNING
CAUTION WARNING
WARNING

17

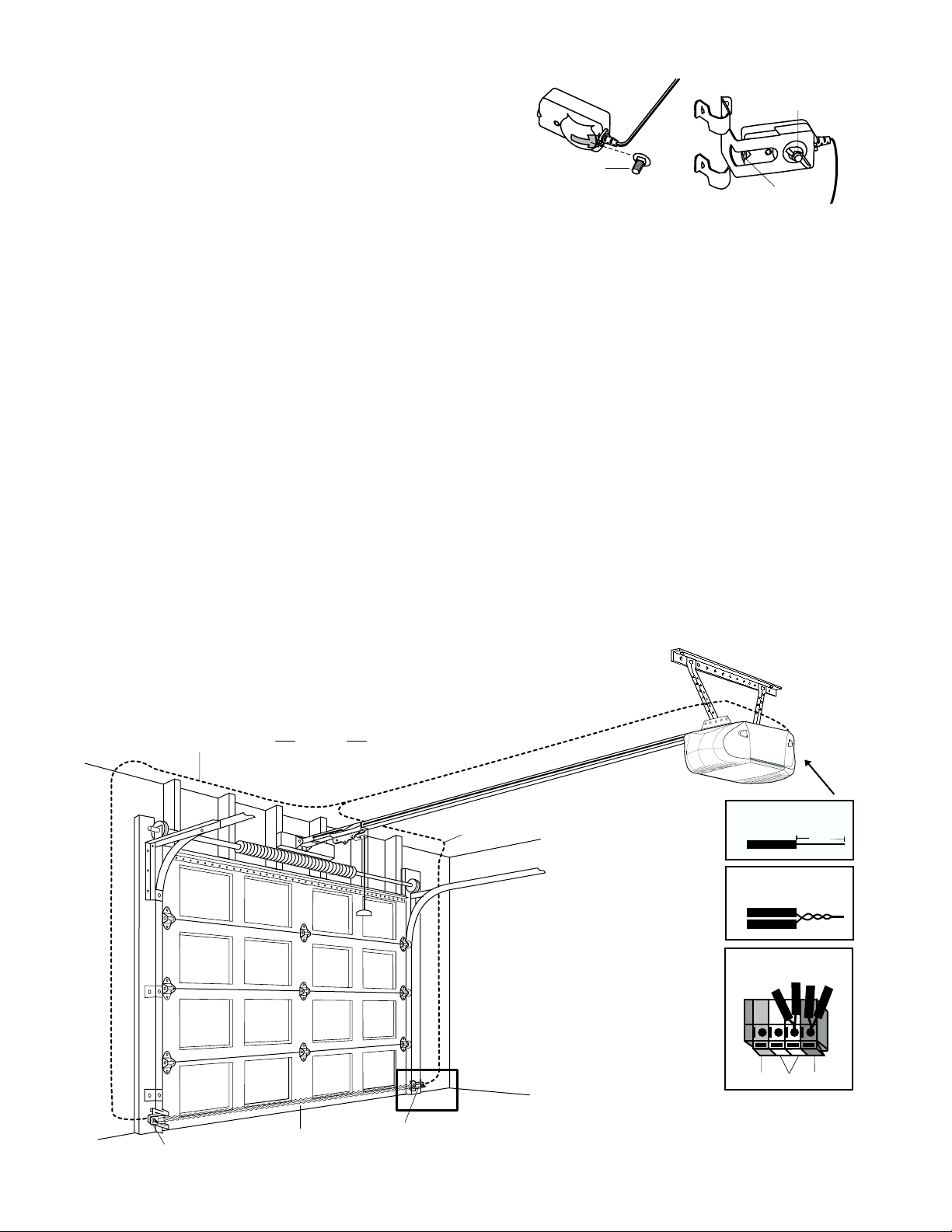

Invisible Light Beam
Protection Area
Sensor Beam
6" max.
above floor
Sensor Beam
6" max.
above floor
Facing he door from inside he garage
INSTALLATION STEP 10
Install The Protector System®
The safe y reversing sensor mus be connec ed
and aligned correc ly before he garage door
opener will move in he down direc ion.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properl connected and aligned, the sensor
will detect an obstacle in the path of its electronic
beam. The sending e e (with an orange indicator
light) transmits an invisible light beam to the
receiving e e (with a green indicator light). If an
obstruction breaks the light beam while the door is
closing, the door will stop and reverse to full open
position, and the opener lights will flash 10 times.
The units must be installed inside the garage so that
the sending and receiving e es face each other
across the door, no more than 6" above the floor.
Either can be installed on the left or right of the door
as long as the sun never shines directl into the
receiving e e lens.
The mounting brackets are designed to clip onto the
track of sectional garage doors without additional
hardware.
If it is necessar to mount the units on the wall, the
brackets must be securel fastened to a solid
surface such as the wall framing. Extension brackets
(see accessories) are available if needed. If
installing in masonr construction, add a piece of
wood at each location to avoid drilling extra holes in
masonr if repositioning is necessar .
The invisible light beam path must be unobstructed.
No part of the garage door (or door tracks, springs,
hinges, rollers or other hardware) ma interrupt the
beam while the door is closing.
• Be sure power is not connected to the garage door
opener BEFORE installing the safety reversing sensor.
• To prevent SERIOUS IN URY or DEATH from a closing
garage door:
– Correctly connect and align the safety reversing
sensor. This required safety device MUST NOT be
disabled.
– Install the safety reversing sensor so beam is NO
HIGHER than 6" above garage floor.
WARNING
CAUTION WARNING
WARNING

18
FLOOR MOUNT (RIGHT SIDE)
WALL MOUNT (RIGHT SIDE)
DOOR TRACK MOUNT (RIGHT SIDE)
Indicator
light
Lens
Lip
Sensor
Bracket
Door
Track
Sensor
Bracket
Extension
Bracket
(See Accessories)
Lens
Indicator
light
Attach with
concrete anchors
(not provided)
Inside
Garage
Wall
Indicator
light
Sensor
Bracket
Lens
Extension
Bracket
(See Accessories)
Inside
Garage
Wall
(Provided with
Extension
Bracket)
(Provided with
Extension Bracket)
(Provided with
Extension
Bracket)
(Provided with
Extension Bracket)
Figure 3
Figure 1
Figure 2
INSTALLING THE BRACKETS
Be sure power o he opener is disconnec ed.
Install and align the brackets so the sensors will face
each other across the garage door, with the beam no
higher than 6" above the floor. The ma be installed
in one of three wa s, as follows.
Garage door track installation (preferred):
• Slip the curved arms over the rounded edge of
each door track, with the curved arms facing the
door. Snap into place against the side of the track.
It should lie flush, with the lip hugging the back
edge of the track, as shown in Figure 1.
If our door track will not support the bracket
securel , wall installation is recommended.
Wall installation:
• Place the bracket against the wall with curved
arms facing the door. Be sure there is enough
clearance for the sensor beam to be unobstructed.
• If additional depth is needed, an extension bracket
(see Accessories) or wood blocks can be used.
• Use bracket mounting holes as a template to
locate and drill (2) 3/16" diameter pilot holes on
the wall at each side of the door, no higher than 6"
above the floor.
• Attach brackets to wall with lag screws
(not provided).
• If using extension brackets or wood blocks, adjust
right and left assemblies to the same distance out
from the mounting surface. Make sure all door
hardware obstructions are cleared.
Floor installation:
• Use wood blocks or extension brackets (see
Accessories) to elevate sensor brackets so the
lenses will be no higher than 6" above the floor.
• Carefull measure and place right and left
assemblies at the same distance out from the wall.
Be sure all door hardware obstructions are
cleared.
• Fasten to the floor with concrete anchors as
shown.
Wing Nut Staples
Carriage Bolt
1/4"-20x1/2"
HARDWARE SHOWN ACTUAL SIZE

19
Carriage bolt
1/4"-20x1/2" Lens
Wing nut
Figure 4MOUNTING AND WIRING THE SAFETY SENSORS
• Slide a 1/4"-20x1/2" carriage bolt head into the slot
on each sensor. Use wing nuts to fasten sensors to
brackets, with lenses pointing toward each other
across the door. Be sure the lens is not obstructed
b a bracket extension (Figure 4).
• Finger tighten the wing nuts.
•Run the wires from both sensors to the opener. Use
insulated staples to secure wire to wall and ceiling.
• Strip 7/16" of insulation from each set of wires.
Separate white and white/black wires sufficientl to
connect to the opener quick-connect terminals.
Twist like colored wires together. Insert wires into
quick-connect holes: white to white and white/black
to gre (Figure 5).
ALIGNING THE SAFETY SENSORS
•Plug in the opener. The indicator lights in both the
sending and receiving e es will glow steadily if
wiring connections and alignment are correct.
The sending e e orange indicator light will glow
regardless of alignment or obstruction. If the green
indicator light in the receiving eye is off, dim, or
flickering (and the invisible light beam path is not
obstructed), alignment is required.
• Loosen the sending e e wing nut and readjust,
aiming directl at the receiving e e. Lock in place.
• Loosen the receiving e e wing nut and adjust
sensor until it receives the sender’s beam. When
the green indicator light glows steadil , tighten the
wing nut.
TROUBLESHOOTING THE SAFETY SENSORS
1. If the sending e e indicator light does not glow
steadil after installation, check for:
• Electric power to the opener.
• A short in the white or white/black wires. These
can occur at staples, or at opener connections.
• Incorrect wiring between sensors and opener.
• A broken wire.
2. If the sending e e indicator light glows steadil but
the receiving e e indicator light doesn't:
• Check alignment.
• Check for an open wire to the receiving e e.
3. If the receiving e e indicator light is dim, realign
either sensor.
NOTE: When the invisible beam path is obstructed
or misaligned while the door is closing, the door will
reverse. If the door is already open, it will not close.
The opener lights will blink 10 times. (If bulbs are not
installed, 10 clicks can be heard. See page 17.
Invisible Light Beam
Protection Area
Sensor
Sensor
Connect Wire to
Opener Quick-Connect Terminals
Bell Wire
Bell Wire Finished
Ceiling
Quick-Connect Terminals
3. Insert into
appropriate terminals
1. Strip wire 7/16"
2. Twist like colored
wires together
7/16"
Red Gre
White
Figure 5

20
INSTALLATION STEP 11
Fasten the Door Bracket
Follow instructions which appl to our door t pe
as illustrated below or on the following page.
A horizon al reinforcemen brace should be long
enough o be secured o wo or hree ver ical
suppor s. A ver ical reinforcemen brace should
cover he heigh of he op panel.
Figure 1 shows one piece of angle iron as the
horizontal brace. For the vertical brace, 2 pieces of
angle iron are used to create a U-shaped support.
The best solution is to check with our garage door
manufacturer for an opener installation door
reinforcement kit.
NOTE: Many door reinforcement kits provide for
direct attachment of the clevis pin and door arm. In
this case you will not need the door bracket; proceed
to Step 12.
SECTIONAL DOORS
1. Center the door bracket on the previousl marked
vertical centerline used for the header bracket
installation. Note correct UP placement, as
stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" below
the top edge of the door, OR directl below an
structural support across the top of the door.
3. Mark, drill holes and install as follows, depending
on our door’s construction:
Metal or light weight doors sing a vertical angle
iron brace between the door panel s pport and
the door bracket:
• Drill 3/16" fastening holes. Secure the door bracket
using the two 1/4"-14x5/8" self-threading screws.
(Figure 2A)
• Alternatel , use two 5/16" bolts, lock washers and
nuts (not provided). (Figure 2B)
Metal, ins lated or light weight factory reinforced
doors:
• Drill 3/16" fastening holes. Secure the door bracket
using the self-threading screws (Figure 3).
Wood Doors:
• Use top and bottom or side to side door bracket
holes. Drill 5/16" holes through the door and
secure bracket with 5/16"x2" carriage bolts, lock
washers and nuts (not provided). (Figure 4)
NOTE: The 1/4"-14x5/8"
self-threading screws are
not intended for use on
wood doors.
To prevent damage to garage door, reinforce inside of
door with angle iron both vertically and horizontally.
WARNING
CAUTION
WARNING
WARNING
Vertical
Centerline
Door
Bracket
Location
Header
Bracket
HORIZONTAL AND VERTICAL
REINFORCEMENT IS NEEDED
FOR LIGHTWEIGHT GARAGE
DOORS (FIBERGLASS,
ALUMINUM, STEEL, DOORS
WITH GLASS PANEL, ETC).
(NOT PROVIDED)
Door
Bracket
Vertical
Centerline
UP
Vertical
Reinforcement
Self-Threading
Screw
1/4"-14x5/8"
Door
Bracket
Nut
5/16"-18
Bolt
5/16"-18x2"
Lock Washer
5/16"
Vertical
Centerline
UP
Vertical
Reinforcement
(Not Provided)
UP
Vertical
Centerline
Self-Threading
Screw
1/4"-14x5/8"
UP
Inside Edge
of Door or
Reinforcement Board
Bolt
5/16"x2"
Vertical
Centerline
(Not Provided)
Figure 1
Figure 2A
Figure 2B
Figure 3
Figure 4
Self-Threading
Screw
1/4"-14x5/8"
HARDWARE
SHOWN
ACTUAL SIZE
