Chamberlain Whisper Drive Security+ WD962KD User manual

The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
GARAGE DOOR OPENER
Models WD962KD
WD962KLD
For Residential Use Only
Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless The Protector System®is connected
and properly aligned.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the left side panel of your opener.
®
®

2
TABLE OF CONTENTS
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come
from something mechanical or from electric shock. Read
the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.
INTRODUCTION
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
Introduction 2-7
Safety symbol and signal word review. . . . . . . . . . . . . . . 2
Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . 3
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly 8-11
Assemble the rail and install the trolley . . . . . . . . . . . . . . 8
Fasten the rail to the motor unit . . . . . . . . . . . . . . . . . . . . 9
Install the idler pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install the belt and attach the belt cap retainer . . . . . . . 10
Set the tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation 11-27
Installation safety instructions . . . . . . . . . . . . . . . . . . . . 11
Determine the header bracket location . . . . . . . . . . . . . 12
Install the header bracket. . . . . . . . . . . . . . . . . . . . . . . . 13
Attach the rail to the header bracket . . . . . . . . . . . . . . . 14
Position the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hang the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Install the lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Attach the emergency release rope and handle . . . . . . 19
Electrical requirements. . . . . . . . . . . . . . . . . . . . . . . . . . 20
Install The Protector System®. . . . . . . . . . . . . . . . . 21-23
Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . . 24-25
Connect the door arm to the trolley . . . . . . . . . . . . . 26-27
Adjustment 28-30
Program the travel limits . . . . . . . . . . . . . . . . . . . . . . . . 28
Set the force. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Test the safety reversal system . . . . . . . . . . . . . . . . . . . 30
Test The Protector System®. . . . . . . . . . . . . . . . . . . . . . 30
Operation 31-36
Operation safety instructions . . . . . . . . . . . . . . . . . . . . . 31
Using your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using the wall-mounted door control . . . . . . . . . . . . . . . 32
Care of your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To open the door manually . . . . . . . . . . . . . . . . . . . . . . 33
Battery backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Having a problem? (Troubleshooting) . . . . . . . . . . . . . . 35
Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programming 37-38
To add or reprogram a hand-held remote control . . . . . 37
To erase all codes from motor unit memory . . . . . . . . . 37
3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
To add, reprogram or change a Keyless Entry PIN. . . . 38
Repair Parts 39-40
Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . 40
Accessories 41
Notes 42-43
Repair Parts and Service 44
Warranty 44

3
Preparing your garage door
Before you begin:
• Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your garage
door is balanced and is not sticking or binding:
1. Lift the door about halfway as shown. Release the
door. If balanced, it should stay in place, supported
entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the opener,
instructions will call for hand tools as illustrated below.
To prevent possible SERIOUS INJURY or DEATH:
• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door may not reverse when required.
• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, ALL of
which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage door
opener to avoid entanglement.
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating
the opener.
• ONLY operate garage door opener at 120V, 60 Hz to avoid
malfunction and damage.
2
1
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver
Adjustable End Wrench
Sockets and Wrench
1/2", 5/8", 7/16", 9/16"
and 1/4"
Drill
Tape Measure
2
1
Stepladder
Pencil
Drill Bits
3/16", 5/16"
and 5/32"
Carpenter’s
Level (optional)
Sectional Door
One-Piece Door

Safety Reversing Sensor
Header Wall
Access Door
— — — — — — — —
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Extension Spring
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
Support bracket &
fastening hardware
is required.
See page 16.
FINISHED CEILING
Motor unit
Wall-
mounted
Door
Control
OR
Torsion Spring
Vertical
Centerline
of Garage Door
4
SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door. Survey
your garage area to see if any of the conditions below
apply to your installation. Additional materials may be
required. You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with
the installation of your opener.
Depending on your requirements, there are several
installation steps which may call for materials or hardware
not included in the carton.
• Installation Step 1 – Look at the wall or ceiling above
the garage door. The header bracket must be securely
fastened to structural supports.
• Installation Step 5 – Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required.
• Installation Step 11 – Depending upon garage
construction, extension brackets or wood blocks may be
needed to install sensors.
• Installation Step 11 – Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.

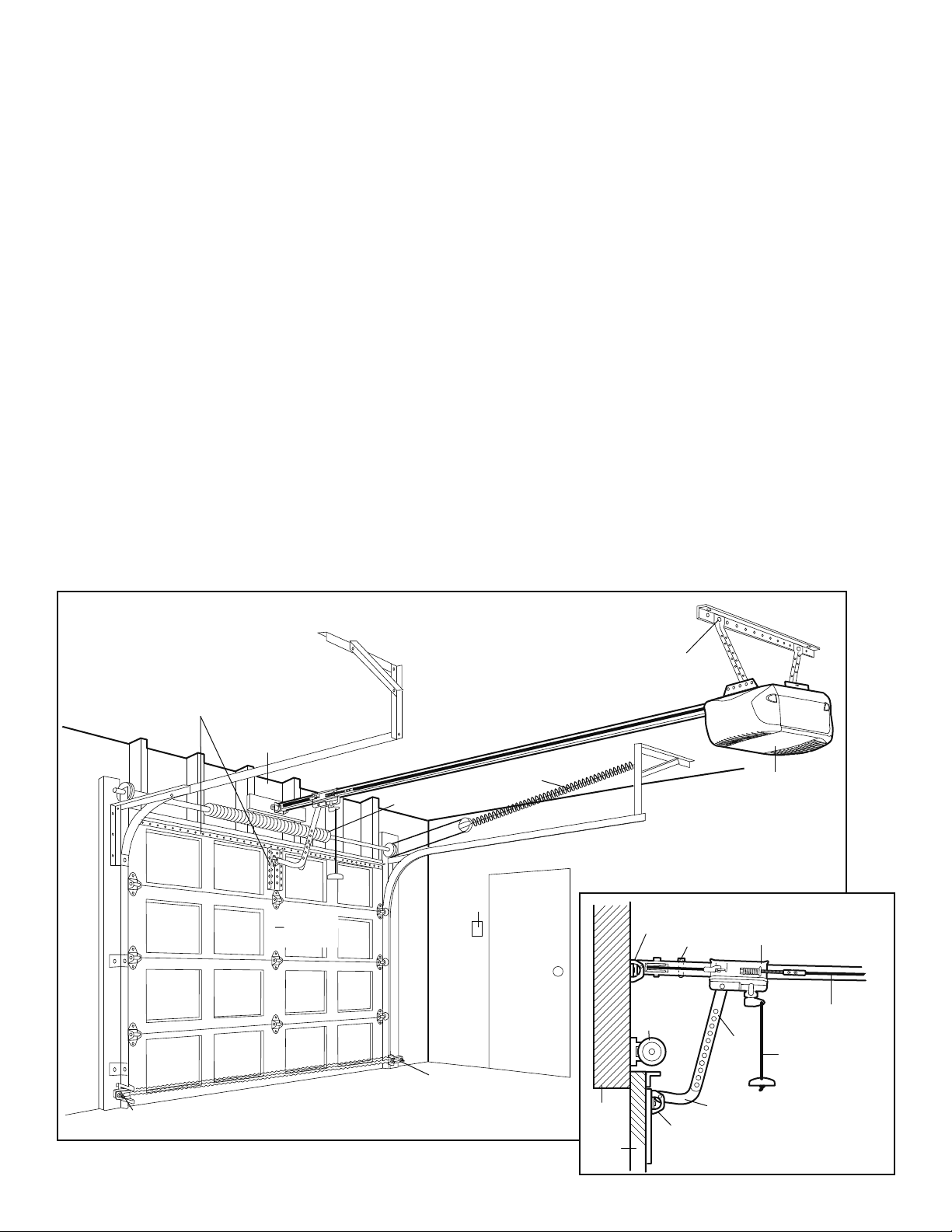

CLOSED POSITION
Header
Wall
Garage
Door
Header
Bracket
Trolley
Straight
Door
Arm
Emergency Release
Rope & Handle
Door
Bracket
Curved
Door
Arm
Garage
Door
Spring
Belt
Trolley
Stop Bolt
• Do you have an access door in addition to the garage
door? If not, Model 7702CB Emergency Key Release is
required. See Accessories page.
• Look at the garage door where it meets the floor. Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 mm). Otherwise, the safety reversal
system may not work properly. See Adjustment Step 3.
Floor or door should be repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforcement
is required (Installation Step 12).
• The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1.2 m) to the left or right of the door
center. See Installation Steps 1 and 12.
• If your door is more than 7 feet (2.1 m) high, see rail
extension kits listed on Accessories page.

5
Access
Door
Safety
Reversing
Sensor
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).
Garage
Door
Header
Wall
Header
Bracket
Door
Bracket Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency
Release
Rope &
Handle
Rail
Belt
Trolley Stop Bolt
CLOSED POSITION
Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 12.
• Depending on your door’s construction, you may need
additional mounting hardware for the door bracket
(Step 12).
Safety Reversing Sensor
Access
Door
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 16.
Safety Reversing
Sensor
Header Wall
Gap between floor
and bottom of door must not exceed 1/4" (6 mm).
Wall-mounted
Door Control
Rail
Motor Unit
ONE-PIECE DOOR WITHOUT TRACK
CLOSED POSITION
Header
Wall
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope & Handle
Door Bracket
Curved
Door
Arm
Garage
Door
Trolley Stop Bolt Belt
Rail
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or
KILLED by a closing garage door.
• The gap between the bottom of the garage door and the floor
MUST NOT exceed 1/4" (6 mm). Otherwise, the safety
reversal system may not work properly.
• The floor or the garage door MUST be repaired to eliminate
the gap.
ONE-PIECE DOOR WITH TRACK

6
SECURITY✚®
3-Button Remote Control (2)
Belt
Curved Door
Arm Section
Safety Labels
and
Literature
Straight Door
Arm Section
Hanging Brackets
Motion Detecting
Door Control
Door Bracket
The Protector System®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Safety Reversing Sensor
Bracket (2)
Motor Unit with 2 Light Lenses
“U” Bracket
Rail
Center/Back
Sections
Rail
Front (header)
Section
Header Bracket
Idler Pulley
2-Conductor Bell Wire
White & White/Red
SECURITY✚®
Keyless Entry
Battery
Belt Cap Retainer
LOCK LIGHT
Trolley
Parking Assist
(Model WD962KLD only)
Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If
anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for assembly
and installation is shown on the next page. Save the
carton and packing material until installation and
adjustment is complete.
Carton Inventory

7
Master
Link (2) Idler Bolt (1)
Nut
3/8" (1)
Trolley Threaded Shaft (1)
Bolt 1/4"-20x1-3/4" (2)
Lock Washer
3/8" (1)
Lock Nut
1/4"-20 (2)
Spacer (2)
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2)
Handle
Nut 5/16"-18 (8)
Ring
Fastener (3)
Insulated
Staples (30)
Drywall Anchors (2)
Clevis Pin
5/16"x1" (1)
Rope
Lock Washer 5/16" (7)
Lag Screw
5/16"-9x1-5/8" (2)
Hex Bolt
5/16"-18x7/8" (4)
Clevis Pin
5/16"x1-1/4" (1)
Lag Screw
5/16"-18x1-7/8" (2)
Screw
6ABx1-1/4" (2) Screw 6-32x1" (2)
Clevis Pin
5/16"x1-1/2" (1)
Spring/Trolley Nut (1)
Self-Threading Screw
1/4"-14x5/8" (2)
Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
INSTALLATION HARDWARE

Front Rail
(TO DOOR)
Window
Cut-Out
Screwdriver
Idler
Pulley
Hole
Tabs
Back Rails
(TO MOTOR UNIT)
Trolley
Tapered
End
Tapered
End
Inner Trolley
Wear Pads
Outer Trolley
Tapered
End
Tapered
End
8
ASSEMBLY STEP 1
Assemble the Rail and Install the Trolley
To avoid installation difficulties, do not run the garage
door opener until instructed to do so.
The front rail has a cut out “window” at the door end
(see illustration).
The hole above this window is larger
on the top of the rail
than on the bottom. A smaller hole
3-1/2" (8.9 cm) away is close to the rail edge. Rotate the
back rail so it has a similar hole close to the opposite
edge, about 4-3/4" (12 cm) from the far end.
1. Remove the straight door arm and hanging bracket
packaged inside the front rail and set aside for
Installation Step 5 and 12.
NOTE: To prevent INJURY
while unpacking the rail carefully remove the straight
door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and
slide the tapered ends into the larger ones. Tabs along
the side will lock into place.
To prevent INJURY from pinching, keep hands and fingers
away from the joints while assembling the rail.
3. Place the motor unit on packing material to protect
the cover, and rest the back end of the rail on top.
For convenience, put a support under the front end of
the rail.
4. As a temporary stop, insert a screwdriver into the hole
10" (25 cm) from the front end of the rail, as shown.
5. Check to be sure there are 4 plastic wear pads inside
the inner trolley. If they became loose during shipping,
check all packing material. Snap them back into position
as shown.
6. Slide the trolley assembly along the rail from the back
end to the screwdriver.
FRONT RAIL
(TOP)
KEEP LARGER
HOLE ON TOP

9
ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
• Insert a 1/4"-20x1-3/4" bolt into the cover protection bolt
hole on the back end of the rail as shown. Tighten
securely with a 1/4"-20 lock nut. DO NOT overtighten.
• Remove the two bolts from the top of the motor unit.
• Place the “U” bracket, flat side down, on the motor unit
and align the bracket holes with the bolt holes. Fasten
with the previously removed bolts.
• Align the rail assembly with the top of the motor unit.
Slide the rail end onto the “U” bracket, all the way to the
stops that protrude on the top and sides of the bracket.
ASSEMBLY STEP 3
Install the Idler Pulley
• Lay the belt beside the rail, as shown. Grasp the end
with the hooked trolley connector and pass
approximately 12" (30 cm) of belt through the window.
Keep the ribbed side toward the rail, and allow it to hang
until Assembly Step 5.
• Remove the tape from the idler pulley. The inside center
should be pre-greased. If dry, regrease to ensure proper
operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail and
pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/4"-20x1-3/4" bolt into the trolley stop hole in
the front of the rail as shown. Tighten securely with a
1/4"-20 lock nut.
To avoid SERIOUS damage to garage door opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
Motor Unit
Belt Pulley
“U” Bracket
Lock Nut
Bolts
SLIDE RAIL TO
STOPS ON TOP
AND SIDES
OF BRACKET
Cover
Protection
Bolt Hole
Bolt
Idler
Pulley
Trolley
Stop Hole
Bolt
Trolley
Connector
Pulley
Rail
Bolt
Nut Washer
Lock Washer 3/8"
Nut 3/8"
Idler Bolt Screwdriver
Idler Pulley
Grease
Inside Pulley
Lock
Nut
Lock Nut
1/4"-20
Bolt 1/4"-20x1-3/4"
HARDWARE SHOWN ACTUAL SIZE
Nut 3/8" Washer 3/8"
Idler Bolt Lock Nut 1/4"-20
Bolt 1/4"-20x1-3/4" Lock
HARDWARE SHOWN ACTUAL SIZE

10
ASSEMBLY STEP 4
Install the Belt and Attach the Belt Cap
Retainer
1. Pull the belt around the idler pulley and toward the
trolley. The ribbed side must contact the pulley.
2. Hook the trolley connector into the retaining slot on the
trolley as shown.
3. With the trolley against the screwdriver, dispense the
remainder of the belt along the rail length toward the
motor unit and around the belt pulley. The belt pulley
teeth must engage the belt.
4. Check to make sure the belt is not twisted and the
FLAT side of the trolley threaded shaft is facing the
rail. Connect the trolley threaded shaft with the master
link, as illustrated:
• Push pins of master link bar through holes in end of
belt and trolley threaded shaft.
• Push master link cap over pins and past pin notches.
• Slide clip-on spring over cap and onto pin notches
until both pins are securely locked in place.
5. Insert the trolley threaded shaft through the hole in the
trolley. Be sure the belt is not twisted and the FLAT
side of the trolley threaded shaft faces the rail.
6. Hold the belt at the trolley shaft as you thread the
spring nut by hand onto the shaft until finger tight
against the trolley. Do not use any tools.
7. Remove the screwdriver.
8. Position the belt cap retainer over the motor unit belt
pulley as shown and fasten to the mounting plate
with 8x3/8" hex screws provided.
To avoid possible SERIOUS INJURY to fingers from moving
garage door opener:
• ALWAYS keep hand clear of belt pulley while operating
opener.
• Securely attach belt pulley cover BEFORE operating.
Hex Screw 8x3/8"
HARDWARE SHOWN ACTUAL SIZE
Spring/Trolley Nut
Spring Nut
Trolley
Connector
Idler Pulley
Retaining
Slot
Hole
Master Link
Clip-On Spring
Master Link Cap
Trolley
Threaded
Shaft
Master
Link Bar
Pin
Notch
8x3/8" Hex Screws
Belt Cap
Retainer
Mounting
Plate
Motor Unit
Belt Pulley

11
INSTALLATION
ASSEMBLY STEP 5
Set the Tension
• Insert a screwdriver tip into one of the nut ring slots and
brace it firmly against the trolley.
• Place a 7/16" open end wrench on the square end.
Rotate the nut about 1/4 turn until the spring releases
and snaps the nut ring against the trolley.
This sets the spring to optimum belt tension.
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.
Nut Ring Nut Ring
Trolley
Nut Ring Slot
Square End
Square
End
AFTER RELEASE
1-1/4"
(3.18 cm)
BEFORE
1"
(2.5 cm)
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
WARNING
WARNING
WARNINGWARNING
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND
INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and
lubricated garage door. An improperly balanced door may
not reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware
MUST be made by a trained door systems technician
BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing opener to avoid entanglement.
5. Install garage door opener 7 feet (2.1 m) or more
above floor.
6. Mount emergency release handle 6 feet (1.8 m)
above floor.
7. NEVER connect garage door opener to power source until
instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door.
• out of reach of children at minimum height of
5 feet (1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door
control.
11. Place manual release/safety reverse test label in plain view
on inside of garage door.
12. Upon completion of installation, test safety reversal system.
Door MUST reverse on contact with a 1-1/2" (3.8 cm) high
object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from
electrocution, disconnect ALL electric and battery power
BEFORE performing ANY service or maintenance.

12
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline of
the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within
4 feet (1.22 m) of the left or right of the door center
only if a torsion spring or center bearing plate is
in the way; or you can attach it to the ceiling
(see page 13) when clearance is minimal. (It may
be mounted on the wall upside down if necessary, to
gain approximately 1/2" (1 cm).)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as shown.
Draw an intersecting horizontal line on the header wall
above the high point:
• 2" (5 cm) above the high point for sectional door and
one-piece door with track.
• 8" (20 cm) above the high point for one-piece door
without track.
This height will provide travel clearance for the top edge
of the door.
NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page 13 for ceiling installation.
One-piece door with horizontal track
Door
Track
Header Wall
Highest Point
of Travel
2" (5 cm)
Header Wall
Vertical Centerline
of Garage Door
Level
(optional)
2x4
2x4
Structural
Supports
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
Unfinished
Ceiling
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might not reverse when required. DO NOT install header
bracket over drywall.
• Concrete anchors MUST be used if mounting header bracket
or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, ALL of which
are under EXTREME tension.
• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door might not reverse when required.
Door
Jamb
Hardware
One-piece door without track:
jamb hardware
8" (20 cm)
Highest
Point
of Travel Door
Pivot
8" (20 cm)
One-piece door without track:
pivot hardware
Highest
Point
of Travel
Header Wall
Header Wall
Header Wall
Sectional door with curved track
Highest Point
of Travel
Door
2" (5 cm) Track

13
Lag Screws
5/16"x9x1-5/8"
– Finished Ceiling –
Door
Spring
Header Wall
UP
Ceiling Mounting Holes
6" (15 cm) Maximum
Header
Bracket
Vertical
Centerline
of Garage Door
Garage Door
Vertical Centerline
of Garage Door

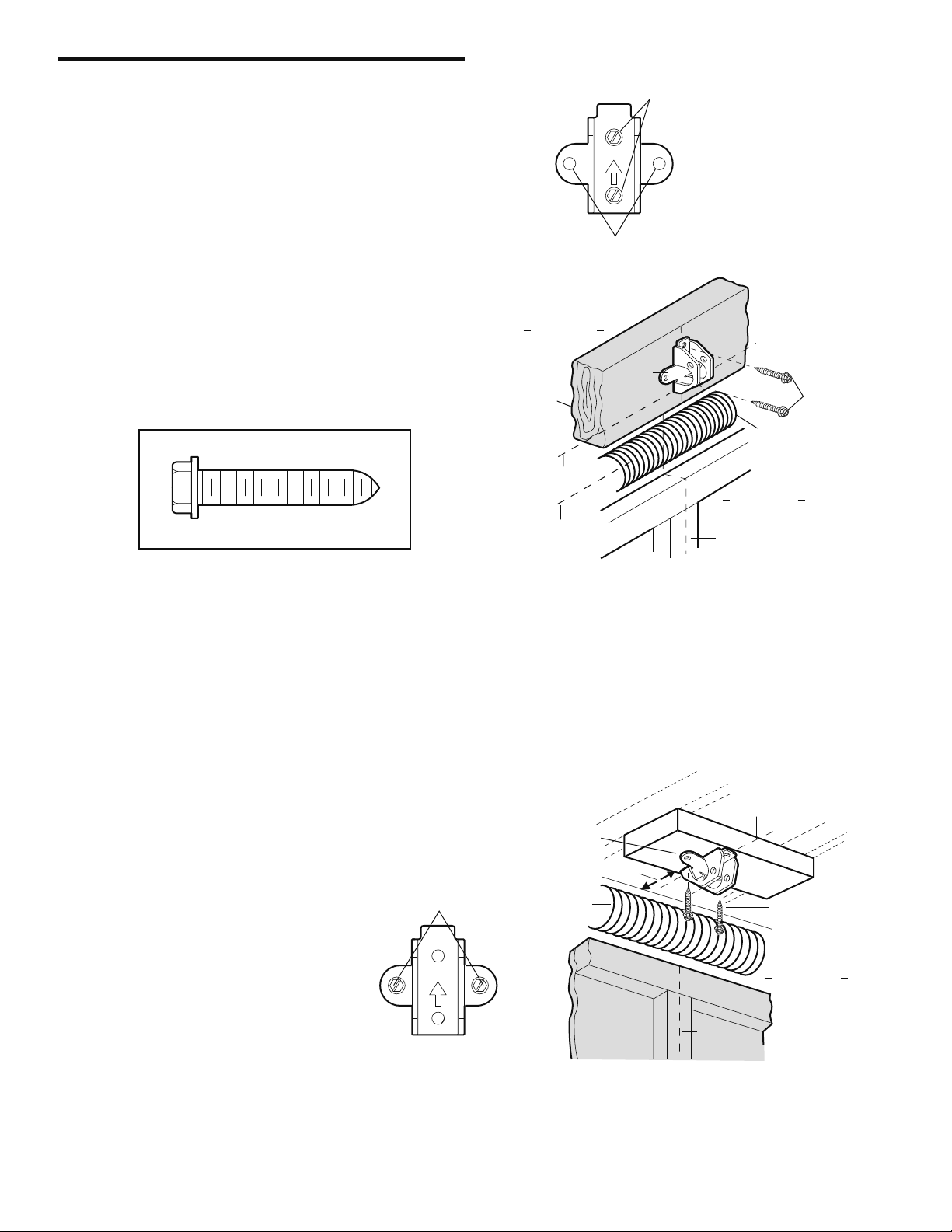

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall above
the garage door, or to the ceiling. Follow the instructions
which will work best for your particular requirements.
Do not install the header bracket over drywall. If
installing into masonry, use concrete anchors (not
provided).
WALL HEADER BRACKET INSTALLATION
• Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes. Drill 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided.
Lag Screw
5/16"x9x1-5/8"
HARDWARE SHOWN ACTUAL SIZE
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as shown.
• Center the bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is
pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.
UP
Wall Mount
Optional
Mounting Holes
Lag Screws
5/16"x9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
of Garage Door
Header Wall
Garage Door
Door Spring
2x4
Structural
Support
Vertical
Centerline
of Garage Door
Header
Bracket
Horizontal
Line

14
INSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you
may re-use the old header bracket with the two plastic
spacers included in the hardware bag. Place the spacers
inside the bracket on each side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way, you will
need help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the spring.
• Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.
Opener Carton or
Temporary
Support
OPTION WITH
SOME EXISTING
INSTALLATIONS
Garage
Door
Header Bracket
Idler Pulley
Header Wall
Header
Bracket
Mounting
Hole
Existing
Header Bracket
Spacer Mounting
Hole
Existing
Clevis Pin
Clevis Pin 5/16"x1-1/2" Ring Fastener
HARDWARE SHOWN ACTUAL SIZE

15
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 on its side
on the top section of the door beneath the rail.
• The top of the door should be level with the top of the
motor unit. Do not position the opener more than
4" (10 cm) above this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR
WITH TRACK
A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
• If the top section or panel hits the trolley when you raise
the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.
To prevent damage to garage door, rest garage door opener
rail on 2x4 placed on top section of door.
Header
Bracket
Top of Door
2x4 is used to determine
the correct mounting height
from ceiling.
Rail
2x4 is used to determine
the correct mounting height
from ceiling.
Door
ENGAGED RELEASED

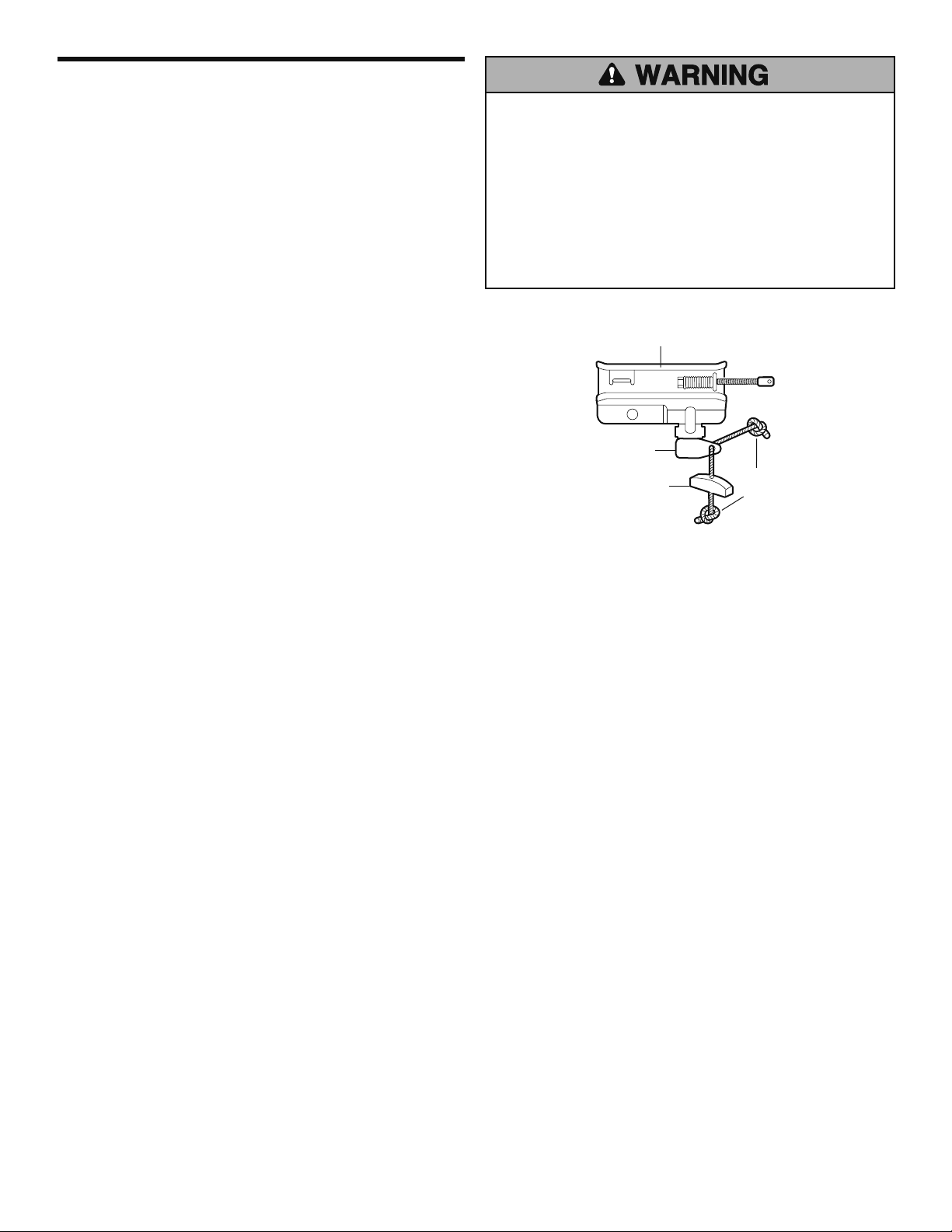

Trolley
Release Arm

16
INSTALLATION STEP 5

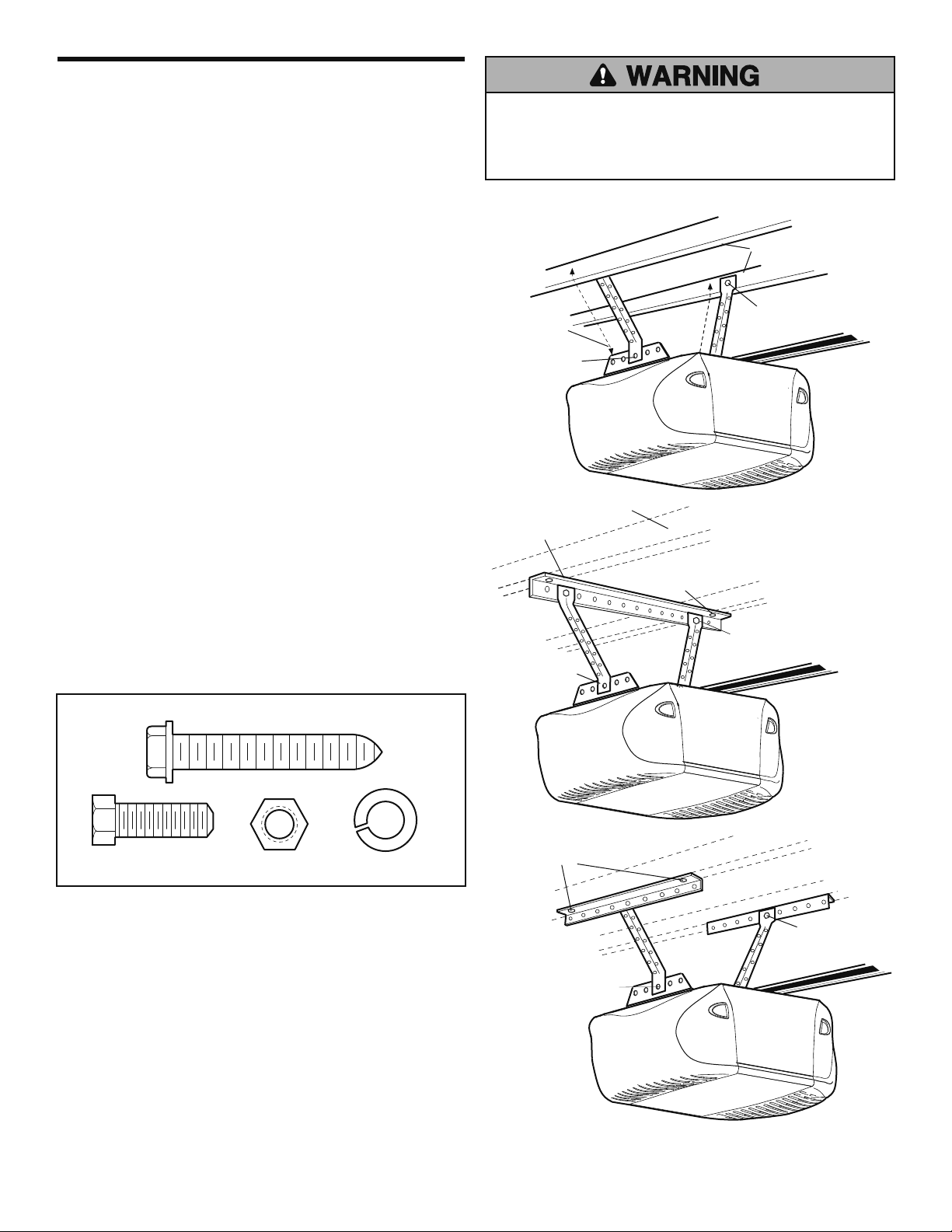

Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figures 2 and 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the door
hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
Lag Screw 5/16"-18x1-7/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE SHOWN ACTUAL SIZE
Measure
Distance
Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 1
Figure 2
To avoid possible SERIOUS INJURY from a falling garage door
opener, fasten it SECURELY to structural supports of the
garage. Concrete anchors MUST be used if installing ANY
brackets into masonry.
Figure 3

17
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Disconnect ALL electric and battery power BEFORE
performing ANY service or maintenance.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:
• Install the door control within sight of garage door, out of
reach of children at a minimum height of 5 feet (1.5 m), and
away from ALL moving parts of door.
• NEVER permit children to operate or play with the door
control push buttons or remote controls.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot reach,
away from moving parts of door and door hardware.
If installing into drywall, drill 5/32" holes and use the
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).
1. Strip 7/16" (11 mm) of insulation from one end of bell
wire and connect to the two screw terminals on back of
the door control by color: white wire to 2 and white/red
wire to the 1.
2. Remove cover by gently prying at slot in top of the cover
with a small flat head screwdriver. Fasten with
6ABx1-1/4" self-tapping screws (drywall installation) or
6-32x1" machine screws (into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to protrude
above wall surface.
• Position bottom of the door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Drill and install top screw with care to avoid cracking
plastic housing. DO NOT overtighten.
• Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated staples
to secure wire in several places. DO NOT pierce wire
with a staple, creating a short or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent location
on inside of garage door.
NOTE: DO NOT connect power and operate opener at
this time. The trolley will travel to the full open position but
will not return to the close position until the sensor beam is
connected and properly aligned.
Drywall Anchors
Insulated
Staples
Screw 6ABx1-1/4"
(standard installation)
Screw 6-32x1"
(pre-wired)
HARDWARE SHOWN ACTUAL SIZE
Outside Keylock Accessory Connections
To opener quick-connect terminals: white to white;
white/red to red.
Strip wire 7/16" (11 mm)
Red GreyWhite
To insert or release wire, push
in tab with screwdriver tip
Door Control Connections
7/16" (11 mm)
Figure 1 Figure 2
(BACK VIEW)
Top
Mounting
Hole
WHITE
2
RED
1
Terminal
Screws
Bottom
Mounting
Hole
Bell
Wire
LOCKLIGHT
To Replace
Insert Top
Tabs First
STANDARD WALL MOUNT
Detector
Switch
Push Bar Cover
ON
OFF
24 Volt Bell Wire
PRE-WIRED INSTALLATION
LOCKLIGHT
To Replace
Insert Top
Tabs First
Detector
Switch
Push Bar Cover
ON
OFF

18
INSTALLATION STEP 8
Install the Lights
• Press the release tabs on both sides of lens. Gently
rotate lens back and downward until the lens hinge is in
the fully open position. Do not remove the lens.
• Install a 100 watt maximum light bulb in each socket.
Light bulb size should be A19, standard neck only.
The lights will turn ON and remain lit for approximately
4-1/2 minutes when power is connected. Then the lights
will turn OFF.
• Reverse the procedure to close the lens.
• Use A19, standard neck garage door opener bulbs for
replacement.
NOTE: Use only standard light bulbs. The use of short
neck or speciality light bulbs may overheat the endpanel or
light socket.
Lens
Hinge
100 Watt (Max)
Standard Light Bulb
Release Tab
100 Watt (Max)
Standard Light Bulb
To prevent possible OVERHEATING of the endpanel or light
socket:
• DO NOT use short neck or specialty light bulbs.
• DO NOT use halogen bulbs. Use ONLY incandescent.
To prevent damage to the opener:
• DO NOT use bulbs larger than 100W.
• ONLY use A19 size bulbs.
INSTALLATION STEP 7
Install the Battery Backup
• Make sure motor unit is unplugged.
• Using a Phillips head screwdriver, remove the battery
cover on the motor unit.
• Partially insert battery into motor unit with terminals
facing out.
• Connect the red (+) and black (-) wires from motor unit
to corresponding terminals on battery.
• Verify the battery wires are seated in the channel.
• Replace battery cover.
Battery Battery Cover
Channel
ALWAYS wear protective gloves and eye protection when
changing the battery or working around the battery
compartment.

19
Trolley
Release Arm
NOTICE
Emergency
Release Handle
Overhand
Knot
Trolley
To prevent possible SERIOUS INJURY or DEATH from a falling
garage door:
• If possible, use emergency release handle to disengage
trolley ONLY when garage door is CLOSED. Weak or broken
springs or unbalanced door could result in an open door
falling rapidly and/or unexpectedly.
• NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope knot
becomes untied, you could fall.
INSTALLATION STEP 9
Attach the Emergency Release Rope
and Handle
• Thread one end of the rope through the hole in the top
of the red handle so “NOTICE” reads right side up
as shown. Secure with an overhand knot at least
1" (2.5 cm) from the end of the rope to prevent slipping.
• Thread the other end of the rope through the hole in the
release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.8 m) above
the floor. Ensure that the rope and handle clear the tops
of all vehicles to avoid entanglement. Secure with an
overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the cut
end with a match or lighter to prevent unraveling.

20
INSTALLATION STEP 10
Electrical Requirements
To avoid installation difficulties, do not run the opener
at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third grounding
pin. This plug will only fit into a grounding type outlet. If
the plug doesn’t fit into the outlet you have, contact a
qualified electrician to install the proper outlet.
If permanent wiring is required by your local code,
refer to the following procedure.
To make a permanent connection through the 7/8" (2 cm)
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the cover
aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on the
silver terminal; and the ground wire to the green ground
screw. The opener must be grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the opener
at this time.
RIGHT WRONG

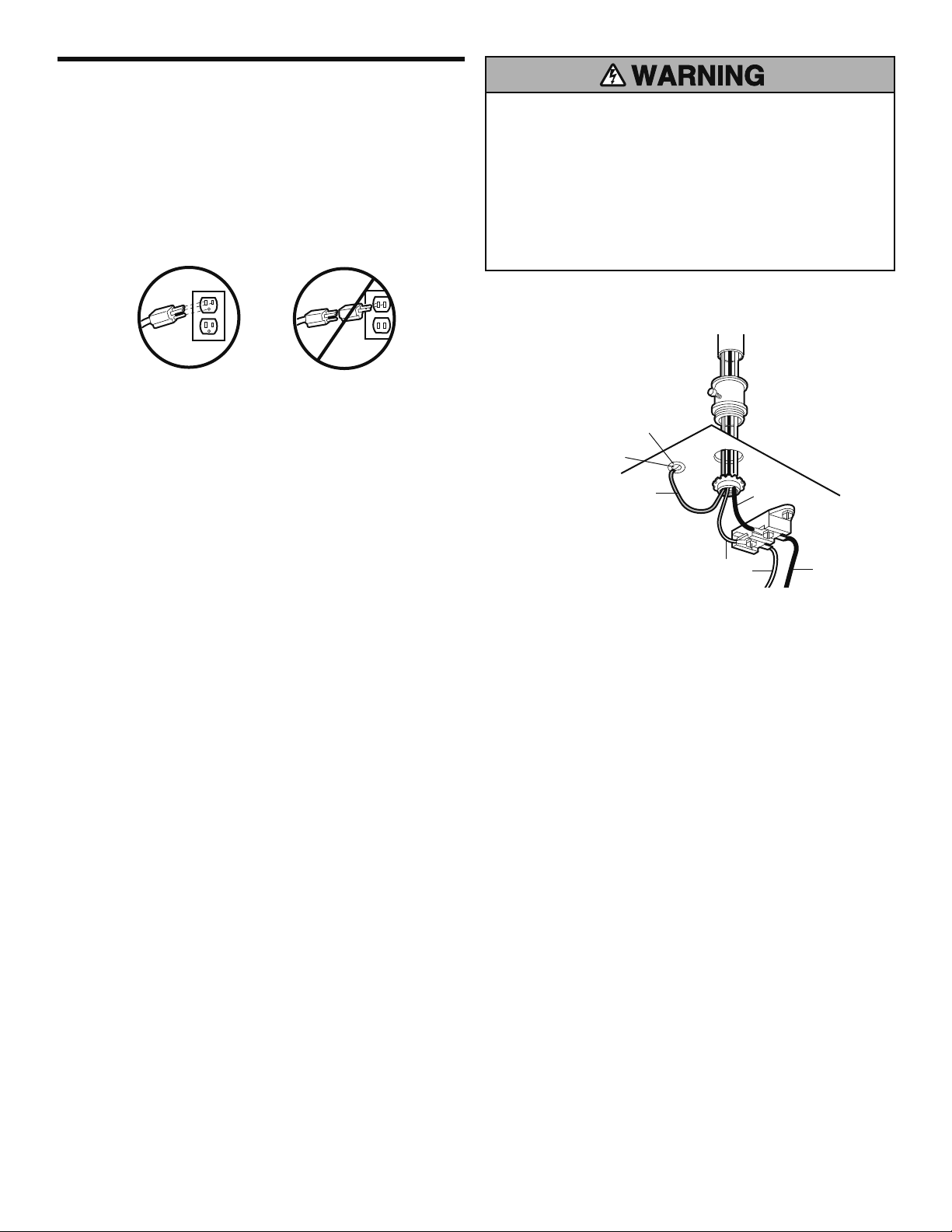

Ground Tab
Green
Ground Screw
Ground Wire
Black Wire
PERMANENT WIRING
CONNECTION
White Wire
Black
Wire
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
• Disconnect ALL electric and battery power BEFORE
performing ANY service or maintenance.
• Garage door installation and wiring MUST be in compliance
with ALL local electrical and building codes.
• NEVER use an extension cord, 2-wire adapter, or change
plug in ANY way to make it fit outlet. Be sure the opener
is grounded.
