Chamberlain Whisper Drive WD912K User manual

Owner’s Manual
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless The Protector System®is connected
and properly aligned.
■Periodic checks of the opener are required to ensure safe operation.
■The model number label is located on the left side panel of your opener.
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlaingroup.com
®
®
GARAGE DOOR OPENER
Model WD912K
1/2 HP
For Residential Use Only

2
Introduction 2-7
Safety symbol and signal word review........................2
Preparing your garage door........................................3
Tools needed...............................................................3
Planning ..................................................................4-5
Carton inventory..........................................................6
Hardware inventory.....................................................7
Assembly 8-11
Assemble the rail and attach the belt pulley bracket..8
Install the trolley..........................................................9
Fasten the rail to the motor unit..................................9
Install the belt and set the tension............................10

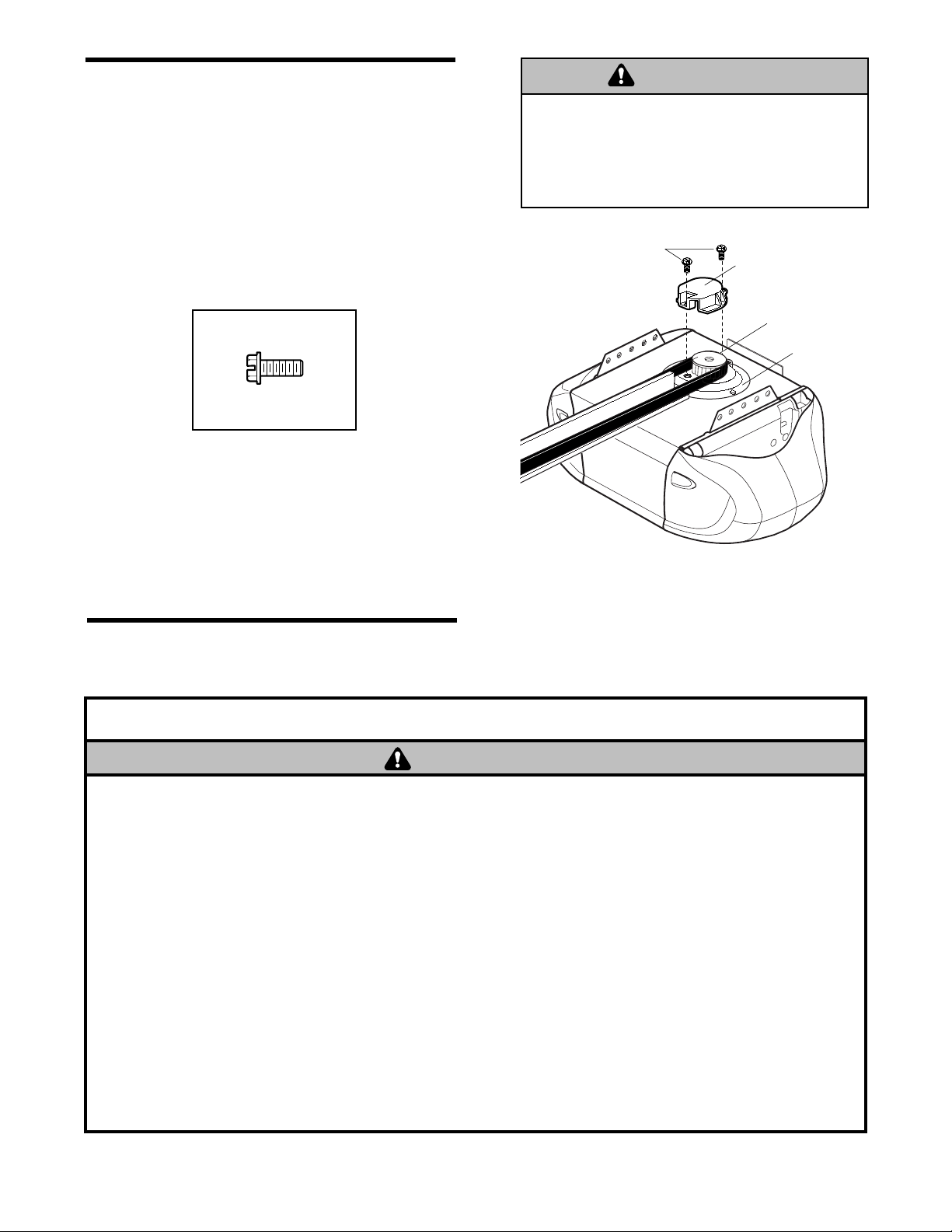

Attach the belt cap retainer .......................................11
Installation 11-27
Installation safety instructions....................................11
Determine the header bracket location................12-13
Install the header bracket..........................................14
Attach the rail to the header bracket.........................15
Position the opener...................................................16
Hang the opener .......................................................17

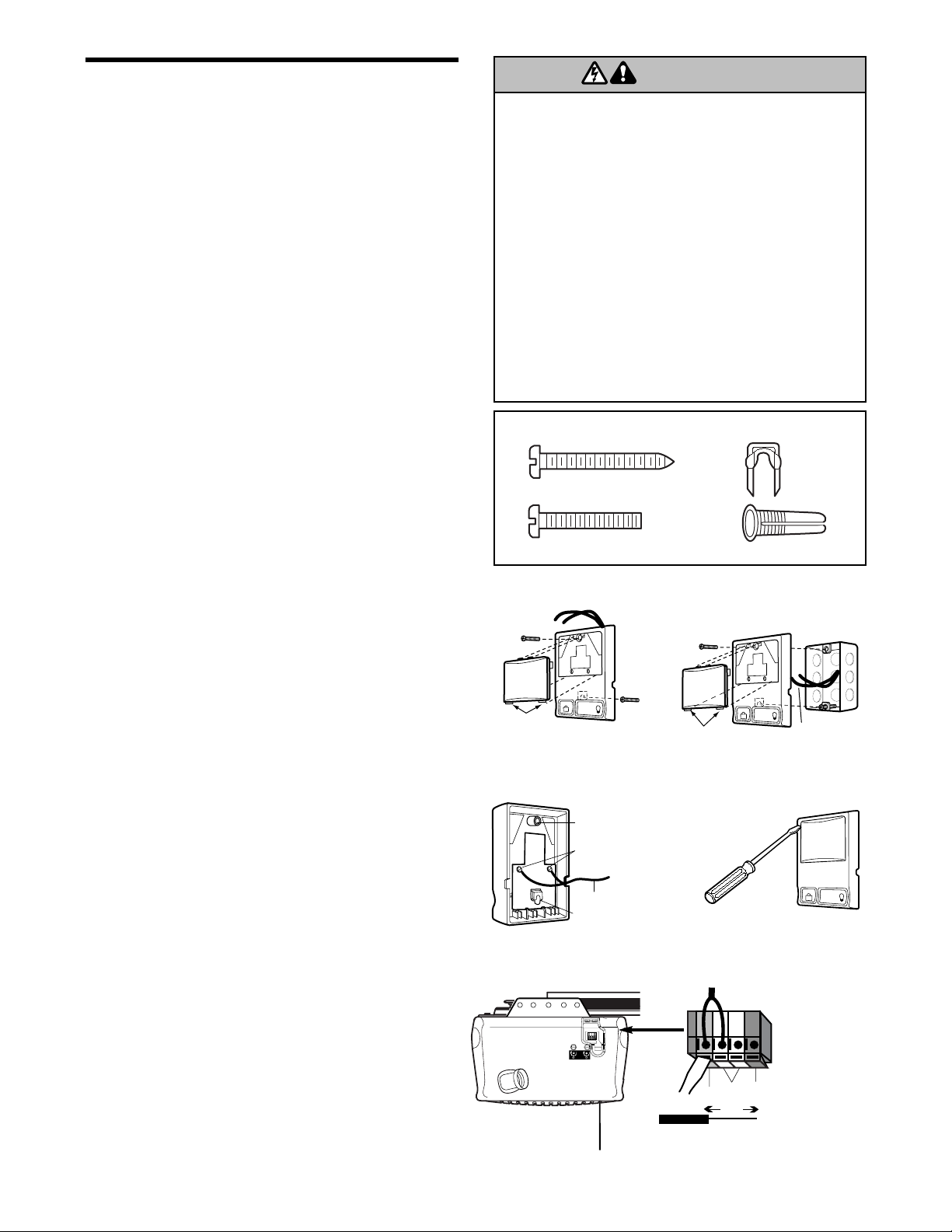

Install the door control...............................................18
Install the light bulbs..................................................19
Attach the emergency release rope and handle.......19
Electrical requirements..............................................20
Install The Protector System®..............................21-23
Fasten the door bracket.......................................24-25
Connect the door arm to the trolley.....................26-27
Adjustment 28-30
Adjust the travel limits...............................................28
Adjust the force.........................................................29
Test the safety reversal system.................................30
Test The Protector System®......................................30
Operation 31-34
Operation safety instructions.....................................31
Using your garage door opener................................31
Using the wall-mounted door control ........................32
To open the door manually........................................32
Care of your garage door opener..............................33
Having a problem?...............................................33-34
Programming 35-36
To add a hand-held remote control...........................35
To erase all codes.....................................................35
Multi-function remotes...............................................35
To add or change a Keyless Entry PIN.....................36
Repair Parts 37-38
Rail assembly parts...................................................37
Installation parts........................................................37
Motor unit assembly parts.........................................38
Accessories 39
Repair Parts and Service 40
Warranty 40
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING

3
To prevent damage to garage door and opener:
•ALWAYS disable locks BEFORE installing and
operating the opener.
•ONLY operate garage door opener at 120V, 60 Hz to
avoid malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
•ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door may not reverse when
required.
•NEVER try to loosen, move or adjust garage door,
door springs, cables, pulleys, brackets or their
hardware, all of which are under EXTREME tension.
•Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage
door opener to avoid entanglement.
Preparing your garage door
Before you begin:
•Disable locks.
•Remove any ropes connected to garage door.
•Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
WARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
Pliers
Wire Cutters
Claw Hammer
Hack Saw
Screwdriver Adjustable End Wrench
1/2" and 7/16" Sockets
and Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
3/16", 5/16" and
5/32" Drill Bits
Carpenter's
Level
Sectional Door
One-Piece Door

Safety Reversing Sensor
Support bracket &
fastening hardware
is required.
See page 17.
— — — — — — — —
Header Wall
FINISHED CEILING
Torsion
Spring
Extension
Spring
OR
Safety
Reversing
Sensor
Gap between floor
and bottom of door
must not exceed 1/4"
Access
Door
Wall-
mounted
Door
Control
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
Motor unit
Door
Center
4

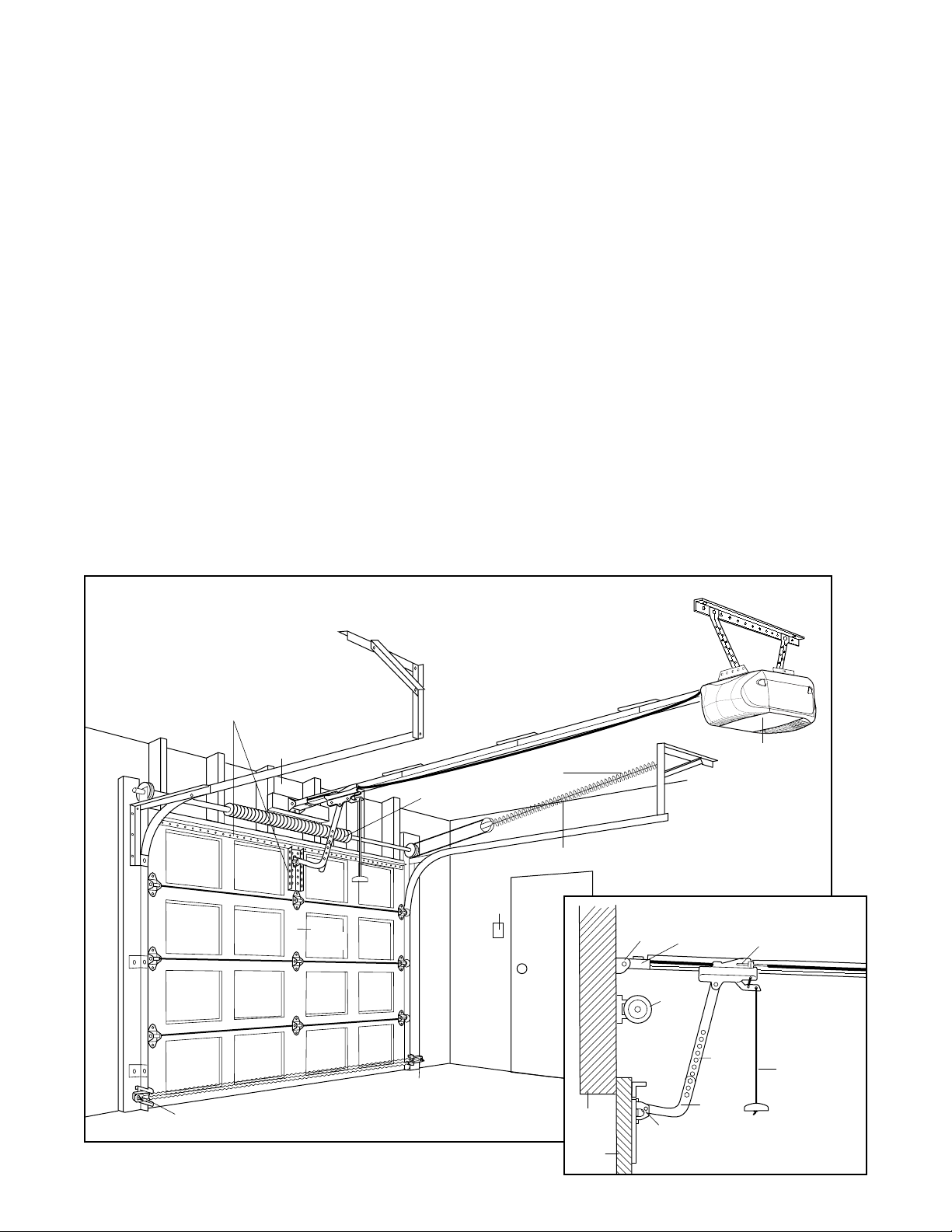

SECTIONAL DOOR INSTALLATION
Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
•Installation Step 1 – Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
•Installation Step 5 – Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
•Installation Step 10 – Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
•Installation Step 10 – Alternate floor mounting of
the safety reversing sensor will require hardware
not provided.
•Do you have an access door in addition to the
garage door? If not, Model 7702CB Outside Quick
Release is required. See Accessories page.
•Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4". Otherwise, the safety
reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
•Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical
reinforcement is required (Installation Step 11).
•The opener should be installed above the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet to the left or right of
the door center. See Installation Steps 1 and 11.
•If your door is more than 7 feet high, see rail
extension kits listed on Accessories page.
Belt Pulley
Bracket
Header
Bracket Trolley
Straight
Door
Arm Emergency
Release
Rope & Handle
Door Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
CLOSED POSITION

Access
Door
Gap between floor and
bottom of door must
not exceed 1/4"Safety
Reversing Sensor
Safety
Reversing
Sensor
CLOSED POSITION
Header
Bracket
Belt
Pulley Bracket
Door
Bracket Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency Release
Rope & Handle
Rail
Garage
Door
Belt
Header
Wall
5
Planning (Continued)

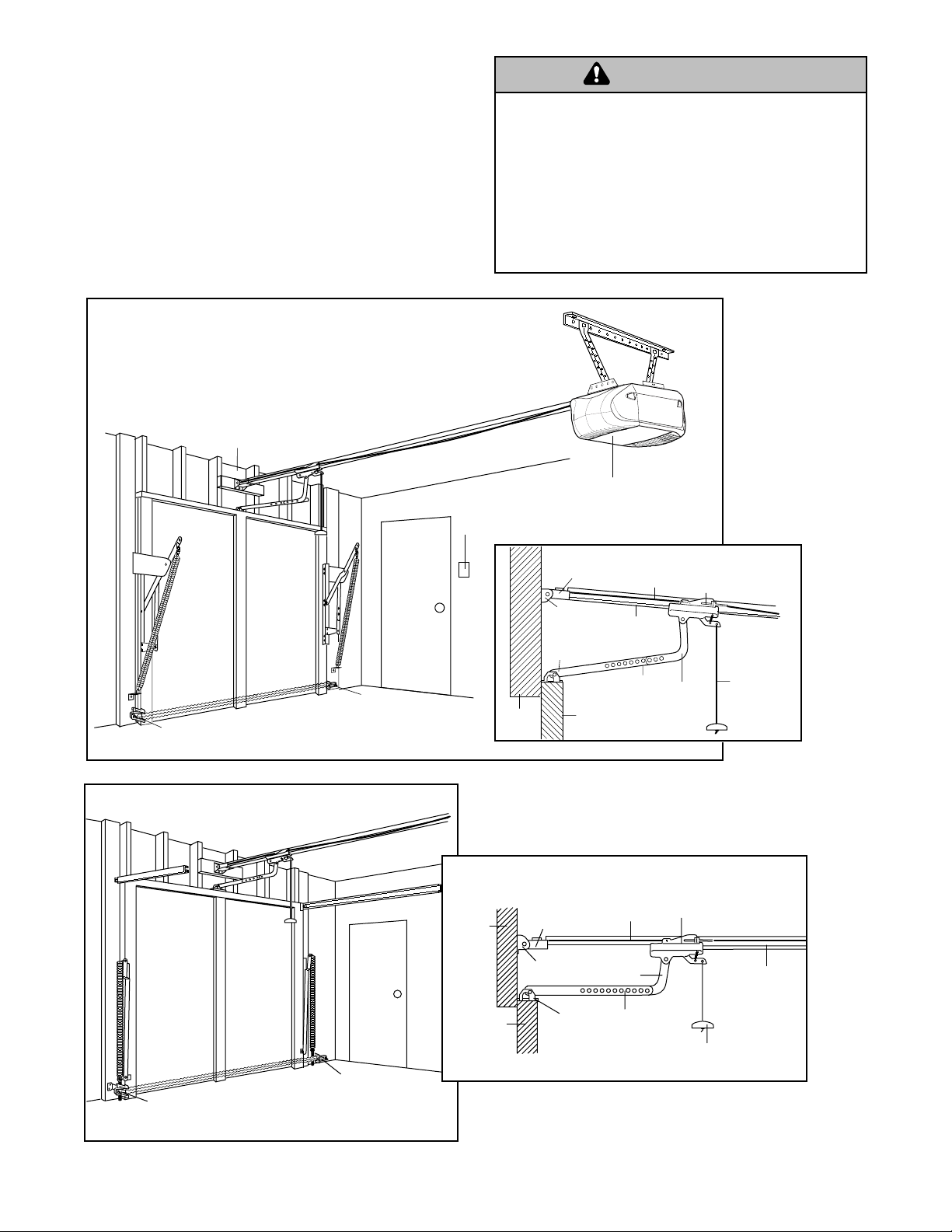

ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11.
•Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 11).
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 17.
Safety Reversing
Sensor
Header
Wall
Safety
Reversing Sensor
Gap between floor
and bottom of door
must not exceed 1/4"
Access
Door
Wall-
mounted
Door
Control
Belt
Pulley Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope
& Handle
Door
Bracket
Curved
Door
Arm
Header
Wall
Rail
Garage
Door
Belt
CLOSED POSITION
Motor Unit
ONE-PIECE DOOR WITHOUT TRACK
ONE-PIECE DOOR WITH TRACK
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage
door.
•The gap between the bottom of the garage door and
the floor MUST NOT exceed 1/4". Otherwise, the safety
reversal system may not work properly.
•The floor or the garage door MUST be repaired to
eliminate the gap.
WARNING
CAUTION WARNING
WARNING

6
SECURITY✚
Multi-Function
Remote Control Transmitter (2)
2-Conductor Bell Wire
White & White/Red
Trolley
Header Bracket
Belt
Curved Door
Arm Section
Safety Labels
and
Literature
Rail Brace (3)
Rail
Center Section (2)
Rail
End Section (2)
Straight Door
Arm Section
Hanging Brackets
UP
CEILINGMOUNTONLY
Multi-Function
Door Control Panel
Belt Cap Retainer
SECURITY✚
Keyless Entry
Door Bracket
LOCK
LIGHT
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Safety Sensor
Bracket (2)
Belt Pulley
Motor Unit with 2 Light lenses
Your garage door opener is packaged in one carton
which contains the motor unit and the parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in the
foam. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment is
complete.
Carton Inventory

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
7
Lock Washer
5/16" (4) Trolley Clip (1)
Lock Nut
1/4"-20x7/16" (12)
Nut
5/16"-18 (4)
Washered Bolt
5/16"-18x1/2" (2)
(mounted in motor unit)
Carriage Bolt
1/4"-20x1/2" (12)
Master Link (2)
Trolley Threaded Shaft (1)
Wing Nut
1/4"-20 (2)
Hex Bolt
5/16"-18x7/8" (4)
Carriage Bolt
1/4"-20x1/2" (2)
Spring/Trolley Nut (1)
Nut 5/16"-18 (4)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle
Insulated
Staples (30)
Clevis Pin
5/16"x1" (1)
Dry Wall Anchors (2)
Hex Bolt
5/16"-18x7/8" (4)
Rope
Ring
Fastener (3) Lock Washer 5/16" (4)
Lag Screw
5/16"-9x1-5/8" (2) Rail Grease
Lag Screw
5/16"-18x1-7/8" (2)
Clevis Pin
5/16"x1-1/4" (1)
Screw
6ABx1-1/4" (2)
Screw 6-32x1" (2)
Self-Threading Screw
1/4"-14x5/8"
ASSEMBLY HARDWARE
INSTALLATION HARDWARE

8
ASSEMBLY STEP 1
Assemble the Rail and
Attach the Belt Pulley Bracket
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
1.Align the four rail sections on a flat surface exactly
as shown. Center sections are interchangeable.
Front and back sections are also interchangeable
for ease of assembly.
2.Insert the carriage bolts so the square
bolt necks seat in the square holes in
the rail sections and pass through the
round holes in the rail braces. Make
sure bolt necks are seated in the
square holes and rails are aligned
before you tighten lock nuts.
Improper assembly can cause jerky
trolley operation, noise and/or
nuisance door reversals.
3.Assemble lock nuts, ensure alignment
and tighten.
NOTE: If rail is not assembled exactly as shown,
trolley will not travel smoothly along length of rail
or it will hit against nuts.
4.Position the belt pulley bracket on the front end of
the rail as shown. Fasten securely with the
hardware shown.
NOTE: When tightening the bolts, be sure to keep
bracket parallel to the rail. Otherwise, the rail may
bow when the opener is operated.
RAIL BACK
(TO MOTOR UNIT)
RAIL FRONT
(TO DOOR)
Belt pulley bracket
attaches to FRONT
END of Rail Rail
(End Section)
Rail
(Center Section)
Carriage Bolt
1/4"-20x1/2"
Rail
(End Section)
Square Carriage
Bolt Hole
Lock Nut 1/4"
Hex Bolts
5/16"-18x7/8"
Belt Pulley
Bracket
Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"-18
Lock Nut
1/4"-20
Carriage Bolts
1/4"-20x1/2"
Hex Bolt
5/16"-18x7/8" Nut
5/16"-18 Lock Washer
5/16"
HARDWARE SHOWN ACTUAL SIZE

9
ASSEMBLY STEP 2
Install the Trolley
•As a temporary stop, insert a screwdriver into the
hole in the front end of the rail.
•Slide the trolley assembly along the rail to the
screwdriver stop. NOTE: If trolley hits against any
nuts on the rail, the bolts and nuts were attached
from the wrong side and must be repositioned.
Review Assembly Step 1.
•Insert a 5/16"-18x7/8" hex bolt into the trolley stop
hole in the rail as shown. Tighten securely with a
5/16" lock washer and nut. This bolt limits trolley
travel in the DOWN direction.
Trolley
Temporary Stop
Screwdriver
Hex Bolt
5/16"-18x7/8"
Trolley
Stop Hole
Lock
Washer
5/16"
Nut
5/16"-18
ASSEMBLY STEP 3
Fasten the Rail to the Motor Unit
•Place the opener on packing material to protect
the cover. For convenience, put a support under
the belt pulley bracket.
•Remove the two 5/16"-18x1/2" washered bolts
mounted in the top of the motor unit.
•Align the holes in the back section of the rail with
the holes in the motor unit.
•Fasten the rail with the two washered bolts
previously removed. Tighten securely.
Remember to use only these bolts! Any other
bolts will cause serious damage to the
opener.
•Insert a 5/16"-18x7/8" hex bolt into the cover
protection bolt hole in the rail as shown. Tighten
securely with a 5/16" lock washer and nut.
NOTE: This bolt prevents trolley over-travel. Keep a
2" minimum between the trolley and this bolt when
adjusting travel limits (see page 28).
USE ONLY THIS
TYPE AND SIZE
BOLT
Washered Bolts
5/16"-18x1/2"
Rail
(Back
Section)
Cover Protection
Bolt Hole
Nut
5/16"-18
Hex Bolt
5/16"-18x7/8"
Lock Washer
5/16"
Nut
5/16"-18 Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
To avoid serious damage to opener, ONLY use
bolts/fasteners mounted in top of motor unit.
WARNING
CAUTION
WARNING
WARNING

10
ASSEMBLY STEP 4
Install the Belt and Set the Tension
INSTALLING THE BELT
1.Drop the notched side of the trolley clip into the
retaining slot on top of the trolley (Figure 1).
2.Grasp the clip connector at the end
of the belt and slip it through the belt
pulley bracket from behind, around
the pulley and toward the trolley.
3.Fasten the belt clip connector to the
trolley clip with a master link:
•Push pins of master link bar
through holes in trolley clip and belt
clip connector.
•Push master link cap over pins and
past pin notches.
•Slide clip-on spring over cap and onto
pin notches until both pins are securely
locked in place.
4.With the trolley against the screwdriver,
dispense the belt along the rail and around
the motor unit sprocket. The sprocket teeth
must engage the belt (Figure 2).
5.Use the second master link to connect the belt
to the flat end of the trolley threaded shaft
(Figure 1). Check to make sure the belt is not
twisted.
6.Remove the screwdriver.
SETTING THE TENSION
1.Insert the trolley threaded shaft through the hole in
the trolley.
2.Hold the belt at the trolley shaft to avoid twisting as
you thread the spring/trolley nut by hand on the
shaft until finger tight against the trolley (Figure 3).
Do not use any tools.
3.Insert a screwdriver tip into one of the nut ring
slots and brace it firmly against the trolley.
(Figure 4).
4.Place a 7/16" open end wrench on the square end.
Rotate about 1/4 turn until the spring releases and
snaps the nut ring against the trolley (Figure 5).
This extends the spring for optimum belt tension.
Nut
Ring
Trolley
Threaded
Shaft
Nut Ring
Slots
Square
End
Motor unit
Sprocket
Belt
Pulley
Slip Belt Clip
Connector around
Pulley Bracket
from this direction
and attach to trolley clip
Trolley
Clip
Master Link
Clip-On Spring Master Link Cap
Trolley
Threaded Shaft
Master
Link Bar
Master
Link Bar
Pin Notch
Pin Notch
Belt
Clip Connector
Figure 2
Figure 4
Belt Clip
Connector
Trolley
Threaded
Shaft
Spring/Trolley Nut
Nut Ring Trolley Nut Ring Trolley
1" 1-1/4"
BEFORE AFTER RELEASE
Figure 5
Figure 3
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener:
•ALWAYS keep hand clear of sprocket while operating
opener.
•Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION WARNING
WARNING
Figure 1

ASSEMBLY STEP 5
Attach the Belt Cap Retainer
•Position the belt cap retainer over the motor unit
sprocket so the two holes in cap align with the two
holes in mounting plate. Attach with 8x3/8" hex
screws provided.
You have now finished assembling your garage
door opener. Please read the following warnings
before proceeding to the installation section.
11
IMPORTANT INSTALLATION INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION WARNINGS
AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result in
SEVERE INJURY or DEATH.
3. All repairs to cables, spring assemblies and other
hardware must be made by a trained door systems
technician BEFORE installing opener.
4. Disable all locks and remove all ropes connected to
garage door BEFORE installing opener to avoid
entanglement.
5. Install garage door opener 7 feet or more above floor.
6. Mount emergency release handle 6 feet above floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
•within sight of the garage door
•out of reach of children at minimum height of 5 feet
•away from all moving parts of the door.
10. Place entrapment warning label on wall next to garage
door control.
11. Place manual release/safety reverse test label in plain
view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a
one-inch high object (or a 2x4 laid flat) on the floor.
To reduce the risk of severe injury or death:
WARNING
WARNING
WARNING
Hex screws
#8x3/8"
HARDWARE SHOWN
ACTUAL SIZE
INSTALLATION
Motor Unit
Sprocket
Mounting Plate
Hex screws 8x3/8" Belt Cap
Retainer
To avoid possible SERIOUS INJURY to fingers from
moving garage door opener:
•ALWAYS keep hand clear of sprocket while
operating opener.
•Securely attach sprocket cover BEFORE operating.
WARNING
CAUTION WARNING
WARNING

12
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
1.Close the door and mark the inside vertical
centerline of the garage door.
2.Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4 feet
of the left or right of the door center only if a
torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 14) when clearance is minimal. (It may be
mounted on the wall upside down if necessary,
to gain approximately 1/2".)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3.Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 2" above the high point. This height
will provide travel clearance for the top edge of the
door.
Proceed to Step 2, page 14. One-piece
door with
horizontal
track
To prevent possible SERIOUS INJURY or DEATH:
•Header bracket MUST be RIGIDLY fastened to
structural support on header wall or ceiling, otherwise
garage door might not reverse when required. DO NOT
install header bracket over drywall.
•Concrete anchors MUST be used if mounting header
bracket or 2x4 into masonry.
•NEVER try to loosen, move or adjust garage door,
springs, cables, pulleys, brackets, or their hardware,
all of which are under EXTREME tension.
•ALWAYS call a trained door systems technician if
garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when
required.
Header Wall
Ceiling
Track
Highest Point
of Travel
Door
2"
Sectional door
with curved
track
Door
Track
Header Wall
Highest Point
of Travel
2"
Finished
Ceiling
Vertical
Centerline
Header
Wall 2x4 Structural
Supports
Vertical
Centerline
WARNING
CAUTION WARNING
WARNING

13
Header Wall Vertical
Centerline
Vertical
Centerline
of Garage
Door
2x4
Unfinished
Ceiling
2x4
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Structural
Supports
ONE-PIECE DOOR WITHOUT TRACK
1.Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2.Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" to the remainder. (See Example).
3.Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware
EXAMPLE
Distance from top of door
(at highest point of travel) to floor...................... 92"
Actual height of door.......................................... -88"
Remainder.......................................................... 4"
Add..................................................................... +8"
Bracket height on header wall............................ =12"
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.

14
INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
•Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
Lag Screw
5/16"-9 x 1-5/8"
HARDWARE SHOWN ACTUAL SIZE
Lag Screws
5/16"-9x1-5/8"
Highest Point of
Garage Door Travel
Vertical
Centerline
Header
Wall
Garage
Door
UP
CEILING MOUNT ONLY
Wall Mounting Holes
Optional
Wall Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
CEILINGMOUNTONLY
Door Spring
Header
Bracket
2x4
Structural
Support
Vertical
Centerline
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
UP
Lag Screws
5/16"-9x1-5/8"
Garage Door
Vertical Centerline
Header Wall
– Finished Ceiling –
Header
Bracket
6" Maximum
Vertical
Centerline
Door
Spring
CEILING HEADER BRACKET INSTALLATION
•Extend the vertical centerline onto the ceiling as
shown.
•Center the bracket on the vertical mark, no more
than 6" from the wall. Make sure the arrow is
pointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
•Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.

15
INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
•Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the
spring.
•Position the rail bracket against the header
bracket.
•Align the bracket holes and join with a clevis pin
as shown.
•Insert a ring fastener to secure.
Header
Bracket
Belt Pulley
Bracket
Temporary
Support
Header Wall
Garage
Door
Clevis Pin
5/16"x2-3/4"
Ring
Fastener
Header
Bracket
Belt Pulley
Bracket
Rail
Clevis Pin
5/16" x 2-3/4" Ring Fastener
HARDWARE SHOWN ACTUAL SIZE

16
ONE-PIECE DOOR WITHOUT TRACK
A2x4 on its side is convenient for setting an ideal
door-to-rail distance.
•Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
•Open the door all the way and place a 2x4 on its
side on the top section beneath the rail.
•The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 4" above this point.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
•Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
•Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
•If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 12
is completed.
Rail
2x4 is used to determine
the correct mounting height
from ceiling.
Door
Header
Bracket
Top of Door
2x4 is used to determine
the correct mounting height
from ceiling.
Trolley
Release Arm
ENGAGED RELEASED
To prevent damage to garage door, rest garage door
opener rail on 2x4 placed on top section of door.
WARNING
CAUTION
WARNING
WARNING

17
INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1.Measure the distance from each side of the motor
unit to the structural support.
2.Cut both pieces of the hanging bracket to required
lengths.
3.Drill 3/16" pilot holes in the structural supports.
4.Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.
5.Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6.Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7.Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
8.Grease the top and underside of the rail surface
where the trolley slides with rail grease.
To avoid possible SERIOUS INJURY from a falling
garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be used
if installing any brackets into masonry.
Lag Screw 5/16"-18x1-7/8"
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE SHOWN ACTUAL SIZE
Measure
Distance
Lag Screws
5/16"-18x1-7/8"
Structural
Supports
Bracket
(Not Provided)
Lag Screws
5/16"-18x1-7/8"
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
Hidden
Support
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 1
Figure 2
WARNING
CAUTION WARNING
WARNING

18
LOCK
LIGHT
Figure 4 REMOVE COVER
INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of the door at a
minimum height of 5 feet where small children cannot
reach, and away from moving parts of the door and
door hardware. The installation surface must be
smooth and flat. If installing into drywall (Figure 1),
drill 5/32" holes and use anchors provided. For
pre-wired installations (as in new home construction),
it may be mounted to a single gang box (Figure 2).
NOTE: After installation, a green or amber indicator
light behind the cover will indicate proper connection.
If not lit, the Lock and Light features will not function
(reverse wires to correct).
1.Strip 7/16" of insulation from one end of bell wire
and connect to the two screw terminals on back of
door control by color: white wire to WHT and
white/red wire to the RED (Figure 3).
2.Remove white cover by gently prying on a side
corner near the top of the cover with a small flat
head screwdriver (Figure 4). Fasten with
6ABx1-1/4" self-tapping screws (drywall
installation) or 6-32x1" machine screws (into gang
box) as follows:
•Drill and install bottom screw, allowing 1/8" to
protrude above wall surface.
•Position bottom of door control on screw head
and slide down to secure. Adjust screw for snug
fit.
•Install top screw with care to avoid
cracking plastic housing. Do not overtighten.
•Insert bottom tabs and snap on cover.
NOTE: The push bar may stick if the door control is
not mounted on a smooth surface. If a click is not
heard when pressing the push bar, loosen the two
mounting screws or relocate the door control to a
smoother surface.
3.(Standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated
staples to secure wire in several places. Do not
pierce wire with a staple, creating a short or open
circuit.
4.Strip 7/16" of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red
(Figure 5).
NOTE: When connecting multiple door controls to the
opener, twist same color wires together. Insert wires
into quick-connect holes: white to white and red/white
to red.
5.Use tacks or staples to permanently attach
entrapment warning label to wall near door control,
and manual release/safety reverse test label in a
prominent location on inside of garage door.
NOTE: DO NOT connect the power and operate the
opener at this time. The trolley will travel to the full
open position but will not return to the close position
until the sensor beam is connected and properly
aligned. See Safety Reversing Sensor Instructions
beginning on page 21.
WHT
RED
Bell Wire
Terminal
Screws
Bottom Mounting Hole
Top Mounting Hole
Dry Wall Anchors
Insulated
Staples
Screw 6AB x 1-1/4"
(drywall installation)
Screw 6-32 x 1"
(gang box installation)
HARDWARE SHOWN ACTUAL SIZE
Figure 2
To Replace
Insert Bottom Tabs First
PRE-WIRED INSTALLATION
24 Volt
Bell Wire
LOCK
LIGHT
LOCK
LIGHT
To Replace
Insert Bottom Tabs First
Figure 1 STANDARD
INSTALLATION
Single
Gang Box
Figure 3 MULTI-FUNCTION
DOOR CONTROL (BACK)
Figure 5
To release wire, push in tab
with screwdriver tip
Door Control
Connections
7/16"
Strip wire 7/16"
Red Grey
White
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
•Besure power is not connected BEFORE installing door
control.
•Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:
•Install door control within sight of garage door, out of
reach of children at a minimum height of 5 feet, and away
from all moving parts of door.
•NEVER permit children to operate or play with door
control push buttons or remote control transmitters.
•Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
•ALWAYS keep garage door in sight until completely
closed. NEVER permit anyone to cross path of closing
garage door.
WARNING
CAUTION
WARNING
WARNING
KG
1
3
9
75
KG
1
3
9
75

19
INSTALLATION STEP 7
Install the Lights
•Press the release tabs on both sides of lens.
Gently rotate lens back and downward until the
lens hinge is in the fully open position. Do not
remove the lens.
•Install up to a 100 watt maximum light bulb in each
socket. The lights will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected. Then the lights will turn OFF.
•Reverse the procedure to close the lens.
•If the bulbs burn out prematurely due to vibration,
replace with a Garage Door Opener bulb.
NOTE: Use only standard light bulbs. The use of
short neck or speciality light bulbs may overheat the
endpanel or light socket.
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
•Thread one end of the rope through the hole in the
top of the red handle so “NOTICE” reads right side
up as shown. Secure with an overhand knot at
least 1" from the end of the rope to prevent
slipping.
•Thread the other end of the rope through the hole
in the release arm of the outer trolley.
•Adjust rope length so the handle is 6 feet above
the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
•To prevent possible SERIOUS INJURY or DEATH from
a falling garage door:
–If possible, use emergency release handle to
disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced
door could result in an open door falling rapidly
and/or unexpectedly.
–NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
•NEVER use handle to pull door open or closed. If rope
knot becomes untied, you could fall.
Lens
Hinge
100 Watt (Max)
Standard Light Bulb
Release Tab
100 Watt (Max)
Standard Light Bulb
NOTICE
Overhand
Knot
Emergency
Release Handle
Overhand
Knot
Trolley
Release
Arm
Rope
WARNING
CAUTION WARNING
WARNING

20
INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
•Remove the motor unit cover screws and set the
cover aside.
•Remove the attached 3-prong cord.
•Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
•Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
RIGHT WRONG
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
•Be sure power is not connected to the opener, and
disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
•Garage door installation and wiring MUST be in
compliance with all local electrical and building codes.
•NEVER use an extension cord, 2-wire adapter, or
change plug in any way to make it fit outlet. Be sure
the opener is grounded.
Ground Tab
Green
Ground Screw
Ground Wire
Black Wire
PERMANENT WIRING
CONNECTION
White Wire
Black
Wire
WARNING
CAUTION WARNING
WARNING
