Chamberlain 8010 User manual

LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
LiftMaster.com
CONTENTS
Preparation .............................. 1-5
Assembly................................. 6-7
Installation..............................8-23
Adjustments .......................... 24-26
Operation.............................. 27-30
Maintenance.............................. 31
Troubleshooting.......................... 32
Warranty .................................. 33
Repair Parts .............................. 34
Contact Information ..................... 35
Chain/Cable Drive DC
Garage Door Opener
■Please read this manual and the enclosed safety materials carefully!
■Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless the Protector System®is connected and
properly aligned.
■Periodic checks of the garage door opener are required to ensure safe operation.
■The model number label is located on the back panel of your garage door opener.
■This garage door opener is compatible with Security+ 2.0®accessories.
■WARNING: To reduce the risk of injury to persons – Use this opener ONLY with a
7 or 8 foot sectional door.
Serial Number:
Date of Purchase:
Model Number:
Model 8010
FOR RESIDENTIAL USE ONLY
INSTALL ON 7 OR 8 FOOT
SECTIONAL DOORS ONLY
Write down the following information
for future reference:
Register your garage door opener to receive
updates and offers from LiftMaster
Send it in by texting the photo to 71403
(US) or visit
www.liftmaster.com/register (Global)
Take a photo of the camera icon including
the points ( ).

2
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed,
operated,maintained and tested in strict accordance with the instructions and warningscontained in
this manual.
When you see these Safety Symbols and Signal Words on the following pages, they will alertyou to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock.Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages,itwill alert you to the possibilityof damage to
your garage door and/or the garage door opener ifyou do notcomplywith the cautionary statements
that accompany it. Read them carefully.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
lALWAYS call a trained door systems technician if garage door binds,sticks,or is out of
balance. An unbalanced garage door may NOTreverse when required.
lNEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or
their hardware, ALLof which are under EXTREME tension.
lDisable ALLlocksand remove ALLropes connected to garage door BEFORE installation and
operating garage door opener to avoid entanglement.
To prevent damage to garage door and opener:
lALWAYS disable locks BEFORE installing and operating the opener.
lONLY operate garage door opener at120V,60Hzto avoid malfunction and damage.
Before you begin:
1. Disable locks and remove anyropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should
stay in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your
door binds,sticks,or is out ofbalance, call a trained door systems
technician.
4. Check the seal on the bottomof the door. Any gap between the
floor and the bottom ofthe door must not exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center ofthe door. If
there is a torsion spring or center bearing plate in the way of the
header bracket, it may be installed within 4feet (1.2 m) to the left or
right of the door center. See page 9.
Torsion
Spring
Extension
Spring
OR
Preparation

3
Additional Items You May Need:
Surveyyour garage area to see if you will need any ofthe following items:
l(2) 2X4 PIECES OFWOOD
Maybe used to fasten the header bracket to the structural supports. Also used to position the
garage door opener during installation and for testing the safety reversing sensors.
lSUPPORT BRACKET AND FASTENING HARDWARE
Must be used if you have a finished ceiling in your garage.
lEXTENSION BRACKETS (MODEL 041A5821-1) OR WOOD BLOCKS
Depending upon garage construction, extension brackets or wood blocks may be needed to
install the safety reversing sensor.
lFASTENING HARDWARE
Alternate floor mounting ofthe safetyreversing sensor will require hardware not provided.
lDOOR REINFORCEMENT
Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.
Tools Needed
2
1
3/16
5/16
1/4
7/32
5/16
5/16
1/4
Preparation

4

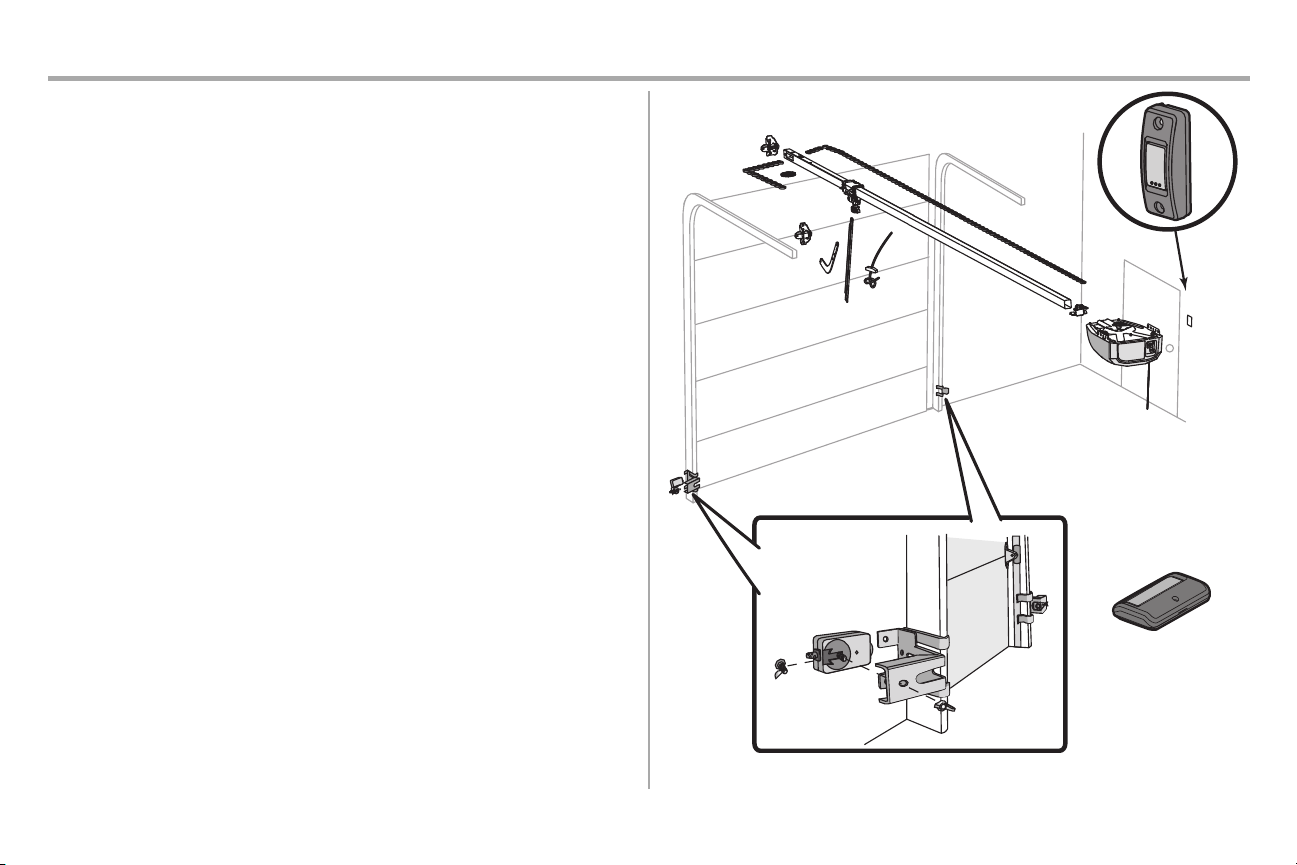

Carton Inventory
Accessorieswill varydepending on the garage door opener model purchased.Depending on your
specificmodel,other accessories may be included with your garage door opener.The instructions for
these accessories will be attached to the accessoryand are notincluded in thismanual.The images
throughout this manual are for reference and your productmay look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener (motor unit)
J. Chain spreader
K. Chain and cable
L. Door control (883LM)
M. Remote control (891LM)
N. The Protector System®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending
Sensor (1), Receiving Sensor (1)
O. Safety Sensor Brackets (2)
NOT SHOWN
White and red/white wire
Owner's manual
Hardware Bag
M
A
B
C
JI
NO
D
E
F
GK
L
H
Preparation

5

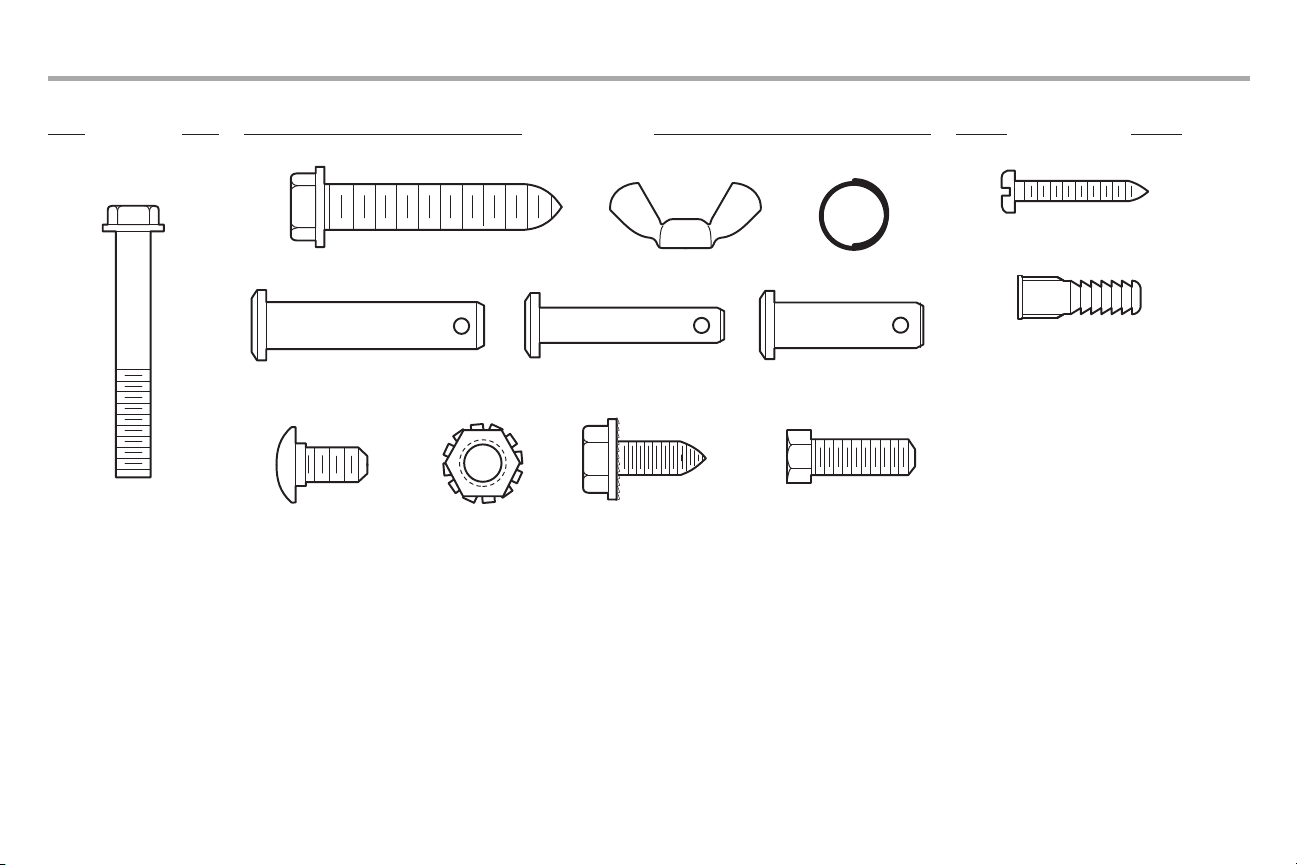

Hardware 041A8068
Lock Nut 1/4"-20 (4)
Self-Threading Screw
1/4"-20x1-3/4" (2)
Clevis Pin 5/16"x1-1/2"
Ring Fastener (3)
Hex Bolt 1/4"-20x3/4" (4)Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1"Clevis Pin 1/4"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
ASSEMBLY INSTALLATION
Screw 6ABx1" (2)
DOOR CONTROL
Lag Screw 5/16"-9x1-5/8" (2)
Drywall Anchors (2)
Insulated Staples
(Not Shown)
Preparation

6
Assembly
1 Attach the Rail to the Garage Door Opener
To avoid SERIOUS damage to garage door opener, use ONLY the 1/4"-20x1-3/4" self-threading
screws provided.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
1. Place the motor unit on packing material to protect the cover, and restthe back end of the rail
on top. For convenience, puta supportunder the front end of the rail.
2. Ensure that the chain spreader is installed.
3. Place the rail onto the motor unit.Loop the chain around the sprocket.The sprocket teeth must
engage the chain.
4. Align the screw holes in the rail with the holes on top of the motor unit.Use a 1/4" socket to
fasten the rail with the screws.
5. Attach the outer trolley to the rail and then slide into place over the inner trolley.
HARDWARE
Self-Threading Screw
1/4"-20x1-3/4"
IMPORTANT: Use ONLY
the 1/4"-20x1-3/4"
self-threading screws
provided in a separate bag
inside the hardware bag.
Packing
Material
Rail
Tab
Sprocket
Chain spreader
Outer
Trolley
Inner
Trolley

7
Assembly

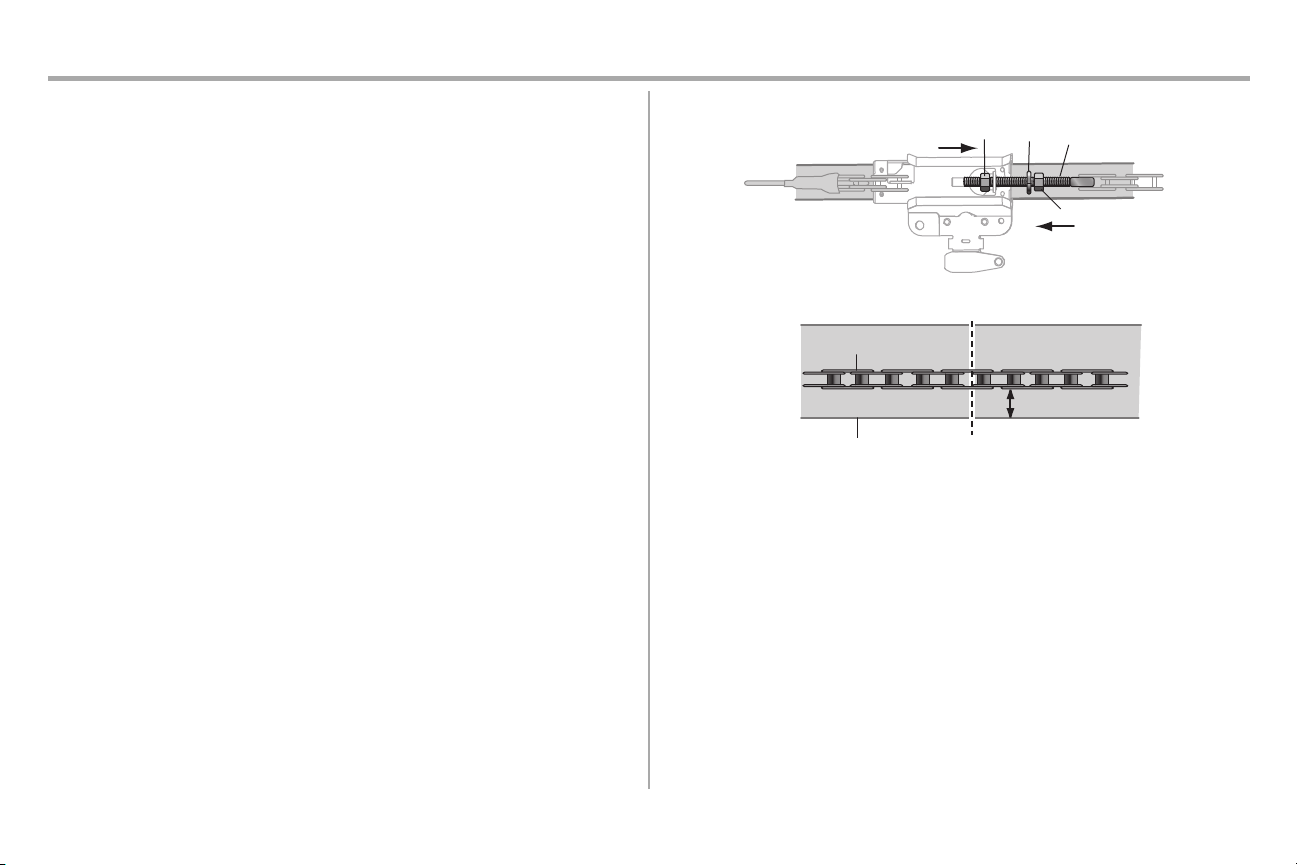

2 Tighten the Chain
1. Spin the inner nutand lock washer down the trolley threaded shaft, awayfrom the trolley.
2. To tighten the chain, turn the outer nut in the direction shown.
3. When the chain is approximately1/4" (6 mm) above the base ofthe rail at it's midpoint, re-
tighten the inner nut to secure the adjustment.
Sprocketnoise can resultif the chain is too loose or too tight.When installation is complete, you may
notice some chain droop with the door closed. This is normal. Ifthe chain returns to the position shown
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect the
trolley before adjusting the chain.
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section.
Base of Rail Mid length of Rail
Chain
1/4" (6 mm)
Outer
Nut
Lock
Washer
Trolley
Threaded
Shaft
Inner Nut
To Tighten
Inner Nut
To Tighten Outer Nut

8
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door.An
improperly balanced door may NOT reverse when required and could resultin SEVERE
INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door
systems technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener
to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the floor and
avoiding contact with vehicles to avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be
caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
lwithin sight of the garage door.
lout of reach of children at minimum height of 5 feet (1.5 m).
laway from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control.
11. Place manual release/safety reverse test label in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a
1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL electric
power BEFORE performing ANY service or maintenance.

9
Installation
1 Determine the Header Bracket Location
To prevent possible SERIOUS INJURY or DEATH:
lHeader bracketMUSTbe RIGIDLY fastened to structural supporton header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket
over drywall.
lConcrete anchors MUST be used ifmounting header bracket or 2x4 into masonry.
lNEVER try to loosen, move or adjustgarage door, springs, cables,pulleys,brackets,or their
hardware, ALL of which are under EXTREME tension.
lALWAYS call a trained door systems technician if garage door binds,sticks,or is out of
balance. An unbalanced garage door mightNOT reverse when required.
1. Close the door and mark the inside vertical centerline ofthe garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracketwithin 4 feet (1.22 m) ofthe left or right ofthe door center
only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling
when clearance isminimal. (Itmaybe mounted on the wall upside down if necessary,to gain
approximately 1/2" (1 cm).
If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws(not
provided) to securely fasten the 2x4 to structural supports.
3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on
the header wall 2" (5 cm) above the high point.
NOTE: If the total number of inches exceeds the height available in your garage, use the maximum
height possible, or refer to page 10 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door

10
Installation

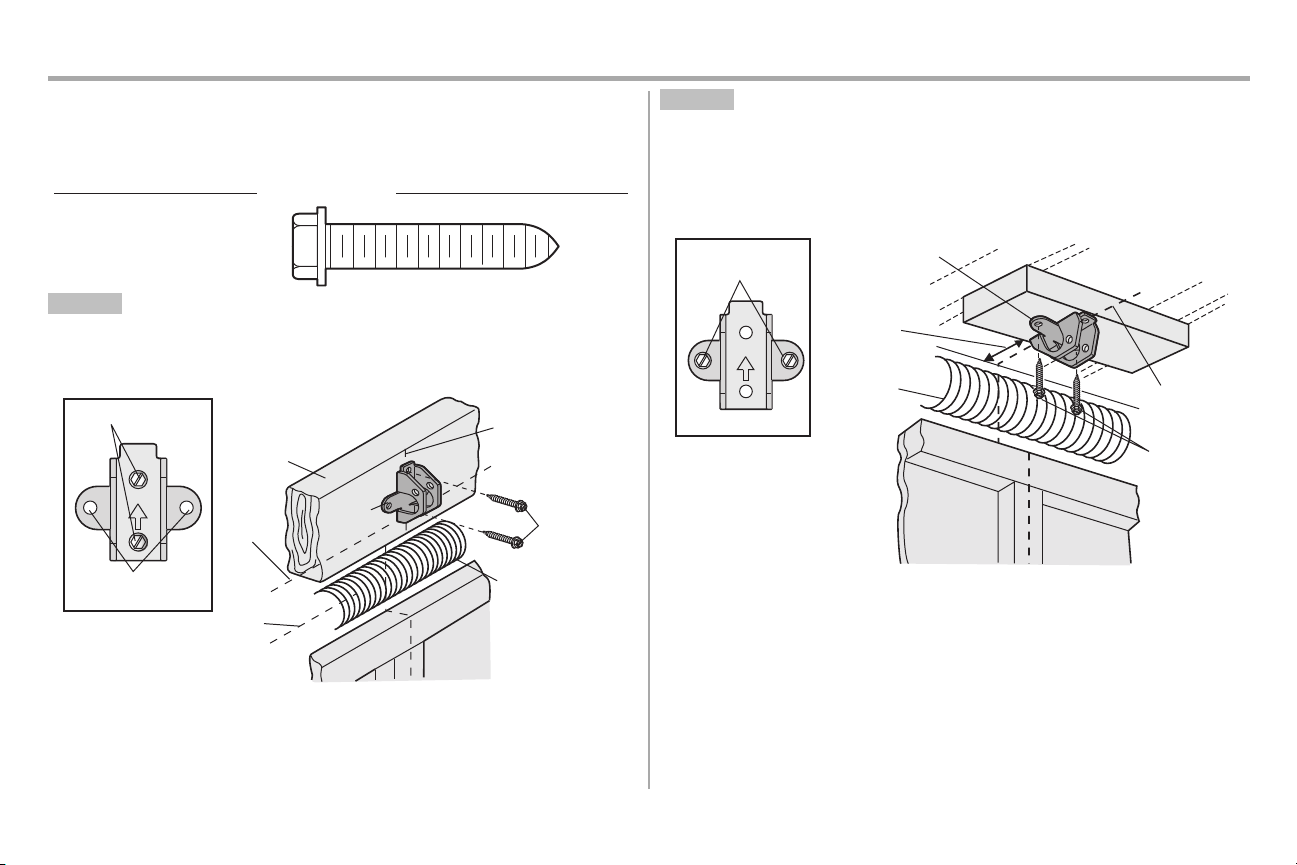

2 Install the Header Bracket
You can attach the header bracketeither to the wall above the garage door,or to the ceiling.Follow the
instructions which will work best for your particular requirements. Do not install the header bracket
over drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9 x 1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracketon the vertical centerline with the bottom edge ofthe bracketon the
horizontal line as shown (with the arrowpointing toward the ceiling).
2. Mark the vertical set of bracket holes. Drill 3/16" pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
UP
Wall Mount
Optional Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point
of Garage
Door Travel
Horizontal
Line
Lag Screw
5/16"-9x1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracketon the vertical mark, no more than 6" (15 cm) from the wall.Make sure the
arrow is pointing away from the wall. The bracket can be mounted flush against the ceiling
when clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support
with the hardware provided.
UP
(Header Wall)
Ceiling Mounting
Holes (Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9x1-5/8"

11
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insert the clevispin through the holesin the header
bracket and rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
Clevis Pin
5/16"x1-1/2"
Ring Fastener
HARDWARE
Clevis Pin 5/16"x1-1/2" Ring Fastener
4 Position the Garage Door Opener
To prevent damage to garage door,restgarage door opener rail on 2x4 placed on top section of
door.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fullyopen the door and place a 2x4 (laid flat) under the rail.
A 2x4 isideal for setting the distance between the rail and the door.If the ladder is not tall enough you
will need help at this point. If the door hits the trolley when it is raised, pull the trolley release arm down
to disconnectthe inner and outer trolley.Slide the outer trolley toward the garage door opener.The
trolley can remain disconnected until instructed.
Connected Disconnected

12
Installation
5 Hang the Garage Door Opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to
structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into
masonry.
Hanging the garage door opener will vary depending on your garage. Below are three example
installations. Your installation may be different. For ALL installations the garage door opener MUST be
connected to structural supports.The instructionsillustrate one ofthe examplesbelow.
Unfinished CeilingFinished Ceiling
HARDWARE
Lag Screw #14-10x1-1/2" Lock Nut 1/4"-20
Hex Bolt 1/4"-20x3/4"
1. On finished ceilings,use the #14-10x1-1/2" lag screws to attach a supportbracket (not
provided) to the structural supports before installing the garage door opener.
2. Make sure the garage door opener isaligned with the header bracket. Measure the distance
from each side ofthe garage door opener to the supportbracket.
3. Cut both pieces of the hanging bracket to required lengths.
4. Attach the end of each hanging bracketto the support bracket with appropriate hardware (not
provided).
5. Attach the garage door opener to the hanging brackets with the hex bolts and nuts.
6. Remove the 2x4 and manuallyclose the door.If the door hits the rail, raise the header bracket.
Finished
Ceiling
(not provided) (not provided)
Lag Screw
#14-10x1-1/2"
123
(not
provided)
Hex Bolt
1/4"-20x3/4"
Lock Nut 1/4"-20
456
Lag Screw
#14-10x1-1/2"

13
Installation

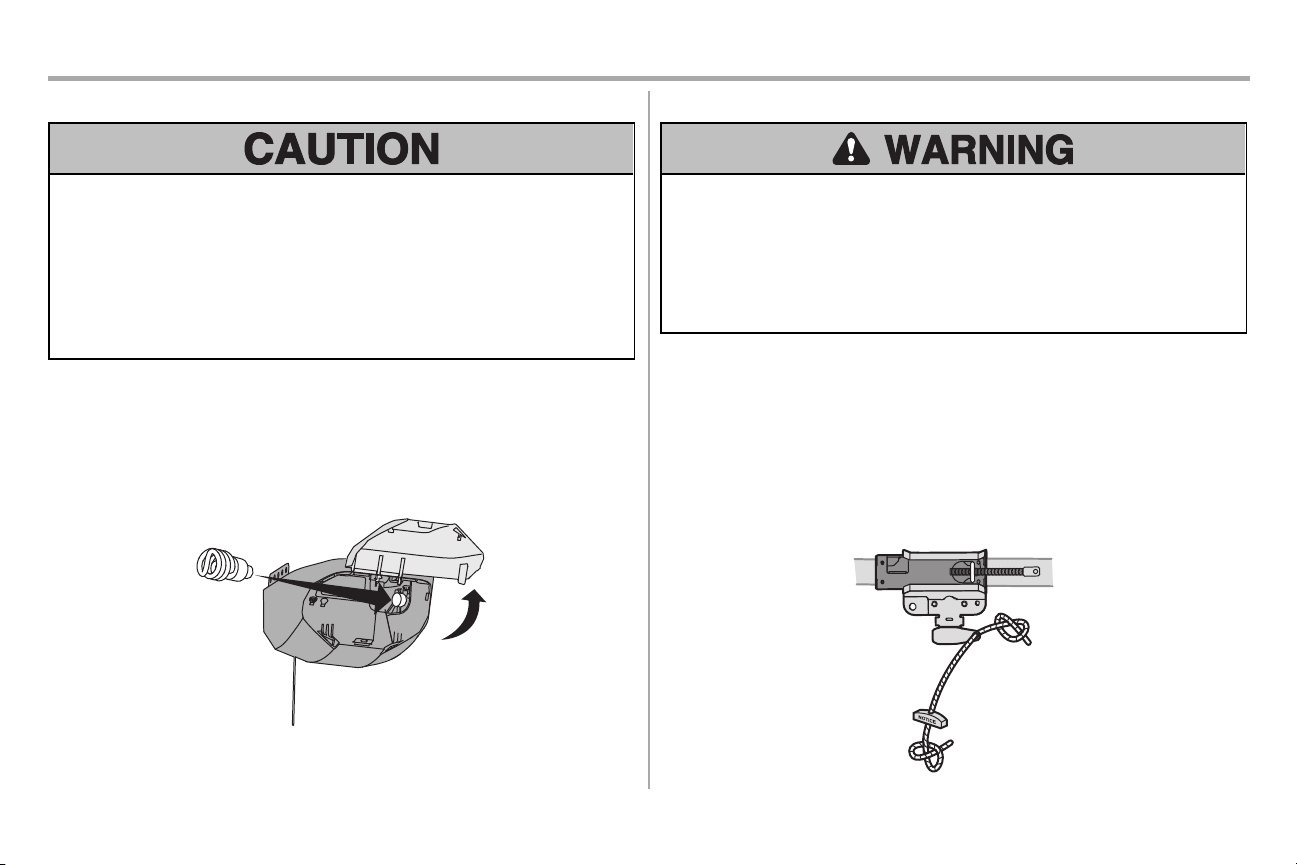

6 Install the Light Bulb
To prevent possible OVERHEATING of the endpanel or light socket:
lUse ONLY A19 incandescent (60W maximum) or compact fluorescent (23W maximum) light
bulbs.
lDO NOT use incandescent bulbs larger than 60W.
To preventdamage to the opener:
lDO NOT use compact fluorescent light bulbs larger than 23W (100W) equivalent.
lDO NOT use halogen bulbs.
lDO NOT use short neck or specialty light bulbs.
1. Press the triangular release buttons and swing the lens open.
2. Insert an A19 incandescent (60W maximum) or compact fluorescent (23W, 100W equivalent)
light bulb into the light socket.
3. Swing the lens shut until triangular buttons click into place.
NOTE: Do not use halogen, short neck, or specialty light bulbs as these may overheat the unit. The use
of LED bulbs may reduce the operating range or performance of your remote controls.
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
lIf possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could resultin an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed. If rope knot becomes untied,you could fall.
1. Insert one end of the emergencyrelease rope through the handle. Make sure that “NOTICE”
is right side up. Secure with an overhand knot at least1" (2.5 cm) from the end ofthe rope to
prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding
contactwith vehicles to prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.

14
Installation

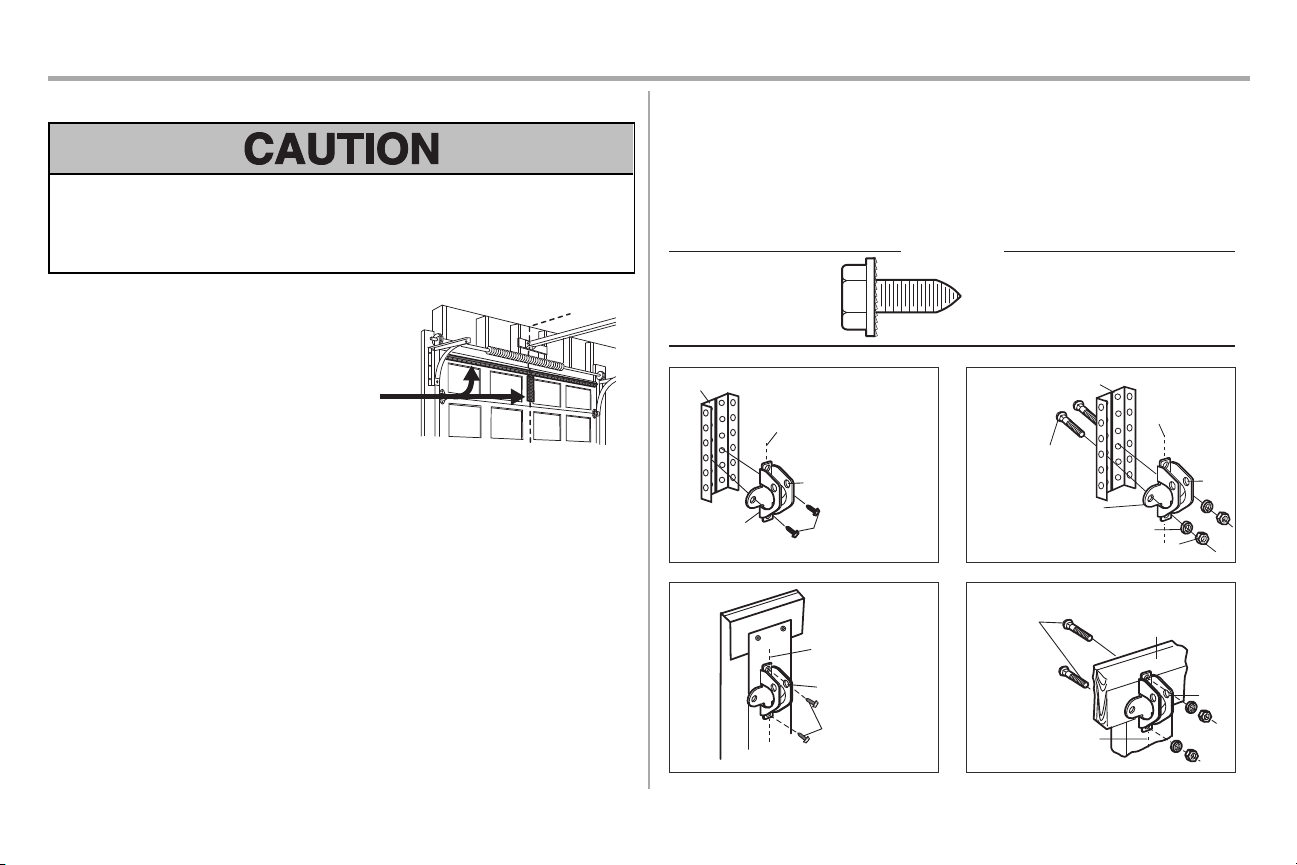

8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation ofdoor bracket. Contact the garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required
according to the door manufacturer may void the door warranty.
A horizontal and vertical reinforcement is needed for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcement brace should be long enough to be
secured to two or three vertical supports. A vertical
reinforcementbrace should cover the heightof the top
panel. Contact the garage door manufacturer or installing
dealer for opener reinforcement instructions or
reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket; proceed to the next step.
SECTIONALDOORS
1. Center the door bracketon the previouslymarked vertical centerline used for the header
bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge ofthe bracket2"-4" (5-10 cm) below the top edge ofthe door, OR
directlybelow any structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support and
the door bracket:
lDrill 3/16" fastening holes.Secure the door bracket using the two selfthreading screws.
(Figure1)
lAlternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure3)
Wood Doors:
lUse top and bottom or side to side door bracketholes. Drill 5/16” holes through the door and
secure bracket with 5/16"-18 x 2" carriage bolts, lock washers and nuts(notprovided).
(Figure4)
NOTE: The 1/4"-14 x 5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket Self-Threading Screw
1/4"-14 x 5/8"
Self-Threading
Screw
1/4"-14 x 5/8"
Vertical Centerline
of Garage Door
UP
FIGURE 4
Vertical
Centerline of
Garage Door
Bolt 5/16"-18 x 2"
(Not provided)
UP
Inside Edge of Door or
Reinforcement Board
FIGURE 2
Vertical Reinforcement
Bolt 5/16"-18 x 2"
(Not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage Door
Self-Threading Screw
1/4"-14 x 5/8"
HARDWARE

15
Installation
9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door.Disconnect the trolley by pulling the emergency release handle.
2. Attach the straightdoor arm to the outer trolley using the clevis pin. Secure with the ring
fastener.
3. Attach the curved door arm to the door bracket using the clevispin.Secure with the ring
fastener.
4. Bring arm sections together. Find two pairsof holes thatline up and join sections.Select holes
as far apart as possible to increase door arm rigidity and attach using the bolts and nuts.
5. Pull the emergency release handle toward the garage door opener until the trolley release
arm is horizontal. The trolley will re-engage automatically when the garage door opener is
activated.
HARDWARE
Clevis Pin 5/16"x1"Clevis Pin 5/16"x1-1/4"
Ring Fastener
Hex Bolt 1/4"-20x3/4"
Lock Nut 1/4"-20
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Lock Nut
1/4"-20
Hex Bolt 1/4"-20x3/4"
Clevis Pin 1/4"x1-1/4"
Ring Fastener
Clevis Pin
5/16"x1"

16
Installation
10 Install the Door Control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
lBe sure power is NOT connected BEFORE installing door control.
lConnect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
lInstall door control within sight of garage door, out of reach of children at a minimum height of 5
feet (1.5 m), and away from ALL moving parts ofdoor.
lNEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.
lActivate door ONLY when it can be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
lALWAYS keep garage door in sight until completely closed. NEVERpermit anyone to cross
path of closing garage door.
INTRODUCTION
Install the door control within sight of the door at a minimum height of 5 feet (1.5 m) where small children
cannot reach,and away from the moving parts ofthe door.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw 6ABx1" (2)
Drywall Anchors (2)
Insulated Staples
(Not Shown)
1. Strip 1/4" (6 mm) ofinsulation from one end ofthe wire and separate the wires.
2. Connectone wire to each of the two screws on the backof the door control.The wirescan be
connected to either screw.
3. Mount the door control with the hardware provided.
1/4" (6 mm)
1 2 3

17
Installation
11 Wire the door control to the garage door opener
HARDWARE
Insulated Staple
(Not Shown)
1. Run the white and red/white wire from the door control to the garage door opener. Attach the
wire to the wall and ceiling with the staples (not applicable for gang box or pre-wired
installations).Do notpierce the wire with the staple asthis maycause a short or an open
circuit.
2. Strip 7/16 inch (11 mm) ofinsulation from the end of the wire near the garage door opener.
3. Connectthe wire to the red and white terminals on the garage door opener. Ifyour garage is
prewired make sure you use the same wires that are connected to the door control. To insert
or release wires from the terminal,push in the tab with screwdriver tip.
Staple
RED
WHITE
WHITE
GREY
7/16" (11 mm)
2
3
1
12 Attach the warning labels
1. Attach the entrapmentwarning label on the wall near the door control with tacksor staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the
garage door.

18
Installation
13 Install the Protector System®
Be sure power is NOT connected to the garage door opener BEFORE installing the safety
reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
lCorrectly connect and align the safety reversing sensor. This required safety device MUST NOT
be disabled.
lInstall the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door
opener will move in the down direction.
The sending sensor (with an amber LED) transmits an invisible lightbeam to the receiving sensor (with
a green LED). Ifan obstruction breaks the light beam while the door isclosing, the door will stop and
reverse to the full open position,and the garage door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep mode is
sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn
offand whenever the garage door opener lights turn on the sensor LEDs will light. The garage door
opener will not go into the sleep mode until the garage door opener has completed 5 cycles upon
power up.
Wheninstallingthe safety reversingsensors check the following:
lSensors are installed inside the garage, one on either side of the door.
lSensors are facing each other with the lenses aligned and the receiving sensor lens does not
receive direct sunlight.
lSensors are no more than 6 inches (15 cm) above the floor and the light beam is
unobstructed.
Safety Reversing Sensor
6" (15 cm) max. above floor
Invisible Light Beam
Protection Area
Facing the door from inside the garage
HARDWARE
Carriage Bolt
1/4"-20 x 1/2" Wing Nut
1/4"-20

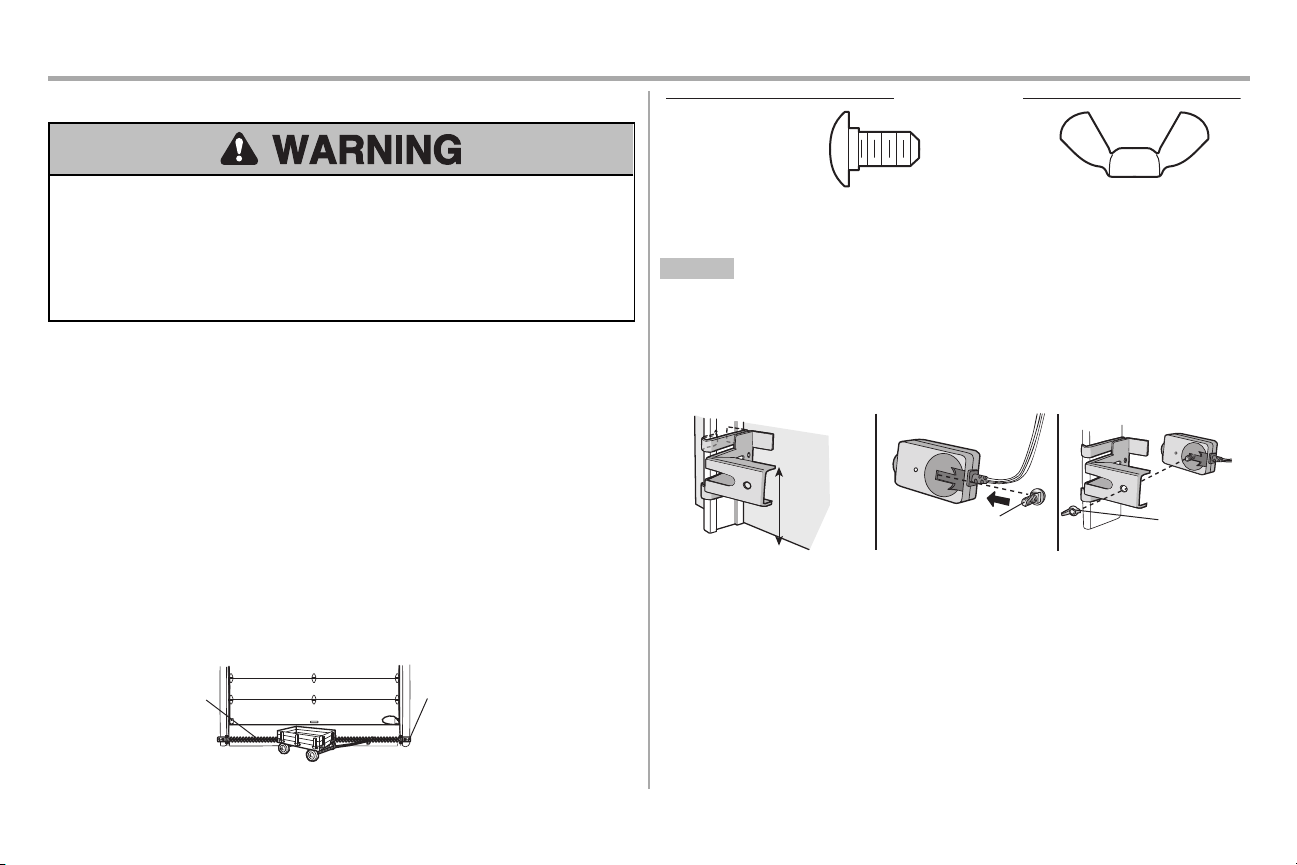

The safetyreversing sensorscan be attached to the door track, the wall,or the floor. The sensors should
be no more than 6 inches (15 cm) above the floor. If the door track will not support the sensor bracket a
wall installation is recommended. Choose one of the following installations.
OPTION A DOOR TRACK INSTALLATION
1. Slide the curved armsof the sensor bracket around the edge ofthe door track. Snap into
place so that the sensor bracket is flush against the track.
2. Slide the carriage bolt into the slot on each sensor.
3. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other.Make sure the lens isnotobstructed bythe
sensor bracket.
No more
than 6 inches
(15 cm) Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
123

19
Installation
13 Install the Protector System®(continued)

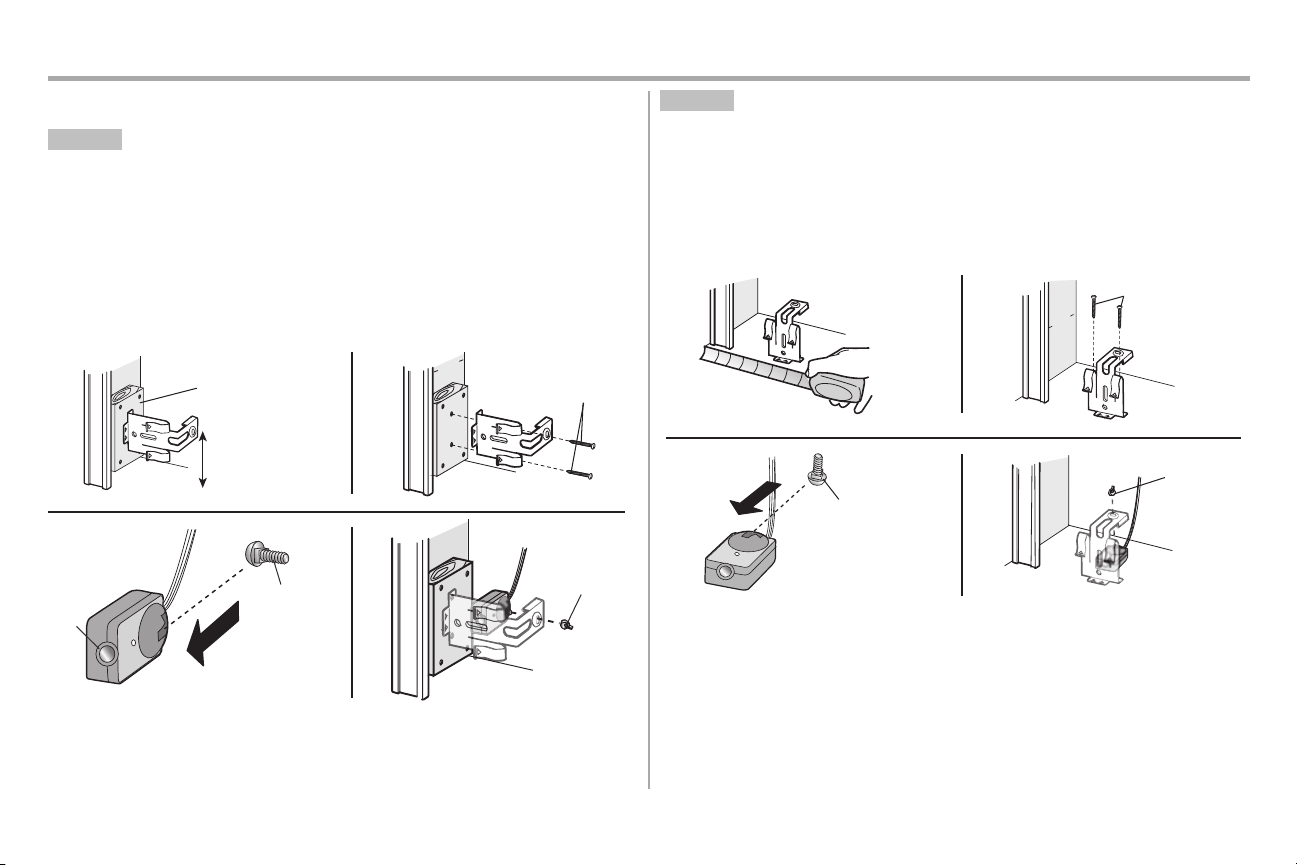

OPTION B WALL INSTALLATION
If additional clearance is needed an extension bracket(notprovided) or wood blocks can be used.
Make sure each bracket has the same amount ofclearance so they will align correctly.
1. Position the sensor bracketagainstthe wall with the curved armsfacing the door. Make sure
there is enough clearance for the beam to be unobstructed. Mark holes.
2. Drill 3/16 inch pilotholes for each sensor bracket and attach the sensor bracketsto the wall
using lag screws (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other.Make sure the lens isnotobstructed bythe
sensor bracket.
(Not provided)
No more than
6 inches (15 cm)
12
Inside
Garage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
34
OPTION C FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.
1. Carefully measure the position ofboth sensor brackets so they will be the same distance from
the wall and unobstructed.
2. Attach the sensor bracketsto the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses
on both sensors should point toward each other.Make sure the lens isnotobstructed bythe
sensor bracket.
Inside
Garage
Wall
(Not provided)
1 2
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
34

20
Installation
14 Wire the Safety Reversing Sensors

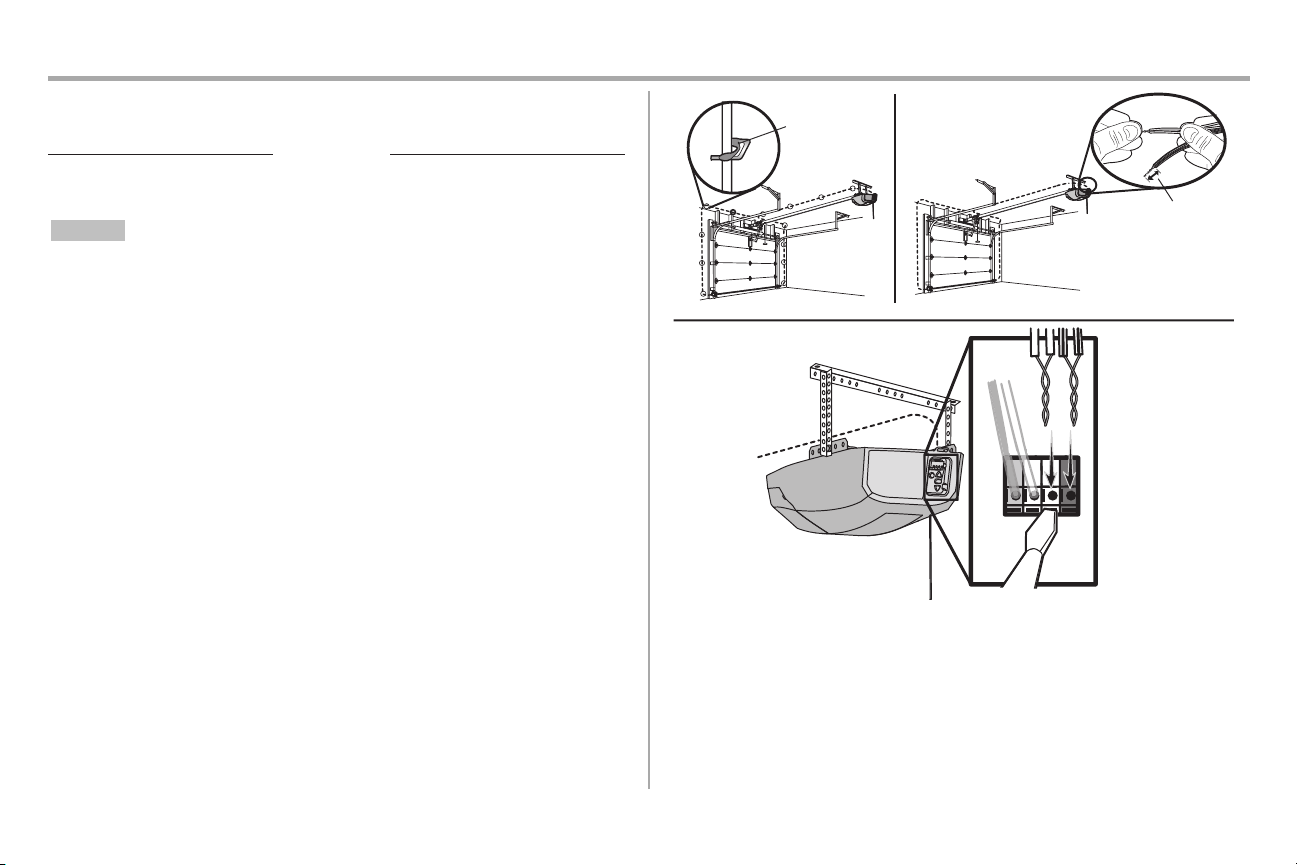

If your garage already has wires installed for the safety reversing sensors, see page 21.
HARDWARE
Insulated Staple
(Not Shown)
OPTION A INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensorsto the garage door opener. Attach the wire to the wall and
ceiling with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate the wires. Twist the white
wires together. Twist the white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener.Insertthe white/black
wires into the grey terminal on the garage door opener.To insert or remove the wires from the
terminal,push in the tab with a screwdriver tip.
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
12
3
