Champion Asia Digital Technology Limited CA-EBOX-S12 User manual

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 1 -
Make the TV Revolution !

 Fully upgrading of function and form for TV.

 The convenient, richness and interactive internet surfing endow the brand new experiences with the TV.

 TV becomes the application center and the information platform of the household multimedia.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 2 -
Important security instruction
The design and manufacture of this device is to make sure your safety. Please use it correctly, if not, it will cause electric shock or fire.
The device installs protector. It can protect you if you use it as following:

 Please read the instruction.

 Please keep the instruction

 Please note all warning information

 Please keep all instructions

 Please do not use the equipment in the water

 Clean the device with dry cloth

 Don’t plug any ducts. Please install as manual.

 Do not use or place this device near heat source, such as radiators, hot adjusting device, stove, etc

 Do not put the battery or install a battery of remote control in strong heat exposure, such as direct sunlight, fire, etc

 Please do not make polarization plug or grounding type plug lose security operations. Polarized plug has two pins. One is wider
than another. Grounding type plug has two pins and third for the pins of the ground. The wider pins or the third for the pins of the
ground keep safety. If the plug is not suitable for the socket, please contact our worker to change the socket.

 Don't trample on the power line or extrusion plug, socket and exit place of the device.

 Only use manufacture’s accessories.

 Please cut off power supply in the thunderstorm day or long term disuse.

 Please consult qualified maintenance personnel about Maintenance matters. When the equipment damage due to various
reasons, such as the power cord or plug damaged, liquid or object entering the device, device to rain or moisture, device working
normally or falling, please contact our service.

 Please read and obey the quick install guide and user manual.

 Use the device within the temperature 5°C ~ 35°C（41°F - 95°F）

 Don't drop or shake the device.

 Don't move device when charging.

 Please plan the direction of the power line. Don’t tread or extrusion it.

 Don’t make the wall socket overload.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 3 -
Basic Function

 Support brand new 1.2GHZ CortexA8 high speed processor, support ANDROID 2.3 or above.

 Support brand new independent SENSE 3.0 handling interface，the infrared 2.4G wireless controller.

 Support brand new 3D OPENGL graphics accelerate engine，support FLASH 10.1 internet browsing.

 Support fulled 1080P，H.264, VP8 online video high speed playing.

 Support digit “OPTICAL” fulled format audio output and HIFI experiences center.

 Support more than 300,000 applications and SNS.

 Support internet upgrading online, experience the limitless upgrading.
Accessories

 User Manual

 DC Adapter

 CVBS Lines

 Remote Control

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 4 -
Device Description
①Power on/off
②SD Card Reader
③④USB HOST
⑤Optical Audio
⑥Right Audio Output
⑦Left Audio Output
⑧Video Output
⑨Ethernet Lan RJ45
⑩HDMI Output
⑪DC jack

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 5 -

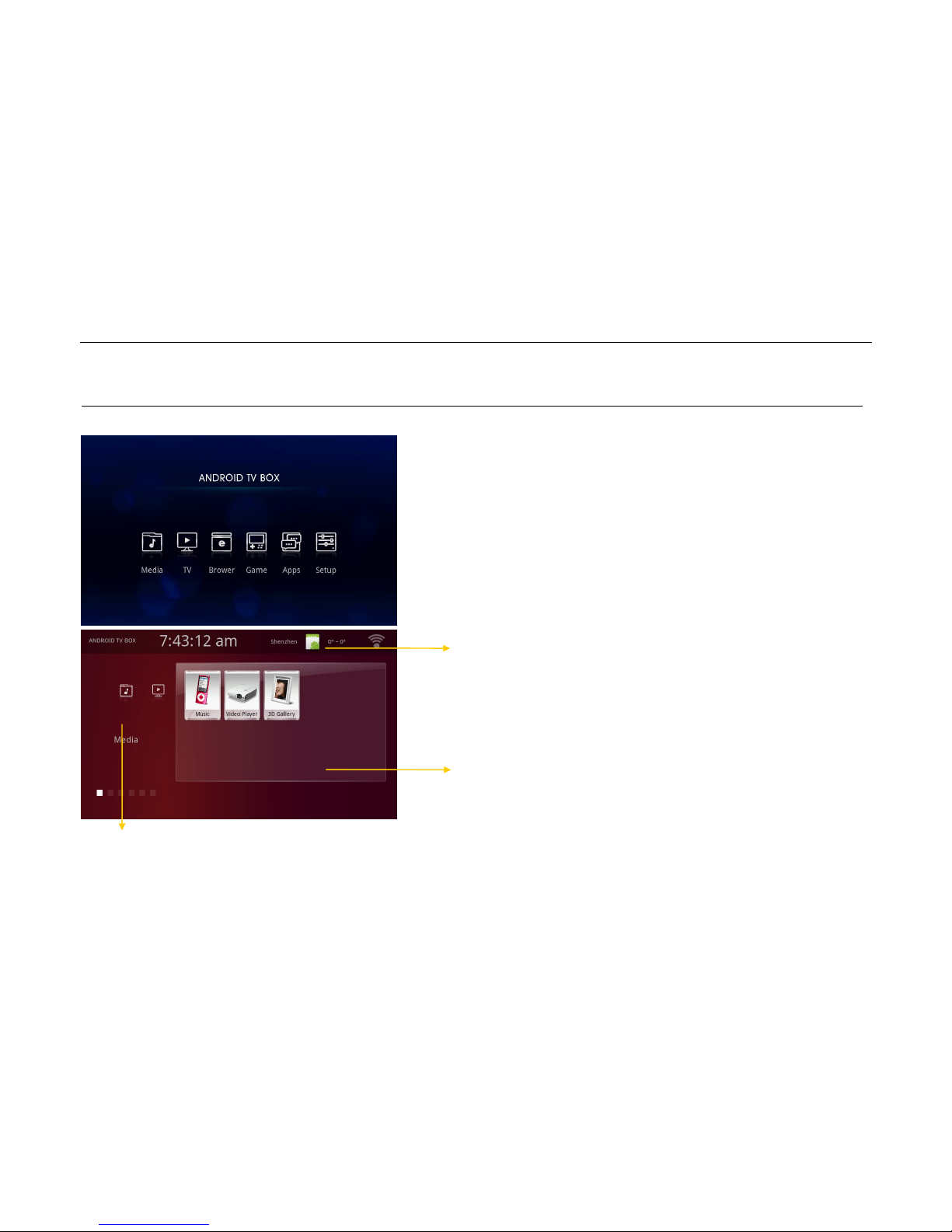

Introduction of operating interface
1、Support brand new independent SENSE 3.0 handling interface，the infrared 2.4G wireless controller
SENSE3.0 main interface
In this page, you can select the following columns by remote
control/2.4Gmouse/Touch keyboard. The column included：
My multimedia
PP stream
Internet Browsing
Entertainment
Internet application

System set up
Status bar included：
Present time
User Address
Present weather
States of internet
Move with mouse to shift the column
Hereby to show the contents of the column

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 6 -
Preview by sort
2、Support brand new 3D OPENGL graphics accelerate engine，support FLASH 10.1 internet browsing
Strong 2D/3D GUI to support the most popular Angry Bird and Robot Defense, thousands of games are updating constantly.
Handle it perfectly
By 2.4G wireless
mouse /keyboard

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 7 -
3、Support fulled 1080P，H.264, VP8 online video high speed playing
The application are upgrading always

Support online video playing
,
fulled support FLASH10.1
Built-in online video service to support the
software playing.
Support in Chinese: PPTV，Tudou,QQLIVE
Support in English：YouTube,Netlifx,Napster,Qrioctiy

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 8 -
4、Support more than 300,000 applications and SNS
The machine built-in the most popular internet
applications, only keep in doors can you do
anything you want.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 9 -
User Manual（V0.1）
（V0.1version：basic framework，starting up picture，main interface UI，Fully stylize。No optimize to the built-in APK at present）
1、Operation mode
IR Remote Control
1．Defined as 16 keys operation: Up, Down, Left, Right, Confirm, Return, Menu,Home Key.
2．Confirm：Confirm the operation/ENTER/Pop up APP menu/go to the next menu.
Return：Return to the previous menu/Stop
Home：Return to the main menu in any state directly.
Up, Down, Left, Right,：Move to choose the four selections.
Menu：To display the operation menu when it is on.
2.4G wireless/wired keyboard
After insert the 2.4G module, you can operate it
by touch keyboard.
2.4G wireless/wired mouse
After insert the 2.4G module, you can operate it
by wireless mouse.
Left：Confirm/play（long press：moving）
Right：Back/Exit

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 10 -
2、Operation process
A．Starting up states
1．Initializing 2．Starting up LOGO 3．Main Interface
ANDROID-
G-BOX
B．Working state
1．My Multimedia
a. Move the cursor to Multimedia, it will appear the glow effect, Press mouse by “left” or
“control ” to enter the column.
b. Users could play the video, music or picture from the multimedia fills of the flash or USB
device.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 11 -
2．PPStream
a. Move the cursor to “PPStream”,Press “left ” of mouse or press “Confirm”of remote control to
enter the column.
c. Move the cursor to the corresponding program; it will appear the column interface as the pictures.
Select or search the options by “mouse” or “keyboard”.
3．Internet Browsing
Move the cursor to “Internet Browsing”, then press “Confirm”, and you can enter the classified
search engine, and then select the website mark to browsing. You can also go to the website by the
“Virtual keyboard” or “wireless keyboard”on the browser address bar.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 12 -
4. Game
Move the cursor to “Entertainment”,then press “Confirm”to enter the main interface of entertainment，and you can select the built-in
game by moving the cursor.
5．Internet Applications：
Move the cursor to “Internet applications”, Press “Confirm” to enter the main interface; you can select the built-in apps by moving the
cursor.
6．System Setting：
Enter the system Settings menu. You can select “network settings”, “display settings”, “language keyboard”, “date settings”, “storage”,
“application program”, “privacy”, “version information”.
Network settings: set and manage wifi and wired network.
Display settings: adjust output frequency to adapt to different TV full-screen.
Date settings: Set the date, time, time zone and period.
Language keyboard: set OSD show set, the keyboard and language input method.
Storage: Check system spatial information.
Application program: manage installed application program
Privacy: Reset the machine to its original state
Version information: Check the firmware and software information.
4. Game You can operate the game by mouse 5. Internet Applications
5. Internet Applications：
Move the cursor to “Internet
applicatios”,Press “Confirm” to enter the
main interface ,you can select the built-in
apps by moving the cursor.

User Manual
The picture and built-in software are just for your referance,please subject to the real machine in the market.
- 13 -
Specification
Key Features
CPU Rockchip RK2918 1.2GHZ
GPU 2D/3D
Operation System Android 2.3
System Memory DDR3 512M
Flash Drive Capacity 8G, Extendable storage by USB or SD card or external harddisk
Power Adapter 5V, 2A
Inputs & Outputs
HDMI 1.3 X1
CVBS x1
Audio L/R x1
Optical Audio x1
USB OTG x1
USB HOST x1
SD/card reader x1
Connectivities
Integrated WiFi 802.11 b/g/n
Ethernet 10/100M Yes
IRDA Yes
Built In Decoders Video MKV(H.264 HP), AVI, RM/RMVB, FLV, MPEG-1, MPEG-2,VP8
Audio MP3, WMA, APE, FLAC, OGG, WAV
Images JPEG, BMP, GIF, PNG
Software Pre-loaded Application
Google Chrome (Browser),Support Flash 10.1
SENCE 3.0
Photo Browser,Video player, Audio player
AV on Line, Radio on Line, Weather Forecast
apps
Accessories Size 200x200x28mm
Power charger adapter X1, CVBS Lines X1, Remote controller X1, User Manual X1

FCC ID:OEN-EBOX ThisdevicecomplieswithPart15oftheFCC Rules.Operationis
subjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptany interference received,includinginterferencethatmaycauseundesired
operation.
IC:10419A-EBOX ThedevicecomplieswithindustryCanadalicense-exemptRSS
standard(s).Operationof thisdevice issubjecttothefollowing twoconditions:(1) thisdevice may
notcauseinterference,and(2) thisdevice mustacceptanyinterference, includinginterferencethat
maycauseundesiredoperationofthedevice.
Lepr sentappareilestconformeaux CNRd'Industrie Canadaapplicablesauxappareilsradio
exemptsdelicence. L'exploitationestautoris eauxdeux conditionssuivantes:(1) l'appareil ne
doitpasproduire de brouillage,et(2)l'utilisateur del'appareildoit acceptertoutbrouillage
radio lectriquesubi, mêmesilebrouillageestsusceptible d'encompromettrelefonctionnement."
Company:Champion Asia Digital Technology Limited
Product:IPTV BOX
Model:CA-EBOX-S12
countryof origin:China
changesor modificationsnotexpresslyapprovedbythepartyresponsible for compliance
couldvoidtheuser'sauthoritytooperatetheequipment.
NOTE:Thisequipmenthasbeentestedandfound tocomplywiththelimitsfor a
Class Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare
designedtoprovidereasonableprotectionagainstharmfulinterference ina
residentialinstallation.Thisequipmentgenerates,usesandcanradiate radio
frequencyenergy and,if notinstalledandusedinaccordance withthe
instructions, maycauseharmfulinterferencetoradiocommunications.However,
thereisno guaranteethatinterferencewillnotoccur ina particular installation.
Ifthisequipmentdoescause harmfulinterferencetoradioor televisionreception,
whichcanbe determinedbyturning the equipmentoffand on, the user is
encouragedtotrytocorrecttheinterferencebyone ormoreofthefollowing
measures:
--Reorientorrelocatethereceivingantenna.
--Increase theseparationbetweentheequipmentandreceiver.
--Connecttheequipmentintoanoutleton acircuitdifferentfromthat towhichthereceiveris
connected.
--Consultthedealeror anexperiencedradio/TVtechnicianforhelp.
