OPERATOR'S MANUAL
MODEL #100472
3 IN. (7.6 CM) CHIPPER SHREDDER
Made in China - REV 20200507 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

2
100472 - 3 IN. (7.6 CM) CHIPPER SHREDDER TABLE OF CONTENTS
TABLE OF CONTENTS
Introduction................................................... 3
Safety Definitions .......................................... 3
Important Safety Instructions....................... 4
Fuel Safety .........................................................5
Training .............................................................6
Preparation .........................................................6
Operation ...........................................................7
Maintenance, Transport and Storage..............................7
Safety and Dataplate Labels.......................................8
Safety Symbols................................................... 10
Operation Symbols ............................................... 12

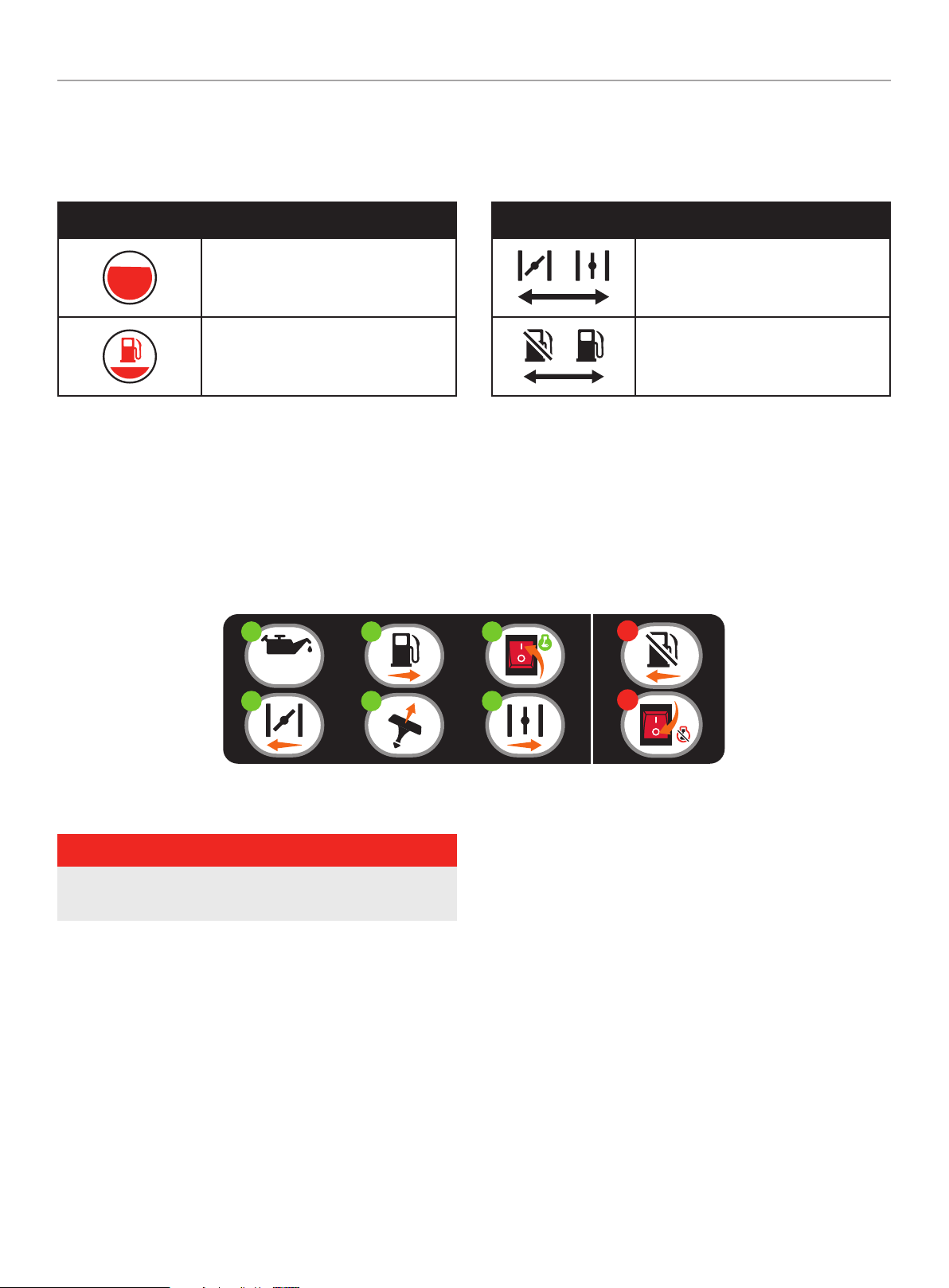

Quickstart Label Symbols........................................ 12
Controls and Features ................................. 13
Parts Included .................................................... 14
Assembly ..................................................... 15
Unpacking ........................................................ 15

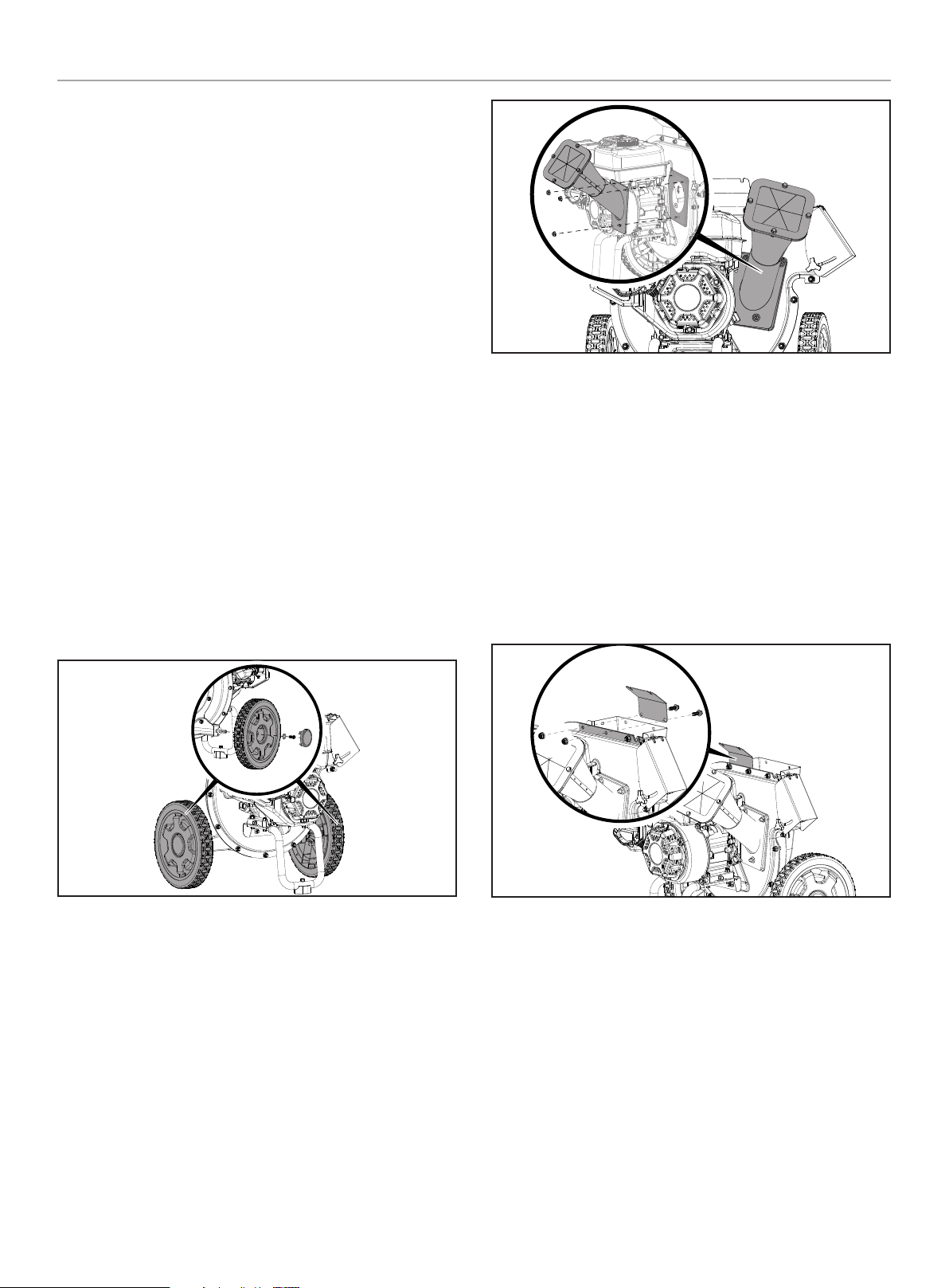

1) Install the Wheels ............................................. 15
2) Install the Chipper Chute...................................... 15
3) Install the Shredder hopper Support Bracket ................ 15
4) Install the Shredder hopper ................................... 15
5) Install the Handle.............................................. 16
Collection Bag .................................................... 16
Add Engine Oil.................................................... 16
Add Fuel .......................................................... 17
Operation..................................................... 18
Chipper-Shredder Location ...................................... 18
Work Area ........................................................ 18
Before Each Use Inspect the Chipper-Shredder................. 19
Starting the Engine............................................... 19
Chipper-Shredder Operation ..................................... 20
Chipping and Shredding Tips .................................... 21
Clearing the Shredder Hopper ................................... 21
Stopping the Engine.............................................. 21
Operation at High Altitude ....................................... 22
Maintenance ................................................ 22
Engine Maintenance ............................................. 23
Chipper-Shredder Maintenance ................................. 23
Cleaning the Chipper-shredder .................................. 24
Inspect Chipping Blades ......................................... 24
Repair............................................................. 24
Maintenance Schedule........................................... 26
Storage ........................................................ 26
Chipper-shredder Storage ....................................... 26
Engine Stored for Less than 30 Days ........................... 26
Engines Stored for Over 30 Days ................................ 27
Specifications.............................................. 28
Chipper-shredder Specifications ................................ 28
Engine Specifications ............................................ 28
Fuel Specifications ............................................... 28
Engine Oil Specifications......................................... 28
Spark Plug Specifications........................................ 28
Valve Specifications.............................................. 28
Important Message About Temperature......................... 28
Parts Diagram .................................................... 29
Parts List ......................................................... 30
Engine Parts Diagram............................................ 31
Engine Parts List ................................................. 32
Troubleshooting........................................... 34

3
100472 - 3 IN. (7.6 CM) CHIPPER SHREDDER INTRODUCTION
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly value
your safety and the safety of others, we would like you to take the
time to review this product manual and other product materials
thoroughly and be fully aware and knowledgeable of the assembly,
operation, dangers and maintenance of the product before use.
Fully familiarize yourself, and make sure others who plan on
operating the product fully familiarize themselves too, with the
proper safety and operation procedures before each use. Please
always exercise common sense and always err on the side
of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100472
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger.
The instructions or warnings they give are not substitutes for
proper accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damaged).

4
100472 - 3 IN. (7.6 CM) CHIPPER SHREDDER IMPORTANT SAFETY INSTRUCTIONS

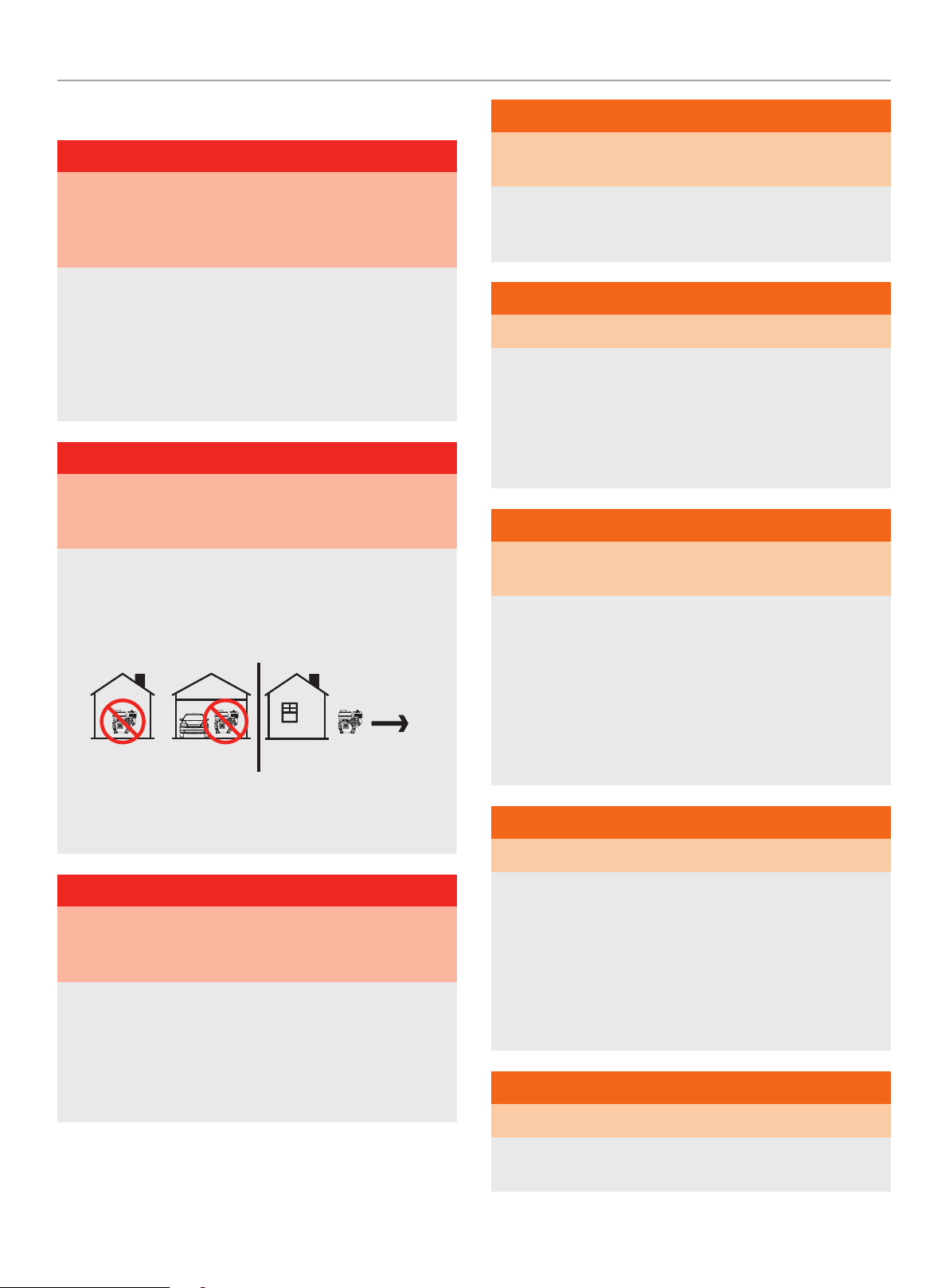

IMPORTANT SAFETY INSTRUCTIONS
DANGER
Engine exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start to feel dizzy or
weak, get to fresh air immediately.
Operate product outdoors only in a well ventilated area.
DO NOT operate the product inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using an engine indoors CAN KILL YOU IN MINUTES. Engine
exhaust contains carbon monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Operation of this equipment may create sparks that can start
fires around dry vegetation.
A spark arrestor may be required. The operator should contact
local fire agencies for laws or regulations relating to fire
prevention requirements.
WARNING
Sparks can result in fire or electrical shock.
When servicing the engine:
Disconnect the spark plug wire and place it where it cannot
contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Child, Pet and Bystander Hazard
Do not allow children, pets or bystanders near the work area
or location of the chipper-shredder. This can create potential
distractions and safety hazards. Accidents, damage and injury
could occur. A minimum distance of 75 ft. (22.9 m) from
the chipper-shredder is recommended. Projectiles can also
fly haphazardly in the work area. Only a qualified adult with
complete working knowledge of the product and safety rules
should operate the chipper-shredder and be in the work area.
WARNING
Projectile Hazard
Pieces of debris may be ejected from the chipper-shredder
while operating. Be alert.

5
100472 - 3 IN. (7.6 CM) CHIPPER SHREDDER IMPORTANT SAFETY INSTRUCTIONS
WARNING
Keep Operator Work Zone Clear
Keep work zone clear of debris while working to ensure safe
footing.
WARNING
Always wear proper clothing and safety gear.
Close fitting clothing and ANSI Z87.1 safety approved eye
protection must be worn at all times around the chipper-
shredder. Wear boots or sturdy shoes that will improve footing
around slippery surfaces.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
WARNING
Improper treatment or use of the chipper-shredder can
damage it, shorten its life and void your warranty.
Use the chipper-shredder only for intended uses. Operate
only on level surfaces. DO NOT expose chipper-shredder to
excessive moisture or dirt. DO NOT allow any material to block
the cooling slots.
DO NOT use the engine if:
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
–Equipment makes unusual sounds
–Equipment is damaged

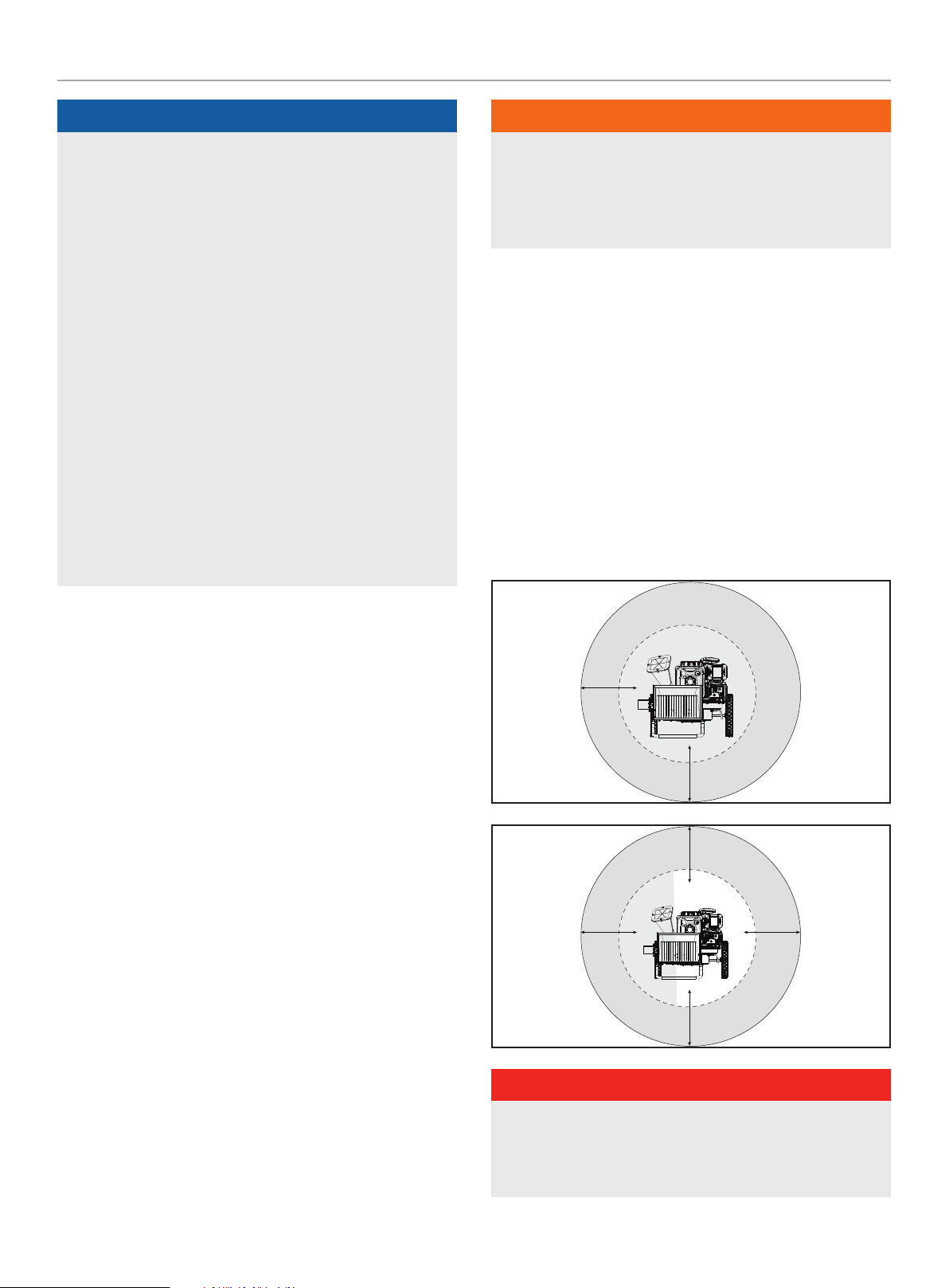

WARNING
Although the chipper shredder contains a spark arrester,
maintain a minimum distance of 5 ft. (1.5 m) from dry
vegetation to prevent fires.
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but its vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect
potential leaks quickly.
–In the case of any petroleum gasoline fire, flames should
never be extinguished unless the fuel supply valve can be
turned OFF. By not doing so, if the fire is extinguished and
the supply of fuel is not turned OFF, an explosion hazard
could be created.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline
needs room to expand if temperatures rise.
When adding or removing gasoline:
–DO NOT light or smoke cigarettes.
–Turn the engine off and let it cool for at least two minutes
before removing the gasoline cap. Loosen the cap slowly to
relieve pressure in the tank.
–Only fill or drain gasoline outdoors in a well-ventilated area.
–DO NOT pump gasoline directly into the engine at the gas
station. Always use an approved fuel container to transfer
the fuel to the engine.
–DO NOT overfill the gasoline tank.
–Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the engine:
–DO NOT attempt to start a damaged engine.
–Always make certain that the gasoline cap, air filter, spark
plug, fuel lines and exhaust system are properly in place.
–Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
–Always make certain that the chipper-shredder is resting
firmly on level ground.
