OPERATOR'S MANUAL
MODEL #100565
2000W PORTABLE
INVERTER GENERATOR
Made in China - REV 20181210 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product.
Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product is rated in accordance with PGMA (Portable Generator Manufacturers’ Association) standard PGMA G300 (Standard for Testing and Validating
Performance of Portable Generators).
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100565 - 2000W PORTABLE INVERTER GENERATOR TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction................................................ 3
Safety Definitions ....................................... 3
Important Safety Instructions.................... 4
Fuel Safety ...................................................... 6

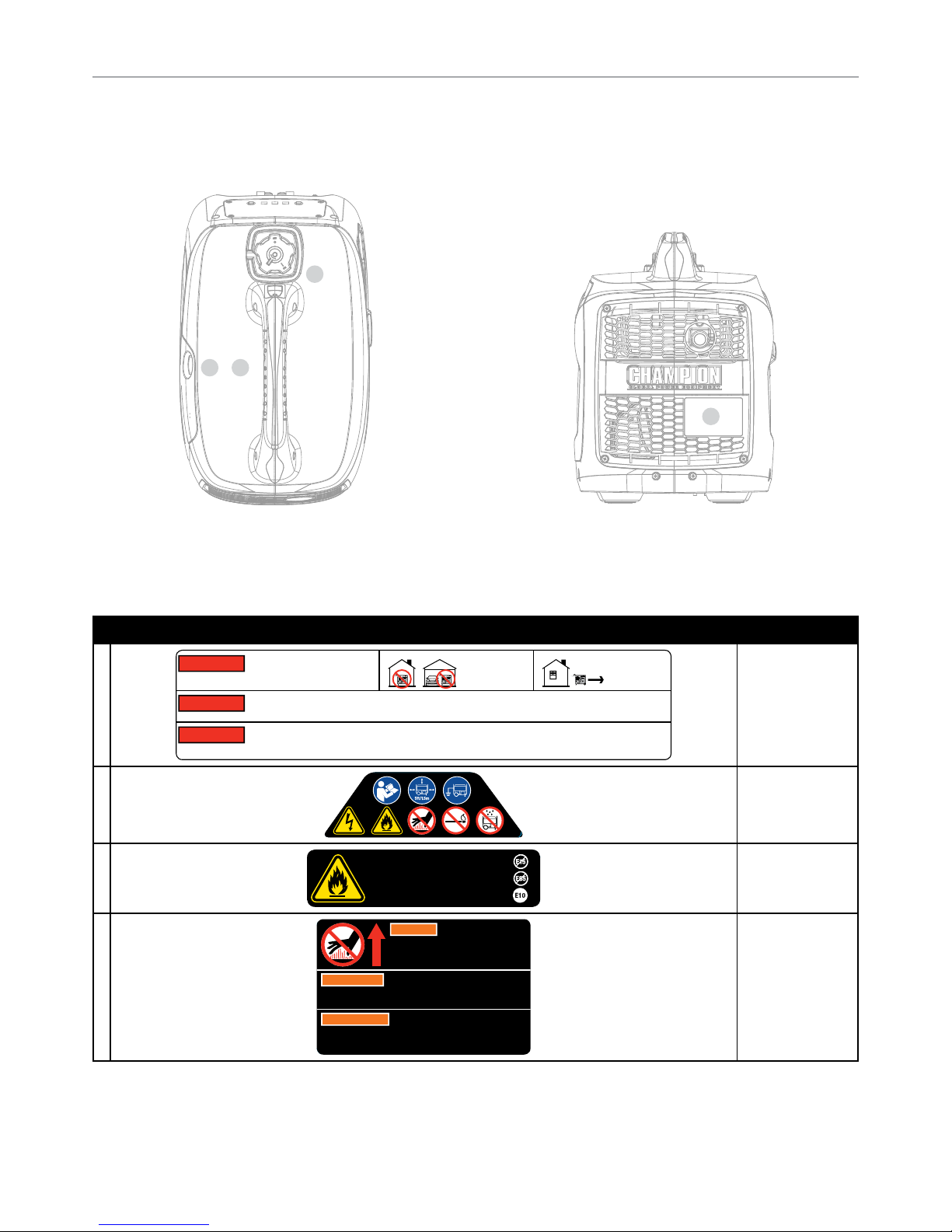

Safety Labels.................................................... 7
Safety Symbols.................................................. 8
Operation Symbols .............................................. 9
Quick Start Label Symbols.....................................10
Controls and Features ...............................11
Generator .......................................................11

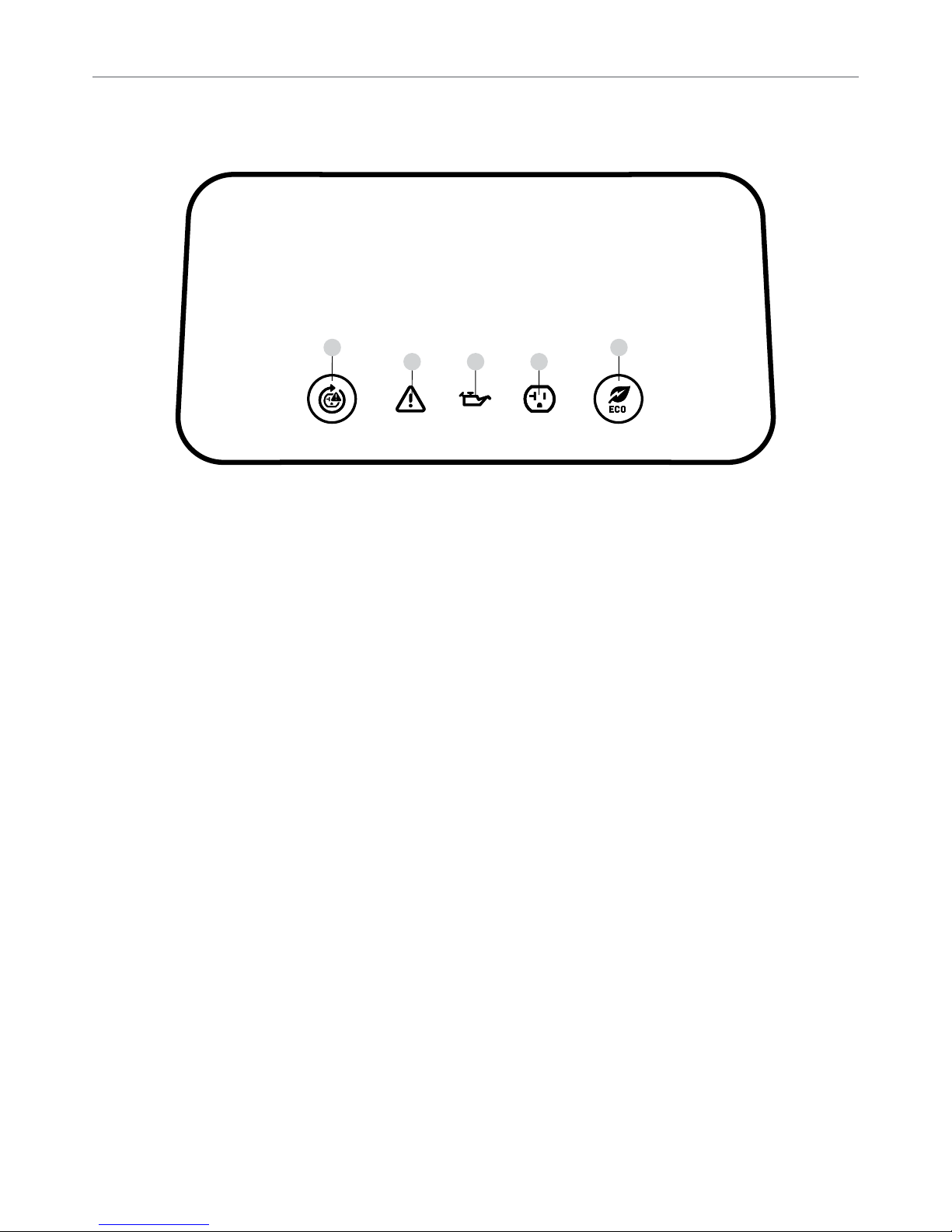

Power Panel ....................................................12

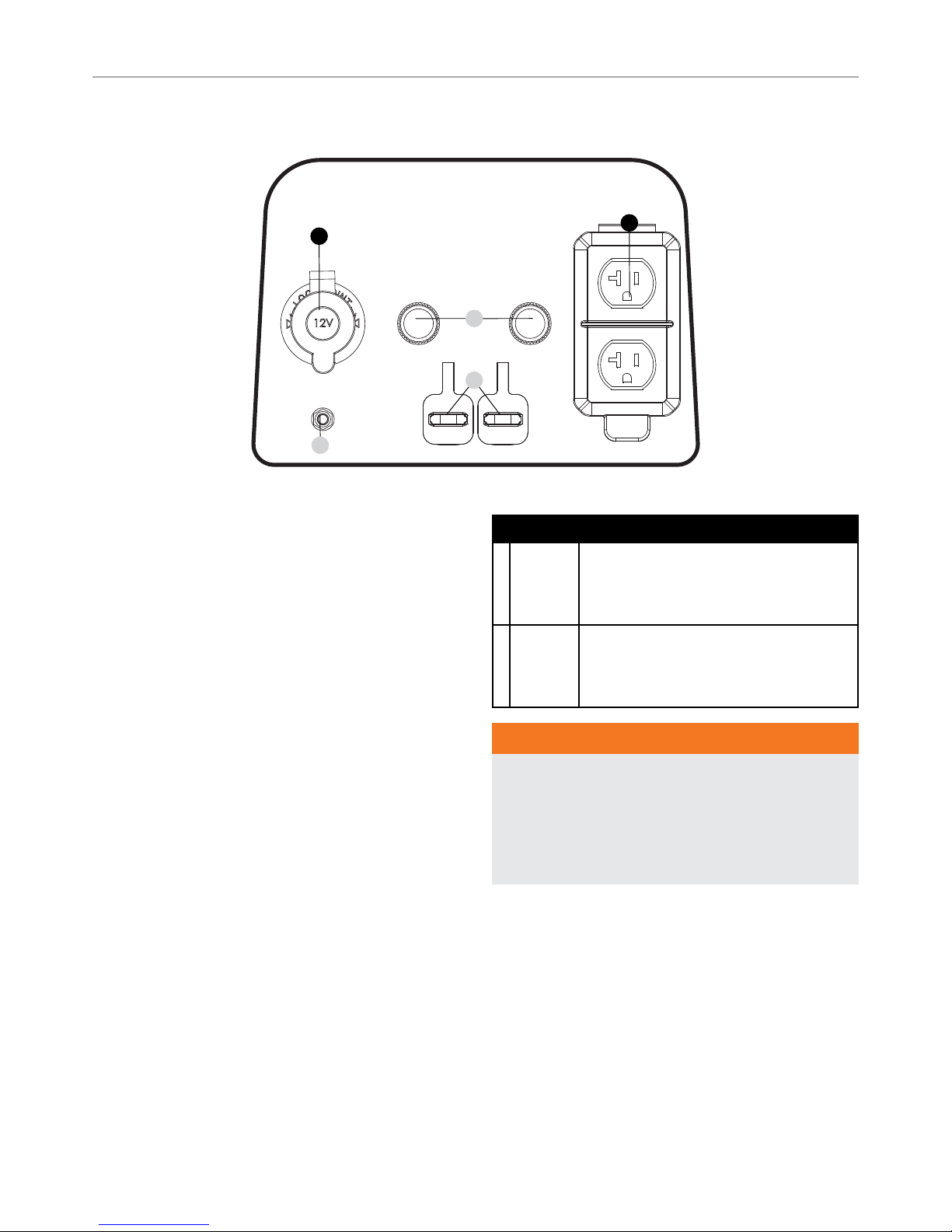

Outlet Panel ....................................................13
FCC Statement .................................................14
Parts Included ..................................................14
Assembly...................................................15
Unpacking ......................................................15
Add Engine Oil..................................................15
Add Fuel ........................................................16
Grounding ......................................................17
Operation...................................................17
Generator Location.............................................17
Grounding ......................................................17
Surge Protection ...............................................17
Starting the Engine.............................................18
Connecting Electrical Loads ...................................18
Do Not Overload Generator ....................................19
Eco (Economy) Mode...........................................19
12V DC Automotive Style Outlet ...............................19
Parallel Operation ..............................................20
Stopping the Engine............................................20
Moving the Generator ..........................................20
Maintenance............................................. 21
Cleaning the Generator ........................................21
Changing the Engine Oil .......................................21
Cleaning and Adjusting the Spark Plug(s) .....................21
Cleaning the Air Filter ..........................................22
Cleaning the Spark Arrestor ...................................22
Replacing Fuel Light Batteries.................................23
Adjusting the Governor.........................................23
Maintenance Schedule.........................................23
Storage ..................................................... 24
Short Term Storage (up to 1 year) .............................24
Long Term Storage (more than 1 year)........................24
Removing from Storage........................................25
Specifications........................................... 26
Generator Specifications.......................................26
Engine Specifications ..........................................26
Oil Specifications...............................................26
Fuel Specifications .............................................26
Temperature Specifications....................................26
Parts Diagram ..................................................27
Parts List .......................................................28
Engine Parts Diagram..........................................30
Engine Parts List ...............................................31
Wiring Diagram.................................................33
Troubleshooting........................................ 34
Warranty* ................................................. 35
Warranty Qualifications ........................................35
Repair/Replacement Warranty.................................35
Do Not Return The Unit To The Place Of Purchase ...........35
Warranty Exclusions ...........................................35
Other Exclusions ...............................................35
Limits of Implied Warranty and Consequential Damage......35
Contact Information ............................................35

100565 - 2000W PORTABLE INVERTER GENERATOR INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.
CPE highly values how our products are designed,
manufactured, operated, and serviced as well as providing
safety to the operator and those around the generator.
Therefore, it is IMPORTANT to review this product manual
and other product materials thoroughly and be fully aware
and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize
yourself, and make sure others who plan on operating the
product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always
exercise common sense and always err on the side of caution
when operating the product to ensure no accident, property
damage, or injury occurs. We want you to continue to use and
be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below.
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100565
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but
not hazard-related (e.g., messages relating to property
damage).

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
4

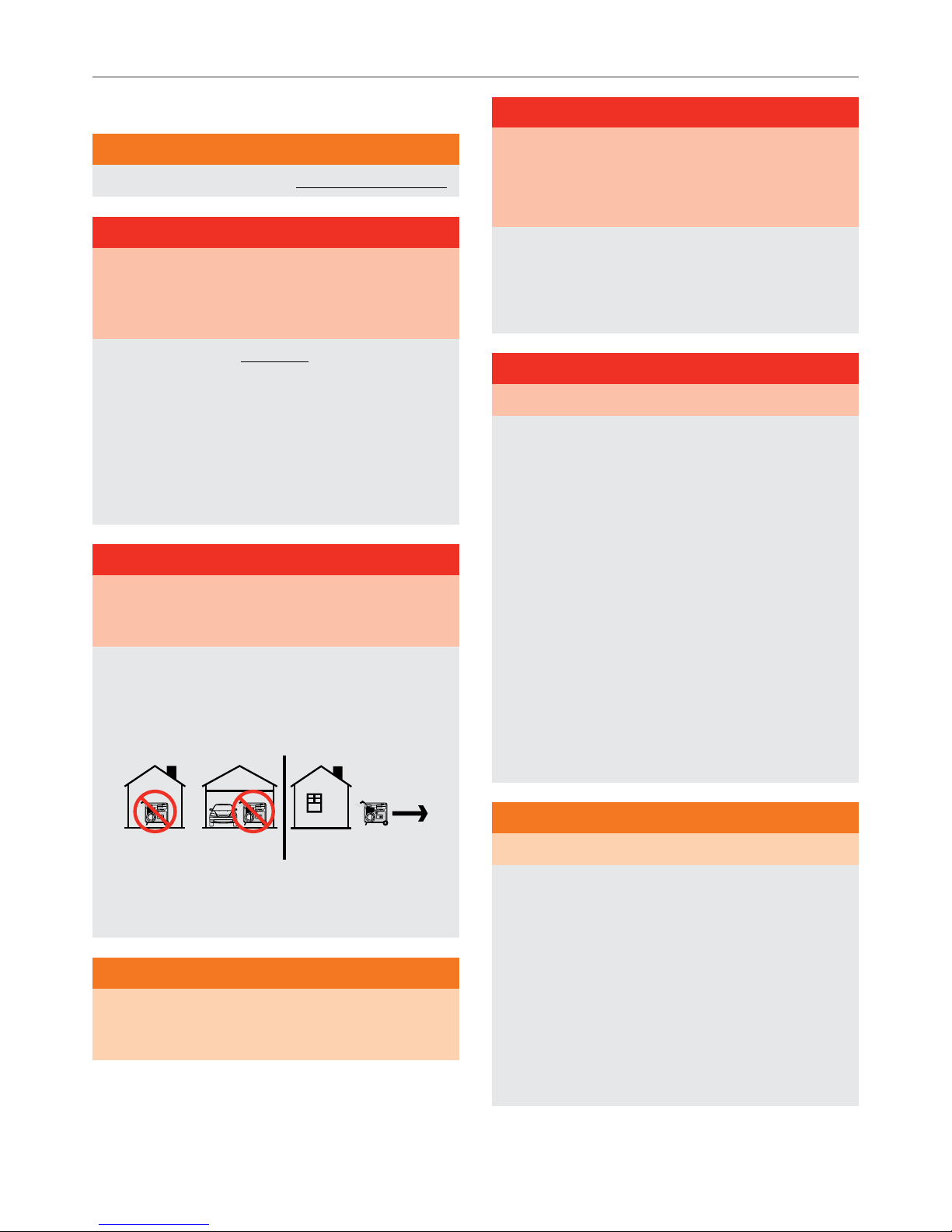

IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or
frayed. Use only Champion electrical cords for proper
application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or
medical appliances.
Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then
turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline
needs room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should
never be extinguished unless the fuel supply valve can be
turned OFF. By not doing so, if a fire is extinguished and the
supply of fuel is not turned OFF, an explosion hazard could
be created.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Always turn the generator off and let cool for a minimum of two
minutes before removing the gasoline cap. Afterwards, loosen
gasoline cap to relieve pressure from the gasoline tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved fuel container to transfer the
gasoline to the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always make certain that the gasoline cap, air filter, spark
plug, fuel lines and exhaust system are properly secured,
connected and in place.
Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store generator or gasoline near furnaces, water heaters,
or any other appliances that produce heat or have automatic
ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other
fuel item that is broken, cut, torn or damaged.

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Top
A
C
B
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Muffler Side
D
LABEL DESCRIPTION
A
El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El escape del generador contiene monóxido de carbono.
Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las puertas y ventanas
están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
PELIGRO
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
1308-L-SF-B
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L’échappement du générateur contient du
monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir. Ne l’utilisez JAMAIS dans la maison ou le garage
MÊME SI les portes et les fenêtres sont ouvertes. Utilisez-le UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres, portes et trappes
de ventilation.
DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
DANGER
K485 --- --- ---
ColorsLPN 1308-L-SF
Rev B
Size 204x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process m agenta
Revision Changes
B: Updated size match DF generator
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
CO Danger
B
1161-L-SF-A
K485 2945 109 ---
ColorsLPN 1161 -L- SF
Rev A
Size 121 x 4 0 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white t o be
print ed shown in 50% p rocess mage nta
Revision Changes
---
This art work belongs to Cham pion Power Equipment. T he contents are con fidential and privi leged and shall not be disc losed to or used by or for
outside p arties withou t the explicit consen t of Champion Power E quipment.
Safety Symbols
C
UNLEADED FUEL ONLY. Minimum octane rating
of 85. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 85 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 85. Maximum 10 % d'éthanol.
1032-L-OP-A
K109 --- --- ---
ColorsLPN 1032-L-OP
Rev A
Size 78 x 20 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
D
1310-L-SF-A
WARNING DO NOT TOUCH! Exhaust gases, muffler
and engine components are extremely HOT
and cause burns.
Operation of this equipment may create sparks that can start fires
around dry vegetation. A spark arrestor may be required. The
operator should contact local fire agencies for laws and regulations
relating to fire prevention requirements. If installed, clean every 100
hours or every season.
ADVERTENCIA ¡NO TOCAR! Los gases de escape, el silenciador y los compnonentes
del motor están extremadamente CALIENTES y causan quemaduras.
La operación de este equipo puede producir chispas que pueden
provocar incendios alrededor de la vegetación seca. Un supresor de chispas puede que sea necesario. El
operador debe comunicarse con las agencias locales de bomberos para las leyes y reglamentos relativos
a los requisitos de prevención de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
AVERTISSEMENT NE PAS TOUCHER! Les gaz d’échappement, le silencieux et les
pièces du moteur sont extrêmement CHAUDS et peuvent causer
des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans la végétation sèche. Un
pare-étincelles peut être requis. L’opérateur doit communiquer avec le service d’incendie local pour
connaître les lois et les règlements en matière de prévention des incendies. Si elle est installée,
nettoyez toutes les 100 heures ou chaque saison.
K152 --- --- ---
ColorsLPN 1310-L-SF
Rev A
Size 88 x 56 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process m agenta
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Hot Surface

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Clearance. Keep all objects at least 5 feet from this machine. Heat from the muffler and exhaust
gas can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion
can cause severe burns or death. Keep generator at least 5 ft (1.5m) from all objects to prevent
combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Engine START
Engine RUN
Engine STOP
Run out of fuel. Stopping the
generator.
Choke
Run
Overload Reset Switch
Overload
SYMBOL MEANING
Low Oil Level Indicator
Receptacle Status
ECO
Economy Mode Switch
Circuit Breaker Reset: Push
Ground Terminal
Neutral Floating. Neutral circuit IS
NOT electrically connected to the
frame/ground of the generator.
Parallel Connection(s)
12V Direct Current

100565 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10

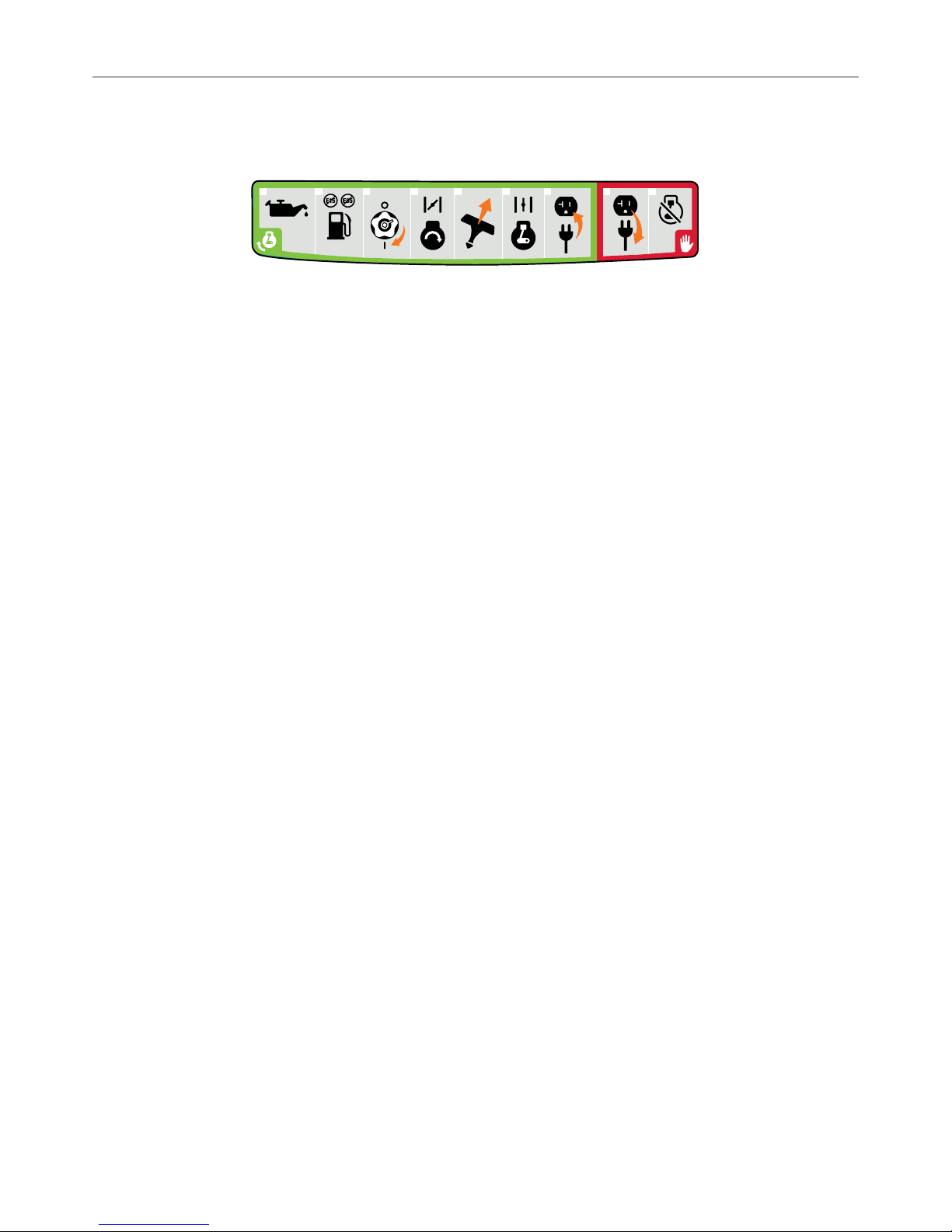

Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
Starting the Engine
1. Check oil level.
Recommended oil is 10W-30.
2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 85
and an ethanol content of 10% or less by volume.
3. Turn the fuel cap vent lever to the “ON” position.
4. Turn EZ Start dial clockwise to the full “CHOKE” position.
5. Pull the starter cord
6. Move the EZ Start dial to the “RUN” position.
7. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all electrical loads.
2. Turn the EZ Start dial counterclockwise to the “STOP”
position.
1311-L-OP-B
71 2 3 4 5 6 1 2

10W-30

LPN 1311 -L- OP
Rev B
Size 256 x 4 8 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white t o be
prin ted shown in 5 0% process m agenta
Revision Changes
---
This art work belongs to Cha mpion Power Equipme nt. The content s are confidenti al and privileged a nd shall not be disclo sed to or used by or for
outside p arties withou t the explicit conse nt of Champion Power E quipment.
KCG1 376 152 186
W
Colors

100565 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
11
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Carrying Handle –Used to lift or carry the unit.
2. Recoil Starter – Used to manually start the engine.
3. EZ Start Dial – Used to start and stop the generator.
4. Outlet Panel – See “Outlet Panel” section.
5. Power Panel – See “Power Panel” section.
6. Fuel Cap – Remove to add fuel.
7. Fuel Lever Vent – Turn this valve to the “ON” position to
supply air to the tank.
8. Fuel Fill Assist LED – Push-button LED used to illuminate
the gasoline fill area
9. Maintenance Cover
10. Muffler
1
9
10
2
5
6
7
8
34

100565 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
12
Power Panel
1
234
5
1. AC Reset Button – Used to re-energize receptacles after
overload fault.
1a. OFF – Systems normal.
1b. Blinking Red – Overload fault.
2. Overload Indicator Light – When ON generator is
overloaded and power to receptacles is cut.
3. Low Oil Level Indicator
3a. Off – Oil level OK.
3b. Yellow – Oil level low. Unit will shut down or not start
until oil is at required level.
4. Receptacle Status
4a. Green – All systems OK.
4b. Off – Faults occurred and receptacle has no power.
5. Economy Mode Switch – Enables/disables automatic idle
control.
5a. OFF – Economy mode OFF.
5b. Green – Economy mode ON.

100565 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
13
Outlet Panel
1
A
B
2
3
RECEPTACLES
Az
12V DC, 8 Amp (Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical
loads.
BA
(2x) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single
phase, 60 Hz electrical loads.
1. Ground Terminal – Consult an electrician for local
grounding regulations.
2. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
3. Parallel Outlets – Used for parallel operation (parallel kit
sold separately).
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. Prolonged exposure to engine exhaust can cause
serious injury or death. While charging a device do no place
on the exhaust side of the generator. Extreme heat caused
by exhaust can damage the device, and cause a potential
fire hazard.

100565 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
14
FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.

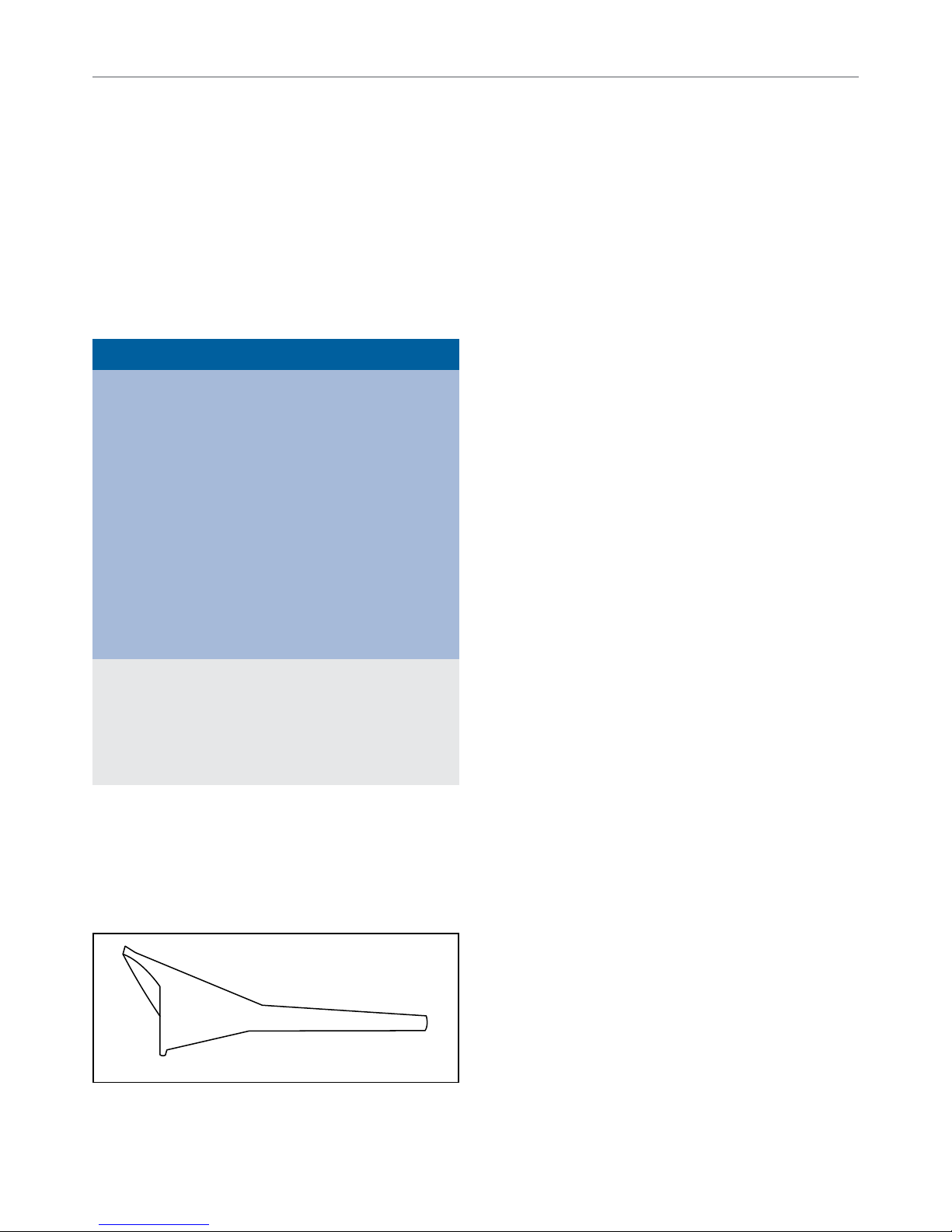

Parts Included
Accessories
Oil Funnel..............................................................................1

100565 - 2000W PORTABLE INVERTER GENERATOR ASSEMBLY
15
ASSEMBLY
This unit ships from our factory without oil. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Using the carrying handle of the unit, carefully remove the
generator from the box.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failure to
follow these instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type is 10W-30 automotive oil.
-20 020 40 60
Ambient temperature
Recommended Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove the maintenance cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 13.5 fl. oz. (0.4 L) of oil (not
included) and replace oil fill cap/dipstick. DO NOT
OVERFILL.
5. Check engine oil level daily and add as needed.
MAX
MIN OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw in the
dipstick while checking.
NOTICE
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
The engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.

100565 - 2000W PORTABLE INVERTER GENERATOR ASSEMBLY
16
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary and help seat piston rings. After
the 5 hour break-in period, change the oil.
NOTICE
Weather will affect engine oil and engine performance.
Change the type of engine oil used based on weather
conditions to suit the engine needs.
NOTICE
Synthetic oil may be used after the 5 hour initial break-
in period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W-30 oil
will aid in starting in cold ambient < 41º F (5º C).
Add Fuel
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 85 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended.
Gasoline can be forced out of the tank as a result of
expansion if overfilled, and can affect the stable running
condition of the generator.
3. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 85
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the
pump. Use an approved container to transfer the gasoline to
the generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in blow back of gasoline at the operator while filling.
NOTICE
Our engines work well with 10% or less ethanol blend
gasoline. When using ethanol-gasoline blends there are
some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or a
watery goo in the tank, fuel valve and carburetor.
–With gravity-fed supplies, the compromised gasoline can
be drawn into the carburetor and cause damage to the
engine and/or potential hazards.
–There are only a few suppliers of fuel stabilizer that are
formulated to work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or
improperly formulated stabilizers, are not covered by
manufacturer’s warranty.
It is advisable to always shut off the gasoline supply, run the
engine to starvation and drain the tank when the equipment
is not in use for more than 30 days.

100565 - 2000W PORTABLE INVERTER GENERATOR OPERATION
17
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in
electric shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.
OPERATION
Generator Location
NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local
utility. Generators used at construction sites may be subject
to additional rules and regulations. Generators should be on
a flat, level surface at all times. (Even while not in operation)
Generators must have at least 5 ft. (1.5 m) of clearance from
all combustible material. In addition to clearance from all
combustible material, generators must also have at least 3 ft.
(91.4 cm) of clearance on all sides to allow for adequate cooling,
maintenance and servicing. Generators should never be started
or operated in the back of a SUV, camper, trailer, in the bed of
a truck (regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that will not
allow for adequate cooling of the generator and/or the muffler.
DO NOT contain generators during operation. Allow generators
to properly cool before transport or storage.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up in your home
according to the manufacturer’s instructions.
Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
WARNING
Do not operate or store the generator in rain, snow, or wet
weather.
Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.
WARNING
During operation the muffler and exhaust fumes produced
will become hot. If adequate cooling and breathing space
are not supplied, or if the generator is blocked or contained,
temperatures can become extremely heated and may lead
to fire.
Grounding
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is
not functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground
of the generator.
–The generator system ground connects lower frame
cross-member below the alternator. The system ground is
connected to the AC neutral wire.
* See your model's outlet panel for specified type of grounding.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-
duration voltage fluctuations.

100565 - 2000W PORTABLE INVERTER GENERATOR OPERATION
18

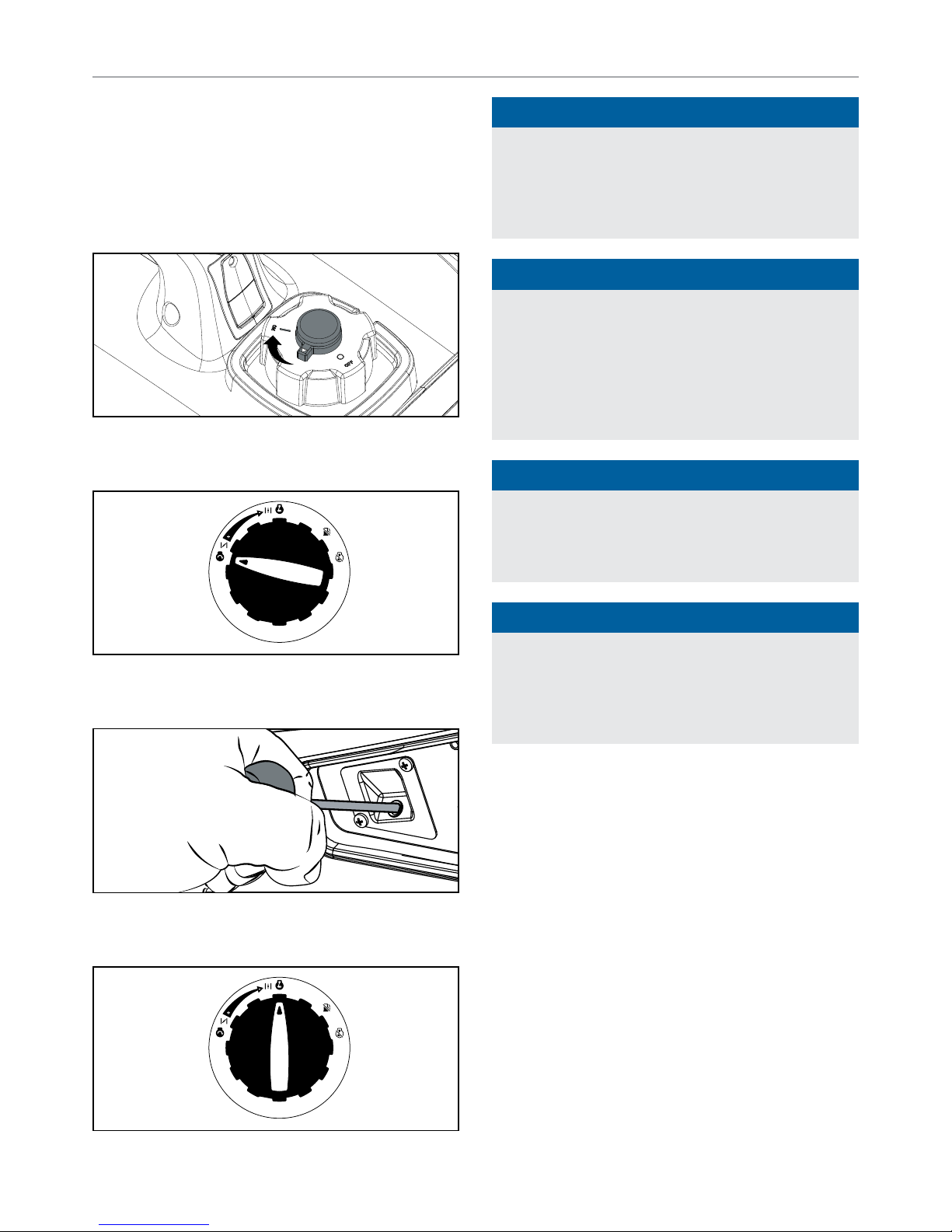

Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.
3. Turn the fuel cap vent lever to the “ON” position.
4. Turn EZ Start dial counterclockwise to the full CHOKE
position.
5. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
6. As the engine warms up, move the EZ Start dial to the RUN
position.
NOTICE
Keep EZ Start dial in “CHOKE” position for only 1 pull of
the recoil starter. If generator does not start after first pull,
rotate the EZ Start dial to the RUN position for the next
three pulls. Too much choke leads do spark plug fouling and
engine flooding. This will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient
> 86°F (30°C): Rotate the EZ Start dial to 75% of the
full choke position for only one pull of the recoil starter. If
generator does not start after first pull, rotate the dial to the
RUN position for the next three pulls. Too much choke leads
do spark plug fouling and engine flooding. This will cause
the engine not to start.
NOTICE
For gas starting in cold ambient < 59°F (15°C): The
choke must be in 100% of the “CHOKE” position for recoil
start procedures. Do not over-choke. As soon as the engine
starts, turn the EZ Start dial to the RUN position.
NOTICE
If the engine starts but does not continue to run make
certain that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will prevent the
engine from running when the oil level falls below a critical
threshold.
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC
single phase, 60 Hz electrical loads.
–DO NOT connect 3-phase loads to the generator.
–DO NOT connect 50 Hz loads to the generator.
–DO NOT overload the generator.

100565 - 2000W PORTABLE INVERTER GENERATOR OPERATION
19
WARNING
Connecting a generator to your electric utility company’s
power lines or to another power source may be against
the law. In addition this action, if done incorrectly, could
damage your generator and appliances and could cause
serious injury or even death to you or a utility worker who
may be working on nearby power lines. If you plan to run a
portable electric generator during an outage, please notify
your electric utility company immediately and remember to
plug your appliances directly into the generator. Do not plug
the generator into any electric outlet in your home. Doing
so could create a connection to the utility company power
lines. You are responsible for ensuring that your generator’s
electricity does not feed back into the electric utility power
lines.
If the generator will be connected to a building electrical
system, consult your local utility company or a qualified
electrician. Connections must isolate generator power from
utility power and must comply with all applicable laws and
codes.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting
watts necessary for your purposes:
1. Select the electrical devices you plan on running at the
same time.
2. Total the running watts of these items. This is the amount
of power you need to keep your items running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Starting wattage is the extra burst
of power needed to start some electric driven equipment.
Following the steps listed under “Power Management” will
guarantee that only one device will be starting at a time.
Power Management
Use the following formula to convert voltage and amperage to
watts:
Volts ×Amps = Watts
To prolong the life of your generator and attached devices,
follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach the
item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
NOTICE
Never exceed the specified capacity when adding loads to
the generator.

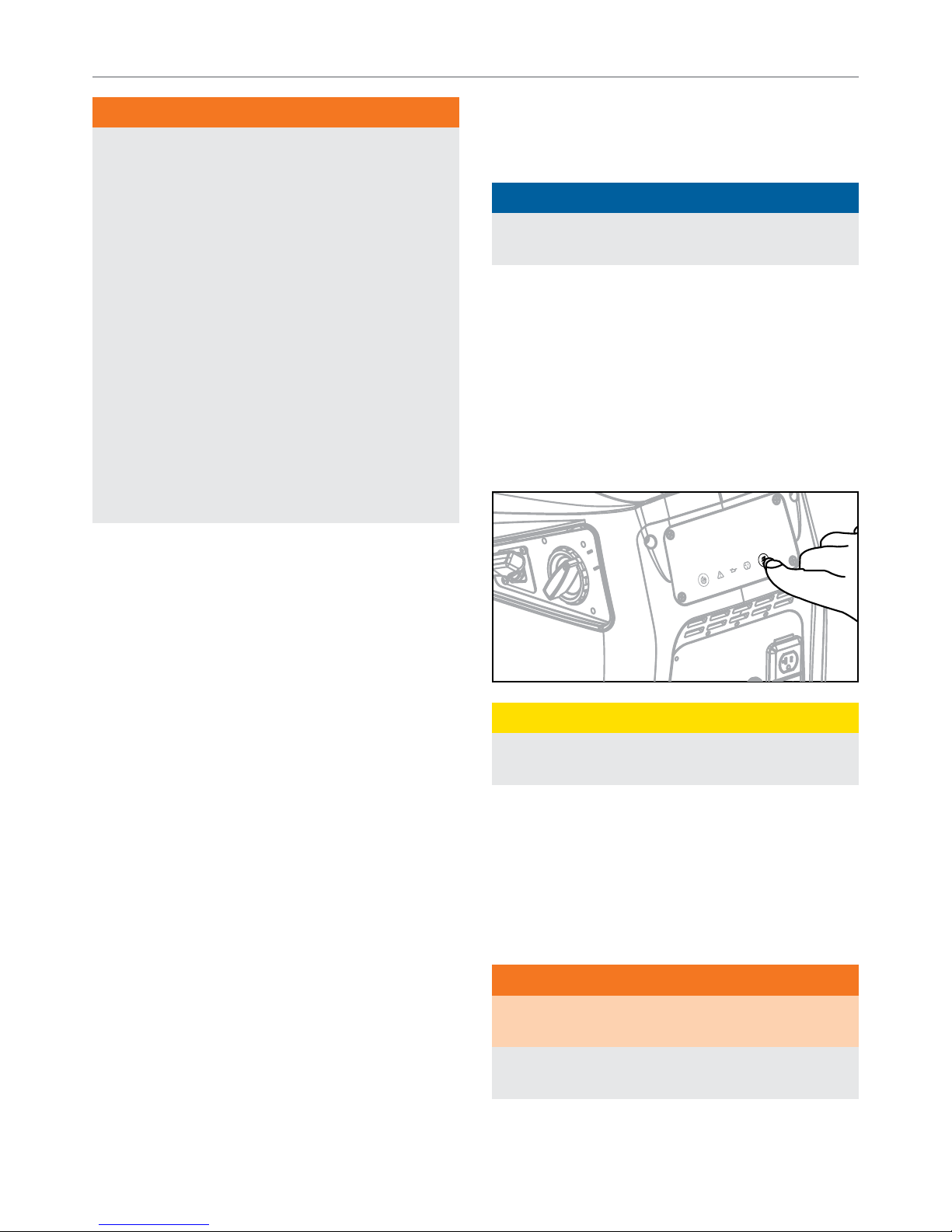

Eco (Economy) Mode
The Eco Mode switch can be activated to turn on economy
control in order to minimize fuel consumption and noise while
operating the unit during times of reduced electrical output. Eco
Mode allows the engine speed to idle during periods of non-use.
The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at
normal speed continuously.
CAUTION
For periods of high electrical load or momentary
fluctuations, the Eco Mode should be off.
12V DC Automotive Style Outlet
The 12V DC outlet(s) can be used with commercially available
12V DC automotive style plugs. The DC output is unregulated
and can damage some products. Confirm the input voltage
range of your item is at least 12-24V DC. When using the DC
outlet turn the Eco Mode switch to the “OFF” position.
WARNING
Do not operate a device while it is plugged in to the 12V DC
outlet.
Prolonged exposure to engine exhaust can cause serious
injury or death.

100565 - 2000W PORTABLE INVERTER GENERATOR OPERATION
20
CAUTION
While charging a device do not place on the exhaust side of
the generator. Extreme heat caused by exhaust can damage
the device, and cause a potential fire hazard.
Battery Charging
1. Before connecting the battery charging cable (not included)
to a battery that is installed in a vehicle, disconnect the
vehicle battery ground cable from the negative (–) battery
terminal.
2. Plug the battery charging cable into the 12V DC receptacle
of the generator.
3. Connect the red (+) battery charger lead to the red (+)
battery terminal.
4. Connect the black (–) battery charger lead to the black (–)
battery terminal.
5. Start the generator.
Important: The 12V DC output is unregulated and may damage
other 12V DC products. When using the 12V DC outlet, turn the
Economy mode switch to the “OFF” position. Be sure all electric
devices including the lines and plug connections are in good
condition before connection to the generator.
CAUTION
Do not start the vehicle while the battery charging cable is
connected and the generator is running. It will not give the
battery a boost of power. The vehicle or the generator may
be damaged. Charge only vented wet lead acid batteries.
Other types of batteries may burst, causing personal injury
or damage.
NOTICE
Be sure all electric devices including the lines and plug
connections are in good condition before connection to the
generator.
Parallel Operation
The Champion model 100565 is parallel ready and can be
operated in parallel with another Champion unit to increase
the total available electrical power. A Champion model
100468 parallel kit (optional equipment) is required for parallel
operation. For a list of compatible models or to order a parallel
kit, please call customer service at 1-877-338-0999 or visit
www.championpowerequipment.com.
Detailed instructions for parallel kit installation and operation
of the connected generators are provided in the parallel kit
operator’s manual.
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start or stop
the generator with electrical devices plugged in or turned
on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Turn the EZ Start dial clockwise to the STOP position.
Important: Always ensure that the EZ Start dial and fuel lever
vent are in the “OFF” position when the generator is not in use.
NOTICE
If the generator will not be used for a period of two (2) weeks
or longer, please see the Storage section for proper engine
and fuel storage.
Moving the Generator
–ALWAYS turn the generator off and ensure the fuel valve is
closed.
–ALWAYS make sure engine and muffler are cooled down
before the generator can be handled safely (typically 15-30
minutes).
–Lift unit up by the carrying handle and move to the desired
location.
–Do not drop or strike unit or place under heavy objects.
–Failure to follow these instructions could result in personal
injury or damage to the generator.
