PORTABLE INVERTER GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 73538i-20110622
73538i
MODEL NUMBER
2YEAR
LIMITED WARRANTY
2000 Maximum Watts / 1600 Running Watts
OWNER’S MANUAL & OPERATING INSTRUCTIONS

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999

73538i
2000 Maximum Watts / 1600 Running Watts
PORTABLE INVERTER GENERATOR
TABLE OF CONTENTS
Introduction ............................ 1
Introduction .......................... 1
Portable Power Generator ................. 1
Accessories .......................... 1
This Booklet .......................... 1
Manual Conventions....................... 2
Safety Rules ............................ 3
Controls and Features ..................... 5
Generator............................ 5
Power Panel .......................... 6
Parts Included ........................ 6
Assembly .............................. 7
Remove the Generator from the Shipping Carton . 7
Add Engine Oil ........................ 7
Add Fuel ............................ 8
Grounding ........................... 8
Operation .............................. 9
Generator Location ..................... 9
Starting the Engine ..................... 9
Economy Control Switch................. 10
Connecting Electrical Loads .............. 10
12V DC Outlet ....................... 11
Stopping the Engine ................... 11
Do Not Overload Generator ............... 11
Capacity ......................... 11
Power Management .................. 11
Overload Operation .................... 11
Parallel Operation ..................... 12
Wattage Reference Chart ................ 12
Maintenance and Storage .................. 13
Engine Maintenance ................... 13
Oil ............................. 13
Spark Plugs ....................... 13
Air Filter ......................... 14
Cleaning ......................... 14
Spark Arrester Cleaning ............... 14
Adjustments ....................... 15
Maintenance Schedule................ 15
Generator Maintenance ................. 15
Storage ............................ 15
Generator Storage ................... 15
Specifications .......................... 16
Engine Specifications .................. 16
Generator Specifications ................ 16
Fuel .............................. 16
Oil ............................... 16
Spark Plugs ......................... 16
Valve Clearance....................... 16
Parts Diagram........................ 17
Parts List ........................... 18
Parts Diagram........................ 19
Parts List ........................... 20
Wiring Diagram ....................... 21
Troubleshooting......................... 22
Warranty ............................. 23
Warranty Qualifications ................. 23
Repair/Replacement Warranty ............. 23
Do Not Return The Unit To
The Place Of Purchase.................. 23
Warranty Exclusions. . . . . . . . . . . . . . . . . . . . 23
Normal Wear ...................... 23
Installation, Use and Maintenance........ 23
Other Exclusions .................... 23
Limits of Implied Warranty
And Consequential Damage ............ 23
Contact Information.................... 23
Address .......................... 23
Customer Service ................... 23
Technical Service ................... 23
Emission Control System Warranty.......... 24

1REV 73538i-20110622
ENGLISH 73538i
Introduction
Congratulations on your purchase of a Champion Power
Equipment inverter generator. CPE designs and builds
generators to strict specifications. With proper use and
maintenance, this generator will bring years of satisfying
service.
Portable Power Generator
This unit is a gasoline engine driven, alternating current
(AC) generator. It is designed to supply electrical power
for lighting, appliances, tools and similar equipment.
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Accessories
Champion Power Equipment manufactures and sells
accessories designed to help you get the most from
your purchase. To find out more about our covers, power
cables and storm kits, please visit our web site at:
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1 [phone]
73538i
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
INTRODUCTION

REV 73538i-20110622 2
73538i ENGLISH
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
MANUAL CONVENTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your generator, we can
help. Please call our help line at 1 [phone]
NOTE

3REV 73538i-20110622
ENGLISH 73538i
SAFETY RULES
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result
in serious injury or death.
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting
or death. If you start to feel dizzy or weak, get to
fresh air immediately.
Operate generator outdoors only in a well ventilated
area.
DO NOT operate the generator inside any building,
including garages, basements, crawlspaces and
sheds, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE: using a generator
indoors CAN KILL YOU IN MINUTES.
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged
or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such
as metal decking.
Use approved transfer equipment to isolate generator
from your electric utility and Notify your utility
company before connecting your generator to your
power system.
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
Running engines produce heat. Severe burns can
occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all sides
to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.
DANGER
DANGER
DANGER
WARNING
WARNING
WARNING
WARNING

REV 73538i-20110622 4
73538i ENGLISH
SAFETY RULES
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel:
Turn the generator off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly on
level ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it.
DO NOT overload the generator.
Start the generator and allow the engine to stabilize
before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
Improper treatment or use of the generator can
damage it, shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
CAUTION
WARNING
WARNING
DANGER
CAUTION

5REV 73538i-20110622
ENGLISH 73538i
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
(1) Carrying Handle
(2) Fuel Lever Vent – Turn this valve to the “On”
position to supply air to the tank.
(3) Fuel Cap – Remove to add fuel.
(4) Recoil Starter – Used to start the engine.
(5) Spark Plug Access Cap
(6) Maintenance Cover – Oil filler, Air filter, and
Carburetor access.
(7) Muffler
1
7
2
5
3
Generator
CONTROLS AND FEATURES
4
6

REV 73538i-20110622 6
73538i ENGLISH

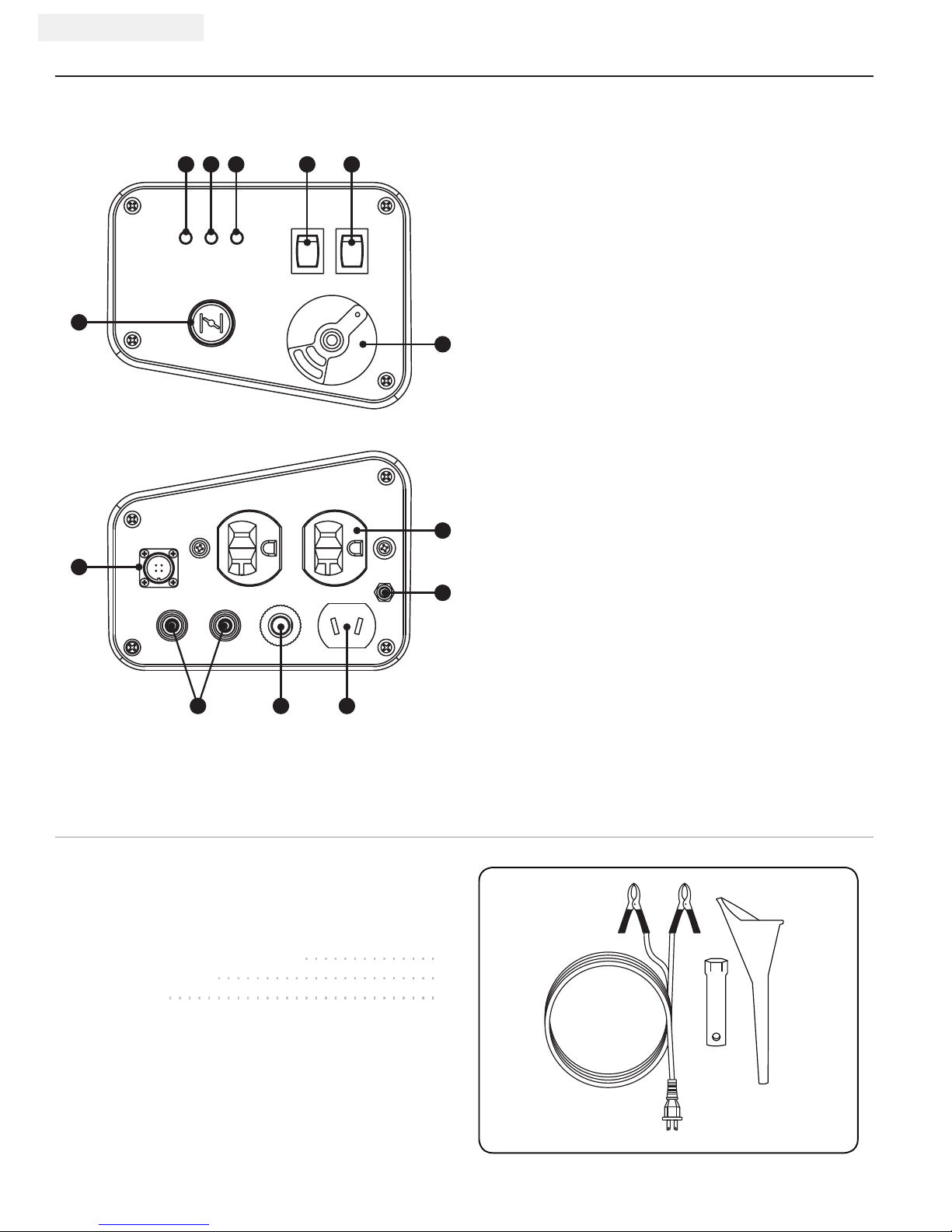

Power Panel
(1) Oil Warning Light – Check oil level when this light
turns on. Engine will not run when indicator is lit.
(2) Overload Indicator Light – This light turns ON
when the generator is overloaded and will cut
power to the receptacles.
(3) Output Light – Remains ON during normal
operating conditions. Shuts OFF when generator is
overloaded.
(4) Economy Control Switch
(5) Engine Switch
(6) Choke Knob
(7) Fuel Valve Knob
(8) Parallel Operation Control*
(9) 120 V Duplex – Use this duplex to operate 120
Volt AC, single phase, 60 Hz loads requiring up to
13.3 A 0r 1600 Watts of power.
(10) Parallel Operation Outlets*
(11) DC Circuit Breaker – Protects the generator against
electrical overload.
(12) 12V DC 8A Outlet – Use this outlet to charge 12V
automotive type batteries ONLY.
(13) Ground Terminal – Consult an electrician for local
grounding regulations.
* These outlets are used for connecting two Champion
model 73538i generators for parallel operation.
A Champion model 73500i cable kit (optional
equipment) is required for parallel operation.
CONTROLS AND FEATURES
Parts Included
Your 73538i Gasoline Powered Generator ships with the
following parts:
– 12V DC Battery Charging Cable.............. 1
– Spark Plug Socket ....................... 1
– Oil Funnel ............................ 1
1 2 3 4 5
8
6
12
9
13
7
10 11

7REV 73538i-20110622
ENGLISH 73538i
Your generator requires some assembly. This unit ships
from our factory without oil. It must be properly serviced
with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our help line at 1 [phone]. Please
have your serial number and model number available.
Remove the Generator from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the
generator.
3. Using the handle of the unit, carefully remove the
generator from the box.
ASSEMBLY

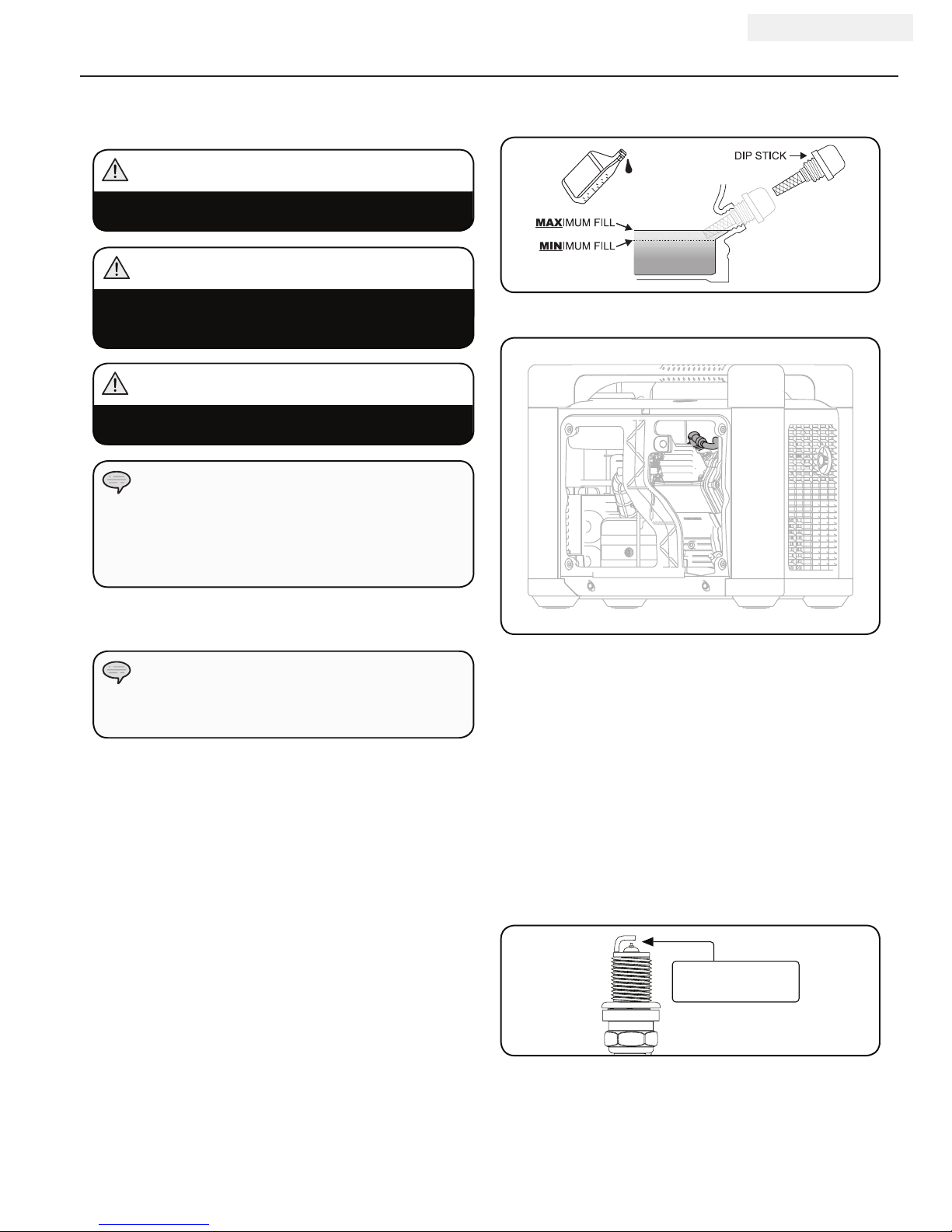

1. Place the generator on a flat, level surface.
2. Loosen the cover screw and remove the maintenance
cover.
4. Add 0.42 qt (0.4 L) of oil and replace oil fill cap/
dipstick. Check engine oil level daily and add as
needed.
5. Check engine oil level daily and add as needed.
3. Remove oil fill cap/dipstick to add oil.
The recommended oil type is 10W-30 4-cycle
automotive oil.
NOTE
The engine is equipped with a low-oil-shutoff and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Add Engine Oil
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the generator as
a result of failure to follow these instructions will
void your warranty.
CAUTION
Add Engine Oil Cont’d.
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE

REV 73538i-20110622 8
73538i ENGLISH
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol
content of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT overfill. Fill to
the red level, visible on the fuel filter.
6. Screw on the fuel cap and wipe away any spilled fuel.
ASSEMBLY
Add Fuel
Use regular unleaded gasoline with a minimum
octane rating of 85 and an ethanol content of less
than 10% by volume.
Do not mix oil and gasoline.
Fill the tank to the red level, visible on the fuel filter.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Grounding
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
A ground terminal connected to the frame of the generator
has been provided on the power panel. For remote
grounding, connect of a length of heavy gauge (12 AWG
minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We
strongly recommend that you consult with a qualified
electrician to ensure compliance with local electrical codes.
Failure to properly ground the generator can result
in electric shock.
WARNING

9REV 73538i-20110622
ENGLISH 73538i
Generator Location
NEVER operate the generator inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the generator
compartment of a recreational vehicle. Deadly levels
of carbon monoxide can build up in these areas. Using
a fan or opening windows and doors does NOT supply
enough fresh air.
Please consult your local authority. In some areas,
generators must be registered with the local utility.
Generators used at construction sites may be subject to
additional rules and regulations.
This generator must have at least five feet of clearance
from combustible material. Leave at least three feet
of clearance on all sides of the generator to allow for
adequate cooling, maintenance and servicing.
Place the generator in a well-ventilated area far
away from windows door, and vents. DO NOT place
the generator near vents or intakes where exhaust
fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning generator.
Even when using a generator correctly, carbon monoxide
may leak into the home. ALWAYS use a battery-powered
or battery- backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the
generator has been running, move to fresh air RIGHT
AWAY. See a doctor, you could have carbon monoxide
poisoning.

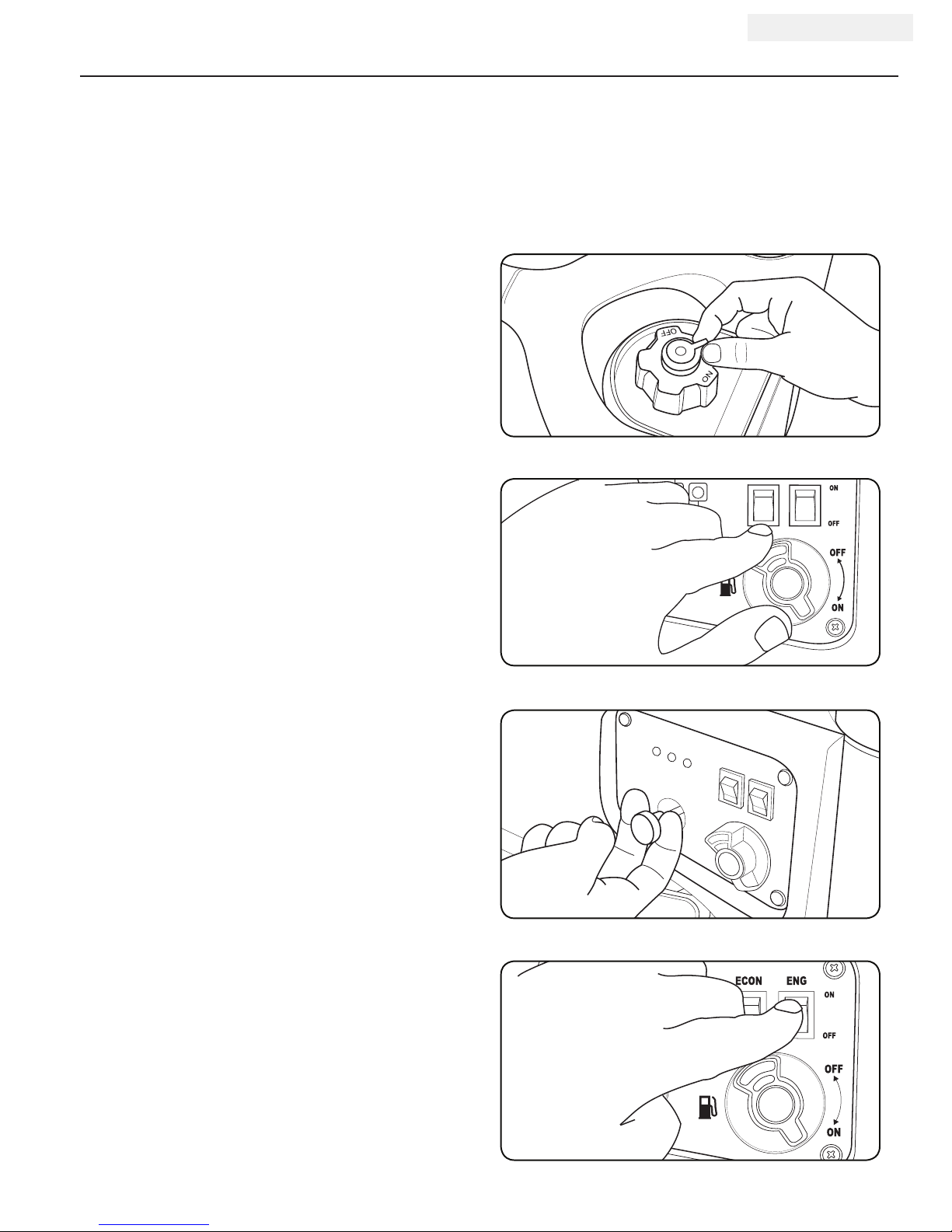

Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Turn the fuel cap vent lever to the “On” position.
4. Turn the fuel valve to the “On” position.
5. Pull the choke lever out when starting the generator.
6. Turn the engine switch to the “On” position.
OPERATION

REV 73538i-20110622 10
73538i ENGLISH
Economy Control Switch
The Economy Control switch can be activated in order to
minimize fuel consumption and noise while operating the
unit during times of reduced electrical output, allowing
the engine speed to idle during periods of non-use. The
engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine
runs at normal speed continuously.
7. Pull the starter cord slowly until resistance is felt and
then pull rapidly.
8. As engine warms up, push the choke lever in.
If the engine starts but does not stay running make
certain that the generator is on a flat, level surface.
The engine is equipped with a low oil sensor that
will prevent the engine from running when the oil
level falls below a critical threshold.
NOTE
Connecting a generator to your electric utility
company’s power lines or to another power source
may be against the law. In addition this action,
if done incorrectly, could damage your generator
and appliances and could cause serious injury or
even death to you or a utility worker who may be
working on nearby power lines. If you plan to run a
portable electric generator during an outage, please
notify your electric utility company immediately
and remember to plug your appliances directly
into the generator. Do not plug the generator into
any electric outlet in your home. Doing so could
create a connection to the utility company power
lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the
electric utility power lines.
If the generator will be connected to a building
electrical system, consult your local utility company
or a qualified electrician. Connections must isolate
generator power from utility power and must comply
with all applicable laws and codes.
NOTE
OPERATION
Starting the Engine Cont’d. Connecting Electrical Loads
1. Let the engine stabilize and warm up for a few
minutes after starting
2. Plug in and turn on the desired 120 Volt AC single
phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT connect 50 Hz loads to the generator.
– DO NOT overload the generator.

11 REV 73538i-20110622
ENGLISH 73538i
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and
starting watts necessary for your purposes.
1. Select the electrical devices you plan on running at
the same time.
2. Total the running watts of these items. This is
the amount of power you need to keep your items
running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Surge wattage is the extra
burst of power needed to start some electric driven
equipment. Following the steps listed under “Power
Management” will guarantee that only one device will
be starting at a time.
Power Management
Use the following formula to convert voltage and
amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach
the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Never exceed the specified capacity when adding
loads to the generator.
NOTE
Overload Operation
The overload indicator light will turn on when the load
exceeds 1750W. If the load exceeds 1900W, the light
will blink and cut power to the receptacles. To recover the
power, you must shut off the engine, wait 5 seconds, and
restart the generator.
OPERATION
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start or
stop the generator with electrical devices plugged in or
turned on.
2. Let the generator run at no-load for several minutes
to stabilize internal temperatures of the engine and
generator.
3. Turn the engine switch/fuel valve to the “Off” position.
4. Allow the generator to cool down completely to room
temperature
5. Turn the fuel cap lever vent to the “Off” position after
the generator has cooled down completely.
12V DC Outlet
1. Before connecting the battery charging cable to a
battery that is installed in a vehicle, disconnect the
vehicle battery ground cable from the negative (–)
battery terminal.
2. Plug the battery charging cable into the DC
receptacle of the generator.
3. Connect the red (+) battery charger lead to the red
(+) battery terminal.
4. Connect the black (–) battery charger lead to the
black (–) battery terminal.
5. Start the generator.
The 12V DC outlet is ONLY to be used with the supplied
12V battery charging cable. The DC output is unregulated
and will damage other 12V DC products. When using the
DC outlet, turn the Economy switch to the “OFF” position.
Be sure all electric devices including the lines
and plug connections are in good condition before
connection to the generator.
NOTE
Do not start the vehicle while the battery charging
cable is connected and the generator is running. It
will not give the battery a boost of power. The vehicle
or the generator may be damaged. Charge only vented
wet lead acid batteries. Other types of batteries may
burst, causing personal injury or damage.
CAUTION

REV 73538i-20110622 12
73538i ENGLISH
Parallel Operation
Two Champion model 73538i generators can be
operated in parallel to increase the total available
electrical power to 3000 watts. A Champion model
73500i parallel kit (optional equipment) is required
for parallel operation. For kit availability, call Customer
Service at 1 [phone] or visit:
www.championpowerequipment.com.
Detailed instructions for parallel kit installation and
operation of the connected generators are provided
in the parallel kit Owner’s Manual and Operating
Instructions. Please note the following important
requirements:
1. The two generators may be stacked one on top of the
other by aligning the lower pads and upper pockets
at each corner of the generators.
2. Disconnect or turn off all electrical loads from both
generators.
3. The ECON switch must be in the same position on
both generators.
4. Before starting the engines, connect the AC power
outlet cables, the control cables and the ground
cables to both generators. Follow the instructions
supplied with the parallel kit.
5. Do not disconnect any cables after the engines have
been started.
6. Start both engines and observe the green output
indicator light on both generator panels.
7. Connect and turn on the electrical devices.
8. Follow the instructions on the previous page for
turning off the generators.
The total electrical load must not exceed 3000 watts.
NOTE
Wattage Reference Chart
Use the chart to determine approximate wattage
requirements for your equipment.
Item Running
Watts (A)
Starting
Watts (B)
Essentials
Light Bulb 100W 100
Refrigerator/Freezer 1200 2400
Freezer 500 500
Sump Pump 600 1800
Well Pump 1 HP 2000 4000
Water Heater 4000
Security System 180
AM/FM Radio 300
Garage Door Opener 1/2 HP 500 600
Battery Charger 12V DC 110
Heating/Cooling
Air Conditioner 12000 BTU 1700 2500
Fan 300 600
Furnace Fan 1/3 HP 1200 2000
Home Appliances
Microwave 1000W 1000
Electric Range - One Element 1500
Electric Skillet 1250
Coffee Maker 1500
Clothes Washer 1200
Entertainment
CD/DVD Player / VCR 100
Stereo Receiver 450
Television 27” 500
PC with 15” Monitor 800
Job Site
Belt Sander 3” 1000 1500
Bench Grinder 6” 700 1500
Circular Saw 1500 1500
Compressor 1 1/2 HP 2500 2500
Edge Trimmer 500 500
Hand Drill 1/2” 1000 1000
Lawn Mower 1200 1800
Paint Sprayer 600 1200
Table Saw 2000 2000
Exceeding specified load capacity can result in
damage to the generator.
To determine total wattage necessary to power
a device, ADD Running Watts to Starting Watts.
(A+B). Starting watts can exceed three times the
running watts. The values in the following table are
approximate. Refer to your tool or appliance for actual
wattage consumption.
CAUTION
OPERATION

13 REV 73538i-20110622
ENGLISH 73538i
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
Never operate a damaged or defective generator.
Tampering with the factory set governor will void
your warranty.
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Loosen the cover screws and remove the
maintenance cover.
2. Remove the oil filler cap.
3. Tilt the generator on its side and allow the oil to drain
completely.
4. Add 0.42 qt (0.4 L) of oil and replace oil fill cap/
dipstick.
5. Reinstall the maintenance cover and tighten the
cover screws.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the maintenance cover.
2. Remove the spark plug cable from the spark plug.
3. Use the spark plug tool that shipped with your
generator to remove the plug. Remove the spark plug
access cap and insert the spark plug tool through
this hole.
4. Remove the spark plug.
5. Inspect the electrode on the plug. It must be clean
and not worn to produce the spark required for
ignition.
6. Make certain the spark plug gap is 0.6 - 0.7 mm
(0.024 - 0.028 in.).
7. Carefully thread the plug into the engine.
8. Use the spark plug tool to firmly install the plug.
9. Attach the spark plug cap to the plug.
10. Reinstall the spark plug access cap, and
maintenance cover.
For service or parts assistance, contact our help
line at 1 [phone]
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
WARNING
Improper maintenance will void your warranty.
WARNING
Oil Cont’d.
0.6 - 0.7 mm
0.024 - 0.028 in.
MAINTENANCE AND STORAGE

REV 73538i-20110622 14
73538i ENGLISH
Spark Arrester Cleaning
1. Loosen M6x22 bolts to remove two pillars.
2. Remove 4 screws to remove the muffler cover
assembly.
3. Loosen the spark arrester clamp, remove the spark
arrester cover, and with a thin blade screwdriver
remove the spark arrester.
4. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Reattach spark arrester, cover assembly, and pillars.
Air Filter
1. Remove the maintenance cover.
2. Locate the air filter plastic cover. Remove the screw
using a Phillips head screwdriver.
3. Remove the foam element.
4. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
5. Saturate in clean engine oil.
6. Squeeze in a clean, absorbent cloth to remove all
excess oil.
7. Place the filter in the assembly.
8. Reattach the air filter cover.
9. Reinstall the maintenance cover and tighten the
cover screw securely.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.
Failure to clean the spark arrester will result in
degraded engine performance.
CAUTION
MAINTENANCE AND STORAGE

15 REV 73538i-20110622
ENGLISH 73538i
Storage
The generator should be started at least once every 14
days and allowed to run for at least 20 minutes. For
longer term storage, please follow these guidelines.
Generator Storage
1. Allow the engine to cool completely before storage.
2. Clean the generator according to the instructions in
the Maintenance section.
3. Remove the maintenance cover. Drain all fuel
completely from the fuel line and carburetor to
prevent varnish build up.
4. Remove the spark plug cap, then pull the recoil grip 3
times to drain the gasoline from the carburetor jets.
5. Change the engine oil.
6. Remove the spark plug and pour about a tablespoon
of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
7. Reattach the spark plug.
MAINTENANCE AND STORAGE
Generator Maintenance
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Use a damp cloth to clean exterior surfaces of the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
Generator Maintenance Cont’d.
Adjustments
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. CPE
recommends that you contact our service line at
1 [phone] for all other service and/or
adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating
in adverse conditions.
Contact our help line at 1 [phone] to locate the
nearest Champion Power Equipment certified service
dealer for your generator or engine maintenance needs.
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
CAUTION

REV 73538i-20110622 16
73538i ENGLISH
Engine Specifications
– Engine..................... 80 cc OHV CPE
Valve Clearance
– Intake: 0.1mm (0.004 in.)
– Exhaust: 0.1mm (0.004 in.)
Oil
Use 10W-30 4-Cycle automotive oil.
Oil capacity is 0.42 qt (0.4 L).
Please reference the following chart for recommended
oil types for use in the generator.
Fuel
Fuel capacity is 1.0 gallon (3.8 L). Use regular unleaded
gasoline with a minimum octane rating of 85 and an
ethanol content of less than 10% by volume.
Generator Specifications
– Running Wattage................ . 1600 Watts
– Maximum Wattage............... . 2000 Watts
– Voltage ........................ 120 Volts
– Amperage ..................... 13.3 Amps
– Frequency ........................ . 60 Hz
– 12V DC Output .................... . 8 Amps
– Phase ........................... . Single
– Fuel Capacity .............. . 1.0 gallon (3.8 L)
– Weight................ .G.W. 57 lbs. (25.9 kg)
.................... N.W. 48 lbs. (21.8 kg)
– Height ................ .16.3 inches (41.5 cm)
– Width ................ 13.2 inches (33.5 cm)
– Length. . . . . . . . . . . . . . . . . . 19.3 inches (49 cm)
Spark Plugs
Recommended replacement spark plug:
–NHSP E6RTC, NGK BPR6HS or equivalent
Make certain the spark plug gap is 0.6 - 0.7 mm or
(0.024 - 0.028 in.).
SPECIFICATIONS

17 REV 73538i-20110622
ENGLISH 73538i

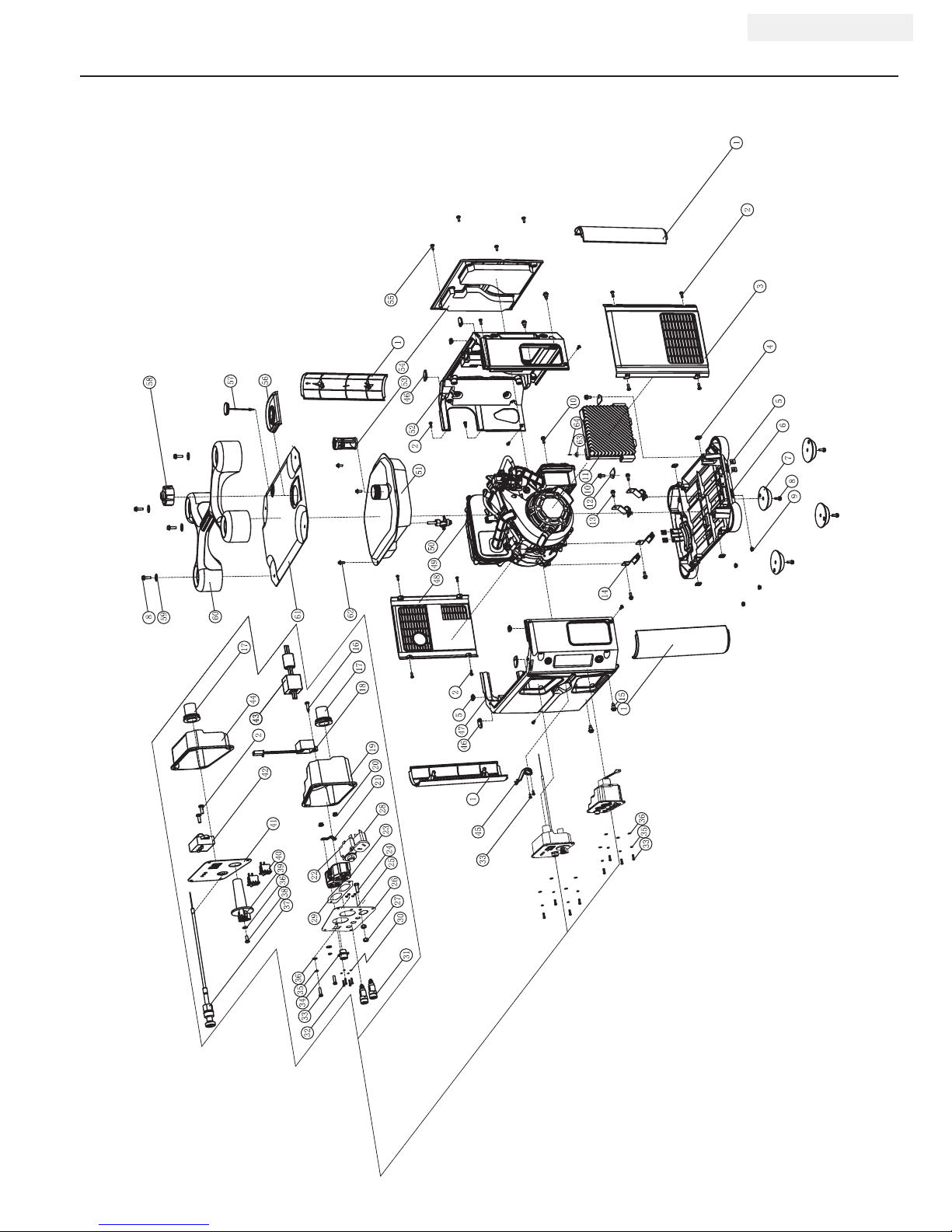

Parts Diagram
SPECIFICATIONS
