Champion TMM4 Plus Operation manual

OWNER'S OPERATING AND MAINTENANCE MANUAL
1-800-237-3377
CHAMPIONCHAIR.COM
MULTI-PURPOSE PROCEDURE-CHAIR SERIES
TMM4 Plus & TMM4 Plus-X
Document No. ???????? Rev B
TMM4 Plus
TMM4 Plus-X
W Wide
T Tall
R Rail on Back Section
Q Scale
L Low
G ENG Headpiece
F Folding Footrest
B Battery
A AC Power

Page 2 of 35
manual
Document No.: ??????? - Revision: B
FOLLOW INSTRUCTIONS GENERAL WARNING/DANGER
IMPORTANT
READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE
USING THIS PRODUCT!
Do NOT install, maintain or operate this equipment without reading and following this manual,
otherwise injury and/or damage may result.
IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CONTACT CHAMPION MANUFACTURING,
INC.
Champion assumes no responsibility for damage or injury caused by improper assembly,
installation, use, or maintenance of these products.
No part of this manual may be duplicated in any form without the prior consent of Champion
Manufacturing, Inc. Unauthorized duplication/distribution of these materials may result in civil
prosecution to the maximum extent allowed by law.
The information contained in this manual is subject to change without notice.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
These instructions are available online at no charge.
Visit ChampionChair.com to download.
SYMBOLS
PINCH-POINT WARNING

Page 3 of 35
manual
Document No.: ??????? - Revision: B
TABLE OF CONTENTS
Important Notes about this Manual .......................................................................................... 2
Intended Use Statement.............................................................................................................. 4
Transportation, Storage, Handling & Disposal ........................................................................ 4
Preparation: Before You Begin.................................................................................................... 4
Power Cable Requirements........................................................................................................ 5
Safety Precautions ........................................................................................................................ 5
Labeling Diagrams (TMM4 Plus-B Shown) ............................................................................... 11
Options ...................................................................................................................................... 12
Operating Instructions.................................................................................................................. 13
Back Section Quick Release .................................................................................................. 13
Caster Brake Operation........................................................................................................... 14
Side Rail Operation.................................................................................................................. 15
Adjusting Side Rail Angle........................................................................................................ 16
Pendant (Controller) ............................................................................................................... 17
Patient Ingress/Egress ............................................................................................................ 19
Patient Transfer ........................................................................................................................ 20
Push Bar Operation ................................................................................................................. 20
Options............................................................................................................................................ 21
“W” Option: Wide Width ........................................................................................................ 21
“T” Option: Tall Height ........................................................................................................... 21
“L” Option: Low Height........................................................................................................... 21
“R” Option: Rails On Back Section (Near Patient’s Head)................................................ 22
"Q" Option: Scale .................................................................................................................... 23
“G” Option: Eng Headpiece................................................................................................... 24
“F” Option: Folding Footrest................................................................................................. 25
“B” Option: Battery Pack........................................................................................................ 26
“A” Option: Ac Power (For On-Board Batteries And Charger) ......................................... 27
Cleaning Instructions.................................................................................................................... 28
Pad Removal Instructions............................................................................................................ 30
Preventive Maintenance .............................................................................................................. 30
Battery Safety & Charging Information ..................................................................................... 31
Specifications................................................................................................................................. 33
Service & Contact Information.................................................................................................... 34

Page 4 of 35
manual
Document No.: ??????? - Revision: B
INTENDED USE STATEMENT
TMM4 Procedure-Chairs are intended for use in patient treatment, transport and/or recovery within a hospital,
clinic, same-day/ambulatory surgery center, or similar environment.
The pendant control is NOT INTENDED FOR PATIENT USE.
A surgeon and/or clinician must always rely on his or her own clinical knowledge when deciding whether to use a
TMM4 Procedure-Chair when treating a patient.
TRANSPORTATION, STORAGE, HANDLING & DISPOSAL
• The product should be transported in factory packaging, inside an appropriate medium for the
destination, i.e., air/sea cargo containers.
• The product should be stored in an environment that will inhibit rust/mold formation.
• "“A” Model chairs – Champion Manufacturing, Inc. recommends not leaving the product in storage in
excess of two (2) months. Permanent battery damage could result.
• The product should always be handled in a manner consistent with the user instructions and in a
manner to prevent contamination after each use.
• The product has many recyclable components and to the extent practical, all effort should be used to
recycle responsibly. Otherwise the product components shall be disposed of in accordance with local
statutes.
PREPARATION: BEFORE YOU BEGIN
1. Carefully examine your product for any damage. Be sure to inspect all components.
IF DAMAGE IS EVIDENT, CONTACT FREIGHT CARRIER OR CHAMPION IMMEDIATELY.
2. Remove all packaging material and any hardware that was secured for shipping.
3. Carefully remove all components and any included tools and/or parts from the carton.
4. You may need to cut packaging materials with a box cutter or scissors to access the product. Use CAUTION
to avoid personal injury or damage to the product.
5. Save all boxes and packaging material until AFTER you have assembled your product and have verified that
all components are functioning properly. These materials are required if it becomes necessary to return the
product.
6. DO NOT install, maintain or operate this equipment without reading and following this manual otherwise
injury and/or damage may result. IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CONTACT CHAMPION
MANUFACTURING, INC .
CHAMPION ASSUMES NO RESPONSIBILITY FOR DAMAGE OR INJURY CAUSED BY IMPROPER ASSEMBLY,
INSTALLATION, USE, OR MAINTENANCE OF THESE PRODUCTS.

Page 5 of 35
manual
Document No.: ??????? - Revision: B
POWER/CABLE REQUIREMENTS
Only use the power/charging cord that came with your product.
See also sections for options A & B for additional details regarding powering this product.
SAFETY PRECAUTIONS
IMPORTANT: PLEASE READ
WARNINGS
CHAIR OPERATION BY QUALIFIED, TRAINED MEDICAL PERSONNEL ONLY
The chair is intended to be operated only by qualified, trained medical sta. Operation of chair by unauthorized,
untrained and/or lay people must be avoided.
USE CAUTION ON RAMPS
Control chair when traversing ramps. If a collision occurs, serious injury to patient, bystanders, or medical
personnel and damage to chair or medical facility could occur.
LOCK CASTERS BEFORE PATIENT EGRESS/INGRESS
Prior to patient egress / ingress, casters must be locked by depressing red tab completely down on either le- or
right-side brake pedal.
AVOID PINCH POINTS AND OTHER INJURIES
To prevent serious injury, ensure extremities of patient and bystanders are clear of all mechanical systems when
operating motors for li and positioning functions.
To prevent pinch/crush injury, ensure extremities of patient and bystanders are clear of locking mechanism
when raising and lowering side rails.
To prevent patient strangulation, use approved hand pendant storage location when not in use. See PENDANT
section for additional information.
BATTERY CAN EXPLODE DUE TO OFF-GASSING WHEN CHARGING
At end of charging process (or with overcharge conditions), battery can produce mixture of explosive gases
(Including hydrogen and oxygen). Avoid exposing battery to open flames, cigarettes, sparks, and Incandescent
materials.
Never charge battery in enclosed, unventilated spaces.
Do NOT store battery in sealed container. Store in fresh, well-ventilated area protected from direct sunlight and
heat sources.
Do NOT use water to extinguish battery fire. Use dry powder, foam CO2 extinguisher.
WARNING

Page 6 of 35
manual
Document No.: ??????? - Revision: B
SAFETY PRECAUTIONS – CONTINUED
IMPORTANT: PLEASE READ
USE CAUTION WHEN STORING OXYGEN CYLINDER UNDER CHAIR
To prevent severe gas leakage or rupture of compressed gas cylinder, when placing cylinder under chair, ensure
adequate clearance between cylinder and its attached gas equipment (i.e. regulator, gauges, fittings, knobs) and
all adjustable chair sections and/or features (i.e. seat, back, leg, rails, actuators).
To prevent fire and/or explosive hazard, do not leave chair (and stowed oxygen equipment) near heat source.
To prevent gas equipment damage during transport, ensure cylinder sets in cradle properly and strap
mechanisms are secured tightly. Chair is intended to accommodate up to an E-size cylinder (4 3/8” outer
diameter x 25” length).
DO NOT PLACE EXCESSIVE WEIGHT ON ENDS
Position patient’s body weight uniformly over the patient surface. Use caution when shiing patient’s body
weight towards either end of the Procedure-Chair. Excessive weight on either end of the device could cause the
Procedure-Chair to become unstable.
Do not sit or stand on the ends of the Procedure-Chair. Instruct patients to not stand on footrest during egress or
ingress.
Due to the unique nature of each patient’s body shape, caregiver should exercise sound judgment when
positioning patient on the device.
WARNING

Page 7 of 35
manual
Document No.: ??????? - Revision: B
SAFETY PRECAUTIONS – CONTINUED
IMPORTANT: PLEASE READ
ACCESSORY WARNINGS
• To prevent serious injury and property damage, review Operating Manuals for all medical equipment and
accessories that may be used with, or attached to, this chair.
• Using the supplied accessories in the incorrect manner may cause patient, bystander, or facility harm.
• If chair is equipped with accessory belts, refer to the appropriate Field Installation and Usage Instructions
(provided with belts) for proper installation, use, and care.
• To prevent fire hazards, follow all precautions and operating procedures prescribed by suppliers of
oxygen administering equipment (i.e. oxygen gas regulators, tents, masks, cannulas, etc.)
• To prevent injury and property damage, total weight of items placed on “IV” pole must be less than 25
pounds.
• If mounting accessories to back surgical rails, ensure accessory is properly installed and securely
engaged prior to transporting patient or chair and prior to use. Only equipment approved by Champion
is to be mounted on surgical rails. Champion Manufacturing, Inc. is not responsible for damage and
assumes no liability caused by the use of unapproved equipment or accessories. Approved medical
equipment Includes tools, instruments, or scopes that are compatible with a 0.365” thick by 1.125” wide
surgical rail.
WARNING

Page 8 of 35
manual
Document No.: ??????? - Revision: B
SAFETY PRECAUTIONS – CONTINUED
IMPORTANT: PLEASE READ
CAUTIONS
DO NOT MODIFY CHAIR
Modifying chair can cause unpredictable operation resulting in injury to patient, medical personnel, or
bystander. Modifying chair will void warranty and may cause unsafe operating conditions.
USE SAFE OPERATING PROCEDURES
Prior to operating chair, ensure patient clearance by moving any overhanging equipment or moving chair from
under a table to prevent patient injury.
For TMM4 PLUS, chair must be at least 20 inches from nearest wall or obstruction to allow for full range of
activation.
Leave chair in lowest position whenever possible. This practice will decrease potential injury during an
unsupervised patient egress from chair.
Prior to patient transport in chair, raise side rails and ensure latching mechanism is in locked position. Medical
personnel must determine degree of restraint needed to ensure patient’s safety during transport.
For “F” Option Only: Since footrest is foldable (not locked in position), ensure protection of patient’s feet while
moving chair in close quarters (i.e. elevators, crowded hallways, procedure rooms).
INSPECT AND CLEAN CHAIR REGULARLY
Inspect cushions aer each use. Discontinue use if upholstery is ripped, cut, or torn, which could allow fluids
to enter cushion. This practice will prevent infection of patients and medical personnel and contamination of
medical equipment.
Do NOT use machine/pressure/power wash procedures on chair. Aer each use in a clinical setting, hand wash
all patient-contact surfaces (i.e. cushions, rails) and plastic base cover with warm water and mild detergent.
For “A” Option Only: For large fluid spills on chair, immediately unplug chair from AC wall outlet.
PLUG CHAIR INTO PROPERLY GROUNDED WALL OUTLET MARKED “HOSPITAL ONLY” OR “HOSPITAL
GRADE”
For “A” Option Only: Chair is equipped with hospital-grade three-prong plug for protection against electric shock
and must be plugged into properly grounded hospital-grade wall outlet.
MAXIMUM WEIGHT OF BACK SURGICAL BAR
The maximum weight capacity of each back surgical bar is 50 pounds. To prevent personal injury to patient, do
not mount equipment weighing more than 50 pounds to device. Weight of patient plus weight of equipment
should not exceed 500 pound weight capacity of the Procedure-Chair.
WARNING

Page 9 of 35
manual
Document No.: ??????? - Revision: B
SAFETY PRECAUTIONS – CONTINUED
IMPORTANT: PLEASE READ
EMI CAUTIONS
EMI MAY AFFECT CHAIR FUNCTIONALITY
Chair may be susceptible to EMI (Electromagnetic Interference) caused by electromagnetic energy emitted
from various sources, such as, radio and television stations, amateur radio (HAM) transmitters, citizen band (CB)
radios, hand-held “walkie-talkies”, security/police/fire transceivers and other communication devices. EMI can
cause chair to move by itself, or in an unintended fashion and can damage control system(s).
Intensity of interfering energy is measured in V/m (volts per meter). Chair can resist EMI up to a certain intensity,
called its “immunity level”. When the immunity level is higher, the less likely EMI will interfere with chair
operation. The chair has been certified to IEC 60601-1-2 Ed 4.1 Electromagnetic Disturbances – Requirements
And Tests.
In clinical environments devices can emit electromagnetic energy which becomes more intense as one moves
closer to energy source. To reduce chance of unintended movement or operation of chair, observe the following:
• Be aware of nearby high-power transmitters (radio and TV stations), MRI (magnetic resonance imaging)
systems, and NMR (nuclear magnetic resonance) imaging systems. Keep chair away from these areas.
• Do not operate hand-held transmitters near chair.
• Do not operate chair near others using hand-held transmitters.
• If unintended chair movement occurs, disconnect battery and move chair away from location.
WARNING

Page 10 of 35
manual
Document No.: ??????? - Revision: B
SAFETY PRECAUTIONS – CONTINUED
IMPORTANT: PLEASE READ
IMPORTANT
MAXIMUM PATIENT WEIGHT IS 500 lbs (227 kg)
Maximum patient weight capacity of chair is 500 pounds. If exceeded, damage to chair could occur.
CHAIR IS INTENDED FOR INDOOR USE ONLY
To ensure proper operation and extend chair life, only use chair in specified environment.
USE CDC’S UNIVERSAL PRECAUTIONS
When maintaining chair aer clinical use, service personnel must use UNIVERSAL PRECAUTIONS as defined by
CDC (Centers for Disease Control and Prevention).
MAINTAIN CHAIR REGULARLY
To ensure proper operation and extend chair life, inspect, maintain, and service chair on a regular basis.
Inspection, maintenance, and service details are located later in this manual.
REMOVE BATTERY DURING CHAIR STORAGE
For “B” Option Only: If chair is to be stored or not in use for four (4) days or more, remove battery pack from
chair. Refer to Battery Charger Installation and Usage Instructions (IM TMA57-15), under the “Cautionary Usage
Instructions” section, for more information.
For “A” Option Only: If chair is to be stored or not in use for four (4) days or more, leave chair plugged into an AC
wall outlet or unplug battery from control box. For more information, refer to “A” Option section below.
USE ONLY FACTORY APPROVED BATTERIES
Use of unapproved batteries will void warranty.
WARNING

Page 11 of 35
manual
Document No.: ??????? - Revision: B
PRODUCT LABELS/DIAGRAMS
(TMM5 PLUS-B SHOWN)
INSPECT
LABELS
PERIODICALLY
Every three (3) months, inspect all
labels and ensure they are legible
and not tattered, torn or missing.
Refer to the label locations in figure
below. If labels need replacing,
contact Champion Customer Service
at 1-800-237-3377.
WARNING
Item No. Part No. Description Qty
12 TMM-2449-10 TMM4 X Plus Bse Cover Label (Side) 2
11 TMM-2446-10 TMM4 Plus Base cover label (side) 2
10 TMM-2448-10 Label Base Cover 1
9 TMM-2247-10 Label, Qr Code TMM Videos 1
8 TMM-1216-10 Blank Serial Number Label 1
7 TMM-754-10 Max Weight Label 500 lb 1
6 TMM-684-10 Cover Clearance Caution Label (X-Model Only) 1
5 TMM-214-10 Product Label – Small 2
4 TMM-209-10 Serial Number Overlay 1
3 TMM-207-10 Backrest Quick Release Label 1
2 TMM-205-10 Aluminum Equivalency Lable 1
1 TMM-202-10 Chair End Warning Label 4

Page 12 of 35
manual
Document No.: ??????? - Revision: B
OPTIONS
BATTERY OPTION
DESIGNATOR. “B”
UPPER SIDE RAIL OPTION
DESIGNATOR. “R”
3 TMM-311-03 Mobillette Battery Pack 2
2 TMM-214-10 Product Label – Small 2
1 TMA57-15 Universal Charger Assembly 1 1 TMM-214-10 Product Label – Small 2
ITEM NO. PART NO. DESCRIPTION QTY. ITEM NO. PART NO. DESCRIPTION QTY.
FOLDING FOOTREST OPTION
DESIGNATOR. “F”
ARTICULATING FOOTREST OPTION
DESIGNATOR. “NON-F”
1 TMM-202-10 Chair End Warning Label 1 1 TMM-202-10 Chair End Warning Label 1
ITEM NO. PART NO. DESCRIPTION QTY. ITEM NO. PART NO. DESCRIPTION QTY.

Page 13 of 35
manual
Document No.: ??????? - Revision: B
OPERATING INSTRUCTIONS
QUICK RELEASE BACK SECTION
1. LOCATE RELEASE LEVER
Back section quick release (red) lever is located under seat
on patient’s right side. (Fig. 1)
2. ACTIVATE RELEASE LEVER
To activate back section quick release, pull red lever out
towards the arm rail. When weight is applied, back section
will drop until lever is released.(Fig. 2)
NOTE: Quick release feature is intended for emergency
purposes only.
PRIOR TO PERFORMING CHEST
COMPRESSIONS ON A PATIENT,
FIRST AND FOREMOST, THE
PATIENT SHOULD BE MOVED TO
A MORE STABLE, NON- PADDED
PLATFORM. SECONDARILY, IF
ATTEMPTING TO PERFORM CHEST COMPRESSIONS ON THE TMM DEVICE,
THE PATIENT SHOULD BE PLACED ON A BACK BOARD AND POSITIONED ON
THE CHAIR SO THE PATIENT’S CHEST CAVITY IS OVER, OR AS CLOSE TO,
THE COLUMN SUPPORT AS POSSIBLE. IT IS THE RESPONSIBILITY OF THE
MEDICAL PROFESSIONAL TO DETERMINE WHETHER CPR CAN BE EFFECTIVELY
PERFORMED ON THIS CHAIR ON A CASE-BY-CASE BASIS.
DO NOT TWIST OR ADJUST THE
DAMPER. (Fig. 3) DOING SO COULD
RESULT IN THE BACK RELEASE
LEVER FUNCTIONING IMPROPERLY
DURING AN EMERGENCY.
NOTE: To ensure proper operation, activate quick release
every thirty days. If quick release does not operate properly,
please contact Customer Service at 1-800-237-3377.
WARNING
FIG. 1
FIG. 3
FIG. 2

Page 14 of 35
manual
Document No.: ??????? - Revision: B

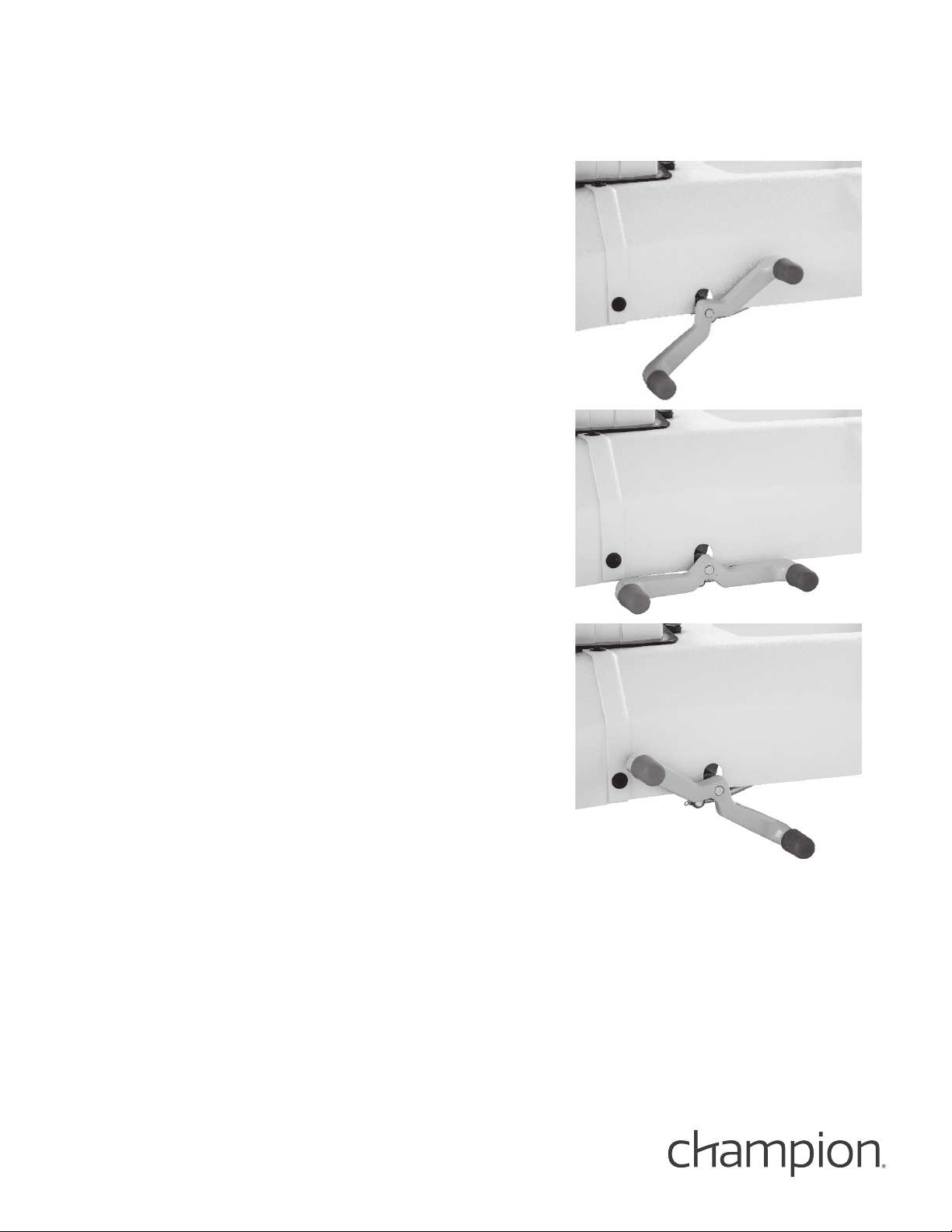

CASTER BRAKE OPERATION
BRAKE MODE
Activate braking system by pressing down on red end of either
brake pedal located at base of chair.(Fig. 1)
NOTE: This mode prevents all four casters from swiveling
and all wheels from spinning.
NEUTRAL MODE
Activate neutral mode by placing either brake pedal into a
horizontal orientation. (Fig. 2)
NOTE: This mode allows all four casters to swivel and all
wheels to spin freely.
STEER MODE
Activate steer-locking system by pressing down on green end of
either brake pedal located at base of chair. (Fig. 3)
NOTE: This mode locks caster (near patient’s right foot)
parallel to base, but allows this wheel to spin. Other three
casters swivel, and wheels spin freely.
FIG. 1
FIG. 2
FIG. 3

Page 15 of 35
manual
Document No.: ??????? - Revision: B
SIDE RAIL OPERATION
LOWERING SIDE RAIL
Grasp top of side rail and push inward slightly, while pulling out
red rail release tab. Once released, lower rail. (Fig. 1)
STOWING SIDE RAIL
To stow side rail, lower rail into “down” position below seat (or
back section depending on rail location). (Fig. 2)
RAISING SIDE RAIL
Li side rail until it is in “up” position. (Fig. 3)
NOTE: Red rail release tab will engage (lock) automatically.
Ensure side rail is secure by pulling on rail aer it is raised.
FIG. 1
FIG. 2
FIG. 3

Page 16 of 35
manual
Document No.: ??????? - Revision: B
FIG. 1
FIG. 2
ADJUSTING SIDE RAIL ANGLE
1. Remove seat cushion to expose access holes in seat pan.
2. Loosen top jam nut found in access holes.
(Seat pan is not shown in image for instruction purposes
only and to allow visibility of jam nut).
3. To move inward, rotate bottom jam nut as shown.
4. To move outward, rotate bottom jam nut as shown.
5. Once aligned, tighten top jam nut.
IMPORTANT
• You do not need to hold bottom nut to tighten top.
Once aligned, top nut is tightening nut.
• When adjusting, ensure bottom
jam nut is contacting seat frame.
• Ball joint head angle does not
matter.
• Prior to adjustment, pull outward
on side rail in order for system to
settle.
• Ensure top jam nut engages at
least two full threads.
• Do not over tighten top jam nut
(there is no need).
6. Reattach seat cushion.
FIG. 3
FIG. 5
FIG. 6
FIG. 4

Page 17 of 35
manual
Document No.: ??????? - Revision: B
PENDANT (CONTROLLER)
PENDANT IS NOT INTENDED FOR
PATIENT’S USE
To prevent damage, pendant can be
stored at various locations on the
chair when not in use.
ENSURE AREA IS CLEAR OF
OBSTRUCTIONS PRIOR TO
PENDANT USE
To prevent property damage or
injury to patient, survey area for
possible obstructions prior to
pendant use.
WARNING
WARNING

Page 18 of 35
manual
Document No.: ??????? - Revision: B
PENDANT (CONTROLLER) – CONTINUED
BACK SECTION ADJUSTMENT
First row of pendant buttons adjusts angle of back section.
a. Press le button to raise chair back.
b. Press right button to lower chair back.
LEG SECTION ADJUSTMENT
Second row of pendant buttons adjusts angle of leg section.
a. Press le button to raise chair’s leg section.
b. Press right button to lower chair’s leg section.
SEAT HEIGHT ADJUSTMENT
Third row of pendant buttons adjusts height of seat section.
a. Press le button to raise chair’s seat.
b Press right button to lower chair’s seat.
SIMULTANEOUS LEG AND BACK SECTION (AUTO
CONTOUR) OPERATION
Fourth row of pendant buttons controls simultaneous actuation
of leg and back sections.
a. Press le button to raise chair’s leg section and lower chair’s
back, resulting in stretcher configuration.
b. Press right button to lower chair’s leg section and raise
chair’s back, resulting in chair configuration.
SEAT TILT/TRENDELENBURG ADJUSTMENT (FOR “X”
MODEL OPTIONAL)
Fih row of pendant buttons controls the seat section incline/
recline or Trendelenburg/reverse Trendelenburg position
depending on chair.
a. Press le button to raise front of seat section (Trendelenburg
in Stretcher position).
b. Press right button to lower front of seat section (Reverse
Trendelenburg in Stretcher position).

Page 19 of 35
manual
Document No.: ??????? - Revision: B
PATIENT INGRESS/EGRESS
PATIENT SHOULD NEVER BE PERMITTED TO ENTER / EXIT FROM ENDS OF
PROCEDURE CHAIR WHEN IN AN UPRIGHT, PARTIALLY, OR TOTALLY RECLINED
POSITION. EXCESSIVE WEIGHT ON ENDS COULD CAUSE CHAIR TO TILT,
RESULTING IN POSSIBLE PATIENT INJURY.
IMPORTANT: Follow these instructions for safe and proper patient ingress (entry onto chair) and egress
(exit from chair).
a. Patient ingress and egress should always be made with chair in upright-chair position.
b. Patient must enter and exit from side of chair with their body weight centered over seat section.
c. See PATIENT TRANSFER section for instruction on transferring patient from one horizontal surface to
another.
PATIENT INGRESS (ENTRY)
1. Depress RED caster brake pedal to lock caster wheels.
2. Adjust chair to lowest height and into upright-chair position.
3. Lower one side rail of seat section.
4. If back section rails are present, remove/lower back section rail of same side.
5. Position patient (facing away from chair) at seat section.
6. WITH PATIENT ENTERING FROM SIDE OF CHAIR, assist patient while they sit down on seat section.
7. Once patient is fully seated, assist them in rotating their body in-line with chair into a seated position.
PATIENT EGRESS (EXIT)
1. Depress RED caster brake pedal to lock caster wheels.
2. Adjust chair to lowest height and into upright-chair position.
3. Lower one side rail of seat section.
4. If back section rails are present, remove/lower back section rail of same side.
5. Ensure patient’s body weight is centered on seat section.
6. WITH PATIENT EXITING TO SIDE OF CHAIR, assist patient in rotating their body by placing their legs over one
side of chair.
7. Assist patient into standing position from seated position.
WARNING

Page 20 of 35
manual
Document No.: ??????? - Revision: B
PATIENT TRANSFER
 PATIENT’S BODY WEIGHT SHOULD NEVER BE SHIFTED TOWARDS EITHER END
OF CHAIR WHEN IN A PARTIALLY, OR TOTALLY, RECLINED POSITION. SERIOUS
PATIENT INJURY MAY OCCUR. ALL PATIENT TRANSFERS MUST BE MADE FROM
SIDE OF CHAIR, NOT CHAIR ENDS.
IMPORTANT: Follow these instructions for safe and proper patient transfer between chair (in stretcher
orientation) and another horizontal surface.
1. Position back, seat, and leg sections into horizontal orientation. (Press Auto Contour button.)
2. Lower/remove all side rails from transfer (right) side of chair.
3. Position chair as close as possible to other surface.
4. Match chair height to height of bed or other horizontal surface.
5. Depress RED caster brake pedal to lock caster wheels.
6. Slide patient from one surface to other, following your facility’s standard practices/policies for lateral patient
transfers.
PUSH BAR OPERATION (STANDARD WITH NON “X”
MODEL)
LOWERING PUSH BAR
1. Grasp push bar handle while pulling out red release knob.
2. Lower push bar into “down” position.
RAISING PUSH BAR
Li push bar handle until it is in “up” position.
NOTE: The red release knob will engage (lock) automatically.
FIG. 1
FIG. 2
WARNING
