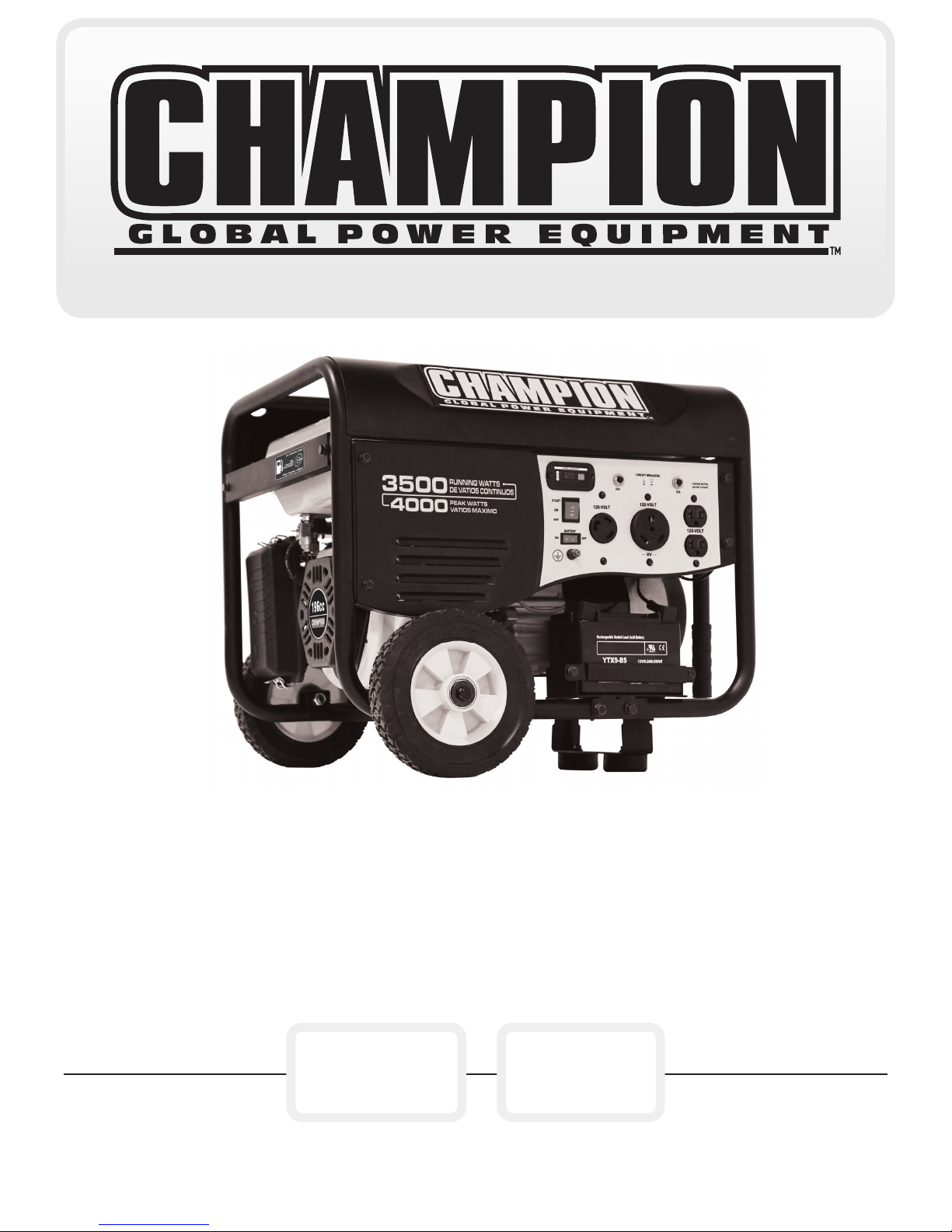

Champion 46561 System manual

10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1 [phone]
www.championpowerequipment.com
4000 Peak Watts / 3500 Running Watts
PORTABLE GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 46561-20111117
Wireless Remote Electric Start
46561
MODEL NUMBER
2YEAR
LIMITED WARRANTY
OWNER’S MANUAL & OPERATING INSTRUCTIONS

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
24/7 Tech Support: [phone]

46561
Wireless Remote Electric Start
PORTABLE GENERATOR
4000 Peak Watts / 3500 Running Watts
TABLE OF CONTENTS
Introduction............................. 1
Introduction........................... 1
Portable Power Generator.................. 1
Accessories........................... 1
This Booklet........................... 1
Manual Conventions........................ 2
Safety Rules............................. 3
Controls and Features ...................... 5
Generator............................. 5
Power Panel........................... 6
Wireless Remote Control .................. 7
Remote Control Power Consumption........ 7
Power Panel Load Management ........... 7

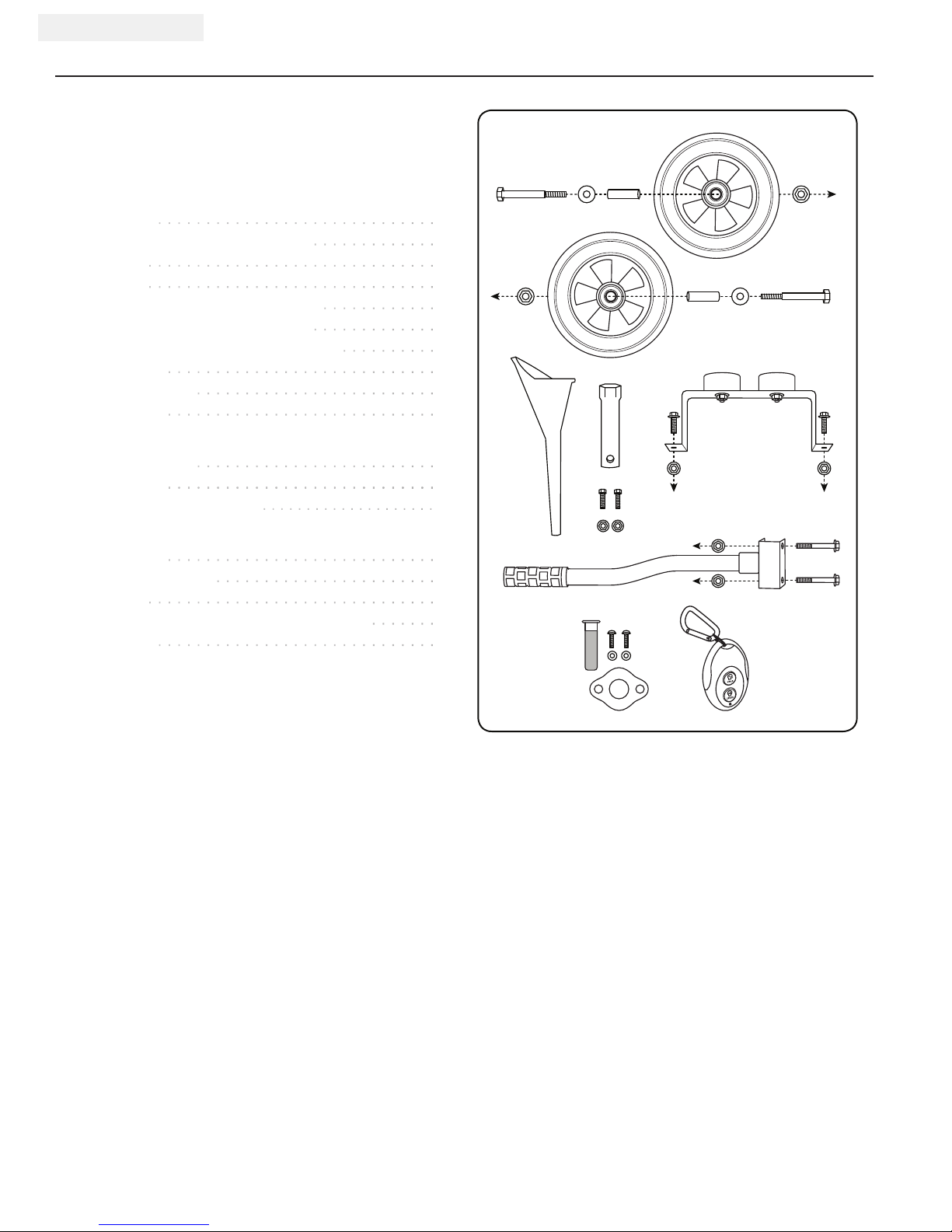

Parts Included ......................... 8
Wheel Kit .......................... 8
Spark Arrester Kit..................... 8
Other ............................. 8
Assembly............................... 9
Remove the Generator from the Shipping Carton .. 9
Install the Wheel Kit..................... 9
Install the Support Leg ................... 9
Install the Handles ...................... 9
Connect the Battery .................... 10
Install the Spark Arrester................. 10
Add Engine Oil ........................ 10
Add Fuel ............................ 11
Grounding ........................... 11
Operation.............................. 12
Generator Location..................... 12
Grounding ........................... 12
Surge Protection....................... 12
Wireless Remote Start................... 12
Starting the Engine without Remote.......... 12
Connecting Electrical Loads............... 13
Stopping the Engine .................... 13
Do Not Overload Generator................ 14
Capacity .......................... 14
Power Management................... 14
Wattage Reference Chart................. 14
Maintenance and Storage................... 15
Engine Maintenance .................... 15
Oil .............................. 15
Spark Plugs........................ 15
Air Filter.......................... 15
Spark Arrester ...................... 16
Cleaning .......................... 16
Adjustments........................ 16
Maintenance Schedule ................ 16
Generator Maintenance .................. 17
Storage............................. 17
Generator Storage.................... 17
Disconnect the Battery ................ 17
Charge the Battery................... 17
Specifications........................... 18
Engine Specifications ................... 18
Generator Specifications ................. 18
Fuel ............................... 18
Oil ................................ 18
Spark Plugs.......................... 18
Valve Clearance ....................... 18
FCC Statement for Remote Control Device..... 18
Parts Diagram ........................ 19
Parts List............................ 20
Engine Parts Diagram ................... 21
Engine Parts List
Wiring Diagram........................ 23
Troubleshooting.......................... 24
Warranty .............................. 25
Warranty Qualifications .................. 25
Repair/Replacement Warranty.............. 25
Do Not Return The Unit To
The Place Of Purchase .................. 25
Warranty Exclusions .................... 25
Normal Wear ....................... 25
Installation, Use and Maintenance ........ 25
Other Exclusions..................... 25
Limits of Implied Warranty
and Consequential Damage ............. 25
Contact Information..................... 25
Address........................... 25
Customer Service.................... 25
Technical Service.................... 25
Emission Control System Warranty .......... 26

1REV 46561-20111117
ENGLISH 46561
Introduction
Congratulations on your purchase of a Champion
Power Equipment generator. CPE designs and builds
generators to strict specifications. With proper use and
maintenance, this generator will bring years of satisfying
service.
Portable Power Generator
This unit is a gasoline engine driven, alternating current
(AC) generator. It is designed to supply electrical power
for lighting, appliances, tools and similar equipment.
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Accessories
Champion Power Equipment manufactures and sells
accessories designed to help you get the most from
your purchase. To find out more about our covers, power
cables and storm kits, please visit our web site at:
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1 [phone]
46561
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
INTRODUCTION

REV 46561-20111117 2
46561 ENGLISH
MANUAL CONVENTIONS
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your generator, we can
help. Please call our help line at 1 [phone]
NOTE

3REV 46561-20111117
ENGLISH 46561
SAFETY RULES
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result
in serious injury or death.
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
Operate generator outdoors only in a well ventilated
area.
DO NOT operate the generator inside any building,
including garages, basements, crawlspaces and
sheds, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE: using a generator
indoors CAN KILL YOU IN MINUTES.
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged
or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such
as metal decking.
Use approved transfer equipment to isolate generator
from your electric utility and Notify your utility
company before connecting your generator to your
power system.
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
Running engines produce heat. Severe burns can
occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all sides
to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.
DANGER
DANGER
DANGER
WARNING
WARNING
WARNING
WARNING

REV 46561-20111117 4
46561 ENGLISH
SAFETY RULES
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel:
Turn the generator off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly on
level ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it.
DO NOT overload the generator.
Start the generator and allow the engine to stabilize
before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
Improper treatment or use of the generator can
damage it, shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
CAUTION
WARNING
WARNING
DANGER
CAUTION

5REV 46561-20111117
ENGLISH 46561
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.

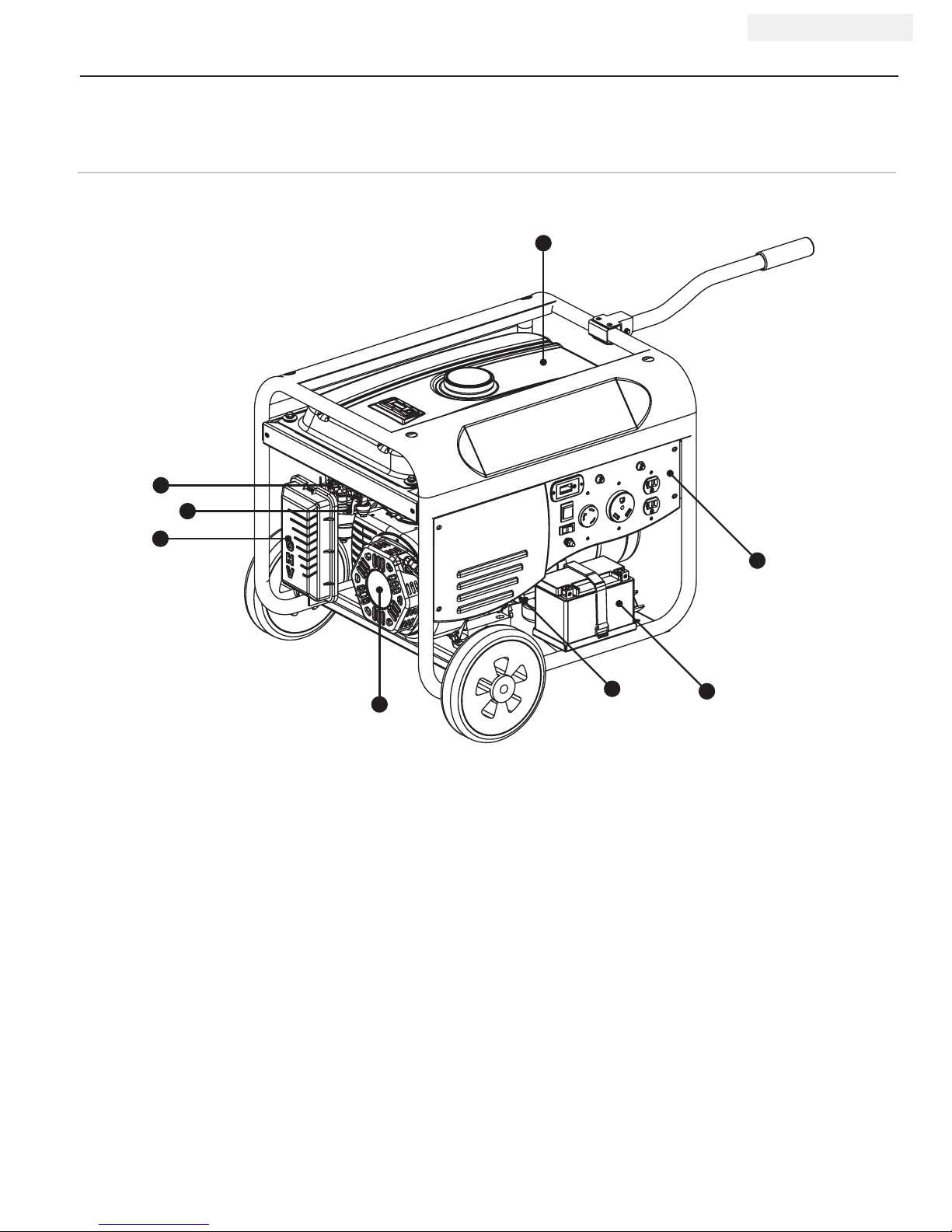

(1) Fuel Tank – 4 gallon (15 L) capacity fuel tank.
(2) Auto-Choke – Used to start the engine. No manual
adjustment required.
(3) Fuel Valve – Turn this valve to the “On” position to
supply fuel to the engine.
(4) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air.
(5) Recoil Starter – Used to start the engine.
(6) Oil Filler Cap – Check and fill engine oil level.
(7) Battery – Used to start the engine. Provides 12V
DC to the electric starter and receiver control
module.
(8) Power Panel – See “Power Panel” section.
1
5
3
2
4
7
6
8
Generator
CONTROLS AND FEATURES

REV 46561-20111117 6
46561 ENGLISH
Power Panel
1
5 6 7 8
3
(1) Intelligauge – Three mode digital meter for running
hours, voltage and hertz.
(2) Ignition Switch
(3) Circuit Breaker(s) – Protects the generator against
electrical overload.
(4) Battery Switch – Enables/disables starting
electrically – via remotely or by Ignition Switch.
(5) Ground Terminal – Consult an electrician for local
grounding regulations.
(6) 120V / 30A Twist-Lock – This receptacle powers
120 Volt AC, 60 Hz, single phase loads requiring
up to 29.2 Amps or 3500 Watts of power.
(7) 120V / 30A Recreational Vehicle (RV) Receptacle –
This receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 29.2 Amps or 3500
Watts of power.
(8) 120V / 20A Duplex – Protected by a 20 Amp
push-to-reset circuit breaker . Use each recepticle
to operate 120 Volt AC, single phase, 60 Hz loads
requiring up to 20 Amp 0r 2400 Watts of power.
2
CONTROLS AND FEATURES
4

7REV 46561-20111117
ENGLISH 46561
CONTROLS AND FEATURES
Wireless Remote Control
This generator is equipped with a wireless remote
control system for starting and stopping. The system
consists of (4) main components:
1. Receiver Control Module (RCM)
2. Wireless Remote
3. Battery Switch
4. Ignition Switch
The Remote Control functions are enabled when:
1. The Ignition Switch is in the “ON” position, AND
2. The Battery Switch is in the “ON” position.
The Remote Control functions are disabled if either of
the above conditions is not met.
To start the generator by Remote Control, press the
“START” button on the Remote one time. The engine
will attempt to start (6) times. The RCM controls
the Auto Choke during each attempt to start. If the
generator does not start, call Champion Customer Care
team for assistance at 1 [phone].
To stop the generator by Remote Control, press the
“STOP” button on the Remote one time.
Remote Control Power Consumption
While the Ignition Switch is in the “ON: position, the
RCM is active and waiting for a remote signal. This
function requires electrical current from the battery.
If the Ignition Switch is left in the “ON” position for
extended periods (several weeks), the battery can be
completely drained.
Moving the Ignition Switch to the “OFF” position
disables the Remote functions, but the RCM still
consumes approximately 2 mA from the battery.
To prevent battery drain, press the Battery Switch to the
“OFF” position. This disconnects power to the RCM so
there is no current draw on the battery.
Power Panel Load Management
When the generator initially starts by the Remote, no
voltage is supplied to the Power Panel for approximately
15 seconds. This allows the engine to reach full speed
before electrical loads are applied to the generator.
When the generator is stopped by the Remote, the
voltage to the Power Panel is immediately turned off.
Then the engine stops approximately 5 seconds after
the “STOP” button on the Remote is pressed. Turning
the Power Panel voltage off before the engine shutdown
protects connected appliances from being damaged by
non-60 Hz voltage while the generator coasts to a stop.
The on/off voltage delay at startup and shut down only
happen when the Remote Control is used. There is no
voltage delay when the pushbutton electric start or recoil
start method is used.
When the pushbutton electric start or recoil start
method is used, the operator must be sure all electrical
loads (appliances) are turned OFF during startup and
shutdown. Damage to the generator or the attached
appliances can be caused by starting or stopping the
generator while appliances are plugged in and turned ON.
Power Panel Load Management Cont’d.

REV 46561-20111117 8
46561 ENGLISH
Parts Included
Your 46561 Gasoline Powered Generator ships with the
following parts:
Wheel Kit
– 8” Wheel............................. 2
– Support Leg w/ Vibration Mounts............. 1
– Bushing.............................. 2
– Handle .............................. 1
– Flange Bolt (M10x105 for Wheel) ............ 2
– Flange Bolt (M8x45 for Handle) ............. 2
– Flange Bolt (M8x16 for Support Leg).......... 2
– Nut (M10)............................2
– Flat Washer 10 .........................2
– Nut (M8) ............................ 6
Spark Arrester Kit
– Spark Arrestor ......................... 1
– Cover Plate............................ 1
– Screw with Lock Washer .................... 2
Other
– Oil Funnel ............................ 1
– Spark Plug Socket .......................1
– Remote.............................. 1
– Cap Screw (M6x10 for Battery Terminals)....... 2
– Nut (M6) .............................2
CONTROLS AND FEATURES
(Battery Bolts)

9REV 46561-20111117
ENGLISH 46561
ASSEMBLY
Install the Handles
1. Place the handle over the mounting channel on the
frame.
2. Secure the handle to the frame using the two handle
bolts (M8x45).
3. Place a lock nut (M8) on the end of each bolt and
fasten securely. DO NOT over tighten the lock nuts.
Your generator requires some assembly. This unit ships
from our factory without oil. It must be properly serviced
with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our help line at 1 [phone]. Please
have your serial number and model number available.
Remove the Generator from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the
generator.
3. Carefully cut each corner of the box from top to
bottom. Fold each side flat on the ground to provide a
surface area to install the wheel kit and support leg.

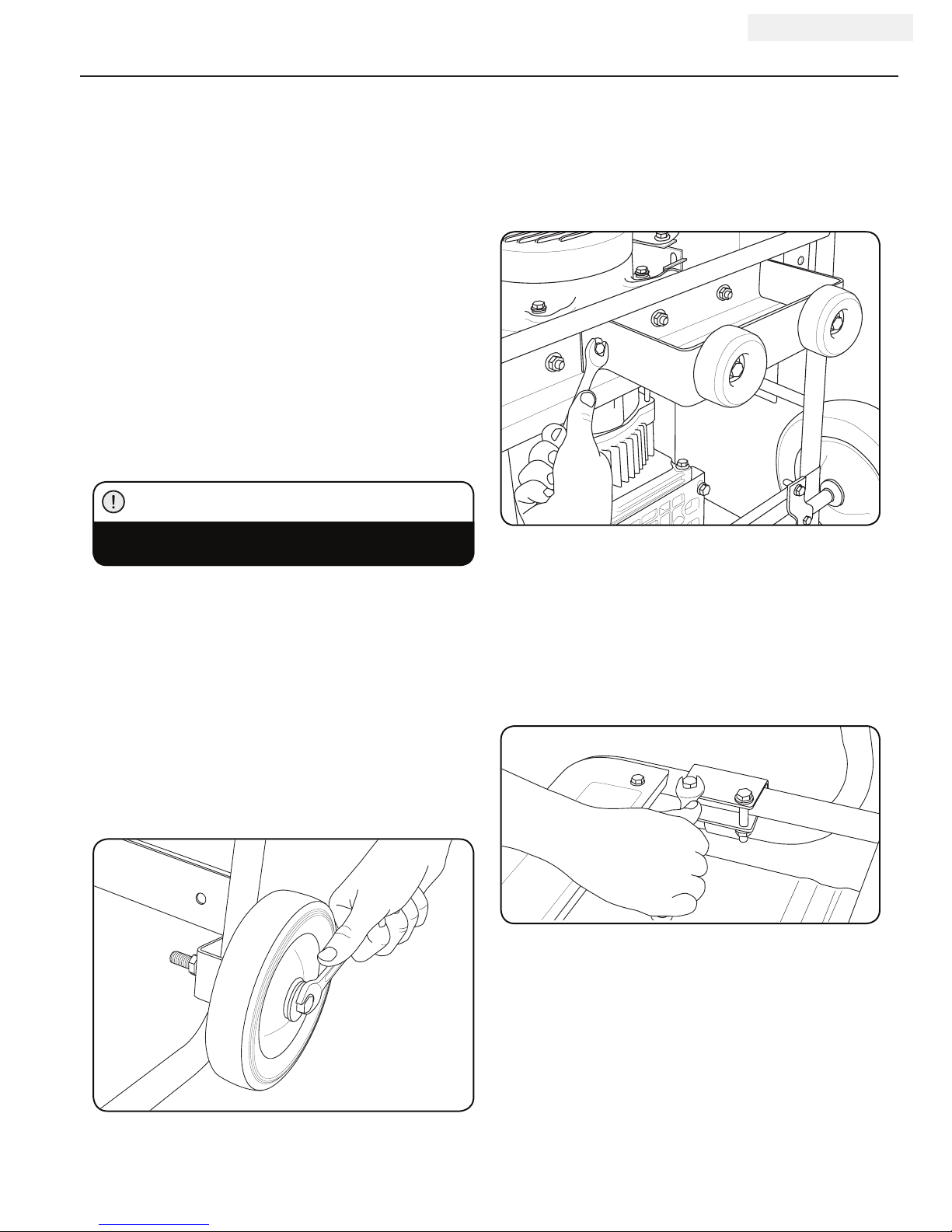

Install the Wheel Kit
You will need the following tools to install the wheels:
• 17 mm wrench OR adjustable wrench (not included)
• Socket wrench with a 16 mm socket (not included)
• Pliers (not included)
1. Before adding fuel and oil, tip the generator on it’s side.
2. Slide the M10x105 wheel bolt through the washer,
sleeve and wheel.
3. Slide the bolt through the mount point on the frame.
4. Fasten securely with the M10 nut.
5. Repeat steps 2-4 to attach the second wheel.
Install the Support Leg
1. Attach the support leg to the generator frame with
cap screws (M8x16) and lock nuts (M8).
2. Tip the generator slowly so that it rests on the
wheels and support leg.
The wheel kit is not intended for over-the-road use.
CAUTION

REV 46561-20111117 10
46561 ENGLISH
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add 0.63 qt (0.6 L) of oil and replace oil fill
cap/dipstick. See “Specifications” pages for oil
recommendations based on operating conditions.
4. Check engine oil level daily and add as needed.
The recommended oil type is 10W-30 4-cycle
automotive oil. Please see “Specifications” section
for more information on oil types.
NOTE
Failure to install the spark arrester may result in an
increased risk of fire.
CAUTION
The engine is equipped with a low-oil-shutoff and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Connect the Battery
1. Remove the protective cover from the red (+) lead on
the battery.
2. Attach the red (+) lead to the red (+) terminal on the
battery with the cap screw (M6x10) and secure with
the lock washer (M6).
3. Repeat steps 1-2 for the black (–) battery lead.
Install the Spark Arrester
Insert the spark arrester screen into the muffler outlet.
Secure the spark arrester by placing the cover plate over
the end of the screen, with the lettering facing outward.
Secure the cover plate with the two screws and lock
washers provided with the spark arrester kit.
Federal and local laws and administrative
requirements indicate when and where spark
arresters are required. When ordered, spark
arresters are required for operation of this generator
in National Forest lands. In California, this
generator must not be used on any forest- covered
land, brush-covered land, or grass- covered land
unless the engine is equipped with a spark arrester.
NOTE
Add Engine Oil
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the generator as
a result of failure to follow these instructions will
void your warranty.
CAUTION
ASSEMBLY

11 REV 46561-20111117
ENGLISH 46561

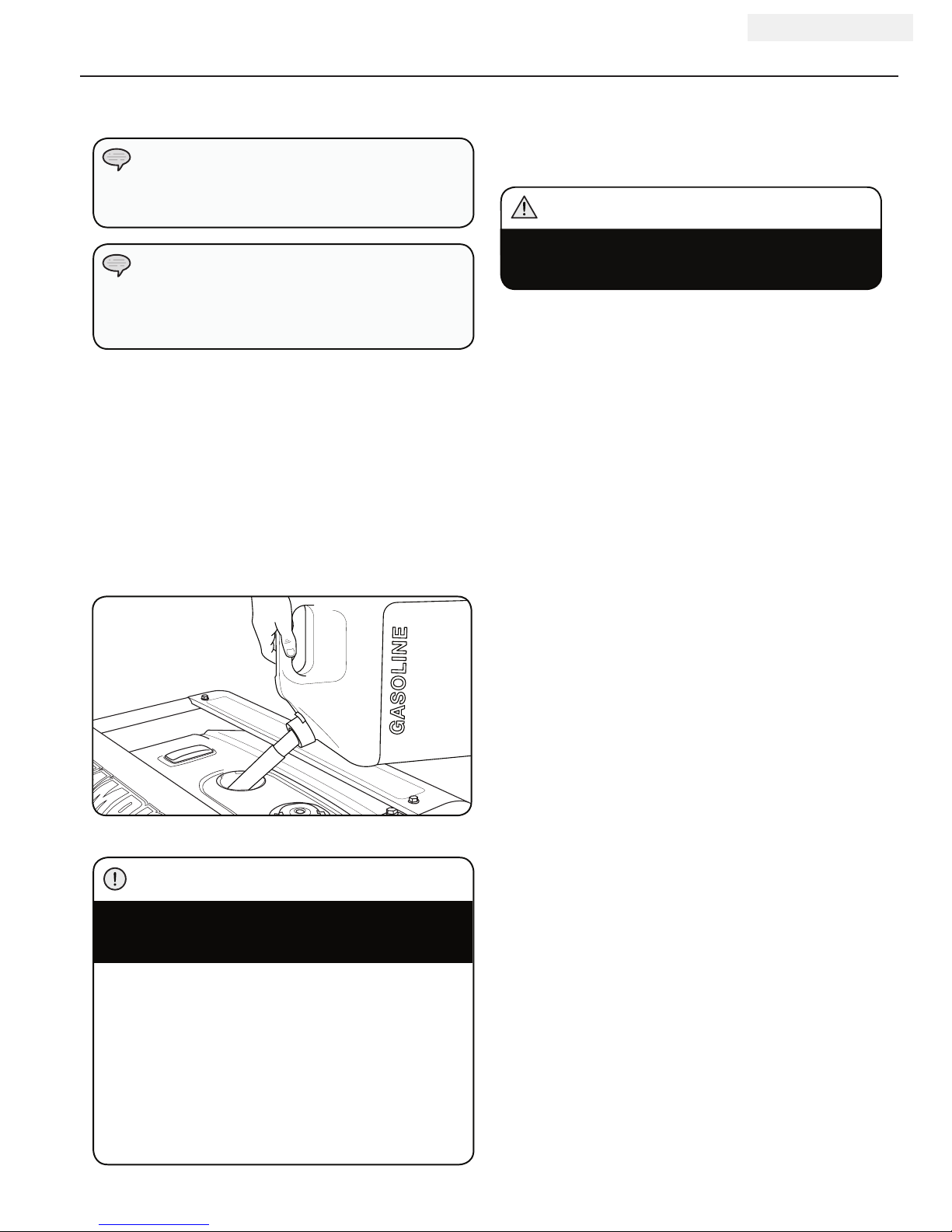

Add Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT overfill. Allow
approximately ¼ inch of space for fuel expansion.
6. Screw on the fuel cap and wipe away any spilled fuel.
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated ball
bearing that requires no additional lubrication for
the life of the bearing.
NOTE
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ inch below the top of
the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Add Engine Oil Cont’d.
ASSEMBLY
Grounding
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
A ground terminal connected to the frame of the generator
has been provided on the power panel. For remote
grounding, connect of a length of heavy gauge (12 AWG
minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We
strongly recommend that you consult with a qualified
electrician to ensure compliance with local electrical codes.
Failure to properly ground the generator can result
in electric shock.
WARNING

REV 46561-20111117 12
46561 ENGLISH
Generator Location
Please consult your local authority. In some areas,
generators must be registered with the local utility.
Generators used at construction sites may be subject to
additional rules and regulations.
This generator must have at least five feet of clearance
from combustible material. Leave at least three feet
of clearance on all sides of the generator to allow for
adequate cooling, maintenance and servicing.
Place the generator in a well-ventilated area. DO NOT
place the generator near vents or intakes where exhaust
fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning generator.
Grounding
The generator system ground connects the frame to the
ground terminals on the power panel.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are
designed to operate within a narrow voltage range and
may be affected by momentary voltage fluctuations.
While there is no way to prevent voltage fluctuations, you
can take steps to protect sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in surge suppressors
on the outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet
styles. They’re designed to protect against virtually
all short-duration voltage fluctuations.
2. Obtain an Uninterruptible Power Supply (UPS) device.
Most UPS devices come with a rechargeable battery
between the electronic equipment and power supply
source. The device buffers the voltage and protects
against virtually all short-duration voltage fluctuations.
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
CAUTION
OPERATION
Starting the Engine without Remote
1. Make certain the generator is on a flat, level surface.
2. Turn off all electrical loads connected to the generator.
Never start or stop the generator with electrical
devices plugged in and turned on.
3. Turn the Fuel Valve to the “ON” position.
4. Press the Battery Switch to “ON”.
5. ELECTRIC START: Press the switch to the “START”
position.
6. RECOIL START: Pull the starter cord slowly until
resistance is felt and then pull rapidly.
Wireless Remote Start
Wireless remote starting is only possible within 80 feet of
the generator.
Do not attempt to adjust the carburetor choke. The remote
system will automatically close and open the choke.
1. Make certain the generator is on a flat, level surface.
2. Press the Ignition Switch to “ON”.
3. Press the Battery Switch to “ON”.
4. Turn the Fuel Valve to the “ON” position.
5. To start the engine, press and release the “START”
button on the handheld Remote Control device. DO
NOT hold the button down, only press the button
once. The engine will attempt to start 6 times.
6. A safety feature is provided which delays the
electrical power availability during starting mode.
The delay lasts for approximately 15 seconds. The
delay is provided to prevent damage to the generator
if electrical loads are inadvertently turned on during
engine startup.
7. If the generator fails to start, check the battery
condition and cable connections.
If the engine starts but does not run make certain
that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE

13 REV 46561-20111117
ENGLISH 46561
Connecting Electrical Loads
1. Let the engine stabilize and warm up for a few
minutes after starting
2. Plug in and turn on the desired 120 Volt AC single
phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT connect 50 Hz loads to the generator.
– DO NOT overload the generator.
Stopping the Engine
1. Turn off all electrical loads connected to the
generator. Never start or stop the generator with
electrical devices plugged in and turned on.
2. Press and release the STOP button on the Remote
Control device OR turn the Ignition Switch to the
“Off” position.
3. Turn the Fuel Valve to the “OFF” position.
Important: If the generator will be moved or stored turn
the Fuel Valve to the “OFF” position, press the Ignition
Switch and the Battery Switch on the power panel to the
“OFF” position.
When the stop button on the remote is pressed,
power to the receptacles is turned off and the
engine will stop after 5 seconds.
Connecting a generator to your electric utility
company’s power lines or to another power source
may be against the law. In addition this action,
if done incorrectly, could damage your generator
and appliances and could cause serious injury or
even death to you or a utility worker who may be
working on nearby power lines. If you plan to run a
portable electric generator during an outage, please
notify your electric utility company immediately
and remember to plug your appliances directly
into the generator. Do not plug the generator into
any electric outlet in your home. Doing so could
create a connection to the utility company power
lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the
electric utility power lines.
If the generator will be connected to a building
electrical system, consult your local utility company
or a qualified electrician. Connections must isolate
generator power from utility power and must comply
with all applicable laws and codes.
NOTE NOTE
OPERATION

REV 46561-20111117 14
46561 ENGLISH
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and
starting watts necessary for your purposes.
1. Select the electrical devices you plan on running at
the same time.
2. Total the running watts of these items. This is
the amount of power you need to keep your items
running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Surge wattage is the extra
burst of power needed to start some electric driven
equipment. Following the steps listed under “Power
Management” will guarantee that only one device will
be starting at a time.
Power Management
Use the following formula to convert voltage and
amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach
the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Never exceed the specified capacity when adding
loads to the generator.
NOTE
OPERATION
Wattage Reference Chart
Use the chart to determine approximate wattage
requirements for your equipment.
Item Running
Watts (A)
Starting
Watts (B)
Essentials
Light Bulb 100W 100
Refrigerator/Freezer 1200 2400
Freezer 500 500
Sump Pump 600 1800
Well Pump 1 HP 2000 4000
Water Heater 4000
Security System 180
AM/FM Radio 300
Garage Door Opener 1/2 HP 500 600
Battery Charger 12V DC 110
Heating/Cooling
Air Conditioner 12000 BTU 1700 2500
Fan 300 600
Furnace Fan 1/3 HP 1200 2000
Home Appliances
Microwave 1000W 1000
Electric Range - One Element 1500
Electric Skillet 1250
Coffee Maker 1500
Clothes Washer 1200
Entertainment
CD/DVD Player / VCR 100
Stereo Receiver 450
Television 27” 500
PC with 15” Monitor 800
Job Site
Belt Sander 3” 1000 1500
Bench Grinder 6” 700 1500
Circular Saw 1500 1500
Compressor 1 1/2 HP 2500 2500
Edge Trimmer 500 500
Hand Drill 1/2” 1000 1000
Lawn Mower 1200 1800
Paint Sprayer 600 1200
Table Saw 2000 2000
Exceeding specified load capacity can result in
damage to the generator.
To determine total wattage necessary to power
a device, ADD Running Watts to Starting Watts.
(A+B). Starting watts can exceed three times the
running watts. The values in the following table are
approximate. Refer to your tool or appliance for actual
wattage consumption.
CAUTION

15 REV 46561-20111117
ENGLISH 46561
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
Never operate a damaged or defective generator.
Tampering with the factory set governor will void
your warranty.
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 12 mm socket and
extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 0.63 qt (0.6 L) of oil and replace oil fill
cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
Air Filter
1. Remove the snap-on cover holding the air filter to
the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all
excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in place.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use the spark plug tool that shipped with your
generator to remove the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use the spark plug tool to firmly install the plug.
8. Attach the spark plug wire to the plug.
For service or parts assistance, contact our help
line at 1 [phone]
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
WARNING
Improper maintenance will void your warranty.
WARNING
Oil Cont’d.
0.7 - 0.8 mm
0.028 - 0.031 in.
MAINTENANCE AND STORAGE
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE

REV 46561-20111117 16
46561 ENGLISH
Adjustments
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. CPE
recommends that you contact our service line at
1 [phone] for all other service and/or
adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating
in adverse conditions.
Contact our help line at 1 [phone] to locate the
nearest Champion Power Equipment certified service
dealer for your generator or engine maintenance needs.
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.
Spark Arrester
1. Allow the engine to cool completely before servicing
the spark arrester.
2. Remove the two screws holding the cover plate which
retains the end of the spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and attach
with the two screws.
Failure to clean the spark arrester will result in
degraded engine performance.
CAUTION
MAINTENANCE AND STORAGE

17 REV 46561-20111117
ENGLISH 46561
MAINTENANCE AND STORAGE
Generator Maintenance
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Storage
The generator should be started at least once every 14
days and allowed to run for at least 20 minutes. For
longer term storage, please follow these guidelines.
Generator Storage
1. Allow the engine to cool completely before storage.
2. Clean the generator according to the instructions in
the Maintenance section.
3. Turn the Fuel Valve to the “OFF” position.
4. Be sure all appliances are disconnected from the
generator. Start the engine and let it run until the
fuel in the line and the carburator is consumed and
the engine dies.
5. Press the Battery Switch to “OFF”.
6. Add a fuel stabilizer into the fuel tank.
7. Change the oil.
8. Remove the spark plug and pour about ½ ounce
of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
9. Reattach the spark plug.
10. Store the unit in a clean, dry place out of direct
sunlight.
Use a damp cloth to clean exterior surfaces of the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
CAUTION
Disconnect the Battery
1. Remove the protective cover from the black/negative
battery lead.
2. Disconnect the black/negative lead from the black/
negative terminal on the battery and store the cap
screw (M6x10) and lock washer (M6).
3. Repeat steps 1-2 for the red/positive battery lead.
4. Store the battery in a cool, dry place.
Charge the Battery
For generators equipped with batteries for electric
starting, proper battery maintenance and storage
should be followed. An automatic battery charger with
automatic trickle charging capability should be used to
charge the battery. Maximum charging rate should not
exceed 1.5 amps. Follow the instructions included with
the battery charger. The battery should be fully charged
at least once per month.
Generator exhaust contains odorless and colorless
carbon monoxide gas.
To avoid accidental or unintended ignition of your
remote start generator during periods of storage,
the following precautions should be followed:
– When storing the generator for short periods of
time make sure that the Ignition Switch, the Fuel
Valve and the Battery Switch are set in the OFF
position.
– When storing the generator for extended periods
of time make sure that the Ignition Switch, the
Fuel Valve and the Battery Switch are set in the
the the OFF position and the battery leads have
been disconnected from the battery.
DANGER
